Delta DOP-103BQ HMI Panel

• Brand  :  Delta
• Display  :  4.3" TFT LCD
• Resolution  :  480 x 272 pixels
• Voltage  :  24V DC

Delta DOP-103BQ HMI Panel

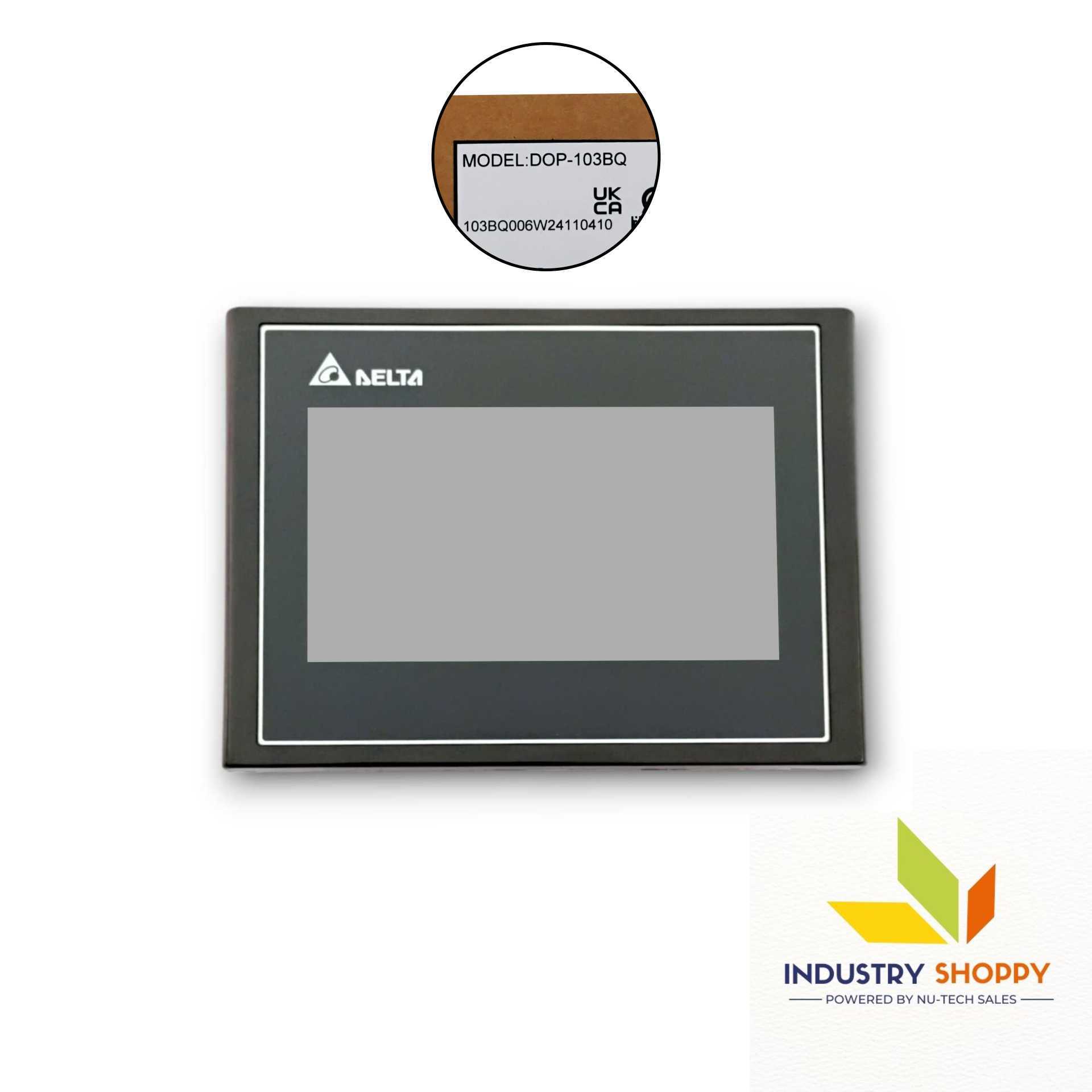

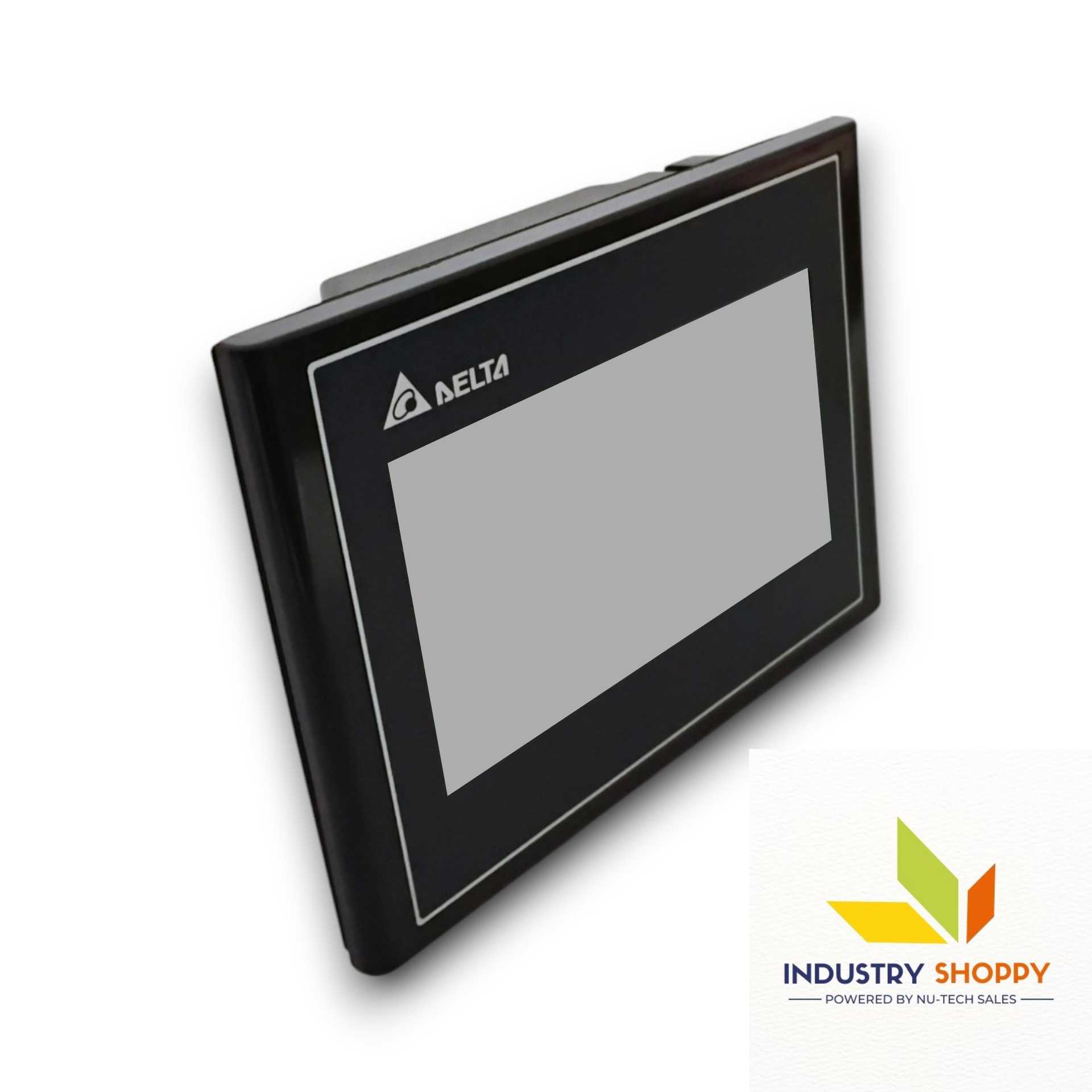

The Delta DOP-103BQ HMI Panel is a compact and high-performance Human Machine Interface (HMI) from the DOP series, designed for industrial automation applications. Featuring a 4.3-inch TFT LCD display with 16-bit color depth, it delivers clear and vibrant visuals with a resolution of 480 x 272 pixels and a brightness of 400 cd/m². The LED backlight ensures a long lifespan of 20,000 hours, making it durable for continuous operation.

Powered by an ARM Cortex-A8 (800 MHz) processor, the DOP-103BQ provides fast and reliable performance. It comes with 256MB Flash ROM and 256MB RAM, ensuring smooth operation and efficient data handling. The four-wire resistive touch panel is built for durability, supporting over 10 million presses.

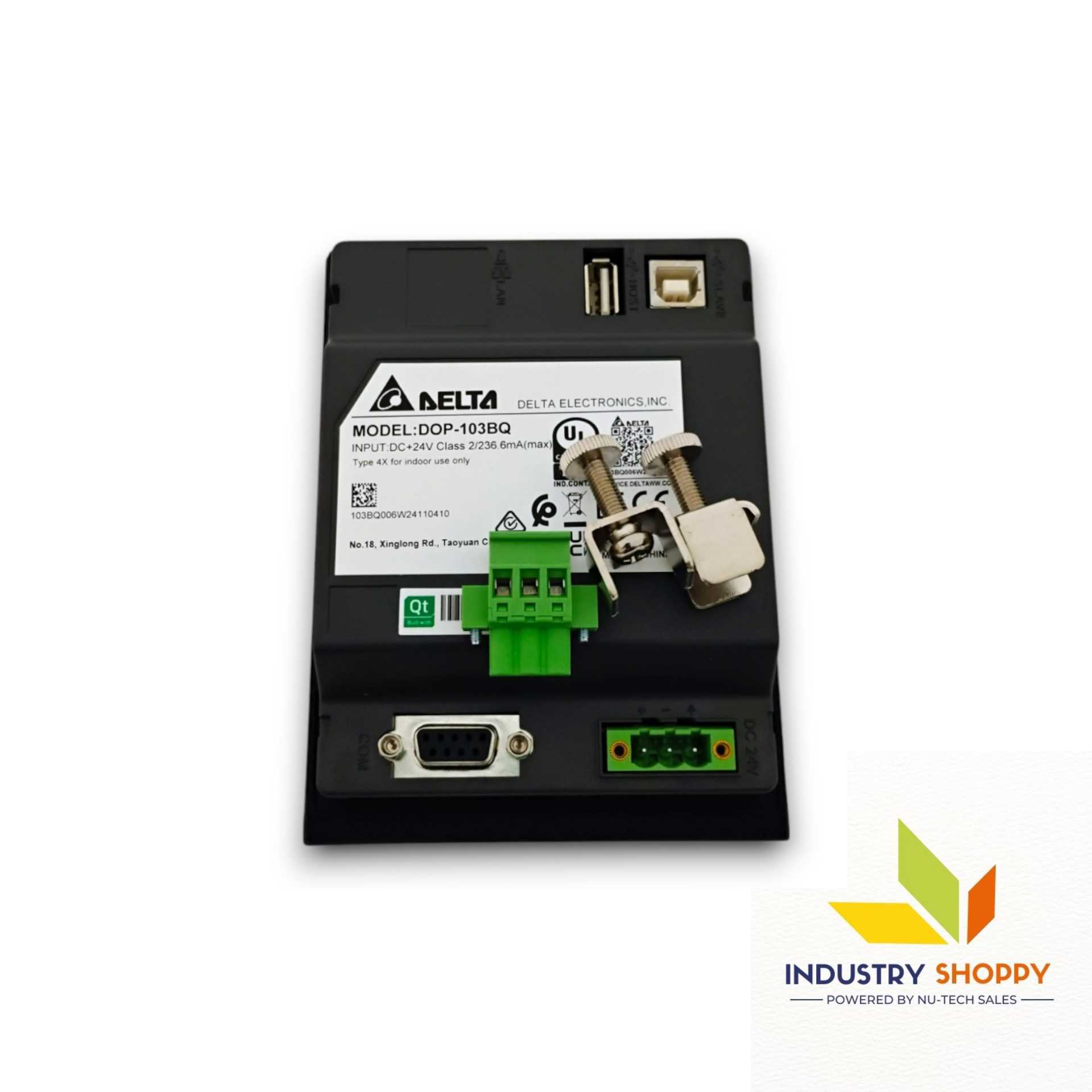

The HMI offers multiple communication interfaces, including RS-232 (COM1) with hardware flow control and RS-485/RS-422 (COM2). It features USB Host and USB Slave (Ver 2.0) for easy data transfer but does not include Ethernet or SD card support.

Certified with CE and UL standards, the DOP-103BQ is IP65-rated, ensuring protection against dust and water for indoor industrial environments. It operates on a 24V DC power supply (-15% ~ +15%), with a maximum power consumption of 5.67W.

With an operating temperature range of 0°C to 50°C, a compact design (137 x 103 x 37.1 mm), and IEC 61131-2 vibration resistance, the DOP-103BQ is an ideal HMI solution for industrial automation.
