38% Rs. 935.00
Panasonic GX-F8A-P Inductive Proximity Sensor
Panasonic GX-F8A-P Inductive Proximity Sensor
Panasonic GX-F8A-P Inductive Proximity Sensor
Panasonic GX-F8A-P Inductive Proximity Sensor
Panasonic GX-F8A-P Inductive Proximity Sensor
Panasonic GX-F8A-P Inductive Proximity Sensor
Panasonic GX-F8A-P Inductive Proximity Sensor
Panasonic GX-F8A-P Inductive Proximity Sensor
Panasonic

Panasonic GX-F8A-P Proximity Sensor

Product SKU: NTSSEN00029
Available:
Only 1 item in stock
1 item in stock
In stock
Pre-order
Out of stock
  • Brand     :  Panasonic
  • Output   : PNP open-collector transistor
  • Supply Voltage :    12..24 VDC
  • Power Consumption :    15 mA or less
  • Warranty : 12 Months

For International Buyers : IndustryShoppy.com

Rs. 1,515.00
Rs. 2,450.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

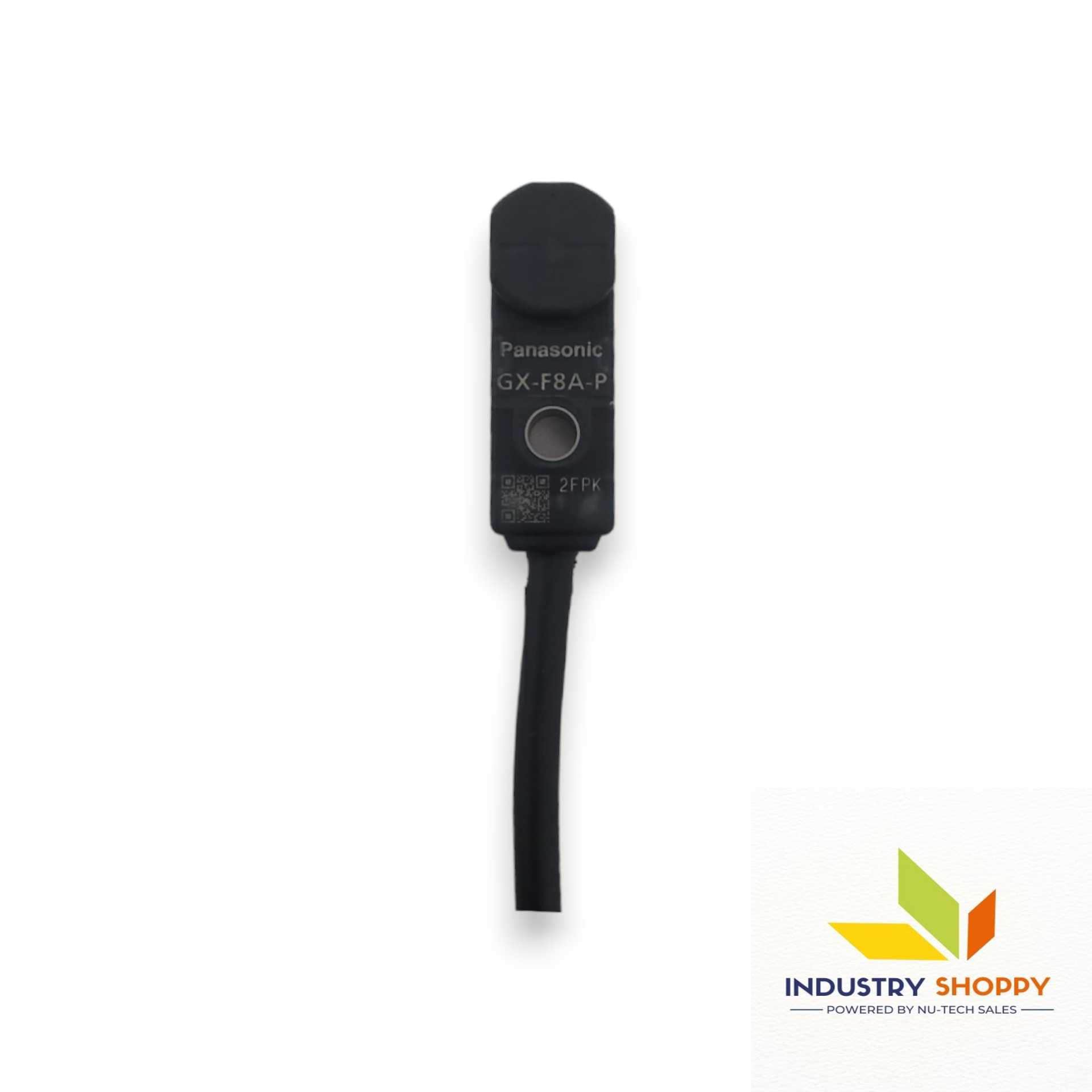

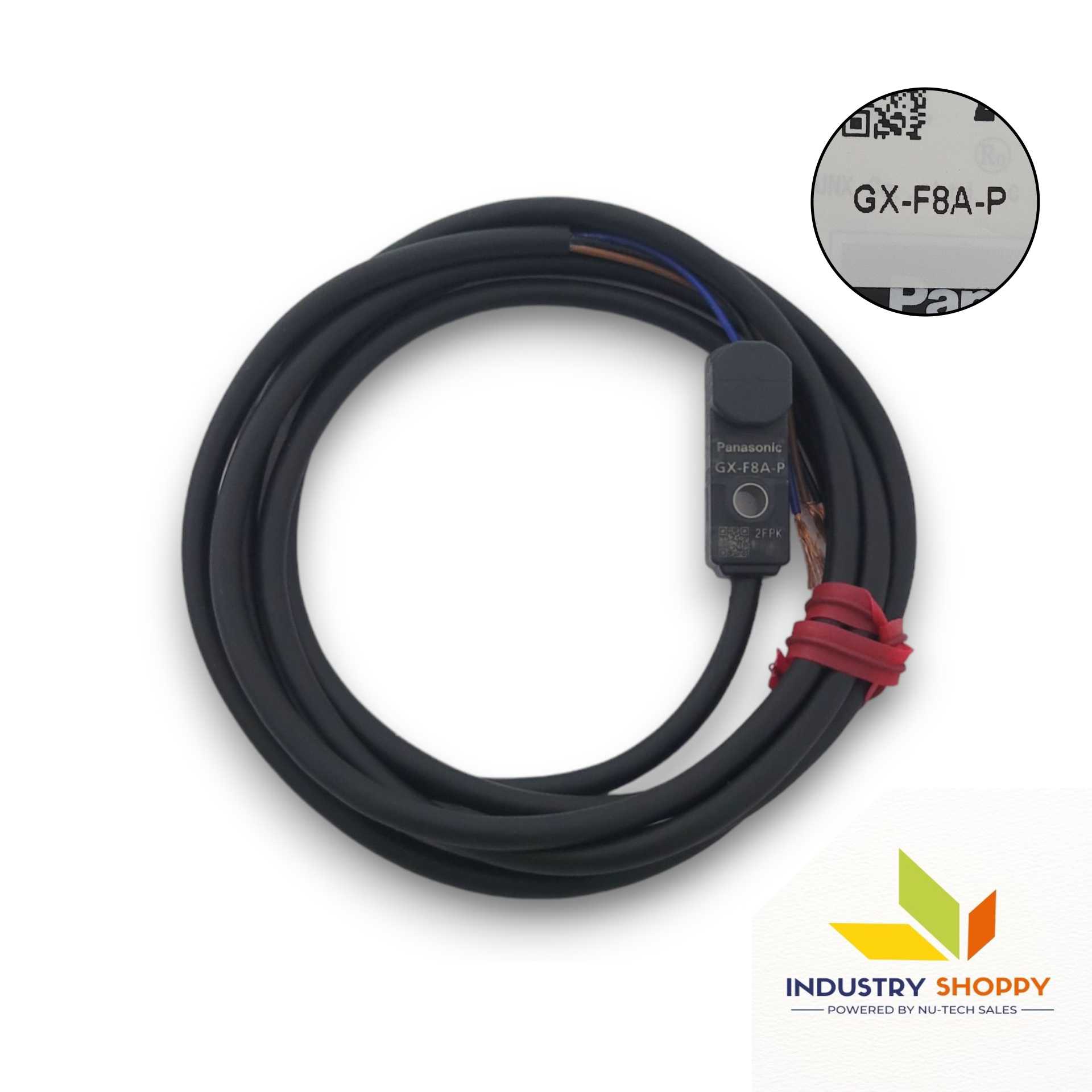

    Panasonic GX-F8A-P Inductive Proximity Sensor


    The Panasonic GX-F8A-P Inductive Proximity Sensor (UGXF8AP) features a maximum operation distance of 2.5 mm and a stable sensing range of 0 to 2.1 mm, ensuring reliable detection. Optimized for standard sensing objects like 15 × 15 × t 1 mm iron sheets. It exhibits hysteresis of 20% or less for accuracy. With a supply voltage of 12 to 24 V DC. Its current consumption is 15 mA or less. This enables efficient operation in various setups.


    This Sensor offers a PNP open-collector transistor output with a maximum source current of 100 mA and an applied voltage of 30 V DC or less. Its output operation is normally open, and it falls under the DC-12 or DC-13 utilization category. Equipped with an orange LED operation indicator, it illuminates when the output is active, ensuring clear status indication.

    Operating on a supply voltage of 12 to 24 V DC with low current consumption of 15 mA or less, it features a PNP open-collector transistor output. This output supports a maximum source current of 100 mA and has a voltage rating of 30 V DC or less. The sensor operates in a normally open mode and complies with DC-12 or DC-13 utilization categories.

    The sensor boasts an IP68 protection rating, making it resistant to water and dust ingress. It undergoes rigorous testing, including vibration resistance up to 20 G and shock resistance up to 10,000 m/s². Additionally, it features temperature and voltage compensation for consistent performance across varying conditions.


    Our engineers acts wisely inputted all the required details of this sensor in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur.

    IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!



    Facebook, YouTube,




    Product NumberGX-F8A-P
    Part NumberUGXF8AP
    CE Marking Directive ComplianceEMC Directive, RoHS Directive
    Max. Operation Distance2.5 mm (0.098 in) ±8%
    Note: Maximum distance for detecting standard sensing object
    Stable Sensing Range0 to 2.1 mm (0 to 0.083 in)
    Note: Stable detection range under temperature drift or supply voltage fluctuation
    Standard Sensing ObjectIron sheet 15 × 15 × t 1 mm (0.591 × 0.591 × t 0.039 in)
    Hysteresis20% or less of operation distance (with standard sensing object)
    RepeatabilityAlong sensing axis / perpendicular: 0.04 mm (0.002 in) or less
    Supply Voltage12 to 24 V DC, +10/-15% Ripple P-P 10% or less
    Current Consumption15 mA or less
    OutputPNP open-collector transistor
    - Maximum source current: 100 mA
    - Applied voltage: ≤30 V DC
    - Residual voltage: ≤2 V (at 100 mA)
    Output: Output OperationNormally open
    Output: Utilization CategoryDC-12 or DC-13
    Max. Response Frequency500 Hz
    Operation IndicatorOrange LED (lights up when the output is ON)
    ProtectionIP68 (IEC), IP68g (JEM)
    Note: Tested with immersion cycles, heat shock, and 500 hours at 1 m depth; check resistivity if cutting oil is present
    Ambient Temperature-25 to +70 °C (-13 to +158 °F), Storage: -40 to +85 °C (-40 to +185 °F)
    Ambient Humidity45 to 85% RH, Storage: 35 to 95% RH
    Voltage Withstandability1,000 V AC for 1 min between all supply terminals connected together and enclosure
    Insulation Resistance50 MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure
    Vibration Resistance10–500 Hz, 3 mm (0.118 in) double amplitude, Max 20 G, X/Y/Z directions, 2 hours each
    Shock Resistance10,000 m/s² (1,000 G approx.) in X/Y/Z directions, 3 times each
    Sensing Range Variation: Temperature±8% over -25 to +70 °C (-13 to +158 °F) compared to +23 °C (73 °F)
    Sensing Range Variation: Voltage±2% for +10/-15% supply voltage fluctuation
    MaterialEnclosure: PBT
    Indicator part: Polyester

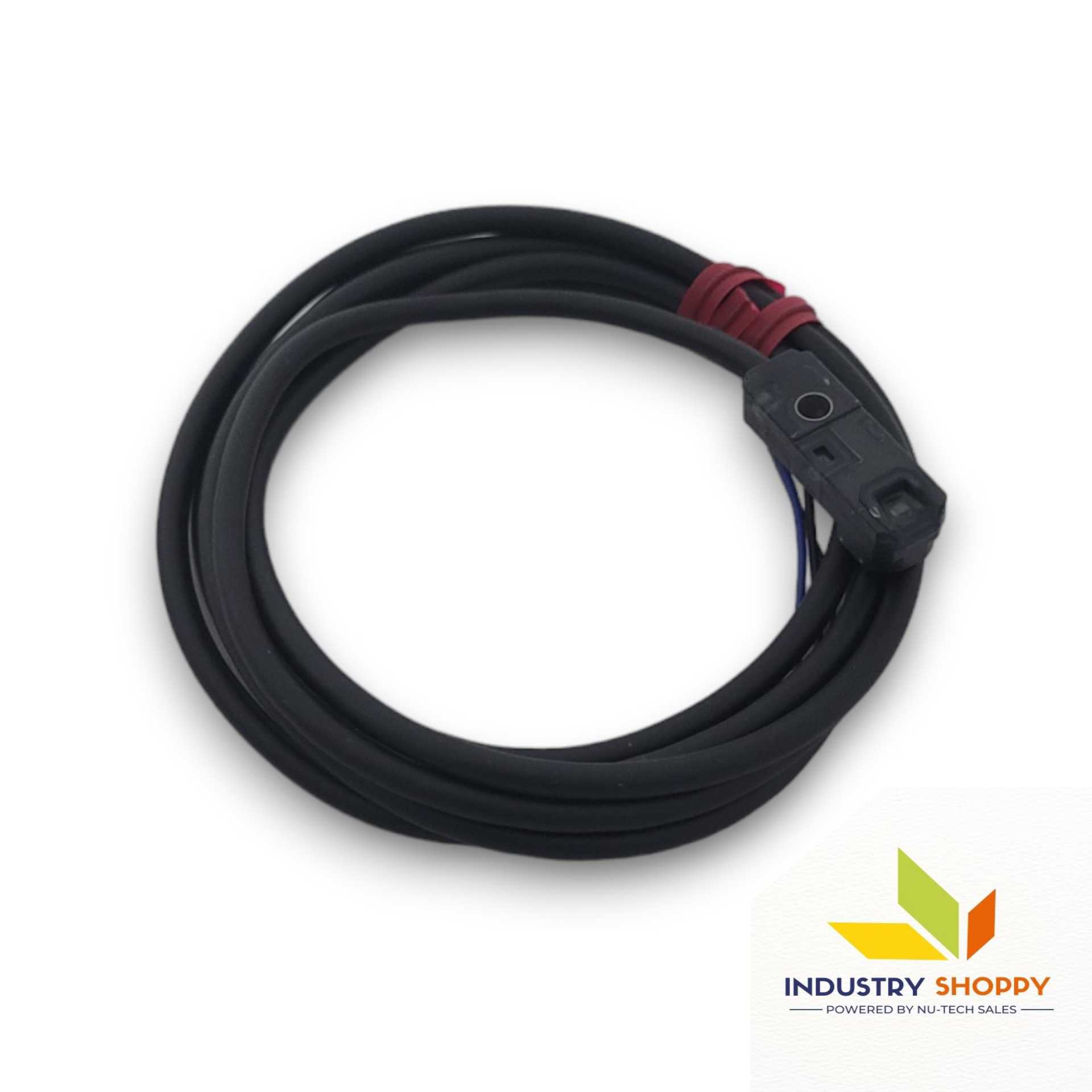

    Cable0.15 mm², 3-core oil, heat, and cold resistant cabtyre cable, 1 m (3.281 ft)
    Cable ExtensionUp to 100 m (328.084 ft) with ≥0.3 mm² cable
    Country of OriginJapan
