37% Rs. 6,060.00
Leuze GS04B/P.1-80-M8.3 Fork Photoelectric Sensor
Leuze GS04B/P.1-80-M8.3 Fork Photoelectric Sensor
Leuze GS04B/P.1-80-M8.3 Fork Photoelectric Sensor
Leuze GS04B/P.1-80-M8.3 Fork Photoelectric Sensor
Leuze GS04B/P.1-80-M8.3 Fork Photoelectric Sensor
Leuze GS04B/P.1-80-M8.3 Fork Photoelectric Sensor
Leuze GS04B/P.1-80-M8.3 Fork Photoelectric Sensor
Leuze GS04B/P.1-80-M8.3 Fork Photoelectric Sensor
Leuze GS04B/P.1-80-M8.3 Fork Photoelectric Sensor
Leuze GS04B/P.1-80-M8.3 Fork Photoelectric Sensor
Leuze

Leuze GS04B/P.1-80-M8.3 Fork Photoelectric Sensor

Product SKU: NTSSEN00253
Available:
Only 12 items in stock
12 items in stock
In stock
Pre-order
Out of stock
  • Brand  :  Leuze
  • Part No. : 50146167
  • Switching frequency : 5000 Hz
  • Voltage supply range  : 10 ... 30 V, DC, Incl. residual ripple
  • Connection types  : Connector
  • Open-circuit current  : 0 … 30 mA
  • Warranty 12 Months
Rs. 10,440.00
Rs. 16,500.00

+ GST @18% = Rs. 12,319.20

Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

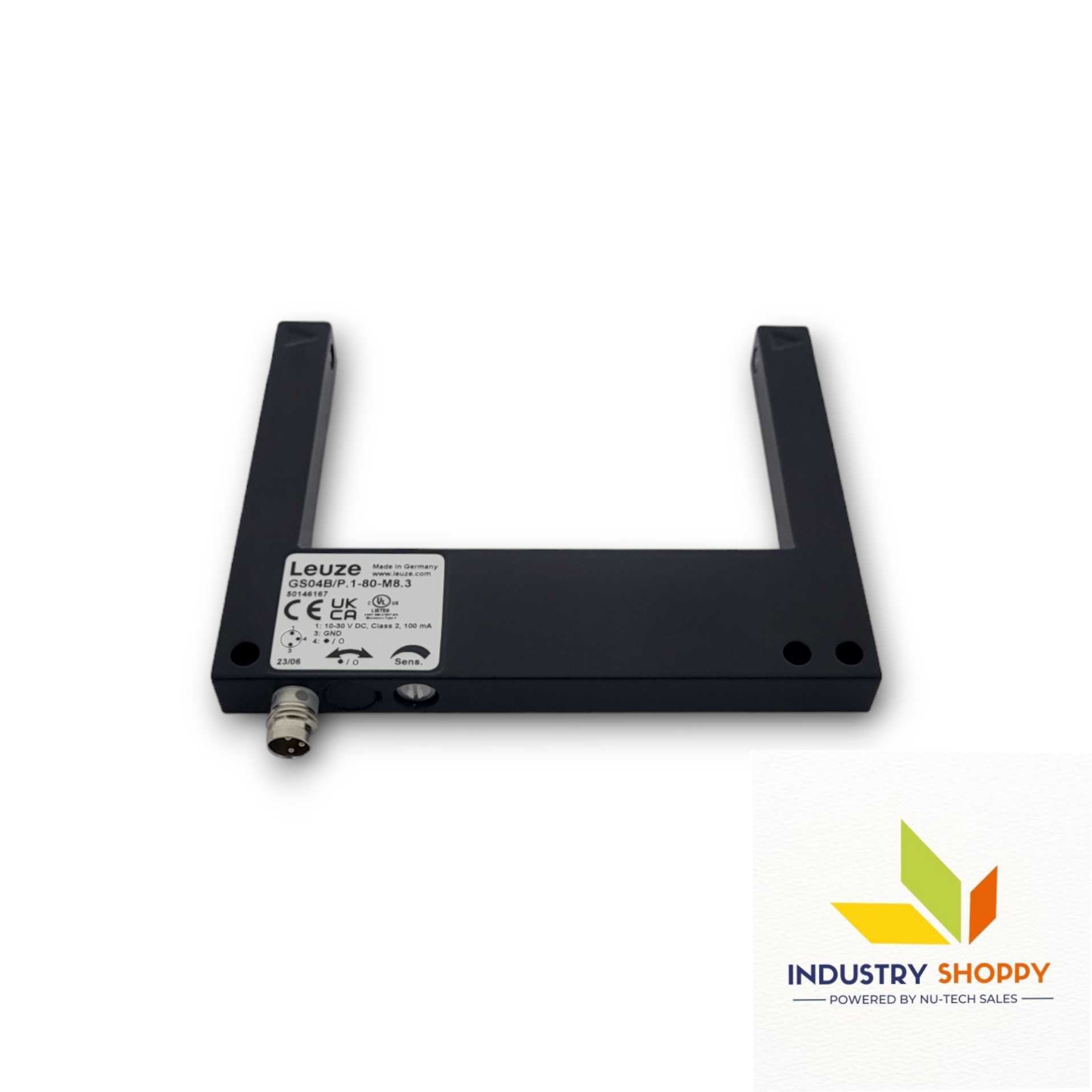

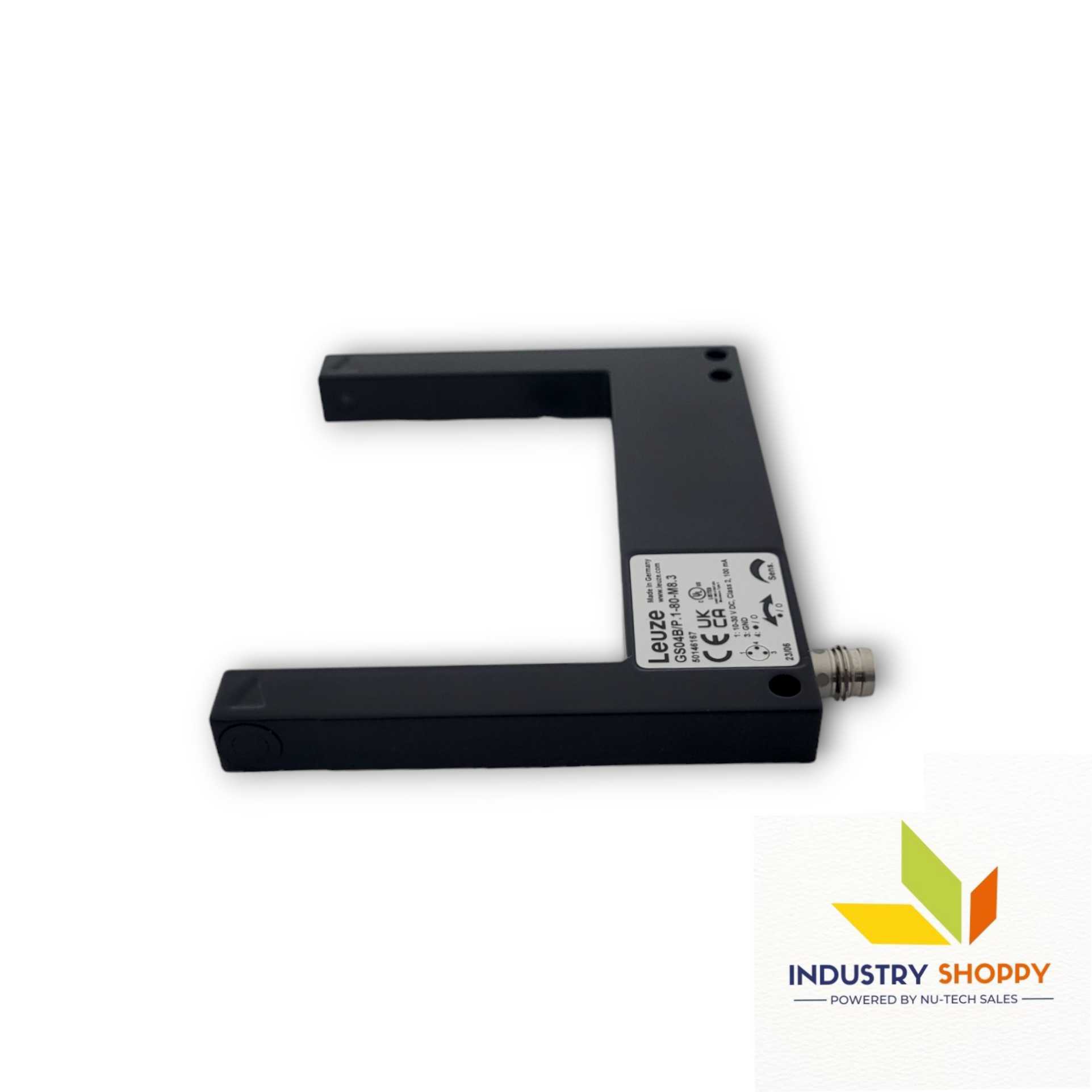

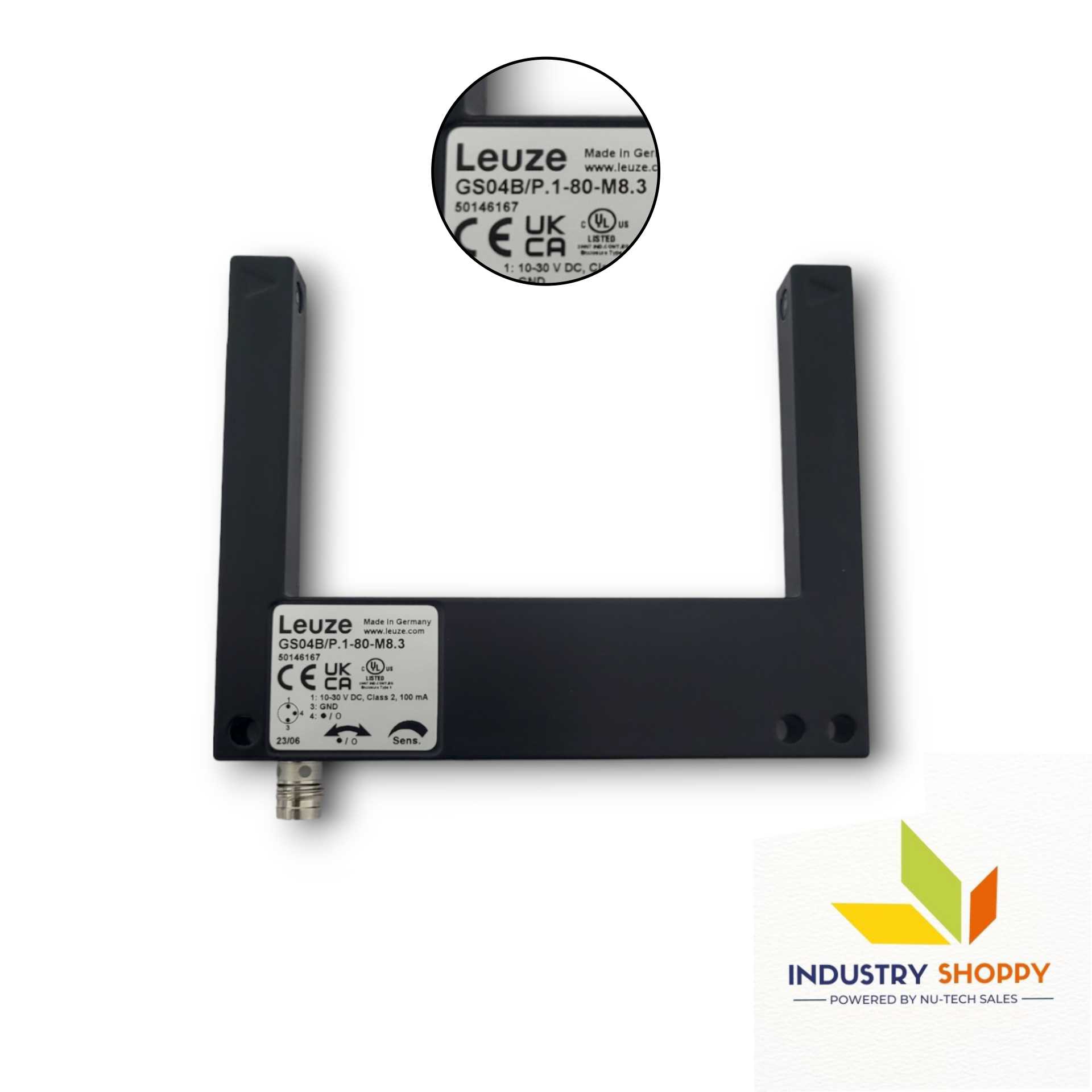

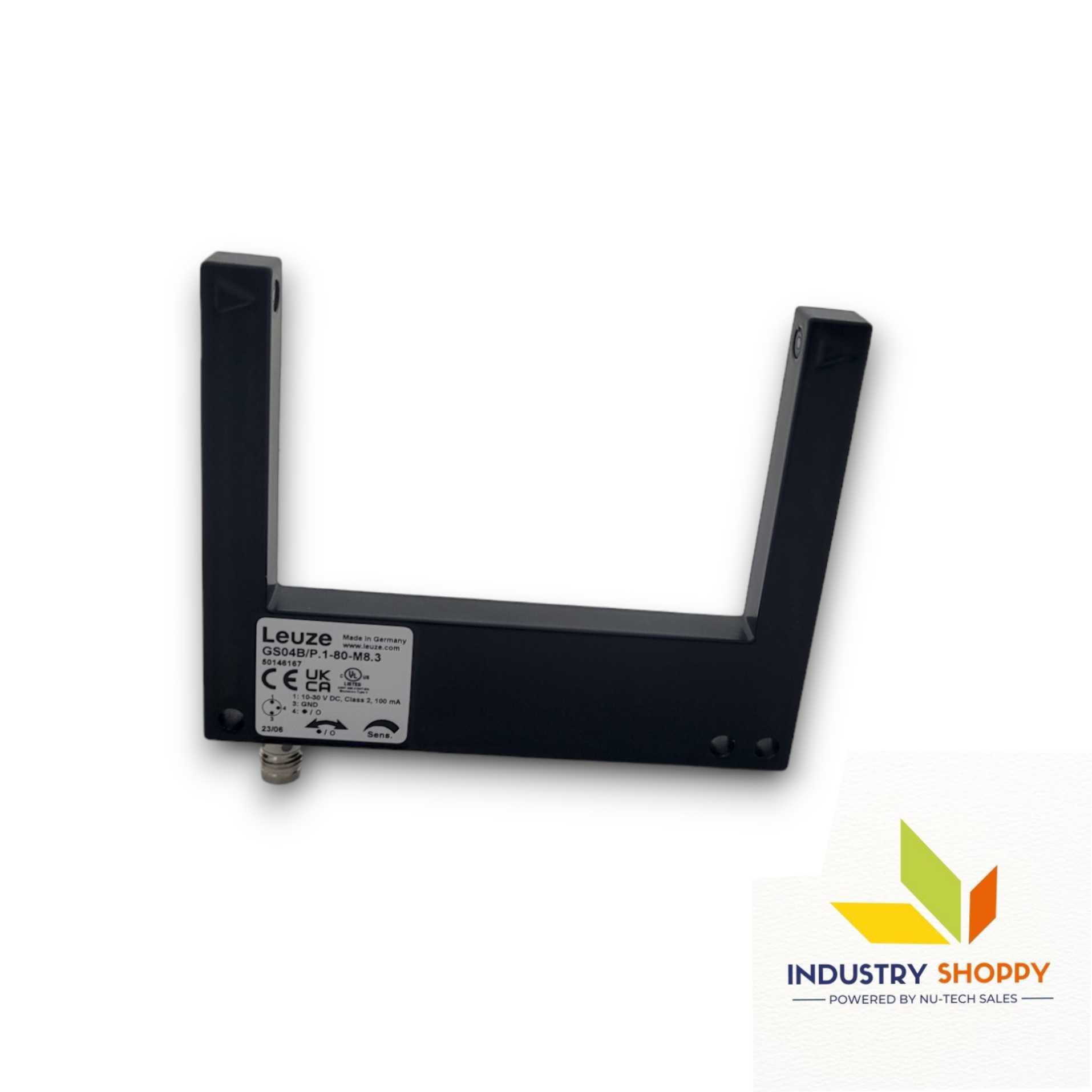

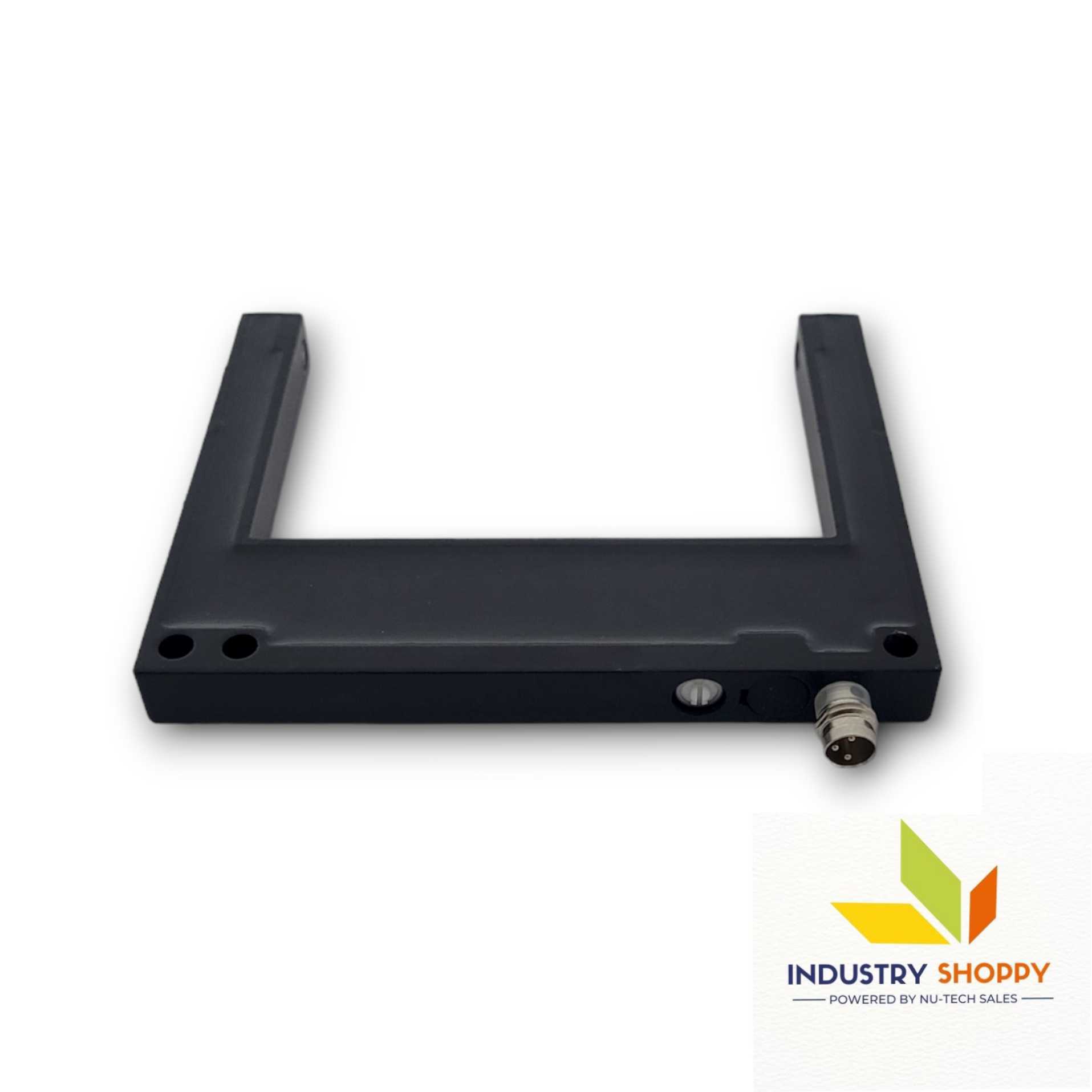

Leuze GS04B/P.1-80-M8.3 Photoelectric Sensor

The Leuze GS04B/P.1-80-M8.3 Photoelectric Sensor (50146167) is high-precision optical fork sensor from the 04B series, specifically designed for the reliable detection of very small parts in fast and space-critical automation processes. Using a red LED light source (660 nm) with a pulsed signal.

This sensor achieves exceptional accuracy with a repeatability of 0.02 mm and can detect objects as small as 0.3 mm in diameter. Equipped with a PNP transistor digital output, the sensor supports light/dark switching and operates at an impressive switching frequency of 5,000 Hz with an ultra-fast response time of just 0.1 ms, making it ideal for high-speed counting, positioning, and inspection tasks. Sensitivity can be precisely adjusted using the 270° potentiometer, allowing optimal adaptation to different applications.

The robust diecast zinc metal housing with a glass lens cover ensures durability in harsh industrial environments, while IP67 protection safeguards against dust and water ingress. Its fork design with an 80 mm mouth width and through-hole mounting enables easy installation on production lines. Certified to IEC 60947-5-2 and DIN EN ISO 13849-1, and approved for cULus, the GS04B/P.1-80-M8.3 is a dependable solution for demanding industrial automation applications.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, YouTube,


ModelGS04B/P.1-80-M8.3
BrandLEUZE
Part No.50146167
Series04B
Principle of physicsOptical
ApplicationDetection of small parts
Light sourceLED, Red
Wavelength660 nm
Transmitted-signal shapePulsed
Repeatability0.02 mm
Minimum object diameter0.3 mm

Supply voltage UB

10 ... 30 V, DC
Residual ripple0 ... 15 %, From UB
Open-circuit current0 ... 30 mA
Switching hysteresis100 µm
TypeDigital switching output
Voltage typeDC
Switching current, max.100 mA
Switching voltagehigh: ≥(UB-2V)  low: ≤ 2 V
Switching elementTransistor, PNP
Switching principleLight/dark switchable
Switching frequency5,000 Hz
Response time0.1 ms
Readiness delay150 ms

Function

Signal OUT Voltage supply
Type of connectionConnector
Thread sizeM8
TypeMale
MaterialMetal
No. of pins3 -pin
DesignFork
Mouth width80 mm
Mouth depth55 mm
Dimension (W x H x L)10 mm x 100 mm x 80 mm
Housing materialMetal
Metal housingDiecast zinc
Lens cover materialGlass
Housing colorBlack, RAL 9005
Type of fasteningThrough-hole mounting
Type of displayLED
Number of LEDs1 Piece(s)
Operational controls270° potentiometer
Function of the operational controlLight/dark switching Sensitivity adjustment
Ambient temperature, operation-25 ... 60 °C
Degree of protectionIP 67
Protection classIII
Approvalsc UL US
Standards appliedIEC 60947-5-2, DIN EN ISO 1389-1:2016 appendix C,D
Country of originMalaysia
