AT070TN83-V.1
Innolux AT070TN83-V.1 LCD Module
Innolux AT070TN83-V.1 LCD Module
Innolux AT070TN83-V.1 LCD Module
AT070TN83-V.1
Innolux AT070TN83-V.1 LCD Module
Innolux AT070TN83-V.1 LCD Module
Innolux AT070TN83-V.1 LCD Module
Innolux

Innolux AT070TN83-V.1 LCD Module

Product SKU: NTSLCD0148
Available:
Only 9 items in stock
9 items in stock
In stock
Pre-order
Out of stock
  • Brand : Innolux/Chimei
  • Size : 7.0″
  • Condition  :  New
  • Panel Type : a-Si TFT-LCD, LCM
  • Work Mode : TN, Normally White, Transmissive
Rs. 6,450.00
Rs. 10,200.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

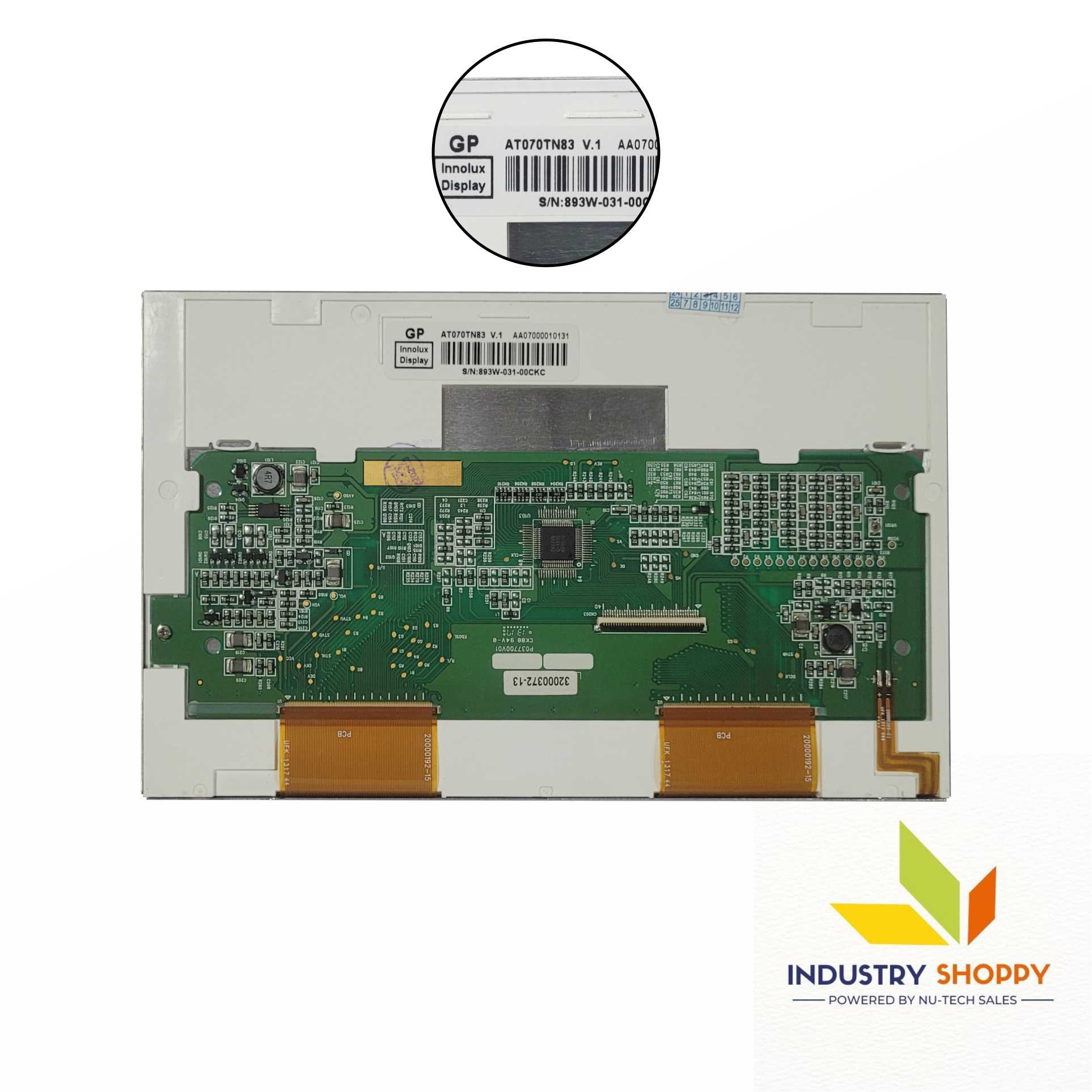

Innolux AT070TN83-V.1 LCD Module

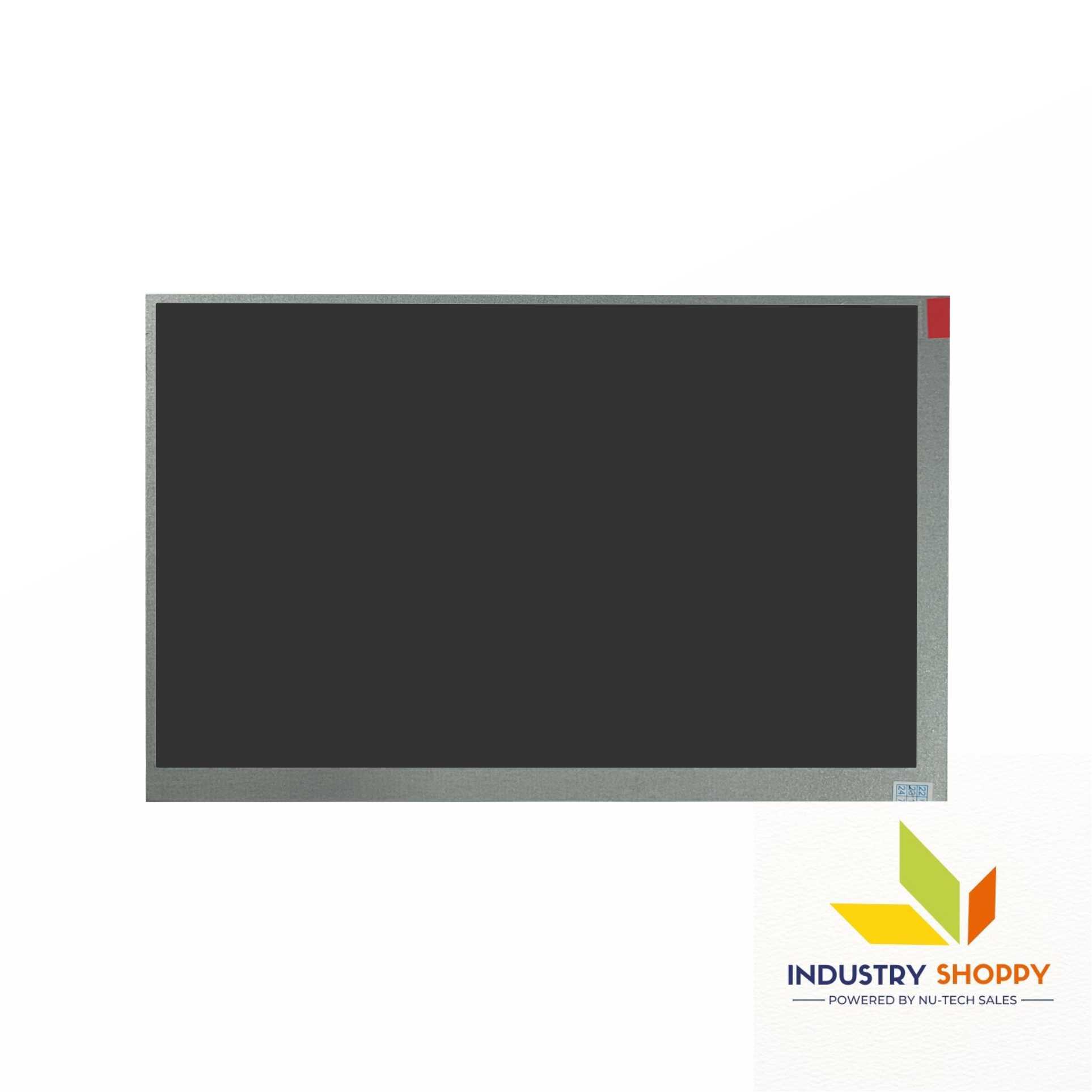

The Innolux AT070TN83-V.1 LCD Module(AT070TN83V1) is 7.0-inch TFT-LCD delivers WVGA resolution (800×480) at 133 PPI, offering crisp visuals across its 152.4×91.44 mm active area. This makes it a solid choice for applications requiring clear, space-efficient graphical interfaces.

Moreover, the 400 cd/m² brightness and 1000:1 contrast ratio provide strong visibility and deep contrast, ensuring readability in varied lighting conditions. Its TN panel, operating in Normally White, Transmissive mode, balances power efficiency with reliable color performance.

Equipped with 70/70/50/70° viewing angles (CR≥10) and a 25 ms response time, this display ensures steady visuals and smooth transitions for general-purpose use. The antiglare surface further enhances visibility by minimizing reflections in bright environments.

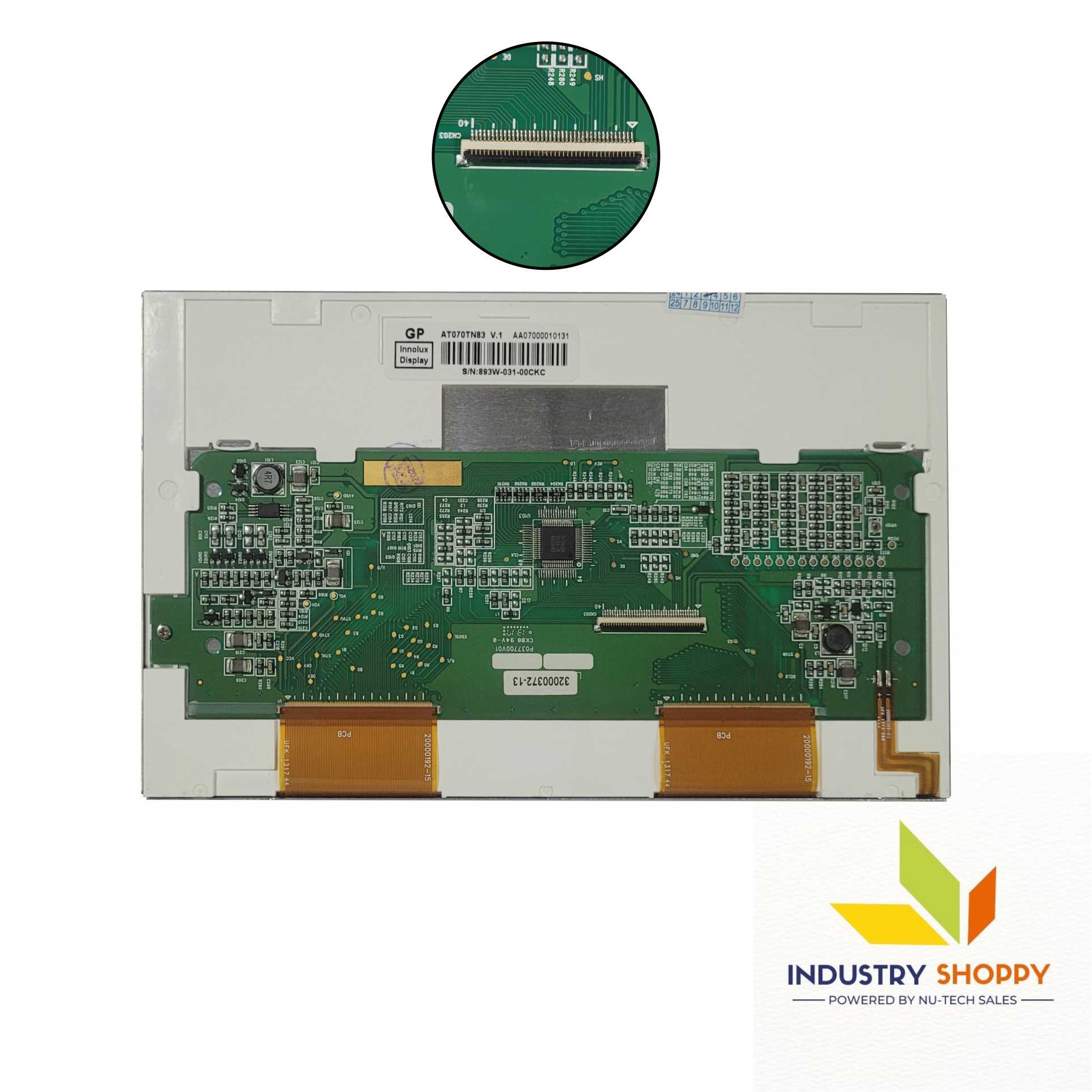

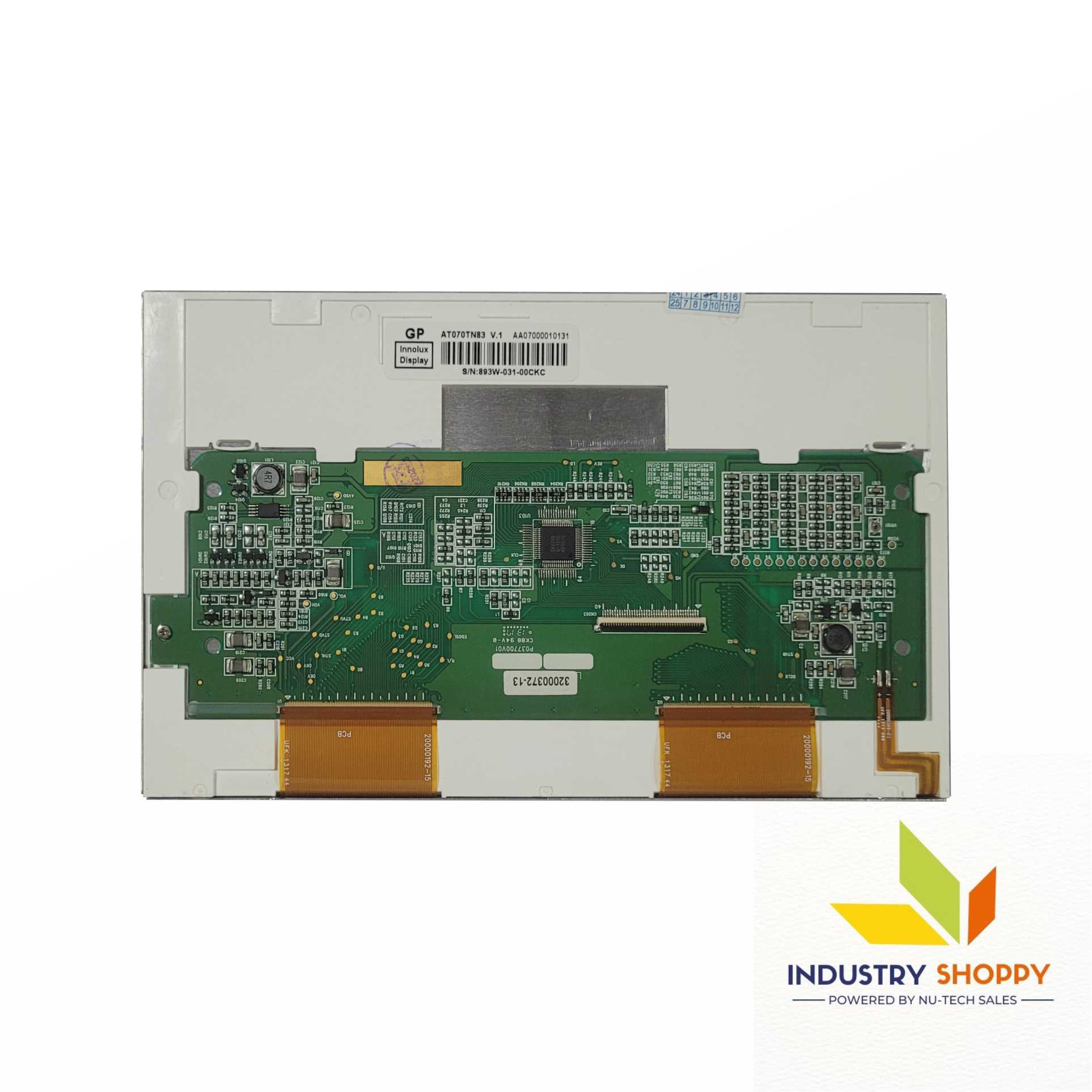

It supports 262K colors at 50% NTSC and connects via a TTL interface (1 ch, 6-bit) through a 40-pin connector, simplifying integration with embedded systems. A WLED backlight rated for 20,000 hours and built-in LED driver ensures long-term performance and ease of implementation.

Finally, thanks to its wide operating temperature range (-20°C to 70°C) and extended storage range (-30°C to 80°C), the display is not only reliable for indoor installations but also well-suited for semi-rugged or outdoor-adjacent environments. As a result, it offers consistent performance even under fluctuating environmental conditions.

Technical Precautions :-
  • It is a front polarizer. It may damaged. Please be cautious. Don't scratch it.
  • Always turn off the power supply when you are inserting or disconnecting it from the input connector.
  • Wipe off water drop immediately as it may cause discoloration or spots.
  • Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
  • Do not try to open or modify the module assembly.
  • At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
  • Severe temperature condition may  result in different luminance, response time.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, Youtube


BrandInnolux
Diagonal Size7.0"
Resolution800(RGB)×480, WVGA 133 PPI
Active Area152.4(W)×91.44(H) mm
Outline Dimension165(H)×104(V)×5.8(D) mm
Luminance400 cd/m² (Typ.)
Contrast Ratio1000:1 (Typ.) (TM)
Viewing Angle70/70/50/70 (Typ.) (CR≥10)
Response Time25 (Typ.) (Tr+Td) ms
Panel Typea-Si TFT-LCD, LCM
TreatmentAntiglare
Operating ModeTN, Normally White, Transmissive
Support Color262K, 50% NTSC
Signal Interface TypeTTL (1 ch, 6-bit), 40 pins Connector
Frame Rate60 Hz
Power Supply3.3 V (Typ.) (VCC)
BacklightWLED, 20K hours, With LED Driver
Operating Temp.-20 ~ 70 °C
Storage Temp.-30 ~ 80 °C

Shipping

  • We ship across India through reliable courier partners such as BlueDart, DTDC, Delhivery, Shree Maruti, Anjani, Mahaveer, and Trackon.

  • Based on our experience, BlueDart and DTDC provide the best service, ensuring faster and safer deliveries.

  • Dispatch Time: Orders are usually processed and dispatched within 1–2 business days after confirmation.

  • Delivery Time: Standard delivery within 3–5 business days, depending on your location. Remote areas may take slightly longer.

  • Tracking: Once your order is shipped, a tracking ID will be shared via email/SMS so you can monitor your package in real-time.

Returns & Refunds

  • We offer a 15-day return policy for eligible products.

  • Items must be unused, in original packaging, and with all accessories/manuals intact.

  • Returns are accepted only in cases of manufacturing defects, wrong product delivered, or transit damage.

  • Refunds will be processed to your original payment method within 7–10 working days after inspection of the returned product.

  • For international buyers, return shipping costs must be borne by the customer unless the product is faulty or wrongly supplied.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
4.9/5.0
Shop Overview Rating IndustryShoppy.in
Based On Over 1500 + Customer Reviews

Related products

NTS

Touch Screen for Monitouch TS1070 HMI Panel

Touch Screen for Monitouch TS1070 HMI Operator Panel
44%
Rs. 3,350.00
Rs. 6,000.00
NTS

Touch Screen for Touchwin TH765-N HMI Panel

Touch Screen for Touchwin TH765-N HMI Operator Panel
34%
Rs. 3,750.00
Rs. 5,650.00
NTS

Touch Screen for Touchwin TG765S-MT HMI Panel

TG765S-MT
34%
Rs. 3,840.00
Rs. 5,850.00
Telemecanique

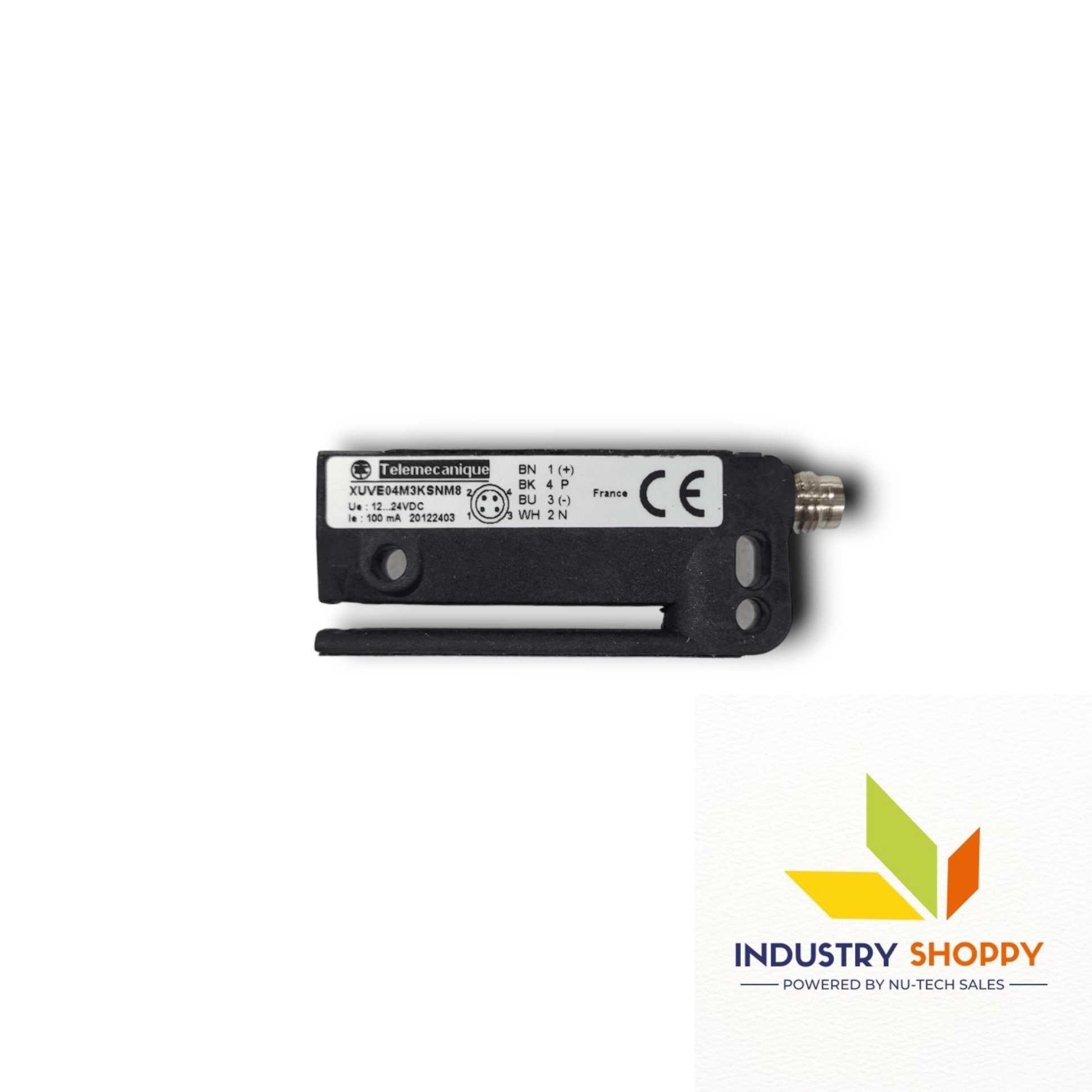

Telemecanique XUVE04M3KSNM8 Label Sensor

Telemecanique XUVE04M3KSNM8 Label Sensor
27%
Rs. 3,675.00
Rs. 5,000.00
NTS

Touch Screen for Siemens Smart 1000IE HMI Panel

Touch Screen for Siemens Smart 1000IE HMI Panel
35%
Rs. 4,585.00
Rs. 7,000.00
Telemecanique

Telemecanique XUVU06M3KSNM8 Ultrasonic Label Sensor

Telemachanique XUVU06M3KSNM8 Ultrasonic Label Sensor
77%
Rs. 15,620.00
Rs. 66,849.00
NTS

Touch Screen for Monitouch TS1070S HMI Operator Panel

Touch Screen for Monitouch TS1070S HMI Operator Panel
35%
Rs. 3,250.00
Rs. 5,000.00
NTS

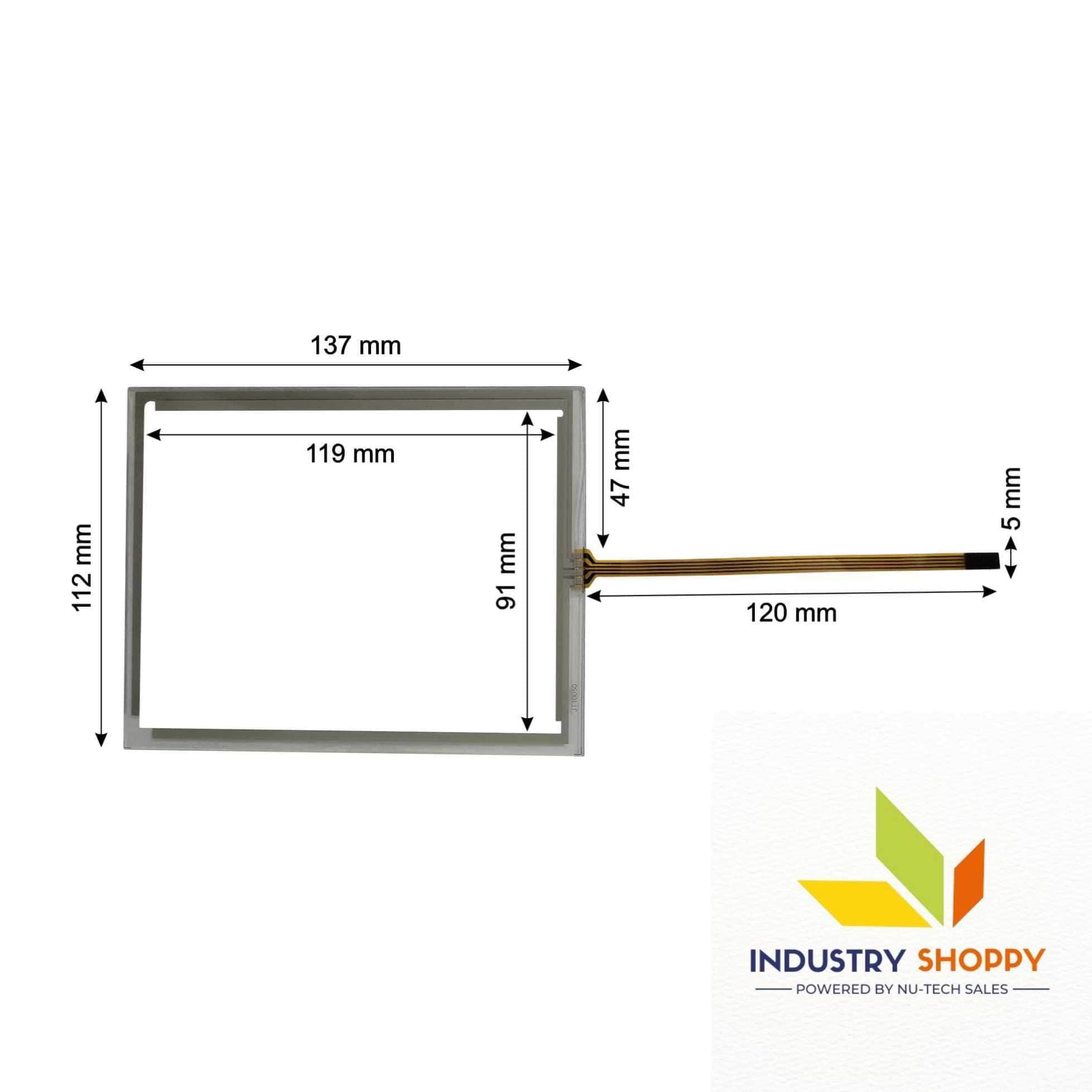

Touch Screen for Siemens TP177B HMI Panel

Touch Screen for Siemens TP-177A HMI Operator Panel
41%
Rs. 3,850.00
Rs. 6,500.00
Leuze

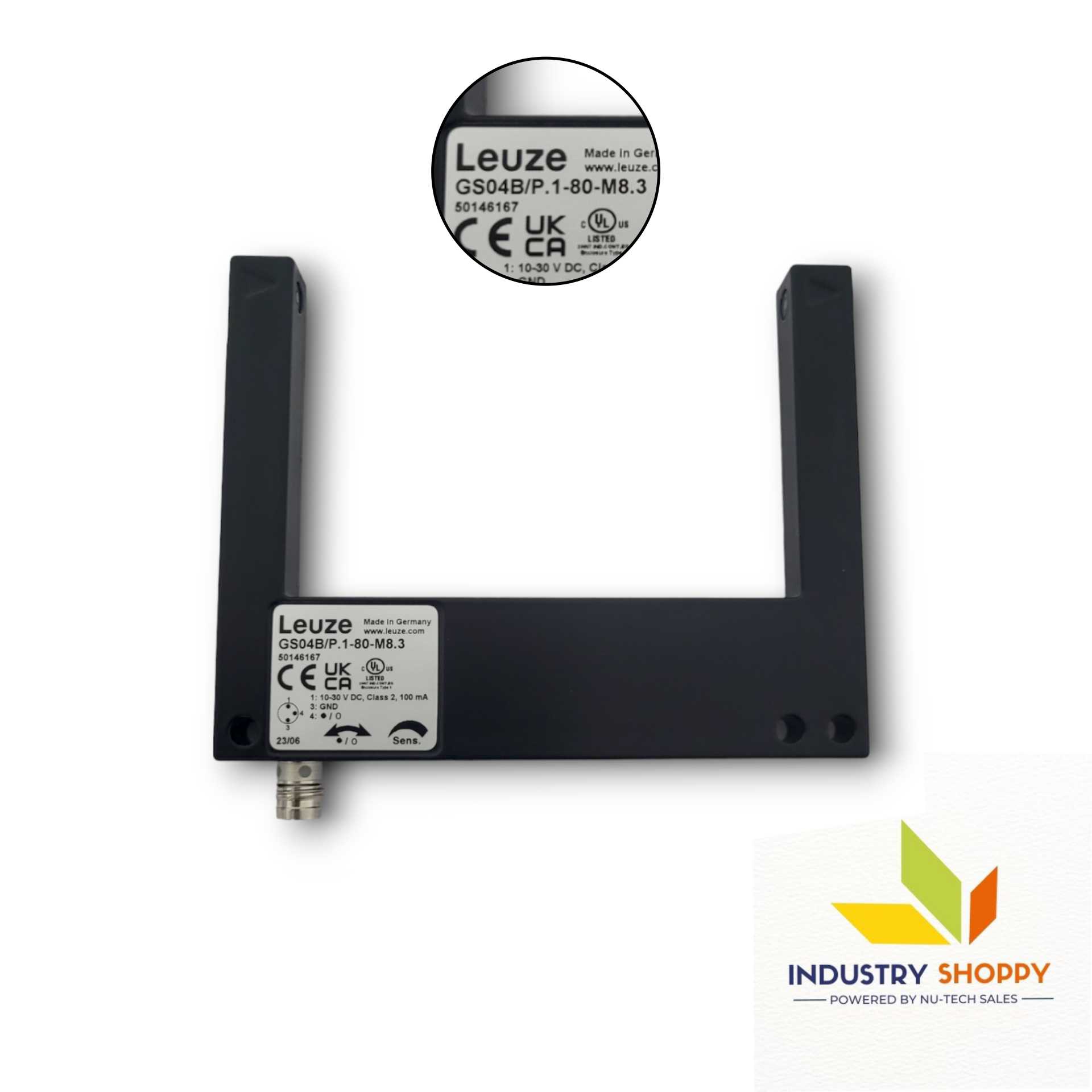

Leuze GS04B/P.1-80-M8.3 Fork Photoelectric Sensor

Leuze GS04B/P.1-80-M8.3 Fork Photoelectric Sensor
35%
Rs. 10,740.00
Rs. 16,500.00
NTS

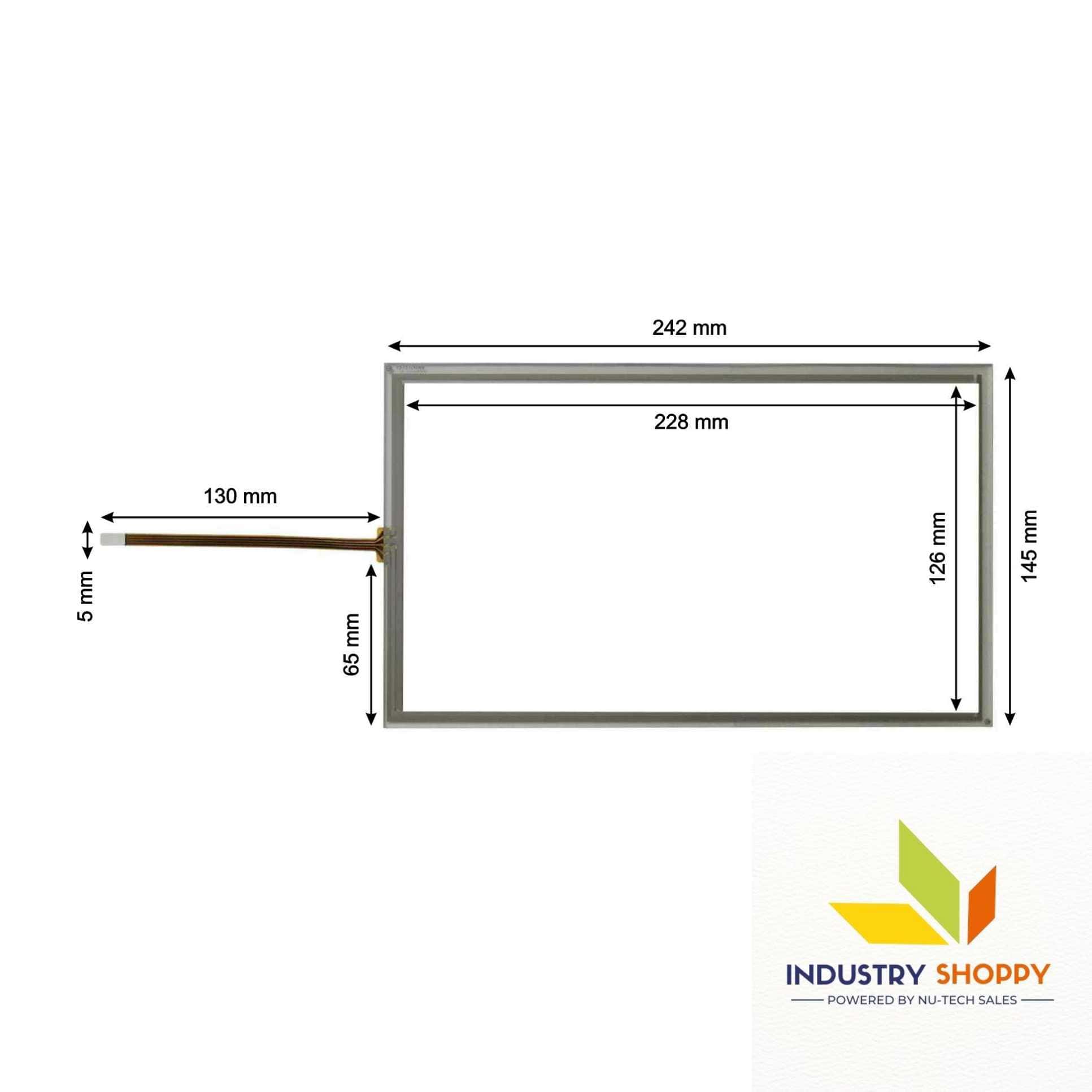

Touch Screen for Siemens Smart1000ie-V.3
