Product SKU: NTSSEN00062
Available:
Only 83 items in stock
83 items in stock
In stock
Pre-order
Out of stock
  • Brand : Panasonic
  • Supply Voltage : 12 to 24 V DC ±10 % Ripple P-P 10 % or less
  • Output : NPN open-collector transistor
  • Output operation : Switchable either Light-ON or Dark-ON
  • Warranty : 12 Months
Rs. 2,240.00
Rs. 3,660.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

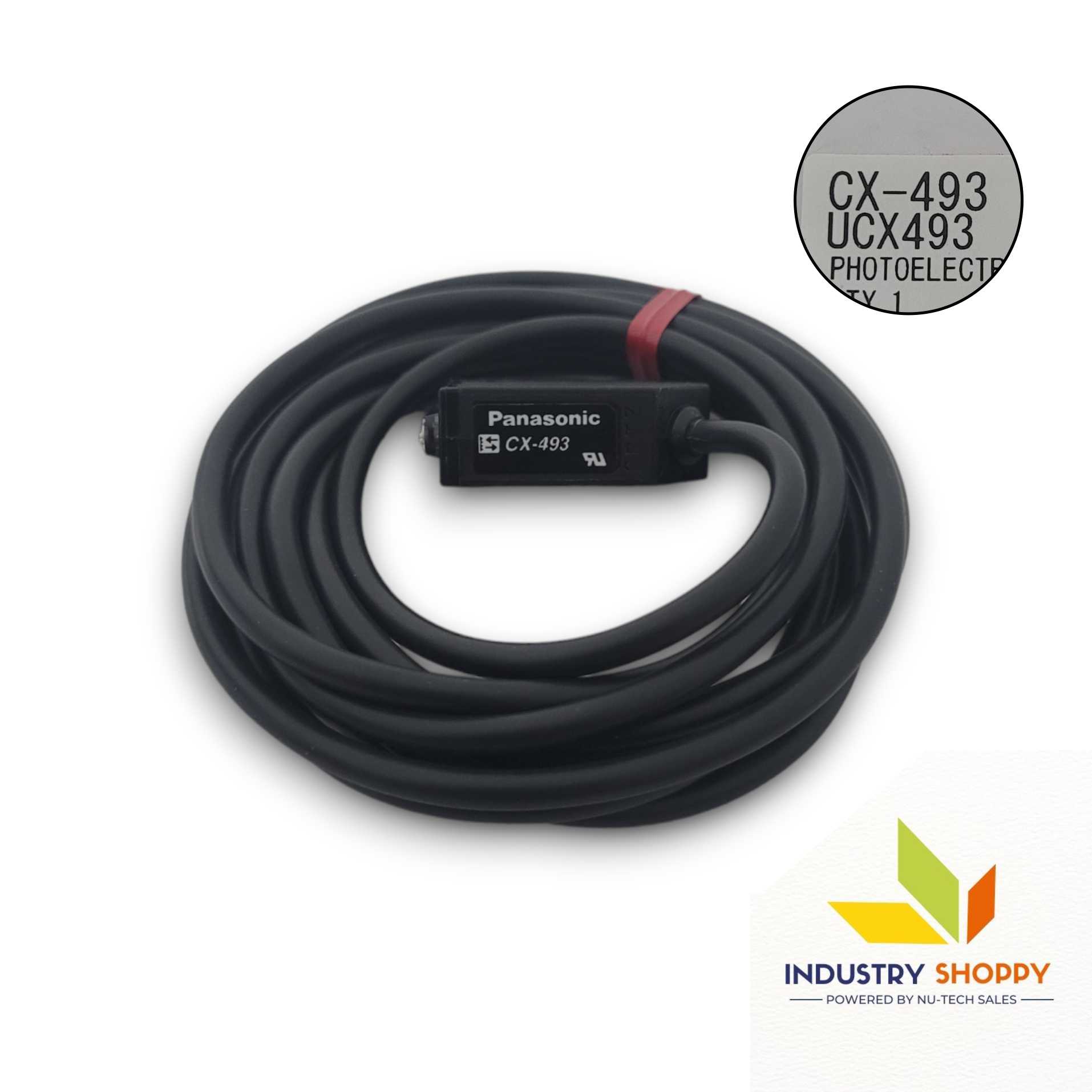

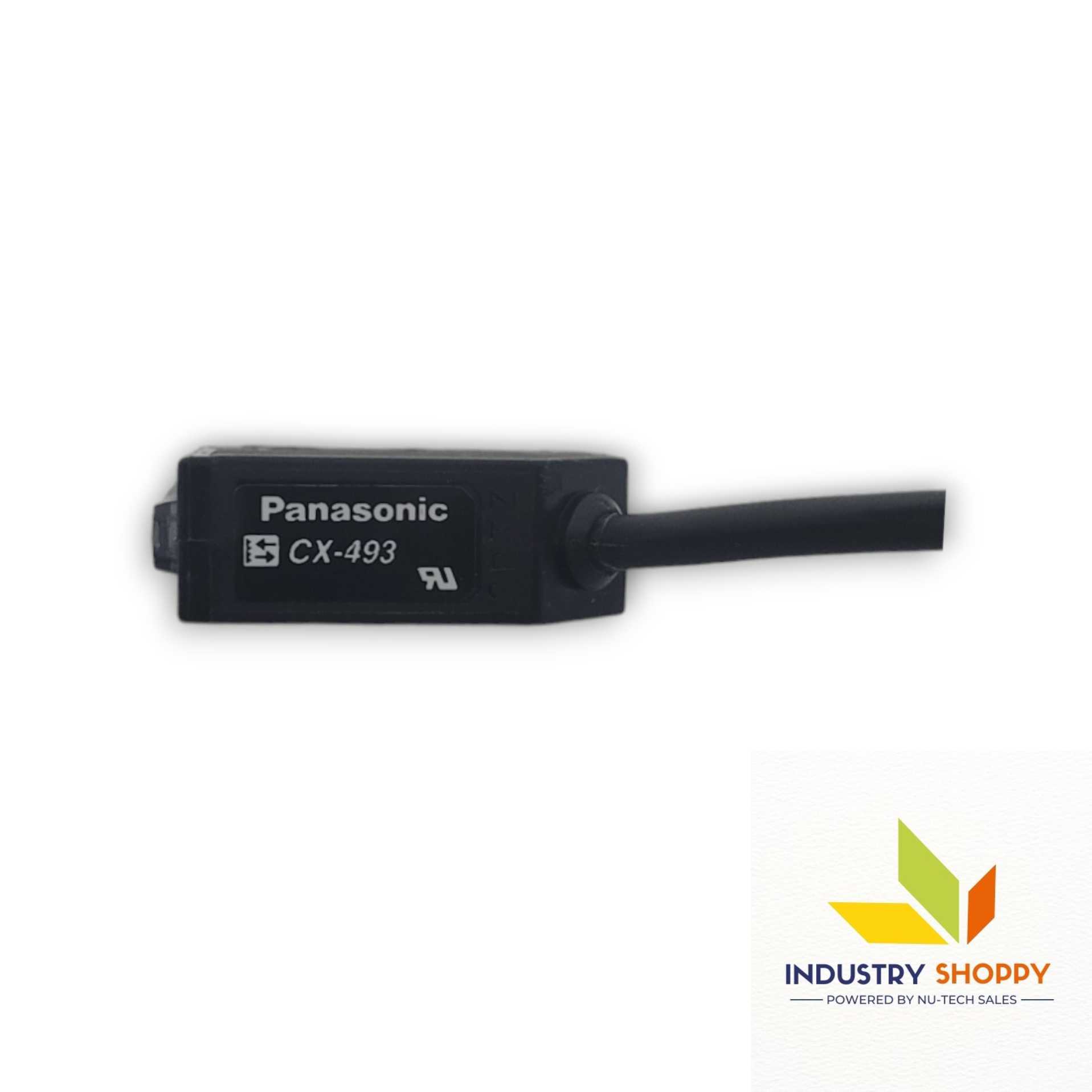

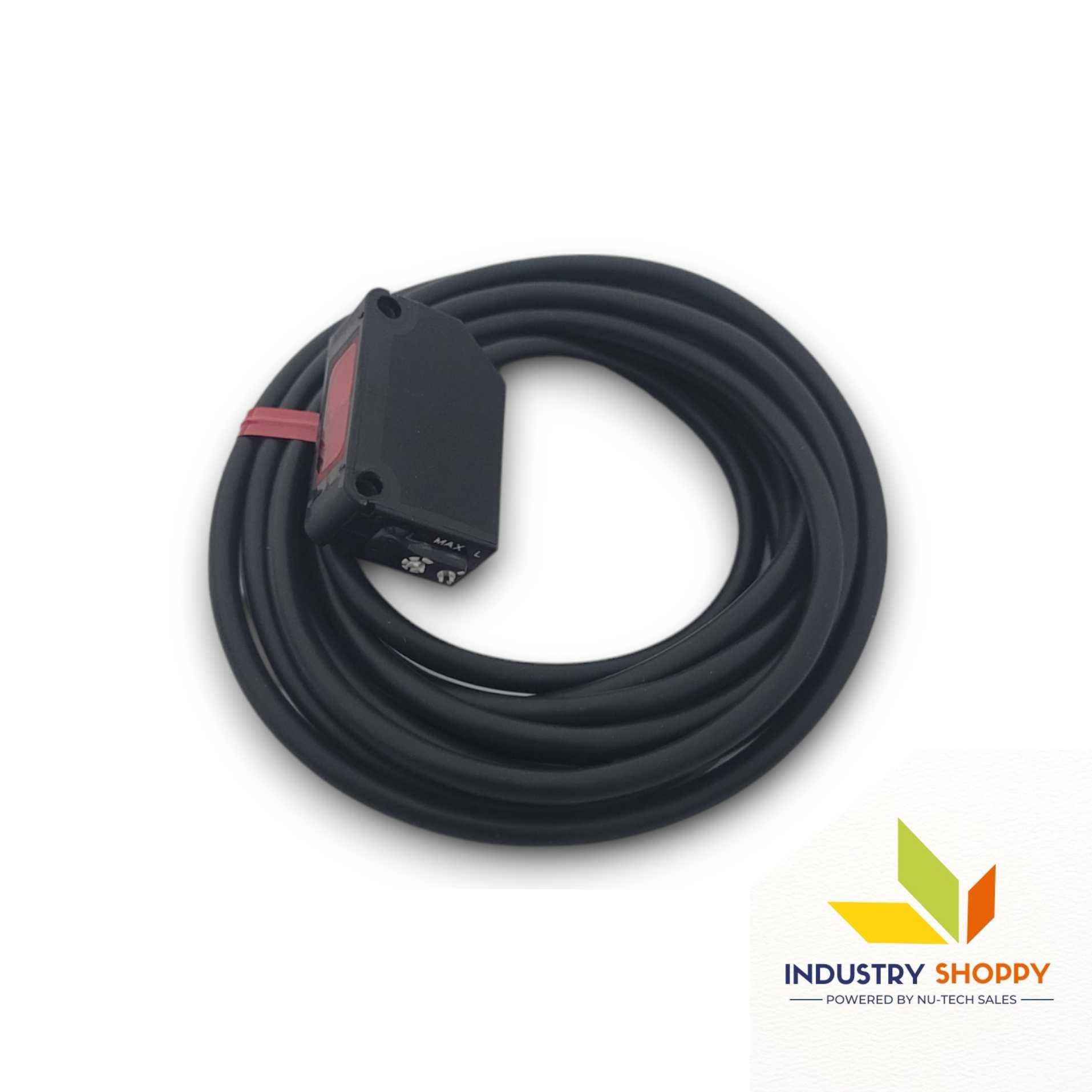

Panasonic CX-493 Photoelectric Sensor

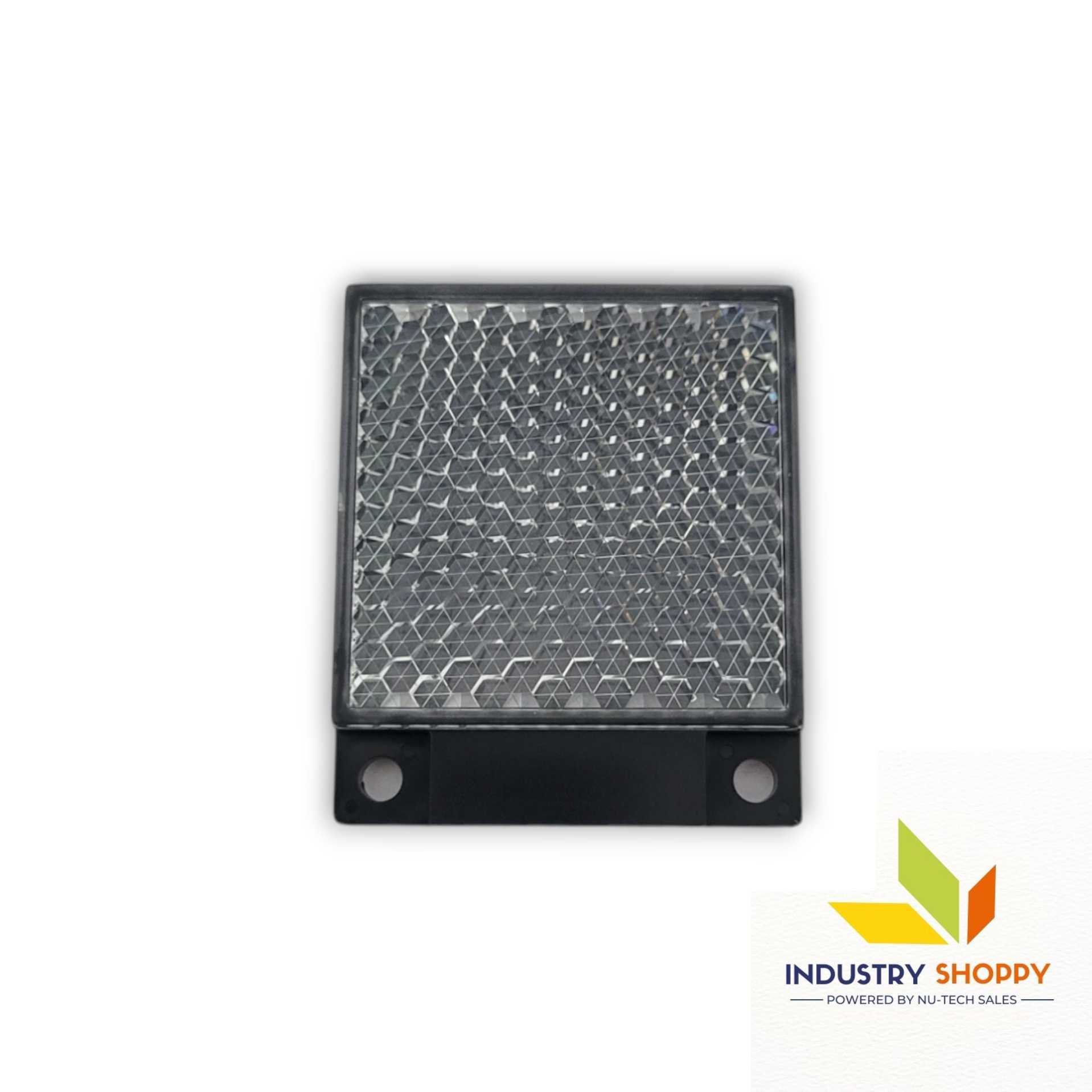

The Panasonic CX-493 Photoelectric Sensor (Part Number: UCX493) is a top-notch photoelectric sensor designed for long-range retroreflective sensing—it easily detects opaque or translucent objects up to 5 meters away when paired with the RF-230 reflector. This sensor is no ordinary device—it’s as sharp as a tack, offering repeatability of 0.5 mm, ensuring pinpoint accuracy every single time.

Operating smoothly on 12 to 24 V DC, it sips power with just 10 mA of current consumption. The NPN open-collector transistor output supports up to 100 mA, with Light-ON/Dark-ON switching that’s as easy as flipping a switch. On top of that, it comes fully loaded with short-circuit protection, making it built like a tank for industrial reliability.



Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, YouTube,


BrandPanasonic
Product nameCX-493
Part NumberUCX493
CE Marking Directive ComplianceEMC Directive, RoHS Directive
Sensing Range5 m (16.404 ft)
Note: Specified for RF-230 reflector; represents actual sensing range
Sensing ObjectØ50 mm (1.969 in) or more opaque or translucent object
Note: Confirm detection with actual sensor before use
Repeatability (Perpendicular to Sensing Axis)0.5 mm (0.020 in) or less
Hysteresis-
Supply Voltage12 to 24 V DC ±10% Ripple P-P 10% or less
Current Consumption10 mA or less
OutputNPN open-collector transistor
- Maximum sink current: 100 mA
- Applied voltage: 30 V DC or less
- Residual voltage: 2 V or less (at 100 mA), 1 V or less (at 16 mA)
Output OperationSwitchable: Light-ON or Dark-ON
Output Short-Circuit ProtectionIncorporated
Response Time1 ms or less
Operation IndicatorOrange LED (lights up when output is ON, on receiver for thru-beam type)
Stability IndicatorGreen LED (lights up under stable light/dark condition, on receiver for thru-beam type)
Power Indicator-

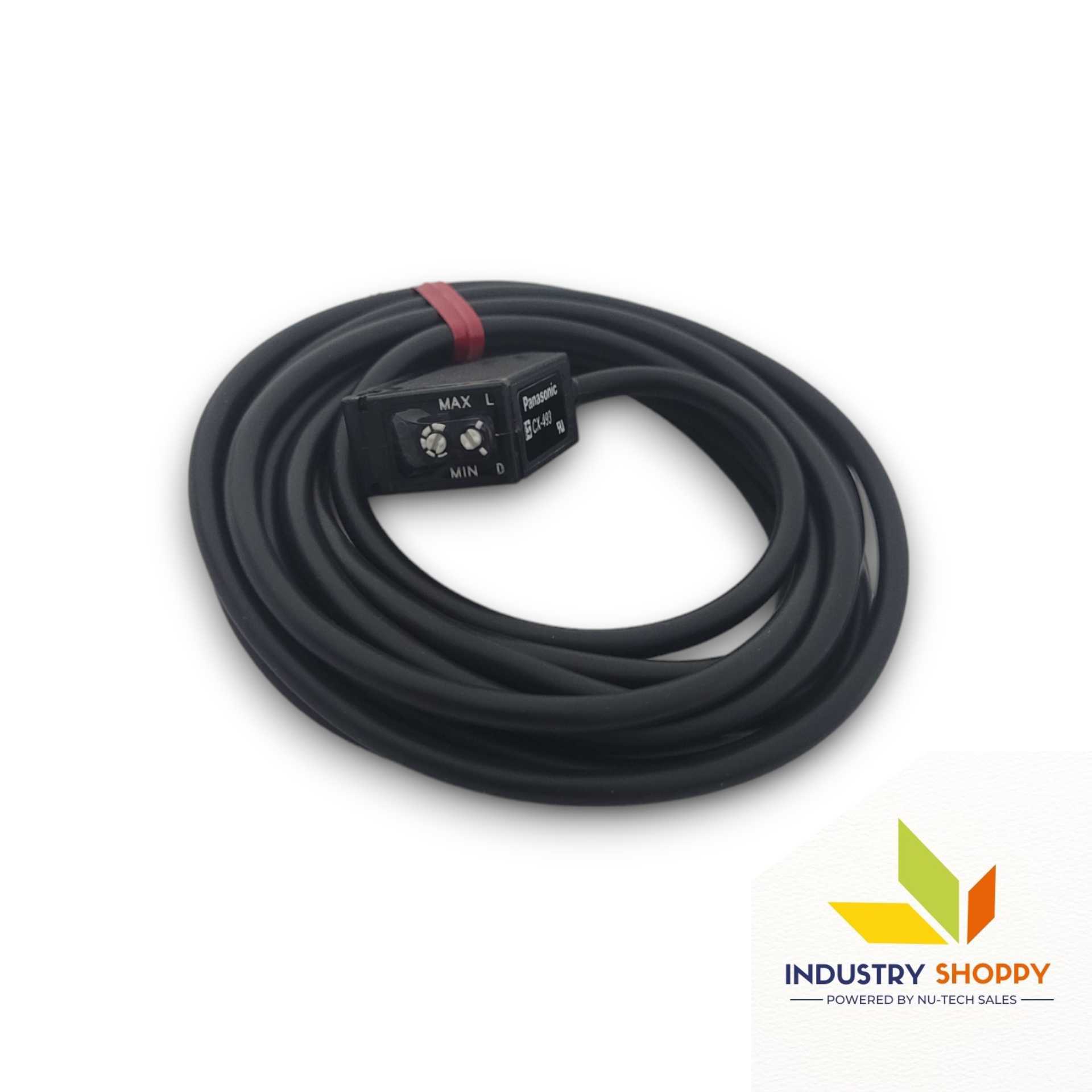

Sensitivity AdjusterContinuously variable (on receiver for thru-beam type)
Automatic Interference Prevention FunctionIncorporated (Two sensors can be mounted close together)
ProtectionIP67 (IEC)
Ambient TemperatureOperating: -25 to +55 °C (-13 to +131 °F), no dew/icing
Storage: -30 to +70 °C (-22 to +158 °F)
Ambient HumidityOperating: 35 to 85 % RH
Storage: 35 to 85 % RH
Ambient IlluminanceIncandescent light: 3,000 lx or less at light-receiving face
Voltage Withstandability1,000 V AC for 1 min between all supply terminals connected together and enclosure
Insulation Resistance20 MΩ or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration Resistance10 to 500 Hz, 1.5 mm (0.059 in) amplitude, 10 G max, X/Y/Z directions for 2 h each
Shock Resistance500 m/s² (approx. 50 G) in X/Y/Z directions, 3 times each
Emitting Element (Modulated)Red LED
Peak Emission Wavelength650 nm (0.026 mil)
MaterialEnclosure: PBT (polybutylene terephthalate)
Lens: Acrylic
Indicator cover: Acrylic
Cable0.2 mm² 3-core cabtyre cable, 2 m (6.562 ft) long
Cable ExtensionUp to 100 m (328.084 ft) possible with 0.3 mm² or more cable
Country of originJapan
