Sick IME12-04BPSZW2K Proximity Sensor
Sick IME12-04BPSZW2K Proximity Sensor
Sick IME12-04BPSZW2K Proximity Sensor
Sick IME12-04BPSZW2K Proximity Sensor
Sick IME12-04BPSZW2K Proximity Sensor
Sick IME12-04BPSZW2K Proximity Sensor
Sick IME12-04BPSZW2K Proximity Sensor
Sick IME12-04BPSZW2K Proximity Sensor
Sick IME12-04BPSZW2K Proximity Sensor
Sick IME12-04BPSZW2K Proximity Sensor
Sick

Sick IME12-04BPSZW2K Proximity Sensor

Product SKU: NTSSEN00086
Available:
Only 1 item in stock
1 item in stock
In stock
Pre-order
Out of stock
  • Brand : Sick
  • Power Supply : 10~30 VDC
  • Type : PNP
  • Housing material : Brass, nickel-plated
  • Warranty : 12 Months
Rs. 1,400.00
Rs. 1,532.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

Sick IME12-04BPSZW2K Proximity Sensor

The Sick IME12-04BPSZW2K Proximity Sensor, with part number 1040765 (IME1204BPSZW2K), features a cylindrical thread design and a short body, making it compatible with M12 x 1 threads. Its sensing range (Sn) is 4 mm, with a safe sensing range (Sa) of 3.24 mm, suitable for flush installation.

The sensor operates with a switching frequency of 2,000 Hz and a supply voltage ranging from 10 V DC to 30 V DC, with a ripple of ≤ 10%. It comes with a 3-wire, 2 m cable for easy connectivity, and its PNP switching output ensures efficient operation. Furthermore, the sensor is equipped with an IP67 enclosure rating, safeguarding against dust and water ingress, while its durability is further assured by the inclusion of a brass and nickel-plated mounting nut.

Originating from Hungary, the Sick IME12-04BPSZW2K Inductive Proximity Sensor adheres to international standards for quality and reliability. Impressively, it withstands forces up to 30 g under conditions of 11 ms/10 Hz to 55 Hz, with a 1 mm tolerance. Measuring 44 mm in housing length and 29 mm in thread length, it boasts robust construction for diverse industrial applications.

The sensor's temperature drift of ± 10% ensures reliable performance from -25 °C to +75 °C. From streamlining production lines to enhancing safety measures, this sensor delivers top-tier performance across diverse applications, ensuring efficiency and reliability.

Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!

Facebook, YouTube,


Product NumberIME12-04BPSZW2K
Part Number1040765
Functional PrincipleInductive proximity sensor
Housing TypeCylindrical thread, short body
Thread SizeM12 × 1
DiameterØ 12 mm
Sensing Range Sn4 mm
Safe Sensing Range Sa3.24 mm
Installation TypeFlush
Switching Frequency2,000 Hz

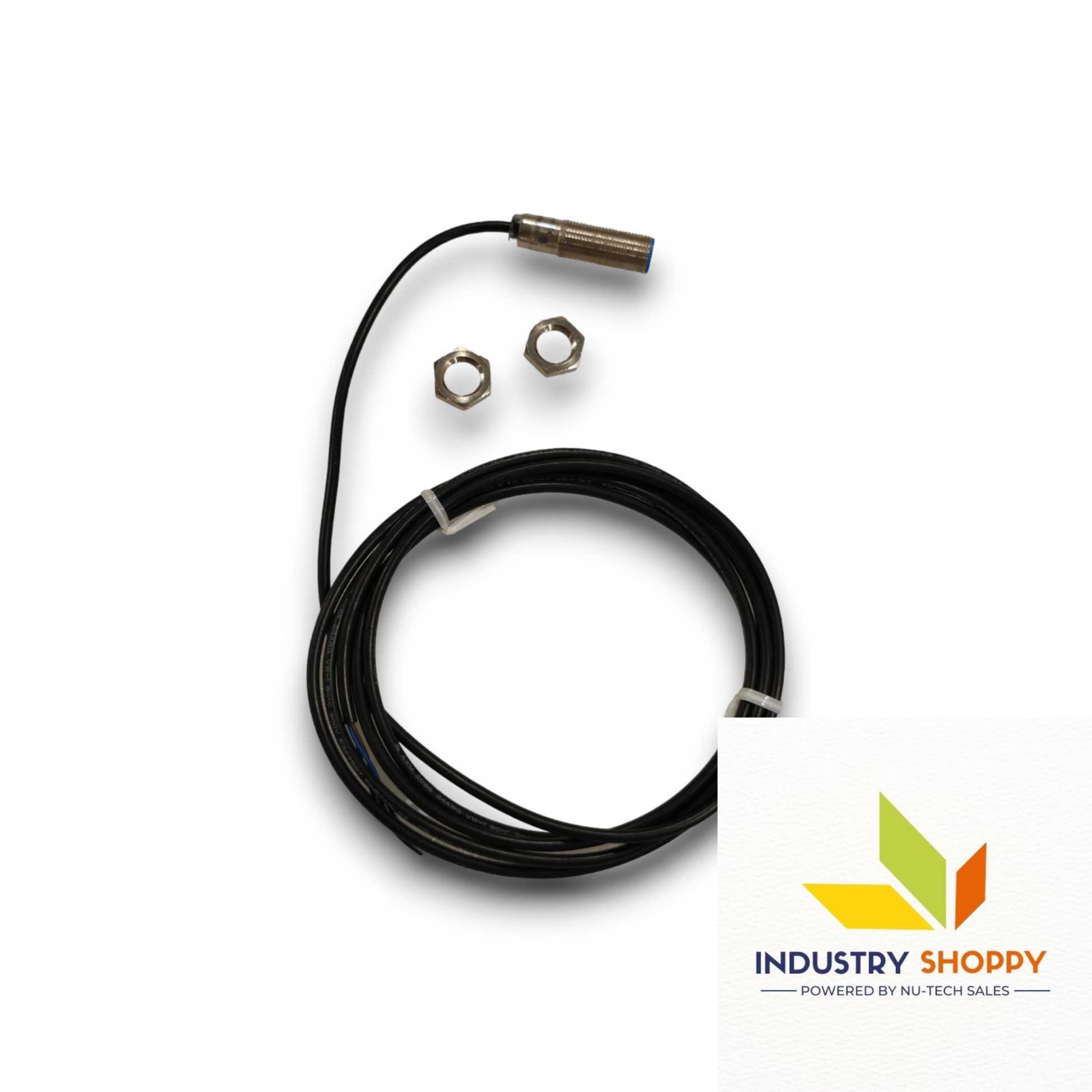

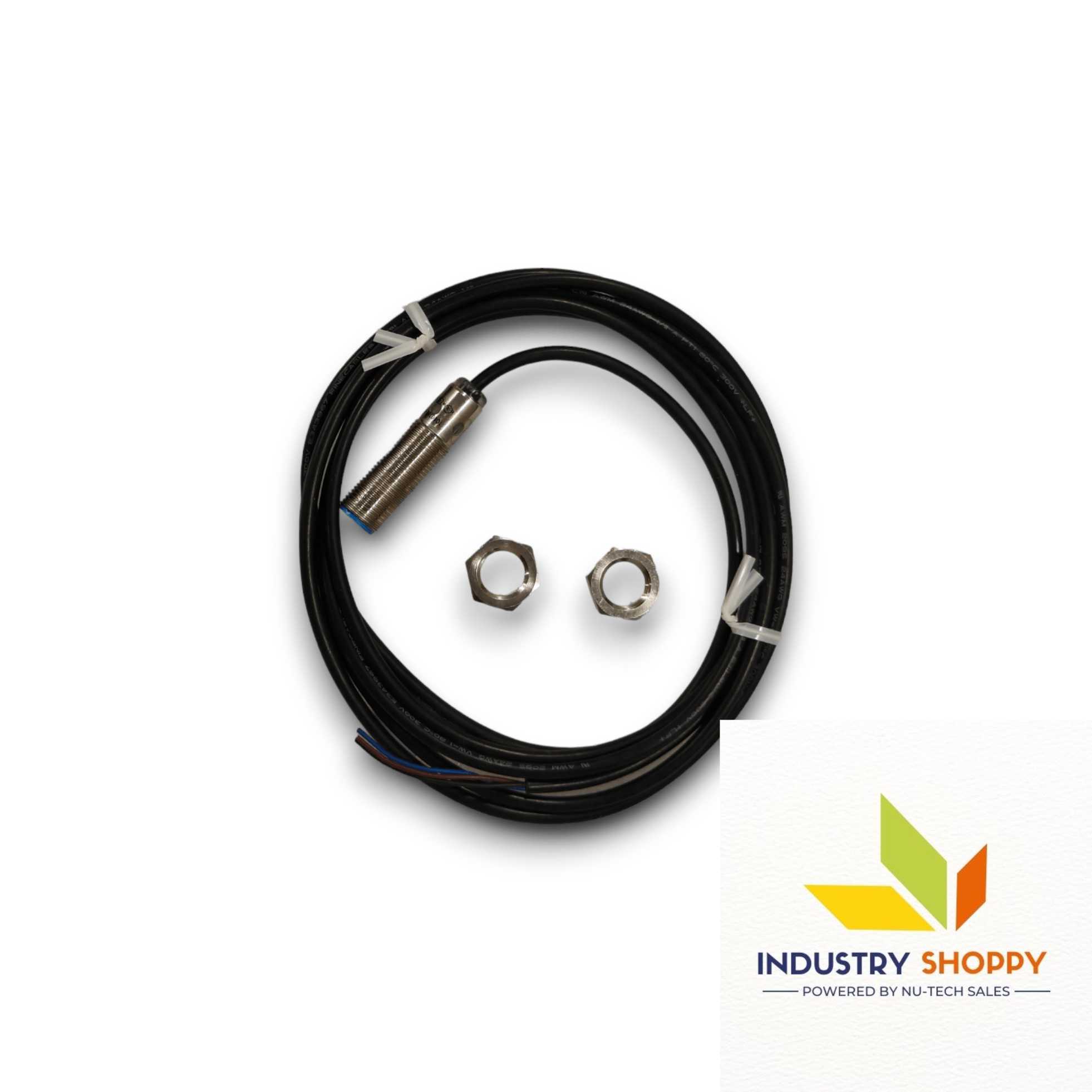

Connection TypeCable, 3-wire, 2 m
Switching OutputPNP
Output FunctionNormally open (NO)
Electrical WiringDC 3-wire
Enclosure RatingIP67

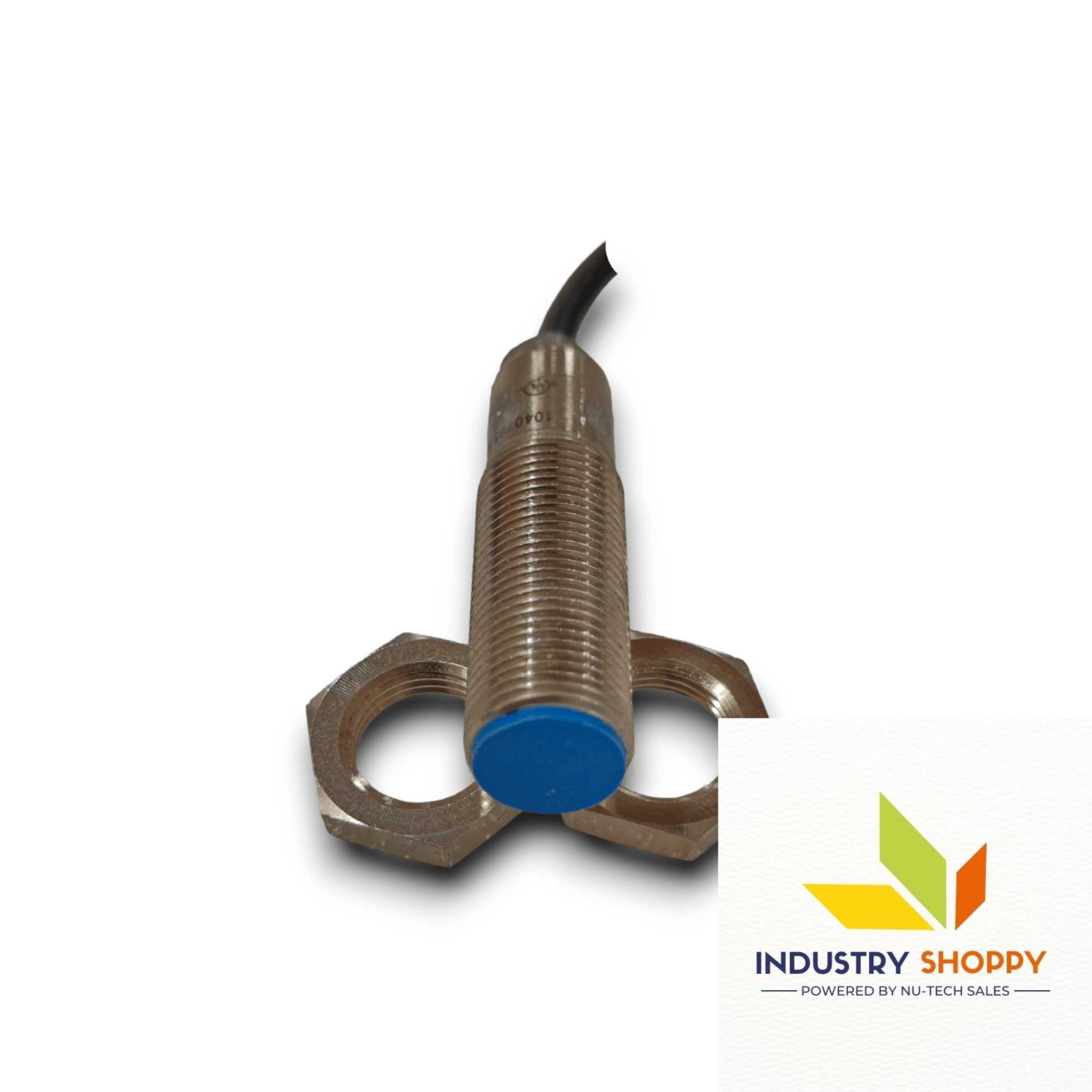

Items SuppliedMounting nut, brass, nickel-plated
Supply Voltage10 … 30 V DC
Ripple≤ 10 %
Voltage Drop≤ 2 V
Time Delay Before Availability≤ 100 ms
Hysteresis5 … 15 %
Reproducibility≤ 2 %
Temperature Drift (of Sr)± 10 %
EMC StandardEN 60947-5-2
Continuous Current Ia≤ 200 mA
No-Load Current≤ 200 mA
Cable MaterialPVC
Conductor Size0.25 mm²
Cable Diameter Ø3.9 mm
Short-Circuit ProtectionYes
Reverse Polarity ProtectionYes
Power-Up Pulse ProtectionYes
Shock & Vibration Resistance30 g, 11 ms / 10 … 55 Hz, 1 mm
Ambient Operating Temperature-25 … +75 °C
Housing MaterialBrass, nickel-plated
Sensing Face MaterialPlastic, PA 66
Housing Length44 mm
Thread Length29 mm
Tightening Torque, Max.≤ 12 Nm
UL File No.NRKH.E181493
Country of OriginHungary
