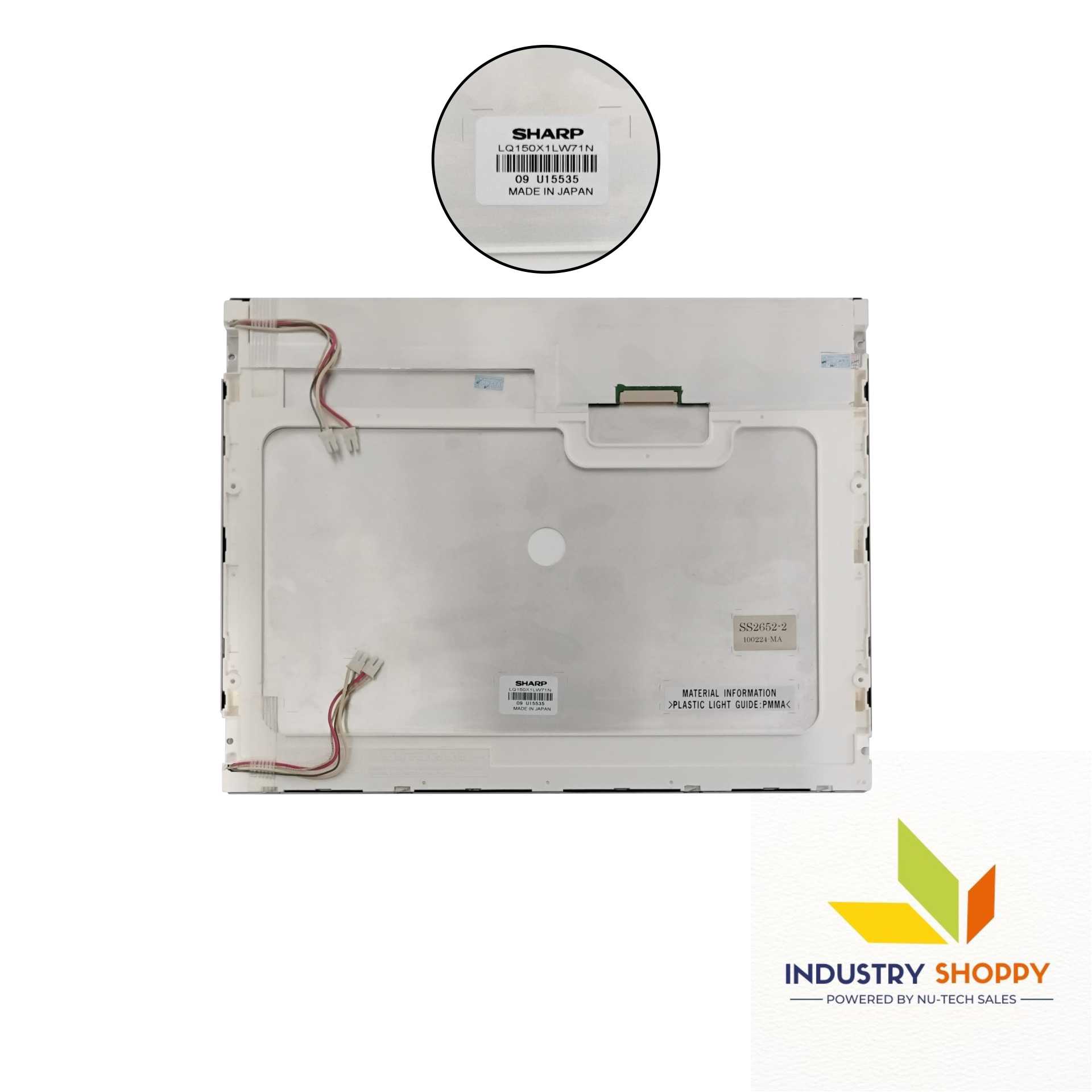

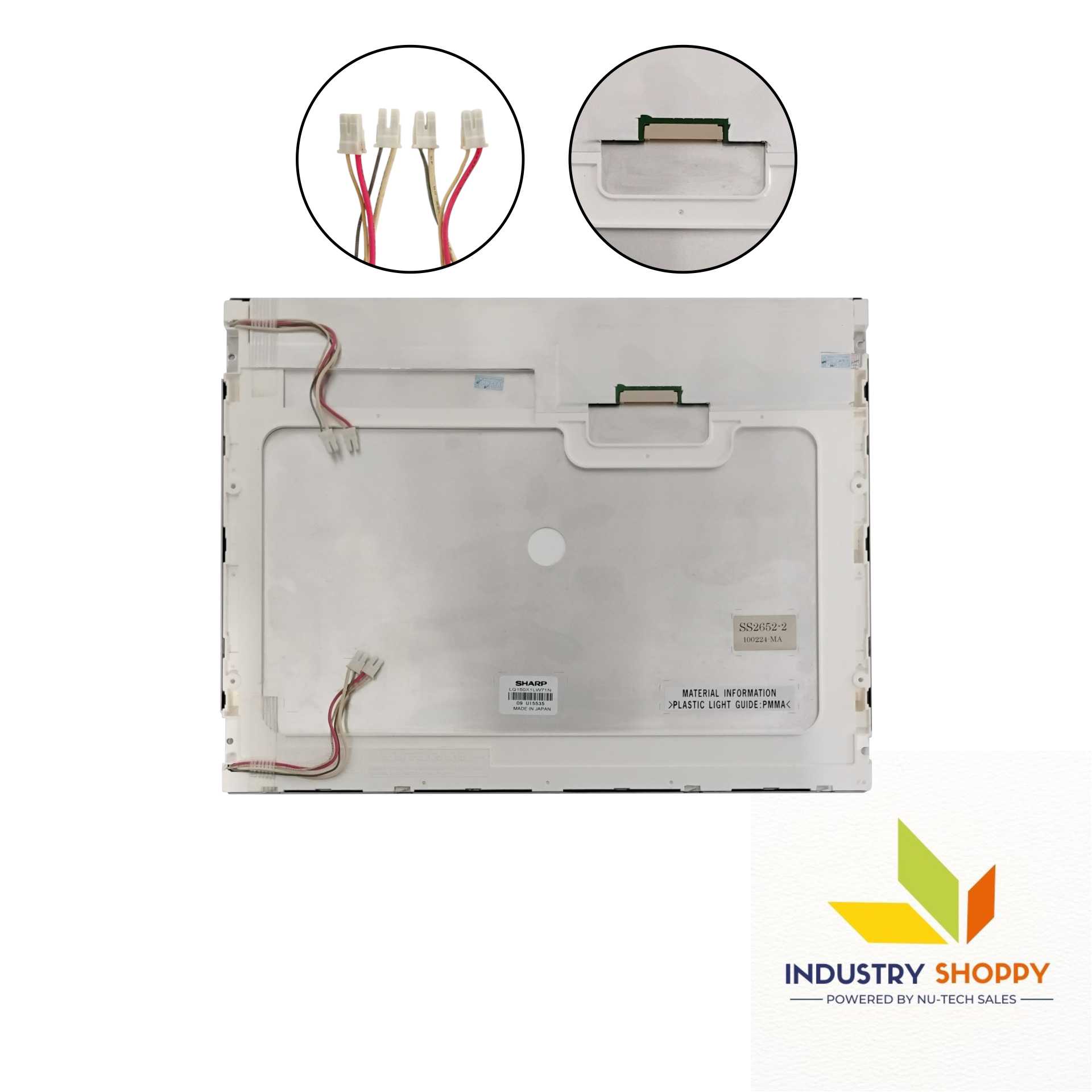

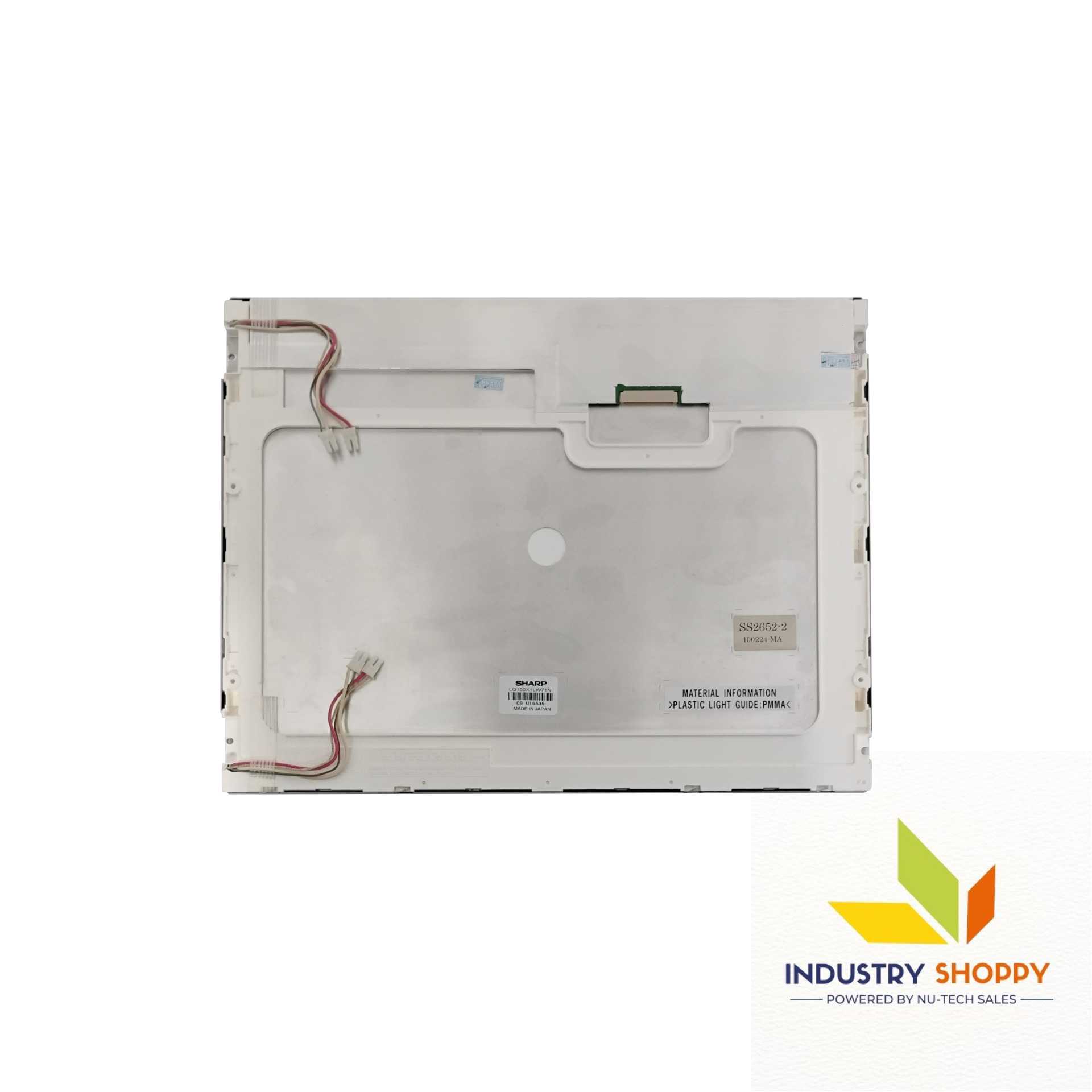

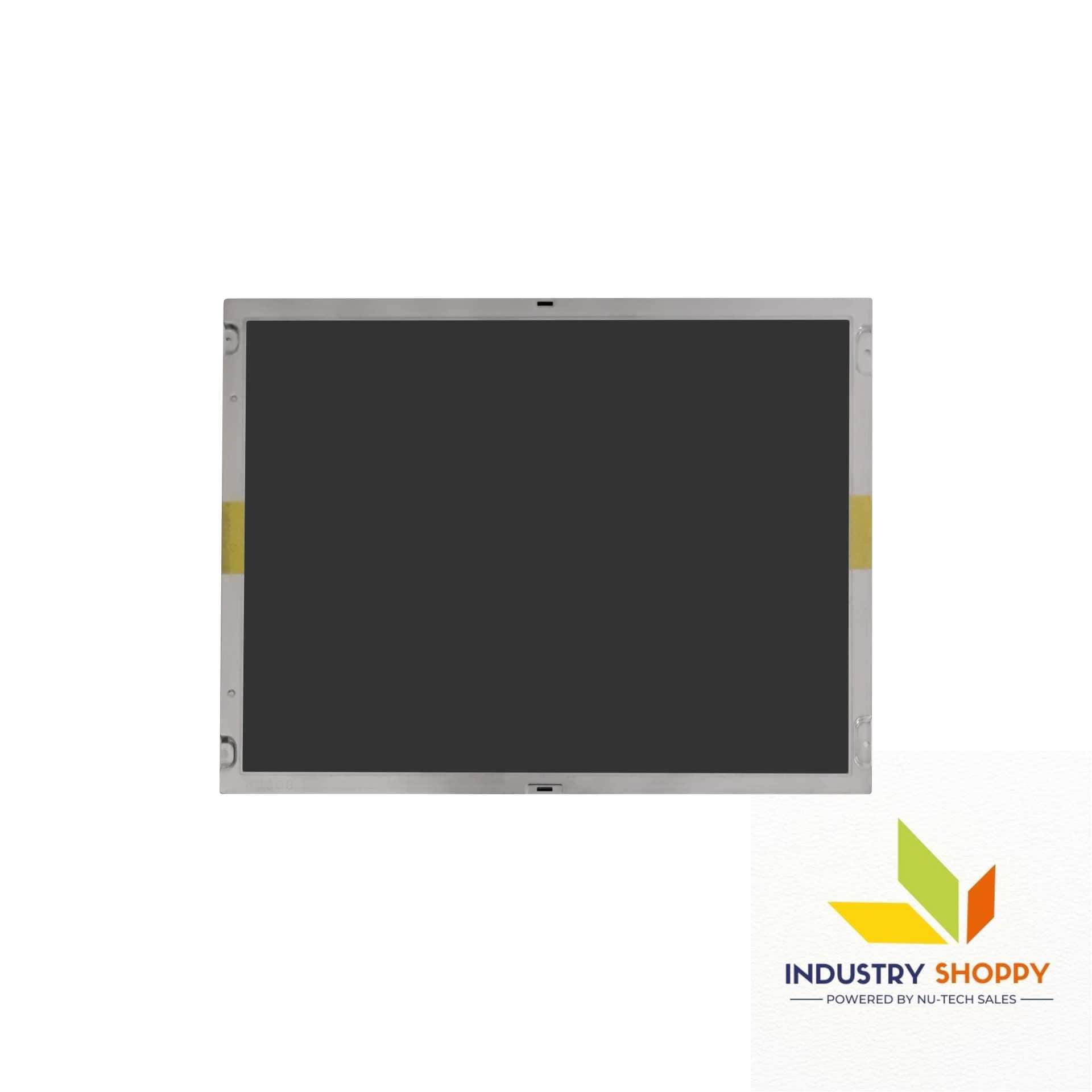

Sharp LQ150X1LW71N LCD Module

Sharp LQ150X1LW71N LCD Module

The Sharp LQ150X1LW71N LCD Module delivers XGA resolution (1024×768) at 85 PPI, offering sharp and vibrant visuals. Its 304.128(W)×228.096(H) mm active area fits within a 331.6×254.76×13 mm slim profile, ideal for industrial and commercial displays. With 250 cd/m² brightness and a 400:1 contrast ratio, it ensures clear images in varied lighting.

The 85° wide viewing angles provide consistent visibility from any position. An antiglare coating (Haze 25%, 3H) reduces reflections for improved readability. Supporting 16.2M colors at 70% NTSC, it connects via a 20-pin LVDS interface at 60 Hz. Powered by 3.3 V, it uses 4 CCFL lamps rated for 50,000 hours. Operating between 0°C to 60°C, it is built for long-lasting performance.

• It is a front polarizer. It may damage. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may break or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may result in different luminance, response time.
