Sharp LQ150X1LG83 LCD Module
Sharp LQ150X1LG83 LCD Module
Sharp LQ150X1LG83 LCD Module
Sharp LQ150X1LG83 LCD Module
Sharp LQ150X1LG83 LCD Module
Sharp LQ150X1LG83 LCD Module
Sharp LQ150X1LG83 LCD Module
Sharp LQ150X1LG83 LCD Module
Sharp

Sharp LQ150X1LG83 LCD Module

Product SKU: NTSLCD0095
Available:
Only 0 item in stock
0 item in stock
In stock
Pre-order
Out of stock
  • Brand  :  Sharp
  • Size  :  15.0"
  • Condition : Refurbished
  • Panel Type : a-Si TFT-LCD, LCM
  • Work Mode  : TN, Normally White, Transmissive
  • Warranty : 03 Months
Rs. 17,350.00
Rs. 20,000.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

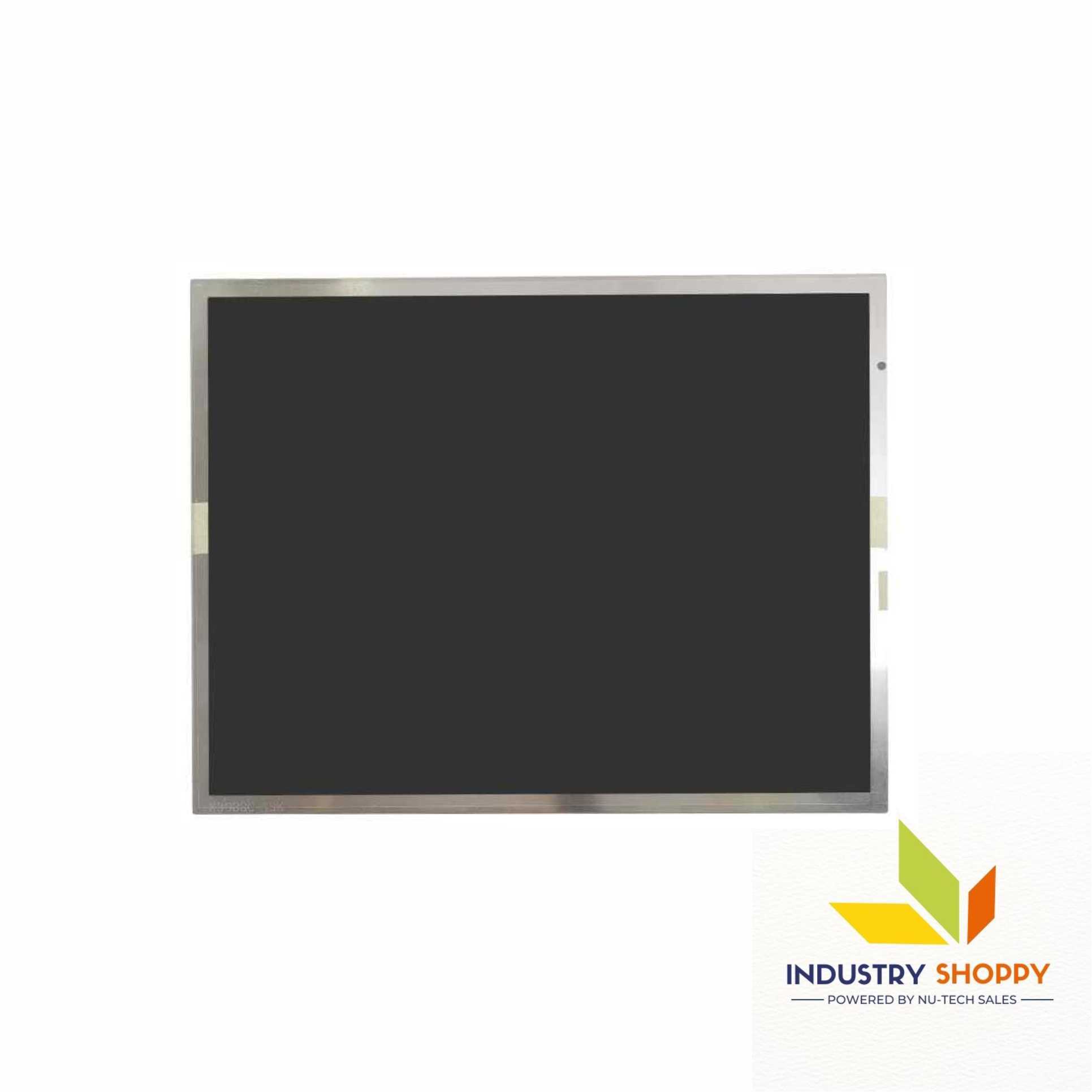

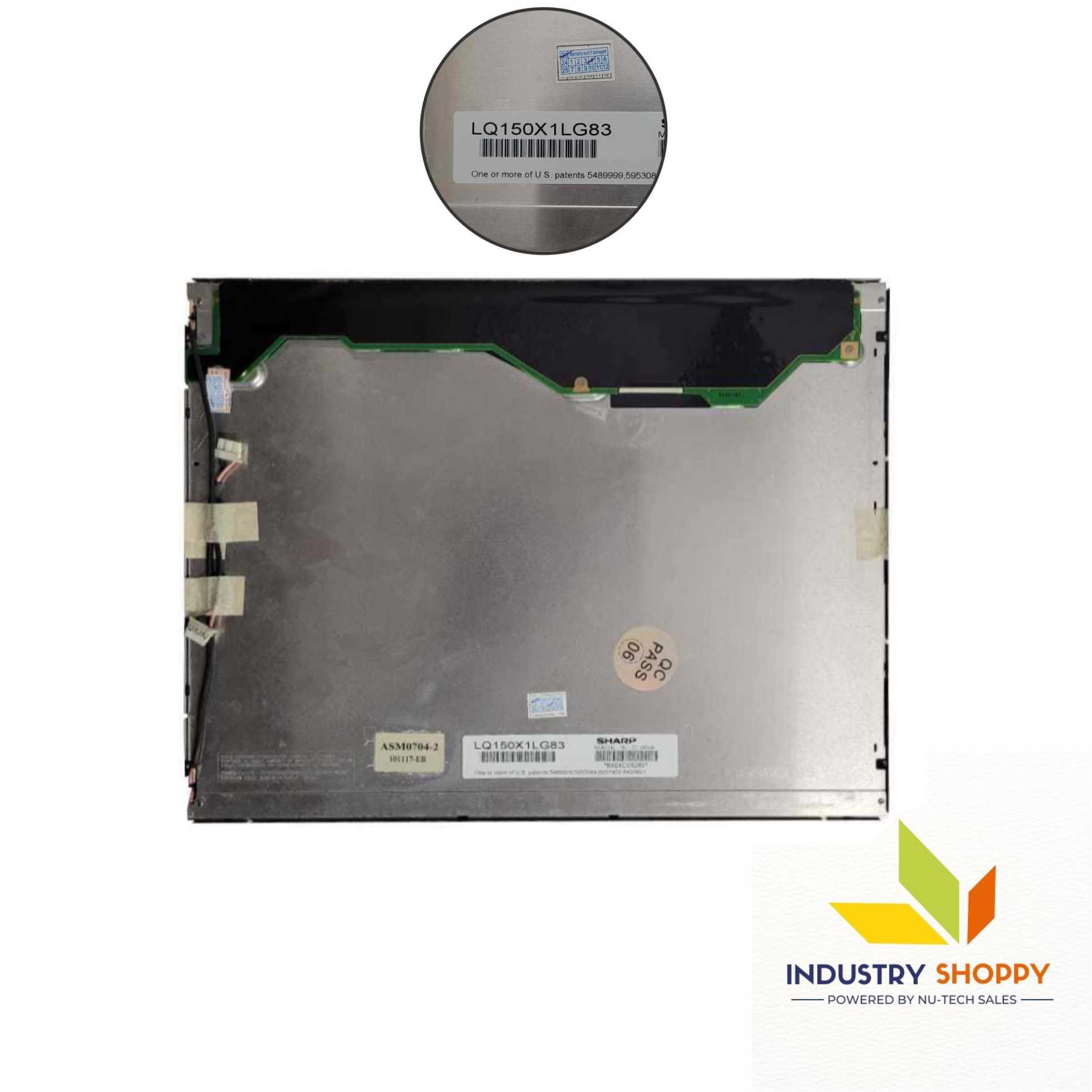

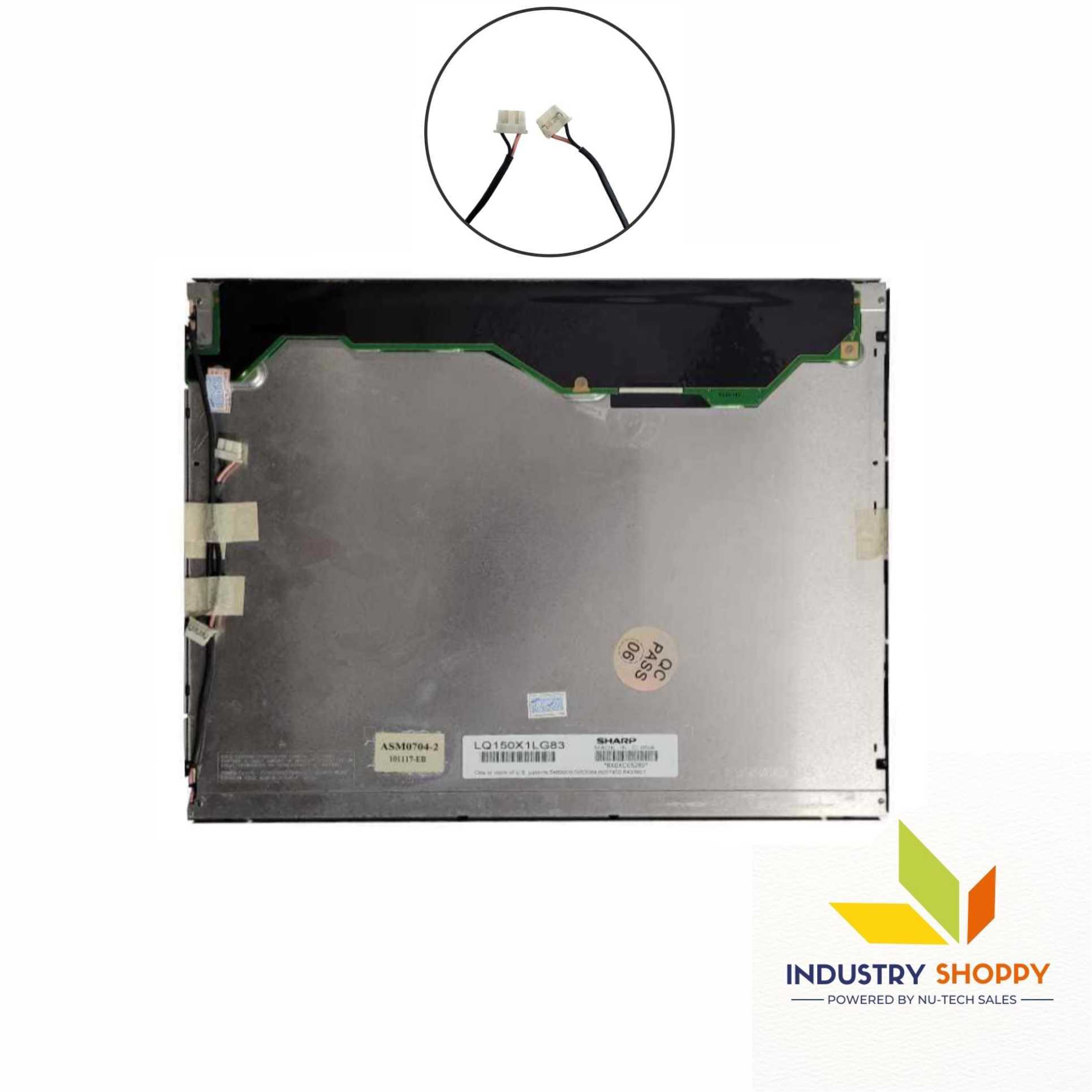

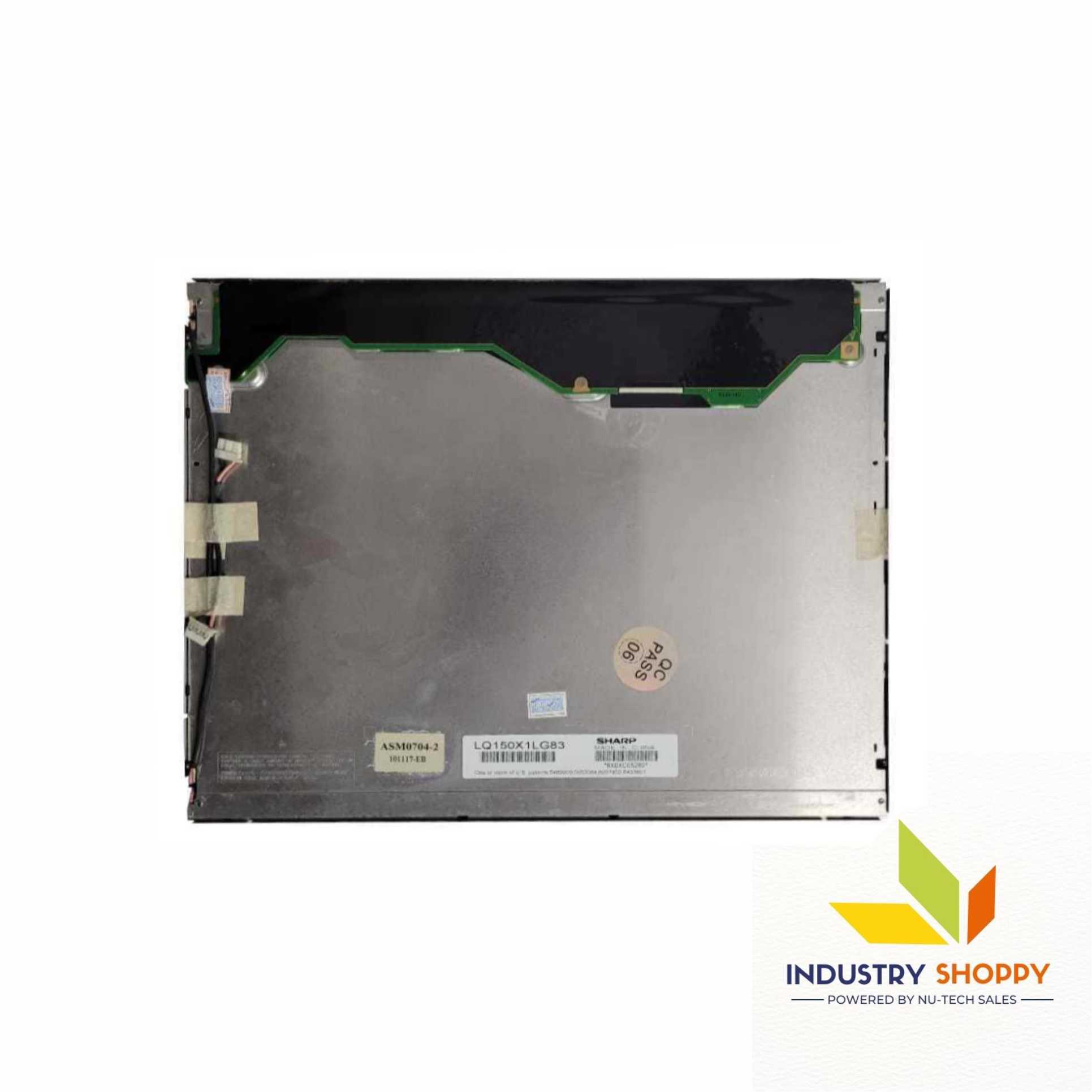

Sharp LQ150X1LG83 LCD Module

The Sharp LQ150X1LG83 LCD Module is a 15.0" TFT-LCD display features a 1024×768 XGA resolution with a pixel density of 105 PPI, ensuring sharp and clear visuals. Its active area of 304.128(W)×228.096(H) mm provides a spacious viewing area, making it ideal for industrial and embedded applications. With a luminance of 350 cd/m², the display is bright enough for most indoor environments.

This display offers an impressive contrast ratio of 550:1, enabling clear differentiation between light and dark elements. Its viewing angle of 60/60/45/55 degrees (CR ≥ 10) allows for excellent visibility from various angles. The response time of 2/6 ms (Tr/Td) ensures smooth transitions and minimal motion blur, making it well-suited for dynamic content.

Operating in TN mode with a normally white, transmissive configuration, the display is designed for power efficiency. It is equipped with antiglare coating (Haze 25%) and hard coating (3H), enhancing outdoor visibility and providing protection against scratches.



Technical Precautions :-
  • It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
  • Always turn off the power supply when you are inserting or disconnecting it from the input connector.
  • Wipe off water drop immediately as it may cause discoloration or spots.
  • Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
  • Do not try to open or modify the module assembly.
  • At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
  • Severe temperature condition may  result in different luminance, response time.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, Youtube,


BrandSharp
Diagonal Size15.0"
Resolution1024(RGB) × 768, XGA, 105 PPI
Active Area304.128(W) × 228.096(H) mm
Outline Dimension326(W) × 252(H) mm
Luminance350 cd/m² (Typ.)
Contrast Ratio550:1 (Typ.) (TM)
Viewing Angle60/60/45/55 (Typ.) (CR≥10)
Response Time2/6 ms (Typ.) (Tr/Td)
Panel Typea-Si TFT-LCD, LCM
TreatmentAntiglare (Haze 25%), Hard coating (3H)
Operating ModeTN, Normally White, Transmissive
Support Color16.2M
Signal Interface TypeLVDS (1 ch, 8-bit), 20 pins Connector
Frame Rate60 Hz
Power Supply3.3 V (Typ.)
Backlight3 strings WLED, 50K hours, No Driver
Operating Temperature0 ~ 60 °C
Storage Temperature-25 ~ 60 °C
