Sharp LQ10D36C LCD Module
Sharp LQ10D36C LCD Module
Sharp LQ10D36C LCD Module
Sharp LQ10D36C LCD Module
Sharp LQ10D36C LCD Module
Sharp LQ10D36C LCD Module
Sharp LQ10D36C LCD Module
Sharp LQ10D36C LCD Module
Sharp

Sharp LQ10D36C LCD Module

Product SKU: NTSLCD0408
Available:
Only 0 item in stock
0 item in stock
In stock
Pre-order
Out of stock
  • Brand : Sharp
  • Condition : New
  • Active Area : 640(RGB)×480, VGA  76PPI
  • Panel Type : a-Si TFT-LCD, LCM
  • Support Color : 262K
  • Warranty : 03 Months
Rs. 18,850.00
Rs. 22,000.00

+ GST @18% = Rs. 22,243.00

Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

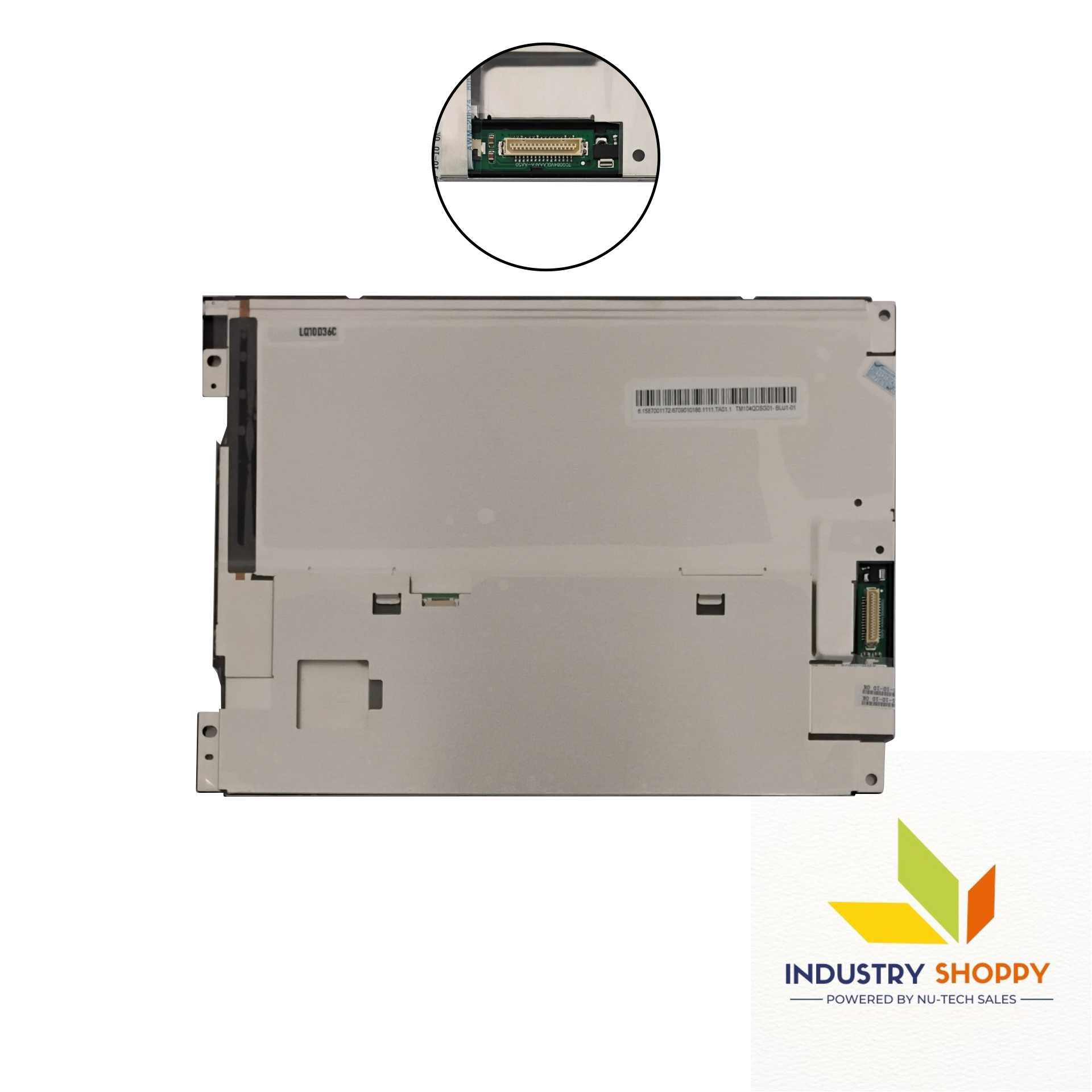

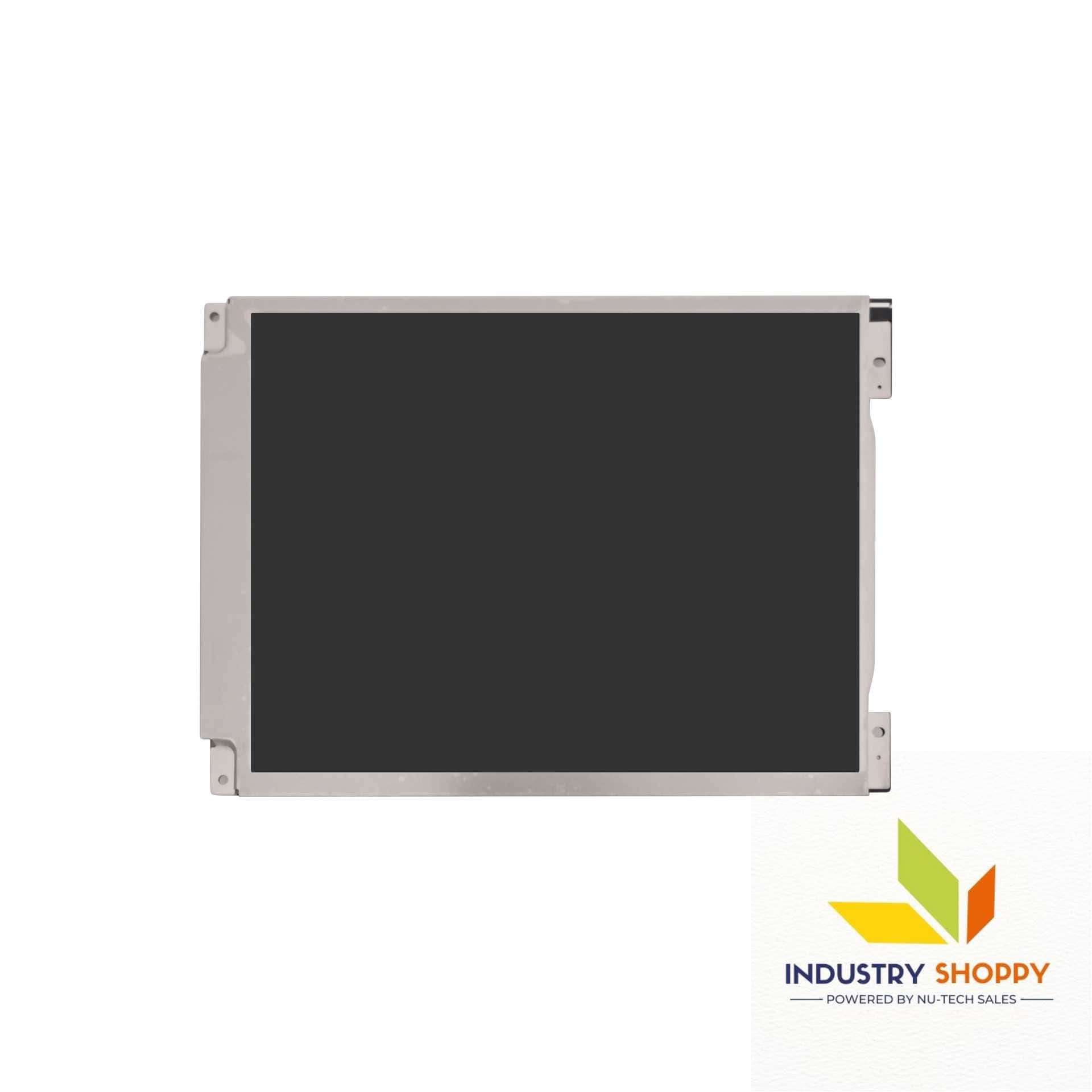

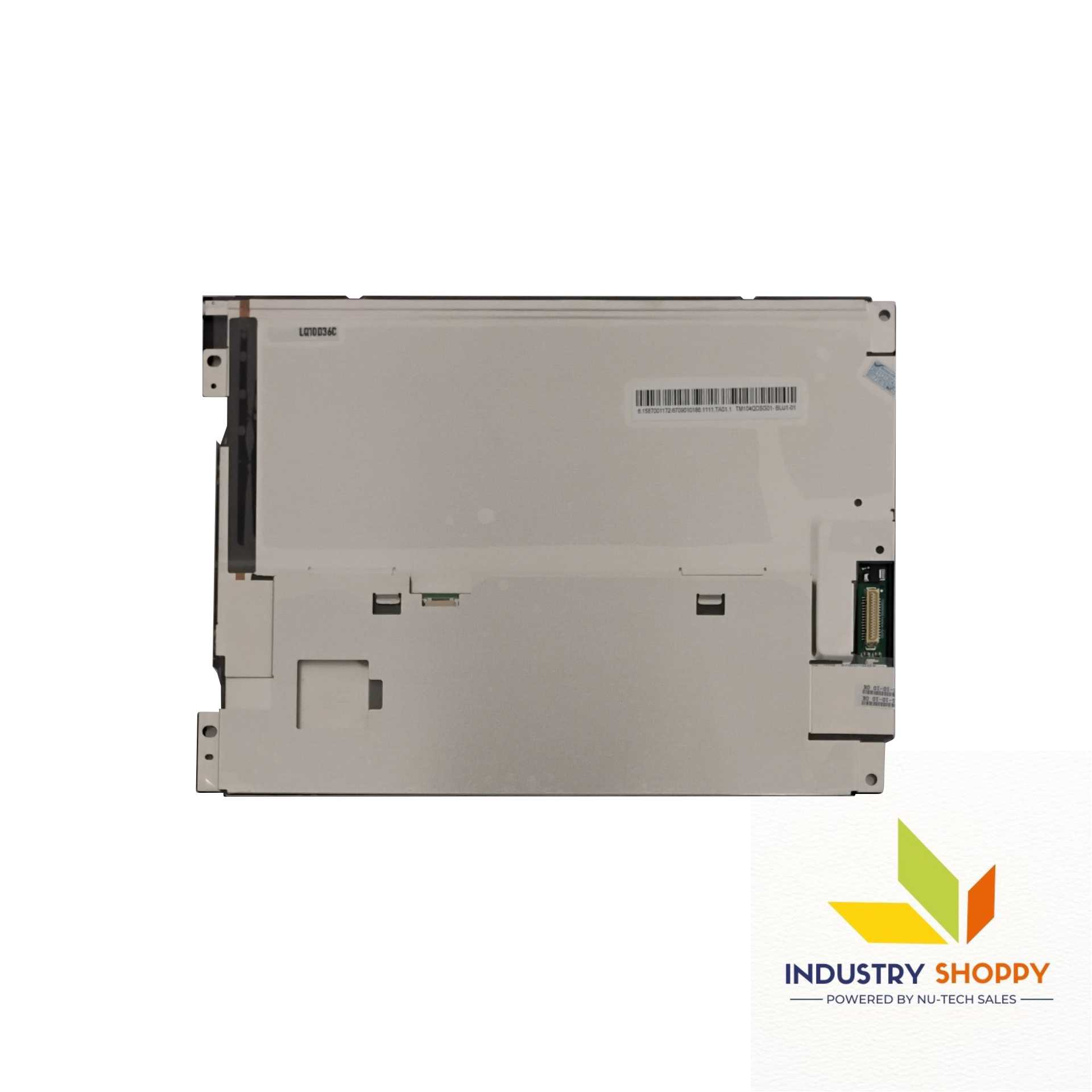

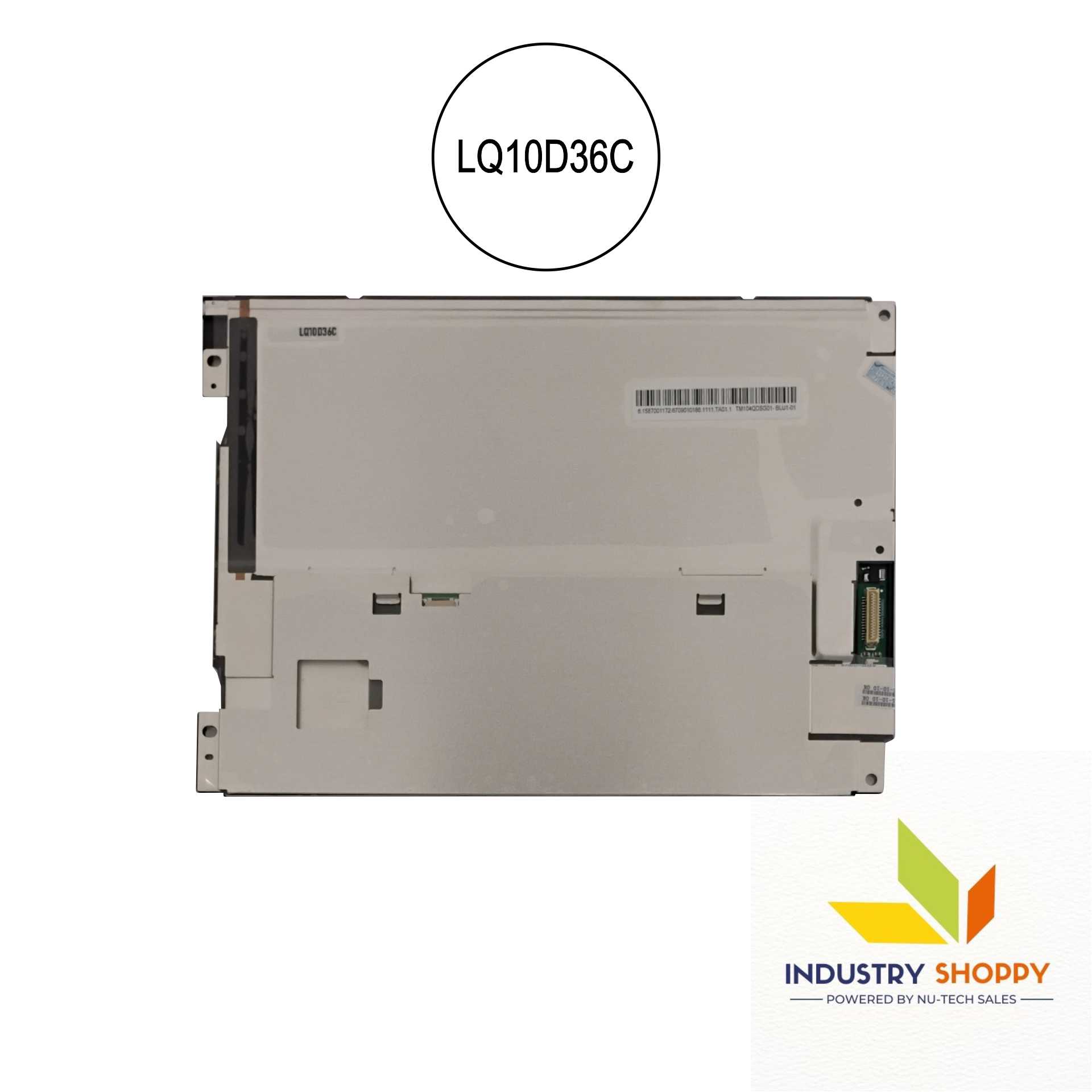

Sharp LQ10D36C LCD Module

The Sharp LQ10D36C LCD Module is a dependable industrial-grade module designed for stable performance in embedded and automation systems. It offers a 640×480 VGA resolution (76 PPI), providing clear and functional visual output ideal for HMIs, test equipment, medical devices, and control panels. The a-Si TFT-LCD, LCM structure ensures consistent operation, while the TN, Normally White, Transmissive mode delivers efficient light transmission and balanced brightness. With a 500:1 typical contrast ratio, the display maintains good readability across varied lighting environments.

The module supports 262K colors and features a Parallel RGB (1-ch, 6-bit) interface with a 31-pin connector, making integration straightforward for standard industrial systems. Its response time of 10/25 ms (Tr/Td) allows smooth transitions for general-purpose applications. The integrated WLED backlight with built-in LED driver ensures long-life and stable illumination. Its robust design makes it suitable for continuous industrial operation, offering reliability and longevity in demanding environments.

Technical Precautions:
  • It is a front polarizer. It may damage. Please be cautious. Don’t scratch it.
  • Always turn off the power supply when you are inserting or disconnecting it from the input connector.
  • Wipe off water drop immediately as it may cause discoloration or spots.
  • Please handle with great care. It may break or cracked if dropped or bumped on hard surface.
  • Do not try to open or modify the module assembly.
  • At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
  • Severe temperature condition may result in different luminance, response time.
Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on our site are the property of their respective owners.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products, including sensors, HMIs, PLCs, and more, we cater to diverse industries by offering top-quality solutions. Moreover, our user-friendly platform ensures a seamless shopping experience, making it easier for customers to find exactly what they need. In addition, we prioritize efficiency and convenience, allowing businesses to streamline their procurement process. Furthermore, our commitment to reliability and customer satisfaction sets us apart from competitors, ensuring that every purchase meets the highest standards. As a result, we continue to be a trusted partner for industries seeking innovative and dependable solutions. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!

BrandSHARP
Diagonal Size10.4 Inch
Resolution640(RGB)×480, VGA  76PPI
Active Area211.2(W)×158.4(H) mm
Outline Dimension--
Luminance--
Contrast Ratio500:1 (Typ.) (TM)
Viewing Angle--
Response Time10/25 (Typ.)(Tr/Td)
Panel Typea-Si TFT-LCD, LCM
Treatment--
Operating ModeTN, Normally White, Transmissive
Support Color262K
Signal Interface TypeParallel RGB (1 ch, 6-bit) , 31 pins Connector
Frame Rate60Hz
Power Supply--
BacklightWLED , With LED Driver
Operating Temperature--
Storage Temperature--
Vibration Level--
