Sharp LQ104V7DS01 LCD Module

Sharp LQ104V7DS01 LCD Module

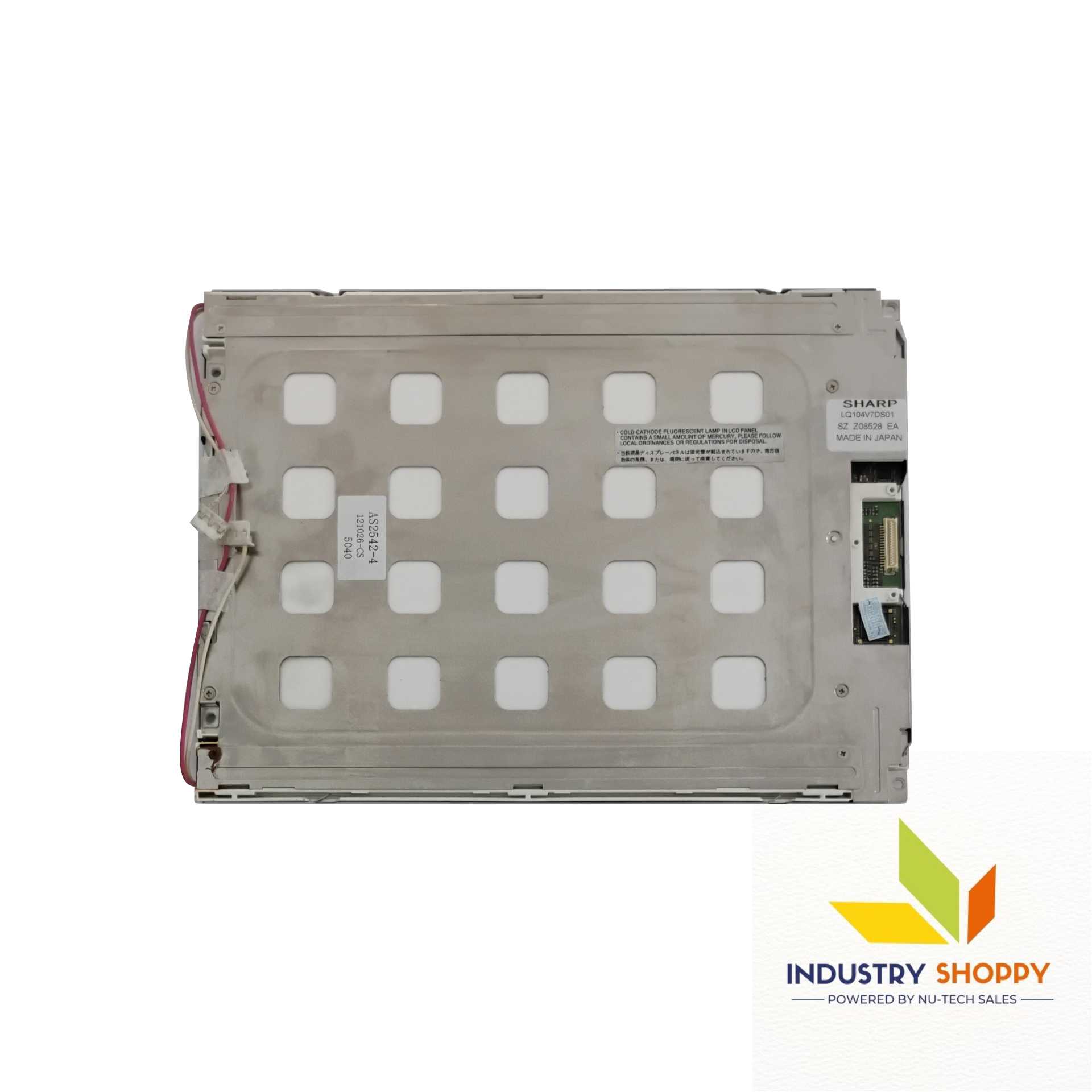

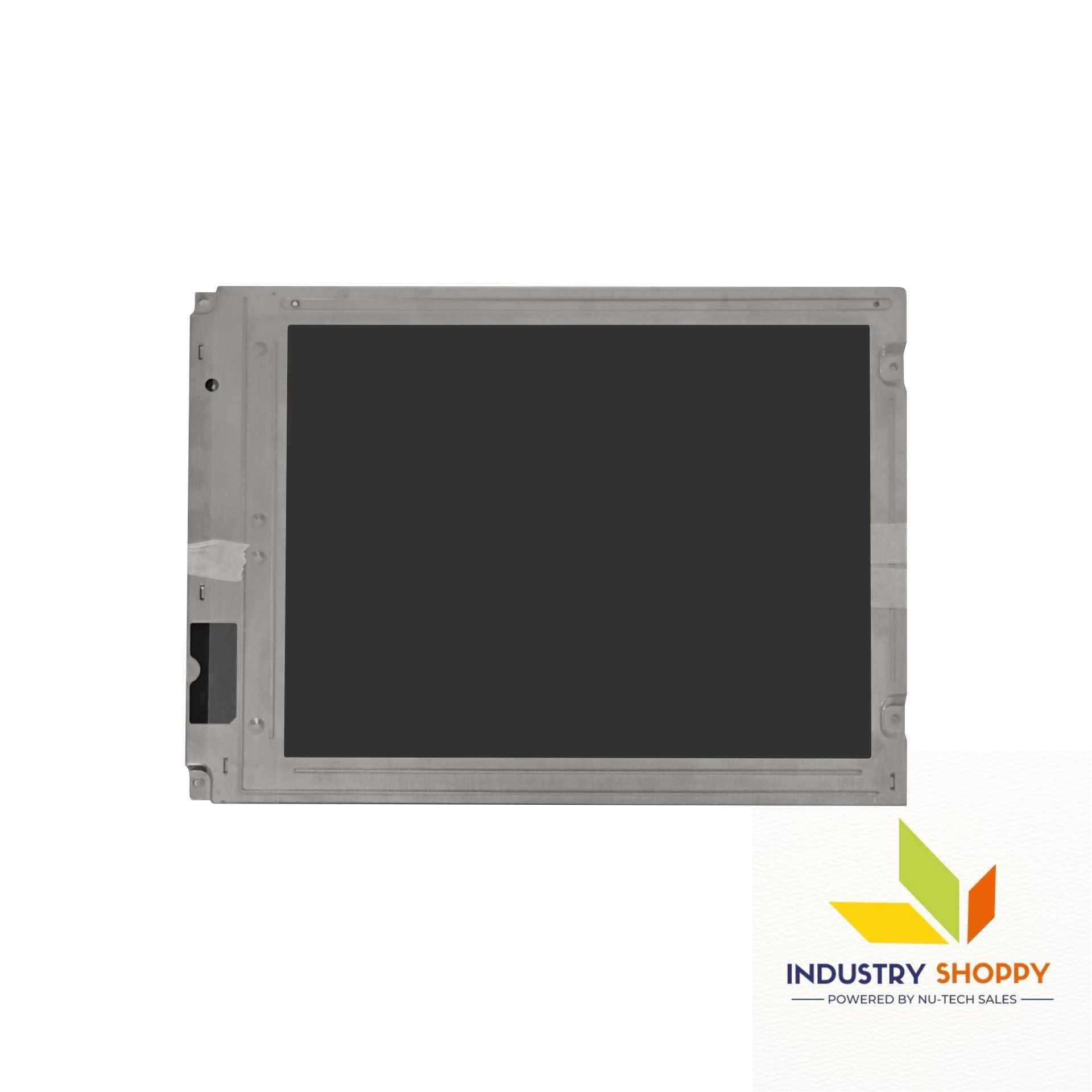

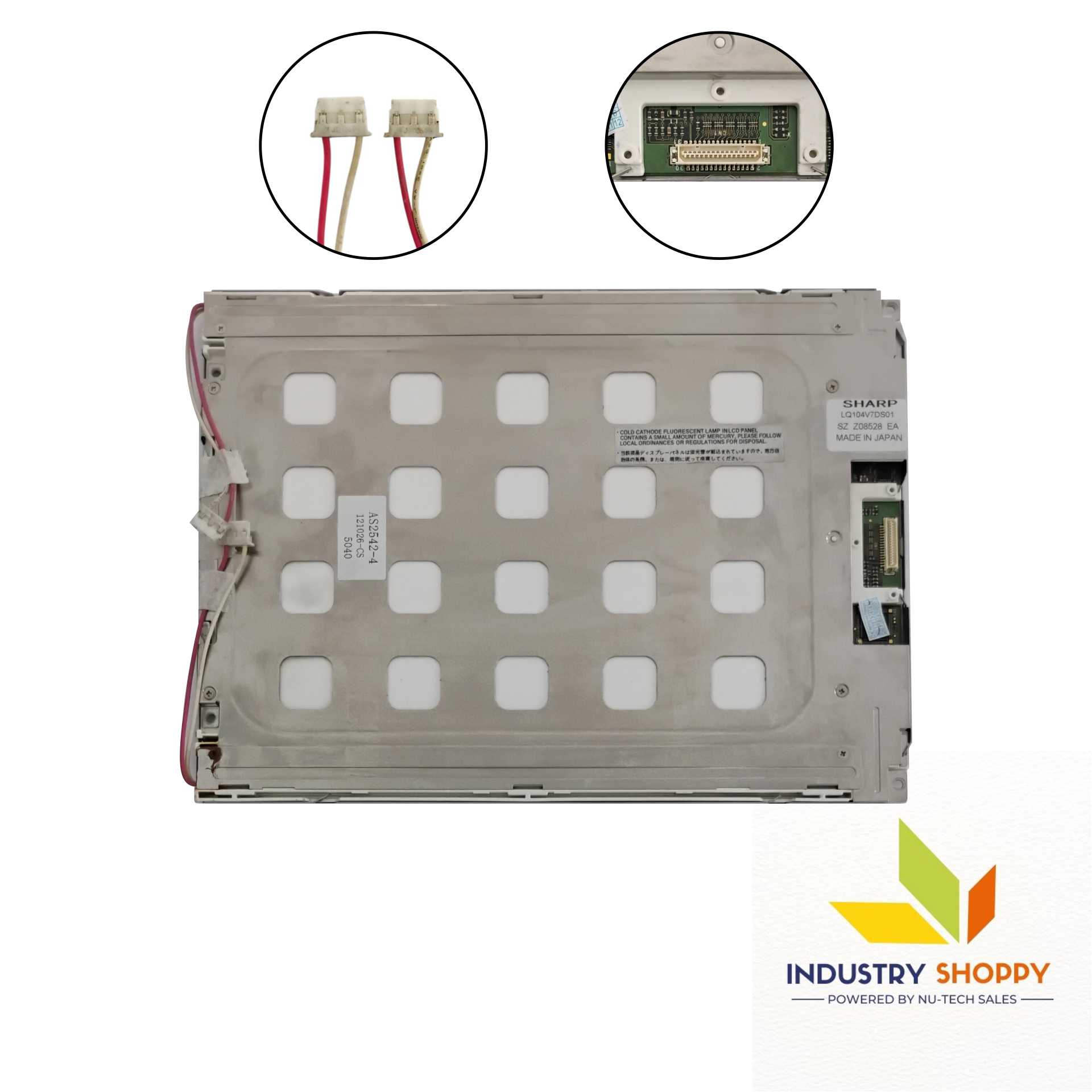

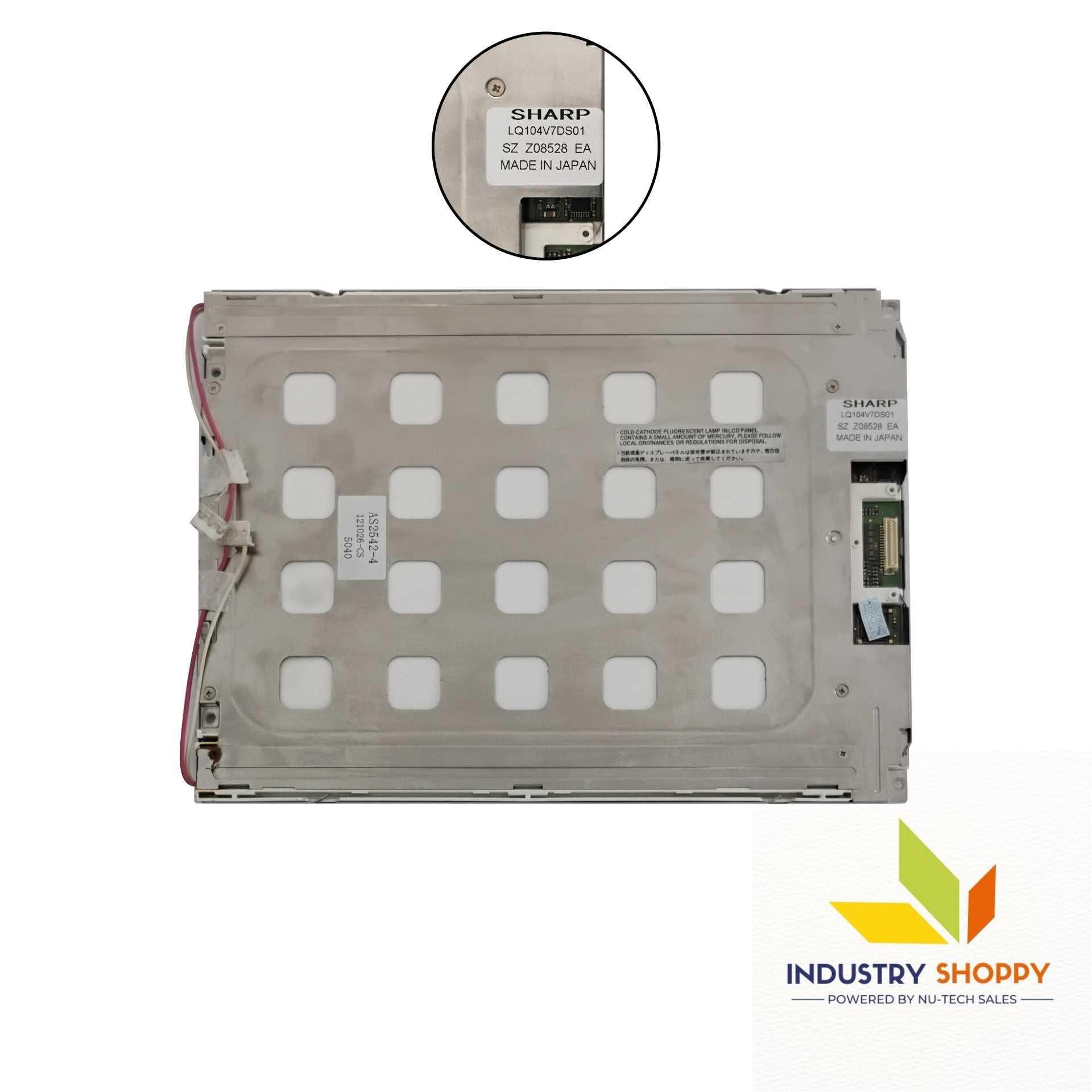

The Sharp LQ104V7DS01 LCD Module is a robust and versatile panel engineered for demanding industrial and embedded applications. It features a VGA resolution of 640(RGB)×480 pixels at 76 PPI, providing a generous active display area of 211.2(W) × 158.4(H) mm within a compact 245 × 195 × 11.9 mm enclosure. Designed with antiglare, hard coating, and antireflection treatments, the screen performs well in various lighting conditions.

The TN panel operates in a normally white, transflective mode, offering visibility even under ambient light. It supports 262K colors with a 250:1 contrast ratio (typical, transmissive mode) and 250 cd/m² brightness. Viewing angles are 45° in all directions (CR≥5), and it offers a typical response time of 20/40 ms (Tr/Td). The display interface is a Parallel RGB (1 ch, 6-bit) via a 31-pin connector. It uses a dual CCFL backlight rated for 50,000 hours, without an integrated driver, and operates between -10 to 65°C.

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.
