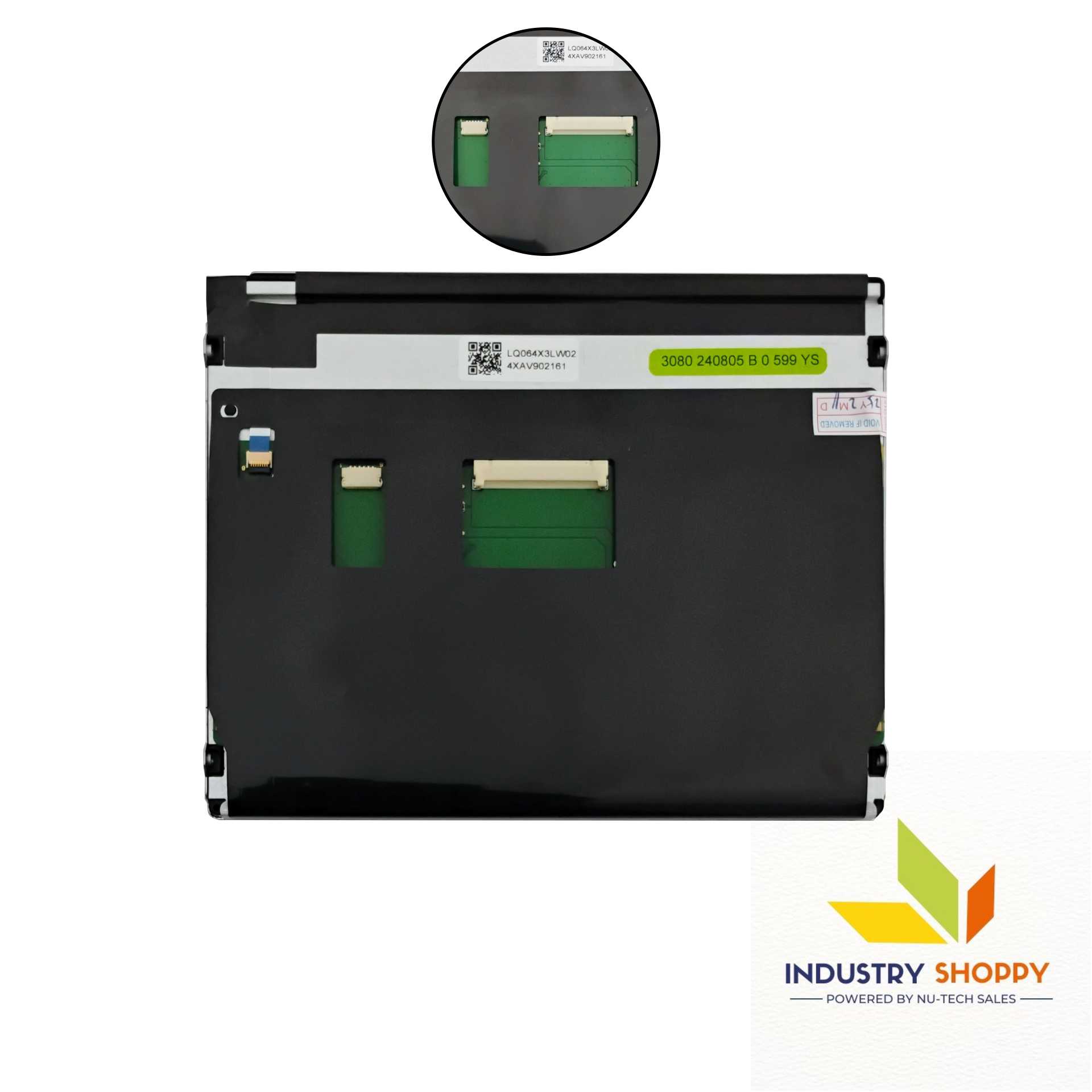

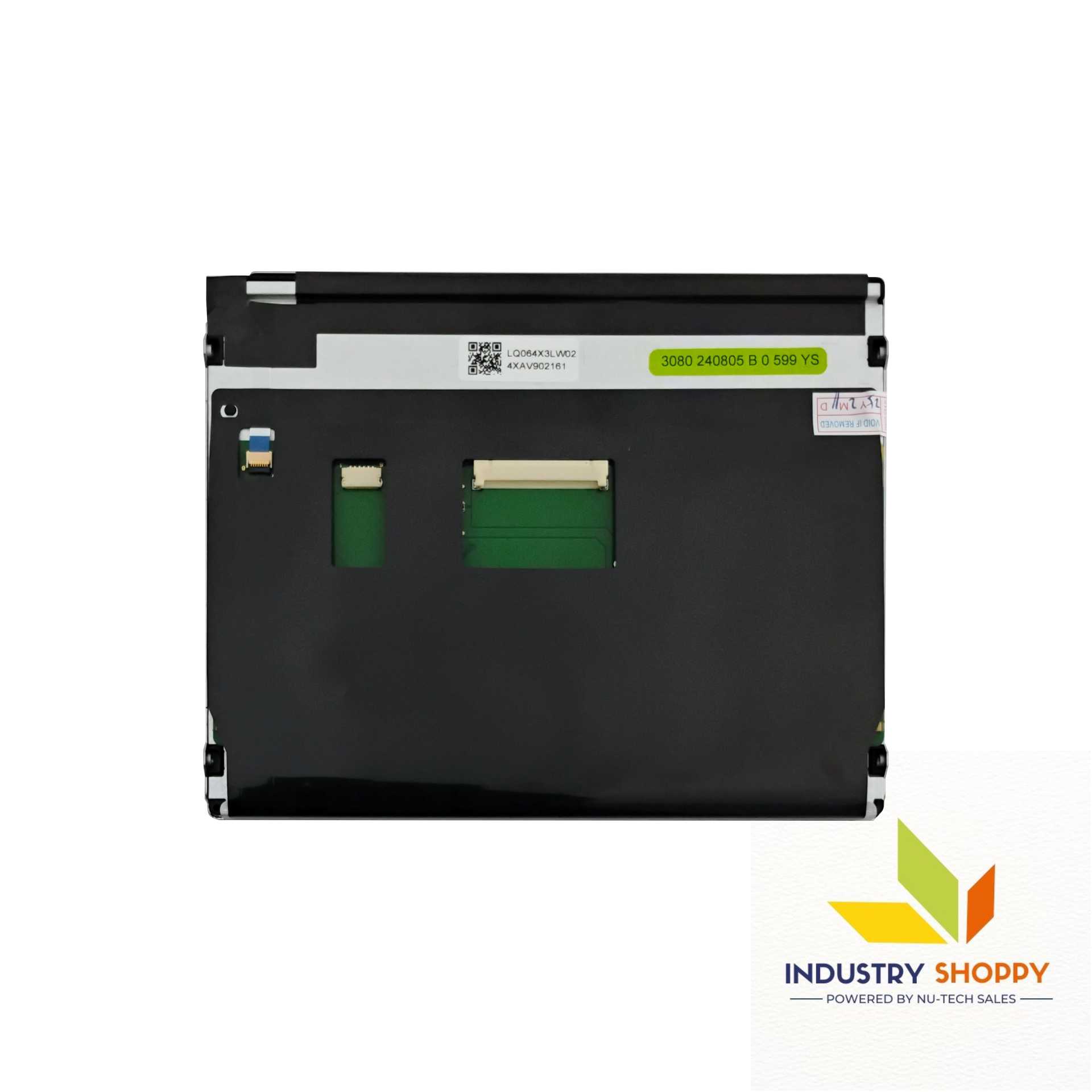

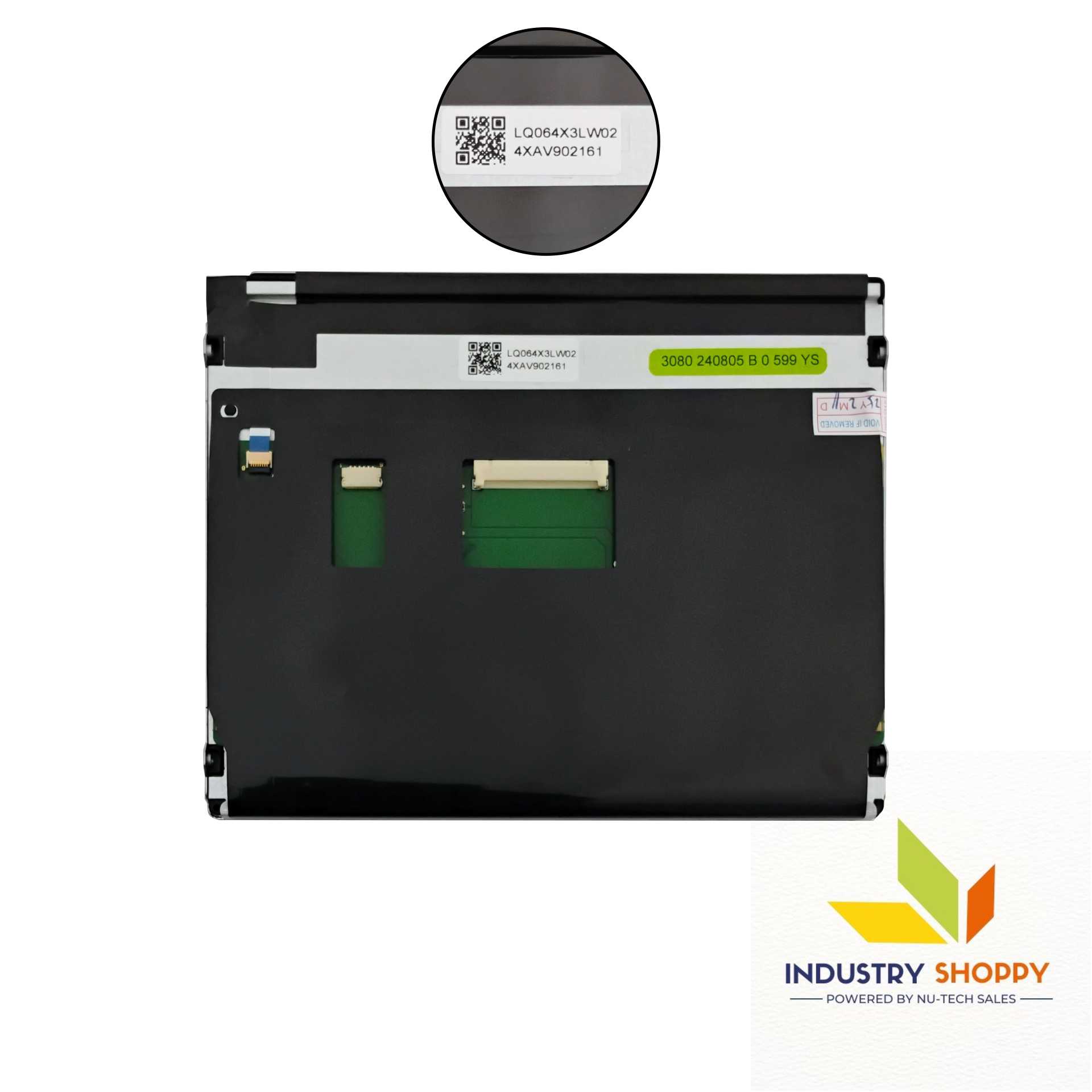

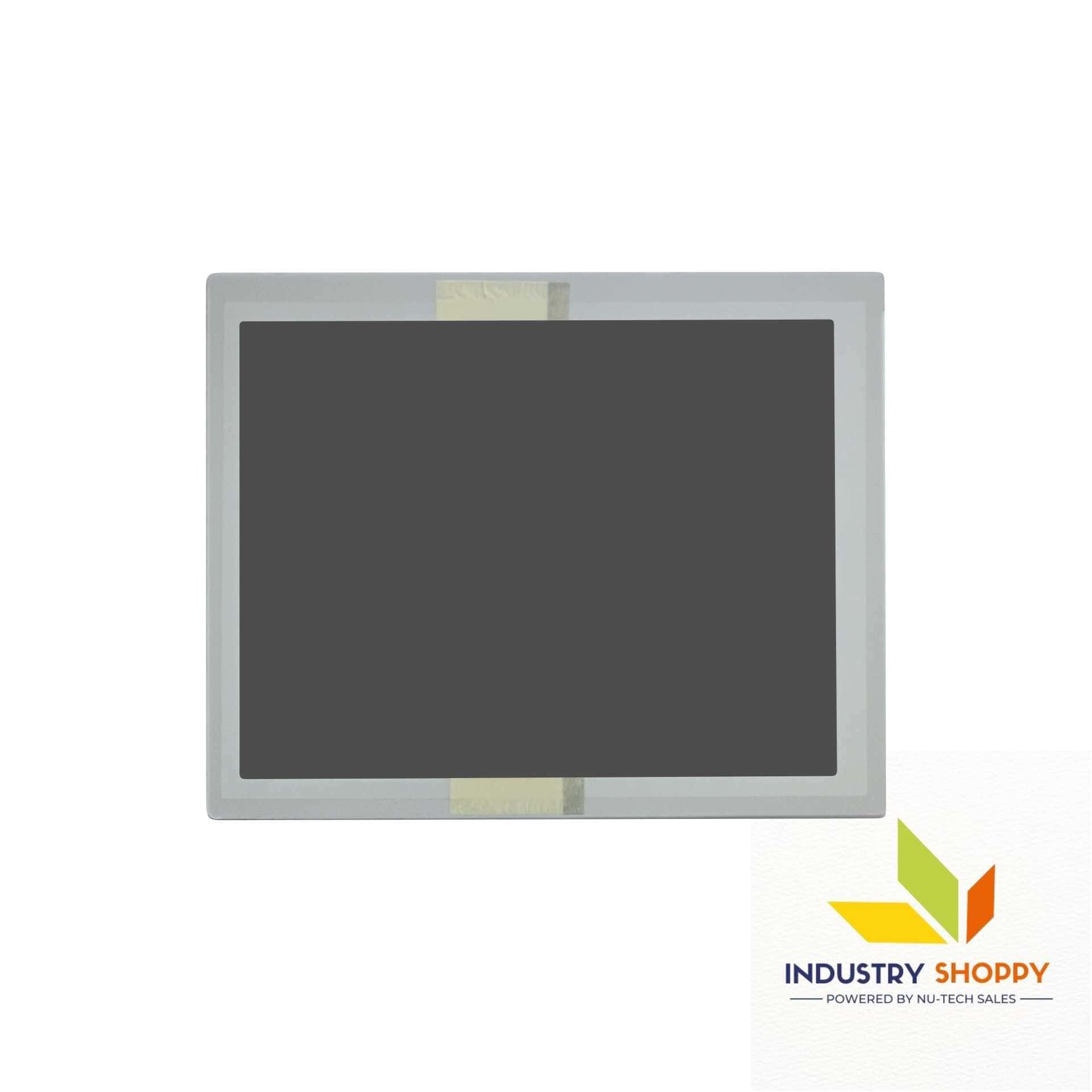

Sharp LQ064X3LW02 LCD Module

• Brand : Sharp
• Size : 6.4″
• Condition : New
• Panel Type : a-Si TFT-LCD, LCM
• Work Mode : ASV, Normally Black, Transmissive

Sharp LQ064X3LW02 LCD Module

The Sharp LQ064X3LW02 LCD Module is a Sharp TFT-LCD panel 6.4-inch delivers an impressive 1024×768 XGA resolution with a 200 PPI pixel density, ensuring sharp and clear visuals. Additionally, its wide 80/80/80/80° viewing angles enhance visibility from multiple perspectives, making it ideal for various applications.

Furthermore, the 390 cd/m² luminance and 800:1 contrast ratio provide excellent brightness and deep blacks for a superior display experience. The antiglare hard coating (3H) not only improves screen durability but also minimizes reflections, ensuring optimal readability in different lighting conditions.

The panel operates in ASV mode, which maintains consistent colors and contrast, while its normally black transmissive design enhances image quality. A 60Hz refresh rate guarantees smooth visuals, making it suitable for professional and industrial use.

For seamless connectivity, the display utilizes an LVDS (1 ch, 8-bit) interface with a 20-pin connector. Power-efficient, it runs on a 3.3V supply, ensuring stable operation with minimal power consumption. The integrated WLED backlight offers a remarkable 70,000-hour lifespan and comes with an LED driver, enhancing efficiency and reducing maintenance.

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.
