Sharp LM7M633 LCD Module
Sharp LM7M633 LCD Module
Sharp LM7M633 LCD Module
Sharp LM7M633 LCD Module
Sharp LM7M633 LCD Module
Sharp LM7M633 LCD Module
Sharp LM7M633 LCD Module
Sharp LM7M633 LCD Module
Sharp

Sharp LM7M633 LCD Module

Product SKU: NTSLCD0171
Available:
Only 1 item in stock
1 item in stock
In stock
Pre-order
Out of stock
  • Brand : Sharp
  • Size : 6.5″
  • Condition : Refurbished
  • Panel Type : CSTN-LCD, LCM
  • Work Mode : STN, Normally Black, Transflective
  • Warranty : 03 Months
Rs. 11,000.00
Rs. 13,500.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

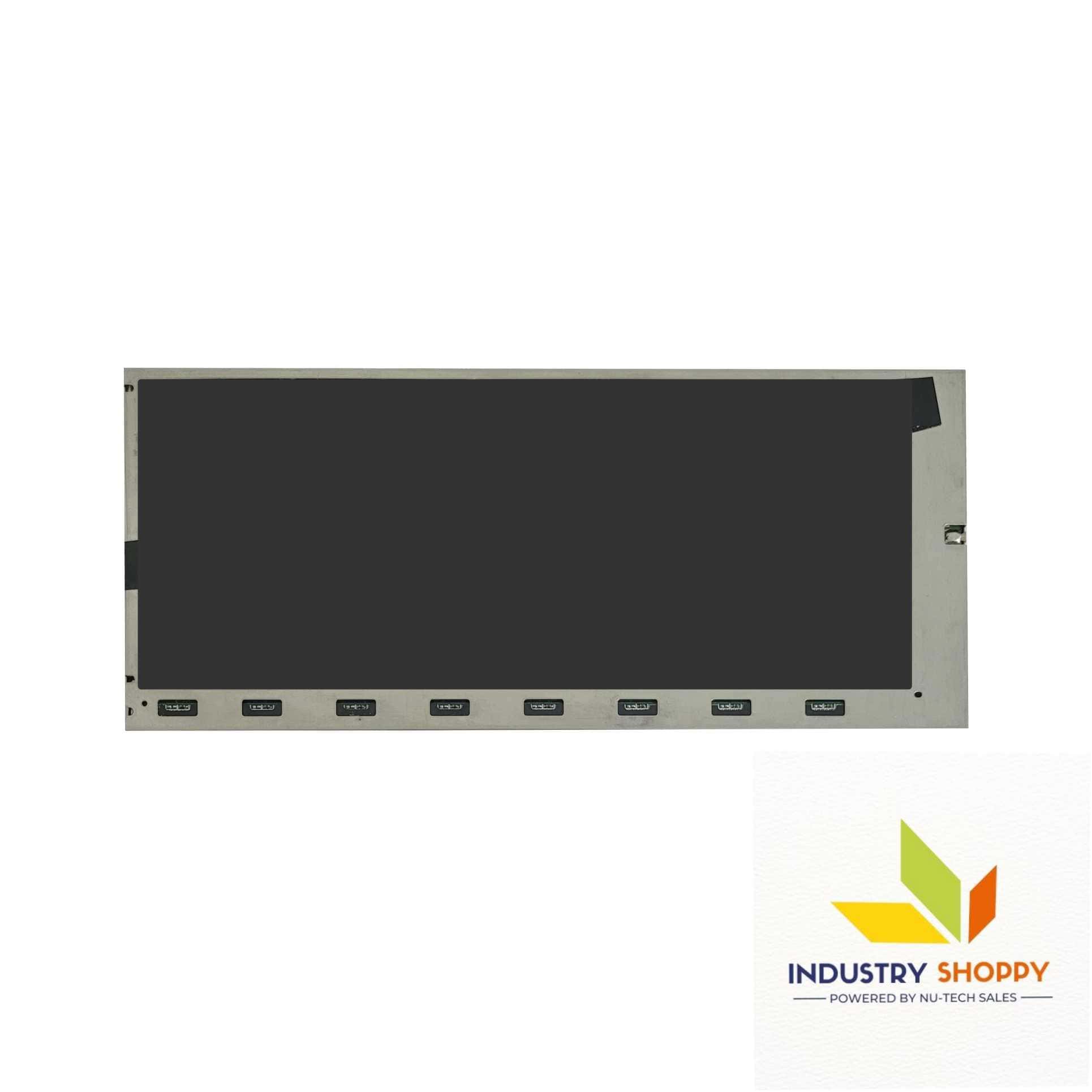

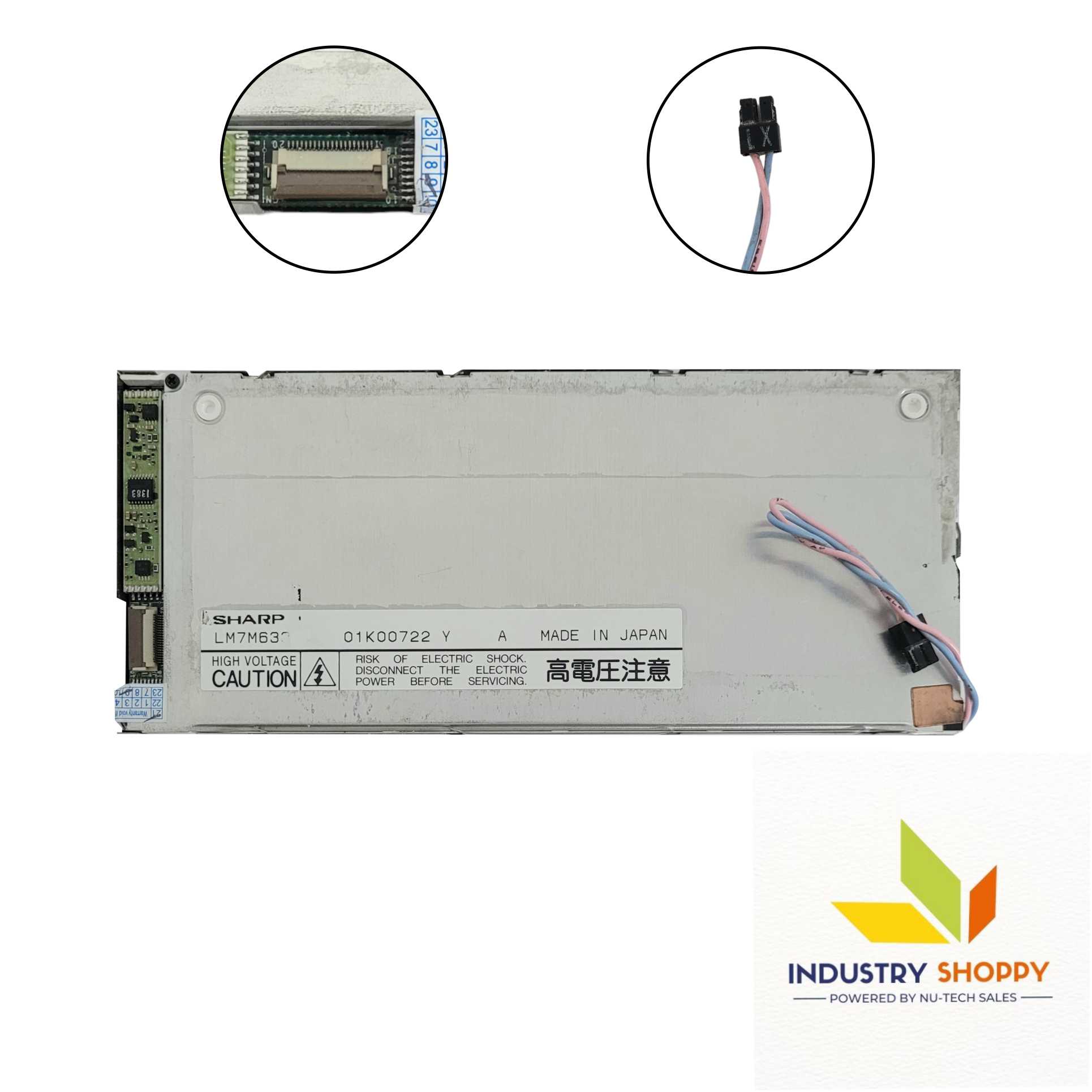

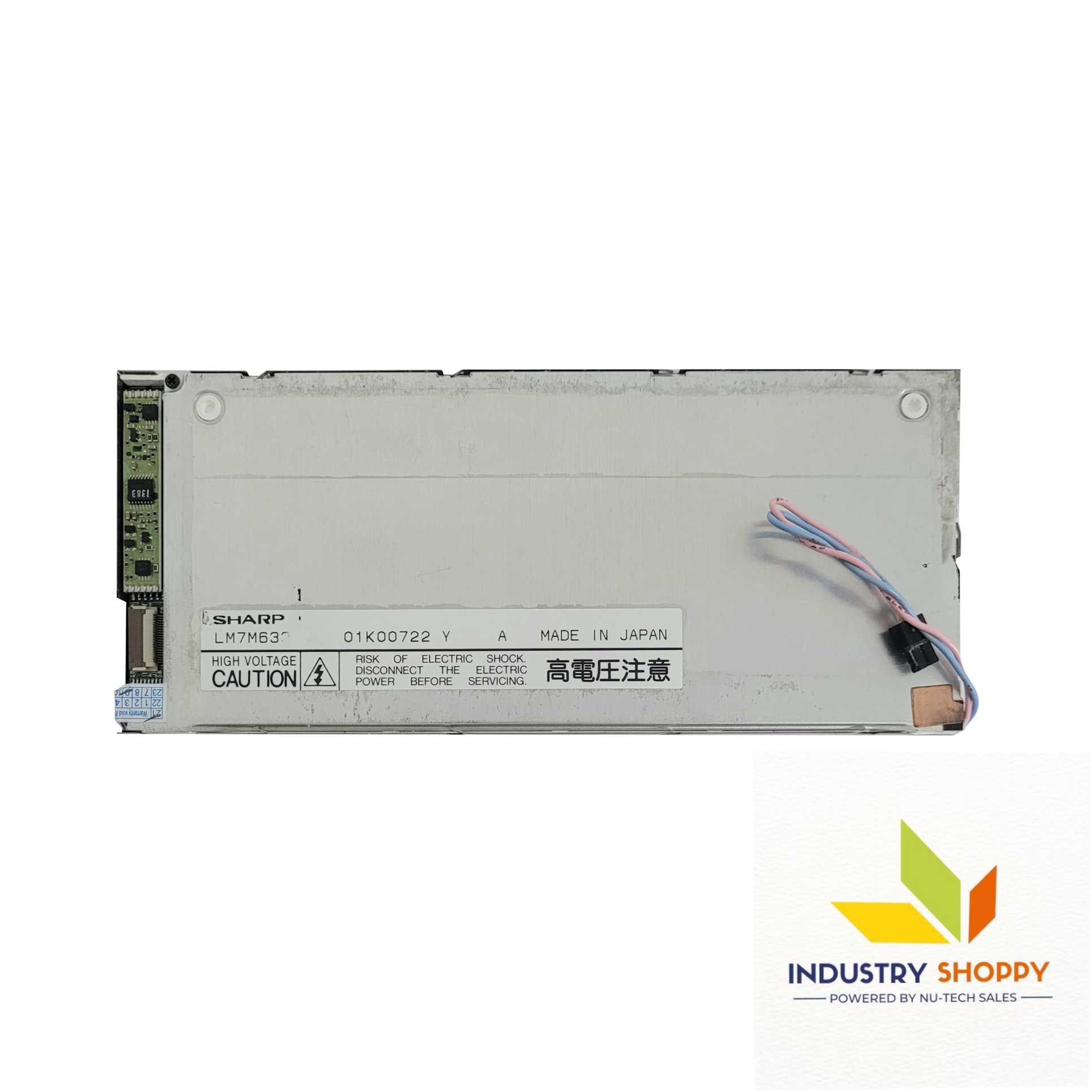

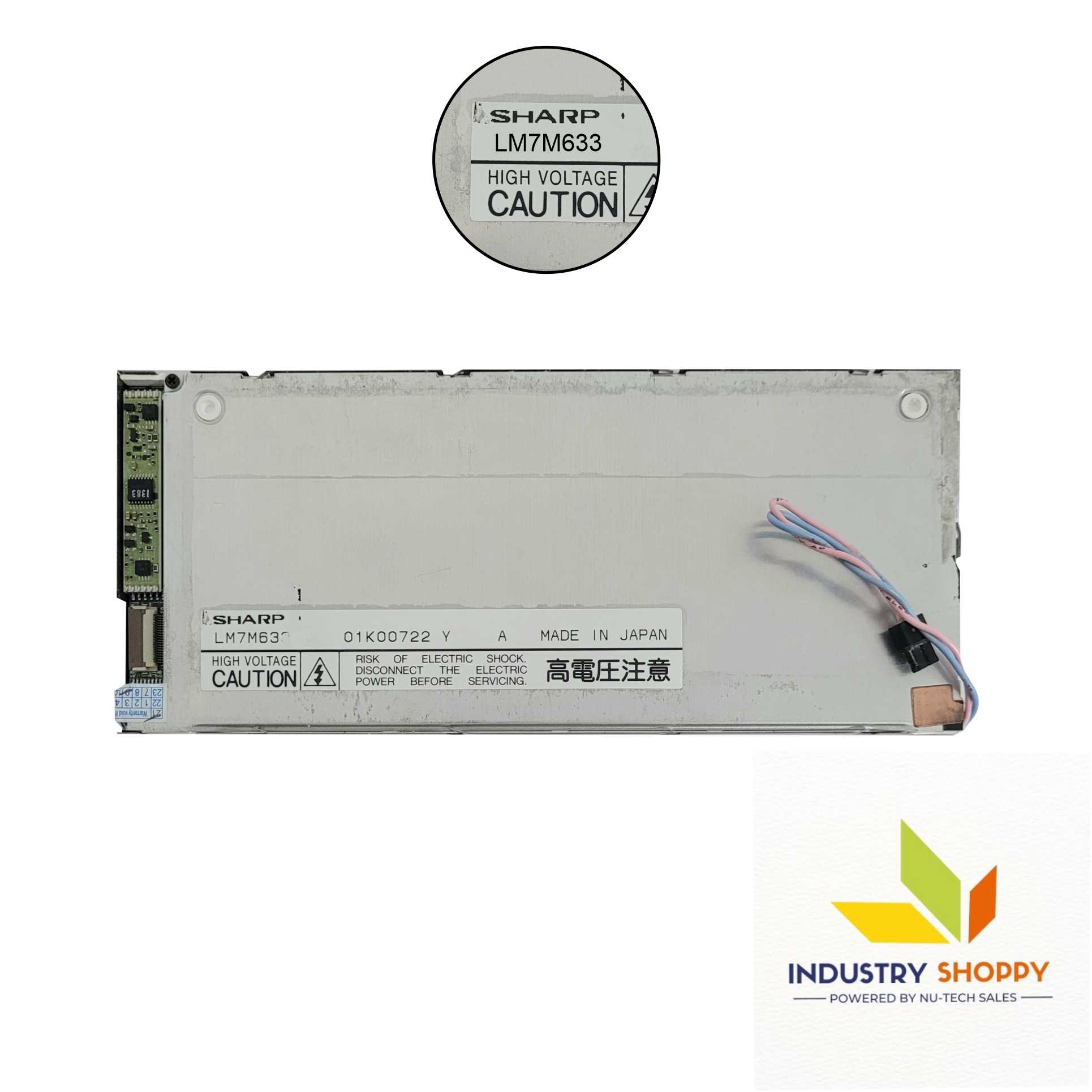

Sharp LM7M633 LCD Module

The Sharp LM7M633 LCD Module is 6.5" CSTN-LCD is a compact color display designed primarily for legacy and embedded systems that require modest visual performance in a slim form factor. Featuring a 640(RGB)×240 resolution (HVGA) with a 105 PPI pixel density, this display delivers basic color imagery suitable for simple graphical interfaces, control displays, or retrofitting older equipment.

The active area of 153.58 mm (W) × 57.58 mm (H) ensures a wide, letterbox-style layout, ideal for horizontally oriented information. Built with Color Super Twisted Nematic (CSTN) technology, it operates in normally black, transflective mode, allowing some visibility under ambient lighting without backlight, which is a plus for power efficiency.

Despite its relatively low luminance (40 cd/m²) and modest contrast ratio of 10:1 (TM) and 8:1 (RF), it still serves well for non-critical viewing tasks. The 75Hz frame rate offers smoother updates for transitional graphics.

This display supports 8-bit parallel data input via a 20-pin connector, runs on a 3.3V power supply, and is backlit by a single CCFL rated for 10K hours (driver not included). Its operating temperature of 0 to 40°C suggests usage in controlled indoor environments.




Technical Precautions :-
  • It is a front polarizer. It may damaged. Please be cautious. Don't scratch it.
  • Always turn off the power supply when you are inserting or disconnecting it from input connector.
  • Wipe off water drop immediately as it may cause discoloration or spots.
  • Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
  • Do not try to open or modify the module assembly.
  • At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the Interface Connector of the TFT Module it may damage the panel.
  • Severe temperature condition may  result in different luminance, response time.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on our site  are the property of their respective owners.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, YouTube,


BrandSharp
Diagonal Size6.5"
Resolution640(RGB) × 240, HVGA (105 PPI)
Active Area153.58 (W) × 57.58 (H) mm
Outline Dimension173 (W) × 73 (H) × 7 (D) mm
Luminance40 cd/m² (Typ.)
Contrast Ratio10:1 (Typ.) (TM), 8:1 (Typ.) (RF)
Viewing Angle-
Response Time-
Panel TypeCSTN-LCD, LCM
Treatment-
Operating ModeSTN, Normally Black, Transflective
Support ColorColor
Signal Interface TypeParallel Data (1 ch, 8-bit), 20-pin Connector
Frame Rate75 Hz
Power Supply3.3 V (Typ.)
Backlight1 pcs CCFL, 10K hours, Without Driver
Operating Temp.0 ~ 40 °C
Storage Temp.-25 ~ 60 °C
