P&F NBB5-18GM50-E2 Inductive Sensor
P&F NBB5-18GM50-E2 Inductive Sensor
P&F NBB5-18GM50-E2 Inductive Sensor
P&F NBB5-18GM50-E2 Inductive Sensor
P&F NBB5-18GM50-E2 Inductive Sensor
P&F NBB5-18GM50-E2 Inductive Sensor
P&F NBB5-18GM50-E2 Inductive Sensor
P&F NBB5-18GM50-E2 Inductive Sensor
P&F NBB5-18GM50-E2 Inductive Sensor
P&F NBB5-18GM50-E2 Inductive Sensor
P&F

P&F NBB5-18GM50-E2 Inductive Sensor

Product SKU: NTSSEN00044
Available:
Only 18 items in stock
18 items in stock
In stock
Pre-order
Out of stock
  • Brand : Pepperl+Fuchs
  • Output Type : PNP
  • Assured operating distance : 0 ... 4.05 mm
  • Operating voltage : 5 ... 36 V
  • Warranty : 12 Months



Rs. 1,280.00
Rs. 2,000.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

    P&F NBB5-18GM50-E2 Inductive Sensor

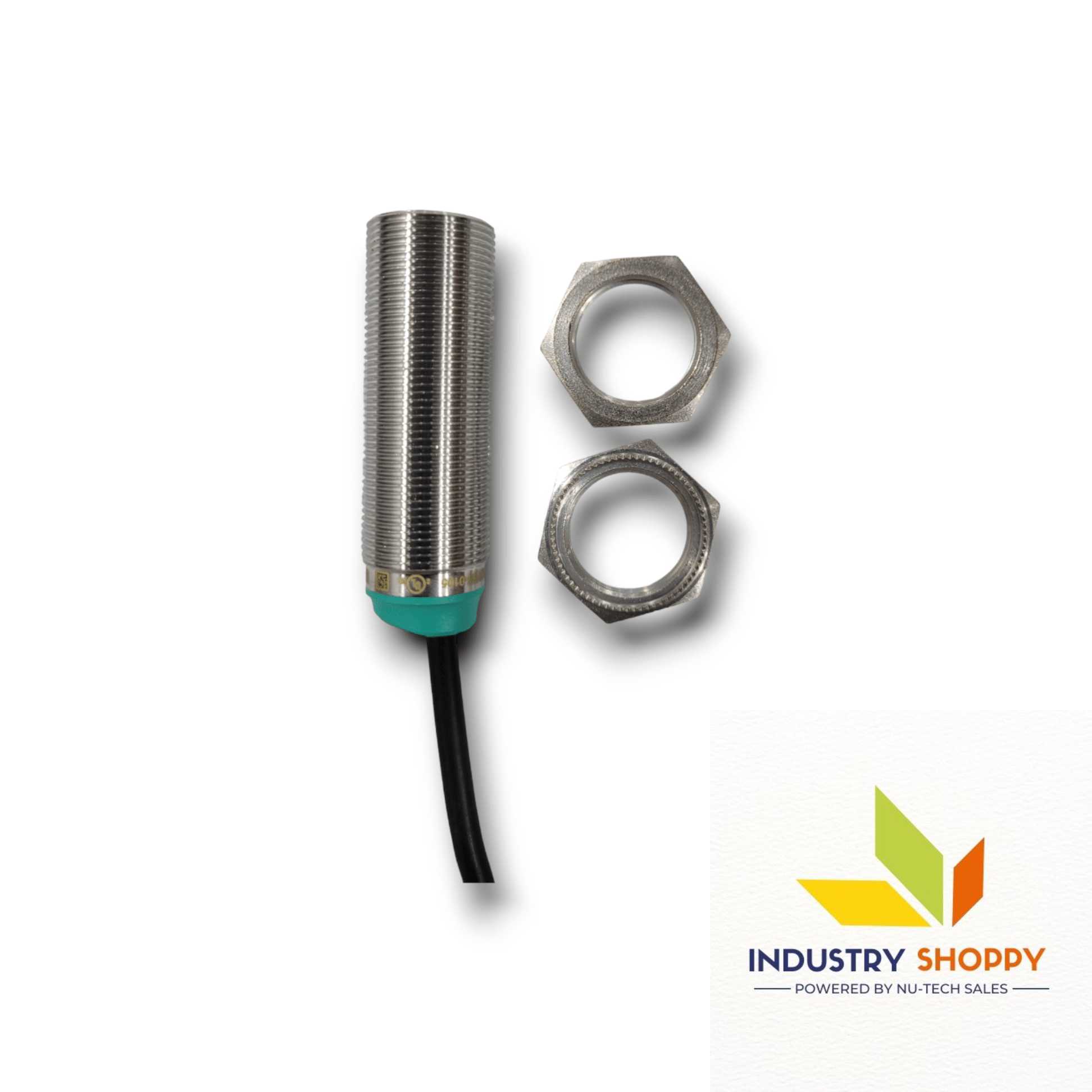

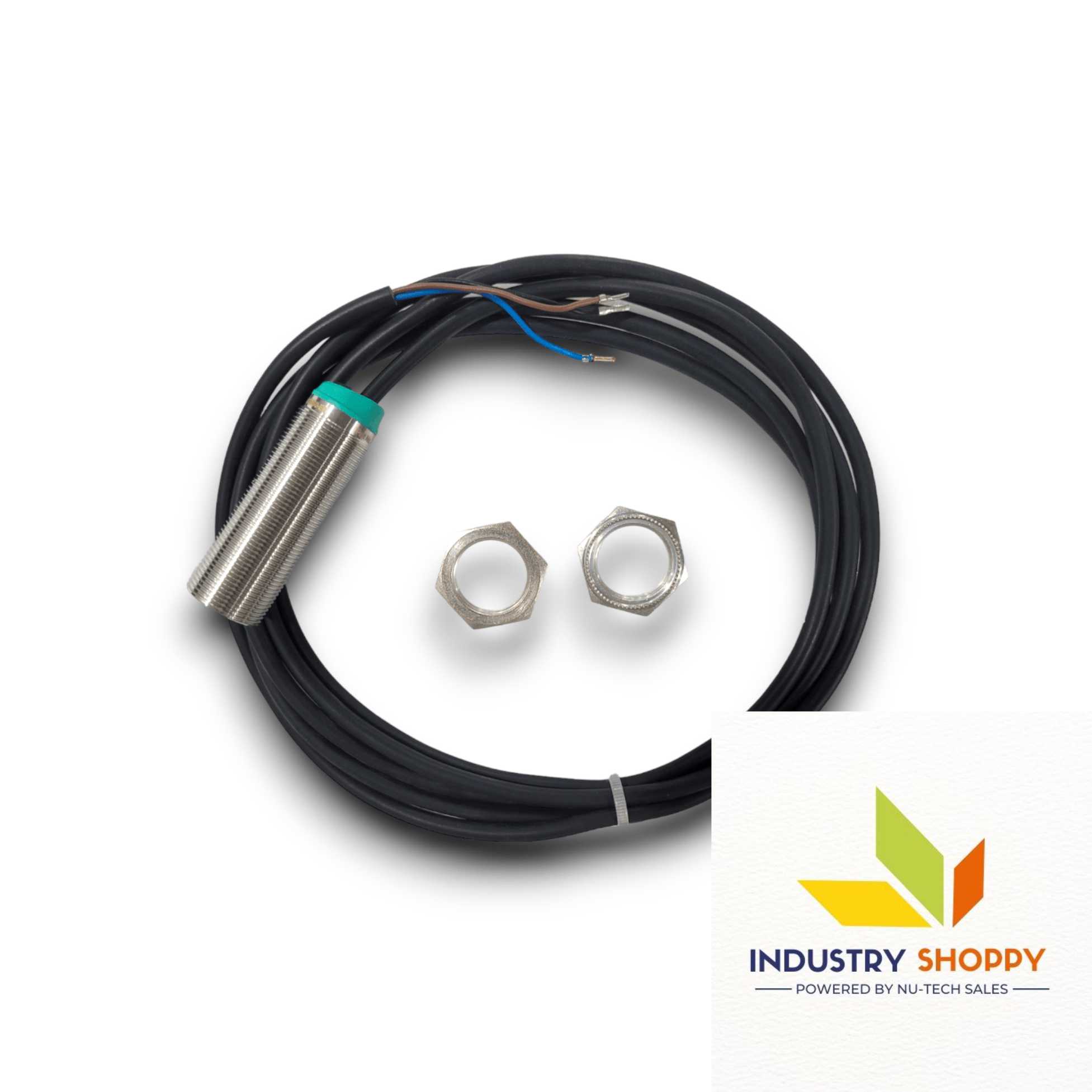

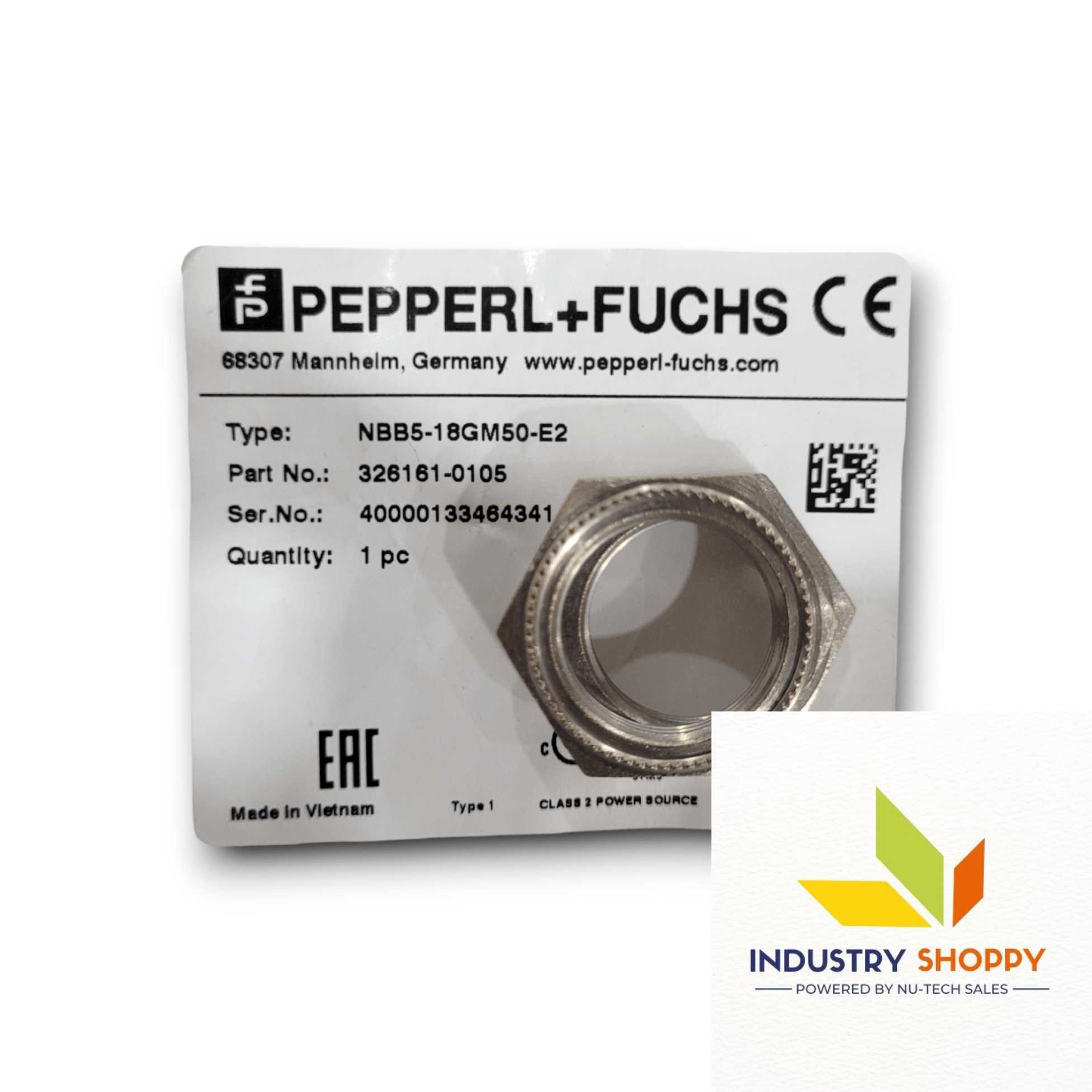

    The (Pepperl+Fuchs) P&F NBB5-18GM50-E2 Inductive Sensor, Part Number 326161-0105 proximity switch offers a flush installation with a rated operating distance of 5 mm and assured operating distance of 0 to 4.05 mm. It features PNP output polarity and operates within an operating voltage range of 5 to 36 V. The NBB5-18GM50-E2 proximity switch offers reliable protection with its IP68 degree of protection, ensuring durability even in harsh environments. It operates effectively within an ambient temperature range of -40 to 85 °C, making it suitable for a wide range of industrial applications.

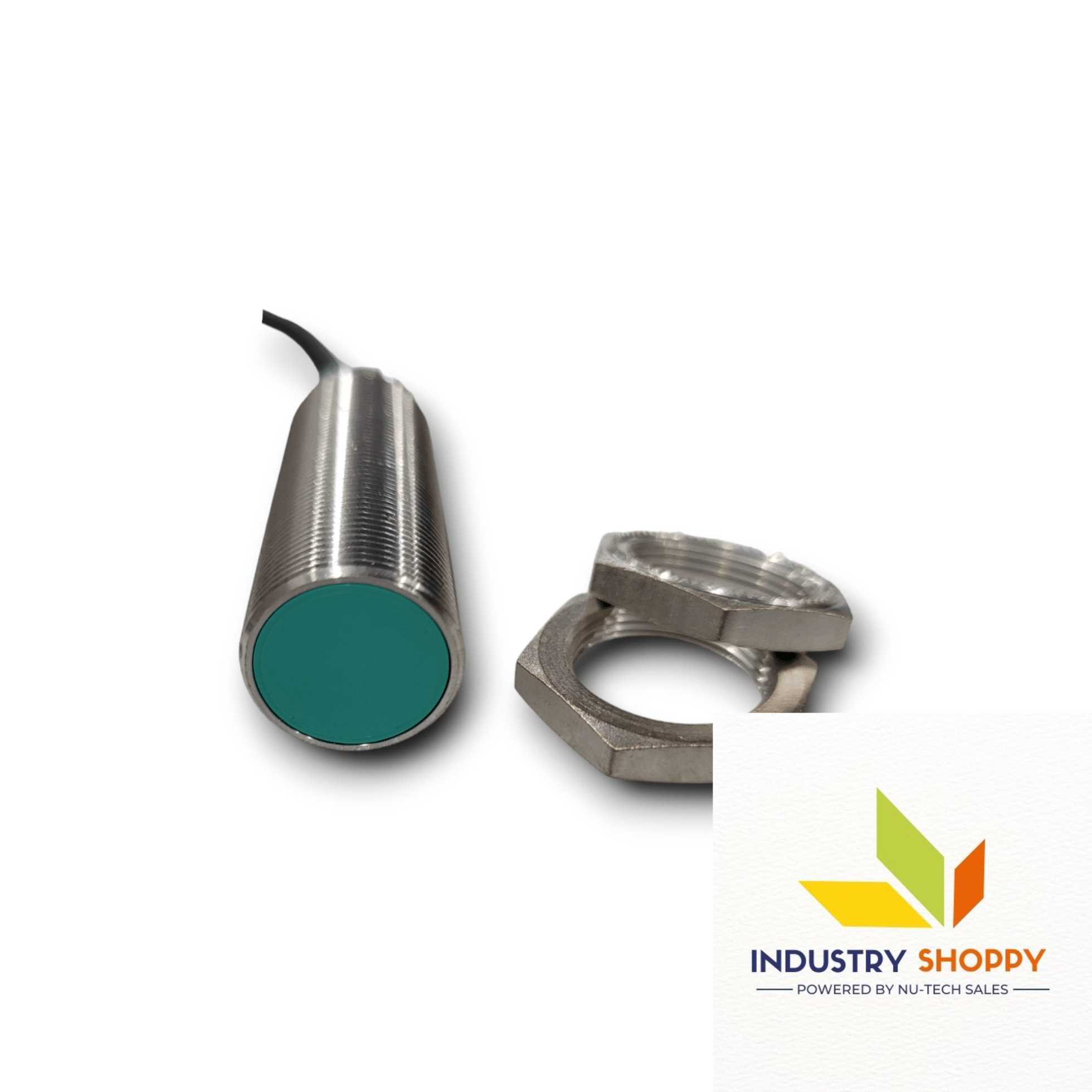

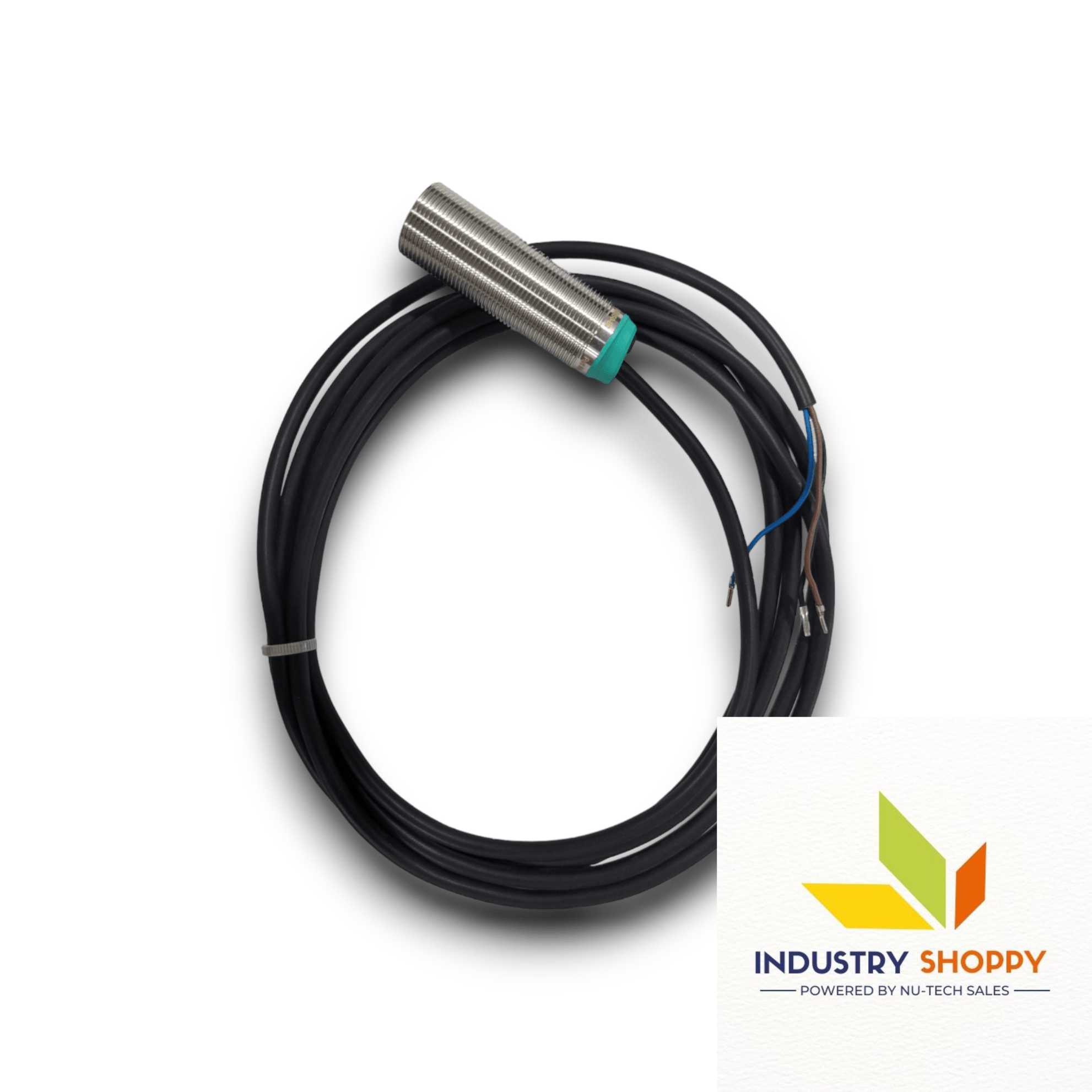

    Constructed with brass housing material and a green PBT sensing face, it ensures durability and accurate sensing. The NBB5-18GM50-E2 proximity switch comes with a 2-meter cable and holds UL, CCC, and marine approvals. It is specifically engineered for robust and precise proximity sensing across diverse industrial applications.

    Our engineers meticulously inputted all the necessary details of this sensor following the datasheet guidelines. However, it’s crucial to acknowledge the potential for errors during this process. Despite our diligent efforts, it’s imperative to remain vigilant as inaccuracies may persist despite our sincere endeavours.

    IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience. Furthermore, our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!

    Facebook, YouTube,


    Product NumberNBB5-18GM50-E2
    Part No.326161-0105
    Switching FunctionNormally open (NO)
    Output TypePNP
    Rated Operating Distance5 mm
    InstallationFlush
    Output PolarityDC
    Assured Operating Distance0 ... 4.05 mm
    Actuating ElementMild steel (e.g. 1.0037, SR235JR), 18 × 18 × 1 mm
    Reduction Factor rAl0.35
    Reduction Factor rCu0.29
    Reduction Factor r3040.73
    Reduction Factor rBrass0.44
    Output Type3-wire
    Operating Voltage5 ... 36 V
    Switching Frequency0 ... 1950 Hz
    Hysteresistyp. 5 %
    Reverse Polarity ProtectionReverse polarity protected
    Short-Circuit ProtectionPulsing
    Voltage Drop≤ 1 V
    Operating Current0 ... 200 mA
    Off-State Currentmax. 20 µA
    No-Load Supply Current≤ 10 mA
    Time Delay Before Availability≤ 10 ms
    Switching State IndicatorLED, yellow
    MTTFd1721 a
    Mission Time (TM)20 a
    Diagnostic Coverage (DC)0%
    PWIS ConformityVDMA 24364-C1/T100°C-W
    StandardsEN 60947-5-2:2007; EN 60947-5-2/A1:2012; IEC 60947-5-2:2007
    Protection ClassII
    Rated Insulation Voltage36 V
    Rated Impulse Withstand Voltage500 V
    UL ApprovalcULus Listed, General Purpose, Class 2 Power Source
    CCC ApprovalNot required for ≤36 V products
    Marine ApprovalDNVGL TAA00003AK
    Ambient Temperature-40 ... +85 °C (-40 ... +185 °F)
    Storage Temperature-40 ... +85 °C (-40 ... +185 °F)
    Connection TypeCable
    Housing MaterialBrass, white bronze coated
    Sensing FacePBT, green
    Degree of ProtectionIP68
    Wire End FerrulesYes
    Cable Diameter4.3 mm ± 0.15 mm
    Bending Radius> 10 × cable diameter
    MaterialPVC
    ColorBlack
    Number of Cores3
    Core Cross Section0.34 mm²
    Cable Length2 m
    Sensor Length56 mm
    Sensor Diameter18 mm
    MountingWith nuts, M18
    Tightening Torque0 ... 30 Nm
    Country of OriginVietnam
