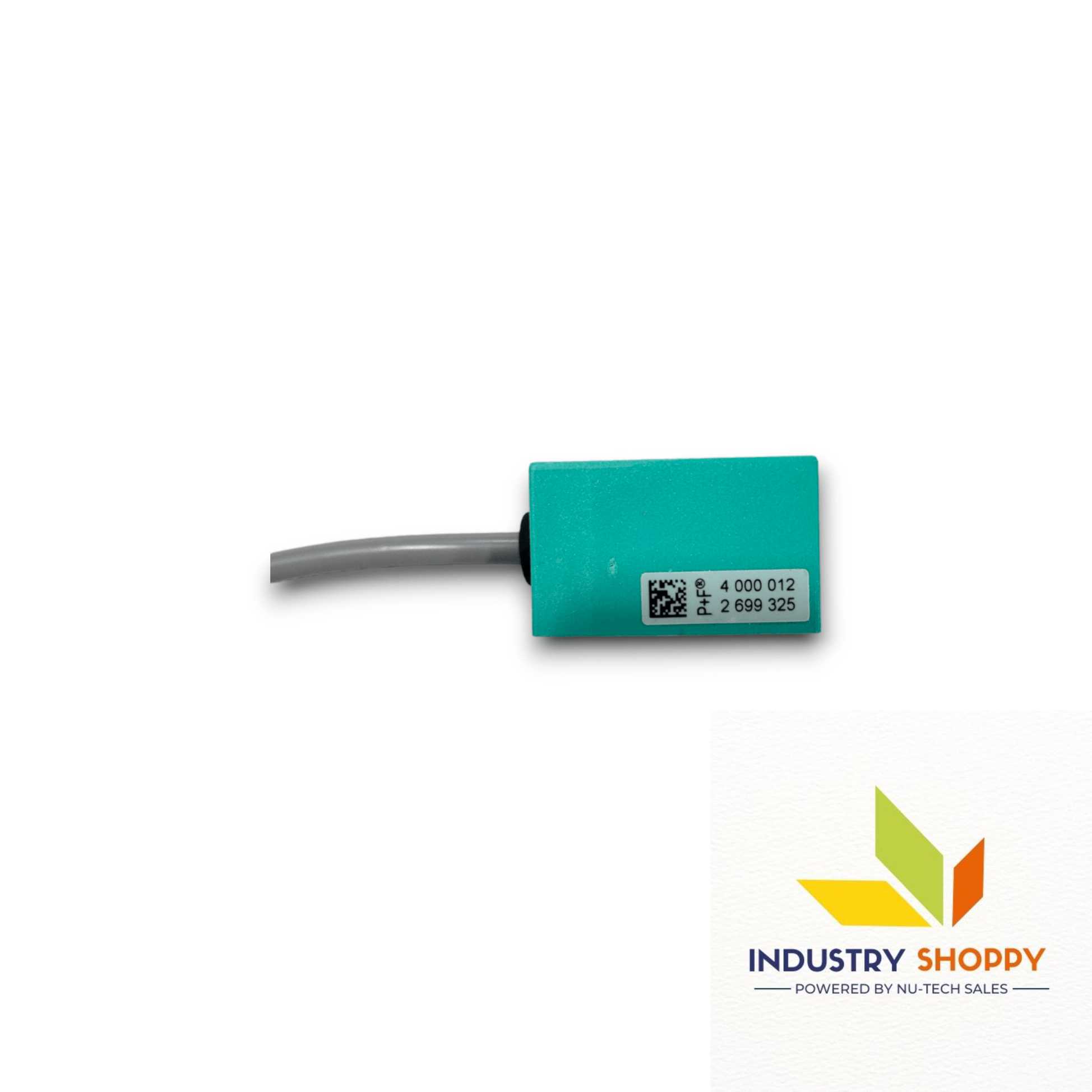

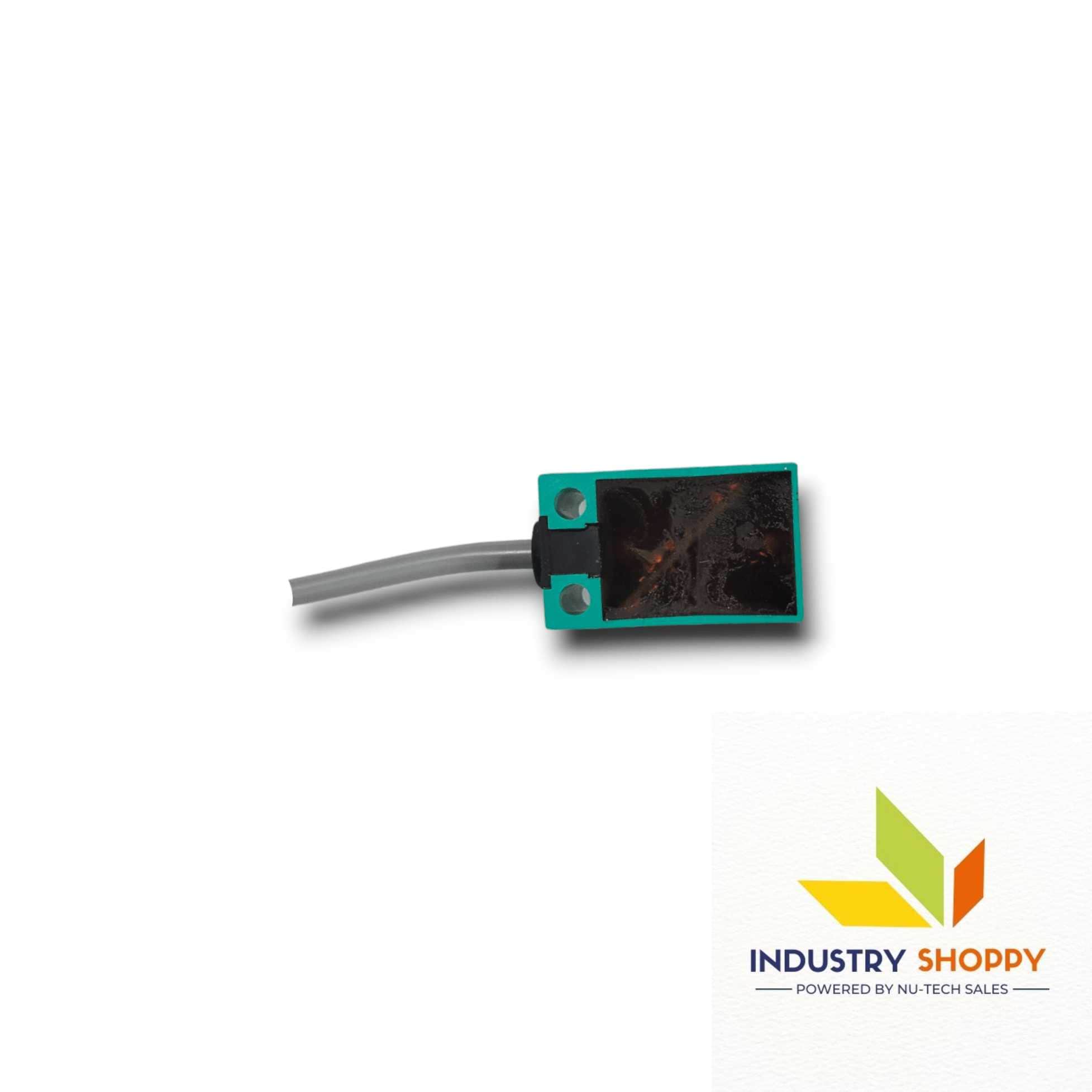

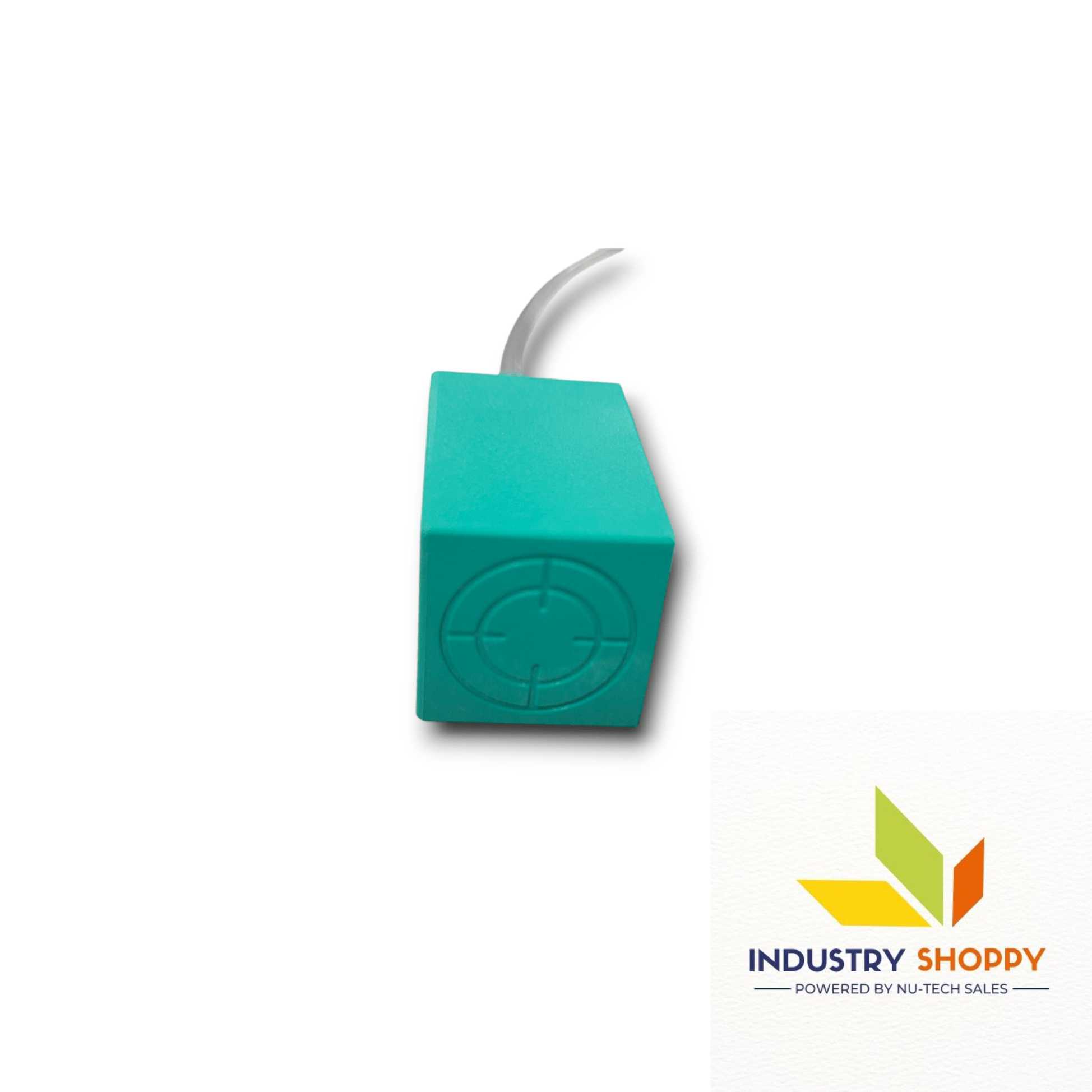

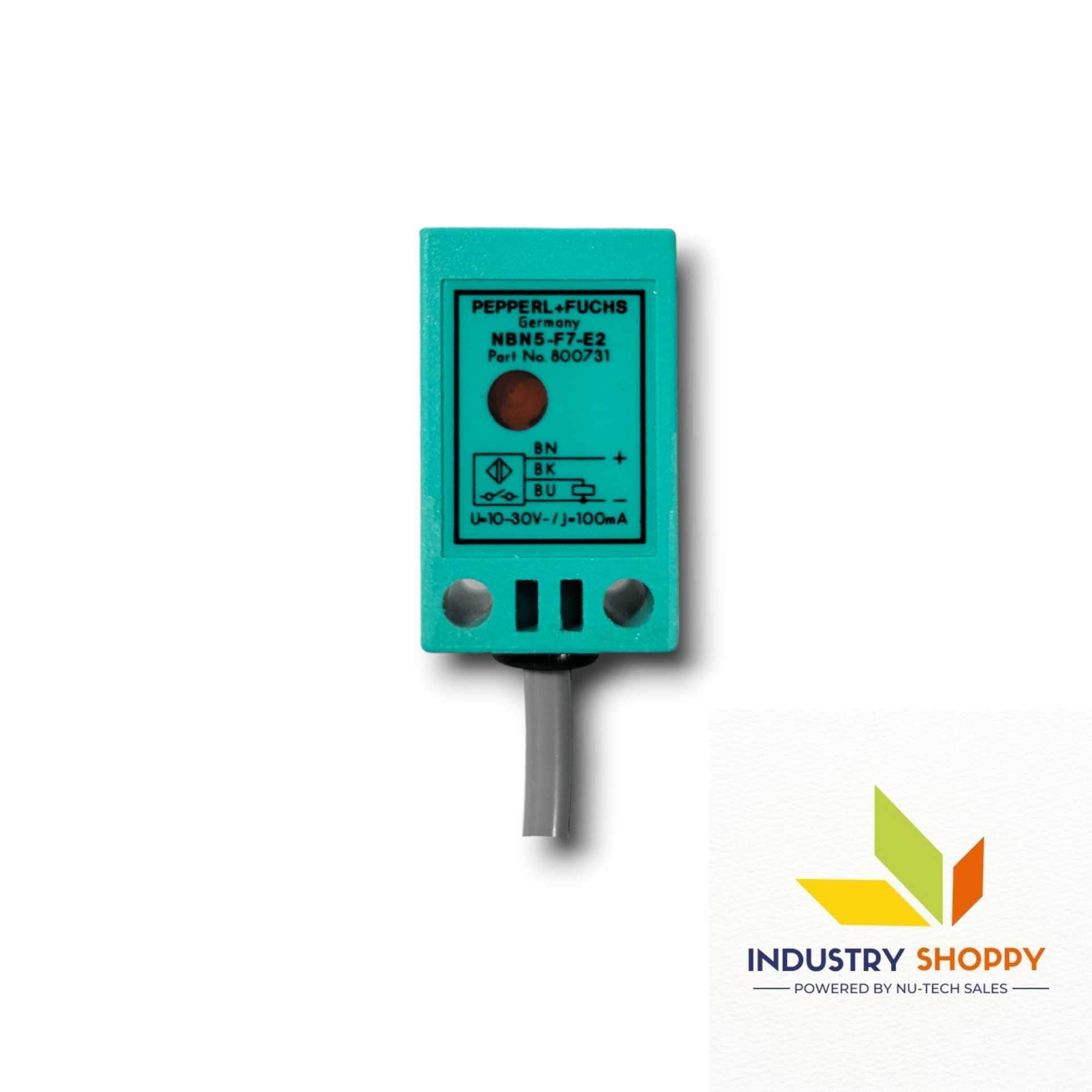

Pepperl + Fuchs NBN5-F7-E2/800731 Inductive Sensor
P&F NBN5-F7-E2/800731 Inductive Sensor
P&F NBN5-F7-E2/800731 Inductive Sensor
P&F NBN5-F7-E2/800731 Inductive Sensor
P&F NBN5-F7-E2/800731 Inductive Sensor
Pepperl + Fuchs NBN5-F7-E2/800731 Inductive Sensor
P&F NBN5-F7-E2/800731 Inductive Sensor
P&F NBN5-F7-E2/800731 Inductive Sensor
P&F NBN5-F7-E2/800731 Inductive Sensor
P&F NBN5-F7-E2/800731 Inductive Sensor
P&F

P&F NBN5-F7-E2/800731 Inductive Sensor

Product SKU: NTSSEN00047
Available:
Only 14 items in stock
14 items in stock
In stock
Pre-order
Out of stock
  • Brand : P&F
  • Switching Function : Normally open (NO)
  • Output Type : PNP, 3-wire
  • Operating Voltage : 10 … 30 V DC
  • Warranty : 12 Months
Rs. 1,575.00
Rs. 2,000.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

P&F NBN5-F7-E2/800731 Inductive Sensor

The (Pepperl + Fuchs) P&F NBN5-F7-E2/800731 Inductive Sensor (NBN5F7E2), with part number 800731, is a compact inductive proximity sensor designed for non-flush mounting with a rated sensing distance of 5 mm and an assured range up to 4.05 mm. It operates using a PNP normally open (NO) switching function and features a DC 3-wire output configuration.

Capable of handling operating voltages from 10 to 30 V DC, it supports switching frequencies up to 500 Hz, suitable for moderate-speed applications. The sensor includes pulsing short-circuit protection and reverse polarity protection to enhance reliability in automated systems.

With a typical hysteresis of 5%, it ensures stable switching behavior, while the voltage drop remains low at ≤ 3 V. It can manage up to 100 mA of switching current, and operates with a no-load supply current below 20 mA.

A yellow LED indicator clearly displays the switching status. The unit is housed in a PBT enclosure, including the sensing face, offering good resistance to chemicals and mechanical wear.

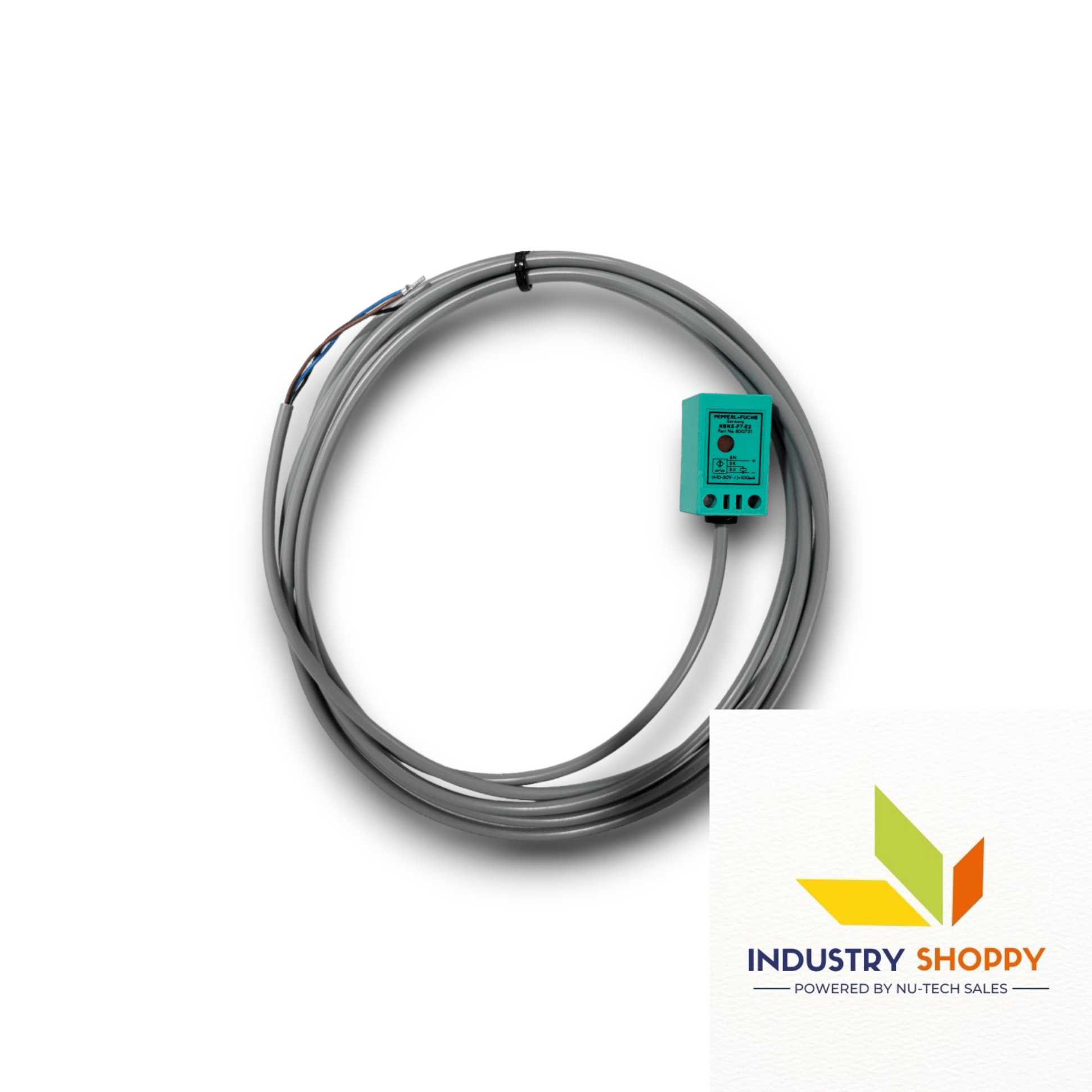

With IP67 protection, it withstands dust and temporary water immersion. It functions reliably in ambient temperatures ranging from -25 to +70 °C, making it ideal for general industrial use. The sensor is wired through a 2-meter PVC cable with 0.14 mm² conductors, and its compact housing (17 × 17 × 28 mm) supports installations in space-limited environments.



Our engineers meticulously inputted all the necessary details of this sensor following the datasheet guidelines. However, it’s crucial to acknowledge the potential for errors during this process. Despite our diligent efforts, it’s imperative to remain vigilant as inaccuracies may persist despite our sincere endeavours.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience. Furthermore, our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!

Facebook, YouTube,



Product NumberNBN5-F7-E2
Part Number800731
Switching FunctionNormally open (NO)
Output TypePNP, 3-wire
Rated Operating Distance5 mm
Assured Operating Distance0 … 4.05 mm
InstallationNon-flush
Output PolarityDC
Reduction Factor rAl0.3
Reduction Factor rCu0.2
Reduction Factor r3040.7
Operating Voltage10 … 30 V DC
Switching Frequency0 … 500 Hz
HysteresisTyp. 5 %
Reverse Polarity ProtectionYes
Short-Circuit ProtectionPulsing
Voltage Drop≤ 3 V
Operating Current0 … 100 mA
Off-State Current0 … 0.5 mA, typ. 0.1 µA at 25 °C
No-Load Supply Current< 20 mA
Switching State IndicatorLED, yellow
MTTFd3810 a
Mission Time (TM)20 a
Diagnostic Coverage (DC)0%
StandardsEN 60947-5-2:2007, IEC 60947-5-2:2007
UL ApprovalcULus Listed, General Purpose
CSA ApprovalcCSAus Listed, General Purpose
CCC ApprovalNot required for ≤36 V products
Ambient Temperature-25 … 70 °C (-13 … 158 °F)
Connection TypeCable PVC, 2 m
Core Cross Section0.14 mm²
Housing MaterialPBT
Sensing FacePBT
Degree of ProtectionIP67
Height17 mm
Width17 mm
Length28 mm
Country of OriginGermany
