Panasonic PM-L65-P Photoelectric Sensor
Panasonic PM-L65-P Photoelectric Sensor
Panasonic PM-L65-P Photoelectric Sensor
Panasonic PM-L65-P Photoelectric Sensor
Panasonic PM-L65-P Photoelectric Sensor
Panasonic PM-L65-P Photoelectric Sensor
Panasonic PM-L65-P Photoelectric Sensor
Panasonic PM-L65-P Photoelectric Sensor
Panasonic

Panasonic PM-L65-P Photoelectric Sensor

Product SKU: NTSSEN00139
Available:
Only 25 items in stock
25 items in stock
In stock
Pre-order
Out of stock
  • Brand : Panasonic
  • Type : U-Shaped Photoelectric
  • Supply voltage : 5 to 24 V DC plus or minus 10 % Ripple P-P 5 % or less
  • Switching element : PNP open-collector transistor
  • Output: Over-Current Protection : Incorporated
  • Warranty : 12 Months



Rs. 860.00
Rs. 1,880.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

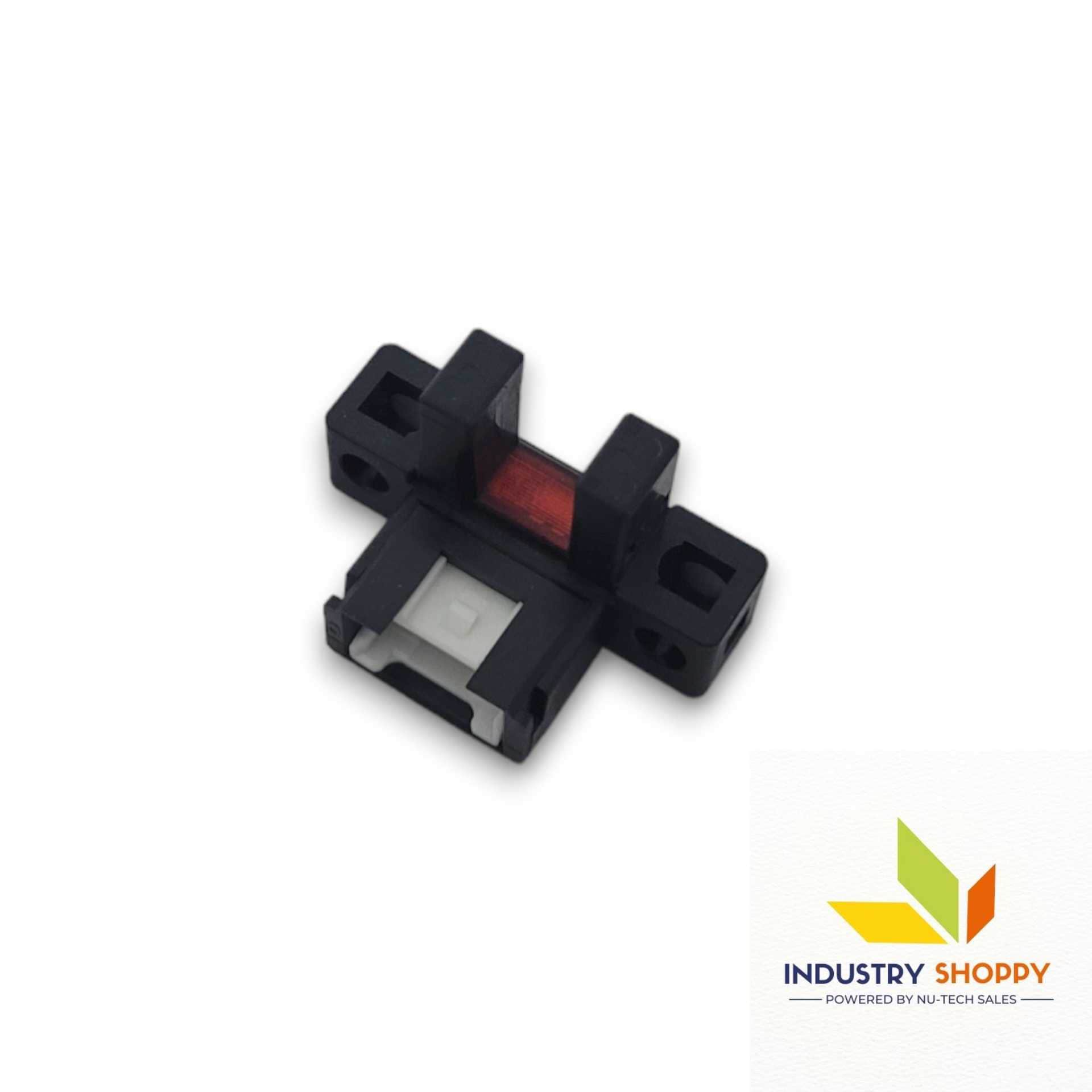

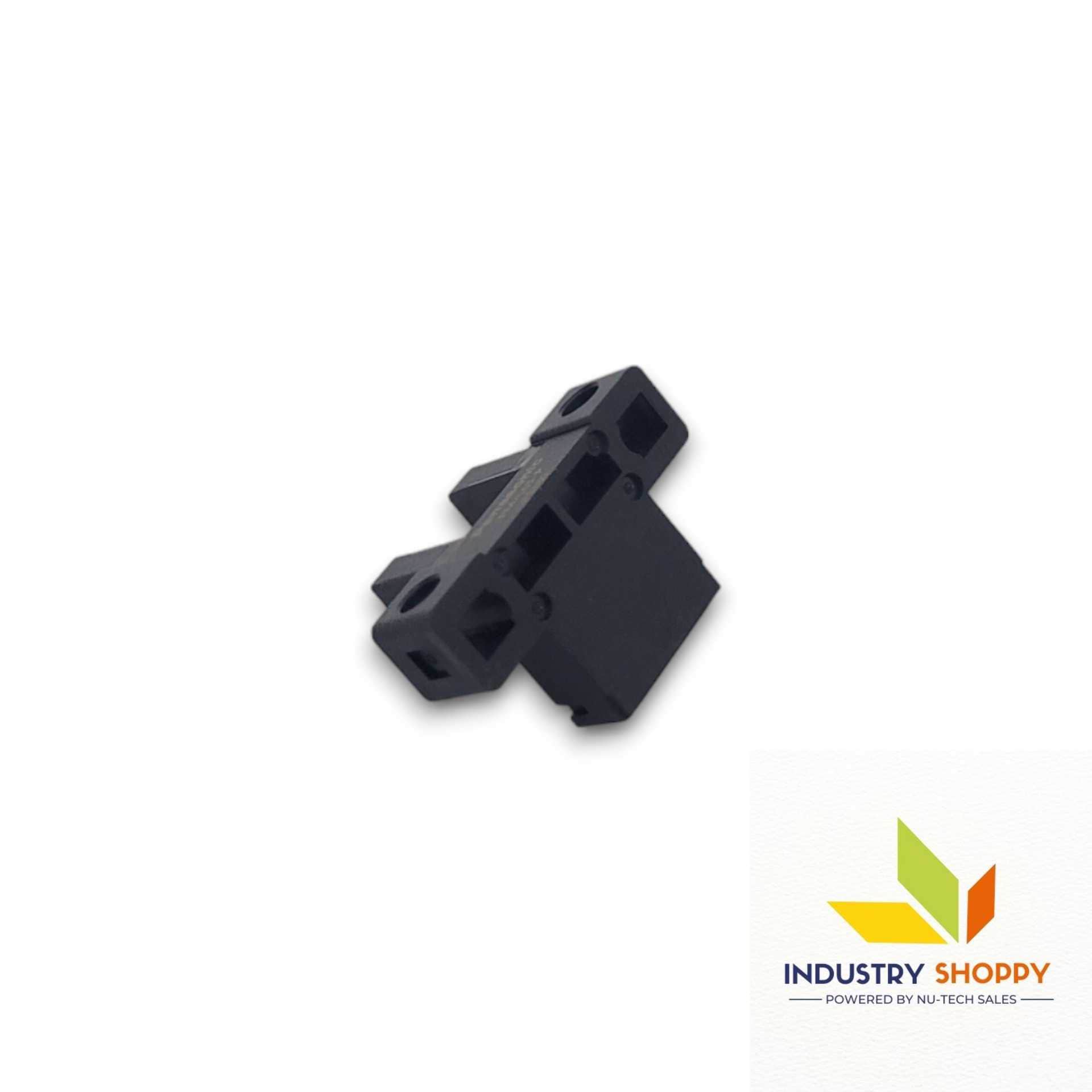

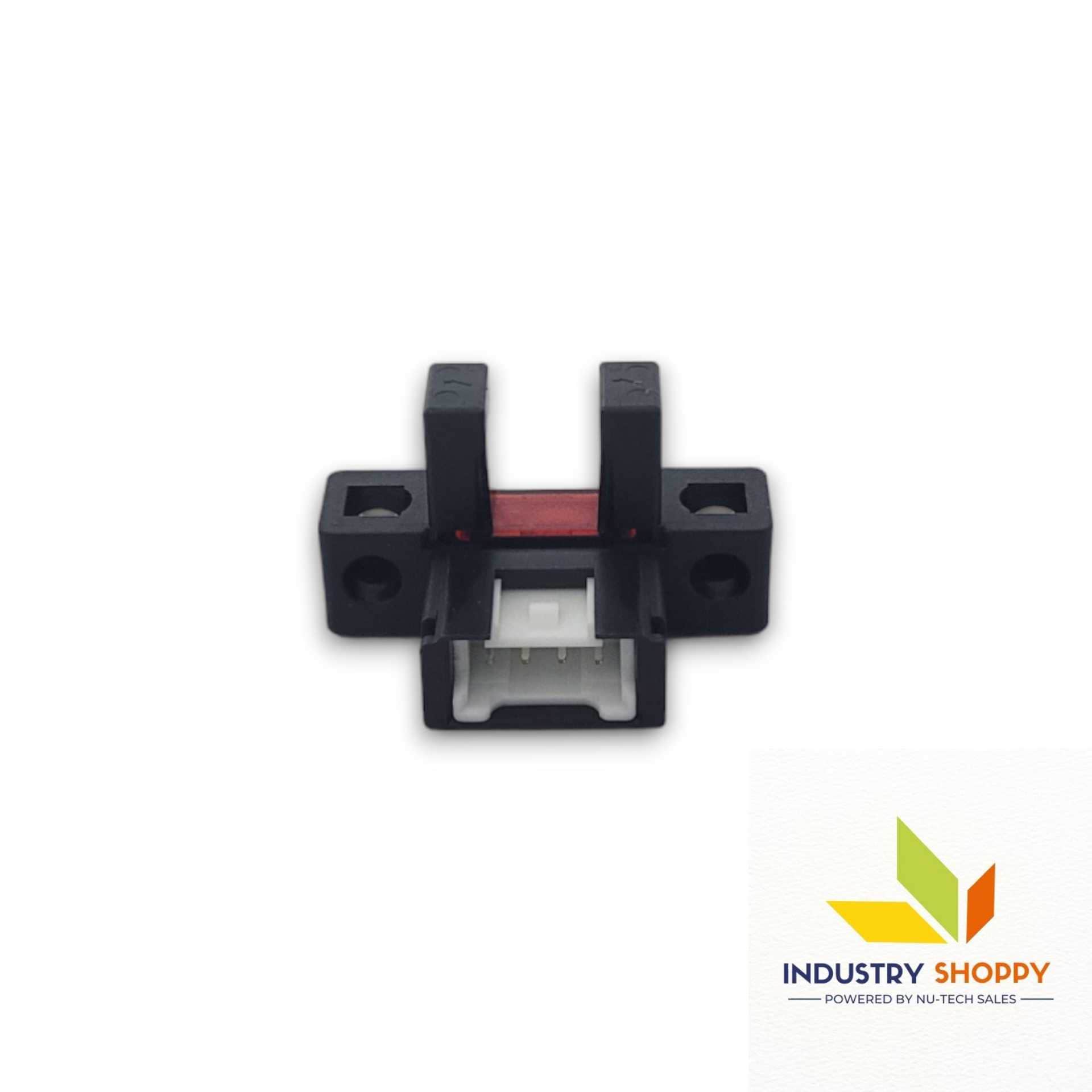

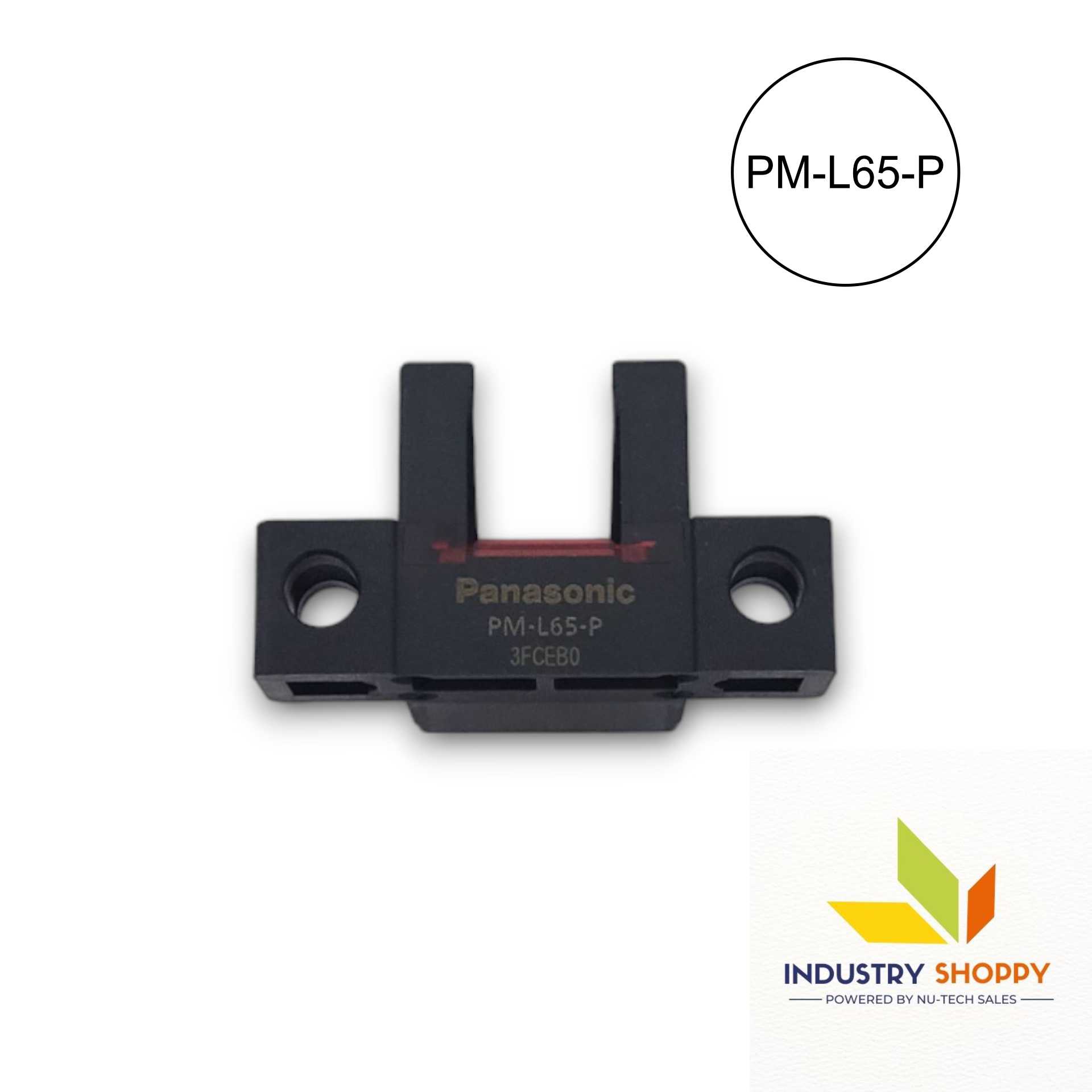

    Panasonic PM-L65-P Photoelectric Sensor

    The Panasonic PM-L65-P Photoelectric Sensor is a compact, high-precision photoelectric sensor designed for reliable detection of small objects. It features a fixed sensing range of 6 mm (0.236 in) and can detect opaque objects as small as 0.8 × 1.2 mm (0.031 × 0.047 in). With hysteresis of 0.05 mm or less and repeatability of 0.01 mm or less, it ensures accurate performance in tight-tolerance applications.

    Operating on a 5 to 24 V DC supply, the sensor has low current consumption (15 mA or less). It includes a PNP open-collector output with Light-ON/Dark-ON selectable modes and short-circuit protection. The fast response time of 20 µs (light received) and 80 µs (light interrupted) enables high-speed detection, with a maximum response frequency of 3 kHz.

    An orange LED indicates light reception. Built for industrial settings, it offers IP40 protection, endures vibration up to 2,000 Hz, and resists shock up to 15,000 m/s².


    The sensor houses a non-modulated infrared LED (855 nm) in a durable PBT enclosure, ensuring long-term stability and resistance to wear. Users can extend the cable up to 100 m, as long as they maintain a voltage of 4.5 V or higher beyond 20 m to ensure proper sensor operation.



    Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

    IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!

    Facebook, YouTube,


    BrandPanasonic
    Product namePM-L65-P
    ItemPerformance characteristics
    CE Marking DirectivesEMC Directive, RoHS Directive
    Sensing Range6 mm (0.236 in) fixed
    Minimum Sensing Object0.8 × 1.2 mm (0.031 × 0.047 in) opaque object
    Hysteresis0.05 mm (0.002 in) or less
    Repeatability0.01 mm (0.0004 in) or less
    Supply Voltage5 to 24 V DC ±10 %, Ripple P-P 10 % or less
    Current Consumption15 mA or less
    OutputPNP open-collector transistor
    • Max. source current: 50 mA
    • Applied voltage: 30 V DC or less (between output and +V)
    • Residual voltage: ≤2 V (at 50 mA), ≤1 V (at 16 mA)
    Output OperationIncorporated with 2 outputs: Light-ON / Dark-ON
    Short-Circuit ProtectionIncorporated
    Response Time• Light received: ≤20 µs
    • Light interrupted: ≤80 µs
    • Max. response frequency: 3 kHz
    Operation IndicatorOrange LED (lights up under light received condition)
    Pollution Degree3
    ProtectionIP40 (IEC)
    Ambient Temperature–25 to +55 °C (–13 to +131 °F), No dew condensation or icing
    Storage: –30 to +80 °C (–22 to +176 °F)
    Ambient Humidity5 to 85 % RH
    Storage: 5 to 95 % RH
    Ambient IlluminanceFluorescent light: 1,000 lx at the light-receiving face
    Voltage Withstandability1,000 V AC for 1 min. between all supply terminals and enclosure
    Insulation Resistance≥20 MΩ with 250 V DC megger between all supply terminals and enclosure
    Vibration Resistance10 to 2,000 Hz, 1.5 mm double amplitude (max. 196 m/s²) in X, Y, Z directions, 2 hours each
    Shock Resistance15,000 m/s² (≈1,500 G) in X, Y, Z directions, three times each
    Emitting ElementInfrared LED (Peak emission wavelength: 855 nm, non-modulated)
    MaterialEnclosure: PBT
    Display section: Polycarbonate
    Cable LengthExtension up to 100 m (328.08 ft) with ≥0.3 mm² cable
