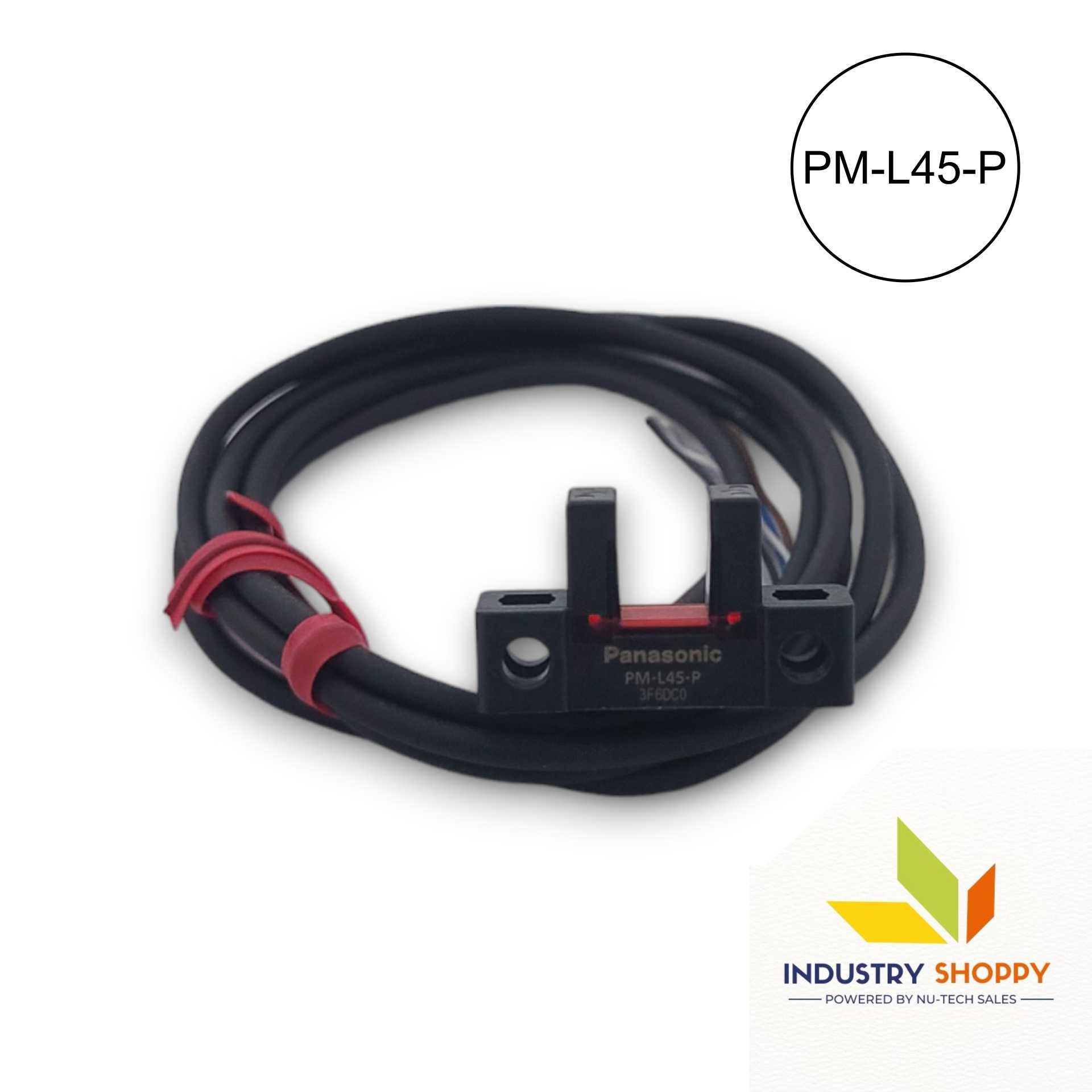

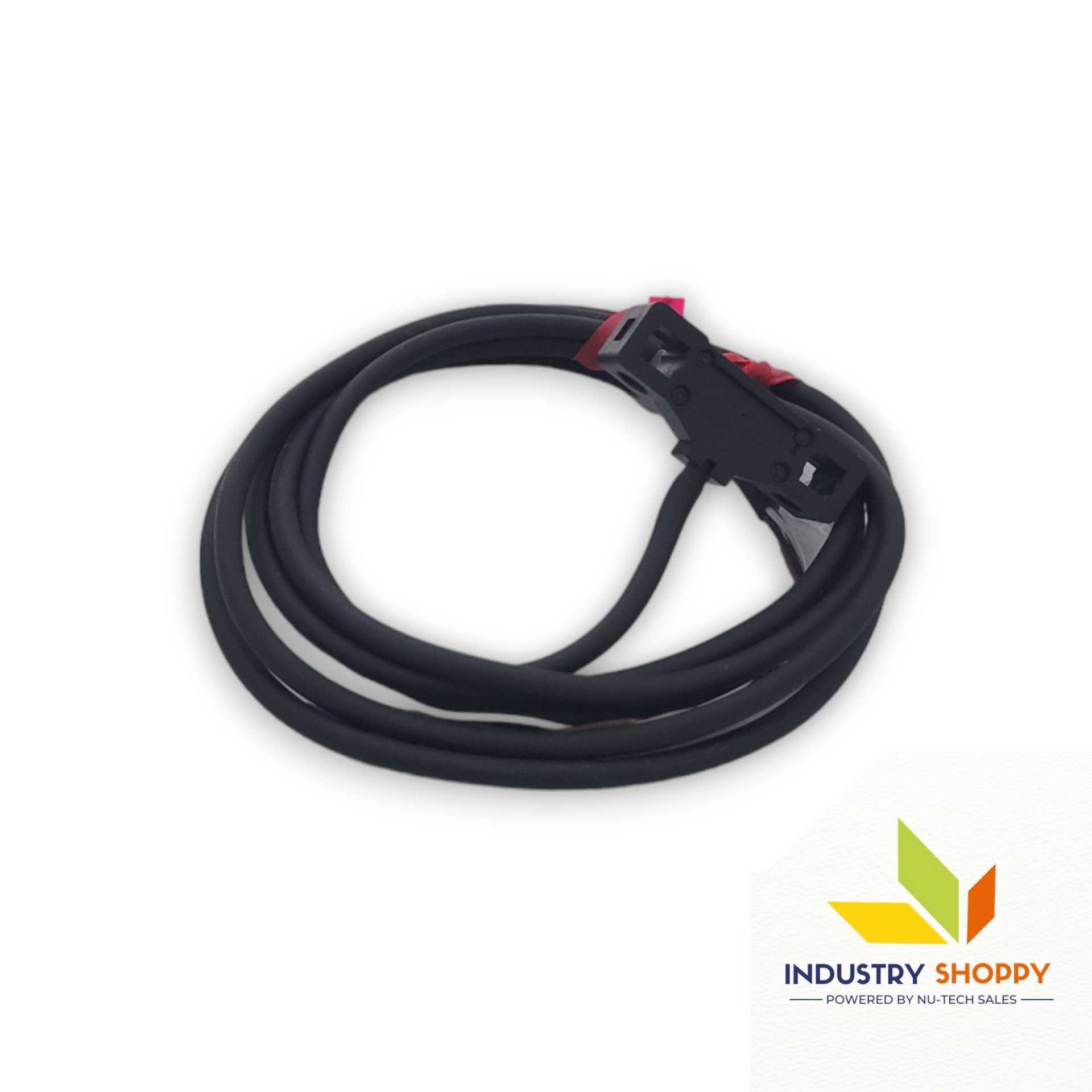

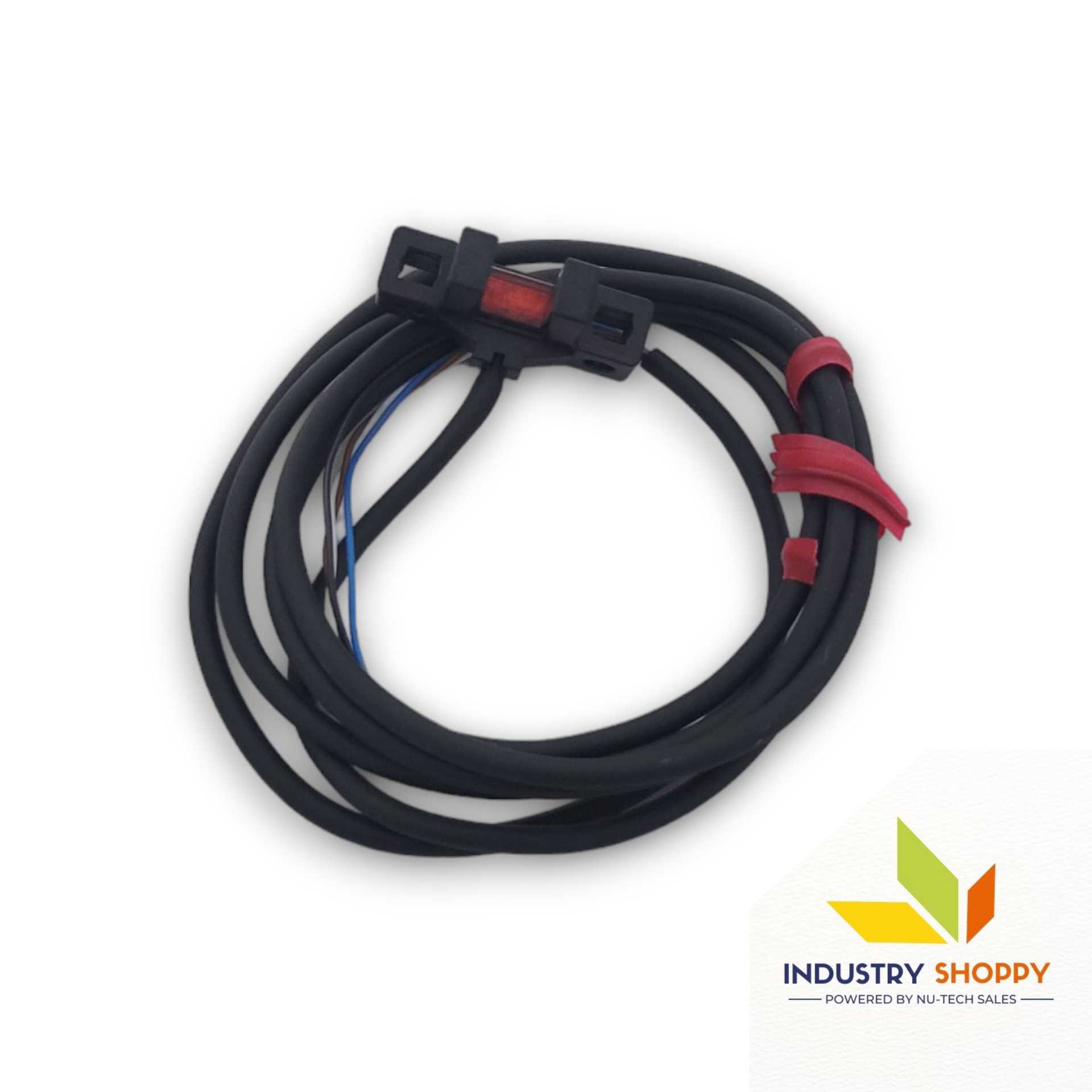

Panasonic PM-L45-P U-Shaped Photoelectric Sensor
Panasonic PM-L45-P U-Shaped Photoelectric Sensor
Panasonic PM-L45-P U-Shaped Photoelectric Sensor
Panasonic PM-L45-P U-Shaped Photoelectric Sensor
Panasonic PM-L45-P U-Shaped Photoelectric Sensor
Panasonic PM-L45-P U-Shaped Photoelectric Sensor
Panasonic

Panasonic PM-L45-P Photoelectric Sensor

Product SKU: NTSSEN00019
Available:
Only 41 items in stock
41 items in stock
In stock
Pre-order
Out of stock
  • Brand  :  Panasonic
  • Type : U-Shaped Photoelectric
  • Output    : PNP open-collector transistor
  • Supply Voltage :    5..24 VDC
  • Current Consumption  :  15 mA or less
  • Warranty : 12 Months
Rs. 860.00
Rs. 1,650.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

Panasonic PM-L45-P Photoelectric Sensor



The Panasonic PM-L45-P Photoelectric Sensor is a high-precision compact sensor designed for microscopic object detection in automation environments. It offers a fixed sensing range of 6 mm and detects objects as small as 0.8 × 1.2 mm, making it ideal for tight tolerance applications. With a repeatability of 0.01 mm and hysteresis of 0.05 mm or less, it ensures consistently accurate performance.

Operating on a 5 to 24 V DC supply, it consumes 15 mA or less, while its PNP open-collector output supports up to 50 mA and includes Light-ON and Dark-ON outputs, protected by short-circuit protection. The response time is extremely fast, with 20 µs (light received) and 80 µs (light interrupted), delivering up to 3 kHz frequency.

Built with PBT housing and polycarbonate display, it withstands harsh conditions, supporting temperatures from -25°C to +55°C, and has an IP64 rating. It resists shock up to 15,000 m/s² and vibration from 10 to 2,000 Hz, ensuring durability. The sensor emits an infrared beam at 855 nm, optimal for opaque object detection.

Certified under CE (EMC and RoHS), the sensor includes a 1 m PVC cable and allows wiring extensions up to 100 m, making it flexible for diverse installations. The orange LED indicator confirms operation under light-received conditions.



Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!

Facebook, YouTube,


Product NumberPM-L45-P
Part NumberPML45P
CE Marking DirectivesEMC Directive, RoHS Directive
Sensing Range6 mm / 0.236 in (fixed)
Minimum Sensing Object0.8 × 1.2 mm / 0.031 × 0.047 in opaque object
Hysteresis≤ 0.05 mm / 0.002 in
Repeatability≤ 0.01 mm / 0.0004 in
Supply Voltage5 to 24 V DC ±10 %, Ripple P-P 10 % or less
Current Consumption15 mA or less
OutputPNP open-collector transistor:
• Max. sink current: 50 mA
• Applied voltage: ≤ 30 V DC (between output and 0 V)
• Residual voltage: ≤ 2 V (50 mA), ≤ 1 V (16 mA)
Output Operation2 outputs: Light-ON / Dark-ON
Output Short-Circuit ProtectionIncorporated
Response TimeLight received: ≤ 20 µs
Light interrupted: ≤ 80 µs
Max. response frequency: 3 kHz (tested with rotating disc method)
Operation IndicatorOrange LED (lights up under light received condition)
Pollution Degree3
ProtectionIP64 (IEC)
Ambient Temperature-25 to +55 °C (-13 to +131 °F), Storage: -30 to +80 °C (-22 to +176 °F)
Ambient Humidity5–85 % RH, Storage: 5–95 % RH
Ambient IlluminanceFluorescent light: ≤ 1,000 lx at the light-receiving face
Voltage Withstandability1,000 V AC for 1 min (between all supply terminals and enclosure)
Insulation Resistance≥ 20 MΩ with 250 V DC megger (between all supply terminals and enclosure)
Vibration Resistance10–2,000 Hz, 1.5 mm (0.059 in) double amplitude, max. acceleration 196 m/s², X/Y/Z directions, 2 hrs each
Shock Resistance15,000 m/s² (≈1,500 G), X/Y/Z directions, 3 times each
Emitting ElementInfrared LED (Peak wavelength: 855 nm, non-modulated)
MaterialEnclosure: PBT
Display section: Polycarbonate
Cable0.09-mm² 4-core cabtyre cable, PVC, 1 m (3.281 ft) long
Wiring LengthExtension up to 100 m (328.084 ft) with ≥ 0.3 mm² cable
Note: If extended ≥ 20 m (65.617 ft), ensure voltage ≥ 4.5 V at sensor end; for safety applications, do not exceed 30 m (98.425 ft)
Country of OriginChina
