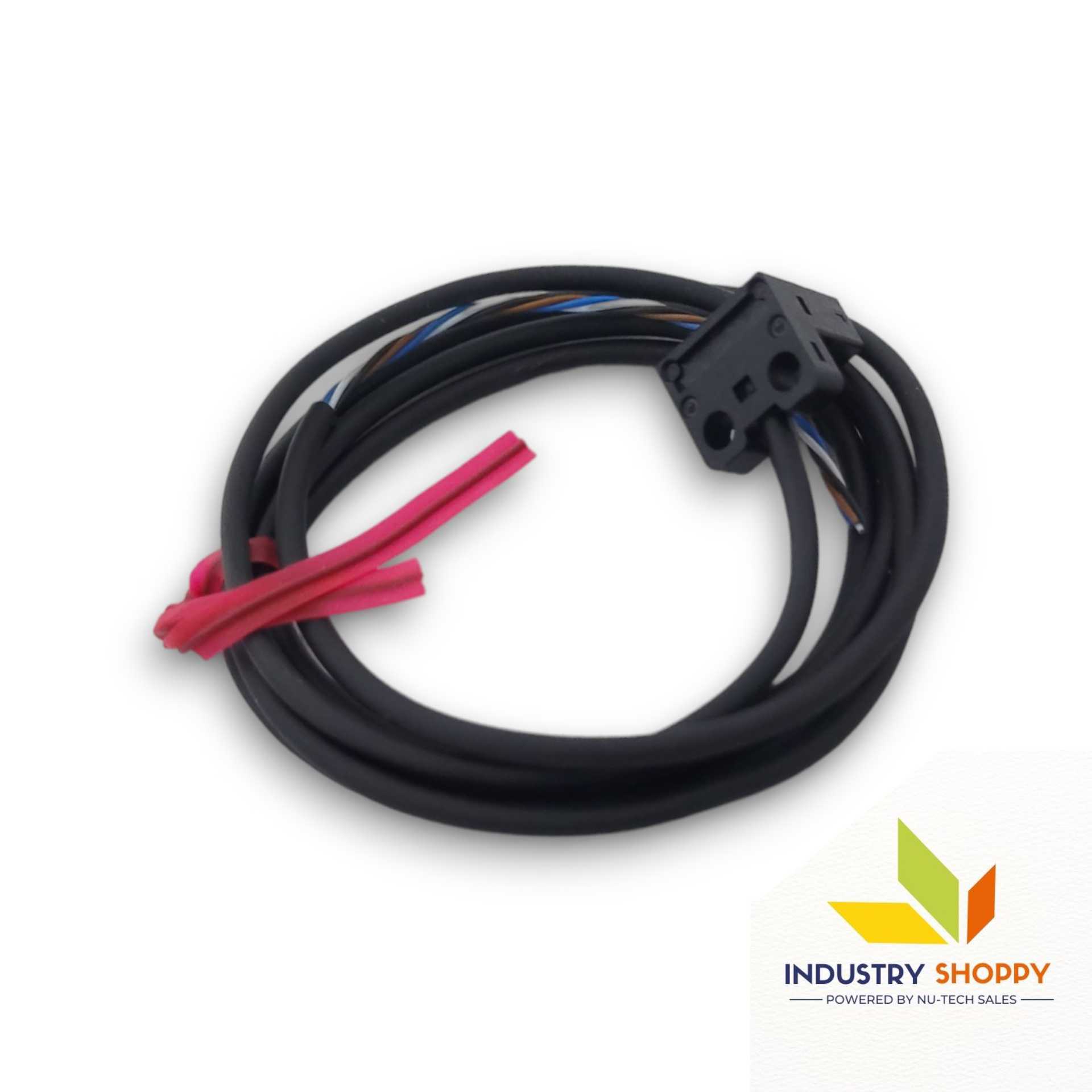

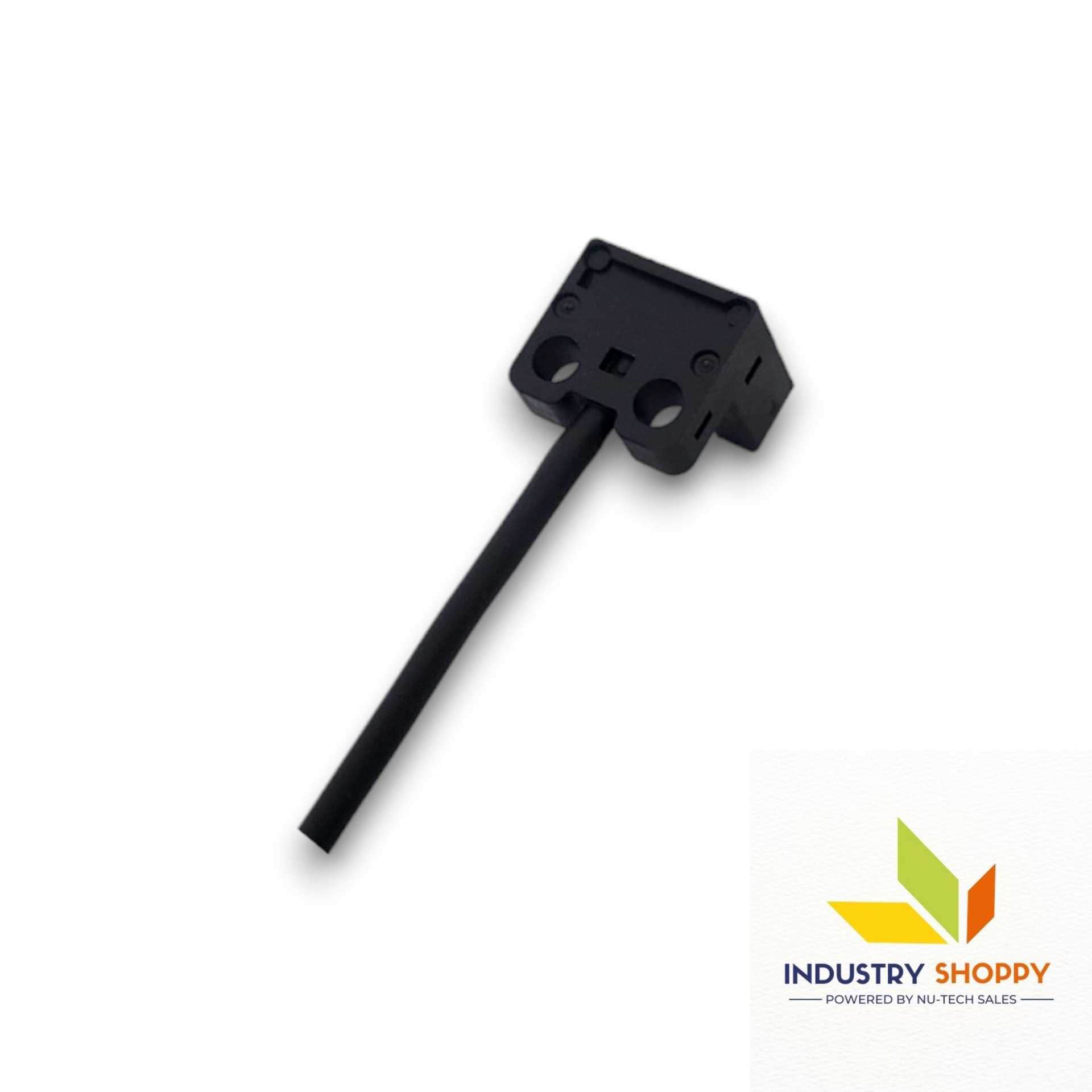

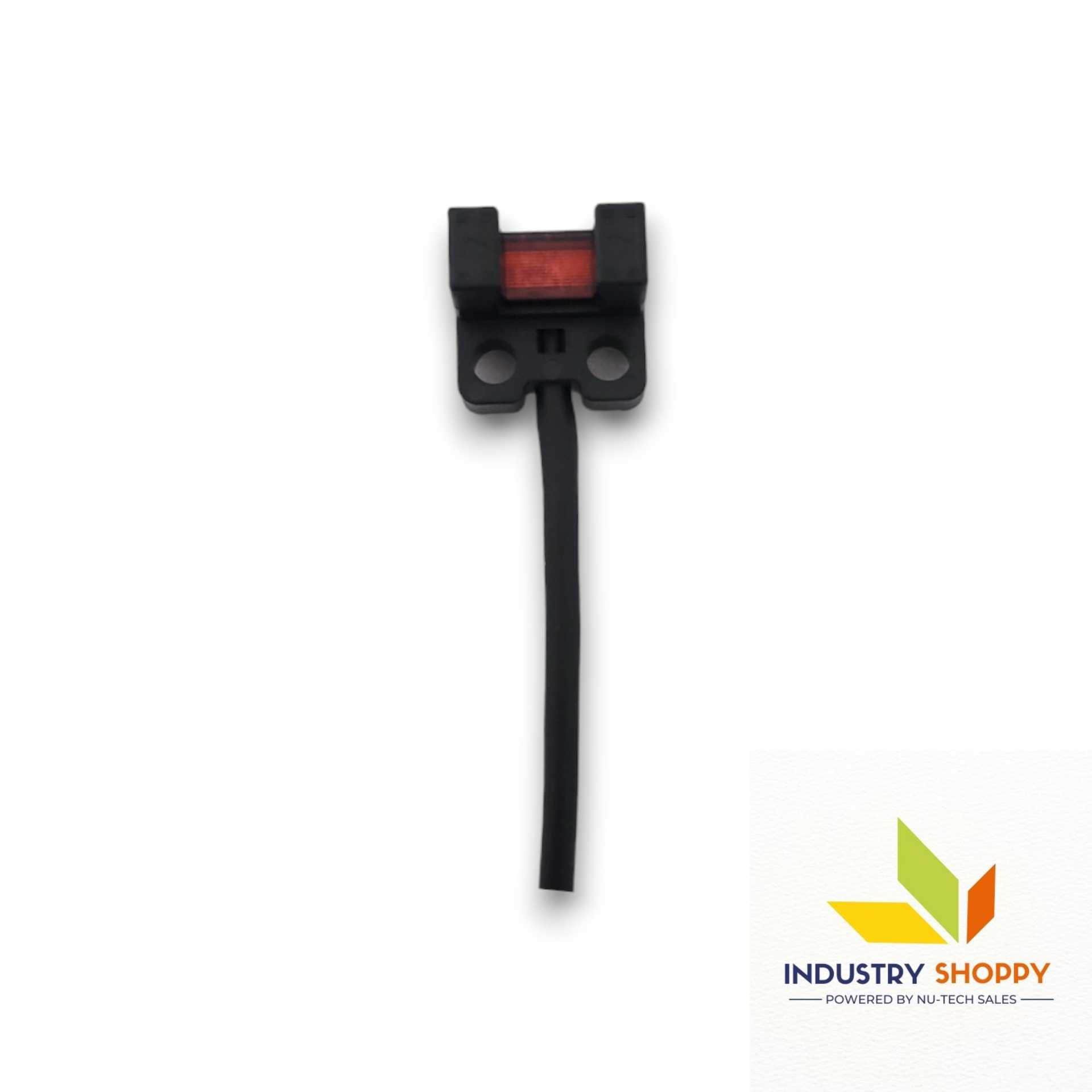

Panasonic PM-L25 U-Shaped Photoelectric Sensor
Panasonic PM-L25 U-Shaped Photoelectric Sensor
Panasonic PM-L25 U-Shaped Photoelectric Sensor
Panasonic PM-L25 U-Shaped Photoelectric Sensor
Panasonic PM-L25 U-Shaped Photoelectric Sensor
Panasonic PM-L25 U-Shaped Photoelectric Sensor
Panasonic PM-L25 U-Shaped Photoelectric Sensor
Panasonic PM-L25 U-Shaped Photoelectric Sensor
Panasonic

Panasonic PM-L25 Photoelectric Sensor

Product SKU: NTSSEN00140
Available:
Only 24 items in stock
24 items in stock
In stock
Pre-order
Out of stock
  • Brand  :  Panasonic
  • Type : U-Shaped Photoelectric
  • Output    : NPN open-collector transistor
  • Supply Voltage :    5..24 VDC
  • Current Consumption  :  15 mA or less
  • Warranty : 12 Months
Rs. 750.00
Rs. 1,500.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

Panasonic PM-L25 Photoelectric Sensor

The Panasonic PM-L25 Photoelectric Sensor, identified by part number PML25, adheres to CE Marking Directives, ensuring compliance with EMC and RoHS standards. The sensor has a fixed sensing range of 6 mm. This range is ideal for precise object detection. It can detect objects as small as 0.8 × 1.2 mm. Constructed with durable materials such as PBT and polycarbonate, the sensor exhibits reliability and longevity. It offers IP64 protection against dust ingress and robust resistance to vibration and shock, making it suitable for demanding industrial environments.

It offers a U-Shaped fixed sensing range of 6 mm (0.236 in) and can detect minimum sensing objects as small as 0.8 × 1.2 mm (0.031 × 0.047 in), making it suitable for precise object detection tasks. The sensor operates on a supply voltage of 5 to 24 V DC with ±10% tolerance and consumes a low current of 15 mA or less, ensuring efficient energy usage.

Designed with an NPN open-collector transistor output, the Panasonic PM-L25 U-Shaped Photoelectric Sensor can handle a maximum sink current of 50 mA and an applied voltage of 30 V DC or less. It features two output options: Light-ON and Dark-ON, providing flexibility for various application requirements. The sensor includes built-in short-circuit protection and achieves rapid response times of 20 μs or less under light received conditions and 80 μs or less under light interrupted conditions.

Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!

Facebook, YouTube,


Product NumberPM-L25
Part NumberPML25
CE Marking DirectivesEMC Directive, RoHS Directive
Sensing Range6 mm (0.236 in, fixed)
Minimum Sensing Object0.8 × 1.2 mm (0.031 × 0.047 in) opaque object
Hysteresis0.05 mm (0.002 in) or less
Repeatability0.01 mm (0.0004 in) or less
Supply Voltage5 – 24 V DC ±10 %, Ripple P-P ≤10 %
Current Consumption≤15 mA
Output TypeNPN open-collector transistor
Output RatingMax. sink current: 50 mA, Applied voltage ≤30 V DC, Residual voltage ≤2 V (50 mA), ≤1 V (16 mA)
Output OperationLight-ON / Dark-ON, 2 outputs incorporated
Short-Circuit ProtectionIncorporated
Response TimeLight received: ≤20 μs, Light interrupted: ≤80 μs, Max response frequency: 3 kHz
Operation IndicatorOrange LED (lights up under light received condition)
Pollution Degree3
ProtectionIP64 (IEC)
Ambient HumidityOperation: 5 – 85 % RH, Storage: 5 – 95 % RH
Ambient IlluminanceFluorescent light: ≤1,000 lx at light-receiving face
Voltage Withstandability1,000 V AC, 1 min (between all supply terminals & enclosure)
Insulation Resistance≥20 MΩ with 250 V DC megger
Vibration Resistance10 – 2,000 Hz, 1.5 mm double amplitude, max 196 m/s², X/Y/Z, 2 hrs each
Shock Resistance15,000 m/s² (≈1,500 G), X/Y/Z, 3 times each
Emitting ElementInfrared LED, λ = 855 nm (non-modulated)
MaterialEnclosure: PBT, Display section: Polycarbonate
Cable0.09 mm², 4-core cabtyre cable, PVC, 1 m (3.281 ft)
