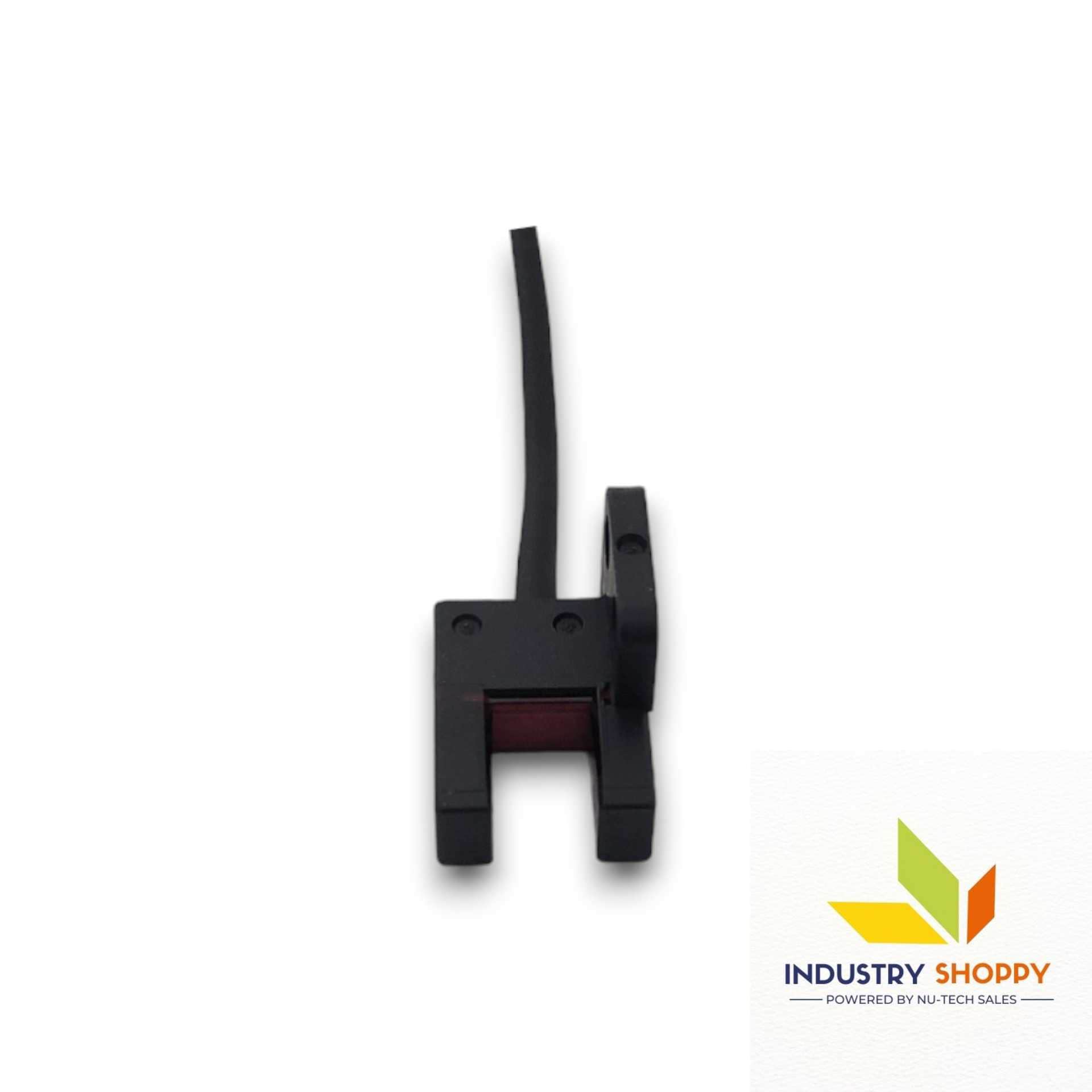

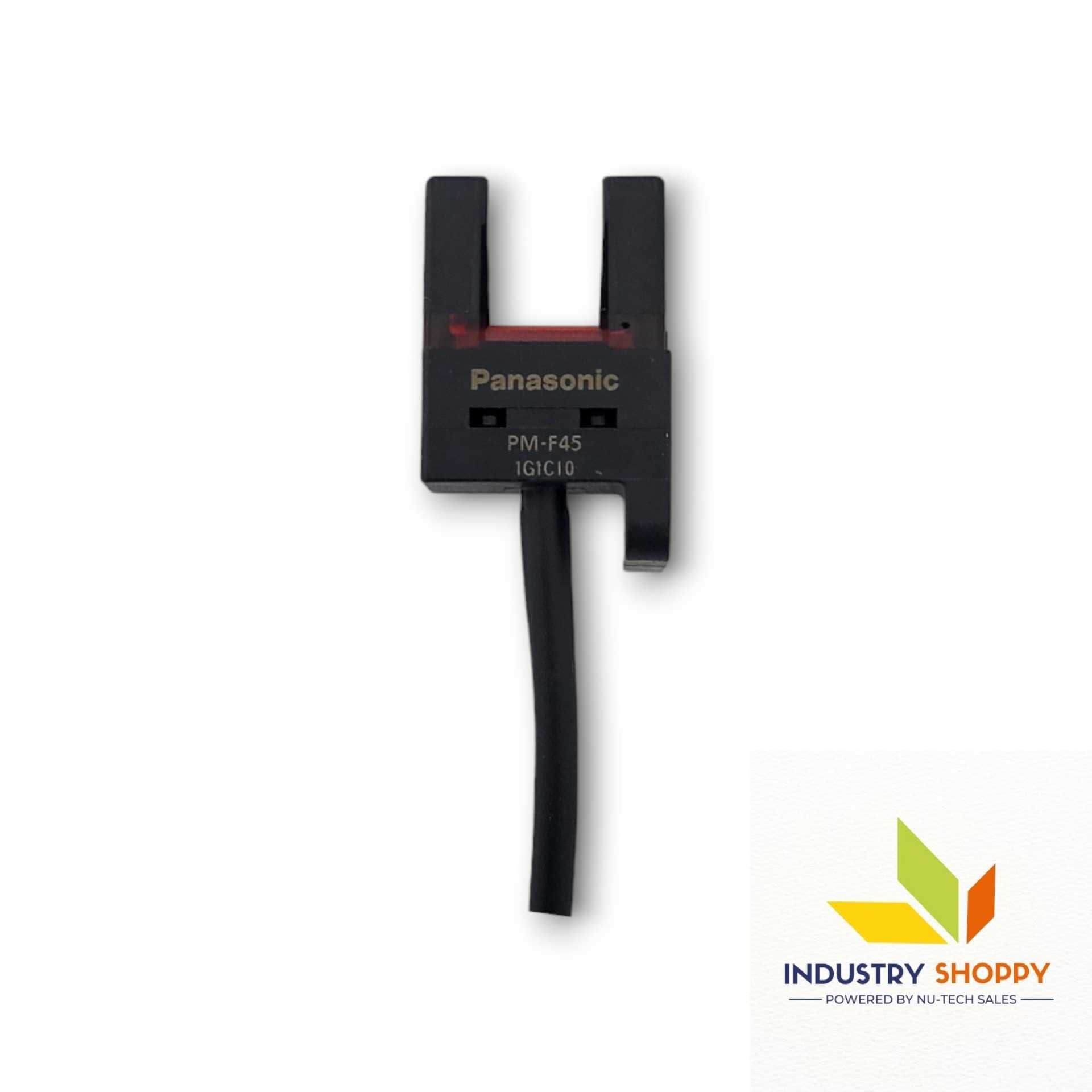

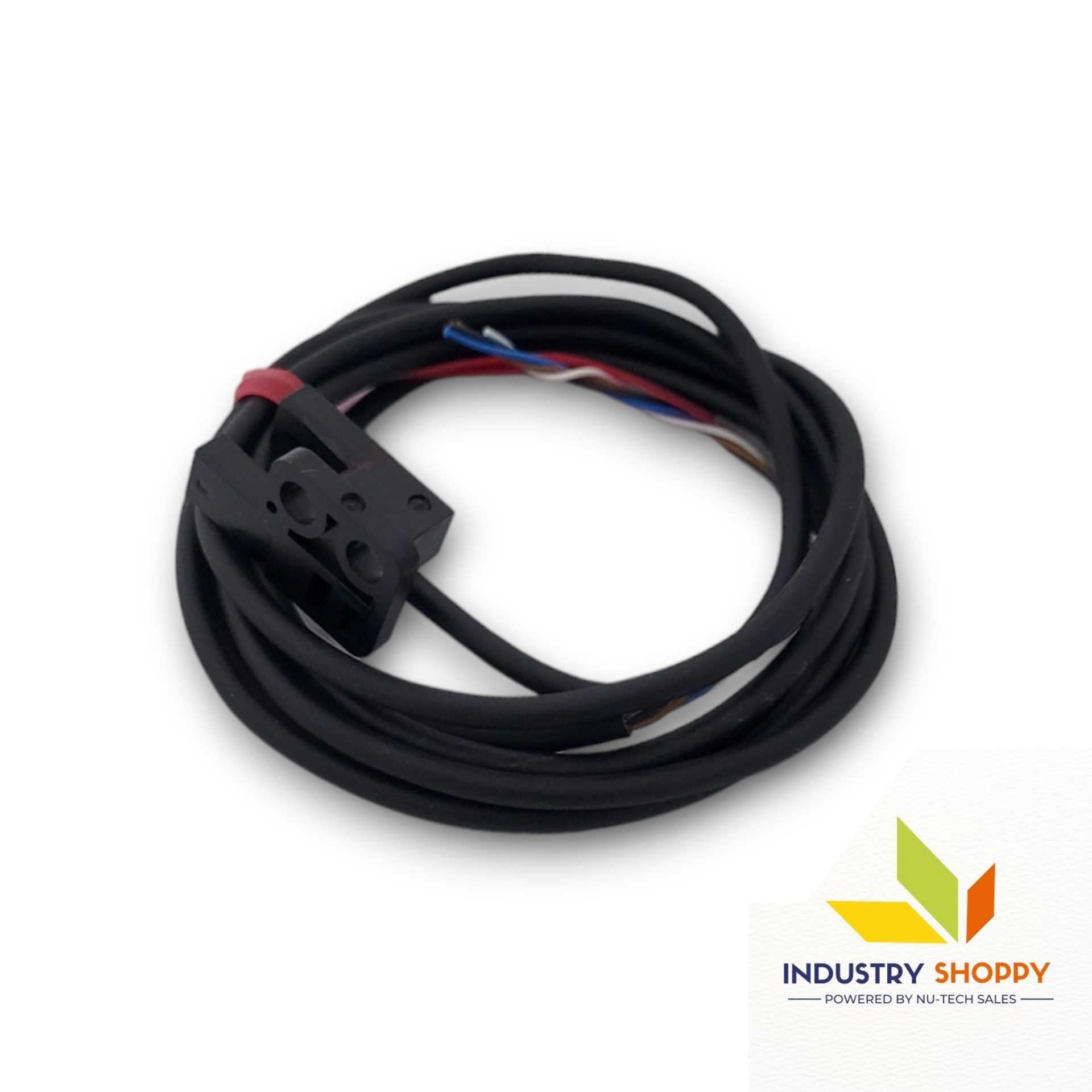

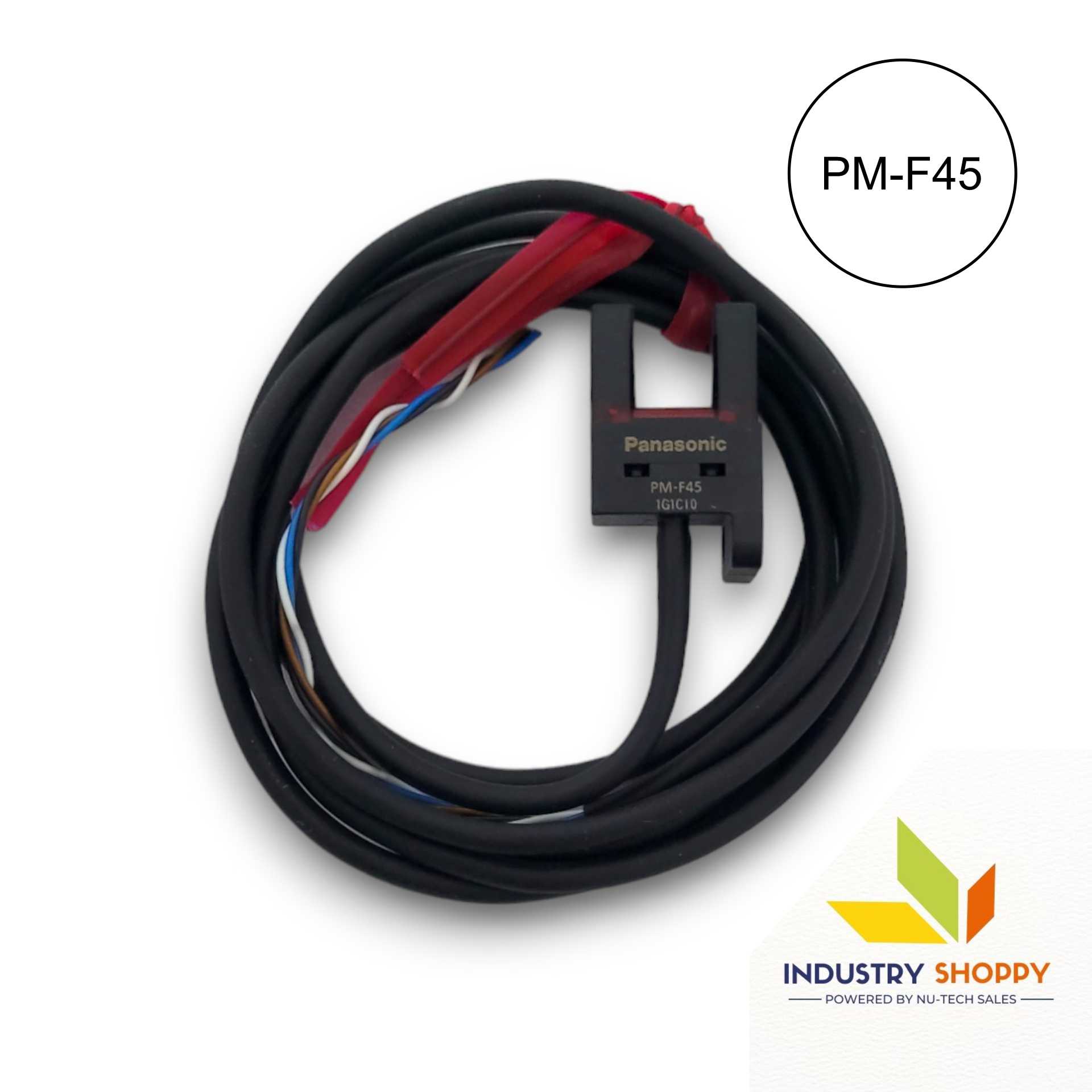

Panasonic PM-F45 U-Shaped Photoelectric Sensor
Panasonic PM-F45 U-Shaped Photoelectric Sensor
Panasonic PM-F45 U-Shaped Photoelectric Sensor
Panasonic PM-F45 U-Shaped Photoelectric Sensor
Panasonic PM-F45 U-Shaped Photoelectric Sensor
Panasonic PM-F45 U-Shaped Photoelectric Sensor
Panasonic PM-F45 U-Shaped Photoelectric Sensor
Panasonic PM-F45 U-Shaped Photoelectric Sensor
Panasonic

Panasonic PM-F45 Photoelectric Sensor

Product SKU: NTSSEN00077
Available:
Only 32 items in stock
32 items in stock
In stock
Pre-order
Out of stock
  • Brand  :  Panasonic
  • Type : U-Shaped Photoelectric
  • Output    : NPN open-collector transistor
  • Supply Voltage :    5..24 VDC
  • Current Consumption  :  15 mA or less
  • Warranty : 12 Months
Rs. 840.00
Rs. 1,650.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

Panasonic PM-F45 Photoelectric Sensor

The Panasonic PM-F45 Photoelectric Sensor, with part number PMF45, adheres to the CE Marking Directives, ensuring compliance with EMC and RoHS standards. It offers a U-Shaped fixed sensing range of 6 mm, suitable for precise detection applications. The sensor can reliably detect small opaque objects measuring 0.8 × 1.2 mm or larger.

Featuring NPN open-collector transistor output, the sensor provides flexibility with two output options: Light-ON and Dark-ON. It operates within a supply voltage range of 5 to 24 V DC with a low current consumption of 15 mA or less. The response time is rapid, with under 20 μs under light received condition and 80 μs or less under light interrupted condition.

Equipped with an orange LED operation indicator, the sensor offers clear feedback on its operating status.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, YouTube,


Product NumberPM-F45
Part NumberPMF45
CE Marking DirectivesEMC Directive, RoHS Directive
Sensing Range6 mm / 0.236 in (fixed)
Minimum Sensing Object0.8 × 1.2 mm / 0.031 × 0.047 in opaque object
Hysteresis≤ 0.05 mm / 0.002 in
Repeatability≤ 0.01 mm / 0.0004 in
Supply Voltage5 to 24 V DC ±10 %, Ripple P-P 10 % or less
Current Consumption15 mA or less
OutputNPN open-collector transistor:
• Max. sink current: 50 mA
• Applied voltage: ≤ 30 V DC (between output and 0 V)
• Residual voltage: ≤ 2 V (50 mA), ≤ 1 V (16 mA)
Output Operation2 outputs: Light-ON / Dark-ON
Output Short-Circuit ProtectionIncorporated
Response TimeLight received: ≤ 20 µs
Light interrupted: ≤ 80 µs
Max. response frequency: 3 kHz (tested with rotating disc method)
Operation IndicatorOrange LED (lights up under light received condition)
Pollution Degree3
ProtectionIP64 (IEC)
Ambient Temperature-25 to +55 °C (-13 to +131 °F), Storage: -30 to +80 °C (-22 to +176 °F)
Ambient Humidity5–85 % RH, Storage: 5–95 % RH
Ambient IlluminanceFluorescent light: ≤ 1,000 lx at the light-receiving face
Voltage Withstandability1,000 V AC for 1 min (between all supply terminals and enclosure)
Insulation Resistance≥ 20 MΩ with 250 V DC megger (between all supply terminals and enclosure)
Vibration Resistance10–2,000 Hz, 1.5 mm (0.059 in) double amplitude, max. acceleration 196 m/s², X/Y/Z directions, 2 hrs each
Shock Resistance15,000 m/s² (≈1,500 G), X/Y/Z directions, 3 times each
Emitting ElementInfrared LED (Peak wavelength: 855 nm, non-modulated)
MaterialEnclosure: PBT
Display section: Polycarbonate
Cable0.09 mm², 4-core cabtyre cable, PVC, 1 m (3.281 ft)
Wiring LengthExtension up to 100 m (328.084 ft) with ≥ 0.3 mm² cable
Note 1: If ≥ 20 m (65.617 ft), ensure voltage ≥ 4.5 V at sensor end
Note 2: For safety applications, do not exceed 30 m (98.425 ft)
Weight (Typ.)Net: 10 g approx.
Gross: 15 g approx.
RemarkMeasurement conditions: ambient temperature +23 °C (+73.4 °F) unless specified otherwise
Country of OriginChina
