Panasonic NA2-N8 Slim Body Area Sensor

Product SKU: NTSSEN00391
Available:
Only 3 items in stock
3 items in stock
In stock
Pre-order
Out of stock
  • Brand : Panasonic
  • Supply Voltage : 12 to 24 V DC ±10 % Ripple P-P 10 % or less
  • Output : NPN open-collector transistor
  • Connecting method : 0.2 mm2 4-core cabtyre cable, 3 m 9.843 ft long
  • Warranty : 12 Months

For International Buyers : IndustryShoppy.com

Rs. 8,285.00
Rs. 11,845.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

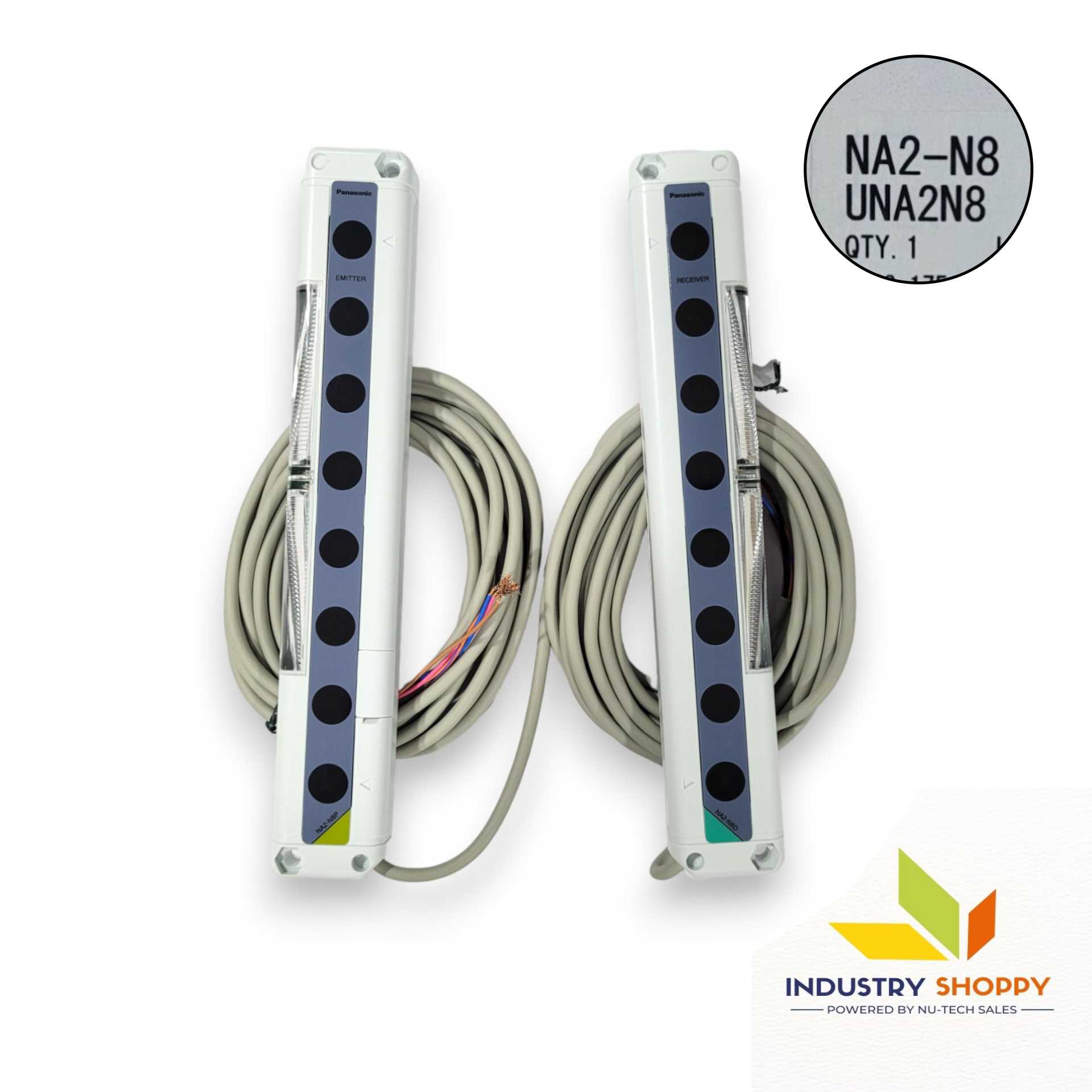

    Panasonic NA2-N8 Slim Body Area Sensor

    The Panasonic NA2-N8 Area Sensor (NA2N8) complies with the EMC Directive and RoHS Directive for CE marking. The Panasonic NA2-N8 Area Sensor from Panasonic is engineered to deliver precise and efficient performance in industrial settings. With a sensing height of 140 mm and a range spanning up to 5 meters, it provides reliable detection of objects, ensuring operational efficiency and safety.

    Constructed with robust materials such as heat-resistant ABS for the enclosure, polyester for the lens cover, and acrylic for the indicator cover, this sensor is built to withstand harsh industrial environments. Its durability ensures long-term reliability, even in challenging conditions where dust, moisture, or mechanical stress may be present.

    Equipped with indicators for operation status, stable beam indication, and job status, as well as incorporated functions for interference prevention and test input, the NA2-N8 sensor offers comprehensive monitoring and control capabilities. Additionally, it complies with CE Marking Directive and RoHS Directive, meeting international standards for safety and environmental protection.


    Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on our site  are the property of their respective owners.

    IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


    Facebook, YouTube,


    Product NumberNA2-N8
    Part NumberUNA2N8
    CE Marking Directive ComplianceEMC Directive, RoHS Directive
    Sensing Height140 mm 5.512 in
    Sensing Range5 m 16.404 ft
    Beam Pitch20 mm 0.787 in
    Sensing Objectdia. 30 mm dia. 1.181 in or more opaque object (completely beam interrupted objects)
    Supply Voltage12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less
    Power Consumption: Emitter: Job Indicator On0.7 W or less
    Power Consumption: Emitter: Job Indicator Off0.6 W or less
    Power Consumption: Receiver: Job Indicator On0.7 W or less
    Power Consumption: Receiver: Job Indicator Off0.6 W or less
    OutputNPN open-collector transistor
     - Maximum sink current: 100 mA
     - Applied voltage: 30 V DC or less (between output and 0 V)
     - Residual voltage: 2 V or less (at 100 mA sink current), 1 V or less (at 16 mA sink current)
    Output: Utilization CategoryDC-12 or DC-13
    Output: Output OperationON when all beam channels are received (OFF when one or more beam channels are interrupted)
    Output: Short-Circuit ProtectionIncorporated
    Response Time10 ms or less (12 ms or less when the interference prevention function is used)

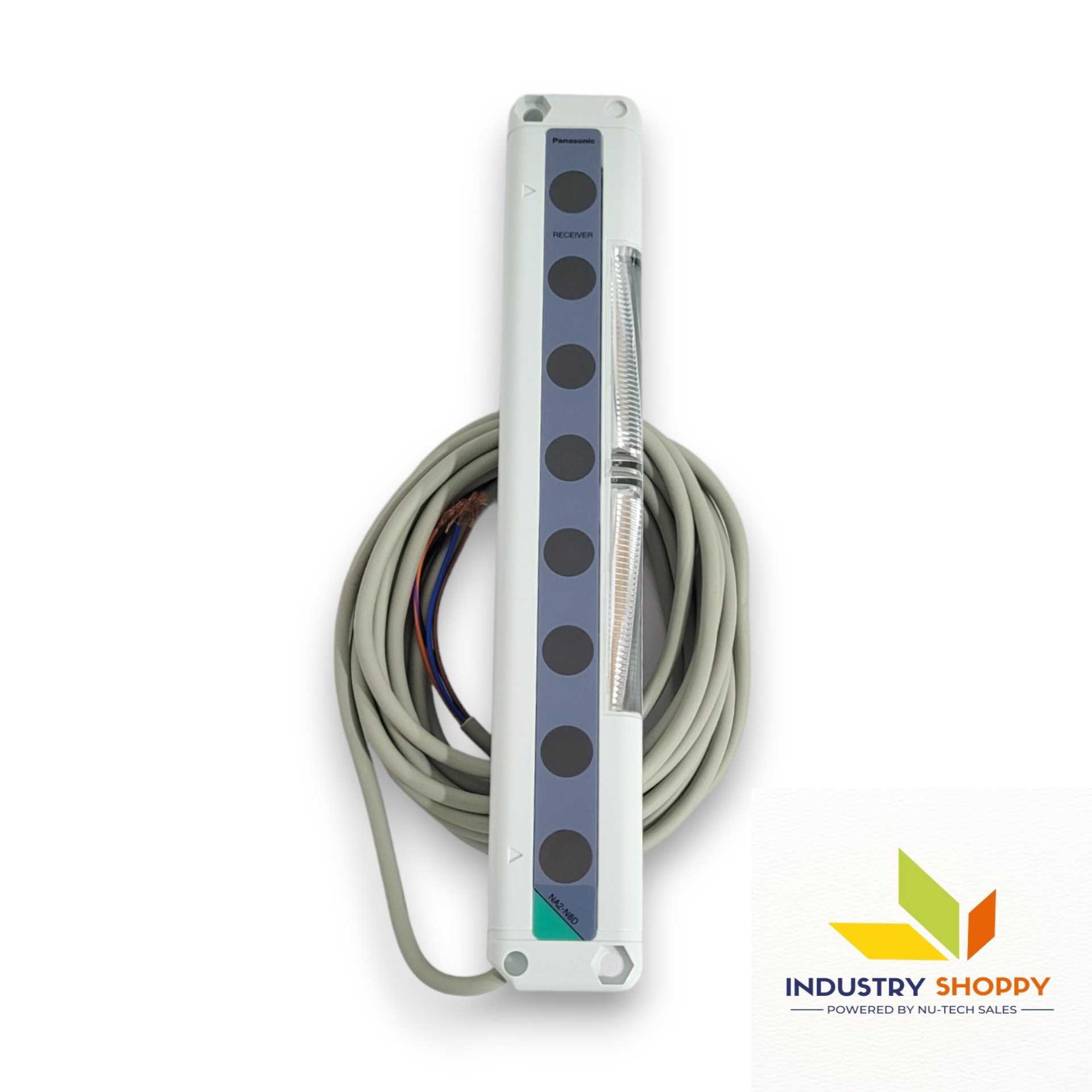

    Indicators: ReceiverOperation indicator: Red LED (lights up when one or more beam channels are interrupted)
     Stable incident beam indicator: Green LED (lights up when all beam channels are stably received)
     Job indicator: Red LED (lights up, blinks or lights off when the job indicator input is applied, selected by operation mode switch)
     * When an excess current flows through the output, the stable incident beam indicator and the operation indicator on the receiver blink simultaneously due to operation of the short-circuit protection circuit.

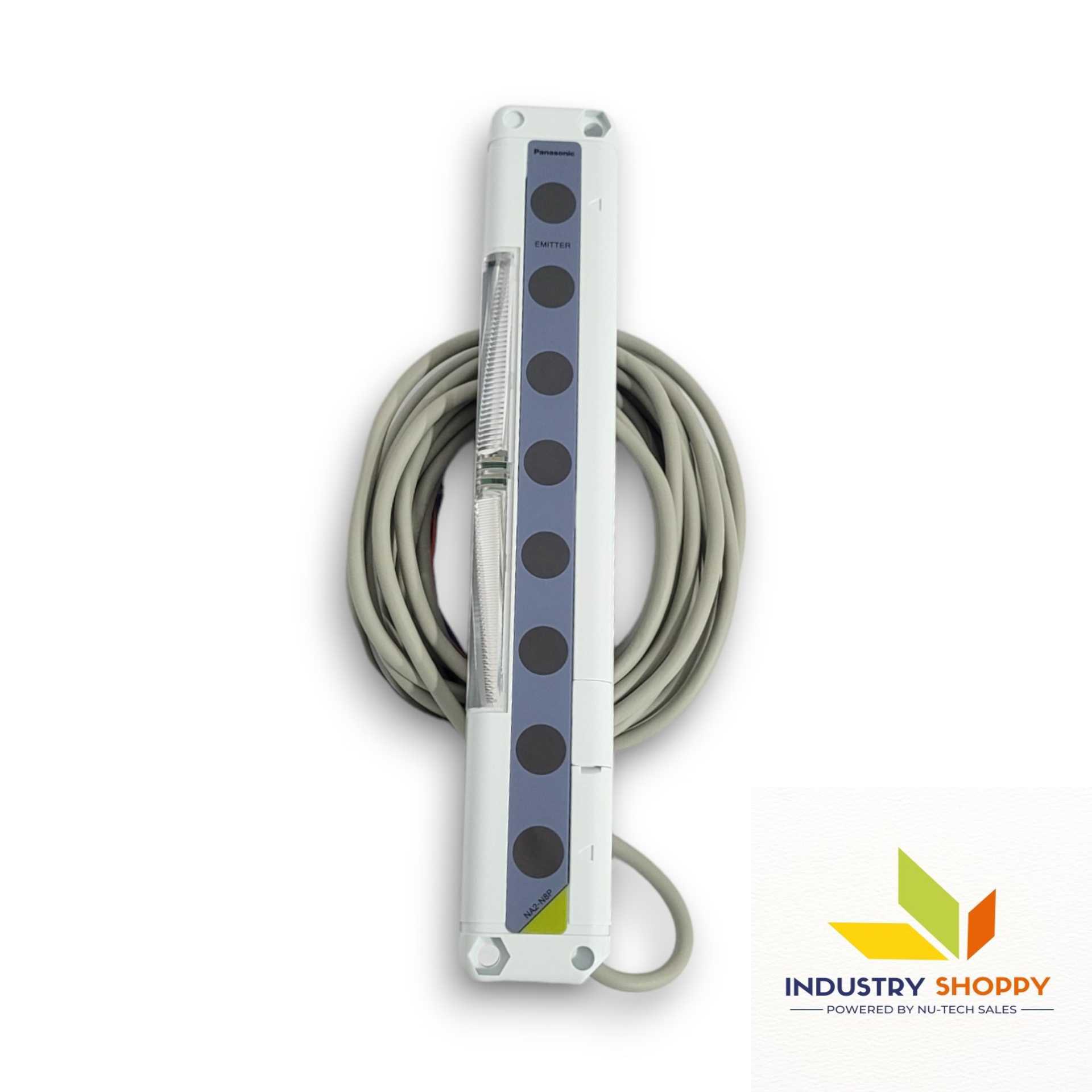

    Indicators: EmitterEmitting indicator: Green LED x 2 (light up during emission; one LED lights up for Frequency A setting, both LEDs light up for Frequency B setting)
     Job indicator: Red LED (lights up, blinks or lights off when the job indicator input is applied, selected by operation mode switch)
    Interference Prevention FunctionIncorporated
    Test Input (Emission Halt) FunctionIncorporated
    Pollution Degree3 (Industrial environment)
    ProtectionIP40(IEC)
    Ambient Temperature-10 to +55 degrees +14 to +131 degrees Fahrenheit (No dew condensation or icing allowed), Storage: -10 to +60 degrees +14 to +140 degrees Fahrenheit
    Ambient Humidity35 to 85 % RH, Storage: 35 to 85 % RH
    Ambient IlluminanceIncandescent light: 3,000 lx or less at the light-receiving face
    Voltage Withstandability1,000 V AC for one min. between all supply terminals connected together and enclosure
    Insulation Resistance20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure
    Vibration Resistance10 to 150 Hz frequency, 0.75 mm 0.030 in double amplitude in X, Y and Z directions for two hours each
    Shock Resistance500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each
    Emitting ElementInfrared LED (Peak emission wavelength: 870 nm 0.034 mil, modulated) (Note：Peak emission wavelength has been changed from production in March, 2017.)

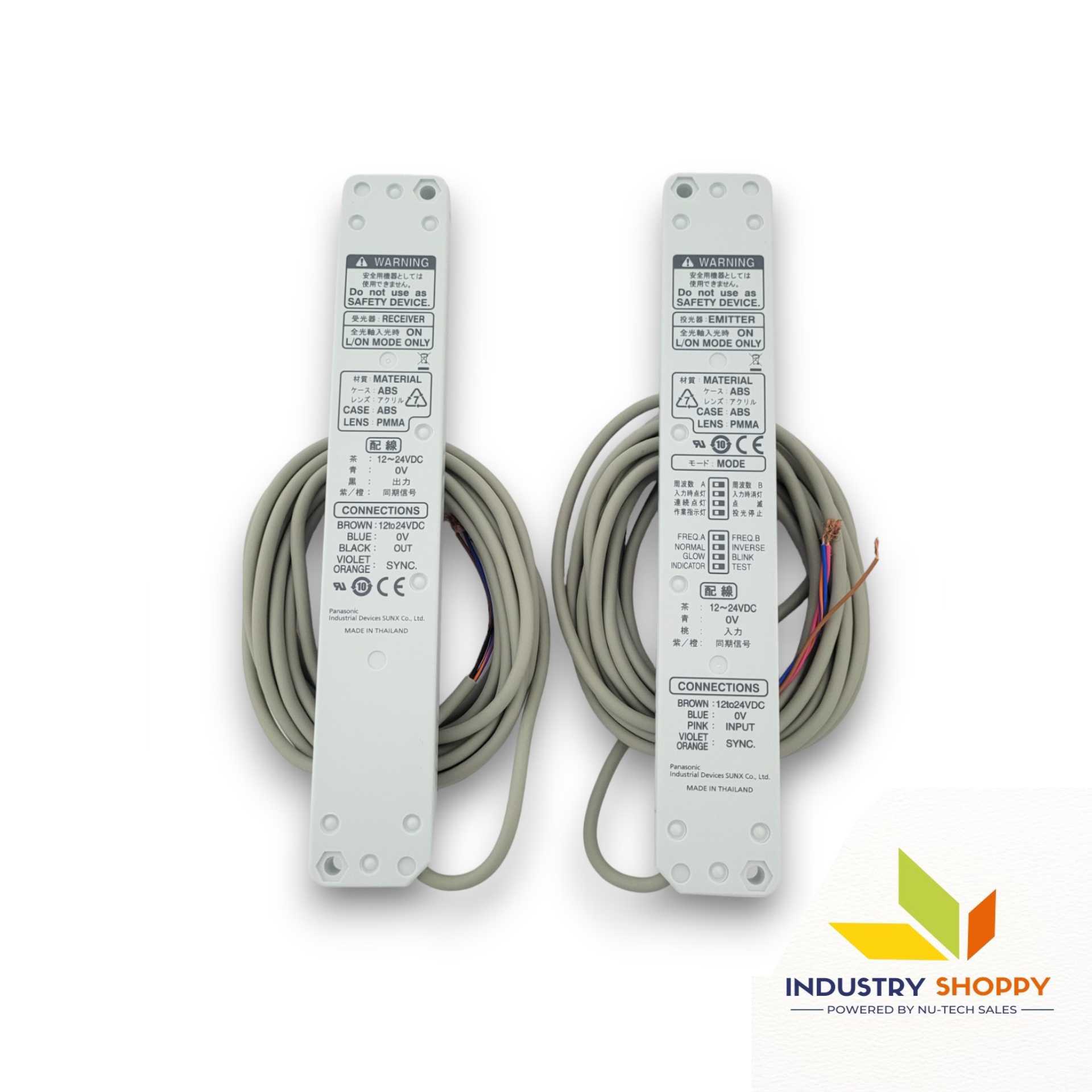

    MaterialEnclosure: Heat-resistant ABS
     Lens cover: Polyester
     Indicator cover: Acrylic
    Cable0.2 mm2 4-core cabtyre cable, 3 m 9.843 ft long
    Cable ExtensionExtension up to total 25 m 82.021 ft is possible for both emitter and receiver, with 0.2 mm2, or more, cable.
    Country of originThailand
