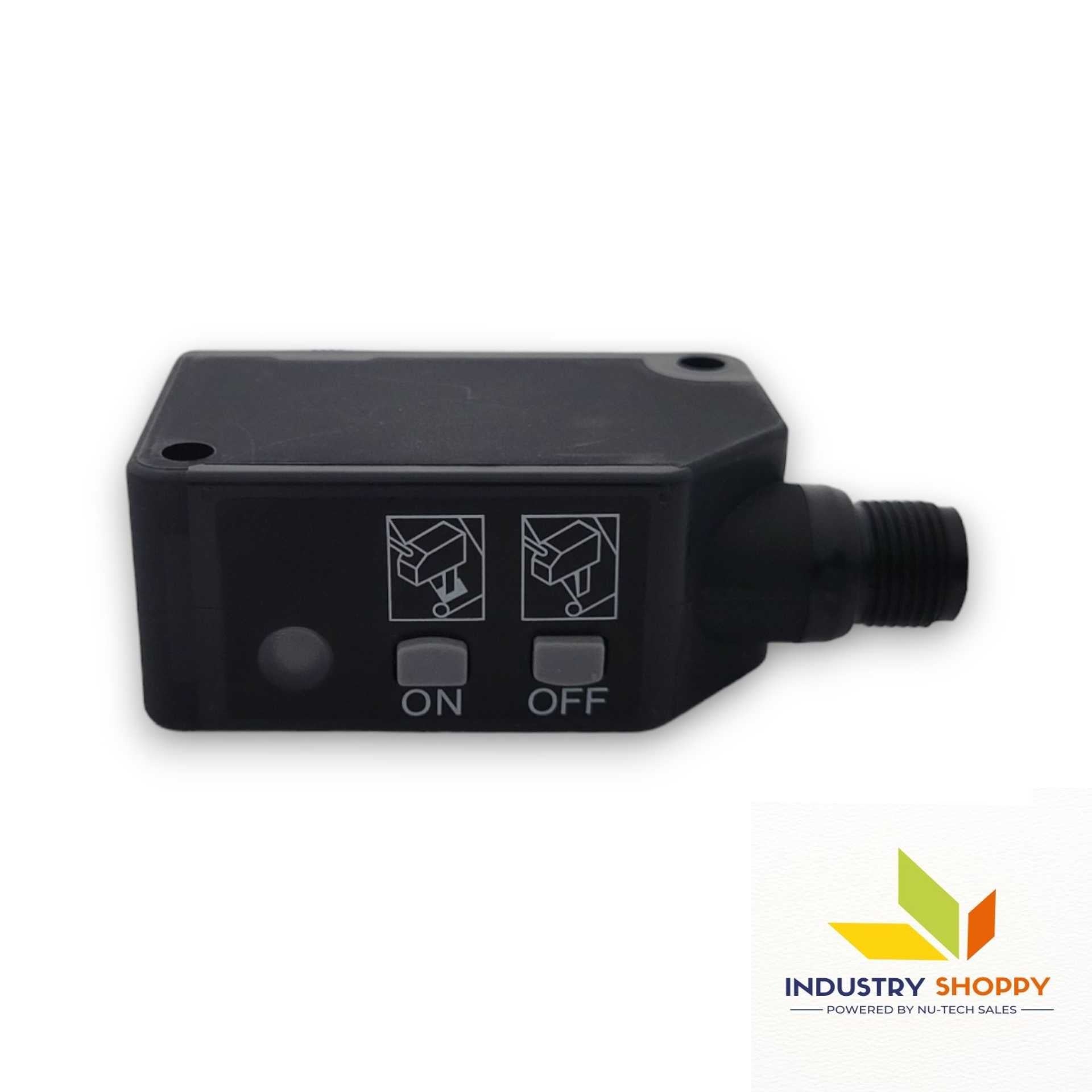

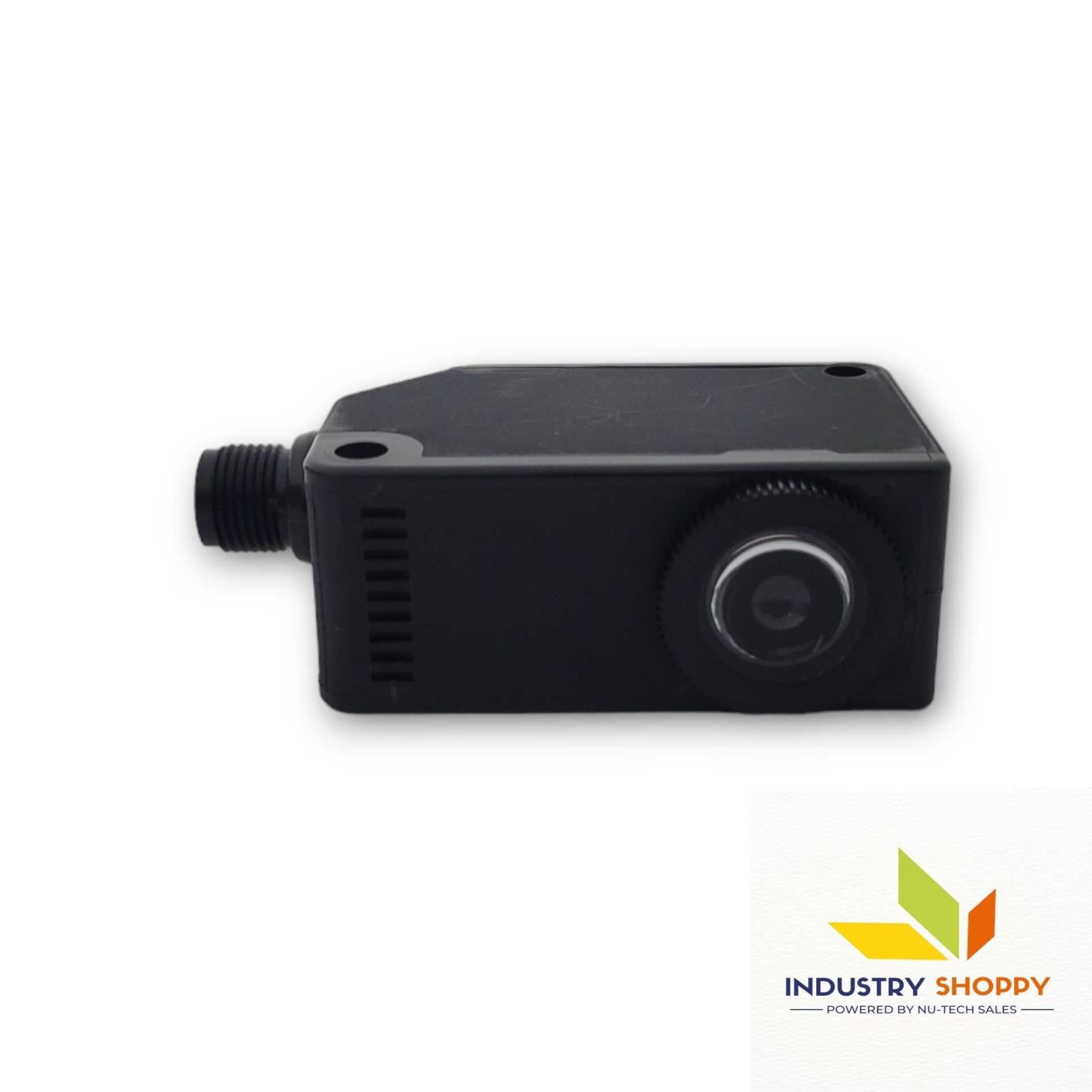

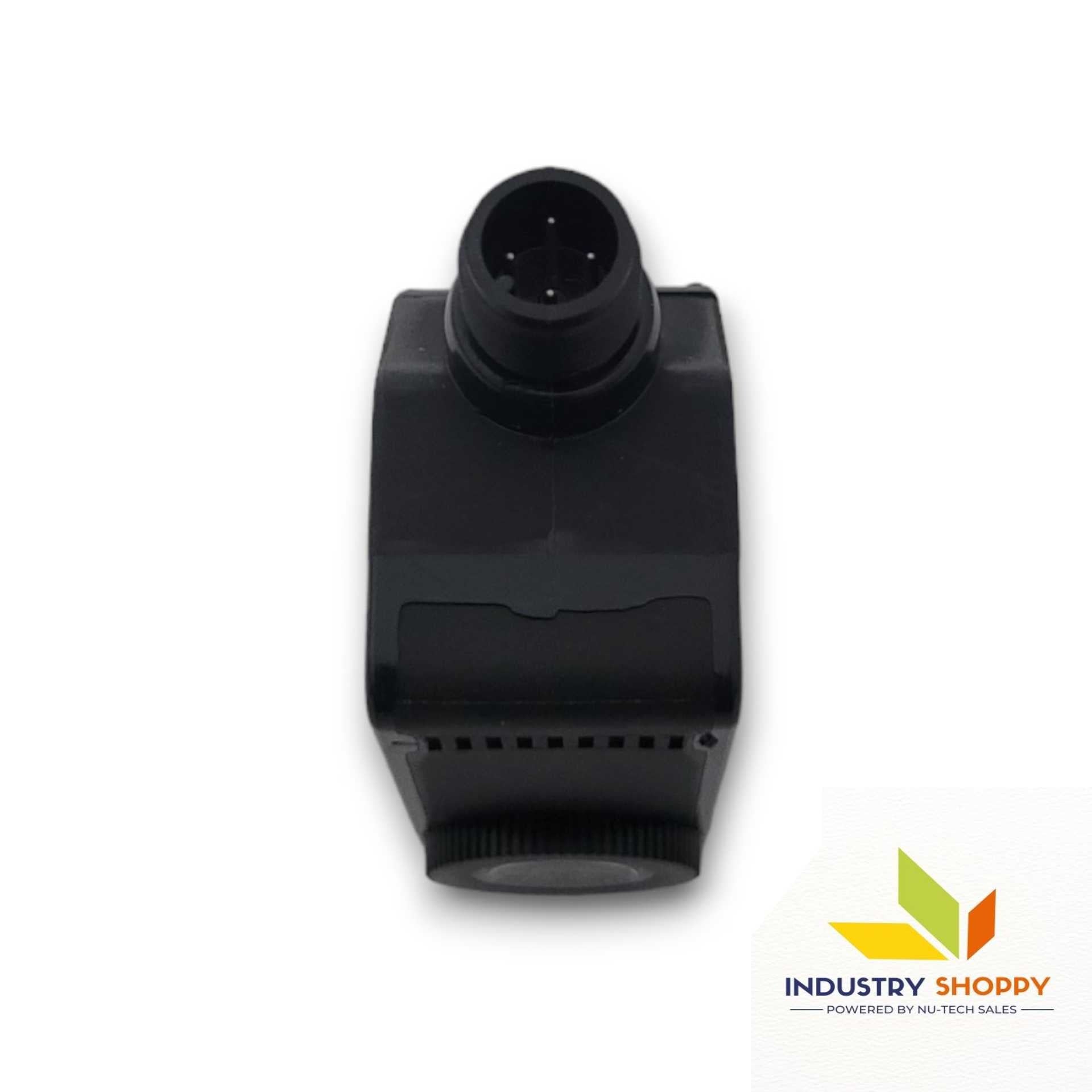

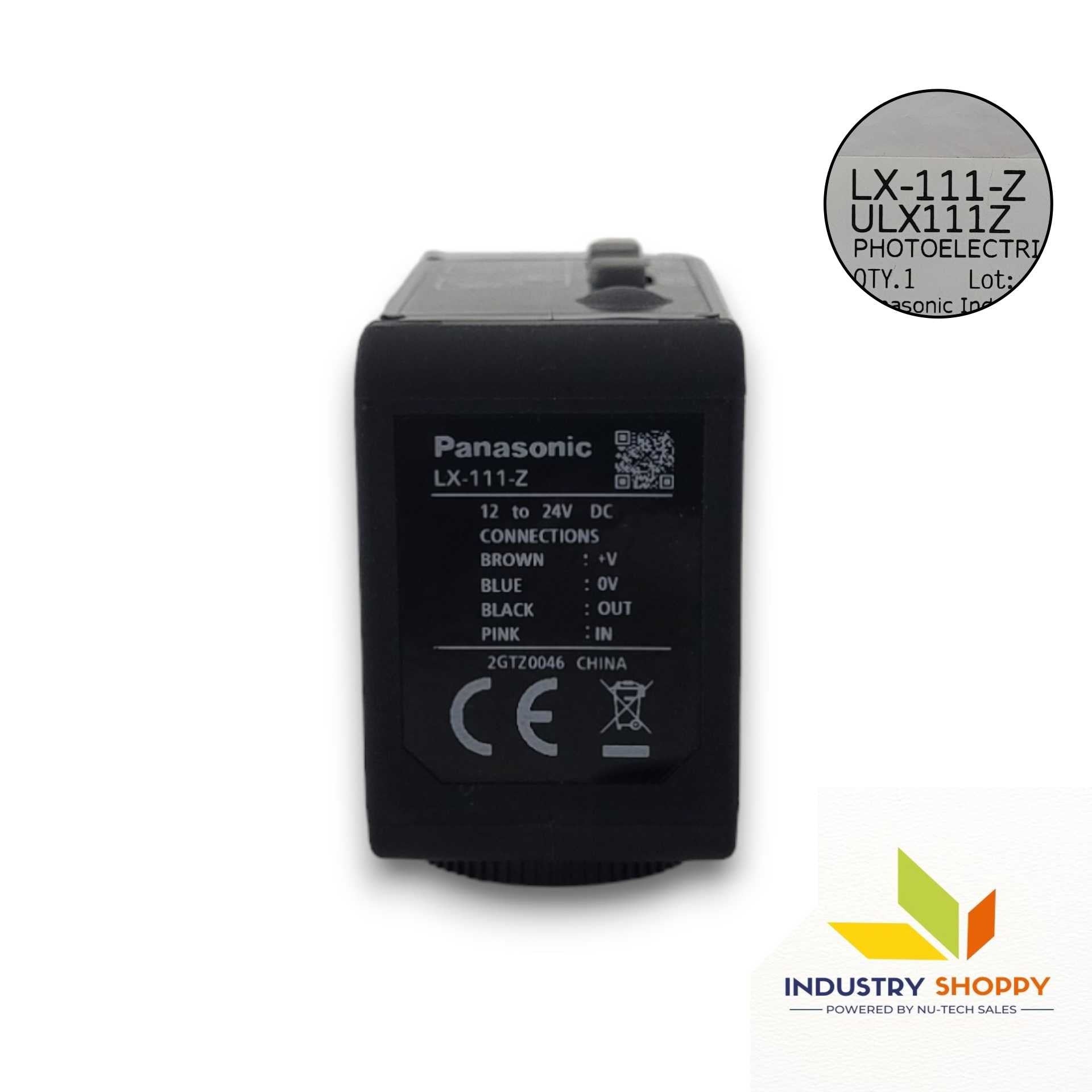

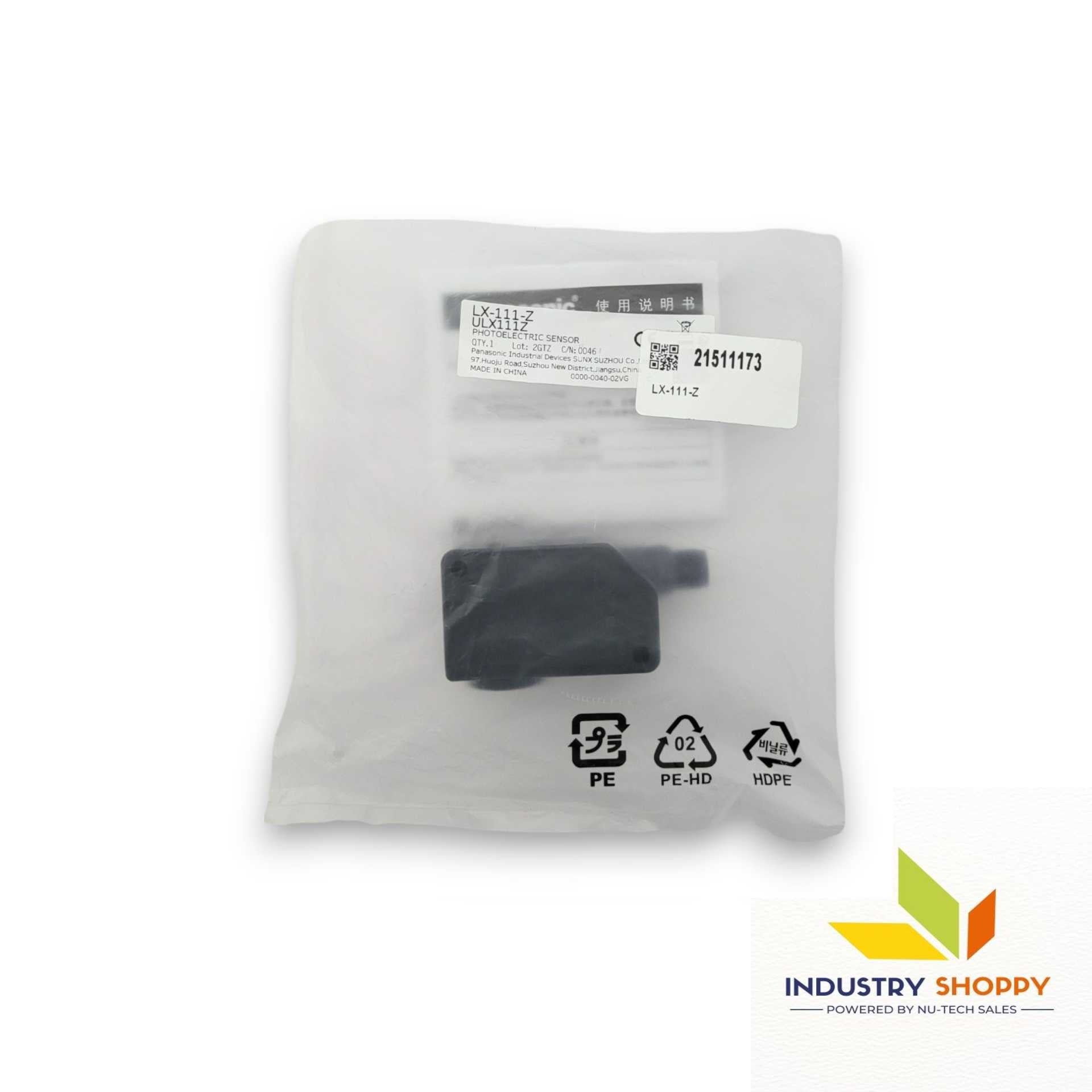

Panasonic LX-111-Z Color Mark Sensor
Panasonic LX-111-Z Color Mark Sensor
Panasonic LX-111-Z Color Mark Sensor
Panasonic LX-111-Z Color Mark Sensor
Panasonic LX-111-Z Color Mark Sensor
Panasonic LX-111-Z Color Mark Sensor
Panasonic LX-111-Z Color Mark Sensor
Panasonic LX-111-Z Color Mark Sensor
Panasonic LX-111-Z Color Mark Sensor
Panasonic LX-111-Z Color Mark Sensor
Panasonic

Panasonic LX-111-Z Color Mark Sensor

Product SKU: NTSSEN00055
Available:
Only 8 items in stock
8 items in stock
In stock
Pre-order
Out of stock
  • Brand  :  Panasonic
  • Output    : NPN open-collector transistor
  • Supply Voltage :    12..24 VDC
  • Power Consumption :  25 mA or less at 24 V supply voltage
  • Warranty : 12 Months

For International Buyers : IndustryShoppy.com

Rs. 3,940.00
Rs. 5,500.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

    Panasonic LX-111-Z Color Mark Sensor

    The Panasonic LX-111-Z Color Mark Sensor (ULX111Z,  LX111Z) adheres to CE marking directives, including the EMC Directive and RoHS Directive. It boasts a sensing range of 10 ± 3 mm and a spot size of 1 x 5 mm at a setting distance of 10 mm. Operating within a supply voltage range of 12 to 24 V DC, it consumes 750 mW or less in normal mode and 600 mW or less in ECO mode.

    The Panasonic LX-111-Z Color Mark Sensor  incorporates a combined Red / Green / Blue LEDs emitting element, providing versatility in detection capabilities with peak emission wavelengths of 640 nm, 525 nm, and 470 nm, respectively. This enables the sensor to adapt to various color detection requirements across different applications.

    With a compact and lightweight design, the sensor offers easy installation and integration into existing systems. Its low weight, at approximately 55 grams net and 120 grams gross, ensures minimal impact on the overall setup while maintaining robust performance.

    Overall, the LX-111-Z sensor combines advanced sensing capabilities with user-friendly features, making it a reliable choice for industrial automation and control systems.


    Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

    IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


    Facebook, YouTube,


    Product NumberLX-111-Z
    Part NumberULX111Z
    CE Marking Directive ComplianceEMC Directive, RoHS Directive
    Sensing Range10 ± 3 mm (0.394 ± 0.118 in)
    Spot Size1 × 5 mm (0.039 × 0.197 in) at 10 mm (0.394 in) setting distance
    Supply Voltage12 to 24 V DC ±10 %, Ripple P-P 10 % or less
    Current ConsumptionNormal mode: ≤750 mW (≤30 mA at 24 V)
    ECO mode: ≤600 mW (≤25 mA at 24 V)
    Output 1 (OUT)NPN open-collector transistor
    - Max. sink current: 50 mA
    - Applied voltage: ≤30 V DC
    - Residual voltage: ≤1.5 V (at 50 mA)
    Output 1: Short-Circuit ProtectionIncorporated
    Output 1: Output OperationMark mode: Light-ON / Dark-ON (Auto-teaching)
    Color mode: Consistent-ON / Inconsistent-ON (Teaching set)
    Output 2 (OUT)–
    Output 2: Short-Circuit Protection–
    Output 2: Output Operation–
    Response TimeMark mode: ≤45 µs
    Color mode: ≤150 µs
    Teaching InputNPN non-contact input
    - High: +5 V to +V or open
    - Low: 0 to +2 V (≤0.5 mA)
    Input impedance: ~10 kΩ
    Sensitivity SettingMark mode: 2-level teaching / Full-auto teaching
    Color mode: 1-level teaching
    Fine Sensitivity AdjustmentIncorporated
    Timer FunctionON-delay / OFF-delay timer (1–500 ms, 9-step variable), switchable effective/ineffective
    ProtectionIP67 (IEC)
    Ambient Temperature-10 to +55 °C (+14 to +131 °F), Storage: -20 to +70 °C (-4 to +158 °F)
    Ambient Humidity35–85 % RH (Operating & Storage)
    Ambient Illuminance≤3,000 lx (incandescent, at light-receiving face)
    Voltage Withstandability1,000 V AC for 1 min between all supply terminals and enclosure
    Vibration Resistance10–500 Hz, 3.0 mm double amplitude (≤20 G) in X, Y, Z for 2 hrs each
    Shock Resistance500 m/s² (≈50 G) in X, Y, Z (3 times each)
    Emitting ElementRGB LEDs: Red 640 nm, Green 525 nm, Blue 470 nm
    MaterialEnclosure: PBT
    Display cover: Polycarbonate
    Operation buttons: Silicone rubber
    Lens: Glass
    Lens holder: Aluminum
    Cable0.34 mm², 5-core cabtyre cable, 2 m (6.56 ft)
    Cable ExtensionUp to 100 m (328 ft) with ≥0.3 mm² cable
    Country of OriginChina
