Panasonic LX-101 Color Mark Sensor
Panasonic LX-101 Color Mark Sensor
Panasonic LX-101 Color Mark Sensor
Panasonic LX-101 Color Mark Sensor
Panasonic LX-101 Color Mark Sensor
Panasonic LX-101 Color Mark Sensor
Panasonic LX-101 Color Mark Sensor
Panasonic LX-101 Color Mark Sensor
Panasonic

Panasonic LX-101 Color Mark Sensor

Product SKU: NTSSEN00054
Available:
Only 46 items in stock
46 items in stock
In stock
Pre-order
Out of stock
  • Brand  :  Panasonic
  • Output    : NPN open-collector transistor
  • Supply Voltage :    12..24 VDC
  • Power Consumption :  25 mA or less at 24 V supply voltage
  • Warranty : 12 Months

For International Buyers : IndustryShoppy.com

Rs. 6,240.00
Rs. 7,000.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

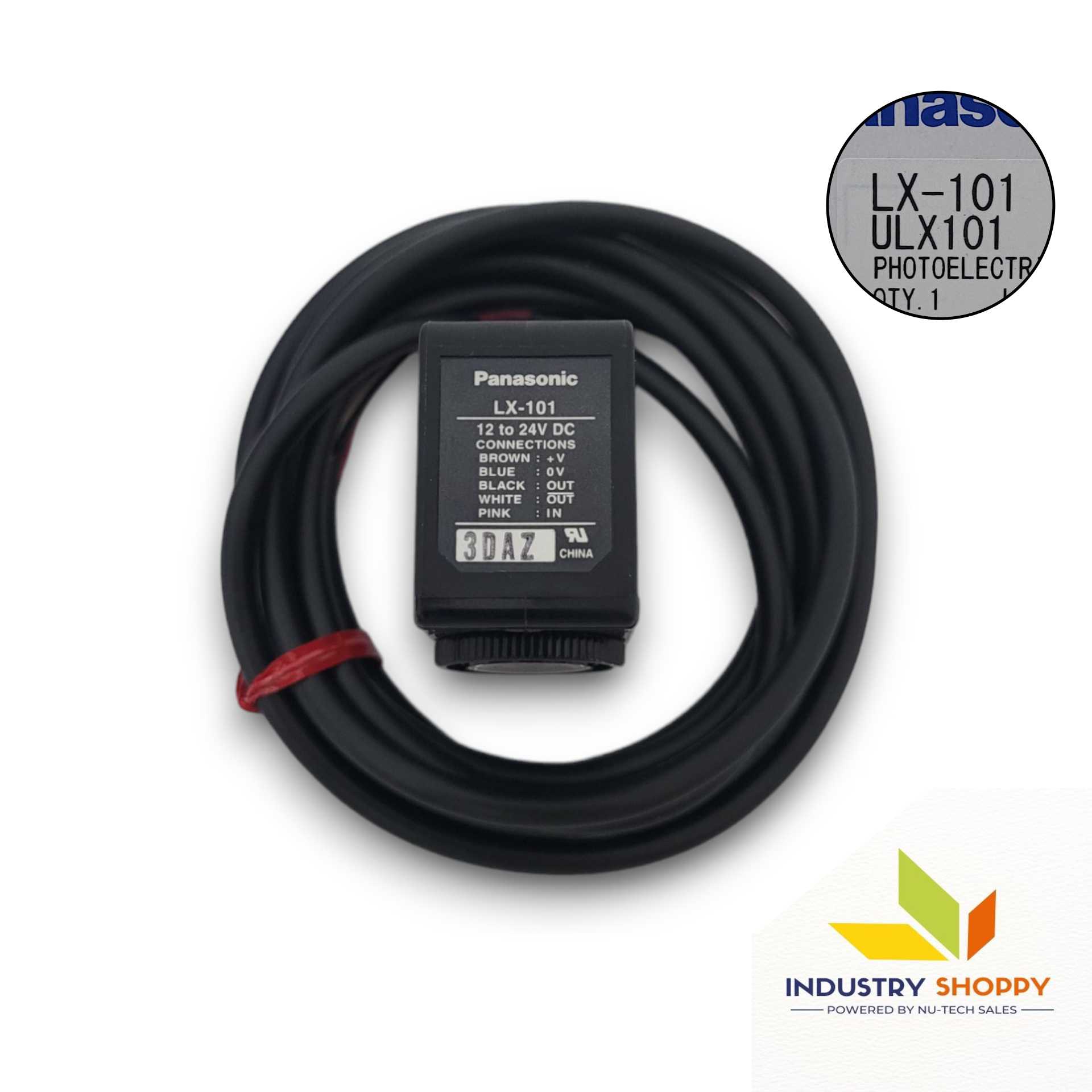

    Panasonic LX-101 Color Mark Sensor

    The Panasonic LX-101 Color Mark Sensor (ULX101, LX101) complies with the EMC Directive and RoHS Directive. It offers a sensing range of 10 ± 3 mm and a spot size of 1 x 5 mm at a setting distance of 10 mm. The sensor operates effectively with a supply voltage of 12 to 24 V DC, consuming 750 mW or less in normal mode and 600 mW or less in ECO mode.

    Operating with rapid response times in mark and color modes, the The Panasonic LX-101 Color Mark Sensor offers versatile output operations including light-ON/dark-ON and consistent-ON/inconsistent-ON settings. It features a digital display for easy monitoring and sensitivity setting options including 2-level teaching, full-auto teaching, and fine sensitivity adjustment functions. Additionally, the sensor includes a timer function with variable ON-delay/OFF-delay settings, further enhancing its adaptability to specific application requirements.

    Constructed with durability and reliability in mind, the LX-101 sensor features IP67 protection, safeguarding against dust and water ingress. It operates within an ambient temperature range of -10 to +55°C and ambient humidity range of 35 to 85% RH.


    Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

    IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


    Facebook, YouTube,





    Product NumberLX-101
    Part NumberULX101
    CE Marking Directive ComplianceEMC Directive, RoHS Directive
    Sensing Range10 ± 3 mm (0.394 ± 0.118 in)
    Spot Size1 × 5 mm (0.039 × 0.197 in) at 10 mm setting distance
    Supply Voltage12 to 24 V DC ±10%, Ripple P-P 10% or less
    Current ConsumptionNormal mode: ≤750 mW (≤30 mA at 24 V)
    ECO mode: ≤600 mW (≤25 mA at 24 V)
    Output 1 (OUT)NPN open-collector transistor
    - Max sink current: 50 mA
    - Applied voltage: ≤30 V DC
    - Residual voltage: ≤1.5 V (at 50 mA)
    Output 1: Short-Circuit ProtectionIncorporated
    Output 1: Output OperationMark mode: Light-ON / Dark-ON (Auto teaching)
    Color mode: Consistent-ON / Inconsistent-ON (Teaching setting)
    Output 2 (OUT)NPN open-collector transistor
    - Max sink current: 50 mA
    - Applied voltage: ≤30 V DC
    - Residual voltage: ≤1.5 V (at 50 mA)
    Output 2: Short-Circuit ProtectionIncorporated
    Output 2: Output OperationInverted operation of Output 1
    Response TimeMark mode: ≤45 µs
    Color mode: ≤150 µs
    Teaching InputNPN non-contact input
    - High: +5 V to +V or open
    - Low: 0 to +2 V (source current ≤0.5 mA)
    - Input impedance: ~10 kΩ

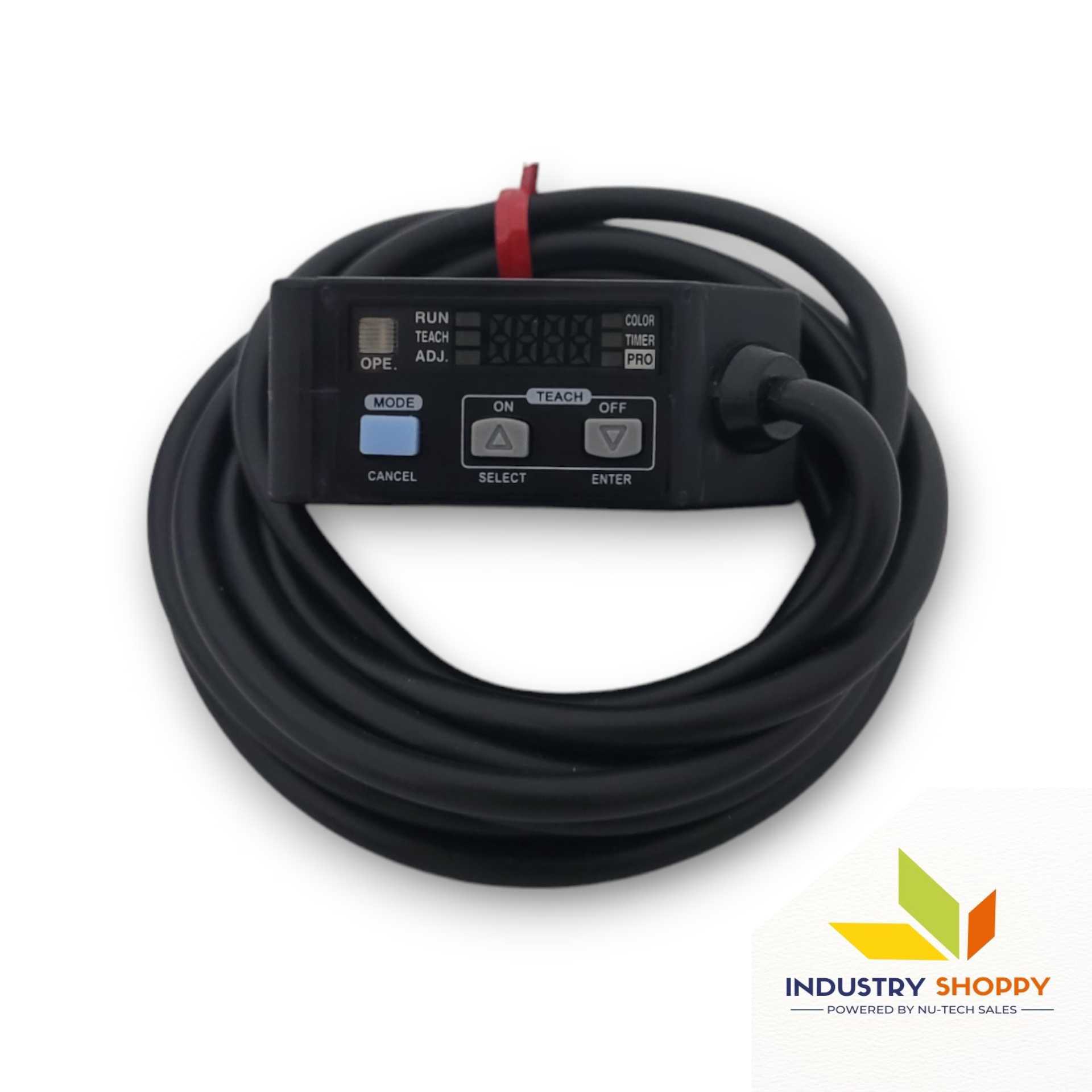

    Digital Display4-digit red LED display
    Sensitivity SettingMark mode: 2-level / Full-auto teaching
    Color mode: 1-level teaching
    Fine Sensitivity Adjustment FunctionIncorporated
    Timer FunctionON-delay / OFF-delay timer, switchable
    Timer period: 1–500 ms, 9 variable levels
    ProtectionIP67 (IEC)
    Ambient TemperatureOperating: -10 to +55 °C (+14 to +131 °F)
    Storage: -20 to +70 °C (-4 to +158 °F)
    Ambient Humidity35 to 85 % RH, Storage: 35 to 85 % RH
    Ambient IlluminanceIncandescent light ≤3,000 lx at the light-receiving face
    Voltage Withstandability1,000 V AC for 1 min between all supply terminals and enclosure
    Vibration Resistance10–500 Hz, 3 mm (0.118 in) double amplitude, max 20 G, X/Y/Z directions, 2 hours each
    Shock Resistance500 m/s² (50 G approx.), X/Y/Z directions, 3 times each
    Emitting ElementCombined Red / Green / Blue LEDs
    Peak wavelengths: 640 nm / 525 nm / 470 nm
    MaterialEnclosure: PBT
    Display cover: Polycarbonate
    Operation buttons: Silicone rubber
    Lens: Glass
    Lens holder: Aluminum
    Cable0.34 mm² 5-core cabtyre cable, 2 m (6.562 ft) long
    Cable ExtensionUp to 100 m (328.084 ft) with ≥0.3 mm² cable

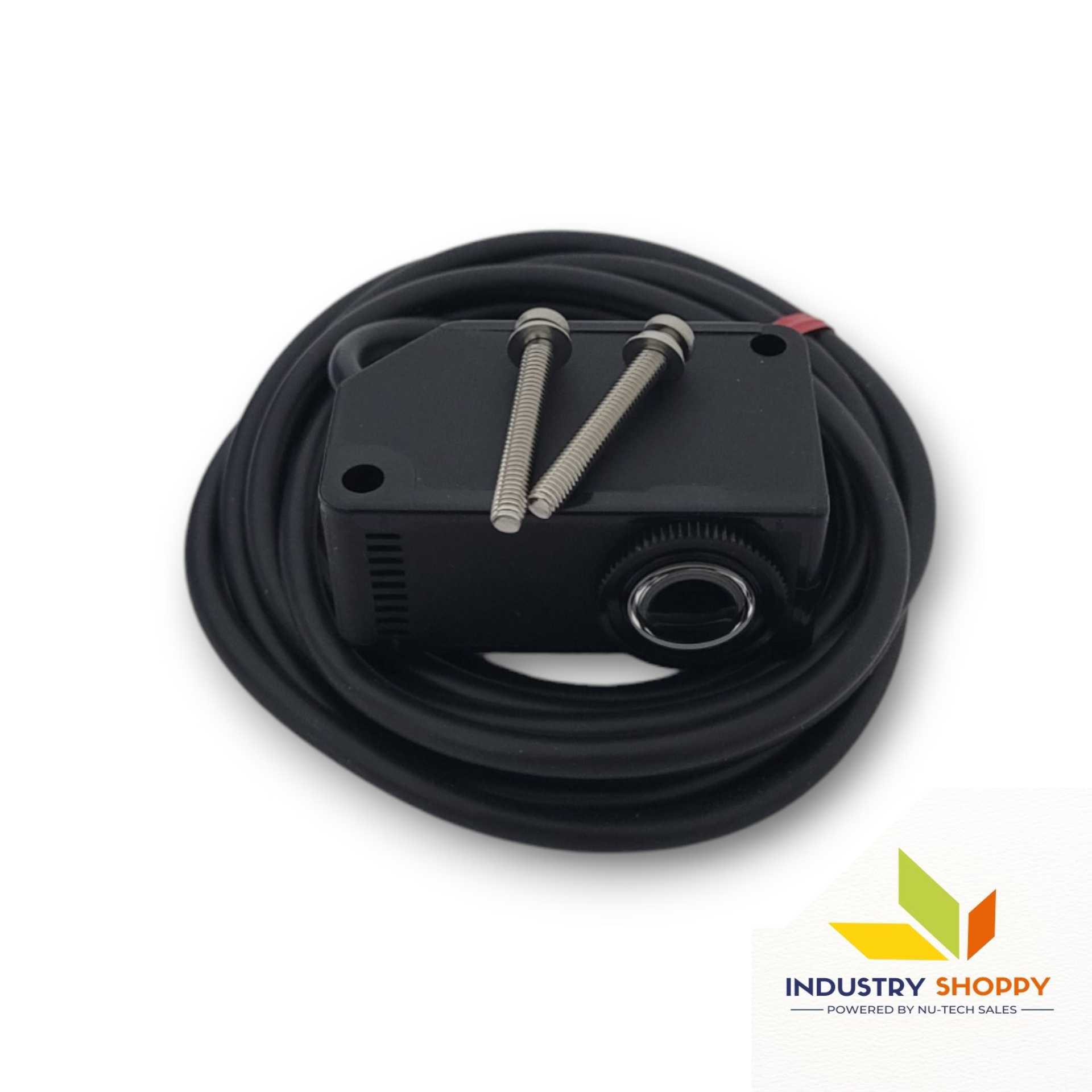

    AccessoryM4 screw with washers, 2 pcs (length 30 mm / 1.181 in)
    Country of OriginChina
