Panasonic HG-C1200-P Micro Laser Distance Sensor

Product SKU: NTSSEN00366
Available:
Only 3 items in stock
3 items in stock
In stock
Pre-order
Out of stock
  • Brand: Panasonic
  • Supply Voltage: 12 to 24 V DC ±10 % Ripple P-P 10 % or less
  • Output: PNP open-collector transistor
  • Connecting method: Cable
  • Warranty: 12 Months

For International Buyers: IndustryShoppy.com

Rs. 23,440.00
Rs. 32,500.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

    Panasonic HG-C1200-P Micro Laser Distance Sensor

    The Panasonic HG-C1200-P Micro Laser Distance Sensor, with Part number UHGC1200P, meets EMC Directive Compliance and FDA standards. It features a measurement center distance of 200 mm (7.874 in) and a measuring range of ±80 mm (3.150 in). The sensor offers repeatability of 200 μm (7.874 mil) and linearity of ±0.2% F.S. The supply voltage ranges from 12 to 24 V DC ±10%, with a current consumption of 40 mA or less at 24V DC and 65 mA or less at 12V DC.
    The control output operation can be set to either Light-ON or Dark-ON. It includes short-circuit protection with an auto-reset feature. The sensor also offers analog voltage output ranging from 0 to 5 V. Additionally; it provides analog current output ranging from 4 to 20 mA. The response time is switchable between 1.5 ms, 5 ms, and 10 ms. Other features include an external PNP non-contact input. It has an IP67 protection rating. The sensor can operate at altitudes up to 2,000 m (6561.680 ft).

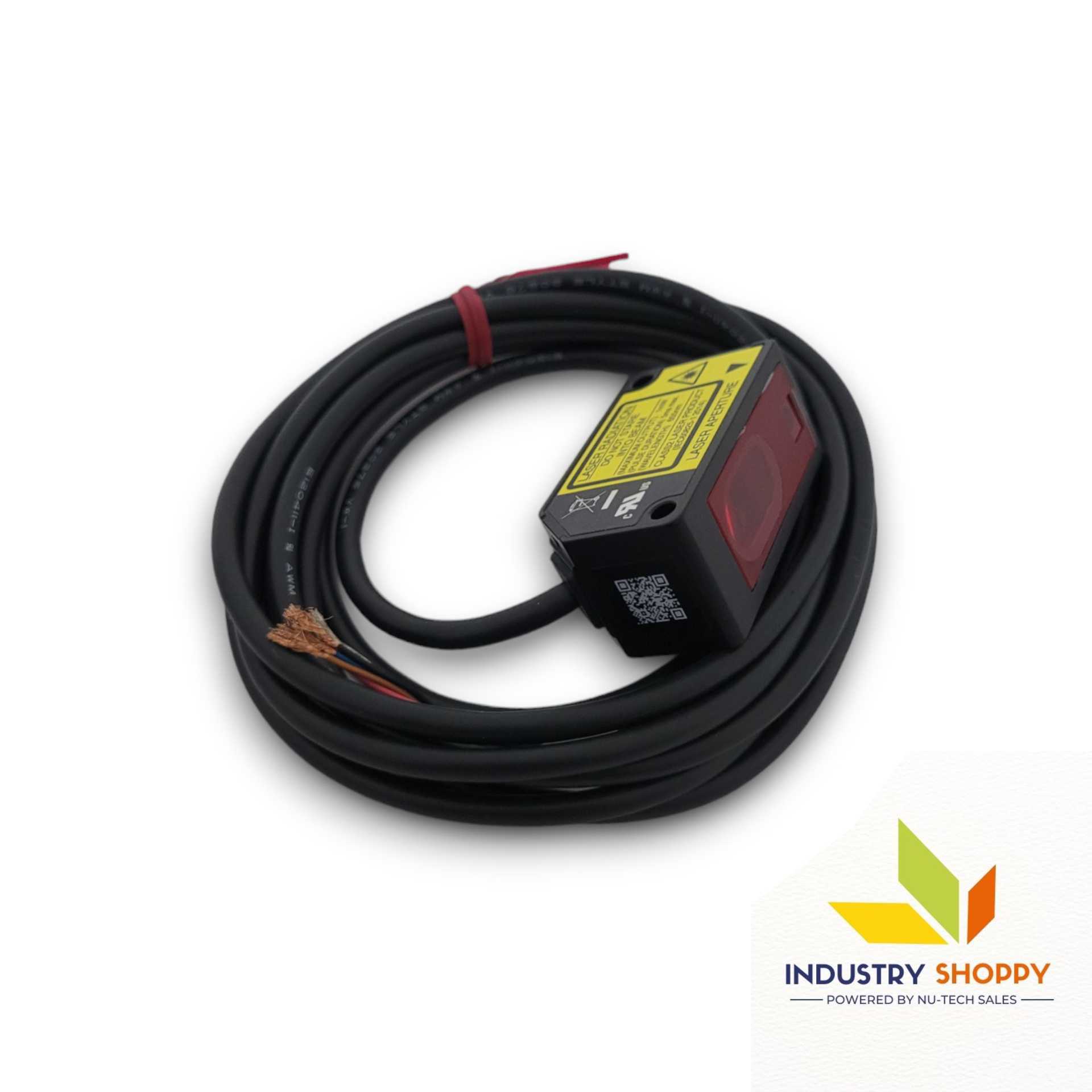

    The Panasonic HG-C1200-P Micro Laser Distance Sensor is housed in an aluminium die-cast enclosure with an acrylic front cover, providing durability and resistance to harsh environments. The net weight of the sensor is approximately 35 g without the cable and 85 g with the cable.

    Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on our site are the property of their respective owners.

    IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!

    Facebook, YouTube,

    BrandPanasonic
    Product NumberHG-C1200-P
    Part NumberUHGC1200P
    Applicable StandardEMC Directive Compliance, FDA Standard
    Measurement Center Distance200 mm (7.874 in)
    Measuring Range±80 mm (3.150 in)
    Repeatability200 μm (7.874 mil)
    Linearity±0.2 % F.S.
    Temperature Characteristics0.03 % F.S./°C
    Light SourceRed semiconductor laser, Class 2 [JIS/IEC/GB/FDA]
    Max. output: 1 mW
    Emission peak wavelength: 655 nm
    Beam DiameterØ300 μm (11.811 mil) at measurement center distance
    Supply Voltage12 to 24 V DC ±10 %, Ripple P-P 10 % or less
    Current Consumption≤40 mA (24 V DC), ≤65 mA (12 V DC)
    Note: Pre-Aug 2016 shipment: ≤60 mA (12 V DC)
    Control OutputPNP open-collector transistor
    Max source current: 50 mA
    Applied voltage: ≤30 V DC
    Leakage current: ≤0.1 mA
    Control Output: OperationLight-ON or Dark-ON
    Control Output: Short-Circuit ProtectionIncorporated (Auto reset type)
    Analog Voltage Output0–5 V (alarm: +5.2 V)
    Output impedance: 100 Ω
    Analog Current Output4–20 mA (alarm: 0 mA)
    Output impedance: ≤300 Ω
    Note: Added from shipment in August 2016
    Response TimeSwitchable: 1.5 ms / 5 ms / 10 ms
    External InputPNP non-contact input
    Invalid: 0 to +0.6 V DC or Open
    Valid: +4 to +V DC
    Input impedance: ~10 kΩ
    Pollution Degree2
    Operating Altitude≤2,000 m (6561.680 ft)
    ProtectionIP67 (IEC)
    Ambient TemperatureOperating: -10 to +45 °C (-14 to 113 °F)
    Storage: -20 to +60 °C (-4 to 140 °F)
    Ambient HumidityOperating & Storage: 35 to 85 % RH
    Ambient IlluminanceIncandescent light: ≤3,000 lx at light-receiving face
    Vibration Resistance10–55 Hz, 1.5 mm double amplitude, X/Y/Z directions, 2 hrs each
    Shock Resistance500 m/s² (≈50 G), X/Y/Z directions, 3 times each
    Cable5-core composite, 2 m (6.562 ft)
    Cable ExtensionUp to 10 m (393.701 ft) with ≥0.3 mm² cable
    MaterialEnclosure: Aluminum die-cast
    Front cover: Acrylic
    Country of OriginChina
