- Panasonic HG-C1030-P Micro Laser Distance Sensor Panasonic HG-C1030-P Micro Laser Distance Sensor










Panasonic HG-C1030-P Micro Laser Distance Sensor
- Brand : Panasonic
- Output : PNP open-collector transistor
- Supply Voltage : 12..24 VDC
- Power Consumption : 40 mA or less (at 24V DC supply voltage)
65 mA or less (at 12V DC supply voltage) - Warranty : 12 Months
For International Buyers : IndustryShoppy.com
- Description
- Specifications
- Shipping & Returns
- Reviews

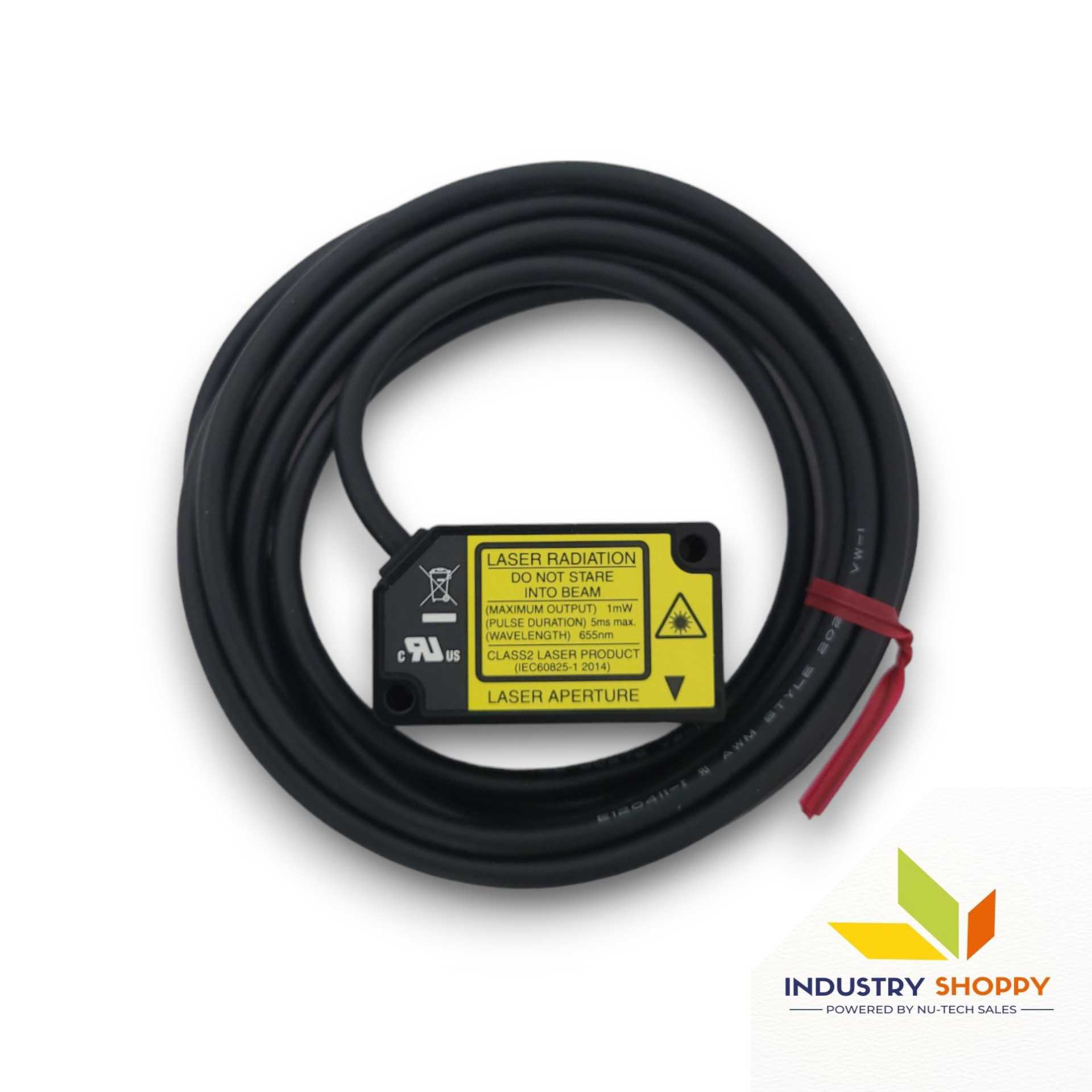

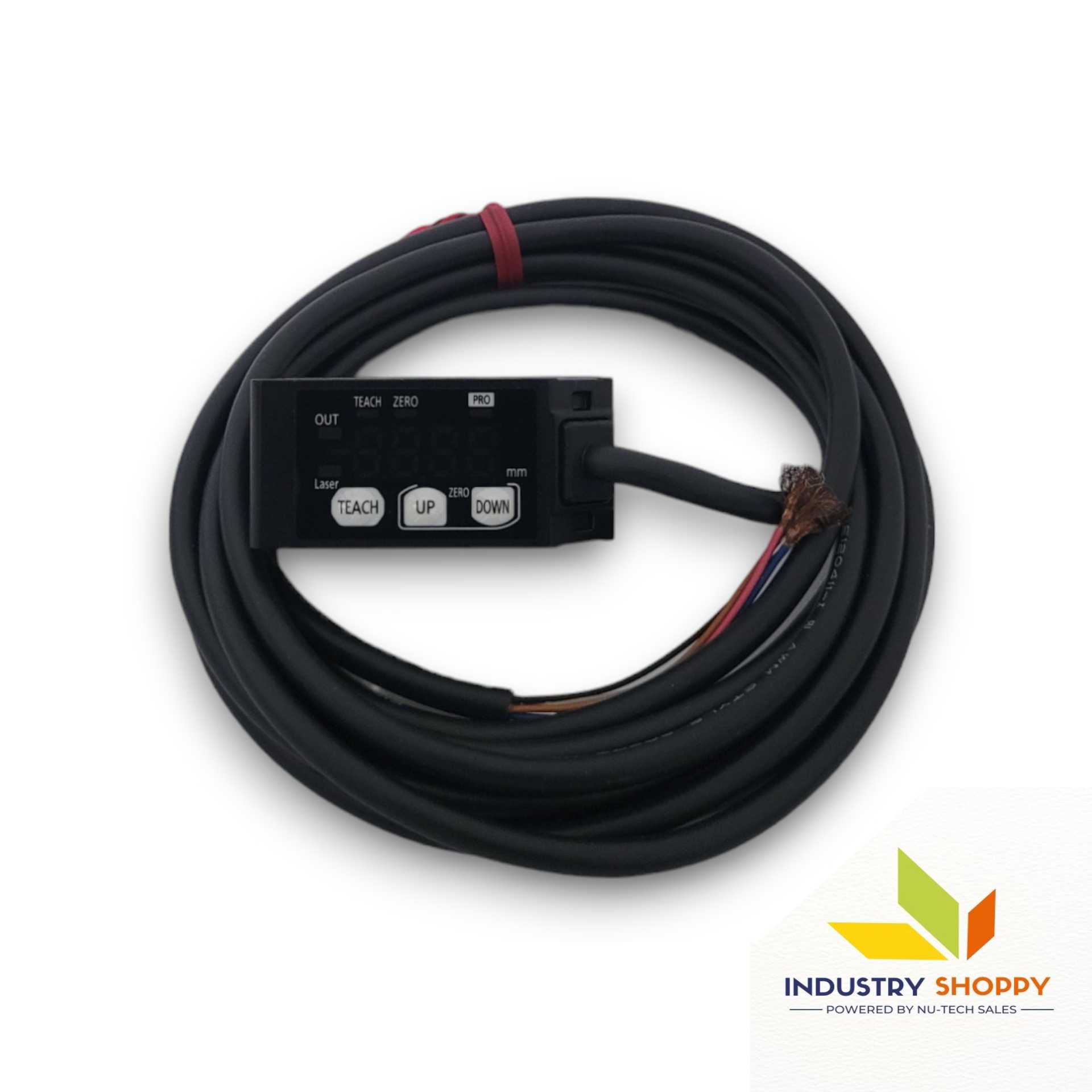

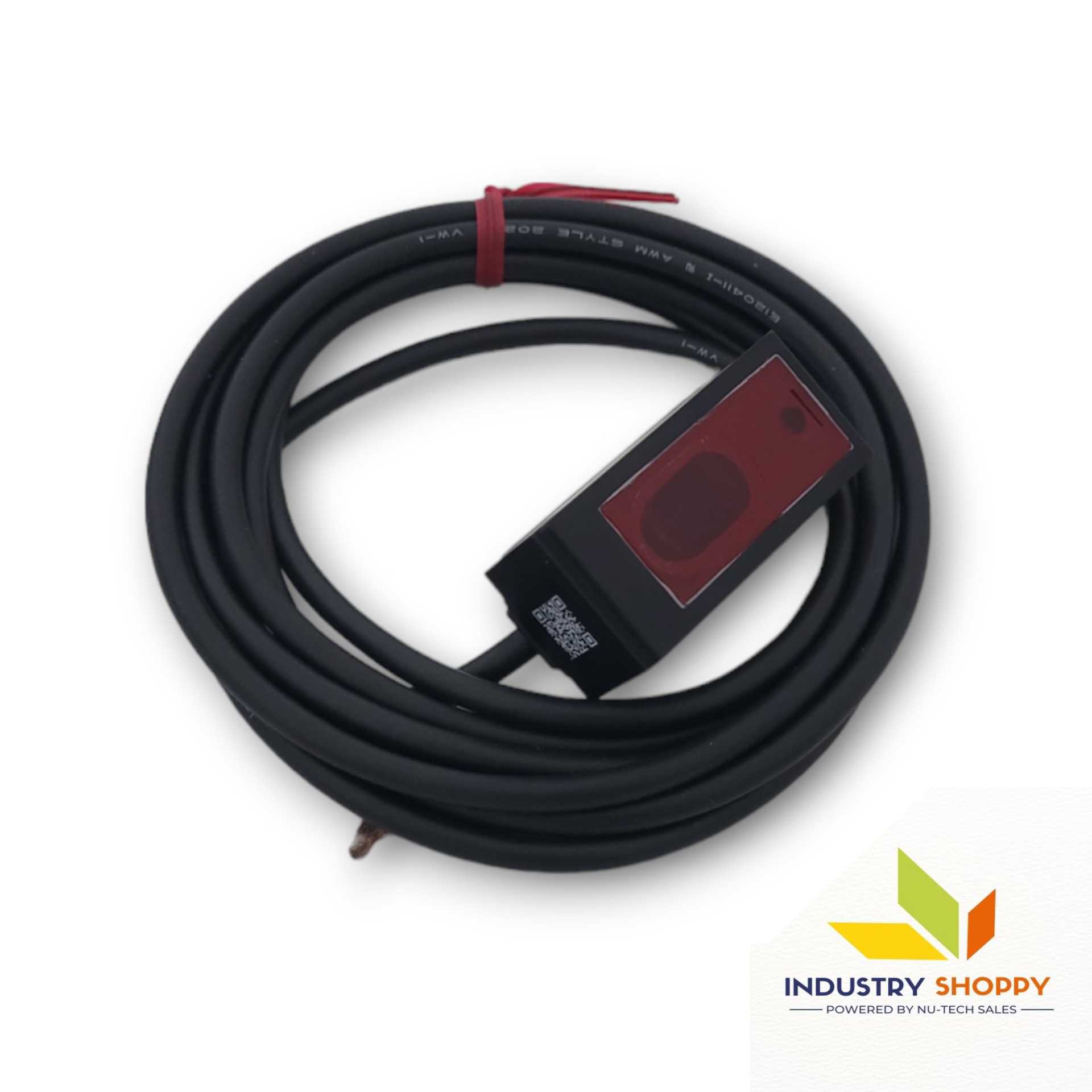

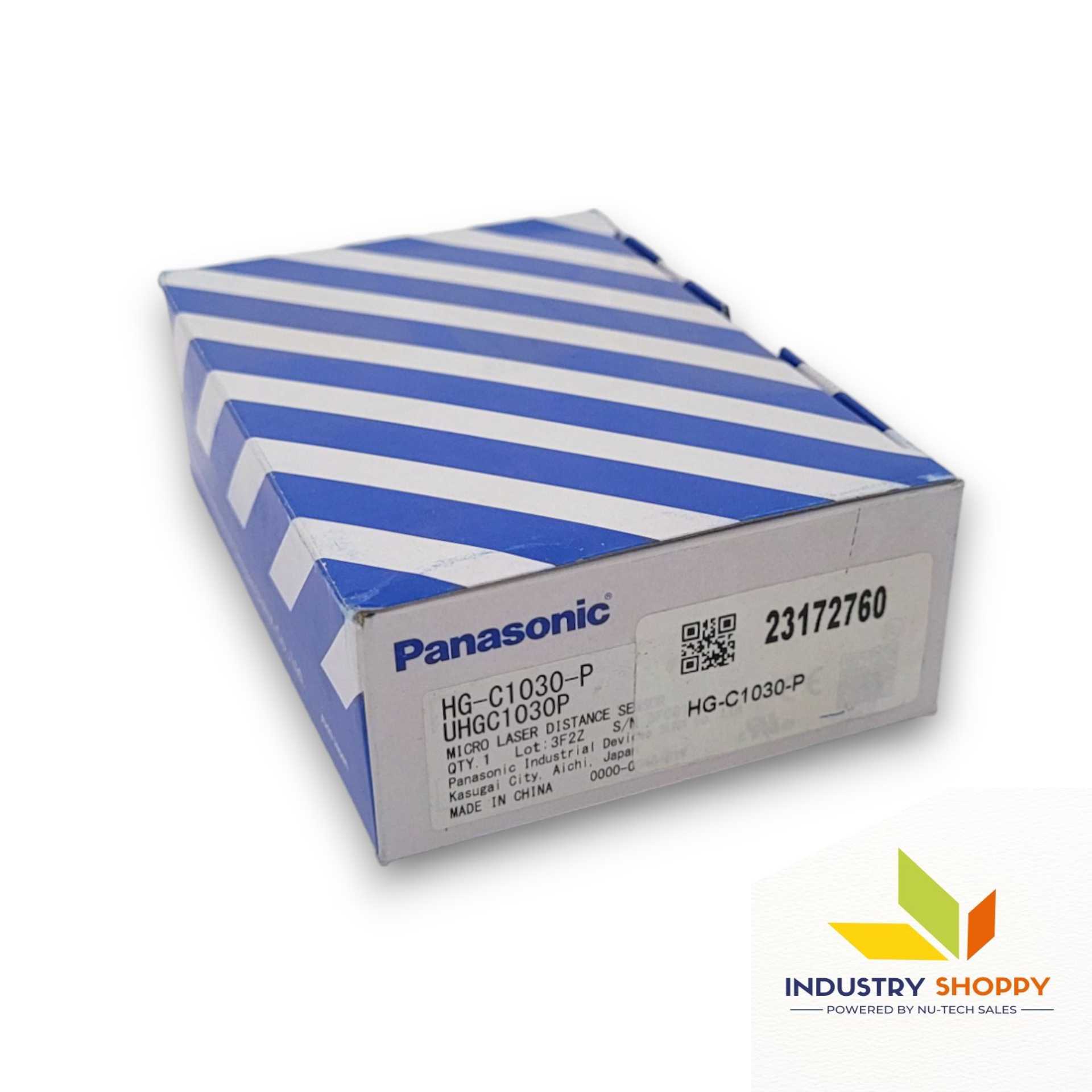

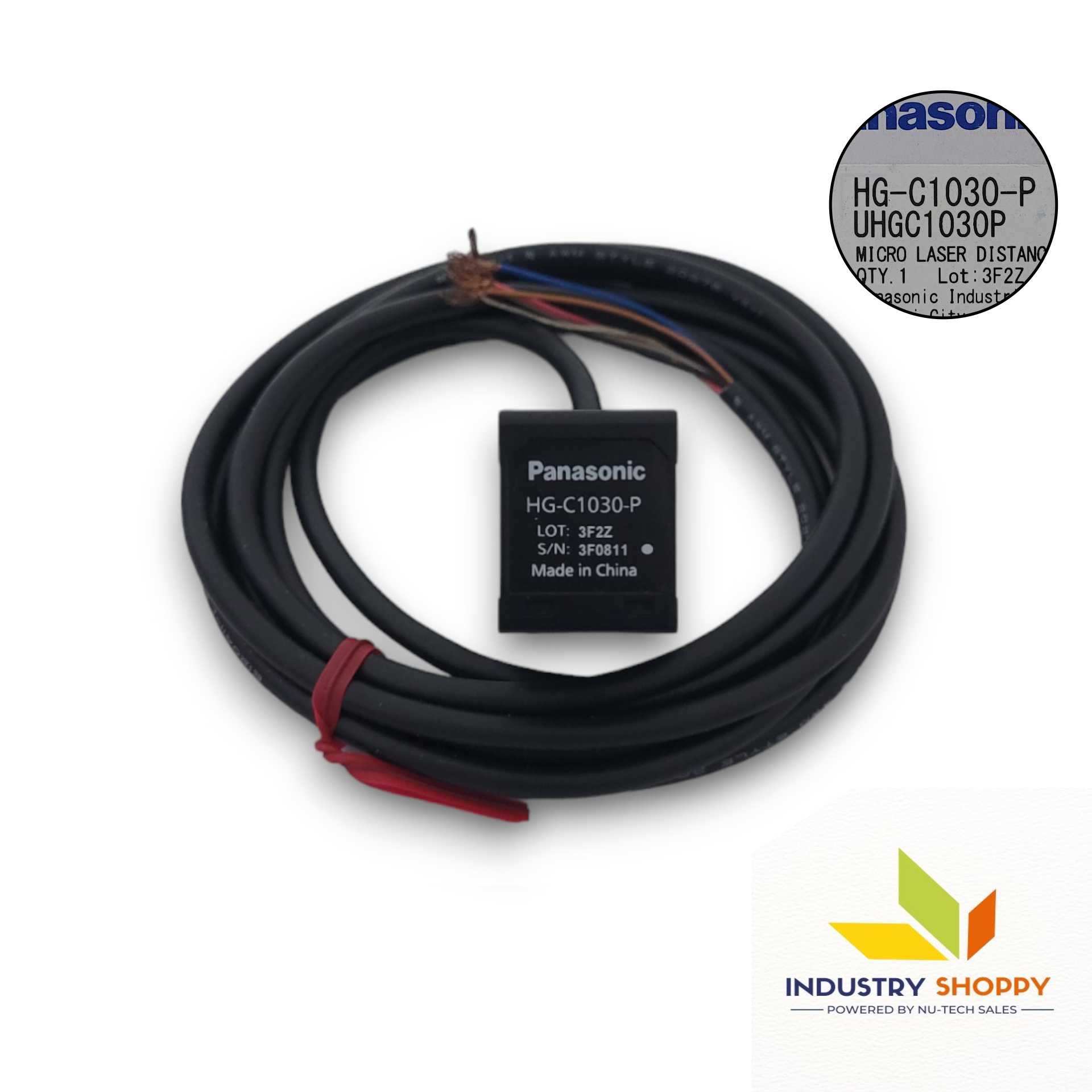

Panasonic HG-C1030-P Micro Laser Distance Sensor
The Panasonic HG-C1030-P Micro Laser Distance Sensor (Part No. UHGC1030P) complies with EMC Directive and FDA standards. It offers a measurement center distance of 30 mm (1.181 in) and a ±5 mm (0.197 in) range. The sensor provides 10 μm (0.394 mil) repeatability and ±0.1% F.S. linearity, with temperature characteristics of 0.03% F.S./°C. It uses a red semiconductor laser, classified as Class 2 (JIS/IEC/GB) and Class II (FDA), with a 655 nm wavelength and a beam diameter of approx. ø50 μm (1.969 mil).
It operates on 12–24V DC, with current consumption of ≤40 mA at 24V and ≤65 mA at 12V. The sensor features a PNP open-collector output with 50 mA max source current, 30V max voltage, and ≤1.5V residual voltage at 50 mA. It supports Light-ON/Dark-ON modes and includes short-circuit protection (auto-reset type). Analog outputs are 0–5 V (100 Ω impedance) and 4–20 mA (≤300 Ω impedance).
With an IP67 rating, it operates in temperatures from -10 to +45 °C (14 to 113 °F) and stores between -20 to +60 °C (-4 to 140 °F). It handles 35–85% RH humidity, 3,000 ℓx incandescent light, and resists vibration (10–55 Hz) and shock (500 m/s²) in all directions. Housed in a die-cast aluminum enclosure with an acrylic front cover, it includes a 5-core composite cable, extendable up to 10 meters.
Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on our site are the property of their respective owners.
IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!
Brand | Panasonic |
Product Number | HG-C1030-P |
Part Number | UHGC1030P |
Applicable Standard | EMC Directive Compliance, FDA Standard |
Measurement Center Distance | 30 mm (1.181 in) |
Measuring Range | ±5 mm (0.197 in) |
Repeatability | 10 μm (0.394 mil) |
Linearity | ±0.1% F.S. |
Temperature Characteristics | 0.03% F.S. /°C |
Light Source | Red semiconductor laser Class 2 (JIS / IEC / GB) / Class II (FDA); Max output: 1 mW; Emission peak wavelength: 655 nm (0.026 mil) |
Beam Diameter | Ø50 μm (1.969 mil) at measurement center distance |
Supply Voltage | 12 to 24 V DC ±10%, Ripple P-P ≤10% |
Current Consumption | ≤40 mA at 24 V DC; ≤65 mA at 12 V DC |
Control Output | PNP open-collector transistor; Max source current: 50 mA; Applied voltage ≤30 V DC; Residual voltage ≤1.5 V; Leakage current ≤0.1 mA |
Control Output: Output Operation | Light-ON or Dark-ON |
Control Output: Short-Circuit Protection | Incorporated (Auto reset type) |
Analogue Output: Voltage | 0 to 5 V (at alarm: +5.2 V); Output impedance: 100 Ω |
Analogue Output: Current | 4 to 20 mA (at alarm: 0 mA); Output impedance ≤300 Ω |
Response Time | Switchable: 1.5 ms / 5 ms / 10 ms |
External Input | PNP non-contact input; Valid: +4 to +V DC; Invalid: 0 to +0.6 V DC or Open; Input impedance ~10 kΩ |
Pollution Degree | 2 |
Operating Altitude | ≤2,000 m (6,561.680 ft) |
Protection | IP67 (IEC) |
Ambient Temperature | Operating: -10 to +45 °C (-14 to +113 °F), no dew/icing; Storage: -20 to +60 °C (-4 to +140 °F) |
Ambient Humidity | 35–85% RH; Storage: 35–85% RH |
Ambient Illuminance | Incandescent light ≤3,000 lx at light-receiving face |
Vibration Resistance | 10–55 Hz, 1.5 mm double amplitude, X/Y/Z, 2 hours each |
Shock Resistance | 500 m/s² (~50 G), X/Y/Z, 3 times each |
Cable | 5-core composite cable, 2 m (6.562 ft) long |
Cable Extension | Up to 10 m (393.701 ft) with ≥0.3 mm² cable |
Material | Enclosure: Aluminum die-cast; Front cover: Acrylic |
Regulatory Compliance | CE (EMC, RoHS), FDA Regulations, UL/c-UL Certification |
Country of Origin | China |
