Panasonic GX-H8A Proximity Sensor

Product SKU: NTSSEN00074
Available:
Only 9 items in stock
9 items in stock
In stock
Pre-order
Out of stock
  • Brand  :  Panasonic
  • Output    : NPN open-collector transistor
  • Supply Voltage :    12..24 VDC
  • Power Consumption :    15 mA or less
  • Warranty : 12 Months
Rs. 1,560.00
Rs. 2,450.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

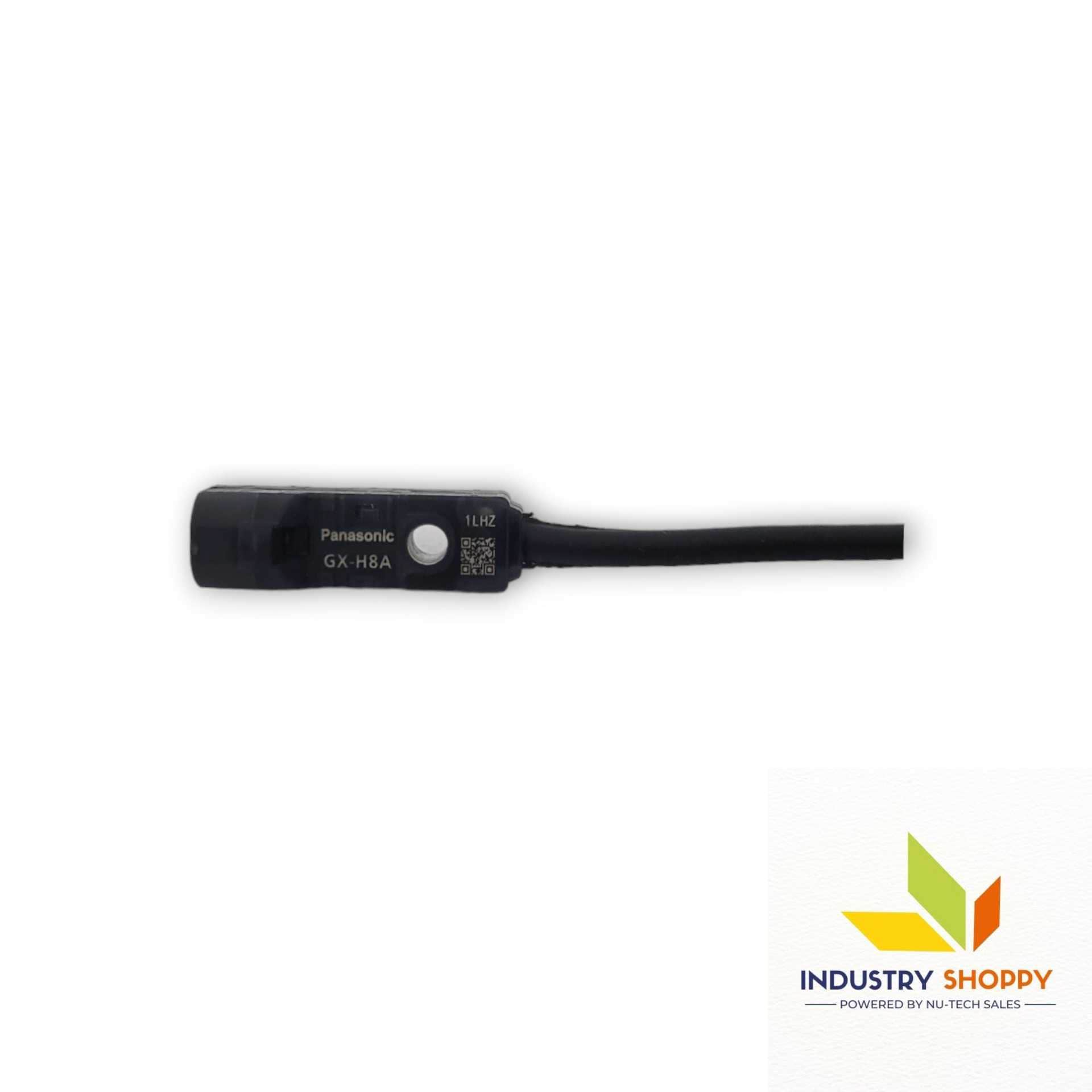

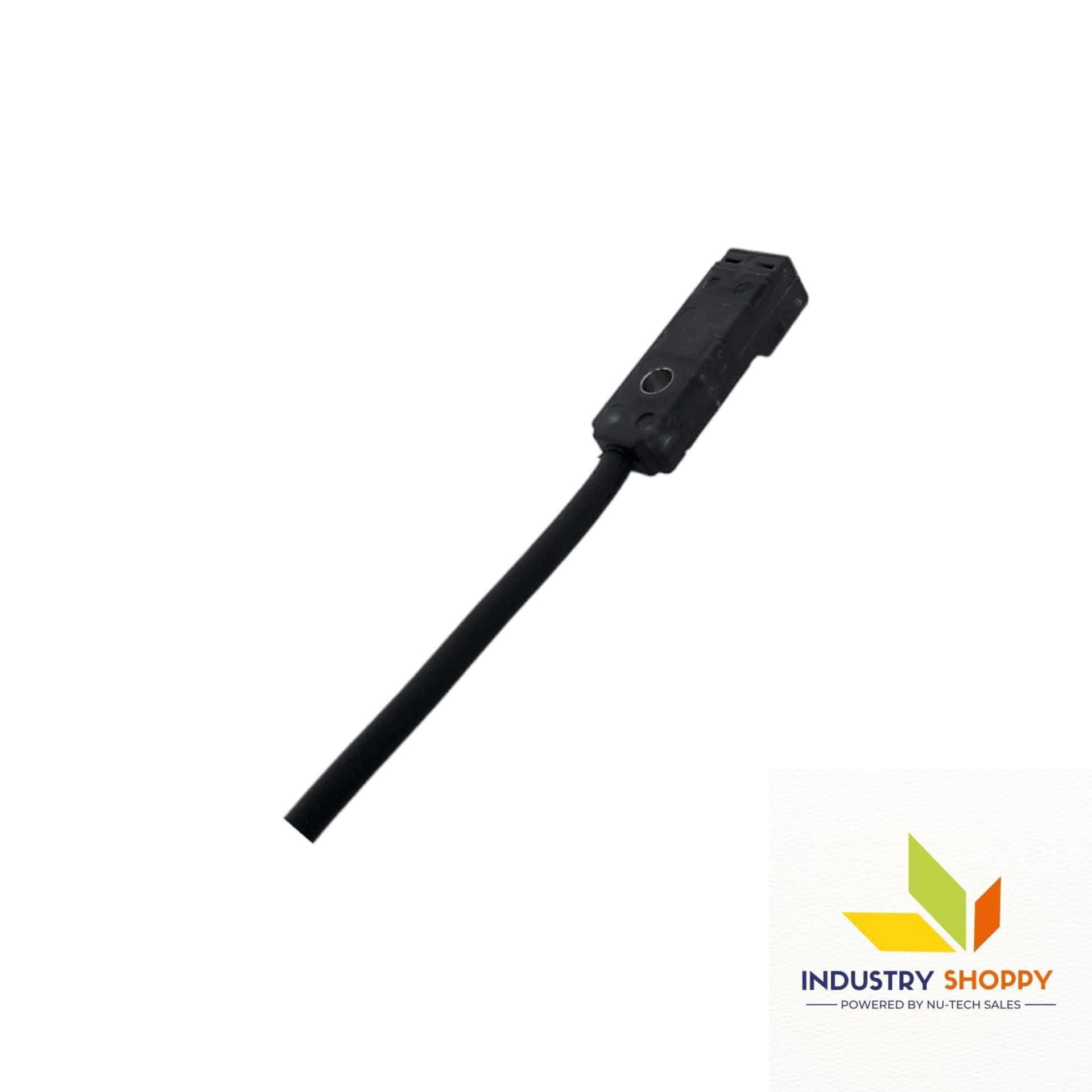

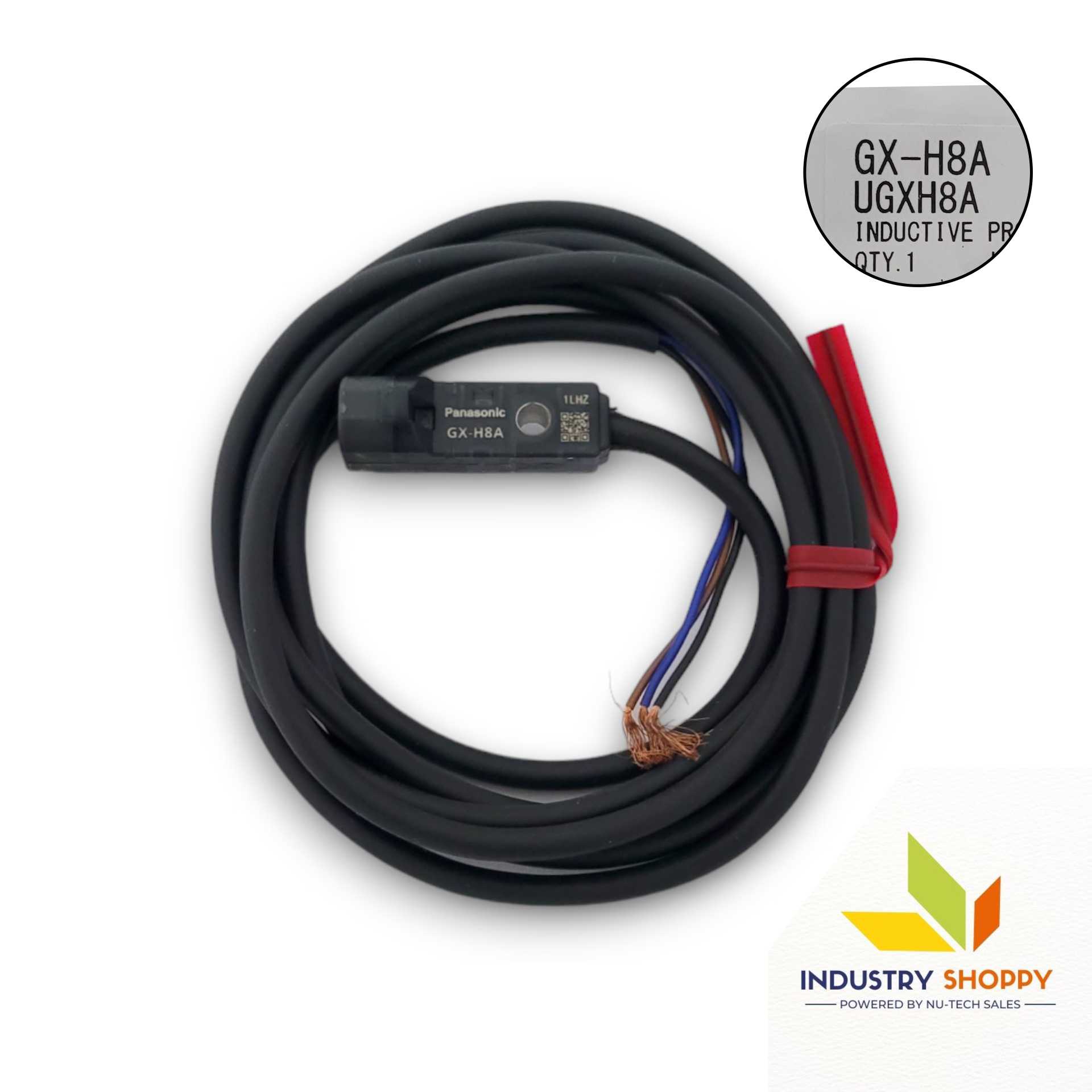

Panasonic GX-H8A Proximity Sensor

The Panasonic GX-H8A Proximity Sensor (Part No. UGXH8A) is a compact, high-precision inductive proximity sensor engineered for metal detection, particularly iron. The Panasonic GX-H8A offers a maximum operation distance of 2.5 mm ±8%. It ensures stable detection up to 2.1 mm, even under temperature drift or voltage fluctuation. It delivers exceptional repeatability (≤0.04 mm) and low hysteresis (≤20%). This makes it ideal for precise positioning tasks in demanding applications.

The sensor has a normally open NPN open-collector output. It supports up to 100 mA sink current and offers a high-speed response of 500 Hz for fast automation tasks. Built with a durable PBT enclosure, the GX-H8A is rated IP68/IP68g. It can withstand water immersion, thermal shock, and cutting oil exposure.

It is highly robust against mechanical stress. The sensor endures vibration up to 20 G and shock up to 1,000 G in all directions. The GX-H8A operates in temperatures from -25 to +70 °C. It comes with a 1 m oil/heat/cold-resistant cable, extendable up to 100 meters. This makes it a rugged, reliable sensor for use in harsh industrial environments.



Our engineers actively inputted all the required details of this item in accordance with the datasheet. It is important to recognize that, despite our efforts, errors may still emerge during this process. Even with our sincere efforts, it remains crucial to exercise caution. All trademarks and trade names used on our site are the property of their respective owners.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our platform is user-friendly, ensuring a seamless shopping experience. We are committed to reliability. Customer satisfaction is our top priority, setting us apart from others. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, YouTube,


Product NumberGX-H8A
Part NumberUGXH8A
Max. Operation Distance2.5 mm (0.098 in) ±8%
Note: Maximum distance for detecting standard sensing object
Stable Sensing Range0 to 2.1 mm (0 to 0.083 in)
Note: Stable detection range under temperature drift or supply voltage fluctuation
Standard Sensing ObjectIron sheet 15 × 15 × t 1 mm (0.591 × 0.591 × t 0.039 in)
Hysteresis20% or less of operation distance (with standard sensing object)
RepeatabilityAlong sensing axis / perpendicular: 0.04 mm (0.002 in) or less
Supply Voltage12 to 24 V DC, +10/-15% Ripple P-P 10% or less
Current Consumption15 mA or less
OutputNPN open-collector transistor
- Maximum sink current: 100 mA
- Applied voltage: ≤30 V DC
- Residual voltage: ≤2 V (at 100 mA)
Output OperationNormally open
Output Utilization CategoryDC-12 or DC-13
Max. Response Frequency500 Hz
Operation IndicatorOrange LED (lights up when the output is ON)
ProtectionIP68 (IEC), IP68g (JEM)
Note: Tested with immersion cycles, heat shock, and 500 hours at 1 m depth; check resistivity if cutting oil is present
Ambient Temperature-25 to +70 °C (-13 to +158 °F), Storage: -40 to +85 °C (-40 to +185 °F)
Ambient Humidity45 to 85% RH, Storage: 35 to 95% RH
Voltage With standability1,000 V AC for 1 min between all supply terminals connected together and enclosure
Insulation Resistance≥50 MΩ with 500 V DC megger between all supply terminals connected together and enclosure
Vibration Resistance10–500 Hz, 3 mm (0.118 in) double amplitude, Max 20 G, X/Y/Z directions, 2 hours each
Shock Resistance10,000 m/s² (1,000 G approx.) in X/Y/Z directions, 3 times each
Sensing Range Variation: Temperature±8% over -25 to +70 °C (-13 to +158 °F) compared to +23 °C (73 °F)
Sensing Range Variation: Voltage±2% for +10/-15% supply voltage fluctuation
MaterialEnclosure: PBT
Indicator part: Polyester

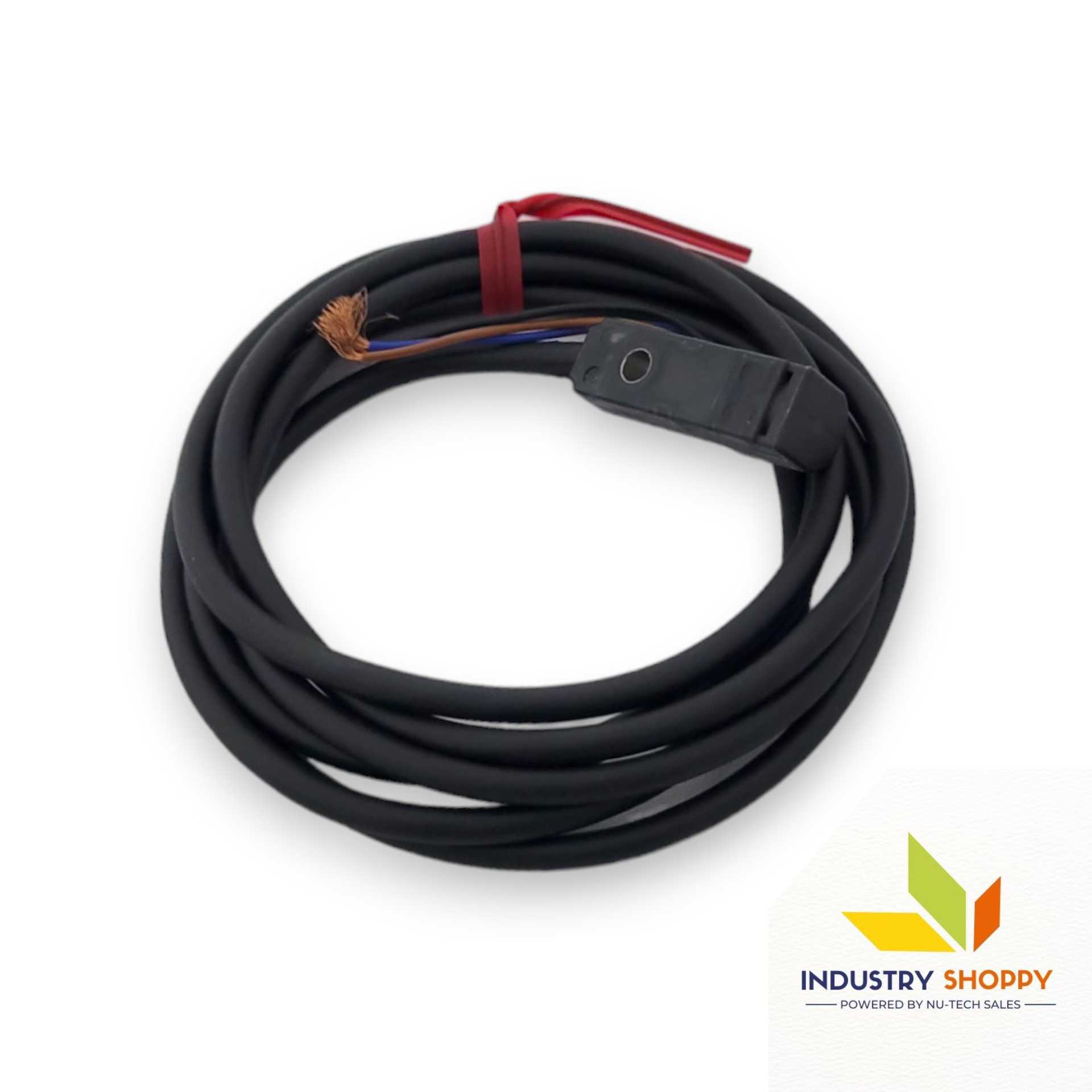

Cable0.15 mm² 3-core oil, heat and cold resistant cabtyre cable, 1 m (3.281 ft) long
Cable ExtensionUp to 100 m (328.084 ft) with ≥0.3 mm² cable
Country of OriginJapan
