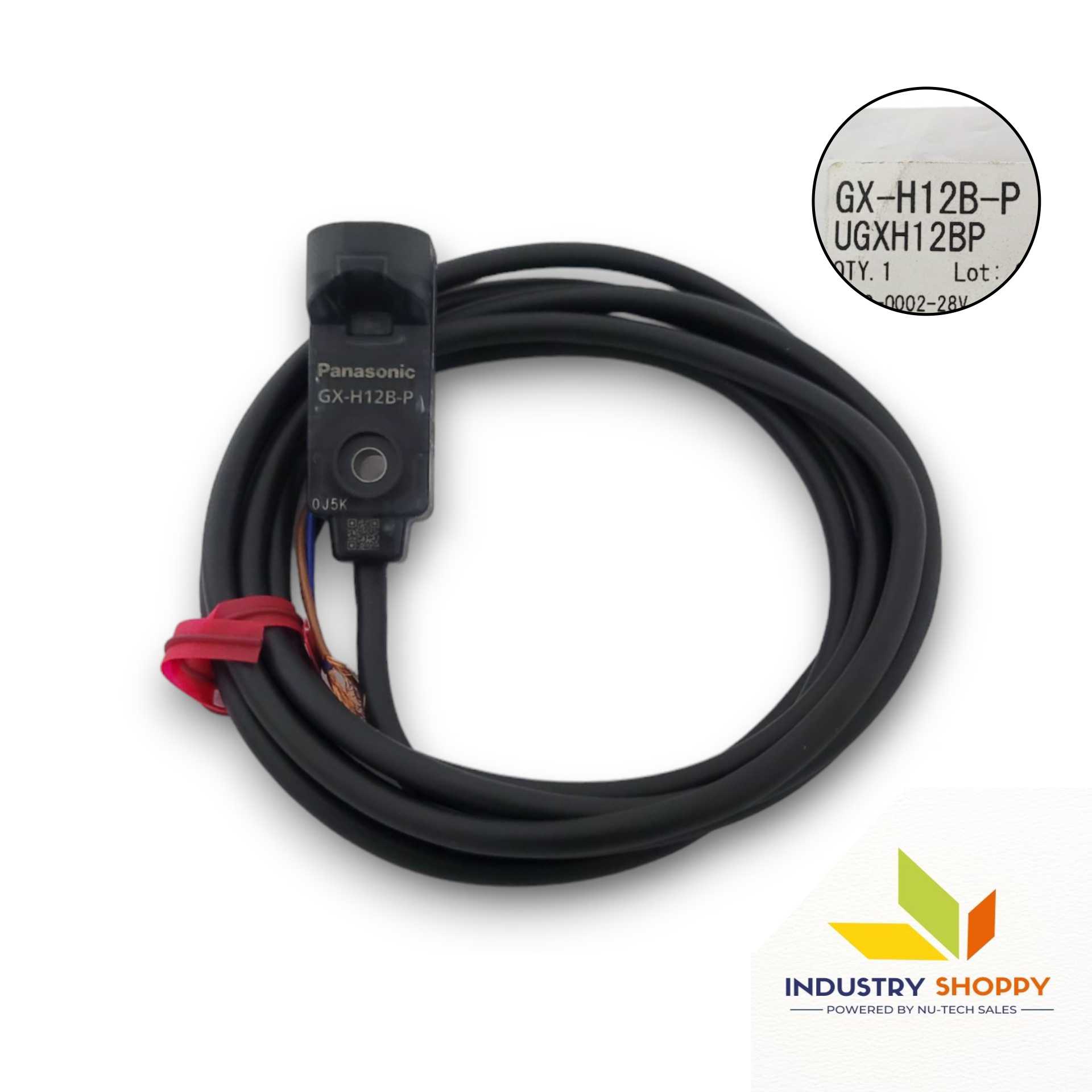

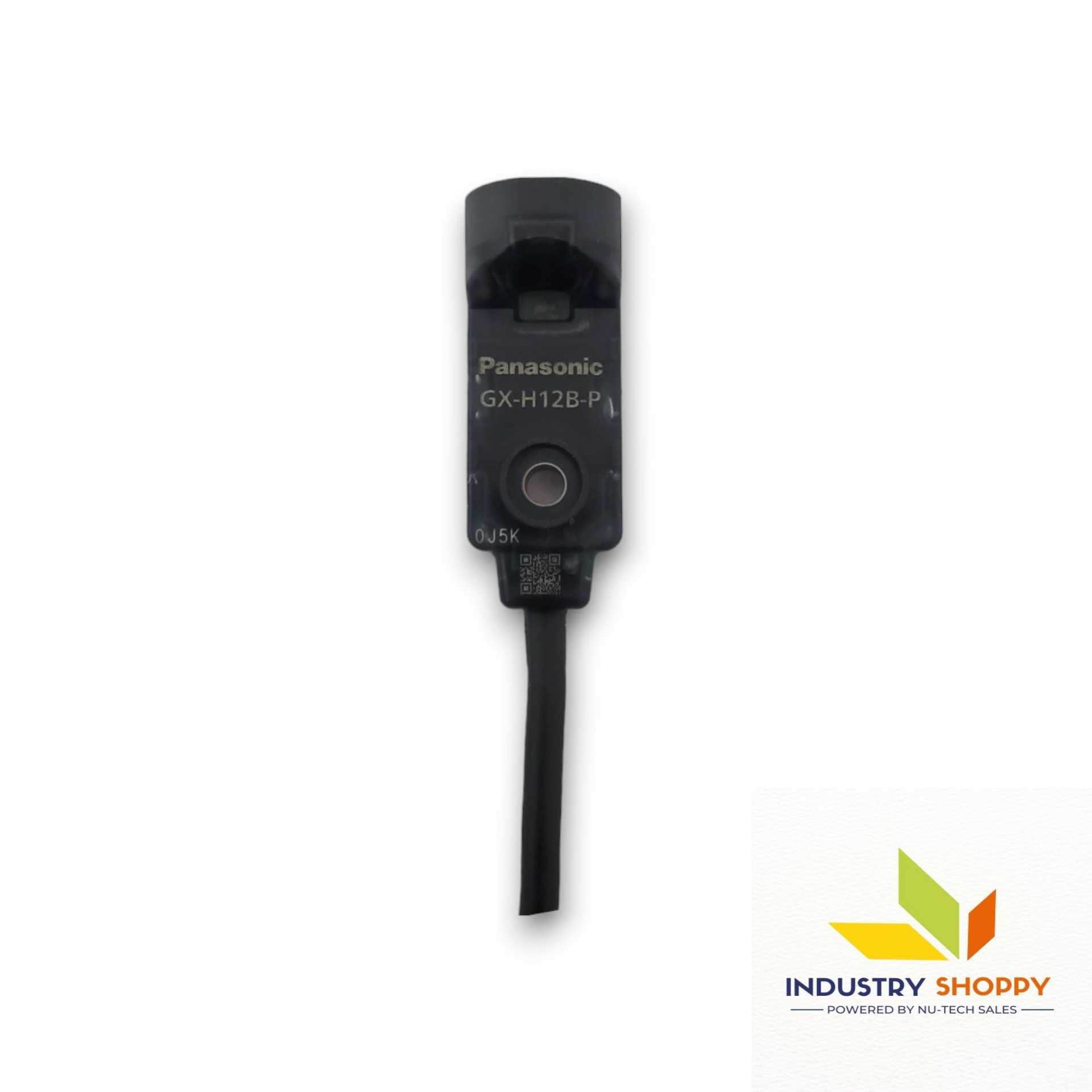

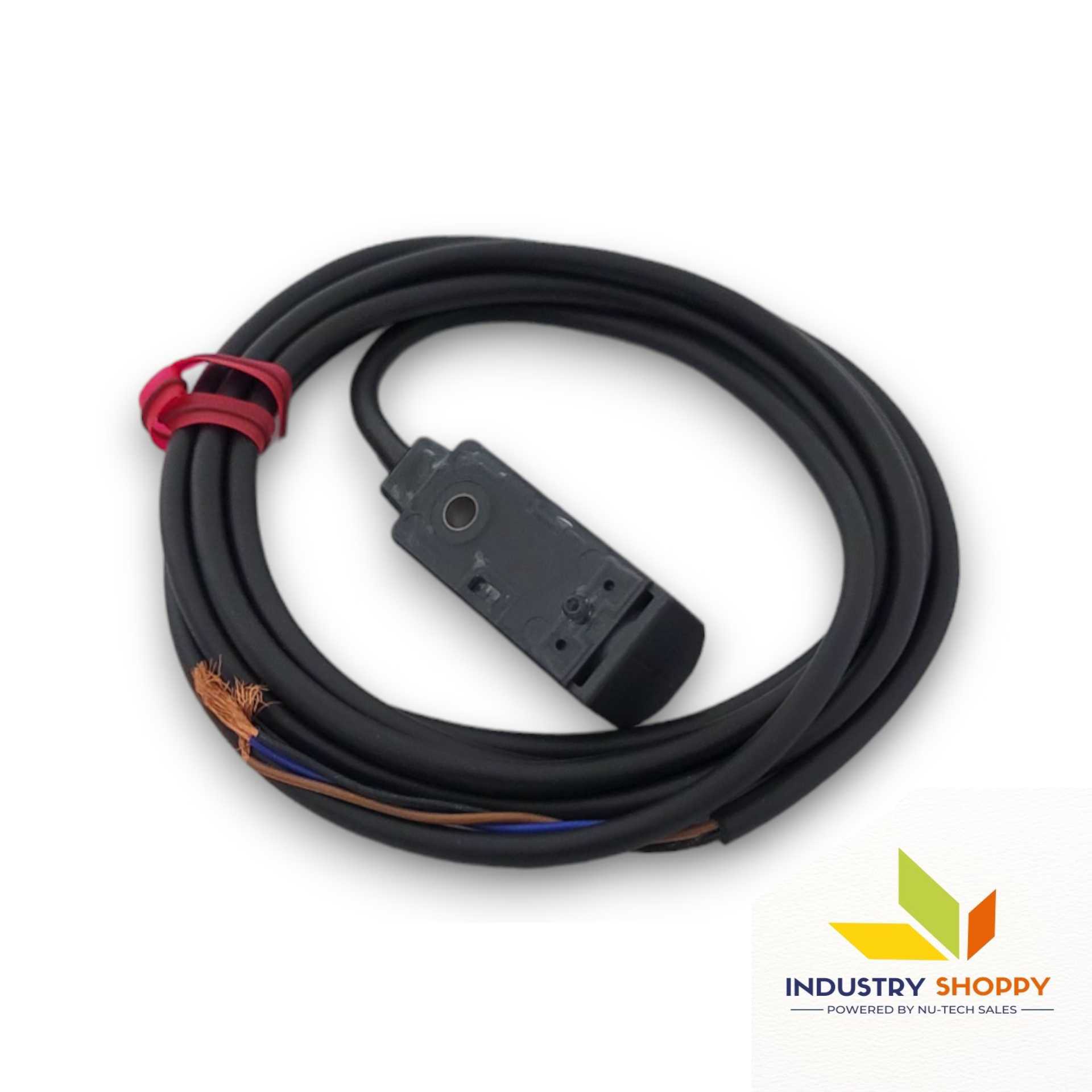

Panasonic GX-H12B-P Inductive Proximity Sensor
Panasonic GX-H12B-P Inductive Proximity Sensor
Panasonic GX-H12B-P Inductive Proximity Sensor
Panasonic GX-H12B-P Inductive Proximity Sensor
Panasonic GX-H12B-P Inductive Proximity Sensor
Panasonic GX-H12B-P Inductive Proximity Sensor
Panasonic GX-H12B-P Inductive Proximity Sensor
Panasonic GX-H12B-P Inductive Proximity Sensor
Panasonic

Panasonic GX-H12B-P Proximity Sensor

Product SKU: NTSSEN00053
Available:
Only 6 items in stock
6 items in stock
In stock
Pre-order
Out of stock
  • Brand  :  Panasonic
  • Output    : PNP open-collector transistor
  • Supply Voltage :    12..24 VDC
  • Power Consumption :    15 mA or less
  • Warranty : 12 Months

For International Buyers : IndustryShoppy.com

Rs. 1,585.00
Rs. 2,000.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

    Panasonic GX-H12B-P Proximity Sensor

    The Panasonic GX-H12B-P Proximity Sensor is a compact, high-precision inductive proximity sensor engineered for robust industrial performance. It features a maximum sensing distance of 4.0 mm with a stable sensing range up to 3.3 mm, delivering reliable metal detection even under temperature fluctuations or voltage variations. Designed for repeatability and accuracy, it offers a repeatability of ≤ 0.04 mm and hysteresis ≤ 20%.

    Operating on a 12–24 V DC supply, the sensor provides a PNP open-collector output, handling up to 100 mA with a response frequency of 500 Hz, ensuring fast and precise switching. Built-in short-circuit and reverse polarity protection enhance system safety.

    Constructed with a durable PBT housing, the GX-H12B-P achieves an IP68/IP68g protection rating, withstanding oil, water immersion, and thermal shock. It endures vibrations up to 20 G and shocks up to 1,000 G, ensuring long-term reliability in demanding applications. The unit includes a 1 m oil-resistant cable, extendable to 100 m for flexible installations. Fully compliant with EMC and RoHS directives, this sensor is ideal for automated systems, machine tools, and precision manufacturing.



    Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

    IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


    Facebook, YouTube,


    Product NumberGX-H12B-P
    Part NumberUGXH12BP
    Max. Operation Distance4.0 mm (0.158 in) ±8%
    Note: Maximum distance for detecting standard sensing object
    Stable Sensing Range0 to 3.3 mm (0 to 0.130 in)
    Note: Stable detection range under temperature drift or supply voltage fluctuation
    Standard Sensing ObjectIron sheet 20 × 20 × t 1 mm (0.787 × 0.787 × t 0.039 in)
    Hysteresis20% or less of operation distance (with standard sensing object)
    RepeatabilityAlong sensing axis / perpendicular: 0.04 mm (0.002 in) or less
    Supply Voltage12 to 24 V DC, +10/-15% Ripple P-P 10% or less
    Current Consumption15 mA or less
    OutputPNP open-collector transistor
    - Maximum sink current: 100 mA
    - Applied voltage: ≤30 V DC
    - Residual voltage: ≤2 V (at 100 mA)
    Output OperationNormally open
    Output Utilization CategoryDC-12 or DC-13
    Max. Response Frequency500 Hz
    Operation IndicatorOrange LED (lights up when the output is ON)
    ProtectionIP68 (IEC), IP68g (JEM)
    Note: Tested with immersion cycles, heat shock, and 500 hours at 1 m depth; check resistivity if cutting oil is present
    Ambient Temperature-25 to +70 °C (-13 to +158 °F), Storage: -40 to +85 °C (-40 to +185 °F)
    Ambient Humidity45 to 85% RH, Storage: 35 to 95% RH
    Voltage Withstandability1,000 V AC for 1 min between all supply terminals connected together and enclosure
    Insulation Resistance≥50 MΩ with 500 V DC megger between all supply terminals connected together and enclosure
    Vibration Resistance10–500 Hz, 3 mm (0.118 in) double amplitude, Max 20 G, X/Y/Z directions, 2 hours each
    Shock Resistance10,000 m/s² (1,000 G approx.) in X/Y/Z directions, 3 times each
    Sensing Range Variation: Temperature±8% over -25 to +70 °C (-13 to +158 °F) compared to +23 °C (73 °F)
    Sensing Range Variation: Voltage±2% for +10/-15% supply voltage fluctuation
    MaterialEnclosure: PBT
    Indicator part: Polyester
    Cable0.15 mm² 3-core oil, heat and cold resistant cabtyre cable, 1 m (3.281 ft) long
    Cable ExtensionUp to 100 m (328.084 ft) with ≥0.3 mm² cable
    CE Marking Directive ComplianceEMC Directive, RoHS Directive
    Country of OriginJapan
