- Panasonic GX-F15B-P Proximity Sensor Panasonic GX-F15B-P Proximity Sensor








Panasonic GX-F15B-P Proximity Sensor
- Brand : Panasonic
- Supply Voltage : 12 to 24 V DC ±10 % Ripple P-P 10 % or less
- Output : PNP open-collector transistor
- Current Consumption : 15 mA or less
- Warranty : 12 Months
For International Buyers : IndustryShoppy.com
- Description
- Specifications
- Shipping & Returns
- Reviews

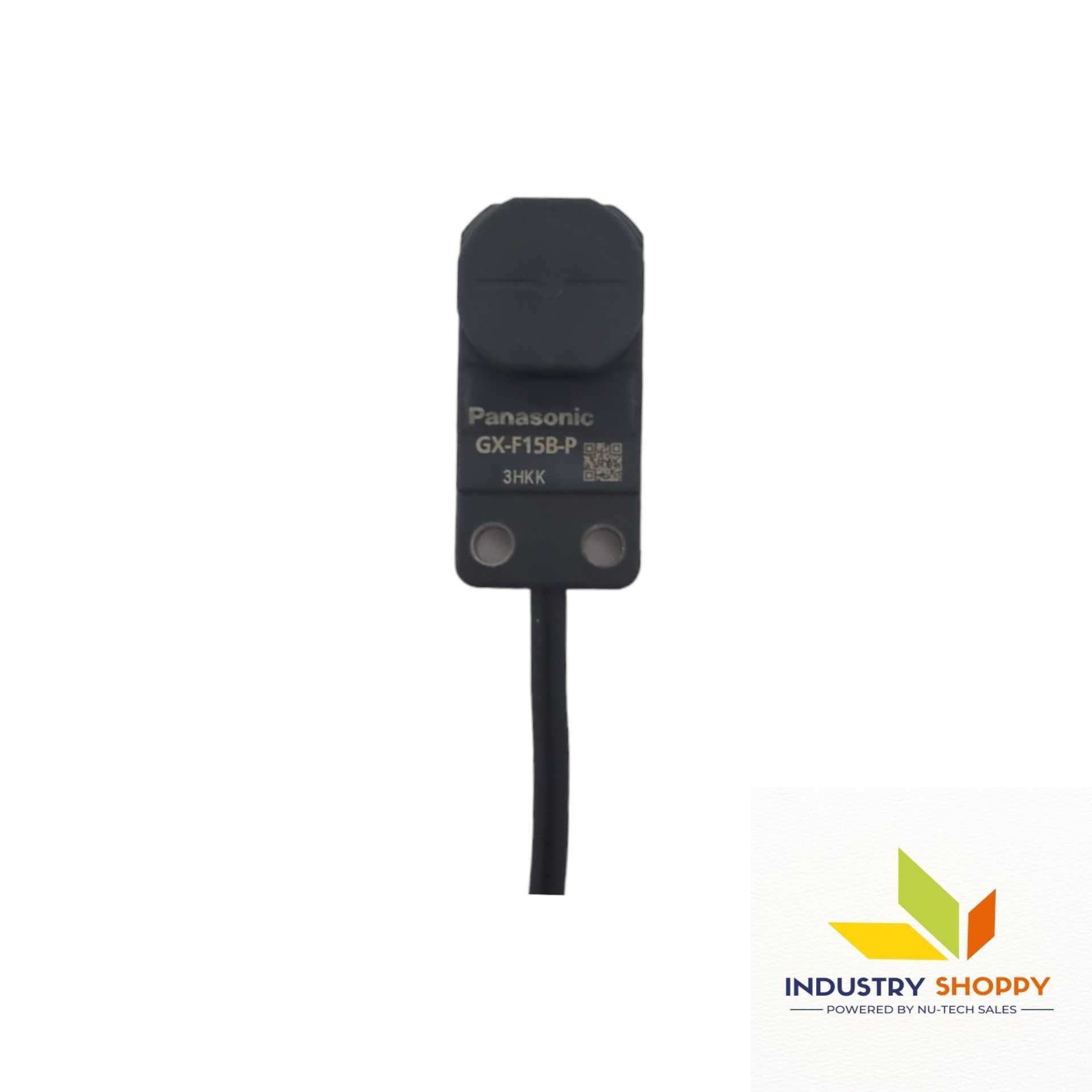

Panasonic GX-F15B-P Proximity Sensor
The Panasonic GX-F15B-P Proximity Sensor, Part Number : UGXF15BP, from Panasonic is designed to withstand the rigors of industrial environments, offering reliable performance in challenging conditions. Featuring a stable sensing range of 0 to 4.2 mm and hysteresis within 20% of the operation distance, it accurately detects standard objects like iron sheets.
Operating on a supply voltage range of 12 to 24 V DC, the sensor ensures energy-efficient performance. This combined with its minimal current consumption, makes it a cost-effective choice for industrial setups. Its PNP open-collector transistor output, boasting a maximum source current of 100 mA, offers versatile connectivity options. This facilitates seamless integration into various automation systems.
Constructed with durable materials and featuring an IP68 protection rating and vibration resistance up to 20 G, the Panasonic GX-F15B-P Proximity Sensor ensures longevity and reliability in demanding industrial applications. Additionally, its compliance with CE Marking, EMC Directive, and RoHS Directive standards reflects its adherence to stringent quality and safety regulations, reassuring users of its performance and durability.
Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on our site are the property of their respective owners.
IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!
Brand | Panasonic |
Product Number | GX-F15B-P |
Part Number | UGXF15BP |
Max. Operation Distance | 5 mm ±8% (maximum distance for detecting the standard sensing object) |
Stable Sensing Range | 0 to 4.2 mm (stable detection even under ambient temperature drift or supply voltage fluctuation) |
Standard Sensing Object | Iron sheet 20 × 20 × t 1 mm |
Hysteresis | ≤20% of operation distance (with standard sensing object) |
Repeatability | Along sensing axis and perpendicular to sensing axis: ≤0.04 mm |
Supply Voltage | 12 to 24 V DC (+10% / -15%), Ripple P-P ≤10% |
Current Consumption | ≤15 mA |
Output | PNP open-collector transistor, Max source current: 100 mA, Applied voltage ≤30 V DC, Residual voltage ≤2 V (at 100 mA source current) |
Output Operation | Normally closed |
Output Utilization Category | DC-12 or DC-13 |
Max. Response Frequency | 250 Hz |
Operation Indicator | Orange LED (lights when output is ON) |
Ambient Temperature | -25 to +70 °C (-13 to +158 °F), Storage: -40 to +85 °C (-40 to +185 °F) |
Protection | IP68 (IEC), IP68g (JEM) |
Test method: heat shock cycles, immersion, 500-hour water test; meets insulation, voltage, current, and sensing standards. May degrade if exposed to cutting oil droplets. | |
Ambient Humidity | 45 to 85 % RH, Storage: 35 to 95 % RH |
Voltage Withstandability | 1,000 V AC for 1 min between all supply terminals connected together and enclosure |
Insulation Resistance | ≥50 MΩ with 500 V DC megger between all supply terminals connected together and enclosure |
Vibration Resistance | 10–500 Hz, 3 mm double amplitude (max 20 G) in X/Y/Z directions, 2 hours each |
Shock Resistance | 10,000 m/s² (≈1,000 G), X/Y/Z directions, 3 times each |
Sensing Range Variation: Temperature | ±8% over -25 to +70 °C (-13 to +158 °F) |
Sensing Range Variation: Voltage | ±2% for ±10/-15% supply voltage fluctuation |
Material | Enclosure: PBT, Indicator part: Polyester |

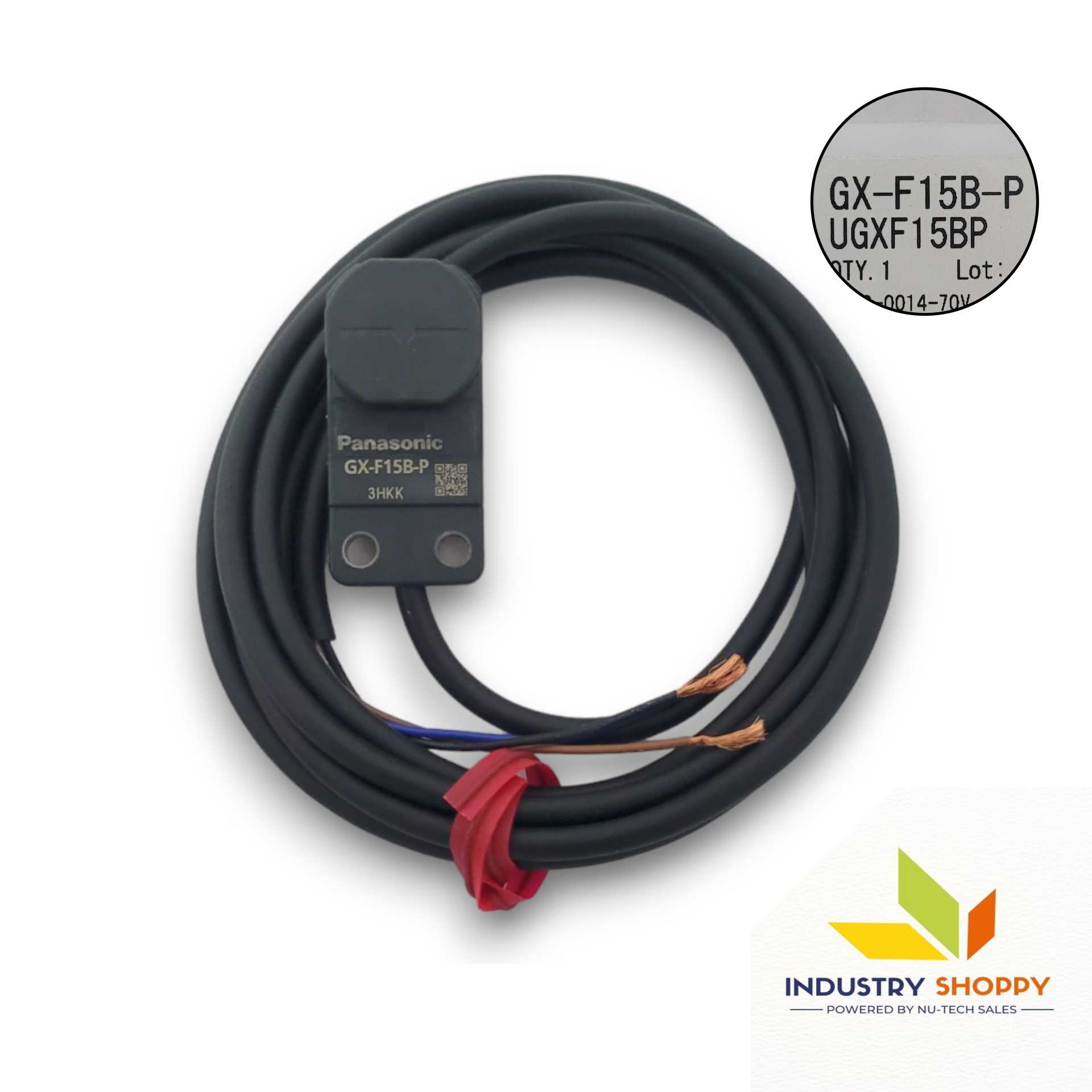

Cable | 0.15 mm² 3-core oil, heat and cold-resistant cabtyre cable, 1 m (3.281 ft) long |
Cable Extension | Up to 100 m (328.084 ft) with ≥0.3 mm² cable |
CE Marking Directive Compliance | EMC Directive, RoHS Directive |
Country of Origin | Japan |
