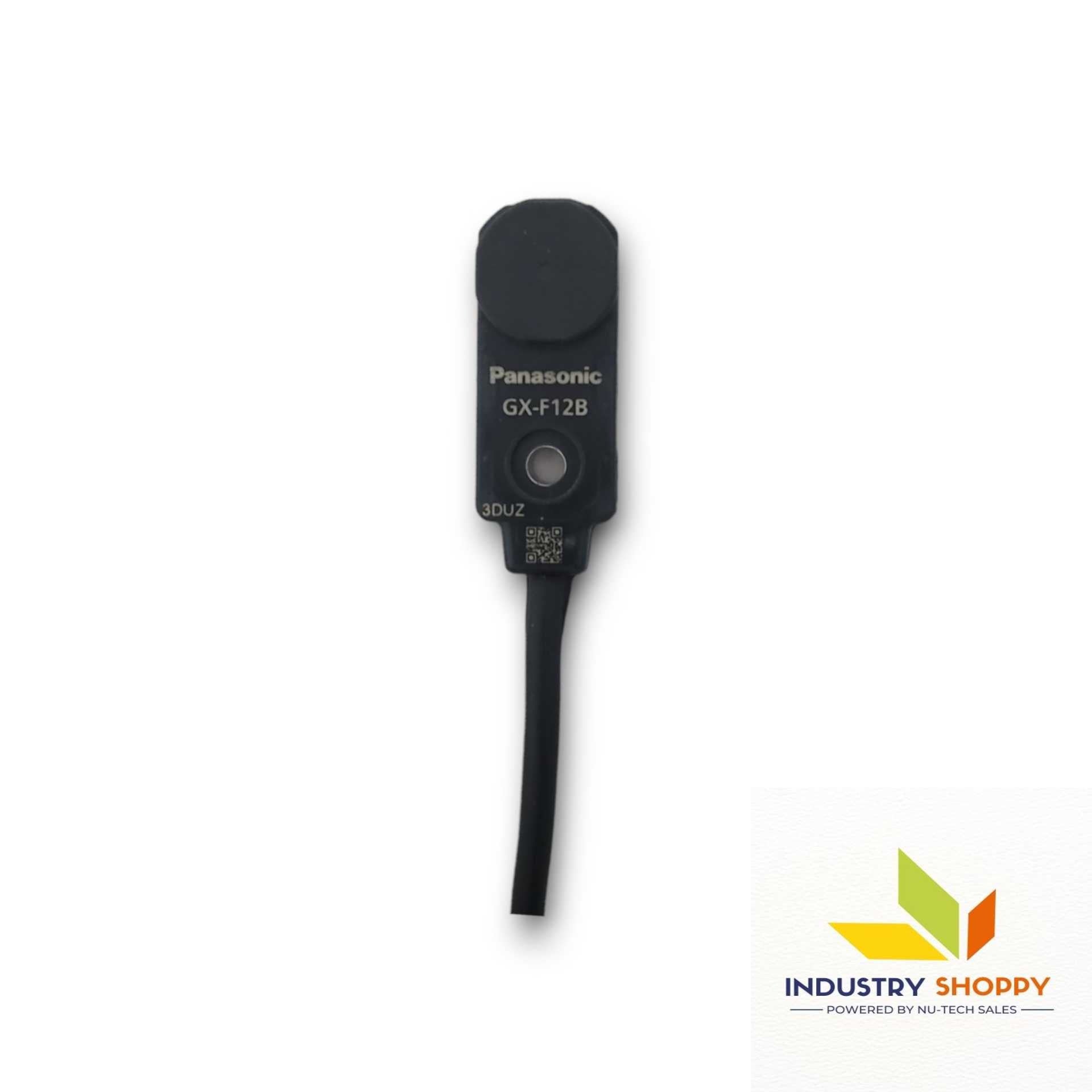

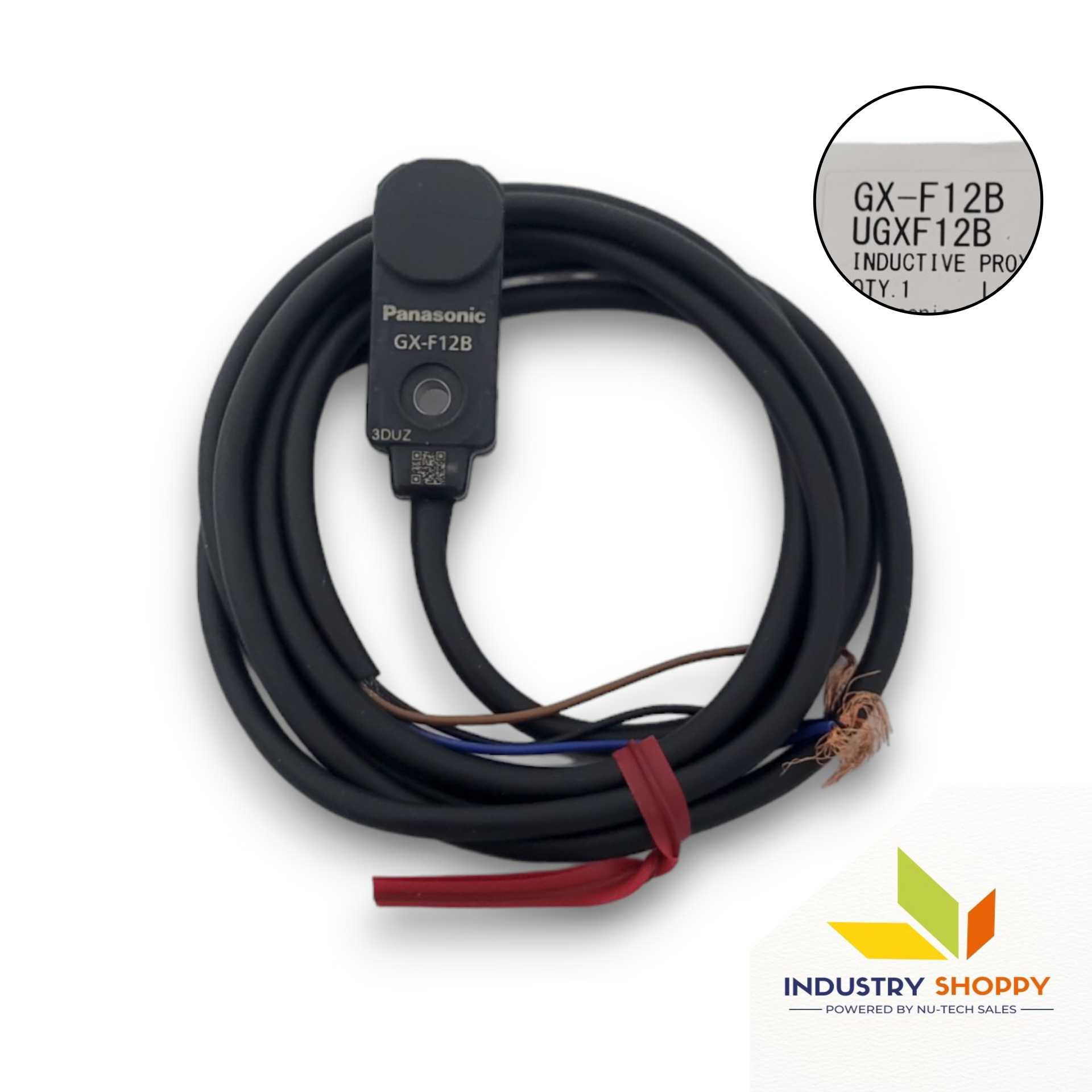

Panasonic GX-F12B Inductive Proximity Sensor
Panasonic GX-F12B Inductive Proximity Sensor
Panasonic GX-F12B Inductive Proximity Sensor
Panasonic GX-F12B Inductive Proximity Sensor
Panasonic GX-F12B Inductive Proximity Sensor
Panasonic GX-F12B Inductive Proximity Sensor
Panasonic GX-F12B Inductive Proximity Sensor
Panasonic GX-F12B Inductive Proximity Sensor
Panasonic

Panasonic GX-F12B Proximity Sensor

Product SKU: NTSSEN00380
Available:
Only 0 item in stock
0 item in stock
In stock
Pre-order
Out of stock
  • Brand : Panasonic
  • Supply Voltage : 12 to 24 V DC ±10 % Ripple P-P 10 % or less
  • Output : NPN open-collector transistor
  • Current Consumption : 15 mA or less
  • Warranty : 12 Months

For International Buyers : IndustryShoppy.com

Rs. 1,310.00
Rs. 2,250.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

    Panasonic GX-F12B Proximity Sensor

    The Panasonic GX-F12B Proximity Sensors, part number UGF12B, offers a maximum operation distance of 4.0 mm ± 8%, with a stable sensing range of 0 to 3.3 mm. It detects standard sensing objects like iron sheets measuring 20 × 20 × 1 mm. With hysteresis at 20% or less of the operation distance and a repeatability of 0.04 mm or less along and perpendicular to the sensing axis, this sensor ensures precise and reliable detection.

    Operating on a supply voltage of 12 to 24 V DC, the GX-F12BB has a current consumption of 15 mA or less. It features an NPN open-collector transistor output. This output supports a maximum sink current of 100 mA and an applied voltage of 30 V DC or less. It has a residual voltage of 2 V or less at 100 mA sink current. The sensor has a normally closed output operation and a response frequency of up to 500 Hz. An orange LED lights up when the output is ON.

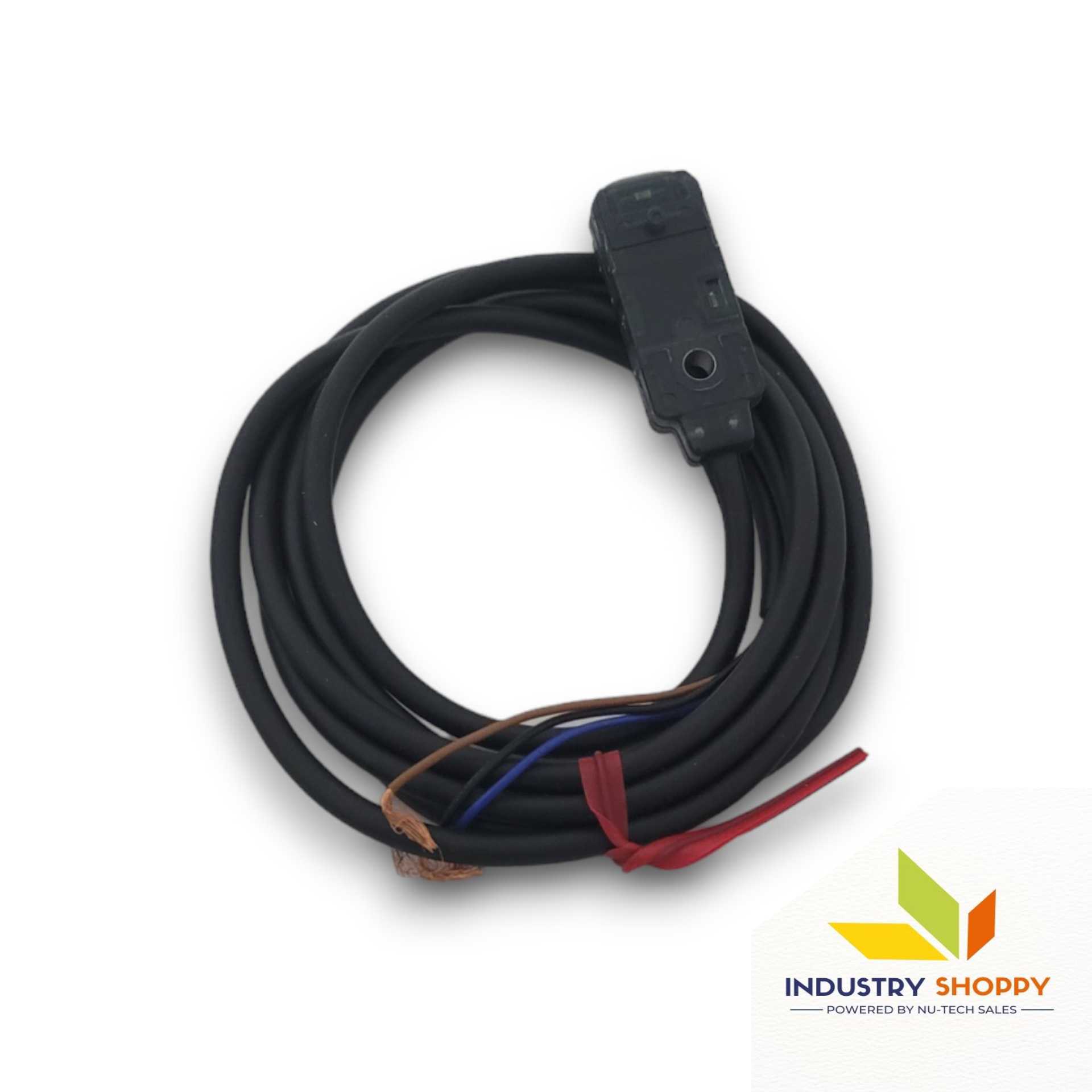

    The Panasonic GX-F12B Inductive Proximity Sensor is built to withstand harsh industrial environments with an IP68 protection rating. The sensor  also offers vibration resistance of 10 to 500 Hz frequency and 3 mm double amplitude in X, Y, and Z directions.  It can endure shock resistance up to 10,000 m/s².  It features a PBT enclosure and a 1 m oil, heat, and cold-resistant cabtyre cable, extendable up to 100 m. The sensor complies with EMC and RoHS directives and is manufactured in China.

    Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on our site  are the property of their respective owners.

    IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


    Facebook, YouTube,


    BrandPanasonic
    Product NumberGX-F12B
    Part NumberUGXF12B
    Max. Operation Distance4.0 mm ±8% (maximum distance for detecting the standard sensing object)
    Stable Sensing Range0 to 3.3 mm (stable detection even under ambient temperature drift or supply voltage fluctuation)
    Standard Sensing ObjectIron sheet 20 × 20 × t 1 mm
    Hysteresis≤20% of operation distance (with standard sensing object)
    RepeatabilityAlong sensing axis and perpendicular to sensing axis: ≤0.04 mm
    Supply Voltage12 to 24 V DC (+10% / -15%), Ripple P-P ≤10%
    Current Consumption≤15 mA
    OutputNPN open-collector transistor, Max sink current: 100 mA, Applied voltage ≤30 V DC, Residual voltage ≤2 V (at 100 mA sink current)
    Output OperationNormally closed
    Output Utilization CategoryDC-12 or DC-13
    Max. Response Frequency500 Hz
    Operation IndicatorOrange LED (lights when output is ON)
    Ambient Temperature-25 to +70 °C (-13 to +158 °F), Storage: -40 to +85 °C (-40 to +185 °F)
    ProtectionIP68 (IEC), IP68g (JEM)
    Test method: heat shock cycles, immersion, 500-hour water test; meets insulation, voltage, current, and sensing standards. May degrade if exposed to cutting oil droplets.
    Ambient Humidity45 to 85 % RH, Storage: 35 to 95 % RH
    Voltage Withstandability1,000 V AC for 1 min between all supply terminals connected together and enclosure
    Insulation Resistance≥50 MΩ with 500 V DC megger between all supply terminals connected together and enclosure
    Vibration Resistance10–500 Hz, 3 mm double amplitude (max 20 G) in X/Y/Z directions, 2 hours each
    Shock Resistance10,000 m/s² (≈1,000 G), X/Y/Z directions, 3 times each
    Sensing Range Variation: Temperature±8% over -25 to +70 °C (-13 to +158 °F) relative to +23 °C (+73 °F)
    Sensing Range Variation: Voltage±2% for ±10/-15% supply voltage fluctuation
    MaterialEnclosure: PBT, Indicator part: Polyester
    Cable0.15 mm² 3-core oil, heat, and cold-resistant cabtyre cable, 1 m (3.281 ft) long
    Cable ExtensionUp to 100 m (328.084 ft) with ≥0.3 mm² cable
    CE Marking Directive ComplianceEMC Directive, RoHS Directive
    Country of OriginChina
