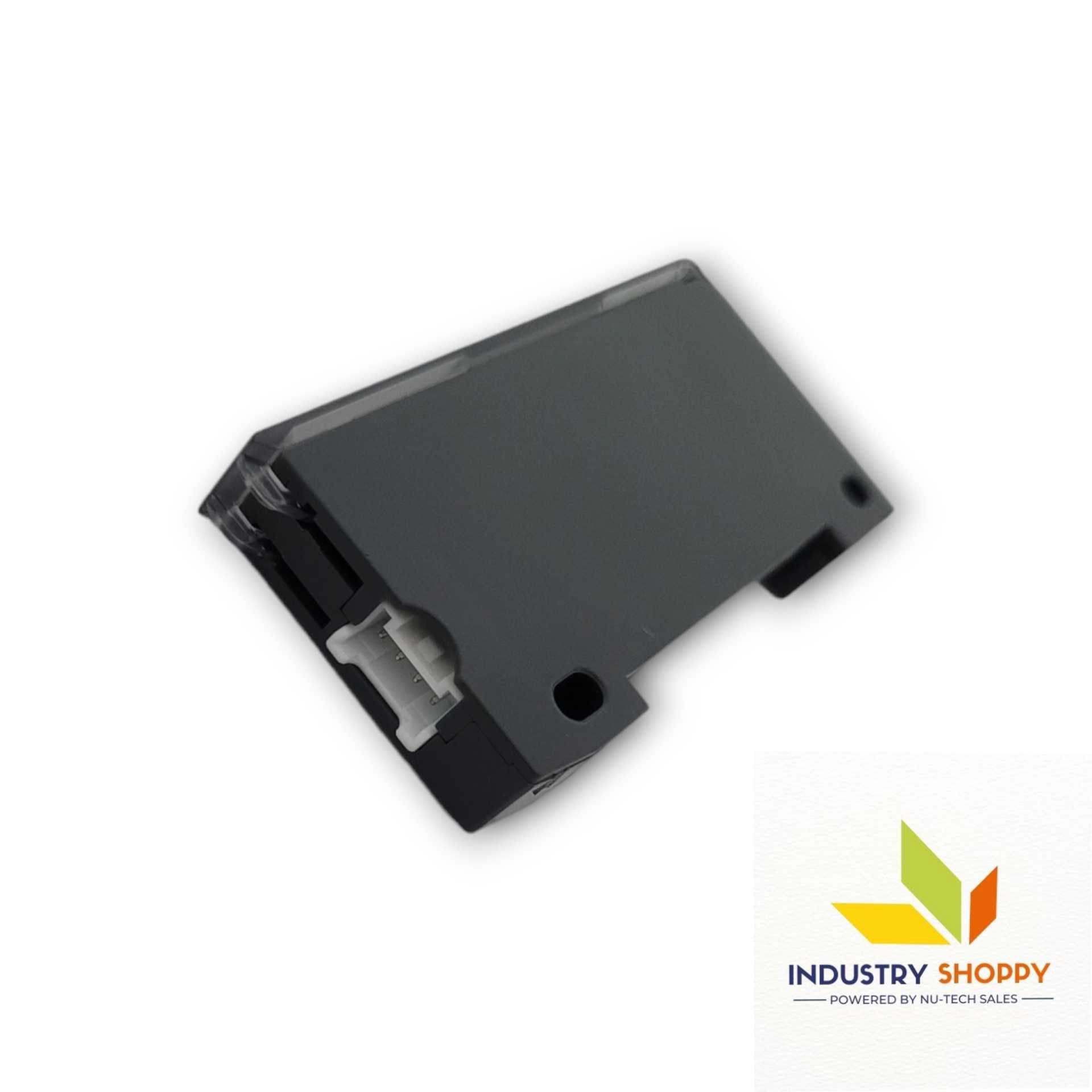

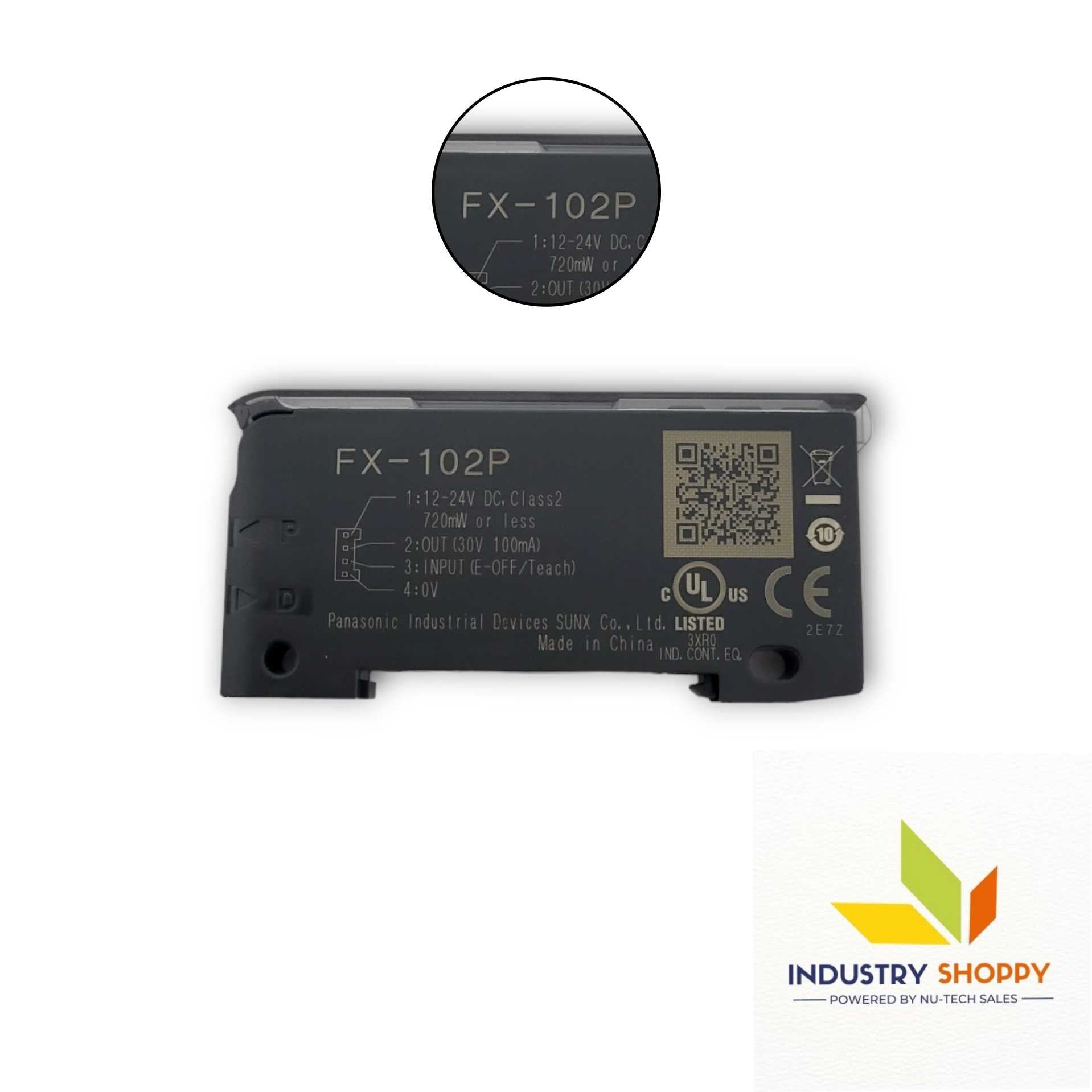

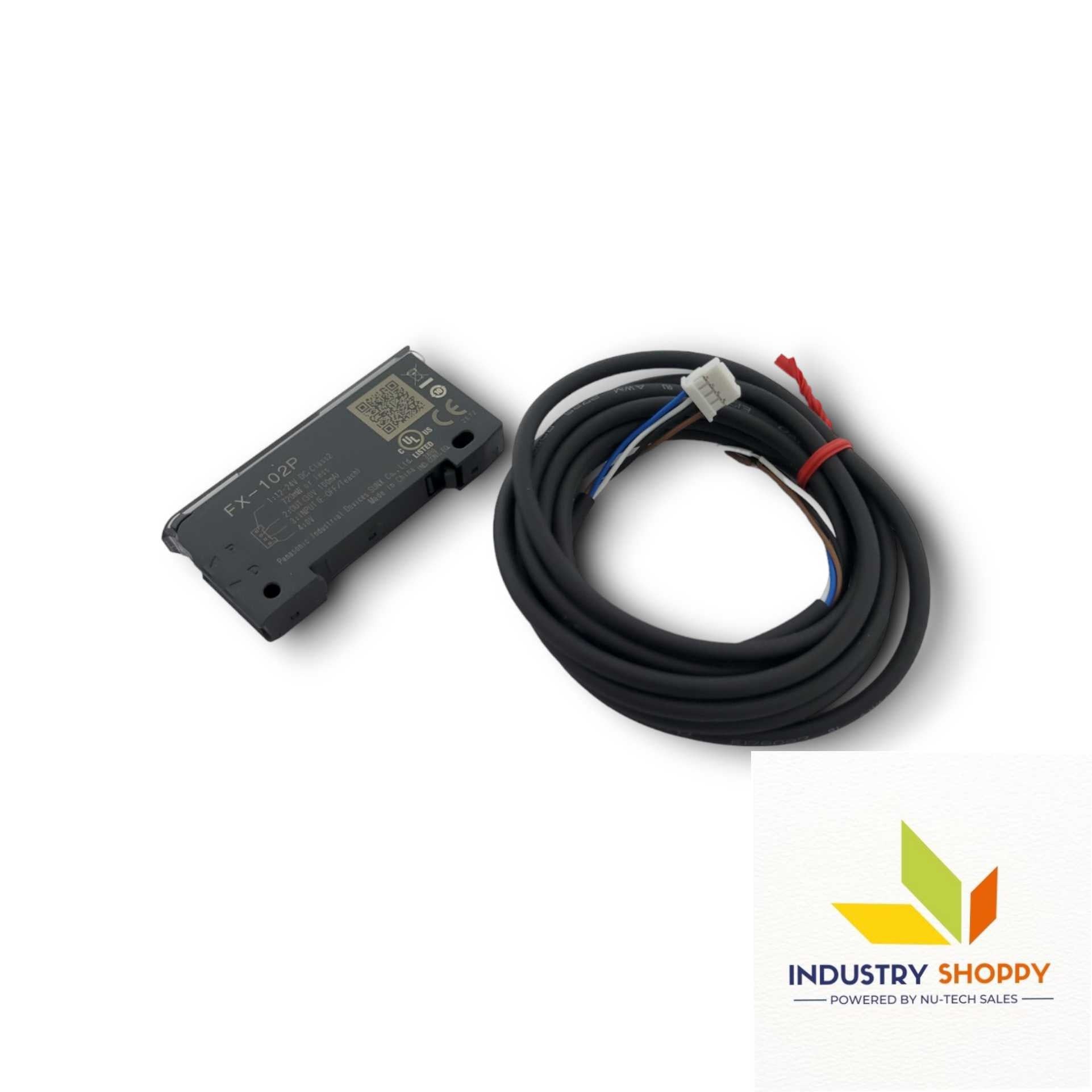

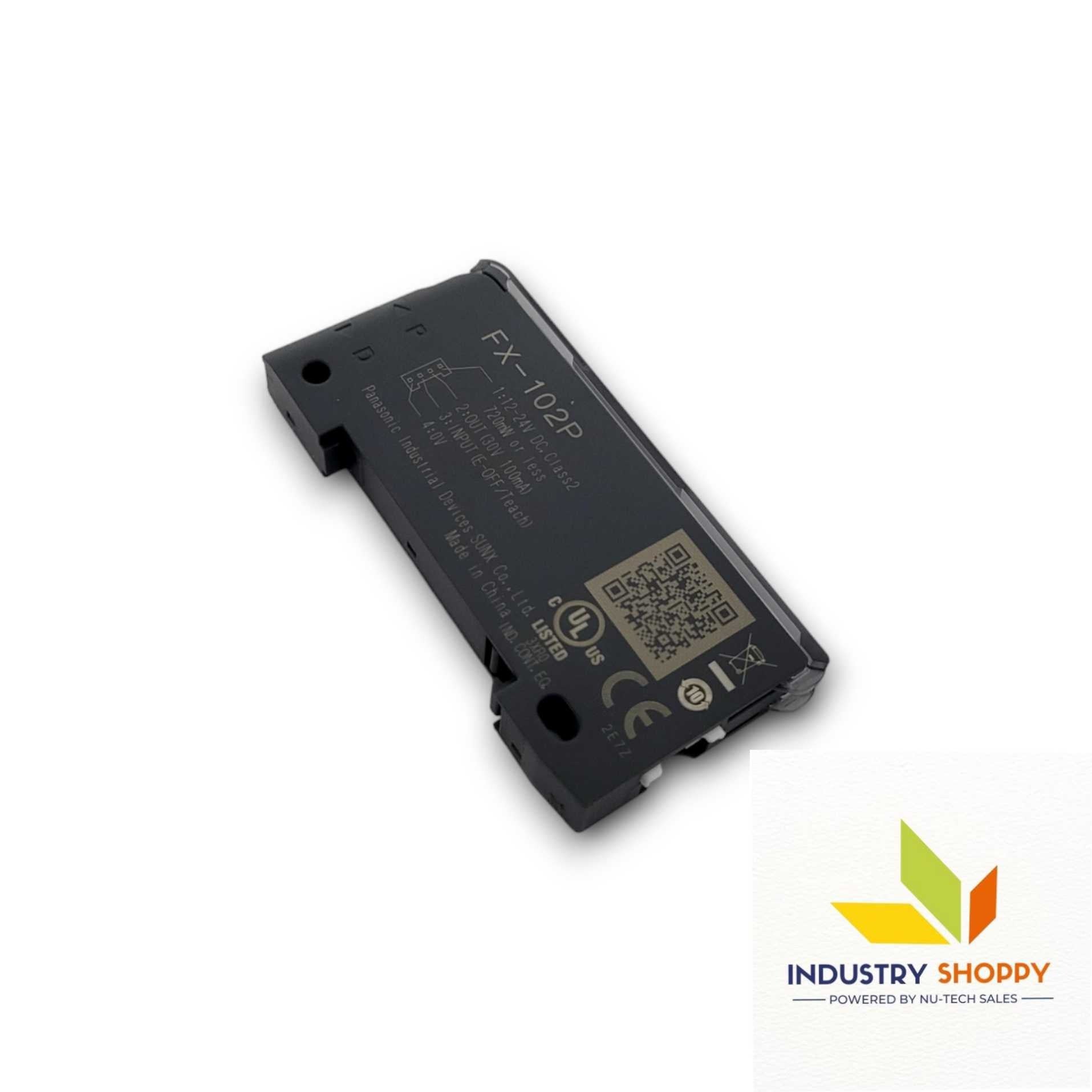

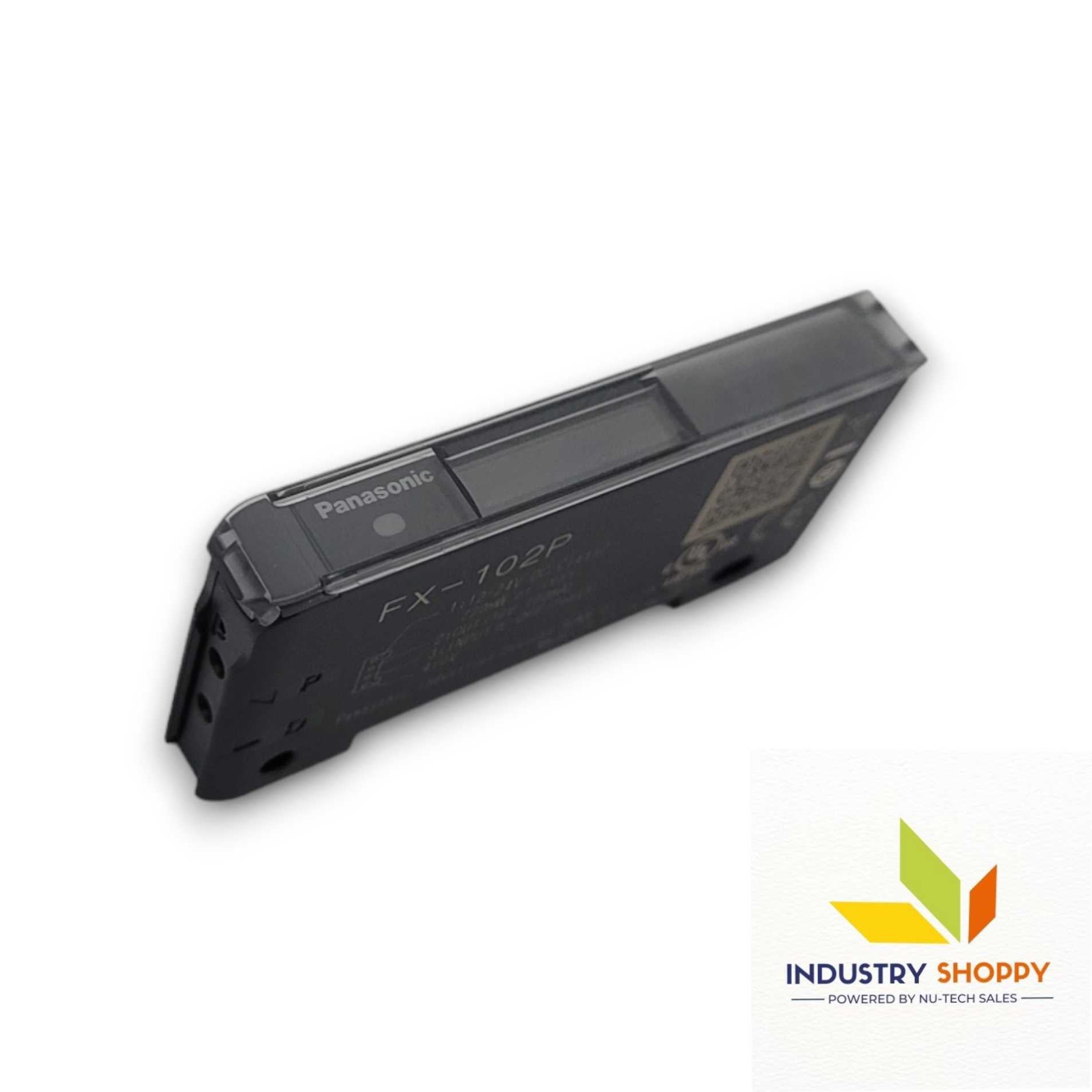

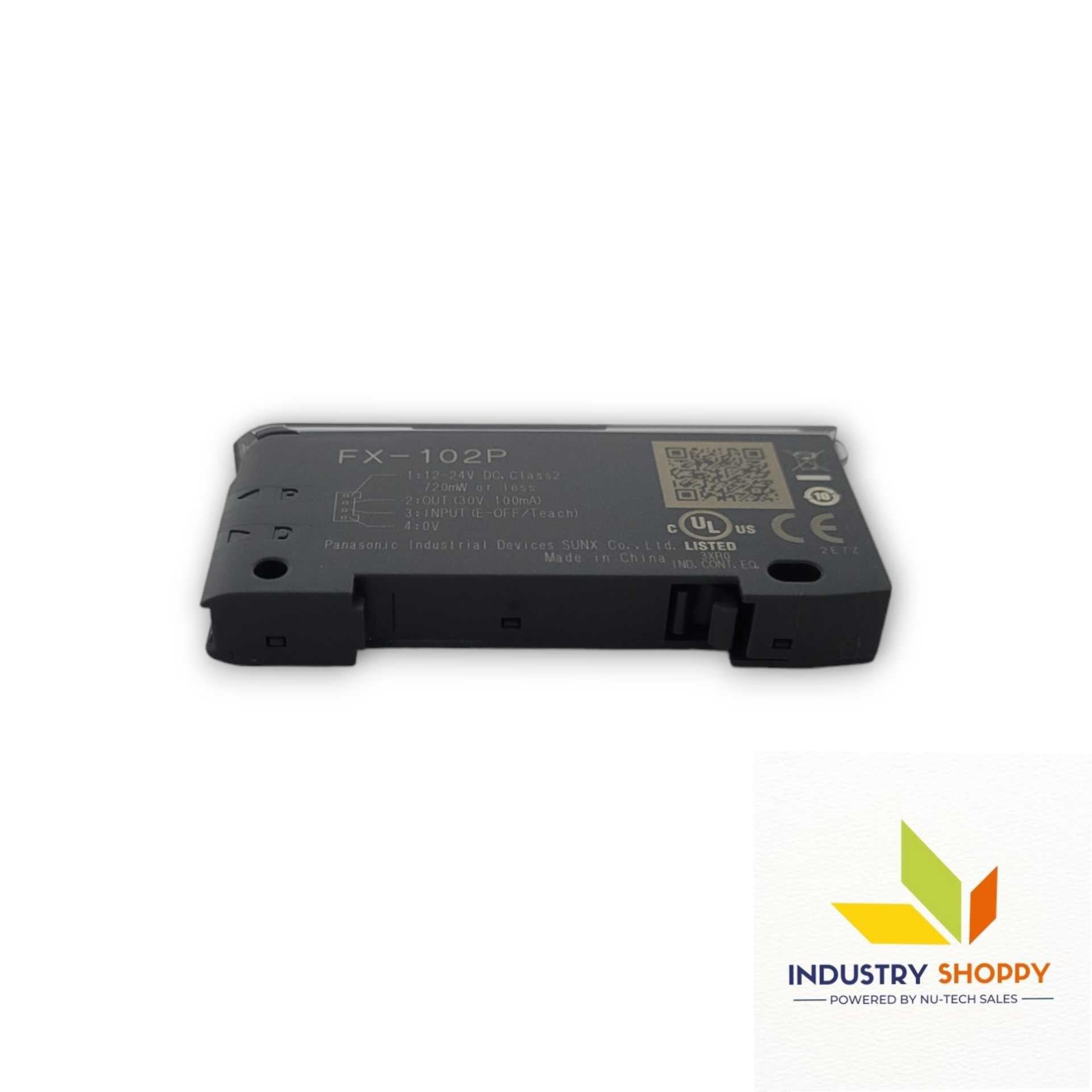

- Panasonic FX-102P-CC2 Digital Fibre Sensor Panasonic FX-102P-CC2 Digital Fibre Sensor














Panasonic FX-102P-CC2 Digital Fibre Sensor
- Brand : Panasonic
- Supply Voltage : 12 to 24 V DC ±10 % Ripple P-P 10 % or less
- Output : PNP open-collector transistor
- Output operation : Selectable either Light-ON or Dark-ON, at SET mode
- Warranty : 12 Months
For International Buyers : IndustryShoppy.com
- Description
- Specifications
- Shipping & Returns
- Reviews
Panasonic FX-102P-CC2 Digital Fibre Sensor
The Panasonic FX-102P-CC2 Digital Fibre Sensor, designated UFX102PCC2, is a versatile industrial component compliant with CE Marking Directive standards, ensuring compatibility and environmental safety.It operates on a voltage range of 12 to 24 V DC with low power consumption modes for energy efficiency. Featuring a PNP open-collector transistor output, it offers selectable Light-ON or Dark-ON operation and includes short-circuit protection. Additionally, it incorporates a PNP non-contact input for versatile functionality.
The Panasonic FX-102P-CC2 Digital Fibre Sensor provides various emission frequencies for precise sensing adjustments and supports 2-point teaching, limit teaching, and full-auto teaching for sensitivity setting. With its durable polycarbonate construction and resistance to vibration and shock, the FX-102P-CC2 sensor ensures reliable performance in challenging industrial environments.
Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.
IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!
Facebook, Youtube,
Product Number | FX-102P-CC2 |
Part Number | UFX102PCC2 |
CE Marking Directive Compliance | EMC Directive, RoHS Directive |
Supply Voltage | 12 to 24 V DC ±10 %, Ripple P-P 10 % or less |
Power Consumption | Normal: ≤720 mW (≤30 mA at 24 V) |
ECO: ≤600 mW (≤25 mA at 24 V) | |
Output | PNP open-collector transistor |
- Max. source current: 100 mA | |
- Applied voltage: 30 V DC or less (between output and +V) | |
- Residual voltage: ≤1.5 V (at 100 mA source current) | |
Output Operation | Selectable: Light-ON / Dark-ON (SET mode) |
Short-Circuit Protection | Incorporated |
External Input | PNP non-contact input |
- High: +4 V to +V DC (0.5–3 mA sink) | |
- Low: 0 to +0.6 V DC or Open | |
- Input impedance: ~10 kΩ | |
Response Time | Emission frequency 1: ≤2.5 ms (default) |
Emission frequency 2: ≤2.8 ms | |
Emission frequency 3: ≤3.2 ms | |
Emission frequency 4: ≤5.0 ms | |
Sensitivity Setting | 2-point teaching / Limit teaching / Full-auto teaching |
Operation Indicator | Orange LED (ON when output is active) |
Digital Display | 4-digit (green) + 4-digit (red) LCD |
Fine Sensitivity Adjustment | Incorporated |
Timer Function | ON-delay / OFF-delay (effective/ineffective selectable) |
Timer period: 1, 5, 10, 20, 40, 50, 100, 500, 1000 ms | |
Emission Amount Setting | 3 levels + Auto (from Dec. 2007 production) |
Interference Prevention | Incorporated (emission frequency selection: 1, 2, 3, 4) |
