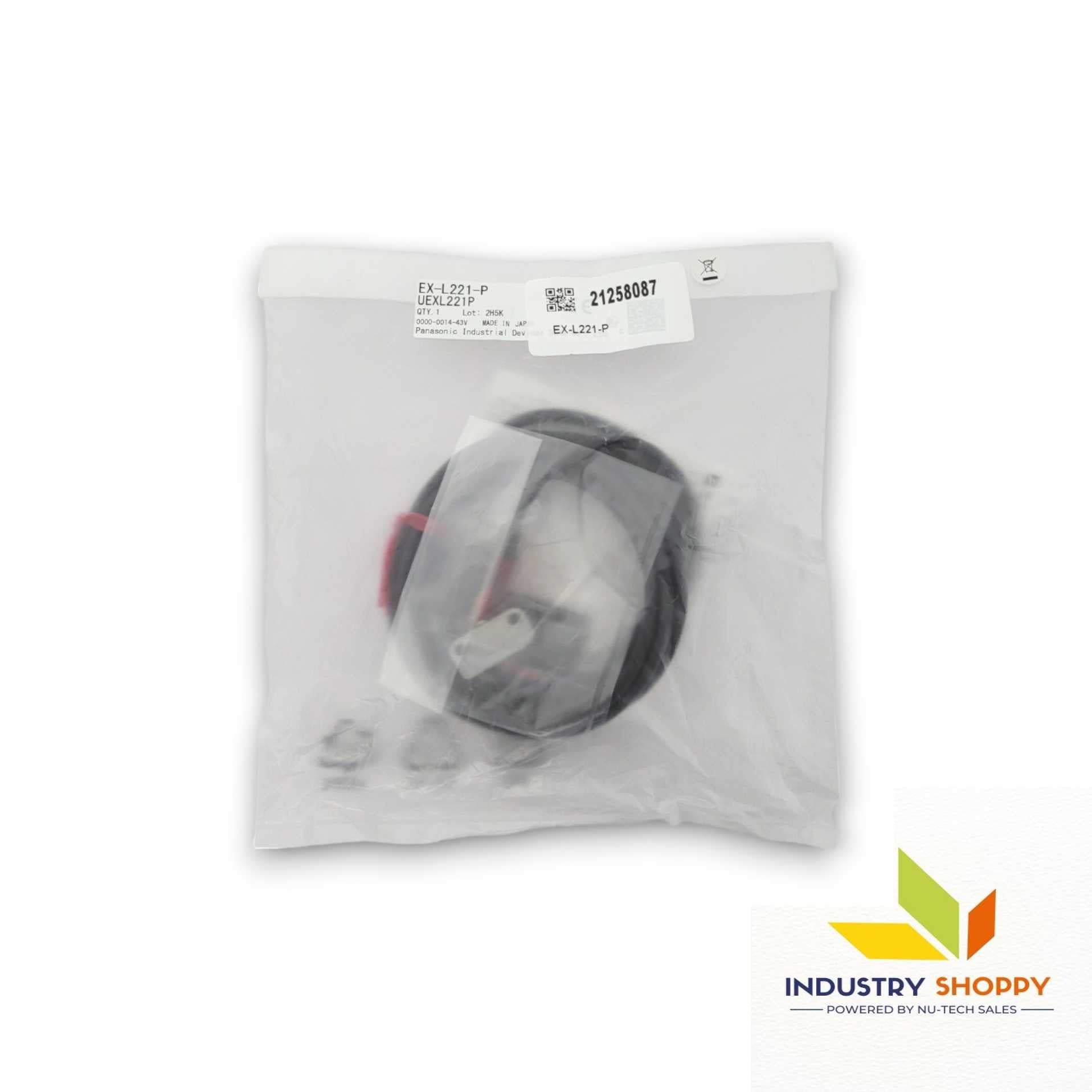

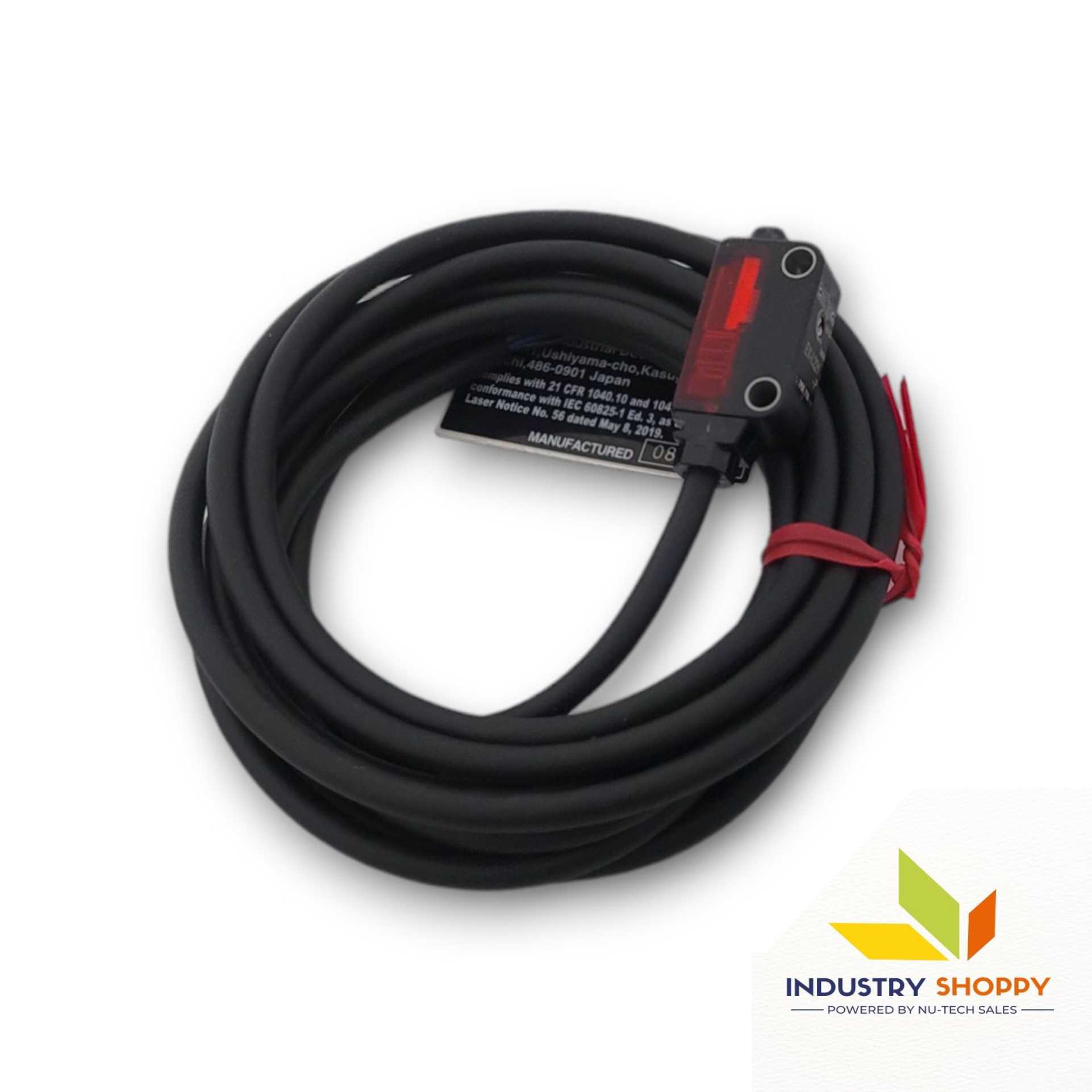

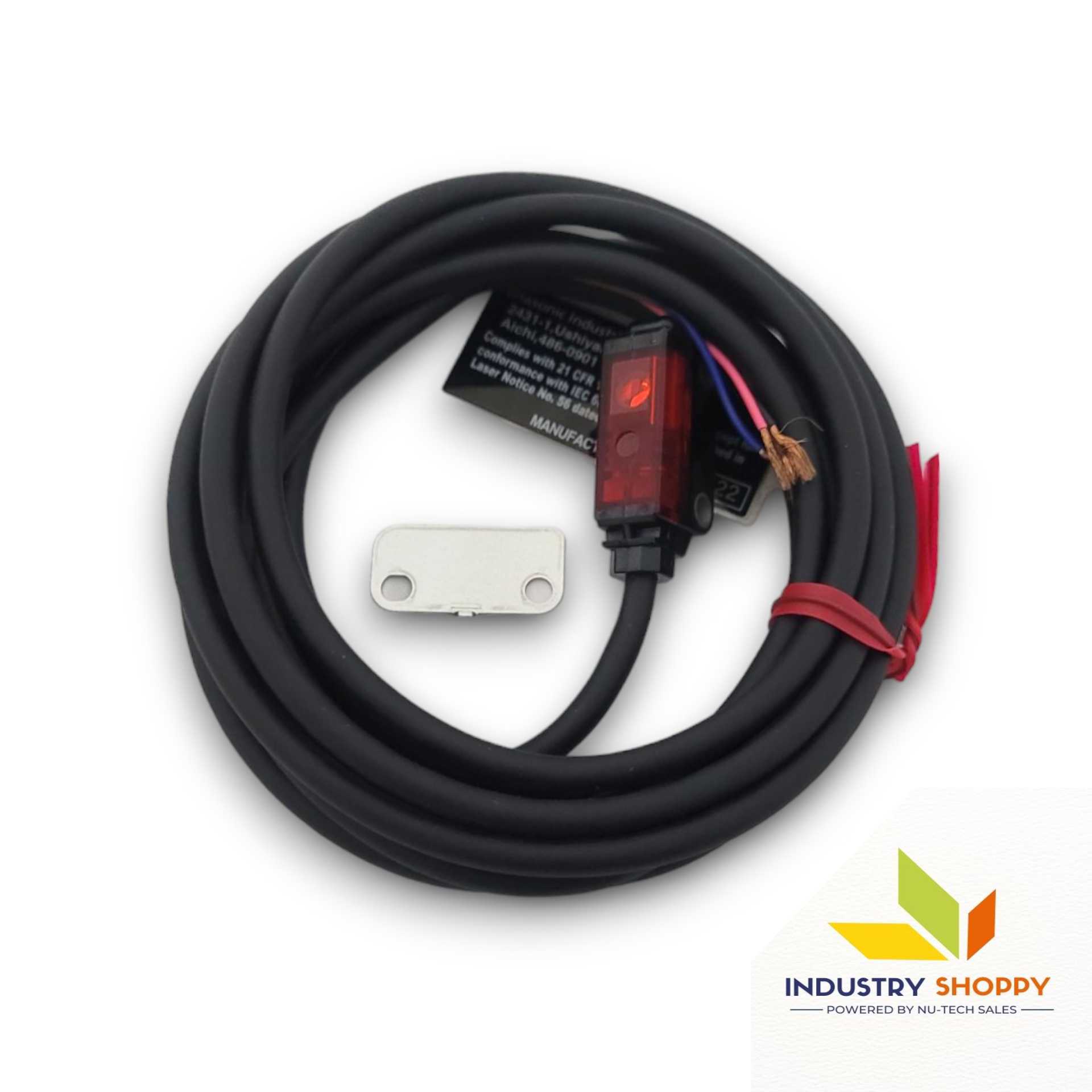

Panasonic EX-L221-P Laser Sensor
Panasonic EX-L221-P Laser Sensor
Panasonic EX-L221-P Laser Sensor
Panasonic EX-L221-P Laser Sensor
Panasonic EX-L221-P Laser Sensor
Panasonic EX-L221-P Laser Sensor
Panasonic EX-L221-P Laser Sensor
Panasonic EX-L221-P Laser Sensor
Panasonic

Panasonic EX-L221-P Laser Sensor

Product SKU: NTSSEN00052
Available:
Only 34 items in stock
34 items in stock
In stock
Pre-order
Out of stock
  • Brand  :  Panasonic
  • Supply voltage  :  12..24 VDC
  • Current consumption  :  15Ma or Less
  • Output :  PNP open-collector transistor
  • Output Operation Switchable either Light-ON or Dark-ON
  • Warranty : 12 Months

For International Buyers : IndustryShoppy.com

Rs. 6,540.00
Rs. 8,000.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

    Panasonic EX-L221-P Laser Sensor

    The Panasonic EX-L221-P Laser Sensor ((UEXL221P, EXL221P) is a compact laser diffuse reflective sensor designed for high-precision presence detection over a 45–300 mm range. It emits a Class 1 red semiconductor laser with a typical spot size of ≤1 mm, allowing it to detect even fine targets such as 0.01 mm gold wire.

    It delivers high repeatability (typ. 0.02 mm) and fast response (≤0.5 ms), making it suitable for applications requiring precise and quick detection. The output is PNP open-collector, handling up to 50 mA, with Light-ON/Dark-ON selectable logic. Built-in short-circuit and reverse polarity protection ensures electrical robustness.

    The unit features an IP67-rated enclosure, built from PBT with glass/acrylic optics, and is resistant to vibration and shock. It supports operation in ambient temperatures from -10 to +55°C and in light conditions up to 3,000 lx. A continuously variable sensitivity adjuster and interference prevention function support stable performance even in close-mounted configurations.



    Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

    IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


    Facebook, You Tube,


    BrandPanasonic
    Product NameEX-L221-P
    Part NumberUEXL221P
    CE Marking Directive ComplianceEMC Directive, RoHS Directive
    Sensing Range45 to 300 mm (1.772 to 11.811 in)
    Note: Specified for white non-glossy paper (100 × 100 mm / 3.937 × 3.937 in)
    Emission Spot Size (Typical)Ø1 mm (0.039 in) or less at 300 mm
    Sensing ObjectØ1 mm (0.039 in) or less at 300 mm
    Minimum Sensing Object (Typical)Gold wire of Ø0.01 mm (0.0004 in), typical with optimal sensitivity adjustment
    Hysteresis20 % or less of operation distance
    RepeatabilityPerpendicular to sensing axis: 0.05 mm (0.0020 in) or less
    Repeatability (Typical)0.02 mm (0.0008 in) at 100–200 mm sensing distance, typical with optimal sensitivity adjustment
    Supply Voltage12 to 24 V DC ±10 %, Ripple P-P ≤10 %
    Current Consumption≤15 mA
    OutputPNP open-collector transistor
    - Maximum source current: 50 mA
    - Applied voltage ≤26.4 V DC
    - Residual voltage: 2 V (50 mA), 1 V (16 mA)
    Output OperationLight-ON / Dark-ON selectable via switching input
    Output Short-Circuit ProtectionIncorporated (short-circuit & inverse polarity protection)
    Response Time0.5 ms or less
    Automatic Interference PreventionIncorporated (two sensors can be mounted close together)
    Sensitivity AdjusterContinuously variable
    ProtectionIP67 (IEC)
    Ambient TemperatureOperating: -10 to +55 °C (+14 to +131 °F)
    Storage: -30 to +70 °C (-22 to +158 °F)
    Ambient Humidity35 to 85 % RH (operating & storage)
    Ambient IlluminanceIncandescent light ≤3,000 lx at light-receiving face
    Voltage Withstandability1,000 V AC for 1 min between all supply terminals connected together and enclosure
    Insulation Resistance≥20 MΩ with 250 V DC megger
    Vibration Resistance10–500 Hz, 1.5 mm (0.059 in) double amplitude, 10 G max, X/Y/Z directions, 2 hours each
    Shock Resistance500 m/s² (50 G approx.), X/Y/Z directions, 3 times each
    Emitting ElementRed semiconductor laser Class 1 (IEC/JIS/FDA/GB)
    - Max output: 2 mW
    - Peak emission wavelength: 655 nm (0.026 mil)
    MaterialEnclosure: PBT
    Front cover: Acrylic
    Lens: Glass
    Indicator part: Polyarylate
    Cable0.15 mm², 4-core cabtyre cable (emitter of thru-beam type: 2-core), 2 m (6.562 ft)
    Cable ExtensionUp to 50 m (164.042 ft) with ≥0.3 mm² cable
    Country of OriginJapan
