34% Rs. 4,865.00
Panasonic EX-L212-P Photoelectric Sensor
Panasonic EX-L212-P Photoelectric Sensor
Panasonic EX-L212-P Photoelectric Sensor
Panasonic EX-L212-P Photoelectric Sensor
Panasonic EX-L212-P Photoelectric Sensor
Panasonic EX-L212-P Photoelectric Sensor
Panasonic EX-L212-P Photoelectric Sensor
Panasonic EX-L212-P Photoelectric Sensor
Panasonic EX-L212-P Photoelectric Sensor
Panasonic EX-L212-P Photoelectric Sensor
Panasonic

Panasonic EX-L212-P Photoelectric Sensor

Product SKU: NTSSEN00383
Available:
Only 7 items in stock
7 items in stock
In stock
Pre-order
Out of stock
  • Brand : Panasonic
  • Output : PNP open-collector transistor
  • Supply Voltage : 12..24 VDC
  • Current Consumption : Emitter: 10 mA or less Receiver: 10 mA or less
  • Warranty : 12 Months

For International Buyers : IndustryShoppy.com

Rs. 9,635.00
Rs. 14,500.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

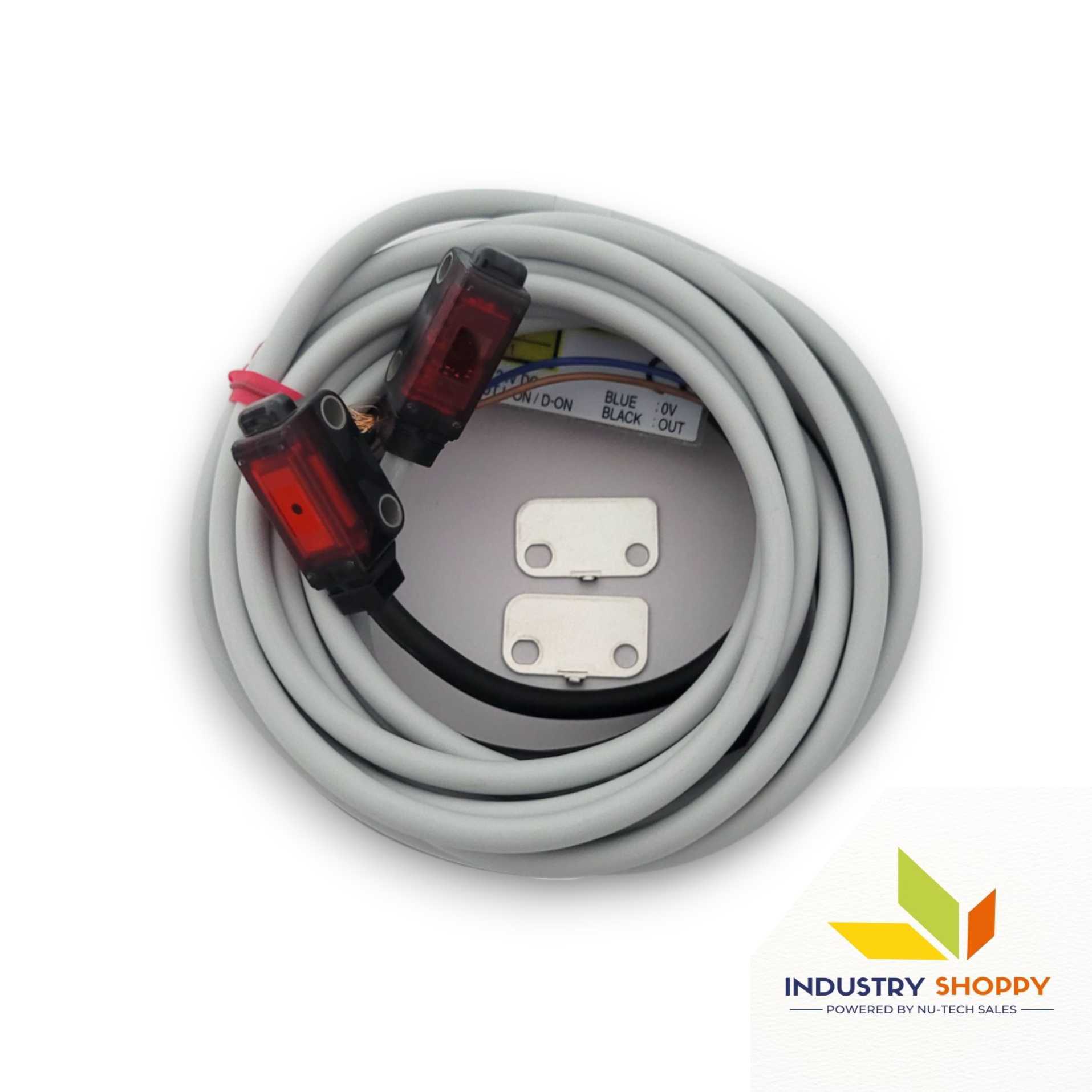

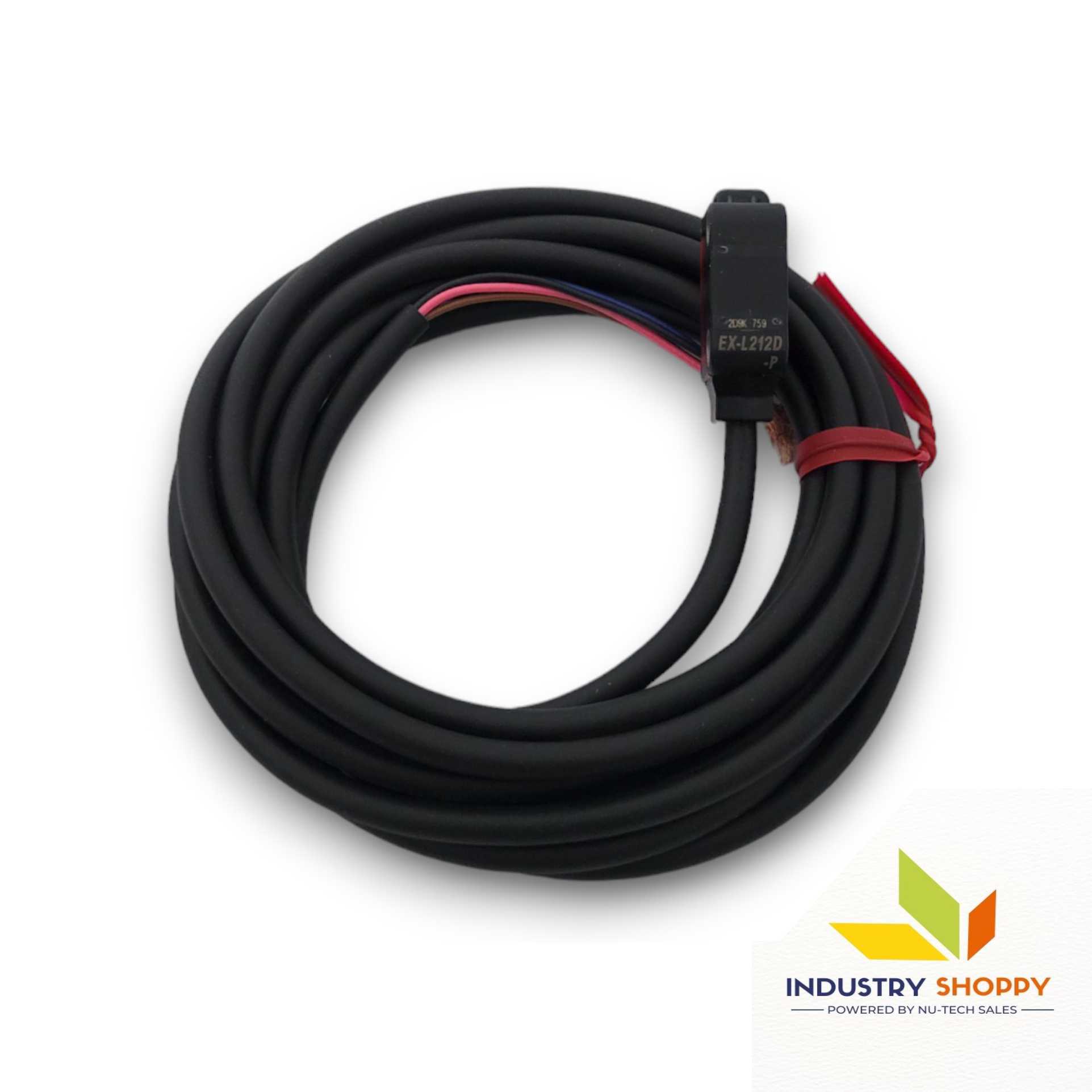

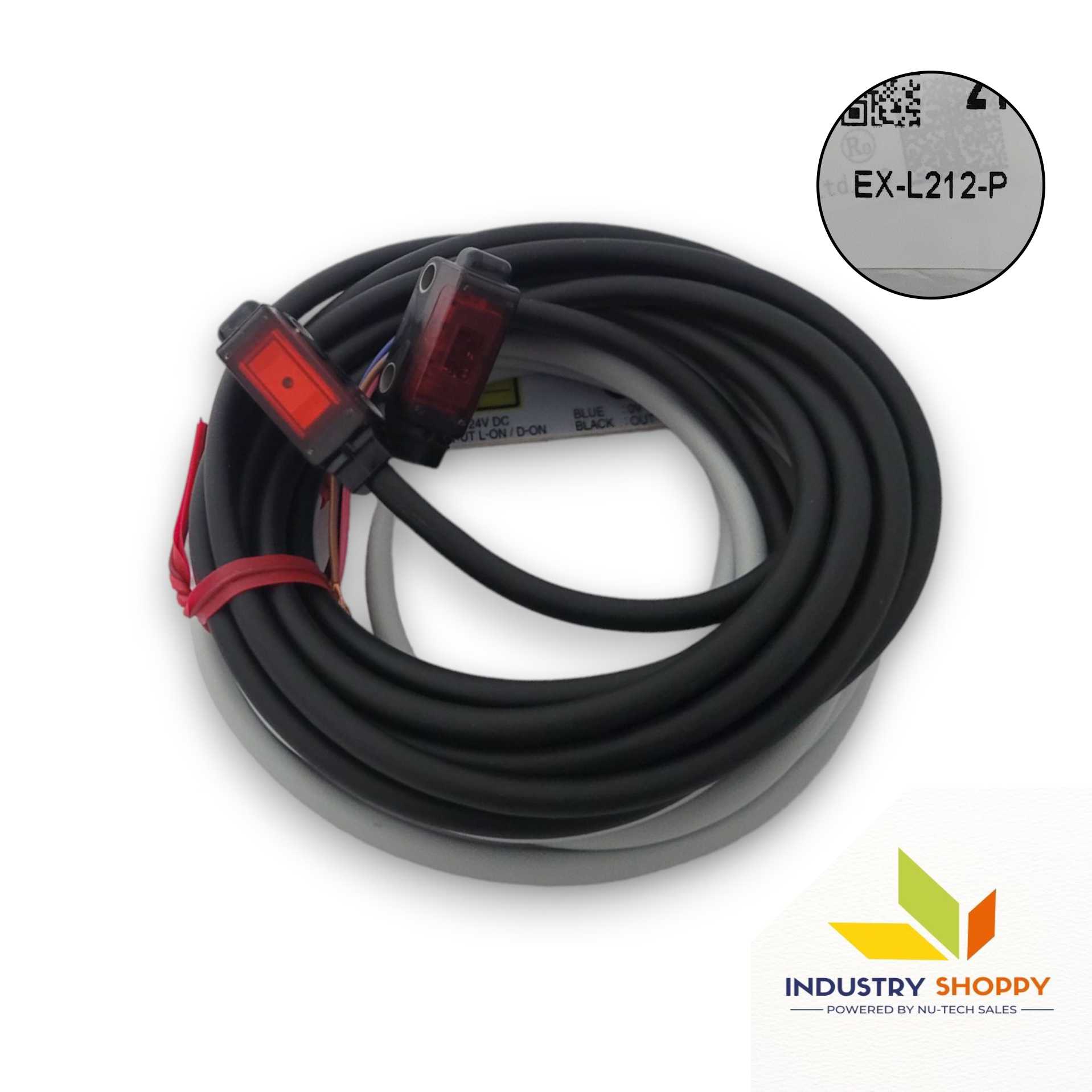

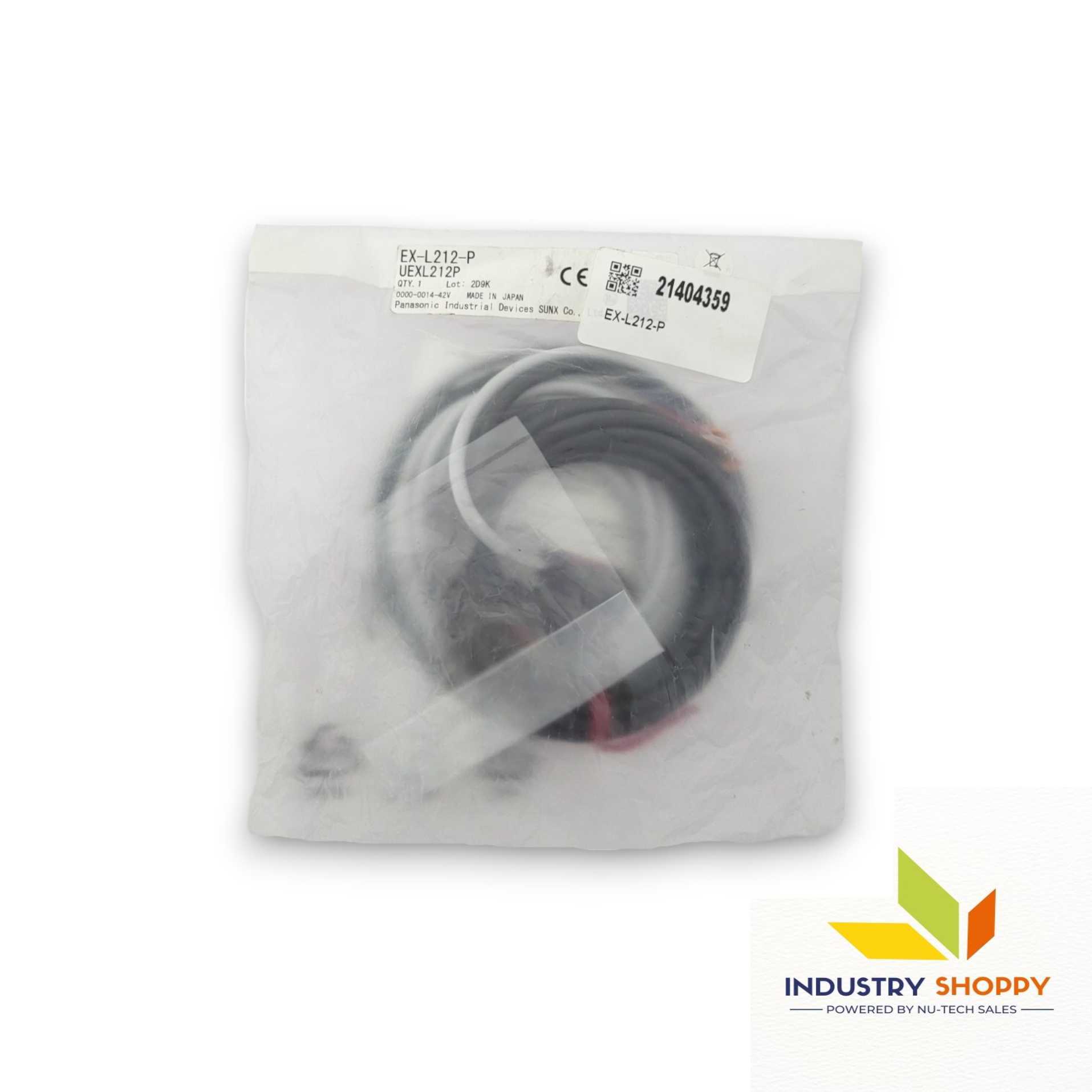

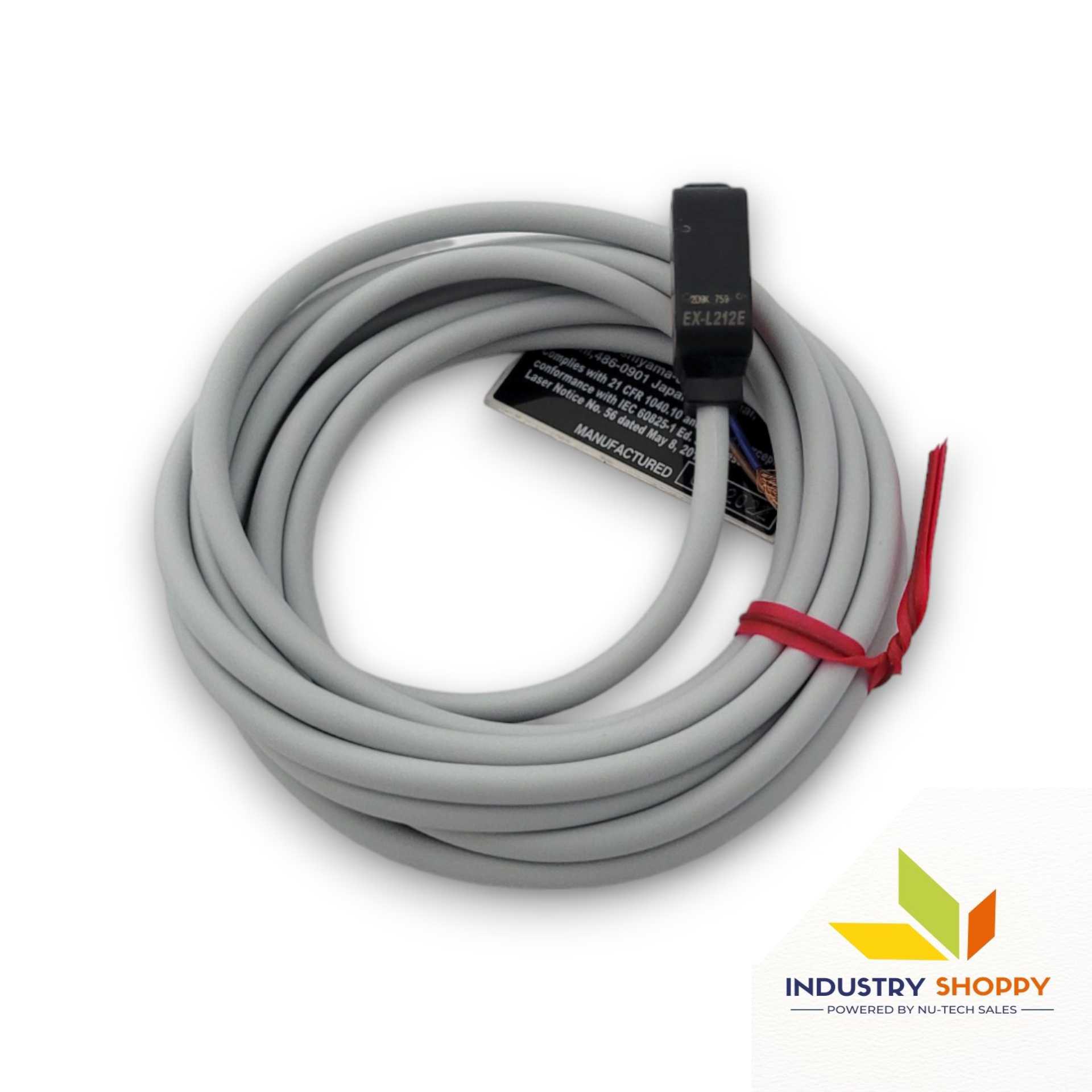

    Panasonic EX-L212-P Photoelectric Sensor

    The Panasonic  EX-L212-P is a CE-compliant photoelectric sensor with a 3-meter sensing range. It features a PNP open-collector output with built-in short-circuit and reverse polarity protection, ensuring safety and reliability.

    With a fast 0.5 ms response time, it offers efficient object detection. Orange and green LEDs indicate operation and stability, making it user-friendly in industrial settings. This sensor is IP67-rated for protection against dust and water. It also withstands vibration (10–500 Hz) and shock (500 m/s²), ensuring consistent performance in harsh environments.

    The sensor uses a red semiconductor laser with a peak wavelength of 655 nm and max output of 390 μW, ensuring precise detection. It meets IEC, JIS, FDA, and GB standards. Built with polybutylene terephthalate (housing) and glass (lens), the EX-L212-P ensures durability. It includes a 2-meter 4-core cabtyre cable, weighs ~90 grams, and comes with mounting accessories for easy installation.  Made in Japan, it reflects high quality and is ideal for demanding industrial automation applications.


    Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

    IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


    Facebook, YouTube,




    BrandPanasonic
    Product NumberEX-L212-P
    Part NumberUEXL212P
    CE Marking Directive ComplianceEMC Directive, RoHS Directive
    Sensing Range3 m (9.843 ft)
    Emission Spot Size (Typical)Approx. 8 × 5.5 mm (0.315 × 0.217 in) at 1 m; at 3 m: 17 × 11 mm (0.669 × 0.433 in, visual reference)
    Sensing ObjectOpaque object Ø3 mm (0.118 in) or more
    Minimum Sensing Object (Typical)-
    Repeatability≤0.05 mm (0.002 in) perpendicular to sensing axis
    Supply Voltage12 to 24 V DC ±10%, Ripple P-P 10% or less
    Current ConsumptionEmitter: ≤10 mA, Receiver: ≤10 mA
    OutputPNP open-collector transistor, Max sink current: 50 mA, Applied voltage: ≤26.4 V DC, Residual voltage: ≤2 V (50 mA), ≤1 V (16 mA)
    Output OperationLight-ON / Dark-ON selectable by output operation switching input
    Output Short-Circuit ProtectionIncorporated (short-circuit protection / inverse polarity protection)
    Response Time≤0.5 ms
    Operation IndicatorOrange LED (lights when output is ON; on receiver for thru-beam type)
    Stability IndicatorGreen LED (lights under stable light/dark condition; on receiver for thru-beam type)
    Power Indicator-
    Sensitivity Adjuster-
    ProtectionIP67 (IEC)
    Ambient Temperature-10 to +55 °C (+14 to +131 °F), Storage: -30 to +70 °C (-22 to +158 °F)
    Ambient Humidity35 to 85% RH, Storage: 35 to 85% RH
    Ambient IlluminanceIncandescent light: ≤3,000 lx at light-receiving face
    Voltage Withstandability1,000 V AC for 1 min between all supply terminals connected together and enclosure
    Insulation Resistance≥20 MΩ with 250 V DC megger between terminals and enclosure
    Vibration Resistance10–500 Hz, 1.5 mm double amplitude (0.059 in), 10 G max, X/Y/Z directions, 2 hours each
    Shock Resistance500 m/s² (≈50 G) X/Y/Z directions, 3 times each
    Emitting ElementRed semiconductor laser, Class 1 (Max output: 390 µW, Peak wavelength: 655 nm)
    MaterialEnclosure: Polybutylene terephthalate, Front cover: Acrylic, Lens: Glass, Indicator part: Polyarylate
    Cable0.15 mm² 4-core cabtyre cable, 2 m (emitter of thru-beam type: 2-core)
    AccessoryMS-EXL2-2 (Mounting plate), 2 pcs
    Country of OriginJapan
