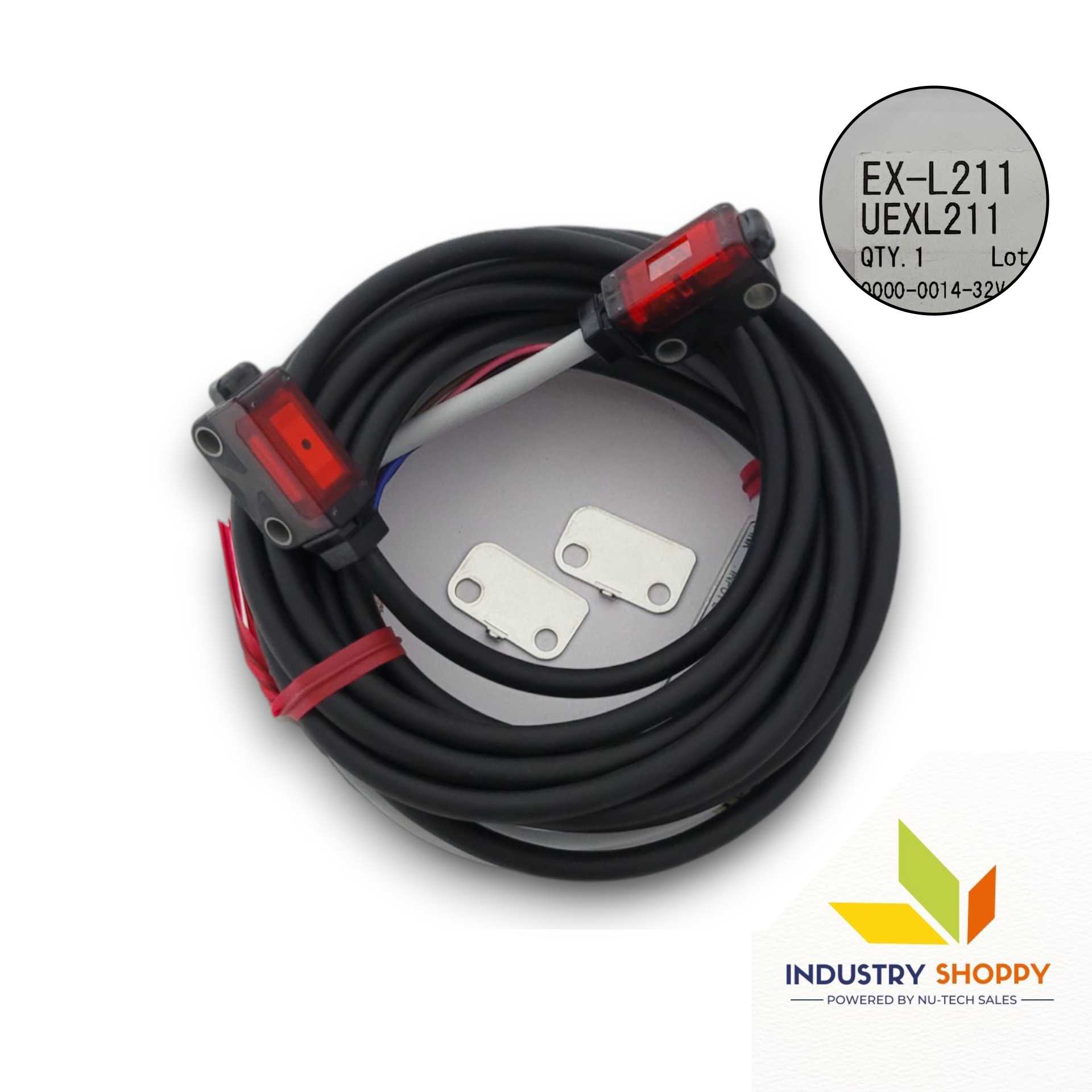

    Panasonic EX-L211 Thru beam Laser Sensor

    The Panasonic EX-L211 Thru beam Laser Sensor  (EXL211, UEXL211) offers a versatile sensing range of 1 meter, suitable for various applications. Compliant with CE Marking and RoHS directives, it ensures quality and environmental safety standards. Equipped with an NPN open-collector output and IP67 protection, it delivers reliable performance in challenging industrial environments.

    The Panasonic EX-L211 Thrubeam Laser Sensor has equipped with a red semiconductor laser Class 1 emitter, this sensor guarantees safety and compliance with regulations, including FDA standards. Its robust construction, including polybutylene terephthalate enclosure and glass lens, ensures durability even in harsh environments. Additionally, it features adjustable sensitivity, IP67 protection, and resistance to vibration and shock.

    With features like continuously variable adjusters, green LED indicators for stability and power, and a 2-meter cabtyre cable, the sensor provides ease of use and installation. Designed and manufactured in Japan, it upholds Panasonic's reputation for quality and reliability.


    Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

    IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


    Facebook, YouTube,


    BrandPanasonic
    Product NameEX-L211
    Part NumberUEXL211
    CE Marking Directive ComplianceEMC Directive, RoHS Directive
    Sensing Range1 m (3.281 ft)
    Emission Spot Size (Typical)Approx. 6 × 4 mm (0.236 × 0.157 in) vertical × horizontal at 1 m
    Sensing ObjectOpaque object of Ø2 mm (0.079 in) or more
    Minimum Sensing Object (Typical)Opaque object of Ø0.3 mm (0.012 in) (typical with optimal sensitivity adjustment)
    RepeatabilityPerpendicular to sensing axis: 0.05 mm (0.0020 in) or less
    Repeatability (Typical)0.01 mm (0.0004 in) or less (all area, with optimal sensitivity adjustment)
    Supply Voltage12 to 24 V DC ±10 %, Ripple P-P ≤10 %
    Current ConsumptionEmitter: ≤10 mA
    Receiver: ≤10 mA
    OutputNPN open-collector transistor
    - Max sink current: 50 mA
    - Applied voltage ≤26.4 V DC
    - Residual voltage: 2 V (50 mA), 1 V (16 mA)
    Output OperationLight-ON / Dark-ON selectable by output operation switching input
    Output Short-Circuit ProtectionIncorporated (short-circuit & inverse polarity protection)
    Response Time0.5 ms or less
    Operation IndicatorOrange LED (lights when output is ON, on receiver for thru-beam type)
    Stability IndicatorGreen LED (lights under stable light/dark condition, on receiver for thru-beam type)
    Power IndicatorGreen LED (lights when power is ON, on emitter)
    Sensitivity AdjusterContinuously variable (on receiver)
    ProtectionIP67 (IEC)
    Ambient TemperatureOperating: -10 to +55 °C (+14 to +131 °F)
    Storage: -30 to +70 °C (-22 to +158 °F)
    Ambient Humidity35 to 85 % RH (operating & storage)
    Ambient IlluminanceIncandescent light ≤3,000 lx at light-receiving face
    Voltage Withstandability1,000 V AC for 1 min between all supply terminals connected together and enclosure
    Insulation Resistance≥20 MΩ with 250 V DC megger
    Vibration Resistance10–500 Hz, 1.5 mm (0.059 in) double amplitude, 10 G max, X/Y/Z directions, 2 hours each
    Shock Resistance500 m/s² (50 G approx.), X/Y/Z directions, 3 times each
    Emitting ElementRed semiconductor laser Class 1 (IEC/JIS/FDA/GB)
    - Max output: 390 μW
    - Peak emission wavelength: 655 nm (0.026 mil)
    MaterialEnclosure: PBT
    Front cover: Acrylic
    Lens: Glass
    Indicator part: Polyarylate
    Cable0.15 mm², 4-core cabtyre cable (emitter of thru-beam type: 2-core), 2 m (6.562 ft)
    Cable ExtensionUp to 50 m (164.042 ft) with ≥0.3 mm² cable
    Thru-beam type: total 100 m (328.084 ft) for both emitter & receiver
    AccessoryMS-EXL2-2 (Mounting plate), 2 pcs
    Country of OriginJapan
