Product SKU: NTSSEN00202
Available:
Only 8 items in stock
8 items in stock
In stock
Pre-order
Out of stock
  • Brand : Panasonic
  • Supply Voltage : 12 to 24 V DC ±10 % Ripple P-P 10 % or less
  • Output : PNP open-collector transistor
  • Connecting method : Cable
  • Warranty : 12 Months

For Indian Buyers : IndustryShoppy.com

Rs. 3,145.00
Rs. 3,840.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

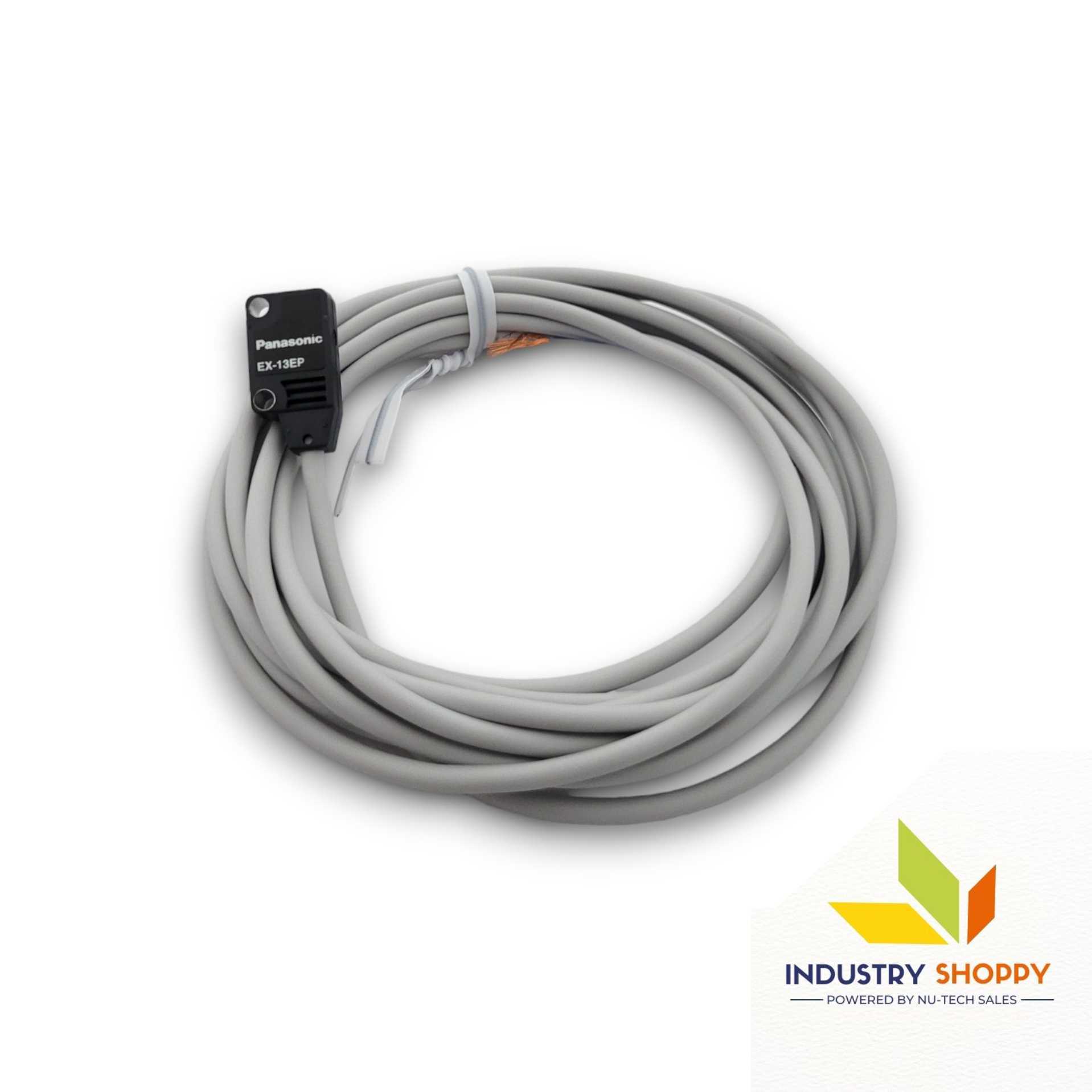

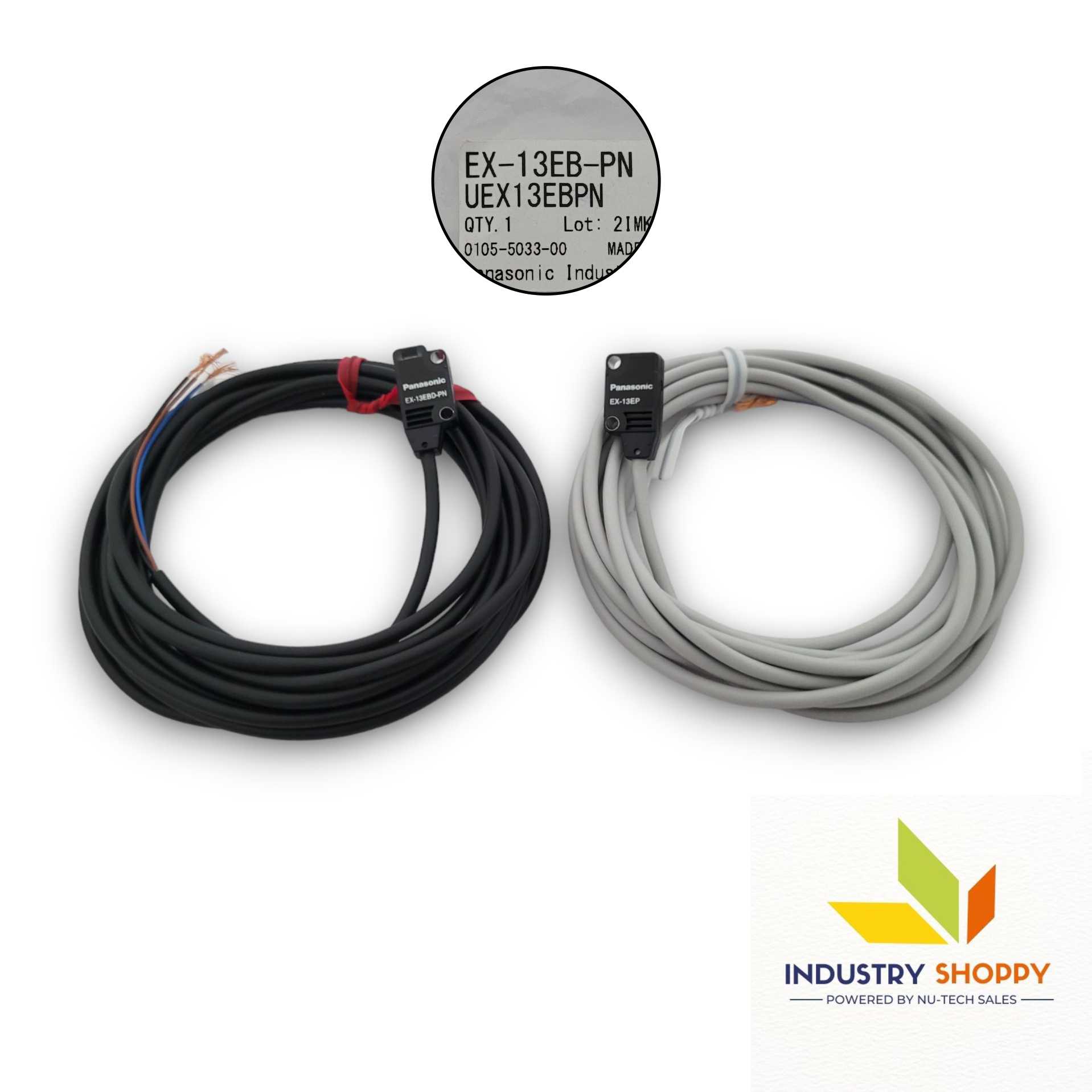

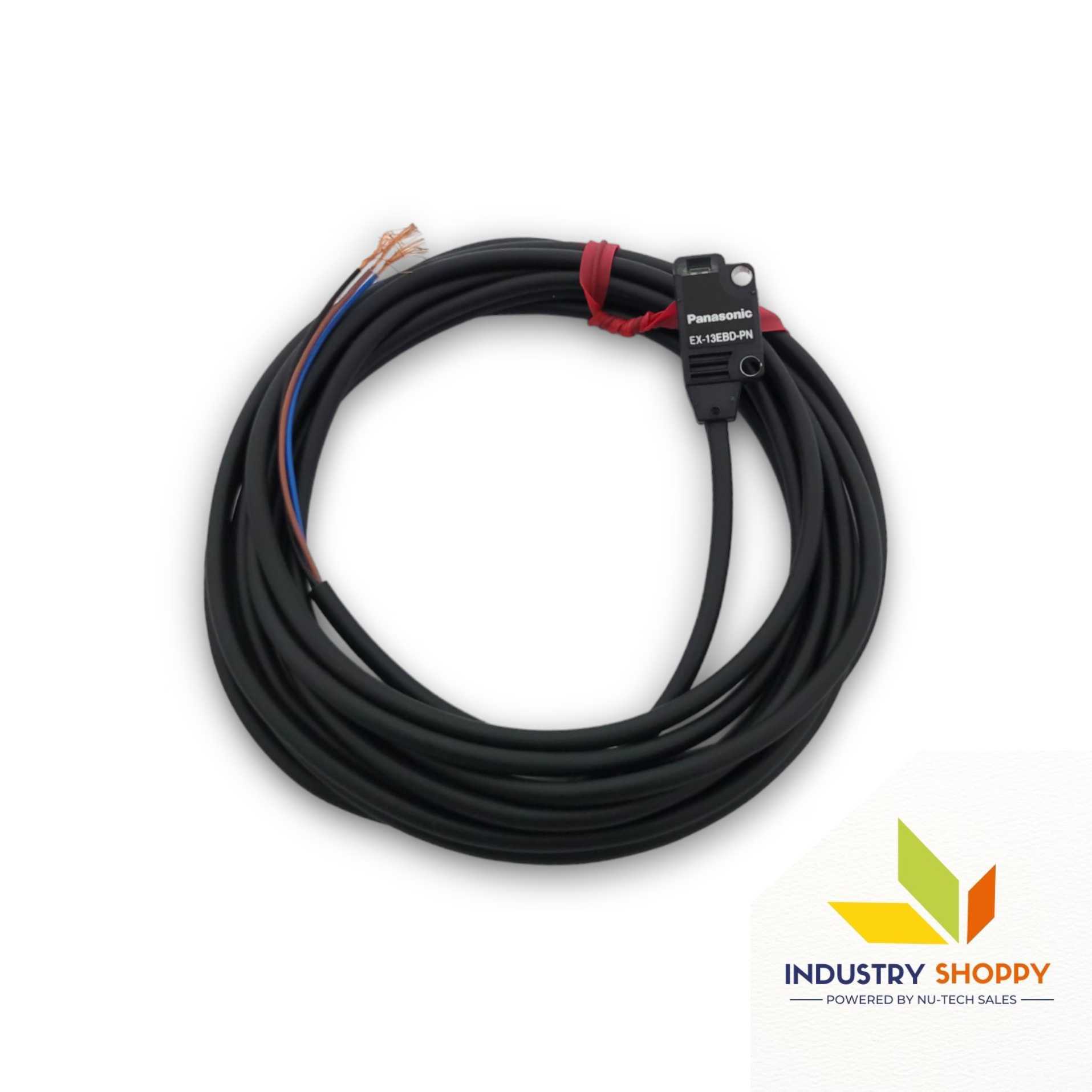

    Panasonic EX-13EB-PN Photoelectric Sensor

    The Panasonic EX-13EB-PN Photoelectric Sensor designed to meet the demanding requirements of industrial environments. Compliant with CE Marking Directives including EMC and RoHS, as well as ISO 13849-1 standards, this sensor ensures reliable performance and safety. Its sensing range of 500 mm and ability to detect objects as small as ø2 mm make it versatile for various applications, with a repeatability of 0.05 mm or less ensuring precise measurements.

    Operating on a supply voltage of 12 to 24 V DC with low current consumption. Both emitter and receiver maintain energy efficiency. The Panasonic EX-13EB-PN Photoelectric Sensor features a PNP open-collector transistor output with short-circuit protection. Suitable for seamless integration into control systems conforming to Utilization Category DC-12 or DC-13 standards. Indicators include an orange LED for operation status. A green LED for stable light or dark conditions ensures efficient operation.

    Constructed with durable materials such as polyethylene terephthalate for the enclosure and polyalylate for the lens. The sensor withstands harsh industrial conditions. Its cable extension capability of up to 50 m facilitates flexible installation. Certifications like UL and Korea’s S-mark guarantee compliance with stringent quality and safety standards.

    Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

    IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!

    Facebook, YouTube,


    BrandPanasonic
    Product NumberEX-13EB-PN
    Part NumberUEX13EBPN
    CE Marking Directive ComplianceEMC Directive: EN 60947-5-2, RoHS Directive, ISO 13849-1 (Category 1, PLc) (Conformed from Dec 2021 production)
    Sensing Range500 mm (19.685 in)
    Minimum Sensing ObjectØ2 mm (0.079 in) opaque object (completely beam interrupted at 500 mm)
    Hysteresis-
    Repeatability (Perpendicular to Sensing Axis)0.05 mm (0.002 in) or less
    Supply Voltage12 to 24 V DC ±10%, Ripple P-P 10% or less
    Current ConsumptionEmitter: ≤10 mA, Receiver: ≤10 mA
    OutputPNP open-collector transistor, Max sink current: 50 mA, Applied voltage: ≤30 V DC, Residual voltage: ≤2 V (50 mA), ≤1 V (16 mA source current)
    Output Utilization CategoryDC-12 or DC-13
    Output Short-Circuit ProtectionIncorporated
    Response Time≤0.5 ms
    Operation IndicatorOrange LED (ON when output is ON)
    Incident Beam Indicator-
    Stability IndicatorGreen LED (lights under stable light/dark conditions)
    Pollution Degree3 (Industrial environment)
    ProtectionIP67 (IEC)
    Ambient Temperature-25 to +55 °C (-13 to +131 °F), Storage: -30 to +70 °C (-22 to +158 °F)
    Ambient Humidity35 to 85% RH, Storage: 35 to 85% RH
    Ambient IlluminanceIncandescent light: ≤3,000 lx at the receiver face
    Voltage Withstandability1,000 V AC for 1 min between all supply terminals connected together and enclosure
    Insulation Resistance≥20 MΩ with 250 V DC megger between terminals and enclosure
    Vibration Resistance10–500 Hz, 3 mm double amplitude (20 G max), X/Y/Z directions, 2 hours each
    Shock Resistance500 m/s² (≈50 G) X/Y/Z directions, 3 times each
    Emitting ElementRed LED, Peak wavelength: 680 nm (modulated)
    MaterialEnclosure: Polyethylene terephthalate, Lens: Polyalylate
    Cable0.1 mm² 3-core (emitter: 2-core) cabtyre cable, 2 m (6.562 ft)
    Cable ExtensionUp to 50 m (164 ft) with ≥0.3 mm² cable; for safety applications, ≤30 m (98.425 ft)

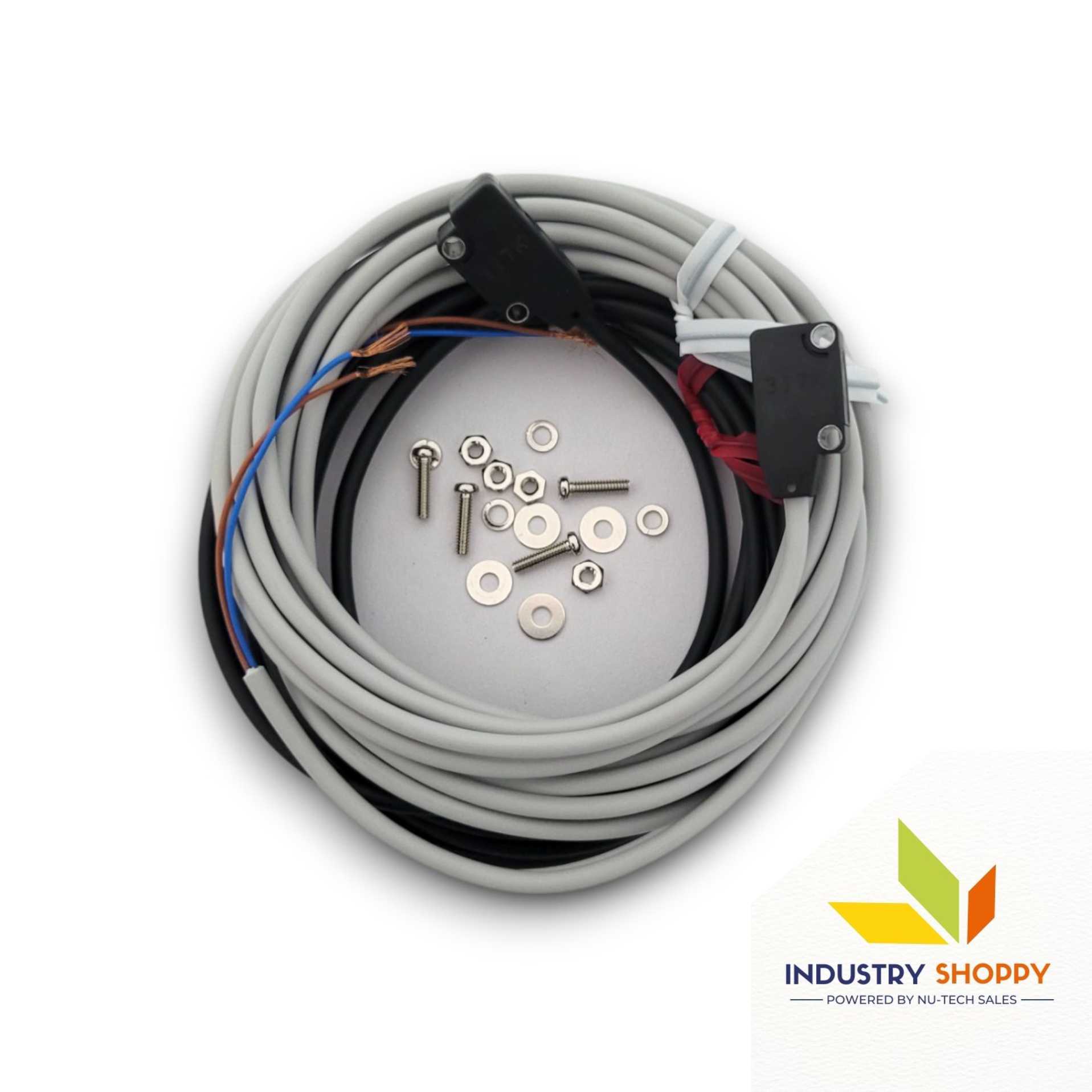

    AccessoryMounting screws: 1 set
    CertificationUL certification, Korea’s S-mark certification
    Country of OriginJapan
