Panasonic EX-13EA-PN Photoelectric Sensor
Panasonic EX-13EA-PN Photoelectric Sensor
Panasonic EX-13EA-PN Photoelectric Sensor
Panasonic EX-13EA-PN Photoelectric Sensor
Panasonic EX-13EA-PN Photoelectric Sensor
Panasonic EX-13EA-PN Photoelectric Sensor
Panasonic EX-13EA-PN Photoelectric Sensor
Panasonic EX-13EA-PN Photoelectric Sensor
Panasonic EX-13EA-PN Photoelectric Sensor
Panasonic EX-13EA-PN Photoelectric Sensor
Panasonic

Panasonic EX-13EA-PN Photoelectric Sensor

Product SKU: NTSSEN00374
Available:
Only 25 items in stock
25 items in stock
In stock
Pre-order
Out of stock
  • Brand: Panasonic
  • Supply Voltage: 12 to 24 V DC ±10 % Ripple P-P 10 % or less
  • Output: PNP open-collector transistor
  • Connecting method: Cable
  • Warranty: 12 Months
Rs. 2,925.00
Rs. 3,980.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

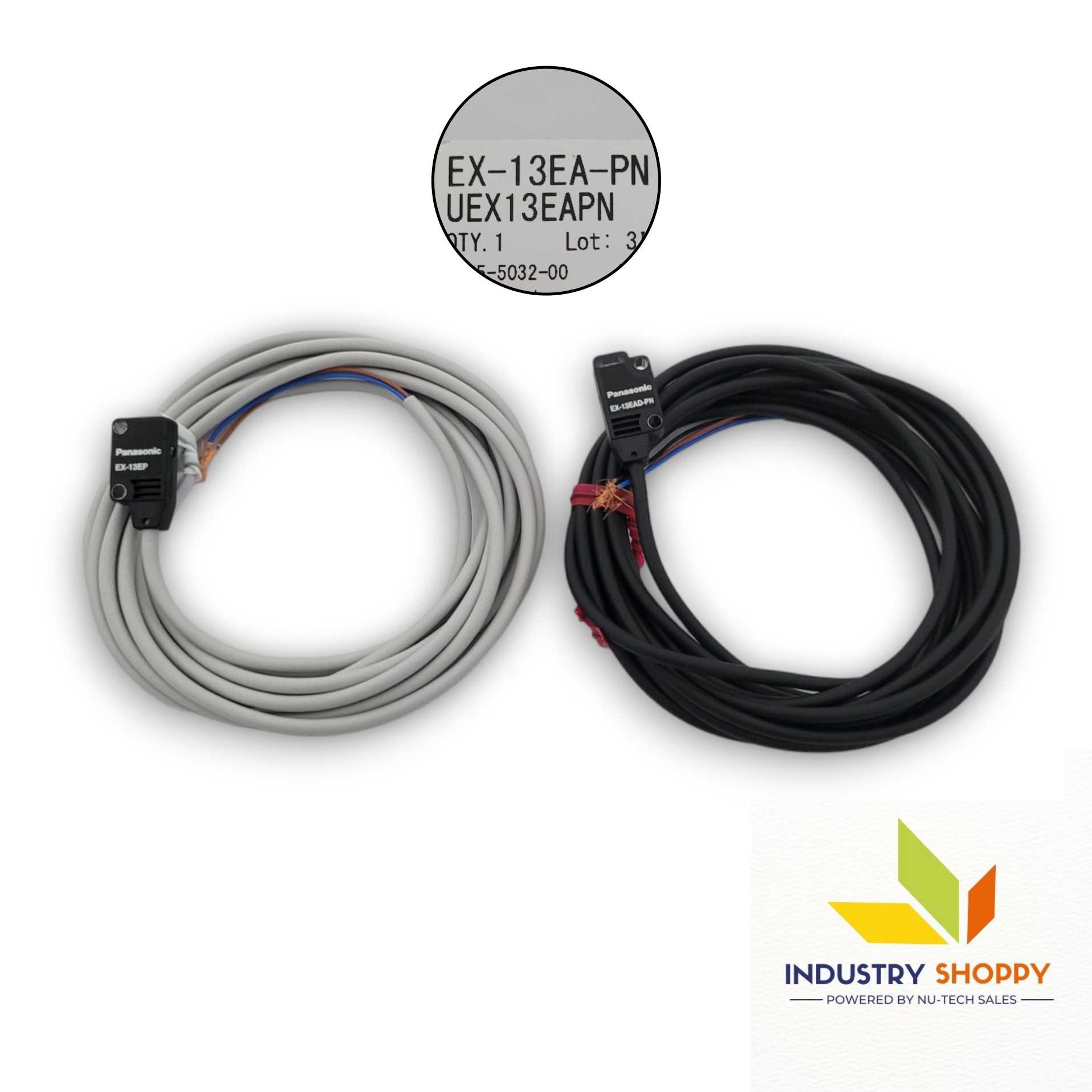

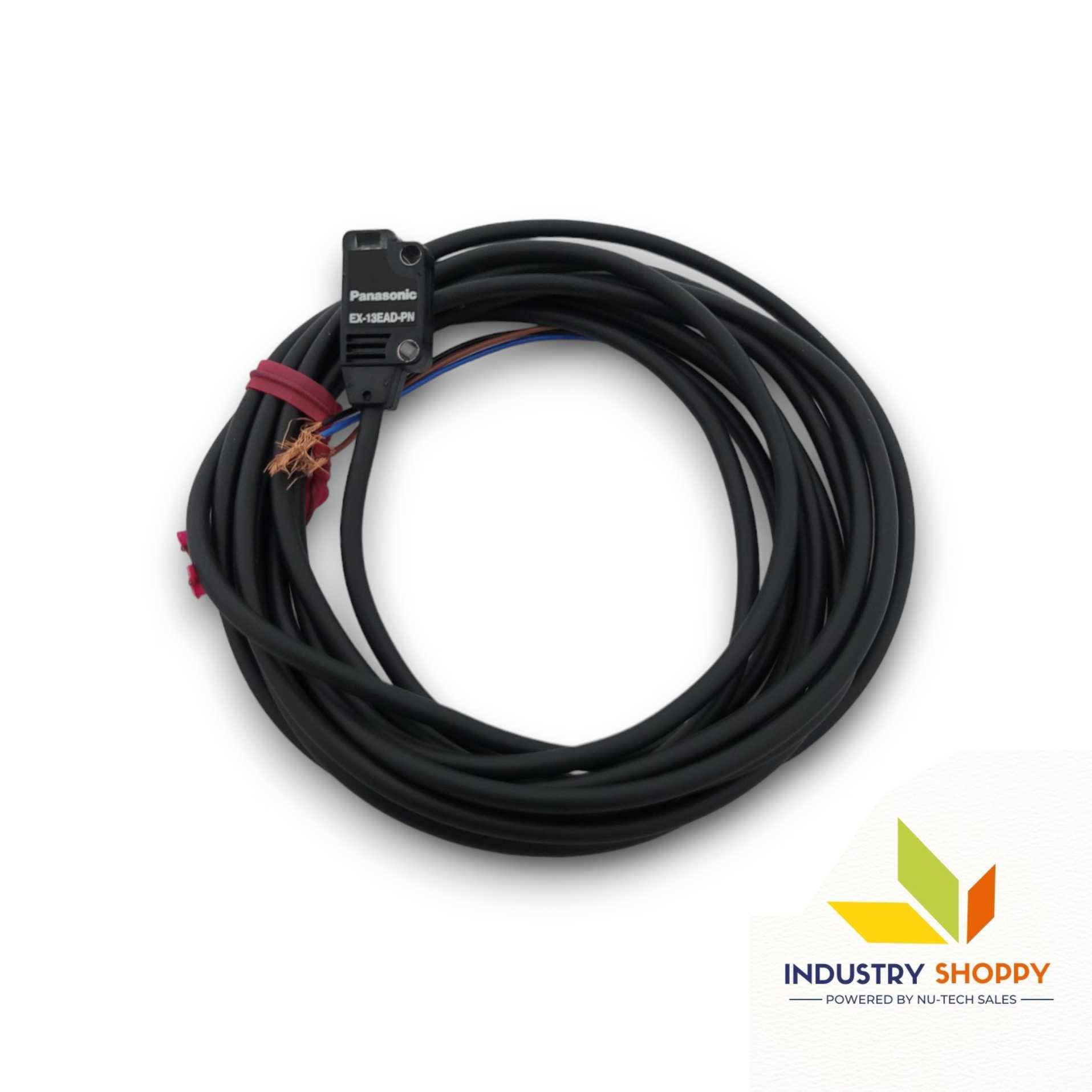

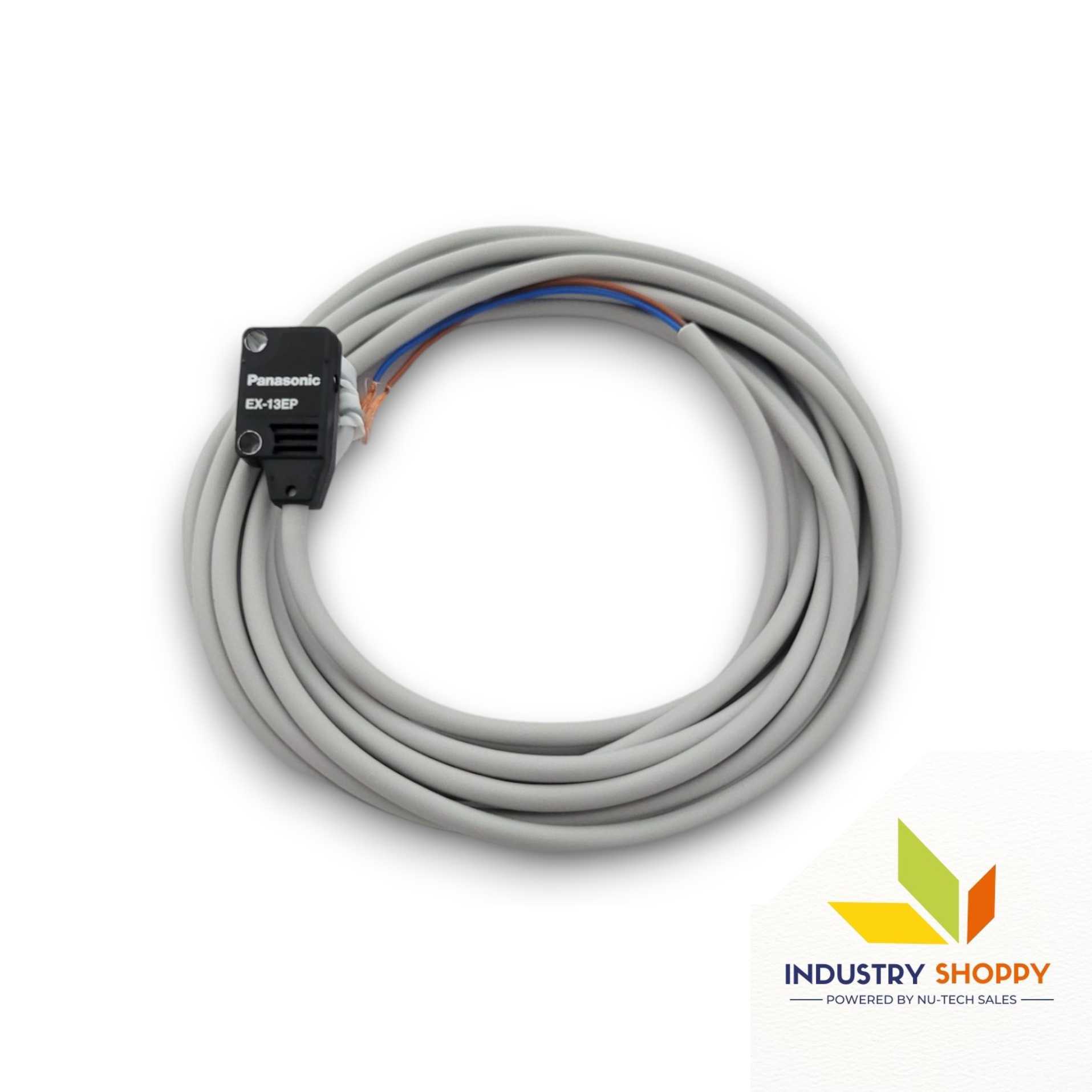

Panasonic EX-13EA-PN Photoelectric Sensor

The Panasonic EX-13EA-PN Photoelectric Sensor, compliant with CE Marking Directives including EMC and RoHS, offers a sensing range of 500 mm (19.685 in) and can detect ø2 mm (0.079 in) opaque objects. Operating on 12 to 24 V DC with low current consumption ensures energy efficiency and reliability. Equipped with a PNP open-collector transistor output and short-circuit protection, it meets Utilization Category DC-12 or DC-13 standards, ensuring seamless integration.

With an IP67 protection rating, the sensor is suitable for industrial environments, offering resilience against dust and water ingress. Its stable operation is indicated by an orange LED for output status and a green LED for stable light or dark conditions. Additionally, it features an operational temperature range of -25 to +55 ℃ (-13 to +131 ℉), ensuring functionality in varied environmental conditions.

Constructed with durable materials like polyethylene terephthalate for the enclosure and polyalylate for the lens, the Panasonic EX-13EA-PN withstands harsh industrial conditions. With a cable extension capability of up to 50 m (164 ft), it offers flexible installation, adapting to various applications. Each sensor comes with mounting screws for easy installation. Made in Japan, it reflects Panasonic's commitment to quality and innovation, providing a reliable solution for industrial sensing applications.

Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!

Facebook, YouTube,


BrandPanasonic
Product NumberEX-13EA-PN
Part NumberUEX13EAPN
CE Marking Directive Compliance・EMC Directive ： EN 60947-5-2
 ãƒ»RoHS Directive
 ãƒ»ISO 13849-1 (Category 1, PLc) (Note)
 (Note) : Conformed from December 2021 production.
Sensing Range500 mm 19.685 in
Min. Sensing Objectø2 mm ø0.079 in opaque object (Completely beam interrupted object) (Setting distance between emitter and receiver: 500 mm 19.685 in)
Hysteresis-
Repeatability (Perpendicular to Sensing Axis)0.05 mm 0.002 in or less
Supply Voltage12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less
Current ConsumptionEmitter: 10 mA or less
 Receiver: 10 mA or less
OutputPNP open-collector transistor
 - Maximum sink current: 50 mA
 - Applied voltage: 30 V DC or less (between output and 0 V)
 - Residual voltage: 2 V or less (at 50 mA sink current),1 V or less (at 16 mA source current)
Output: Utilization CategoryDC-12 or DC-13
Output: Short-Circuit ProtectionIncorporated
Response Time0.5 ms or less
Operation IndicatorOrange LED (lights up when the output is ON)
Incident Beam Indicator-
Stability IndicatorGreen LED (lights up under stable light received condition or stable dark condition)
Pollution Degree3 (Industrial environment)
ProtectionIP67 (IEC)
Ambient Temperature-25 to +55 ℃ -13 to +131 ℉ (No dew condensation or icing allowed), Storage: -30 to +70 ℃ -22 to +158 ℉
Ambient Humidity35 to 85 % RH, Storage: 35 to 85 % RH
Ambient IlluminanceIncandescent light: 3,000 lx or less at the light-receiving face
Voltage Withstandability1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation Resistance20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration Resistance10 to 500 Hz frequency, 3 mm 0.118 in double amplitude (20 G max.) in X, Y and Z directions for two hours each
Shock Resistance500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each
Emitting ElementRed LED (Peak emission wavelength: 680 nm 0.027 mil, modulated)
MaterialEnclosure: Polyethylene terephthalate
 Lens: Polyalylate
Cable0.1 mm2 3-core (emitter: 2-core) cabtyre cable, 2 m 6.562 ft long
Cable ExtensionExtension up to total 50 m 164 ft is possible with 0.3 mm2, or more, cable (emitter and receiver).
 (Note) : For safety applications, do not exceed 30 m 98.425 ft.
Weight (Typ.)Net weight (each emitter and receiver): 20 g approx
 Gross weight: 50 g approx

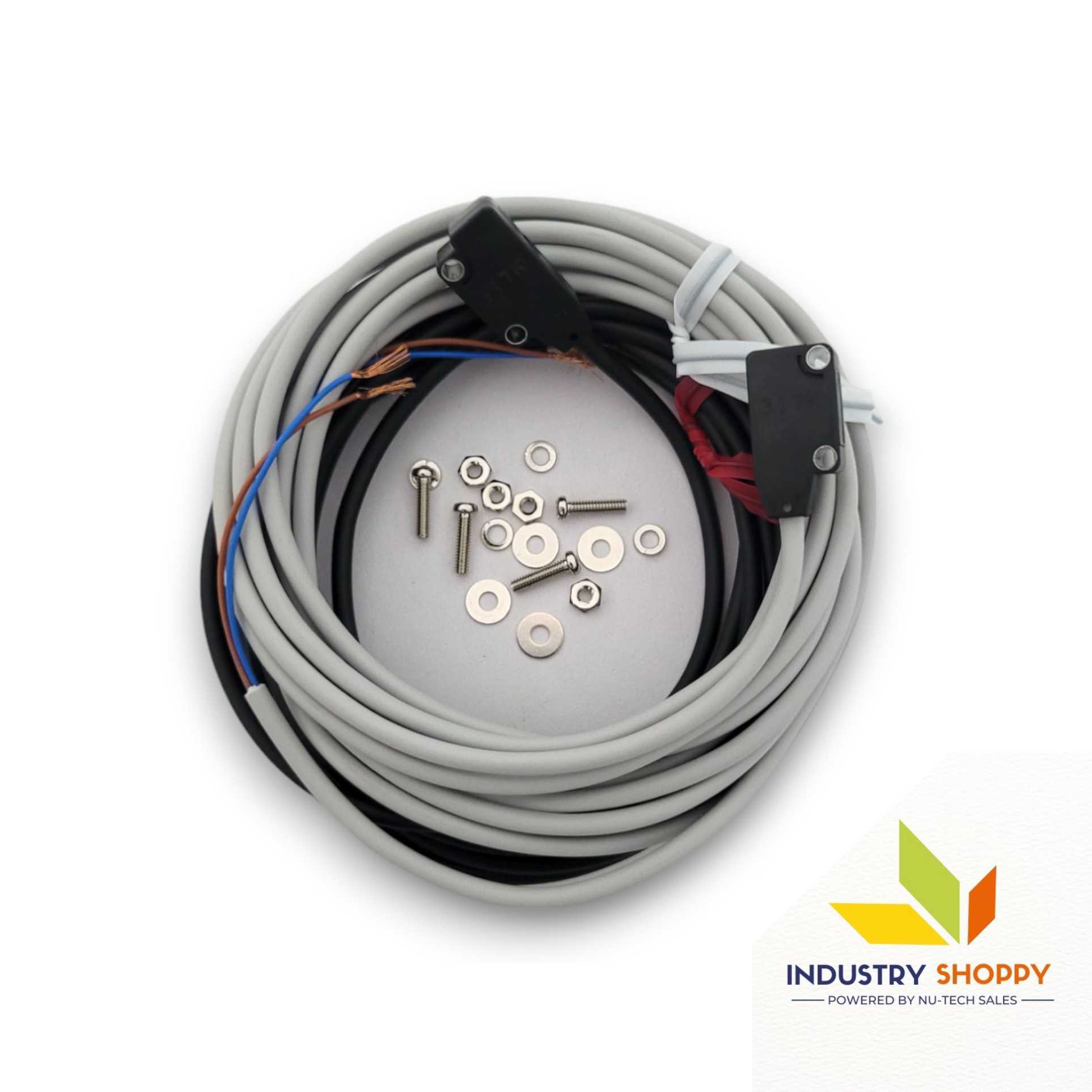

AccessoryMounting screws: 1 set
CertificationUL certification, Korea’s S-mark certification
Country of originJapan
