Panasonic EX-13A Photoelectric Sensor
Panasonic EX-13A Photoelectric Sensor
Panasonic EX-13A Photoelectric Sensor
Panasonic EX-13A Photoelectric Sensor
Panasonic EX-13A Photoelectric Sensor
Panasonic EX-13A Photoelectric Sensor
Panasonic EX-13A Photoelectric Sensor
Panasonic EX-13A Photoelectric Sensor
Panasonic EX-13A Photoelectric Sensor
Panasonic EX-13A Photoelectric Sensor
Panasonic

Panasonic EX-13A Photoelectric Sensor

Product SKU: NTSSEN00183
Available:
Only 19 items in stock
19 items in stock
In stock
Pre-order
Out of stock
  • Brand : Panasonic
  • Supply Voltage : 12 to 24 V DC ±10 % Ripple P-P 10 % or less
  • Output : NPN open-collector transistor
  • Connecting method : Cable
  • Warranty : 12 Months
Rs. 2,565.00
Rs. 3,880.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

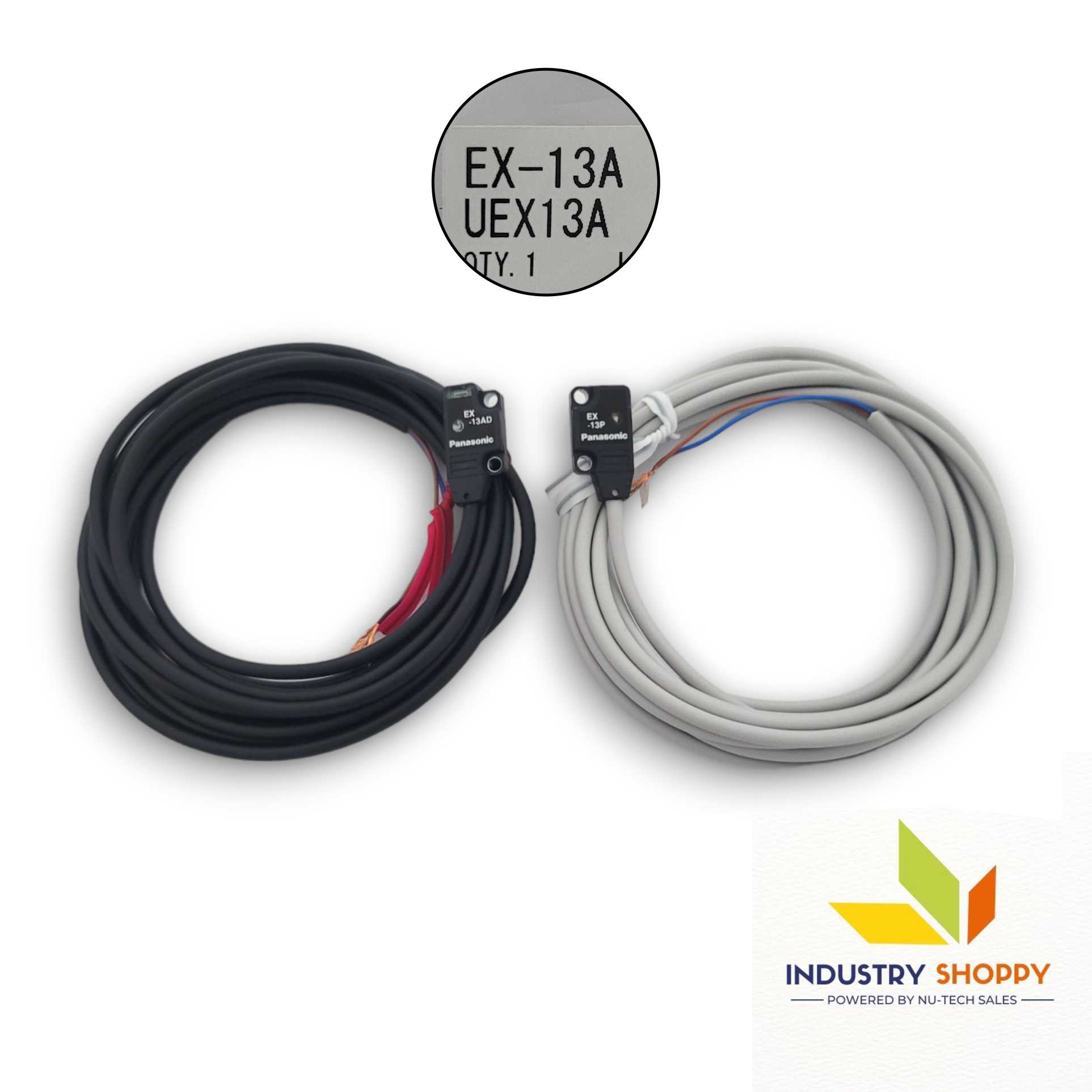

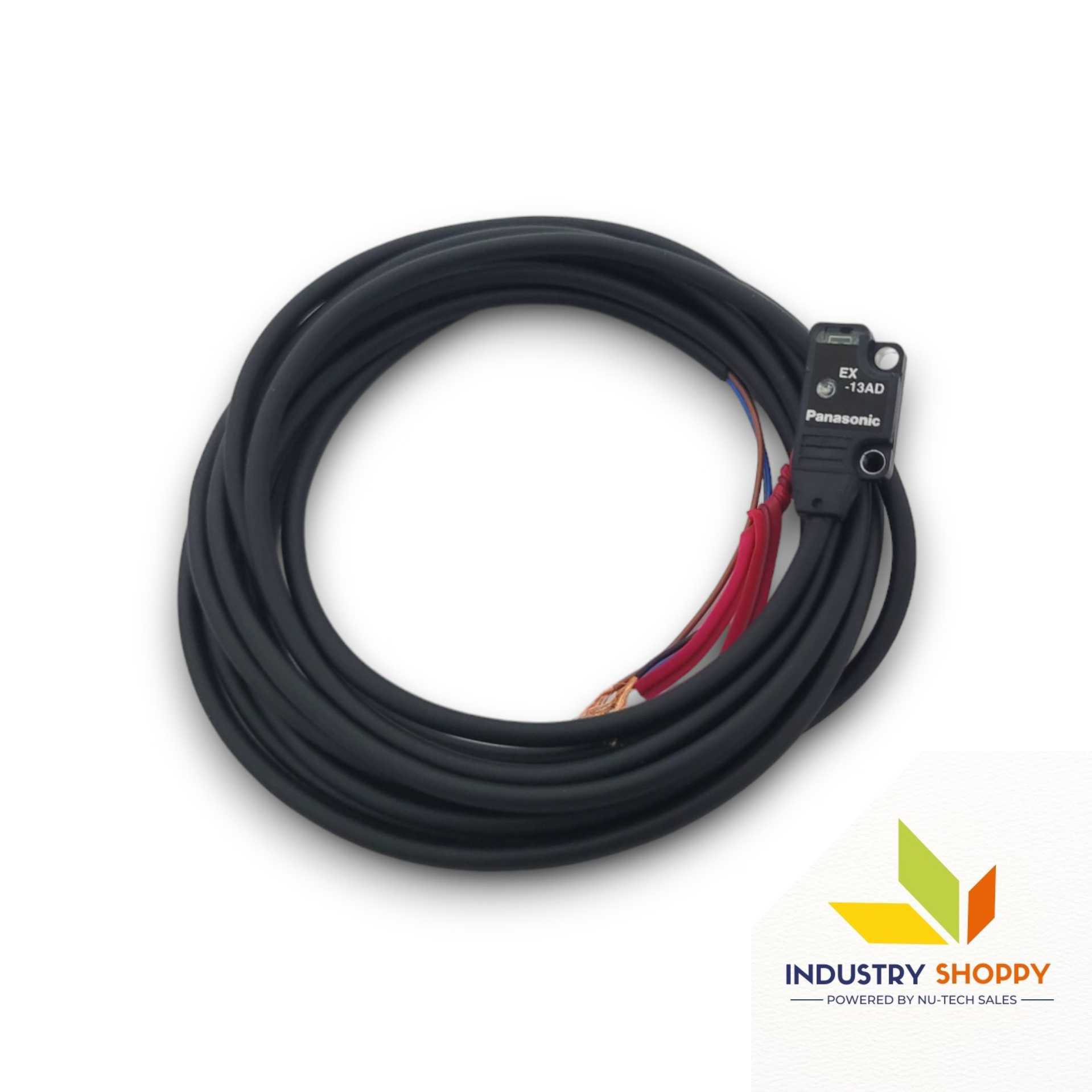

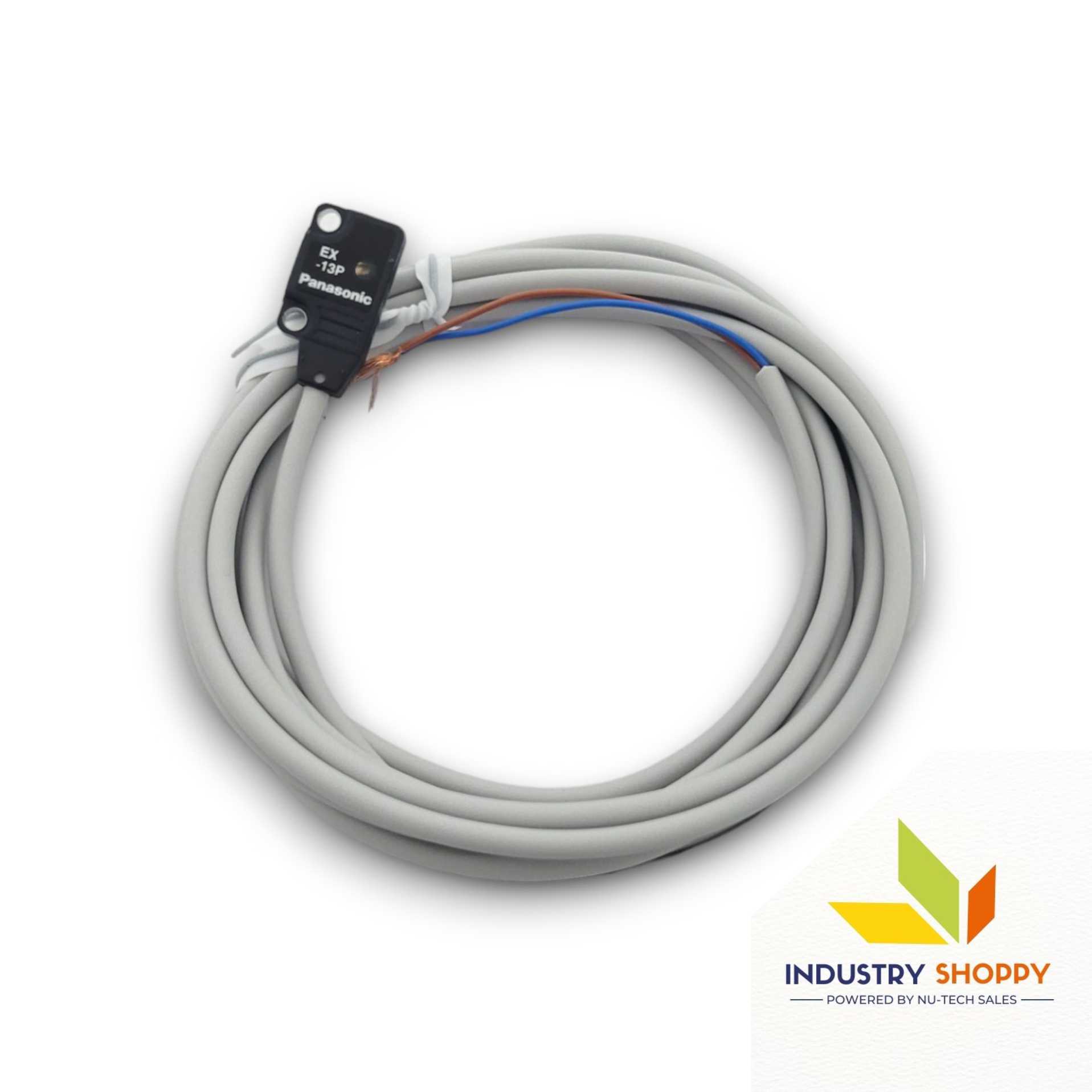

Panasonic EX-13A Photoelectric Sensor

The Panasonic EX-13A Photoelectric Sensor, part number UEX13A, complies with multiple directives, including EMC Directive EN 60947-5-2, RoHS Directive, and ISO 13849-1 as of December 2021 production. It features a sensing range of 500 mm (19.685 in) and detects objects as small as ø2 mm (0.079 in) at that distance. The sensor operates on 12 to 24 V DC with a ripple P-P of 10% or less.

The Panasonic EX-13A Photoelectric Sensor uses an NPN open-collector transistor output. It has a maximum sink current of 50 mA and an applied voltage of 30 V DC or less. The residual voltage is 2 V or less at 50 mA sink current. It is 1 V or less at 16 mA sink current. It includes short-circuit protection and meets Utilization Category DC-12 or DC-13 standards. The sensor has a fast response time of 0.5 ms or less. It features an orange LED for operation indication and a green LED for stability indication in stable light or dark conditions. It suits industrial environments with a pollution degree of 3 and meets an IP67 (IEC) protection rating.

The EX-13A withstands ambient temperatures from -25 to +55 ℃ (-13 to +131 ℉) without suffering from dew condensation or icing. It also tolerates storage conditions between -30 and +70 ℃ (-22 to +158 ℉), maintaining reliability across a wide thermal range.It can handle ambient humidity levels of 35 to 85% RH.

Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!

Facebook, YouTube,


BrandPanasonic
Product NumberEX-13A
Part NumberUEX13A
CE Marking Directive ComplianceEMC Directive: EN 60947-5-2, RoHS Directive, ISO 13849-1 (Category 1, PLc) (Conformed from Dec 2021 production)
Sensing Range500 mm (19.685 in)
Minimum Sensing ObjectØ2 mm (0.079 in) opaque object (completely beam interrupted at 500 mm)
Hysteresis-
Repeatability (Perpendicular to Sensing Axis)0.05 mm (0.002 in) or less
Supply Voltage12 to 24 V DC ±10%, Ripple P-P 10% or less
Current ConsumptionEmitter: ≤10 mA, Receiver: ≤10 mA
OutputNPN open-collector transistor, Max sink current: 50 mA, Applied voltage: ≤30 V DC, Residual voltage: ≤2 V (50 mA), ≤1 V (16 mA)
Output Utilization CategoryDC-12 or DC-13
Output Short-Circuit ProtectionIncorporated
Response Time≤0.5 ms
Operation IndicatorOrange LED (ON when output is ON)
Incident Beam Indicator-
Stability IndicatorGreen LED (lights under stable light/dark conditions)
Pollution Degree3 (Industrial environment)
ProtectionIP67 (IEC)
Ambient Temperature-25 to +55 °C (-13 to +131 °F), Storage: -30 to +70 °C (-22 to +158 °F)
Ambient Humidity35 to 85% RH, Storage: 35 to 85% RH
Ambient IlluminanceIncandescent light: ≤3,000 lx at the receiver face
Voltage Withstandability1,000 V AC for 1 min between all supply terminals connected together and enclosure
Insulation Resistance≥20 MΩ with 250 V DC megger between terminals and enclosure
Vibration Resistance10–500 Hz, 3 mm double amplitude (20 G max), X/Y/Z directions, 2 hours each
Shock Resistance500 m/s² (≈50 G) X/Y/Z directions, 3 times each
Emitting ElementRed LED, Peak wavelength: 680 nm (modulated)
MaterialEnclosure: Polyethylene terephthalate, Lens: Polyalylate
Cable0.1 mm² 3-core (emitter: 2-core) cabtyre cable, 2 m (6.562 ft)
Cable ExtensionUp to 50 m (164 ft) with ≥0.3 mm² cable; for safety applications, ≤30 m (98.425 ft)

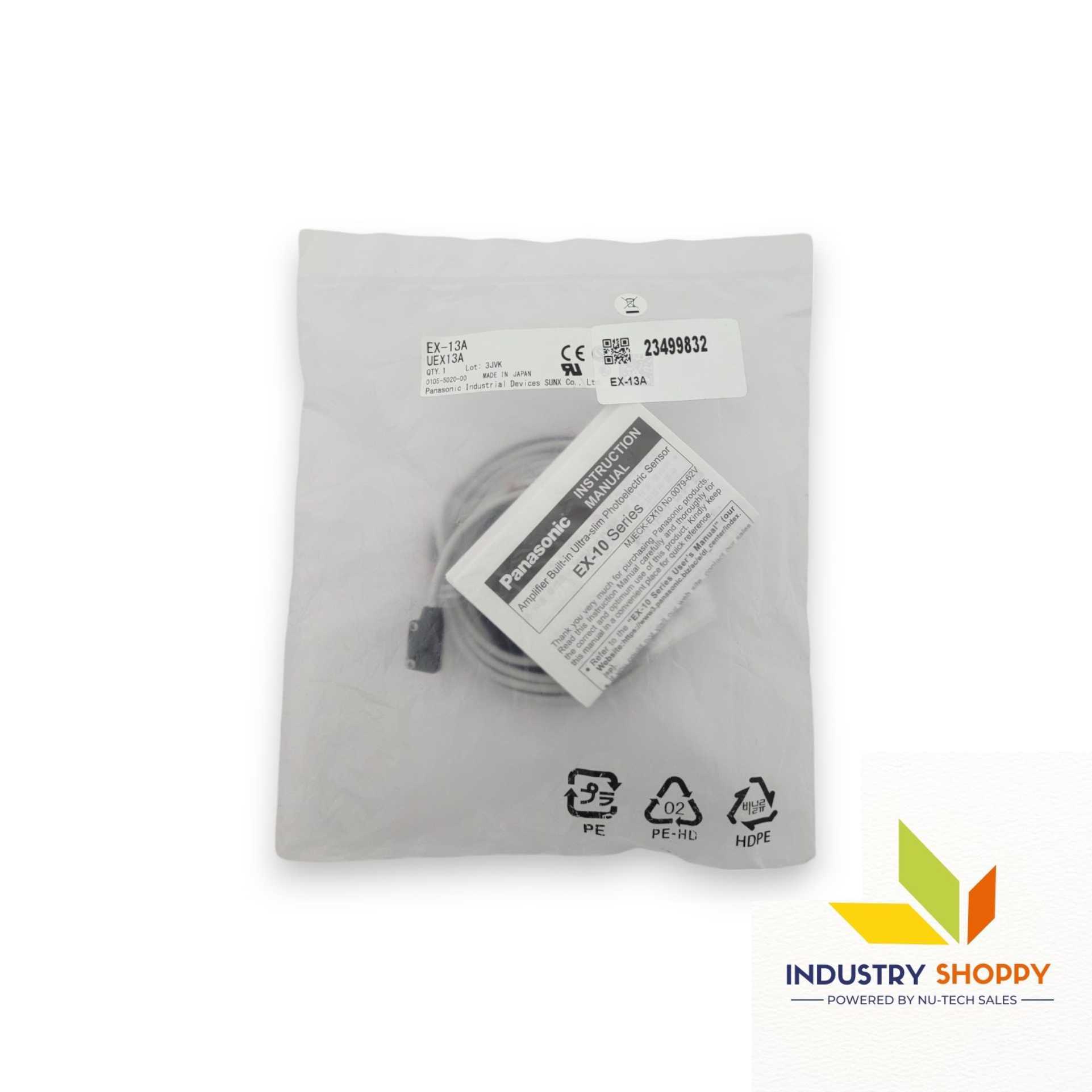

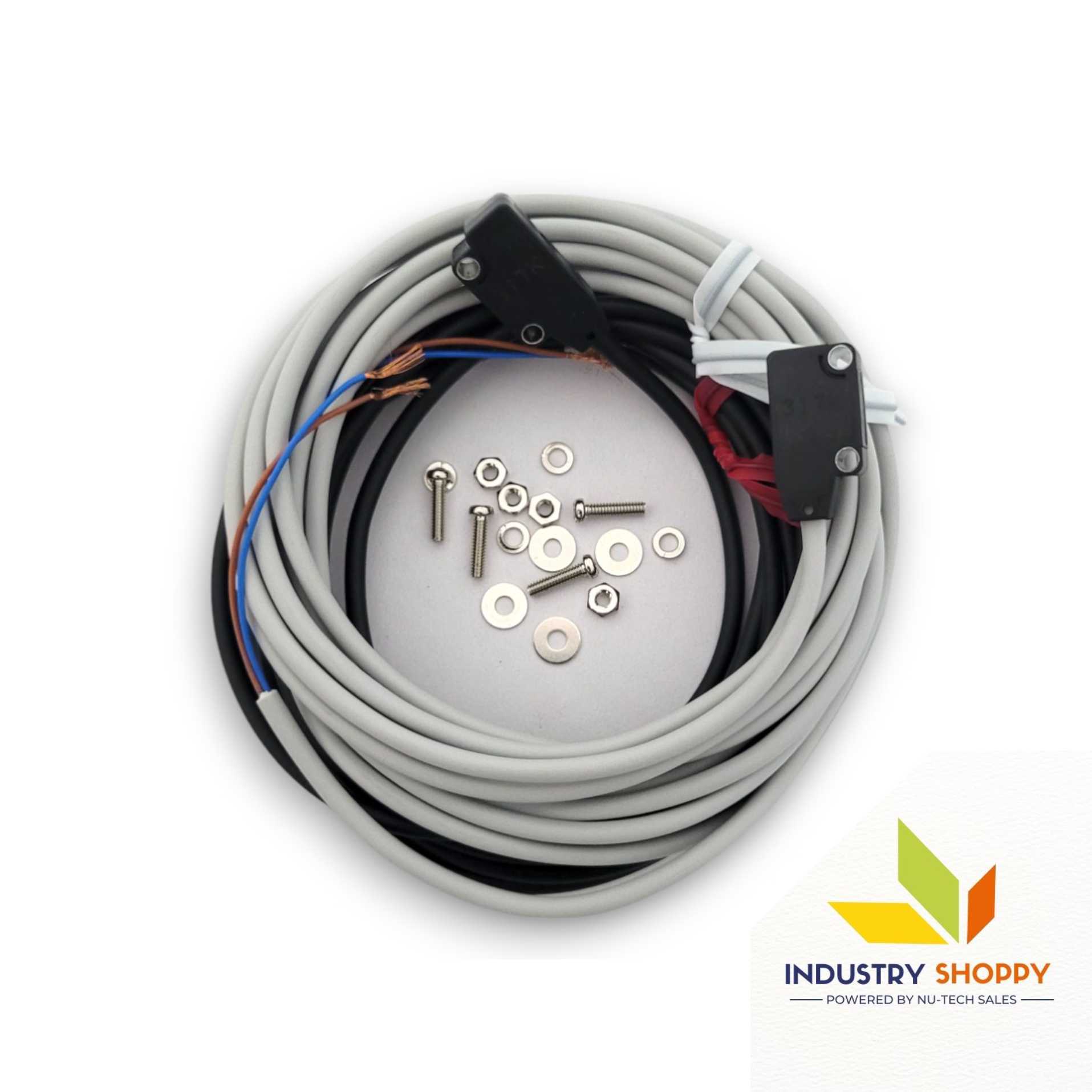

AccessoryMounting screws: 1 set
CertificationUL certification, Korea’s S-mark certification
Country of OriginJapan
