Panasonic EX-11EA Photoelectric Sensor
Panasonic EX-11EA Photoelectric Sensor
Panasonic EX-11EA Photoelectric Sensor
Panasonic EX-11EA Photoelectric Sensor
Panasonic EX-11EA Photoelectric Sensor
Panasonic EX-11EA Photoelectric Sensor
Panasonic EX-11EA Photoelectric Sensor
Panasonic EX-11EA Photoelectric Sensor
Panasonic EX-11EA Photoelectric Sensor
Panasonic EX-11EA Photoelectric Sensor
Panasonic

Panasonic EX-11EA Photoelectric Sensor

Product SKU: NTSSEN00357
Available:
Only 35 items in stock
35 items in stock
In stock
Pre-order
Out of stock
  • Brand : Panasonic
  • Supply Voltage : 12 to 24 V DC ±10 % Ripple P-P 10 % or less
  • Output : NPN open-collector transistor
  • Connecting method : Cable
  • Warranty : 12 Months
Rs. 2,950.00
Rs. 4,880.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

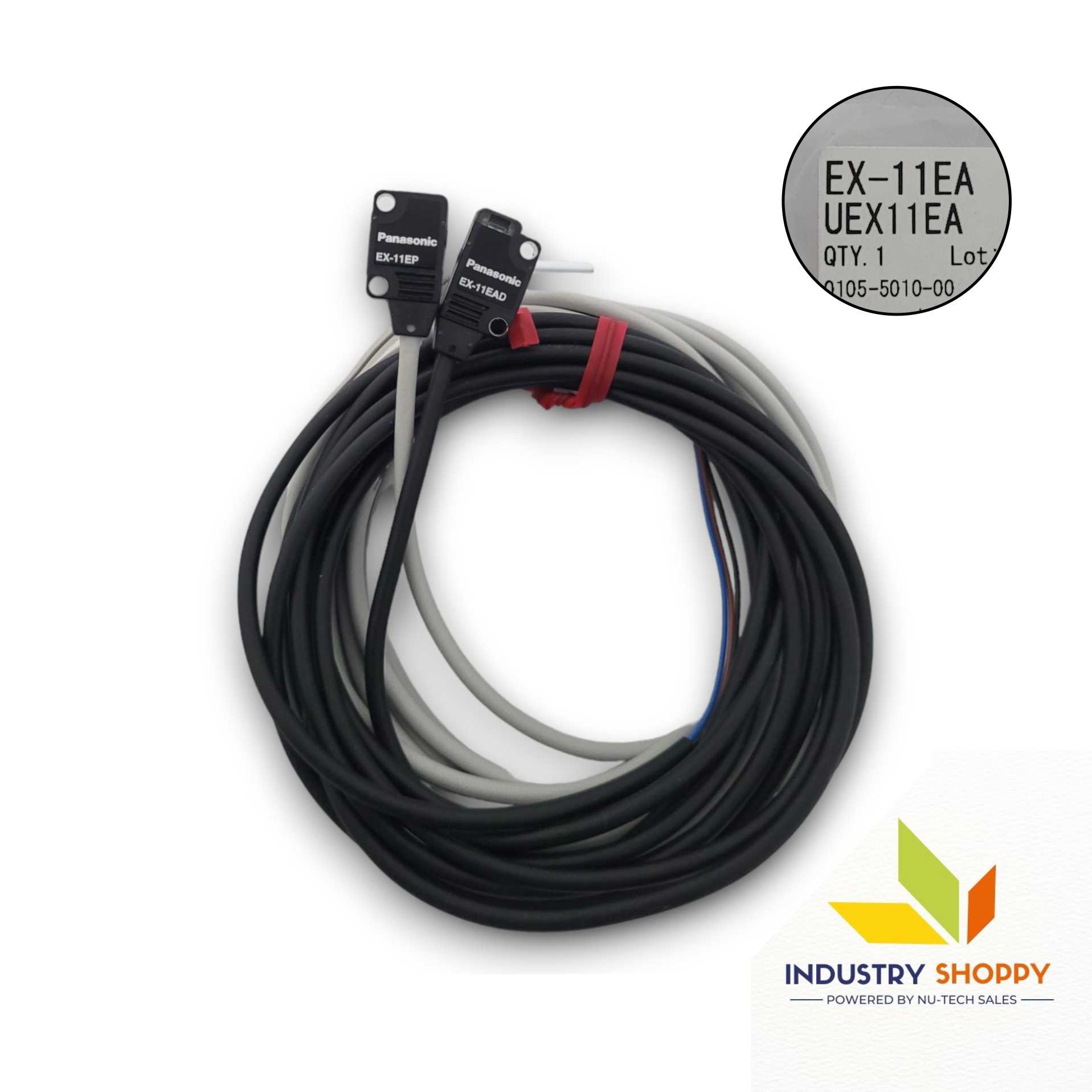

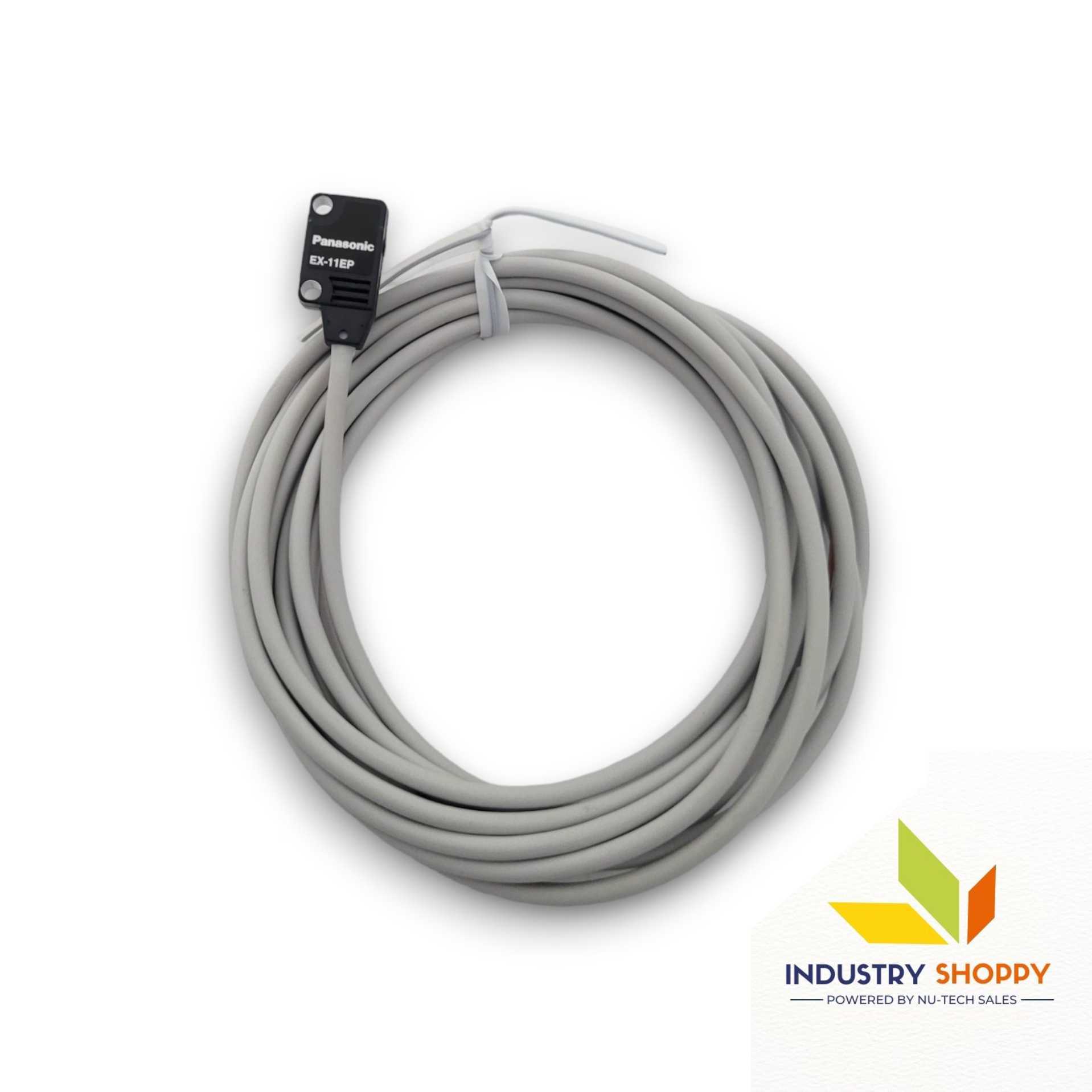

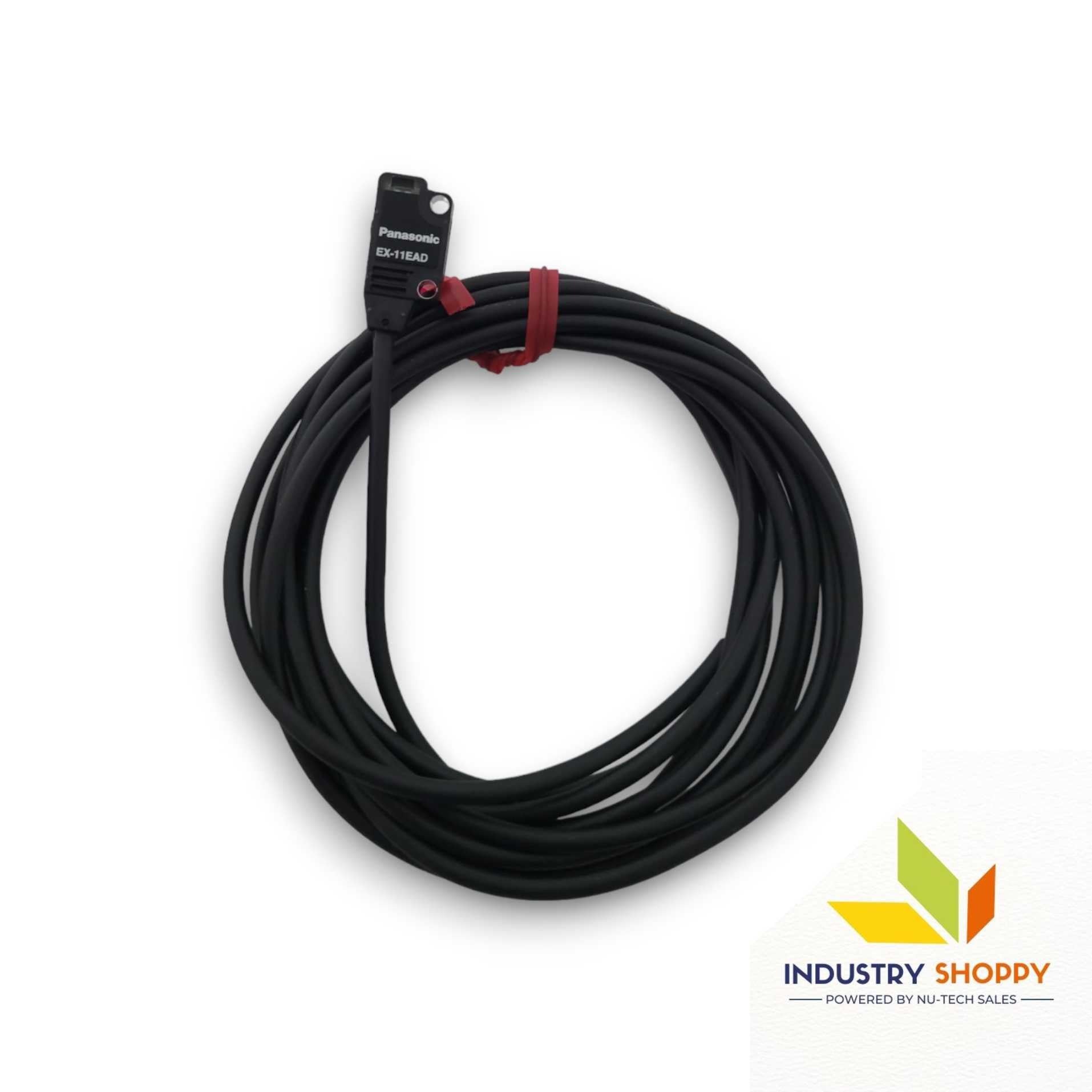

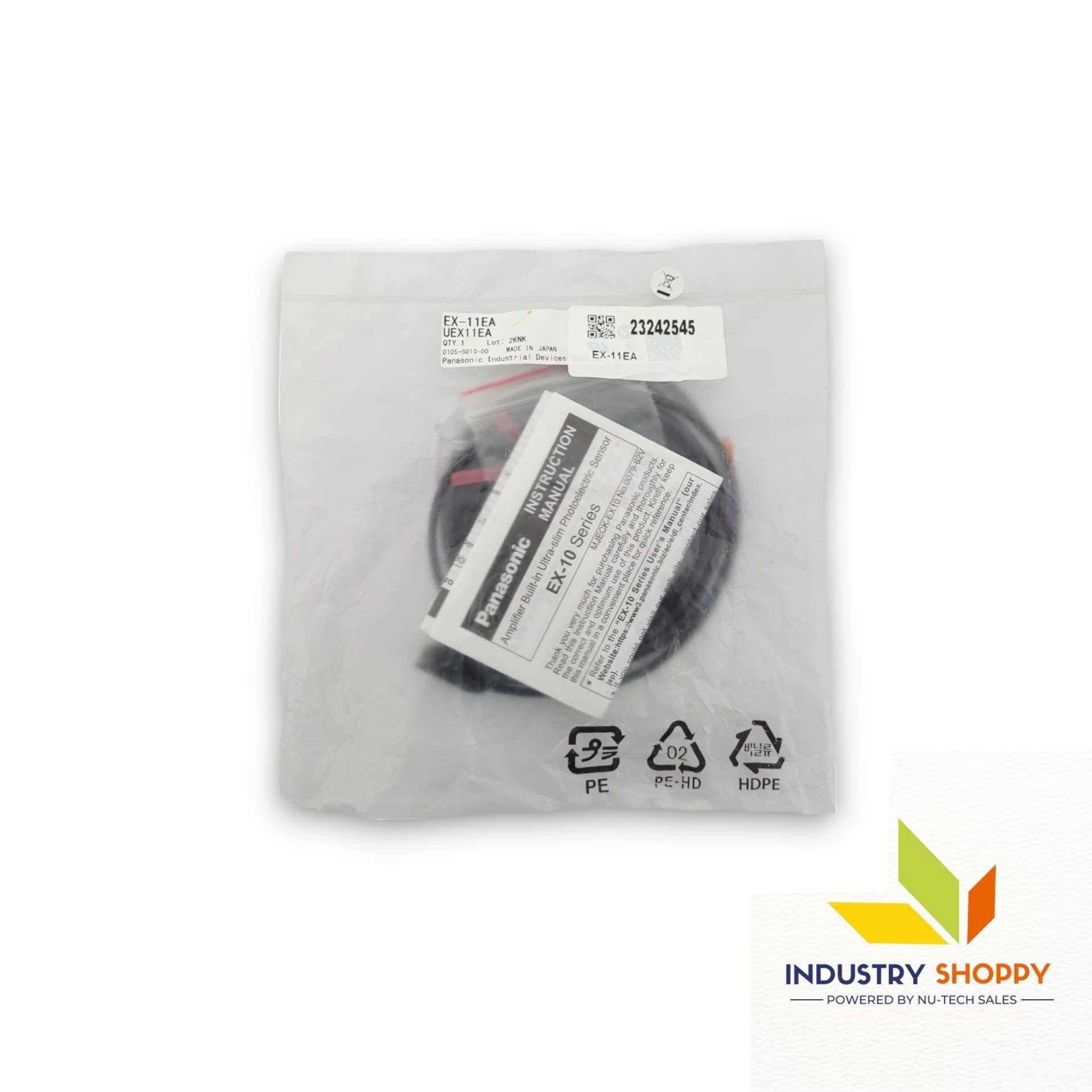

Panasonic EX-11EA Photoelectric Sensor

The Panasonic EX-11EA Photoelectric Sensor, compliant with EMC Directive EN 60947-5-2 and RoHS Directive, features a sensing range of 150 mm and can detect objects as small as ø1 mm. Operating on a supply voltage of 12 to 24 V DC, the emitter and receiver of the sensor exhibit low current consumption, enhancing energy efficiency. They ensure reliable performance with an NPN open-collector transistor output and incorporate short-circuit protection. The sensor seamlessly integrates into control systems, meeting Utilization Category DC-12 or DC-13 standards effectively.

The Panasonic EX-11EA Photoelectric Sensor is designed for durability, boasting an IP67 rating for protection against dust and water ingress. It ensures reliable operation in industrial environments with an operational temperature range from -25 to +55 ℃. Additionally, it offers vibration resistance up to 500 m/s2 acceleration (50 G approx.). The sensor's cable extension capability allows for flexible installation, extending up to 50 m. This feature adheres to safety regulations while accommodating various application needs.

 Additionally, weighing approximately 20 g (net weight for each emitter and receiver) and featuring UL certification and Korea’s S-mark certification, it ensures reliable performance and compliance with international standards.



Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, YouTube,



Product NumberEX-11EA
Part NumberUEX11EA
CE Marking Directive Compliance• EMC Directive: EN 60947-5-2
• RoHS Directive
• ISO 13849-1 (Category 1, PLc)
(Conformed from Dec 2021 production)
Sensing Range150 mm / 5.906 in
Min. Sensing ObjectØ1 mm (0.039 in) opaque object (Completely beam interrupted at 150 mm / 5.906 in)
Hysteresis-
Repeatability (Perpendicular to Sensing Axis)0.05 mm / 0.002 in or less
Supply Voltage12 to 24 V DC ±10% Ripple P-P 10% or less
Current ConsumptionEmitter: 10 mA or less
Receiver: 10 mA or less
OutputNPN open-collector transistor
- Max sink current: 50 mA
- Applied voltage: 30 V DC or less (between output & 0 V)
- Residual voltage: 2 V or less (at 50 mA), 1 V or less (at 16 mA)
Output Utilization CategoryDC-12 or DC-13
Output Short-Circuit ProtectionIncorporated
Response Time0.5 ms or less
Operation IndicatorOrange LED (ON when output is ON)
Incident Beam Indicator-
Stability IndicatorGreen LED (ON under stable light/dark condition)
Pollution Degree3 (Industrial environment)
ProtectionIP67 (IEC)
Ambient Temperature-25 to +55 °C (-13 to +131 °F), Storage: -30 to +70 °C (-22 to +158 °F)
(No dew condensation or icing allowed)
Ambient Humidity35 to 85% RH, Storage: 35 to 85% RH
Ambient IlluminanceIncandescent light: 3,000 lx or less at receiving face
Voltage Withstandability1,000 V AC for 1 min between all supply terminals & enclosure
Insulation Resistance20 MΩ or more (250 V DC megger, terminals connected to enclosure)
Vibration Resistance10 to 500 Hz, 3 mm (0.118 in) double amplitude (20 G max) in X, Y, Z directions, 2 hrs each
Shock Resistance500 m/s² (≈50 G) in X, Y, Z directions, 3 times each
Emitting ElementRed LED (680 nm, modulated)
MaterialEnclosure: Polyethylene terephthalate
Lens: Polyalylate
Cable0.1 mm² 3-core (emitter: 2-core) cabtyre cable, 2 m (6.562 ft) long
Cable ExtensionUp to 50 m (164 ft) with ≥0.3 mm² cable (emitter & receiver)
Note: For safety applications, ≤30 m (98.425 ft)

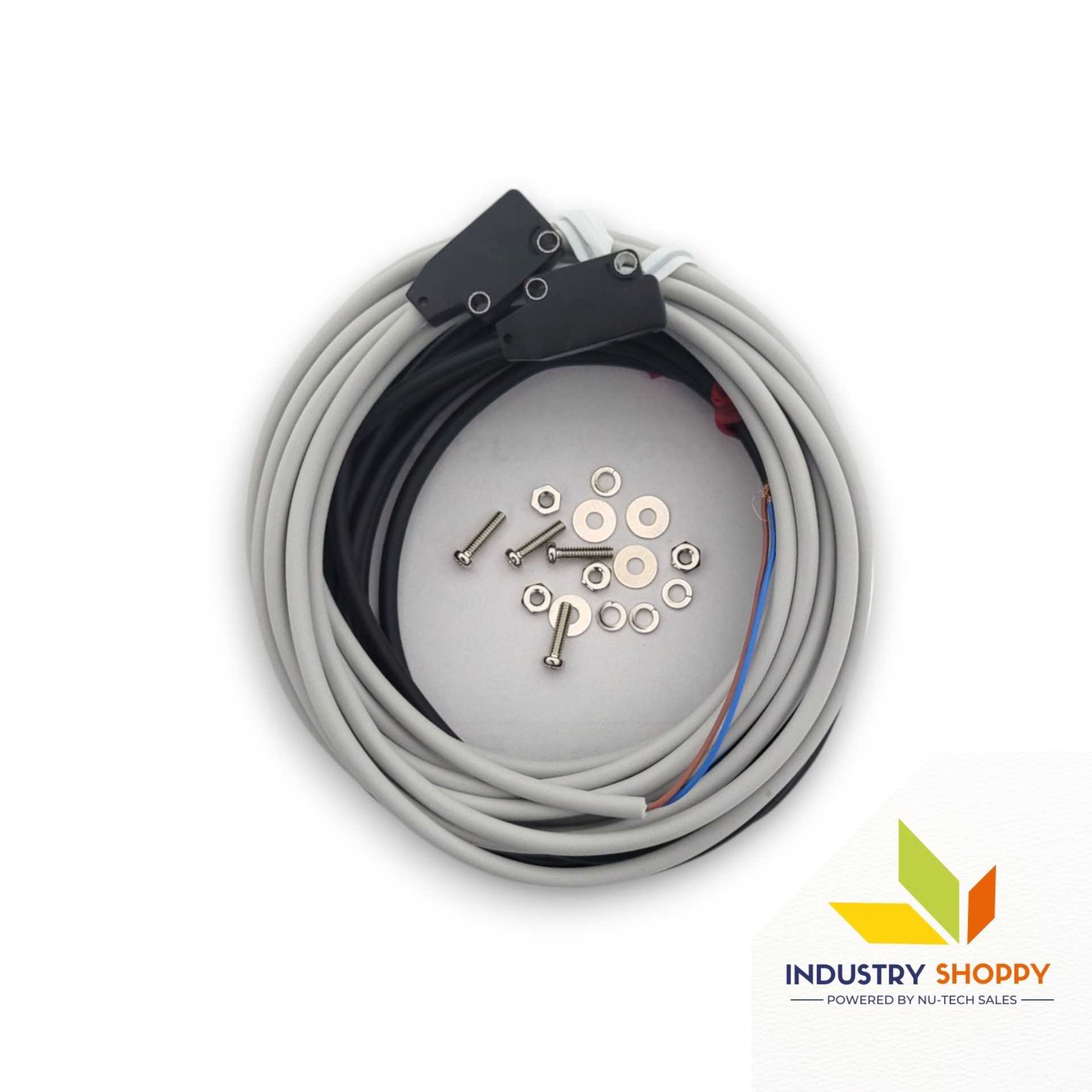

AccessoryMounting screws: 1 set
CertificationUL certification, Korea S-mark certification
Country of OriginJapan
