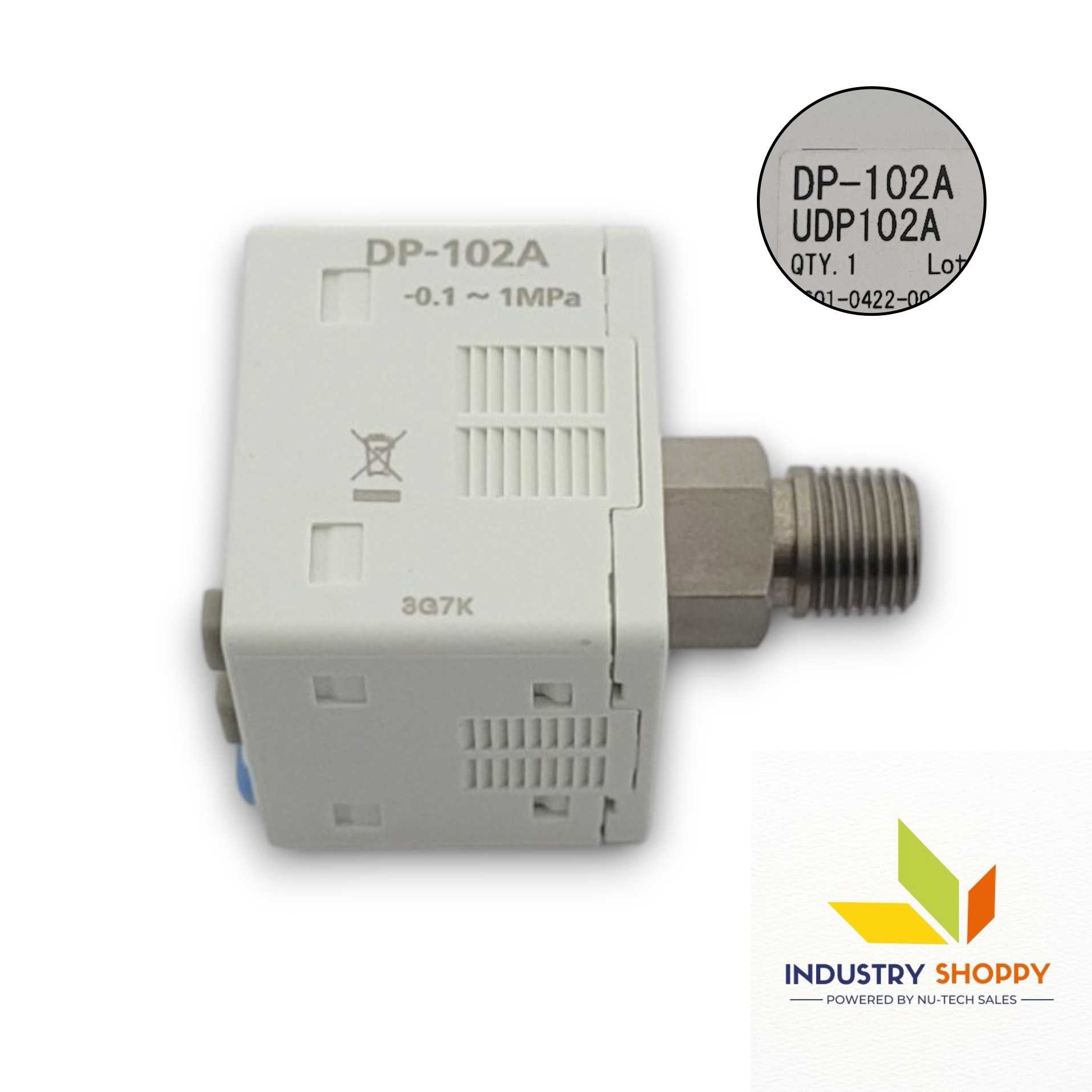

Panasonic DP-102A Digital Pressure Sensor

The Panasonic DP-102A Digital Pressure Sensor is a gauge pressure sensor with a rated pressure range of -0.100 to +1.000 MPa. It complies with CE Marking (EMC Directive, RoHS Directive) and UKCA Marking (EMC Regulations, RoHS Regulations). This sensor operates on a 12 to 24 V DC supply voltage. It consumes 720 mW or less during normal operation. In ECO mode, it uses less power. It has NPN open-collector transistor comparative output with a maximum sink current of 100 mA.

The Panasonic DP-102A Digital Pressure Sensor offers a display with 4 digits + 4 digits 3-color LCD, capable of showing a pressure range of -0.101 to +1.010 MPa. Its response time is selectable from 2.5 ms to 5,000 ms via key operation. The sensor includes analog voltage output (0.6 to 5 V) and analog current output (2.4 to 20 mA), both featuring high linearity. It also has a short-circuit protection feature, ensuring reliability and safety in various applications.

Designed with durable materials like PBT for the enclosure and stainless steel for the pressure port, the DP-102A has an IP40 protection rating. It can withstand vibration frequencies from 10 to 500 Hz and shocks up to 100 m/s². It includes accessories such as a CN-14A-C2 connector attached cable. The product is manufactured in Japan, ensuring high-quality standards.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, YouTube,



BrandPanasonic
Product NumberDP-102A
Part NumberUDP102A
Regulatory Compliance & CertificationCE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations)
Type of PressureGauge pressure
Rated Pressure Range-0.100 to +1.000 MPa
Set Pressure Range-0.101 to +1.010 MPa
-101 to +1,010 kPa
-1.03 to +10.30 kgf/cm²
-1.01 to +10.10 bar
-14.6 to +146.4 psi
Pressure Withstandability1.5 MPa
Applicable FluidNon-corrosive gas
Supply Voltage12 to 24 V DC ±10 %, Ripple P-P 10 % or less
Power ConsumptionNormal operation: ≤720 mW (≤30 mA at 24 V DC)
ECO mode STD: ≤480 mW (≤20 mA at 24 V DC)
ECO mode FULL: ≤360 mW (≤15 mA at 24 V DC)
Comparative OutputNPN open-collector transistor
Applied voltage: ≤30 V DC
Max sink current: 100 mA
Residual voltage: ≤2 V at 100 mA
Comparative Output: OperationNO / NC (selectable by key operation)
Comparative Output: ModesEASY mode / Hysteresis mode / Window comparator mode
Comparative Output: HysteresisMinimum 1 digit (variable), 2 digits when using psi unit
Comparative Output: Repeatability±0.2 % F.S. (within ±2 digits)
Comparative Output: Response TimeSelectable: 2.5, 5, 10, 25, 50, 100, 250, 500, 1,000, 5,000 ms
Comparative Output: Short-Circuit ProtectionIncorporated
External InputON voltage: ≤0.4 V DC
OFF voltage: 5–30 V DC or open
Input impedance: ~10 kΩ
Input time: ≥1 ms
Analog Voltage Output0.6–5 V
Zero point: within 1 V ±5 % F.S.
Span: within 4.4 V ±5 % F.S.
Linearity: ±1 % F.S.
Output impedance: ~1 kΩ
Analog Current Output2.4–20 mA
Zero point: 4 mA ±5 % F.S.
Span: 17.6 mA ±5 % F.S.
Linearity: ±1 % F.S.
Load resistance: ≤250 Ω

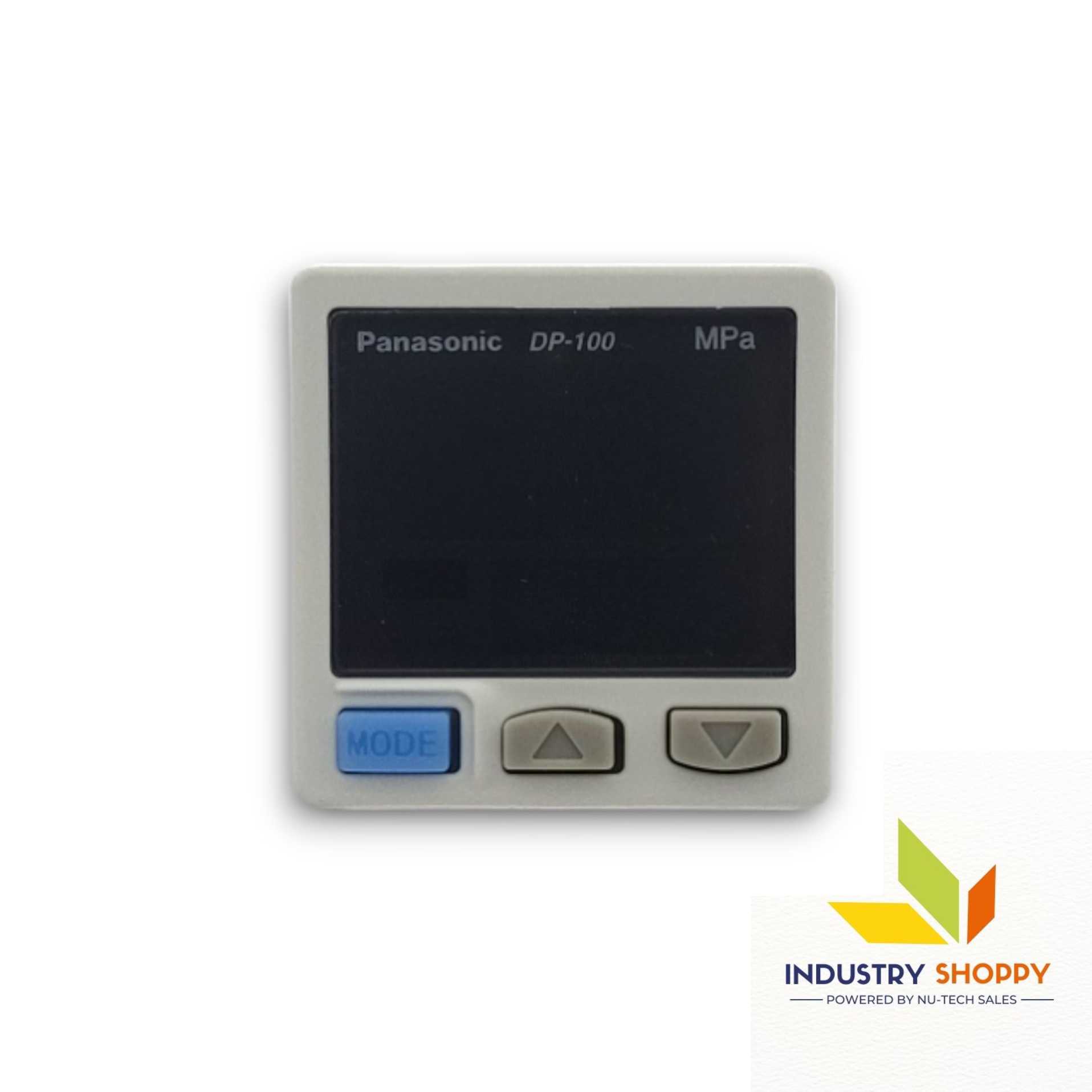

Display4 digits + 4 digits, 3-color LCD
Display refresh rate selectable: 250 ms / 500 ms / 1,000 ms
Display: Pressure Range-0.101 to +1.010 MPa
-101 to +1,010 kPa
-1.03 to +10.30 kgf/cm²
-1.01 to +10.10 bar
-14.6 to +146.4 psi
IndicatorOrange LED (Comparative output 1 ON, Analog voltage output operation)
ProtectionIP40 (IEC)
Ambient TemperatureOperating: -10 to +50 °C (+14 to +122 °F)
Storage: -10 to +60 °C (+14 to +140 °F)
Ambient Humidity35–85 % RH (No dew or icing)
Voltage Withstandability1,000 V AC for 1 min between all supply terminals connected together and enclosure
Insulation Resistance≥50 MΩ at 500 V DC between all supply terminals connected together and enclosure
Vibration Resistance10–500 Hz, 3 mm double amplitude or max 196 m/s², X/Y/Z directions, 2 hrs each
Panel mounted: 10–150 Hz, 0.75 mm amplitude or max 49 m/s², X/Y/Z directions, 2 hrs each
Shock Resistance100 m/s² (≈10 G), X/Y/Z directions, 3 times each
Temperature CharacteristicsWithin ±1 % F.S. at +20 °C (+68 °F)

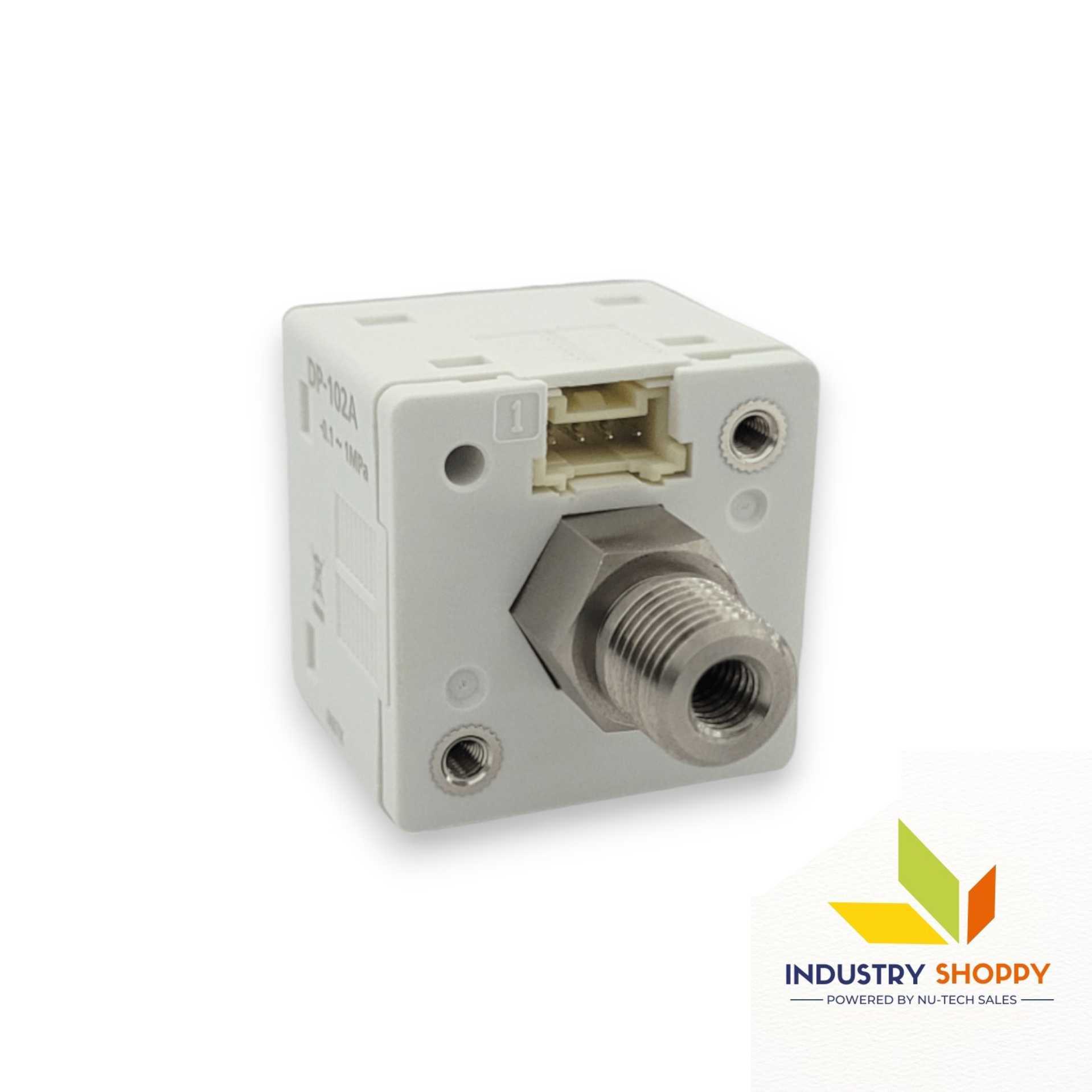

Pressure PortM5 female thread + R (PT) 1/8 male thread
MaterialEnclosure: PBT (glass fiber reinforced)
LCD display: Acrylic
Pressure port: Stainless steel (SUS303)
Mounting threaded part: Brass (nickel plated)
Switch part: Silicone rubber
Connecting MethodConnector
Cable LengthUp to 100 m (328.084 ft), ≤30 m (98.425 ft) for CE marking compliance, min 0.3 mm² cable

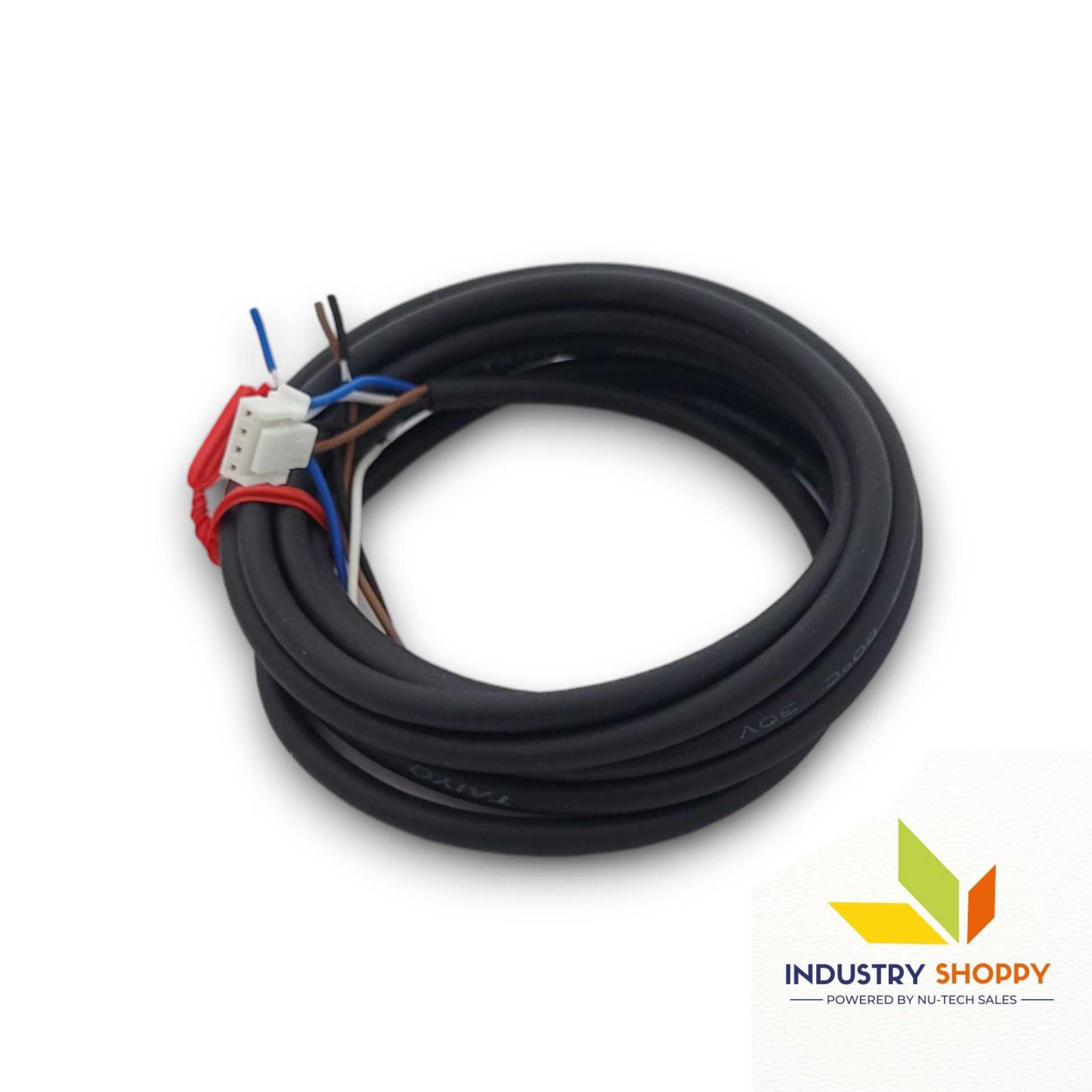

AccessoriesCN-14A-C2 (Connector attached cable 2 m / 6.562 ft), 1 pc (excluding M8 plug-in connector type)
Country of OriginJapan
