Panasonic CX-482-P Photoelectric Sensor

Product SKU: NTSSEN00073
Available:
Only 18 items in stock
18 items in stock
In stock
Pre-order
Out of stock
  • Brand : Panasonic
  • Supply Voltage : 12 to 24 V DC ±10 % Ripple P-P 10 % or less
  • Output : PNP open-collector transistor
  • Output operation : Switchable either Light-ON or Dark-ON
  • Warranty : 12 Months
Rs. 3,250.00
Rs. 3,850.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

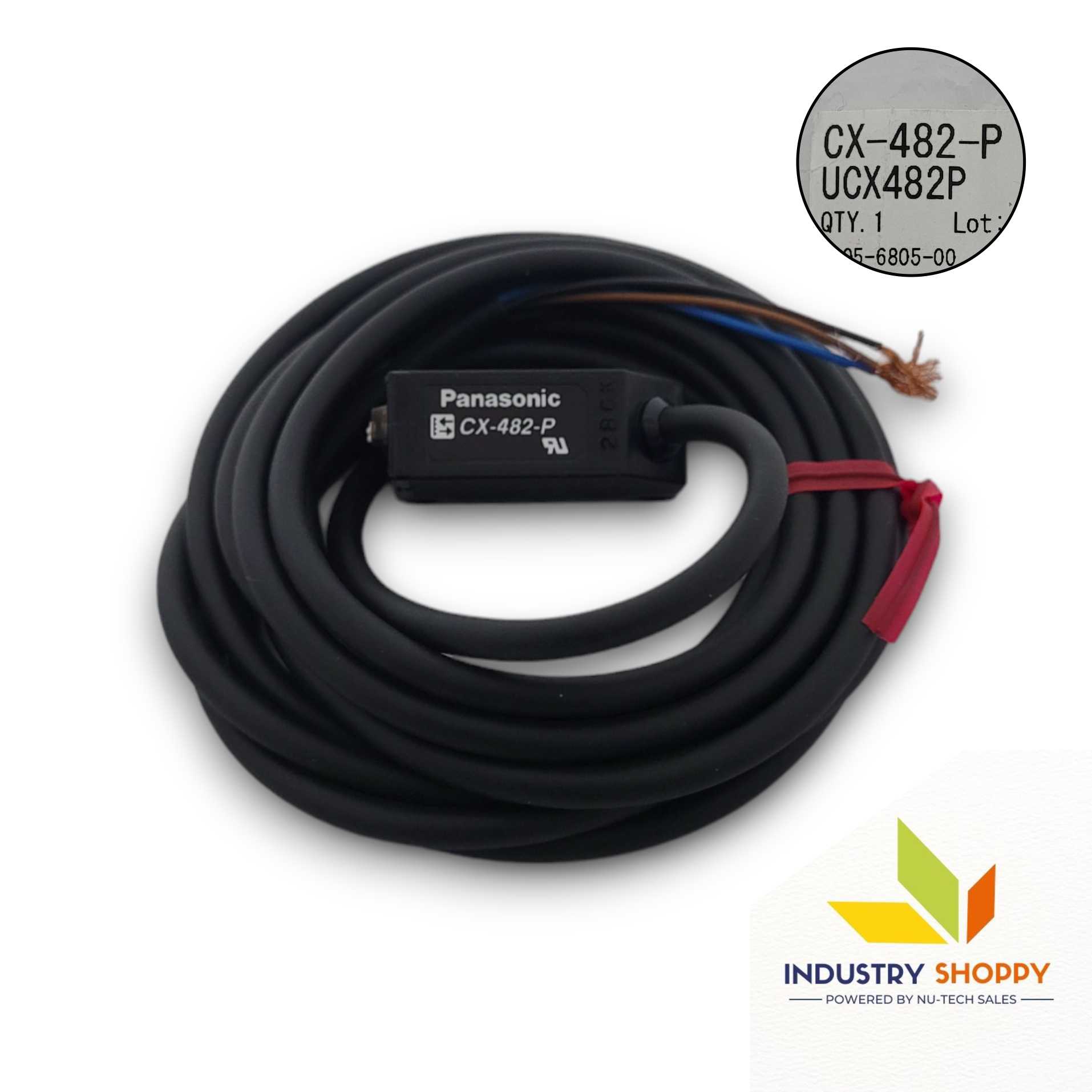

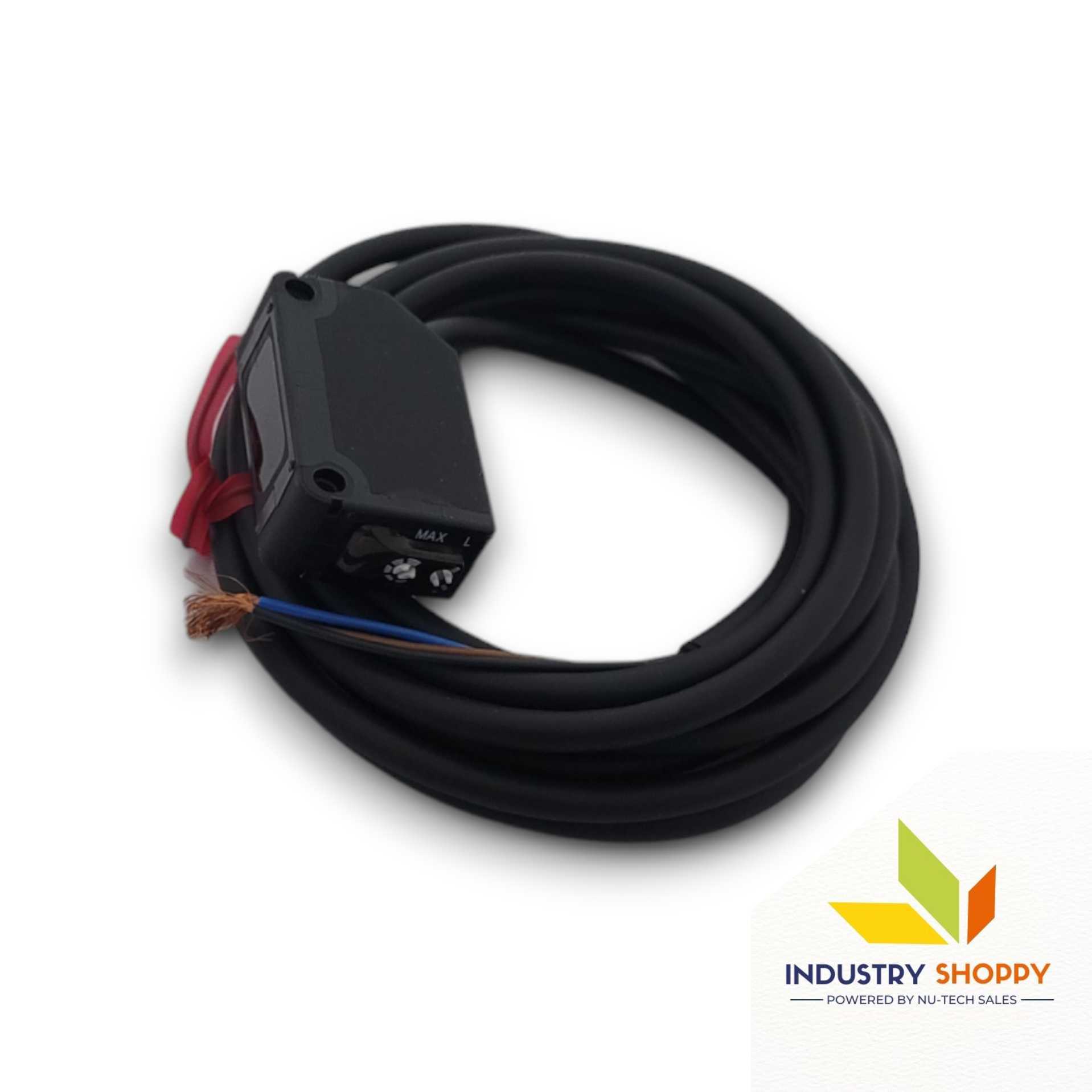

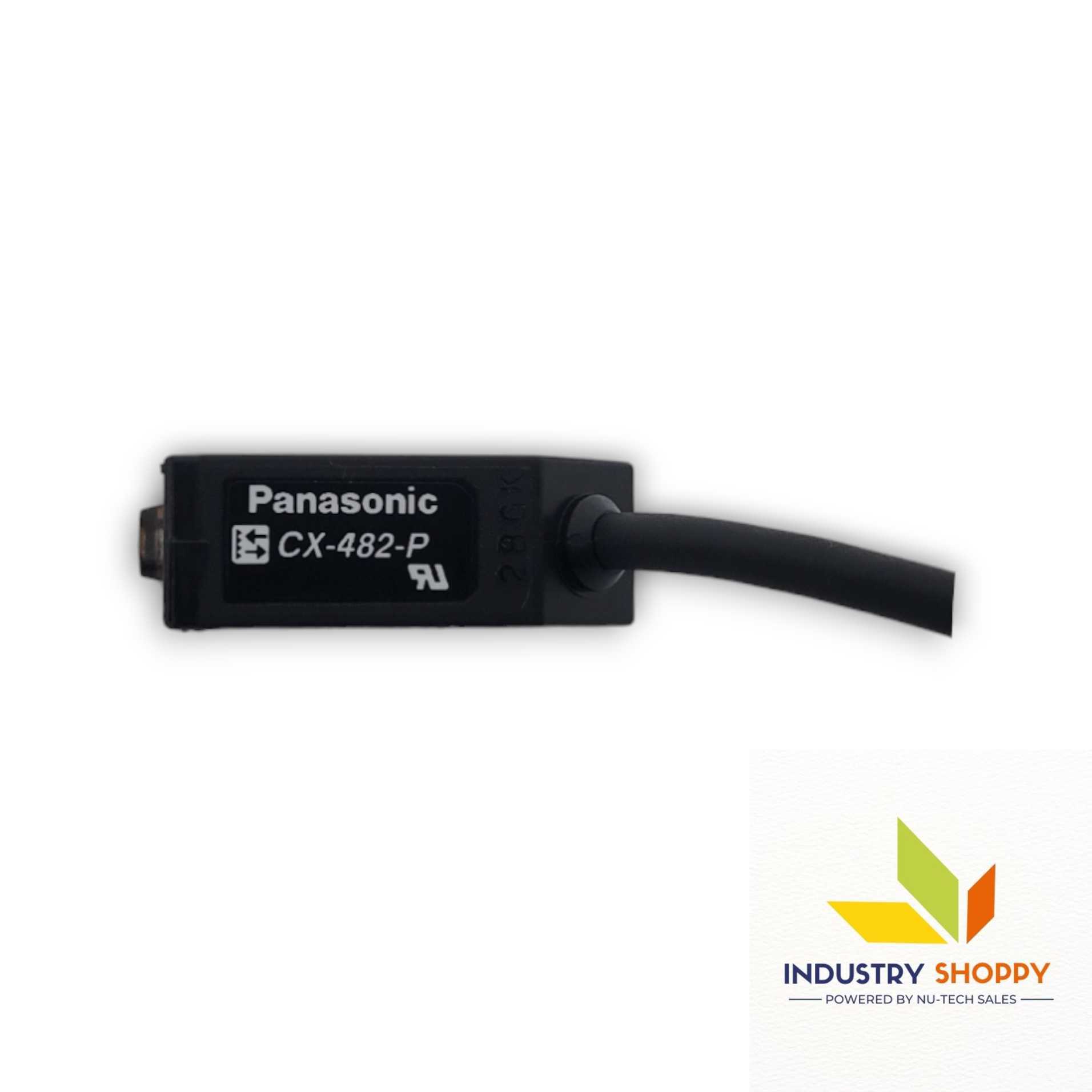

Panasonic CX-482-P Retroreflective Sensor

The Panasonic CX-482-P Retroreflective Sensor (CX482P, UCX482P), part number UCX482P, adheres to EMC and RoHS directives for compliance assurance. Its sensing range spans from 0.1 to 2 meters, ideal for various objects, with a repeatability of 0.5 mm. Operating on 12 to 24 V DC with low consumption, it features PNP open-collector transistor output and switchable light-on/dark-on operation.

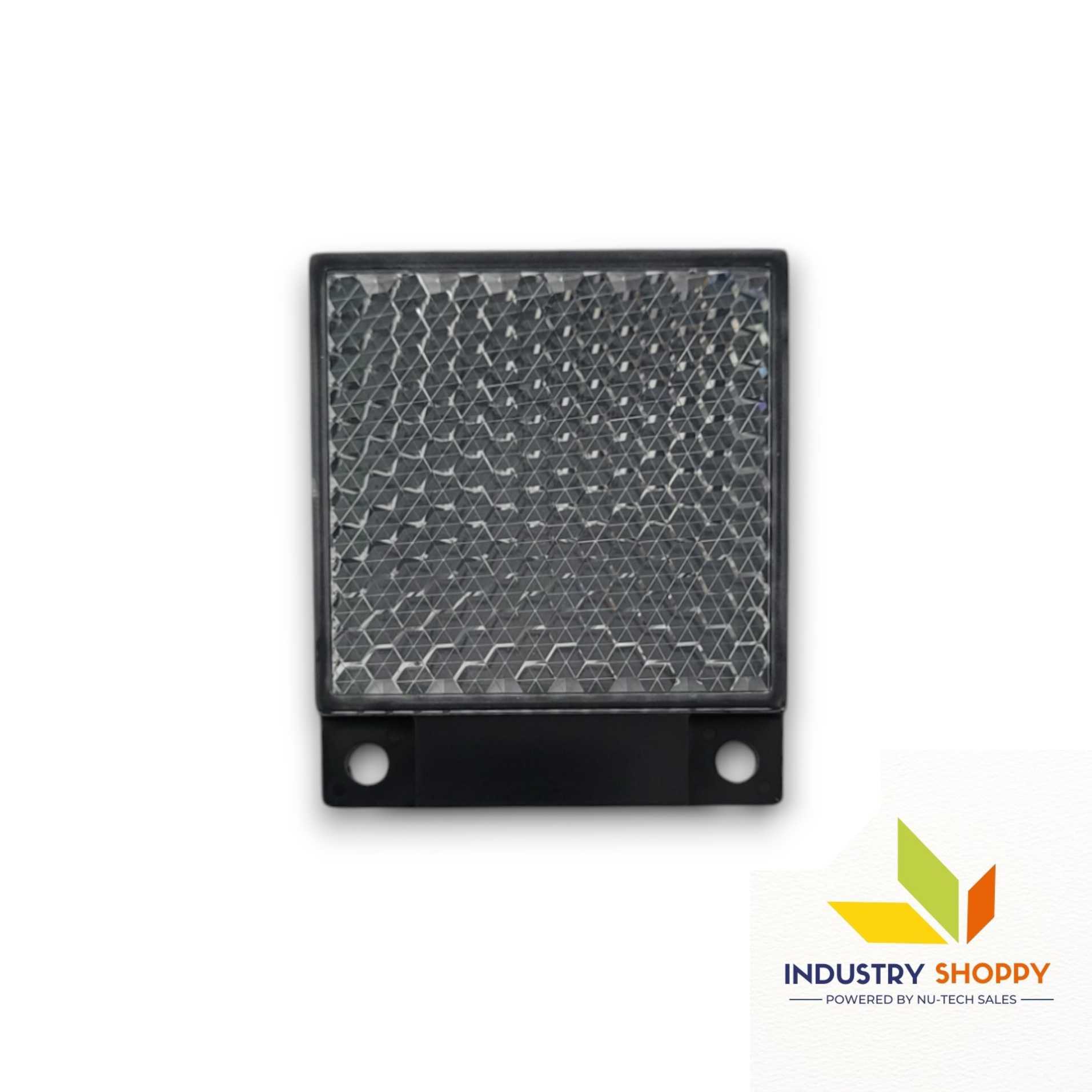

The sensor boasts short-circuit protection, a response time of 1 ms or less, and IP67 protection against dust and water. Crafted from durable materials like PBT and polycarbonate, it weighs around 50 grams and includes an RF-230 reflector accessory.

Our engineers has entered all the specification details about this sensor according to the datasheet. Although errors may occur during the process. All trademarks and trade names used on our site  are the property of their respective owners.


Our engineers meticulously inputted all the necessary details of this sensor following the datasheet guidelines. However, it’s crucial to acknowledge the potential for errors during this process. Despite our diligent efforts, it’s imperative to remain vigilant as inaccuracies may persist despite our sincere endeavours.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience. Furthermore, our commitment to reliability and customer satisfaction sets us apart.  Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, YouTube,


BrandPanasonic
Product nameCX-482-P
Part NumberUCX482P
CE Marking Directive ComplianceEMC Directive, RoHS Directive
Sensing Range0.1 to 2 m (0.328 to 6.562 ft)
Note: Specified for RF-230 reflector; represents actual sensing range
Sensing ObjectØ50 mm (1.969 in) or more, transparent, translucent, or opaque object
Note: Confirm detection with actual sensor before use
Repeatability (Perpendicular to Sensing Axis)0.5 mm (0.020 in) or less
Hysteresis-
Supply Voltage12 to 24 V DC ±10% Ripple P-P 10% or less
Current Consumption10 mA or less
OutputPNP open-collector transistor
- Maximum sink current: 100 mA
- Applied voltage: 30 V DC or less
- Residual voltage: 2 V or less (at 100 mA), 1 V or less (at 16 mA)
Output OperationSwitchable: Light-ON or Dark-ON
Output Short-Circuit ProtectionIncorporated
Response Time1 ms or less
Operation IndicatorOrange LED (lights up when output is ON, on receiver for thru-beam type)
Stability IndicatorGreen LED (lights up under stable light/dark condition, on receiver for thru-beam type)
Power Indicator-

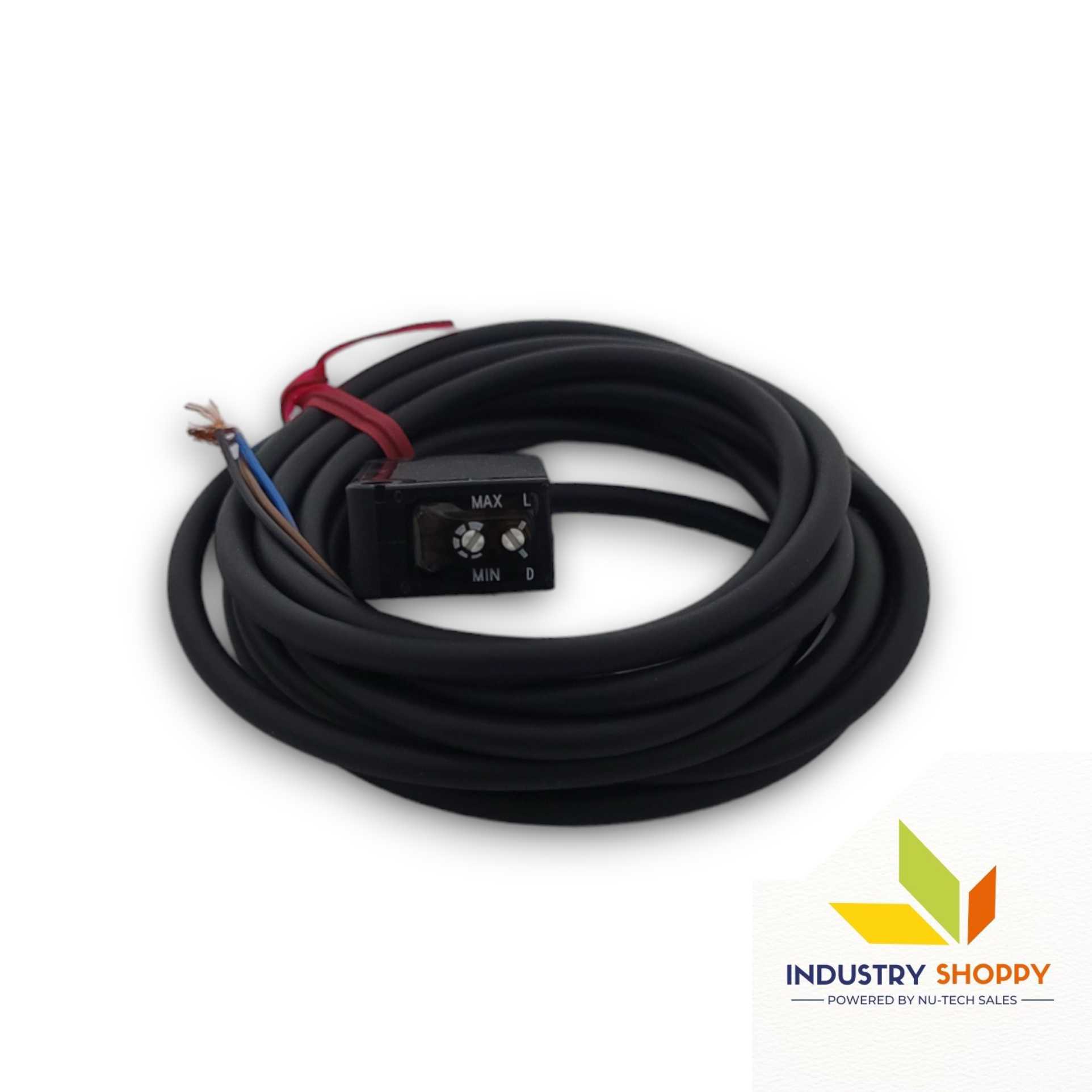

Sensitivity AdjusterContinuously variable (on receiver for thru-beam type)
Automatic Interference Prevention FunctionIncorporated (Two sensors can be mounted close together)
ProtectionIP67 (IEC)
Ambient TemperatureOperating: -25 to +55 °C (-13 to +131 °F) No dew/icing
Storage: -30 to +70 °C (-22 to +158 °F)
Ambient HumidityOperating: 35 to 85 % RH
Storage: 35 to 85 % RH
Ambient IlluminanceIncandescent light: 3,000 lx or less at light-receiving face
Voltage Withstandability1,000 V AC for 1 min between all supply terminals connected together and enclosure
Insulation Resistance20 MΩ or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration Resistance10 to 500 Hz, 1.5 mm (0.059 in) amplitude, 10 G max, X/Y/Z directions for 2 h each
Shock Resistance500 m/s² (approx. 50 G) in X/Y/Z directions, 3 times each
Emitting Element (Modulated)Infrared LED
Peak Emission Wavelength870 nm (0.034 mil)
MaterialEnclosure: PBT (polybutylene terephthalate)
Lens: Polycarbonate
Indicator cover: Polycarbonate
Cable0.2 mm² 3-core cabtyre cable, 2 m (6.562 ft) long
Cable ExtensionUp to 100 m (328.084 ft) possible with 0.3 mm² or more cable
Country of originJapan
