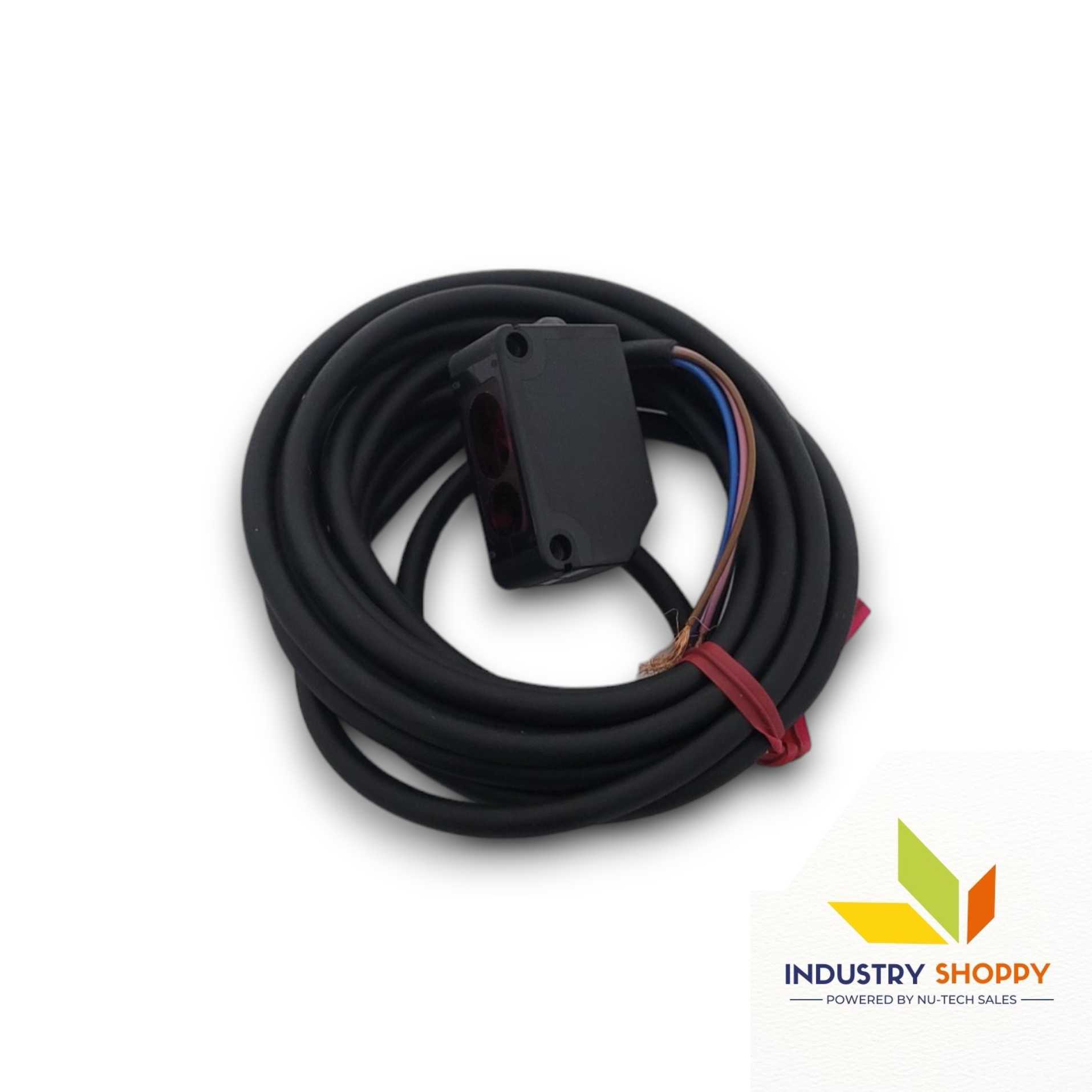

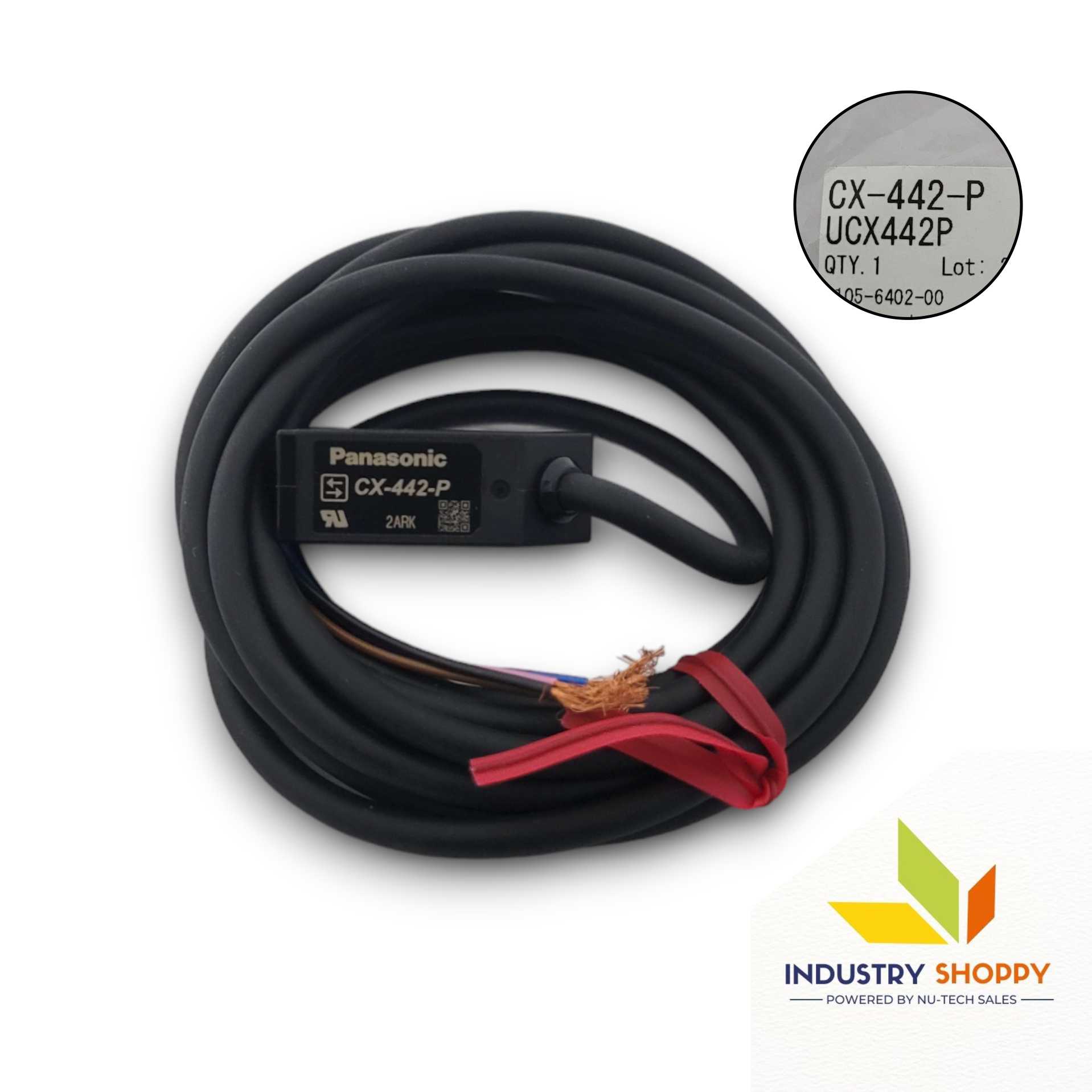

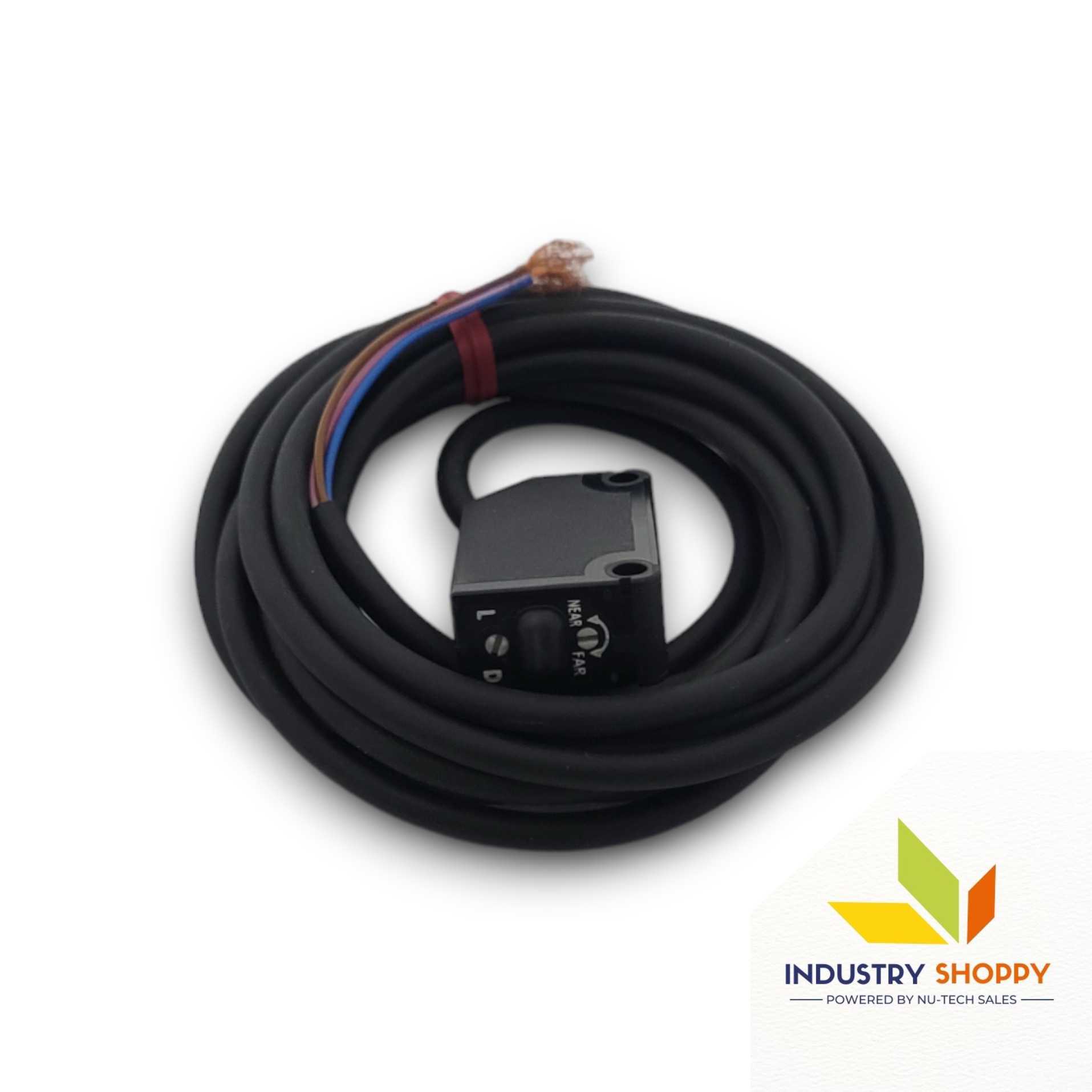

Panasonic CX-442-P Photoelectric Sensor
Panasonic CX-442-P Photoelectric Sensor
Panasonic CX-442-P Photoelectric Sensor
Panasonic CX-442-P Photoelectric Sensor
Panasonic CX-442-P Photoelectric Sensor
Panasonic CX-442-P Photoelectric Sensor
Panasonic

Panasonic CX-442-P Photoelectric Sensor

Product SKU: NTSSEN00079
Available:
Only 19 items in stock
19 items in stock
In stock
Pre-order
Out of stock
  • Brand  :  Panasonic
  • Supply voltage : 12..24 VDC
  • Dimension  :  10 mm x 25 mm x 64.3 mm
  • Switching output   : PNP open-collector transistor
  • Output  Operation :  Switchable either Light-ON or Dark-ON
  • Warranty : 12 Months
Rs. 3,050.00
Rs. 4,500.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

Panasonic CX-442-P Photoelectric Sensor

The Panasonic CX-442-P Photoelectric Sensor (CX442P, UCX442P) is a versatile photoelectric sensor designed for precision and stability in industrial environments. It offers an adjustable sensing range from 40 to 300 mm, with a minimum detectable object at 20 mm distance, making it ideal for detecting small or irregular objects.

It supports Background Suppression (BGS) and Foreground Suppression (FGS), selectable via wiring, enhancing performance in complex sensing environments. The repeatability is excellent—1 mm along the sensing axis and 0.2 mm perpendicular, ensuring reliable detection with minimal hysteresis (≤5%).

The sensor uses a modulated red LED (650 nm), producing a Ø15 mm spot at 300 mm, suitable for accurate alignment. It features PNP open-collector output with short-circuit protection, and a fast 1 ms response time for real-time detection. Indicators include an orange LED for output and green LED for stability, aiding quick diagnostics.

Built to last, the CX-442-P has IP67 protection, operates in -25 to +55°C, and resists vibration (3 mm, 10–500 Hz) and shock (50 G). A 5-turn mechanical distance adjuster and automatic interference prevention provide ease of setup and dependable operation.



Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, YouTube,


BrandPanasonic
Product nameCX-442-P
CE Marking Directive ComplianceEMC Directive, RoHS Directive
Adjustable Range40 to 300 mm 1.575 to 11.811 in
 (Note) The adjustable range stands for the maximum sensing range which can be set with the distance adjuster. The sensor can detect an object 2 mm 0.079 in [CX-444(-P): 15 mm 0.591 in, CX-442(-P): 20 mm 0.787 in], or more, away.
Sensing Range (With White Non-Glossy Paper)20 to 300 mm 0.787 to 11.811 in
Hysteresis5 % or less of operation distance(with white non-glossy paper)
RepeatabilityAlong sensing axis: 1 mm 0.039 in or less, Perpendicular to sensing axis: 0.2 mm 0.008 in or less (with white non-glossy paper)
Supply Voltage12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less
Current Consumption20 mA or less
OutputPNP open-collector transistor
 - Maximum sink current: 100 mA
 - Applied voltage: 30 V DC or less (between output and 0 V)
 - Residual voltage: 2 V or less (at 100 mA sink current), 1 V or less (at 16 mA sink current)
Output: Output OperationSwitchable either Detection-ON or Detection-OFF
Output: Short-Circuit ProtectionIncorporated
Response Time1 ms or less
Operation IndicatorOrange LED (lights up when the output is ON)
Stability IndicatorGreen LED(lights up under stable operating condition)
Sensing ModeBGS / FGS functions switchable with wiring of sensing mode selection input
Distance Adjuster5-turn mechanical adjuster
Automatic Interference Prevention FunctionIncorporated
 (Note) Note that detection may be unstable depending on the mounting conditions or the sensing object. In the state that this product is mounted, be sure to check the operation with the actual sensing object.
ProtectionIP67 (IEC)
Ambient Temperature- 25 to +55℃ -13 to +131℃ ℉ (No dew condensation or icing allowed ), Storage: -30 to +70℃ -22 to +158℃ ℉
Ambient Humidity35 to 85 % RH, Storage: 35 to 85 % RH
Ambient IlluminanceIncandescent light: 3,000 lx or less at the light-receiving face
Voltage Withstandability1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation Resistance20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration Resistance10 to 500 Hz frequency, 3 mm 0.118 in amplitude in X, Y and Z directions for two hours each
Shock Resistance500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each
Emitting Element (Modulated)Red LED
Emitting Element (Modulated): Peak Emission Wavelength650 nm 0.026 mil
Spot DiameterØ15 mm Ø0.591 in approx.(at 300 mm 11.811 in distance)
MaterialEnclosure: PBT (Polybutylene terephthalate)
 Front cover: Polycarbonate
 Indicator cover: Polycarbonate
Cable0.2 mm24-core cabtyre cable, 2 m 6.562 ft long
Cable ExtensionExtension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.
Country of originJapan
