Original NLC320T240BTG17K LCD Module
Original NLC320T240BTG17K LCD Module
Original NLC320T240BTG17K LCD Module
Original NLC320T240BTG17K LCD Module
Original NLC320T240BTG17K LCD Module
Original NLC320T240BTG17K LCD Module
Original NLC320T240BTG17K LCD Module
Original NLC320T240BTG17K LCD Module
NTS

Original NLC320T240BTG17K LCD Module

Product SKU: NTSLCD0157
Available:
Only 0 item in stock
0 item in stock
In stock
Pre-order
Out of stock
  • Brand  :  Original
  • Size  : 4.7″
  • Condition : Refurbished
  • Panel Type : FSTN
  • Work Mode : Transmissive
  • Warranty : 03 Months
Rs. 10,500.00
Rs. 12,500.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

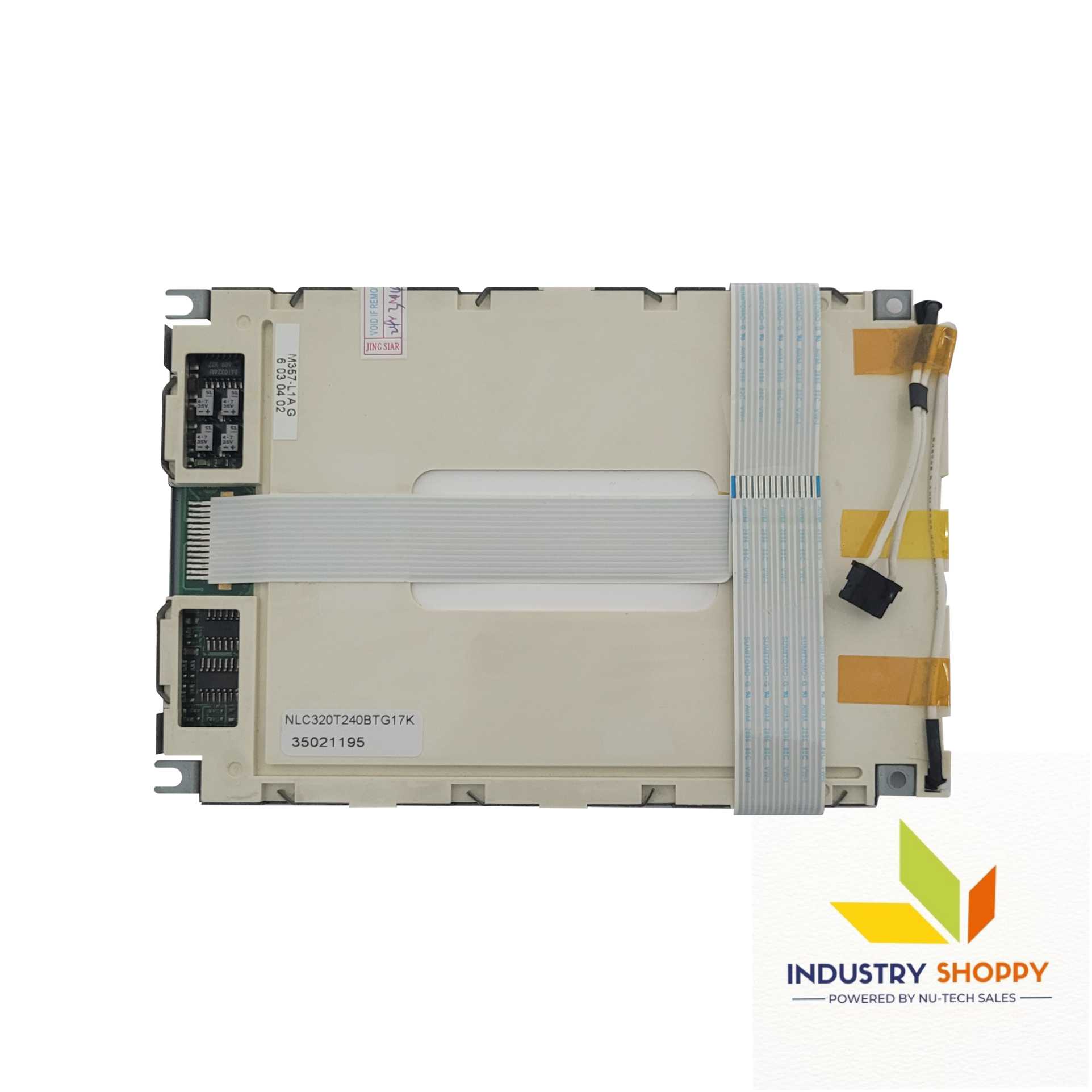

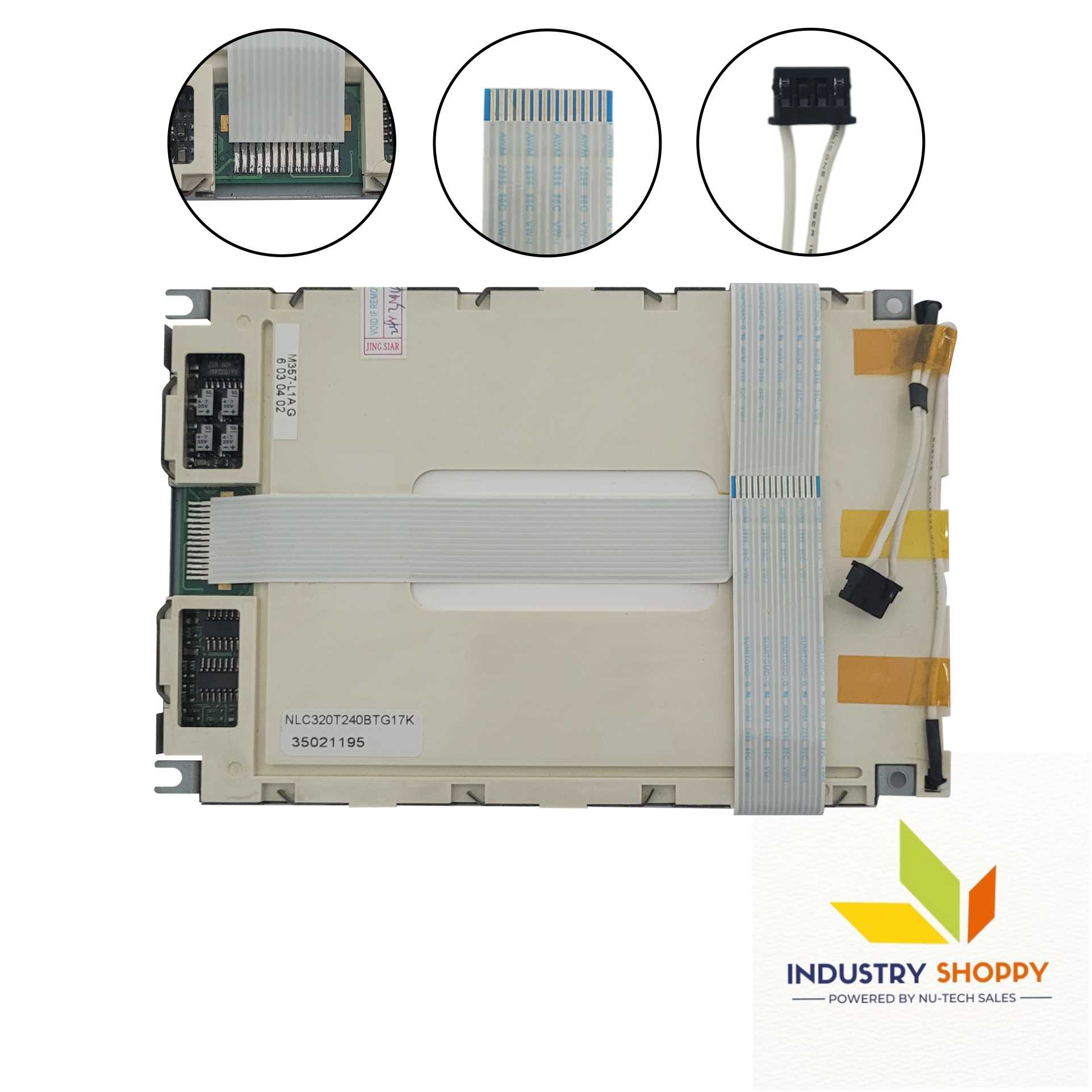

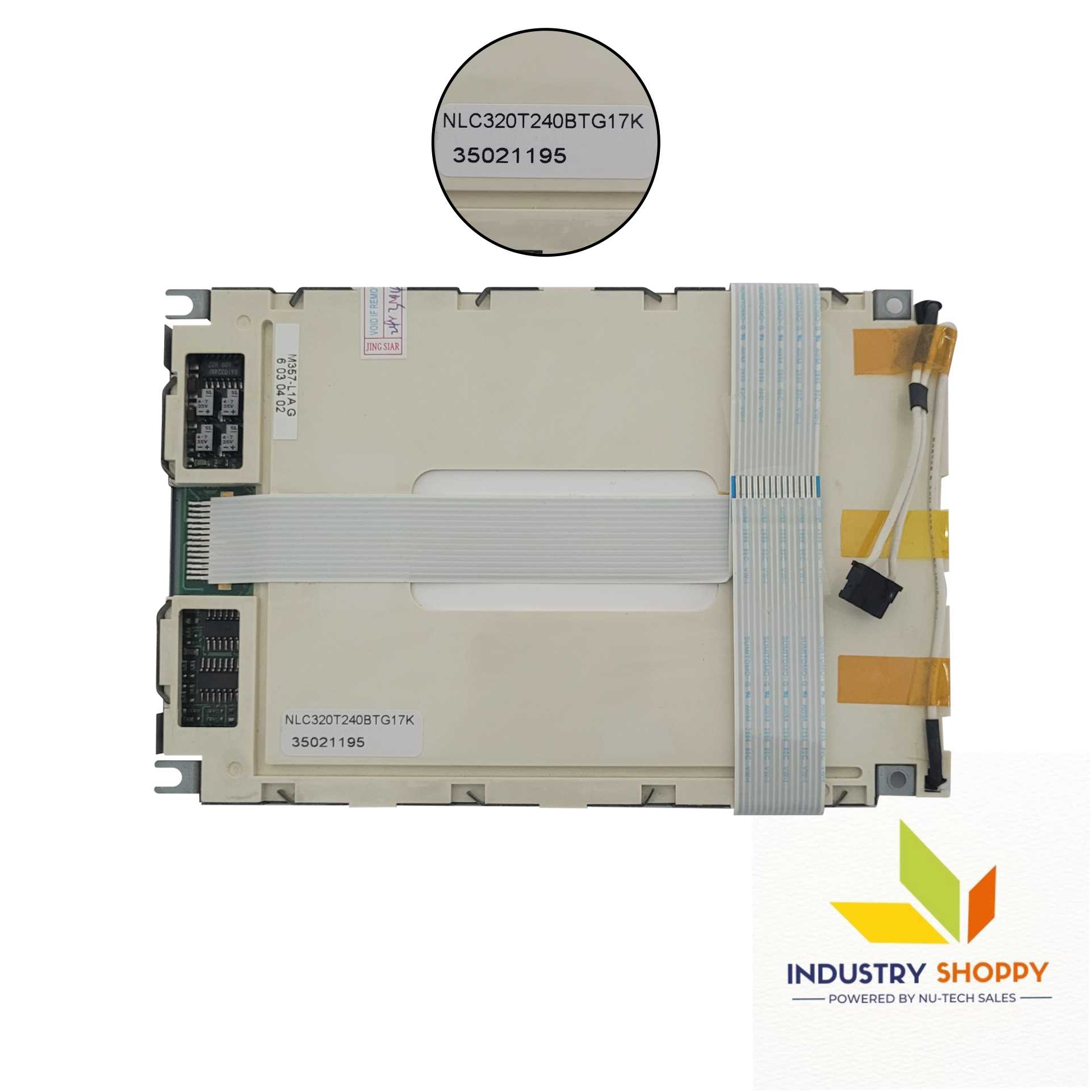

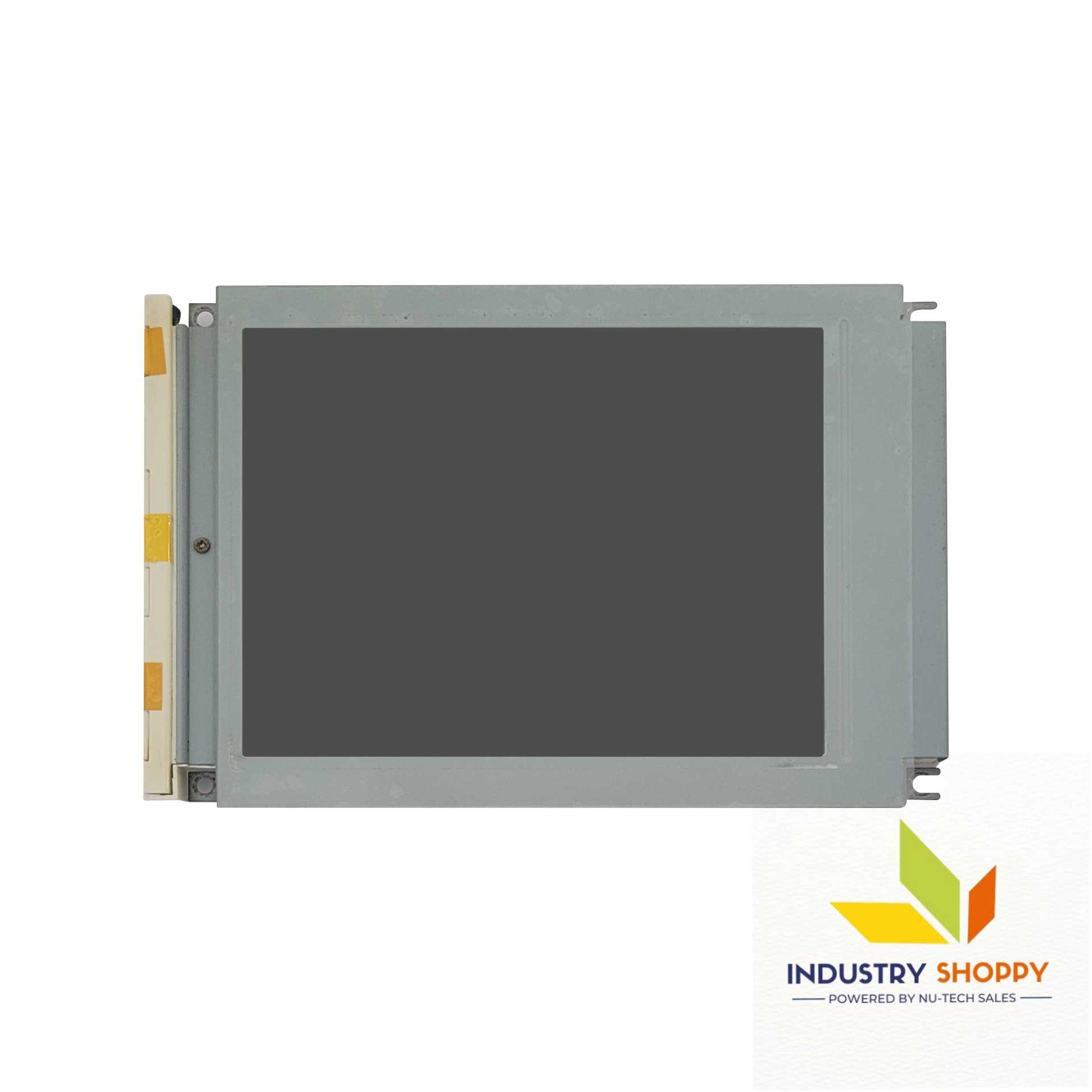

Original NLC320T240BTG17K LCD Module

The Original NLC320T240BTG17K LCD Module is 4.7-inch FSTN display integrates a 168.0(W) × 111.0(H) mm active module within a compact 56.0(L) × 29.0(W) × 19.5(H) mm outline, positioning it as a fitting choice for legacy interfaces and embedded systems where footprint and form factor are tightly constrained.

Despite its moderate brightness of 180 cd/m², the display supports basic readability in indoor environments. However, its contrast ratio of just 10:1 (Typ.) and 400 ms response time indicate it's most suitable for simple, static visual output under consistent lighting conditions.

Designed as a transmissive, FSTN-negative panel, it typically delivers monochrome visuals and is engineered for low-power usage. The module operates on a CFL backlight system, drawing IL = 5.0mArms per unit (×2) and supporting a maximum voltage of 7.0V.

While the operating temperature range spans from -10°C to 60°C, its storage resilience extends to -20°C through 85°C, providing robust tolerance for variable environments.



Technical Precautions :-

  • It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
  • Always turn off the power supply when you are inserting or disconnecting it from input connector.
  • Wipe off water drop immediately as it may cause discoloration or spots.
  • Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
  • Do not try to open or modify the module assembly.
  • At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the Interface Connector of the TFT Module it may damage the panel.
  • Severe temperature condition may  result in different luminance, response time.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, YouTube,


BrandOriginal
Diagonal Size4.7"
Resolution-
Active Area168.0(W)×111.0(H)×MAX 7.4(T) mm
Outline Dimension56.0(L)×29.0(W)×MAX 19.5(H) mm
Luminance180 cd/m² (Typ.)
Contrast Ratio10.0 (Typ.) (TM)
Viewing Angle-
Response Time400 ms
Panel TypeFSTN / negative
Treatment-
Operating ModeTransmissive
Support Color-
Signal Interface TypeCFL
Frame Rate-
Power SupplyMax 7.0 V
BacklightIL= 5.0 mArms (*2)
Operating Temp.-10 ~ 60 °C
Storage Temp.-20 ~ 85 °C
