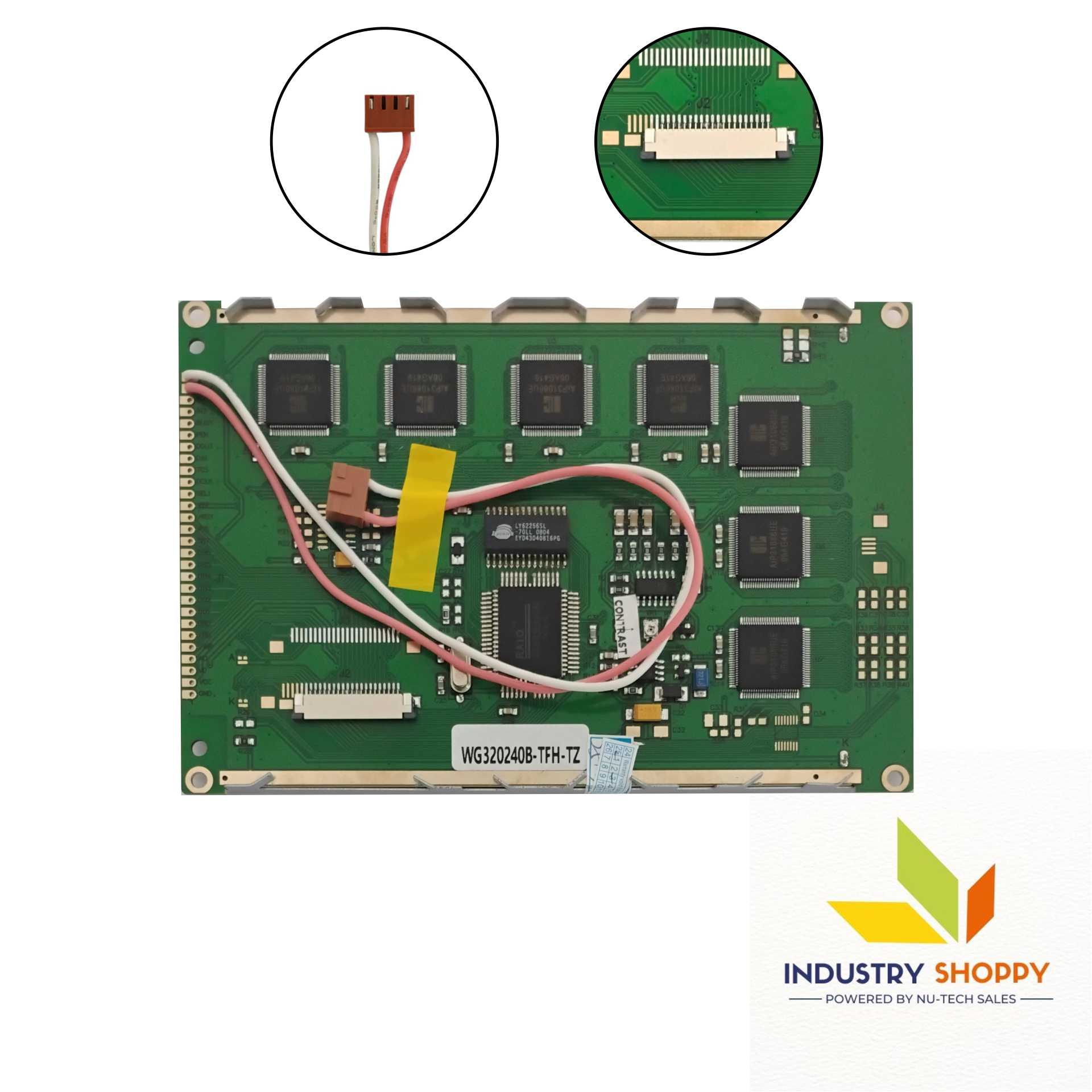

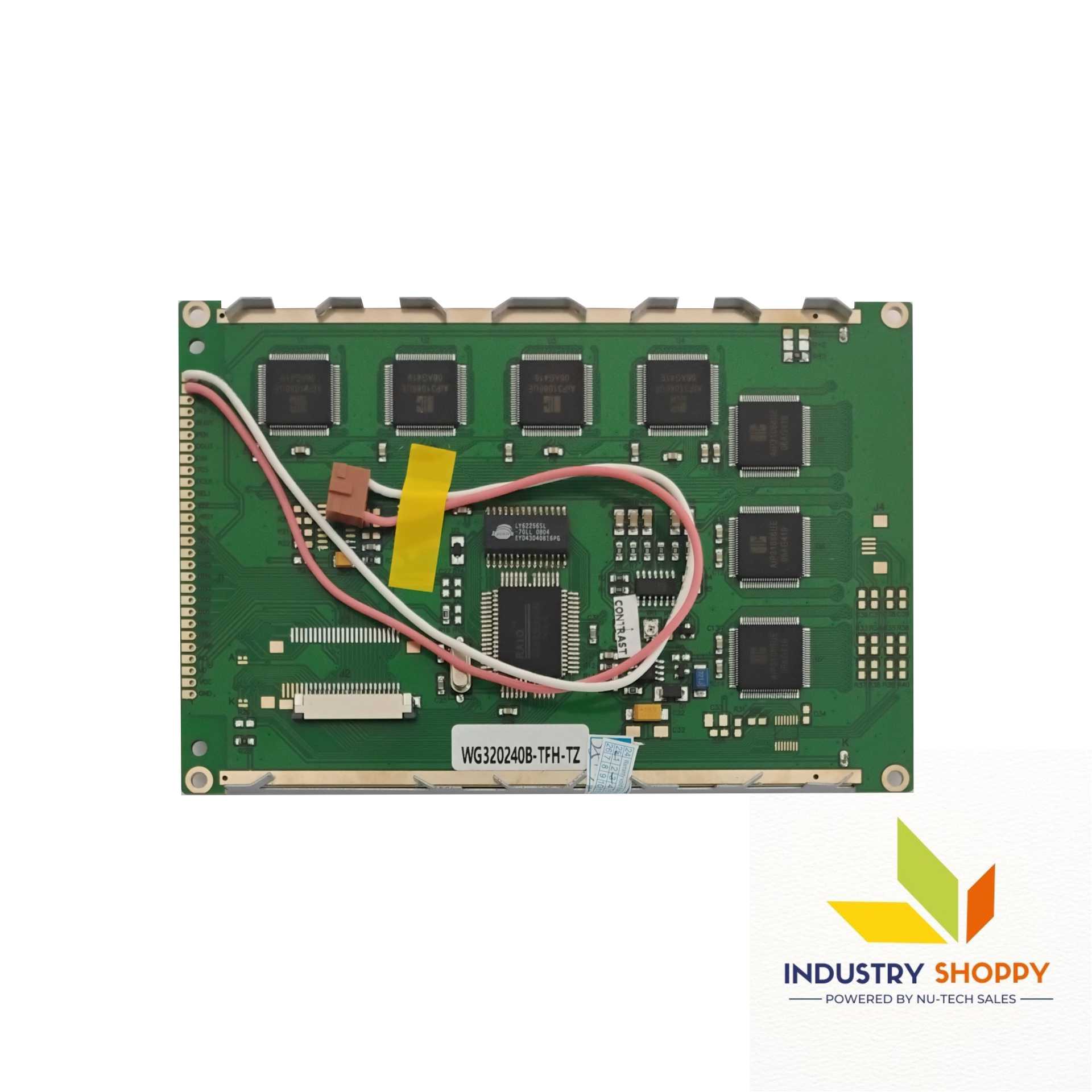

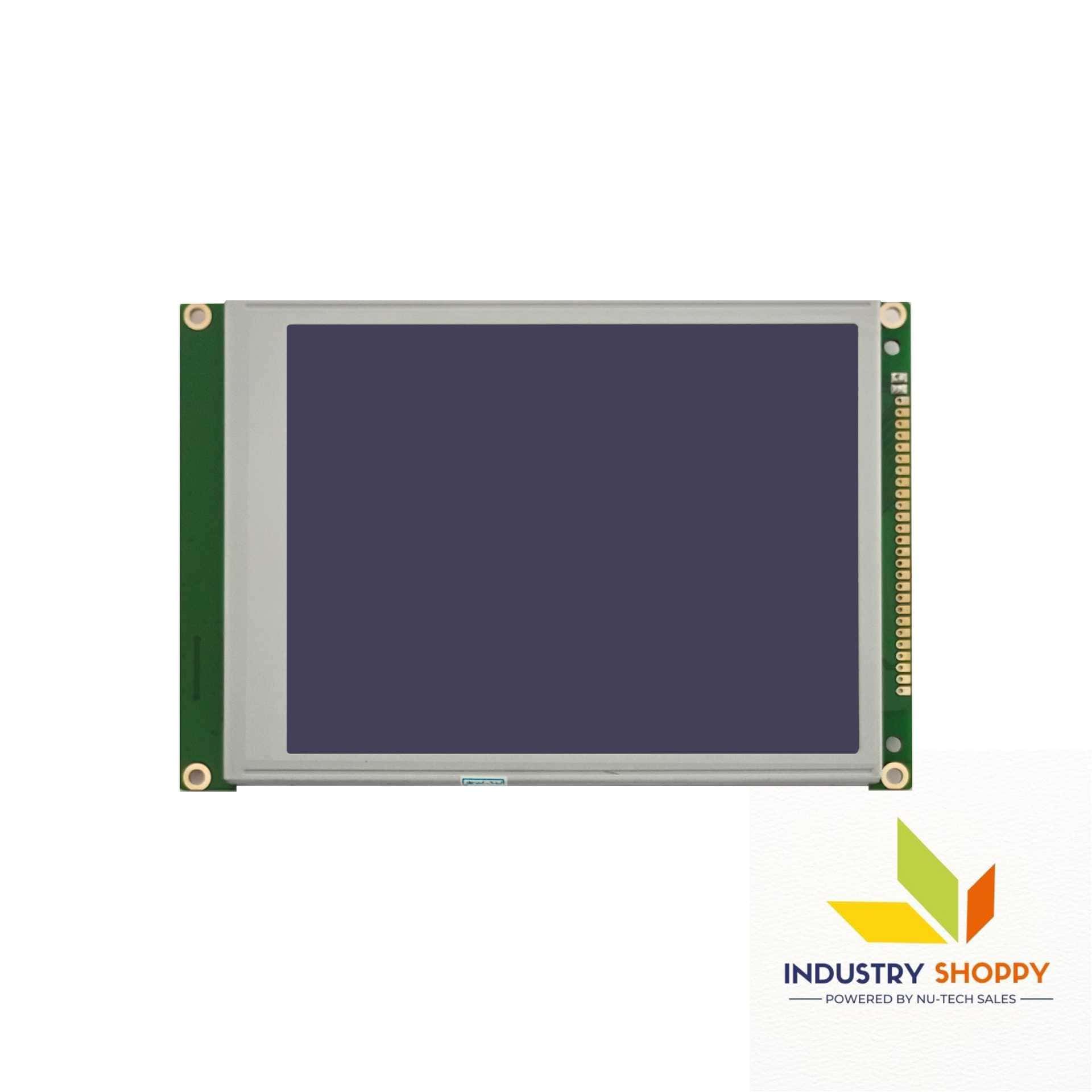

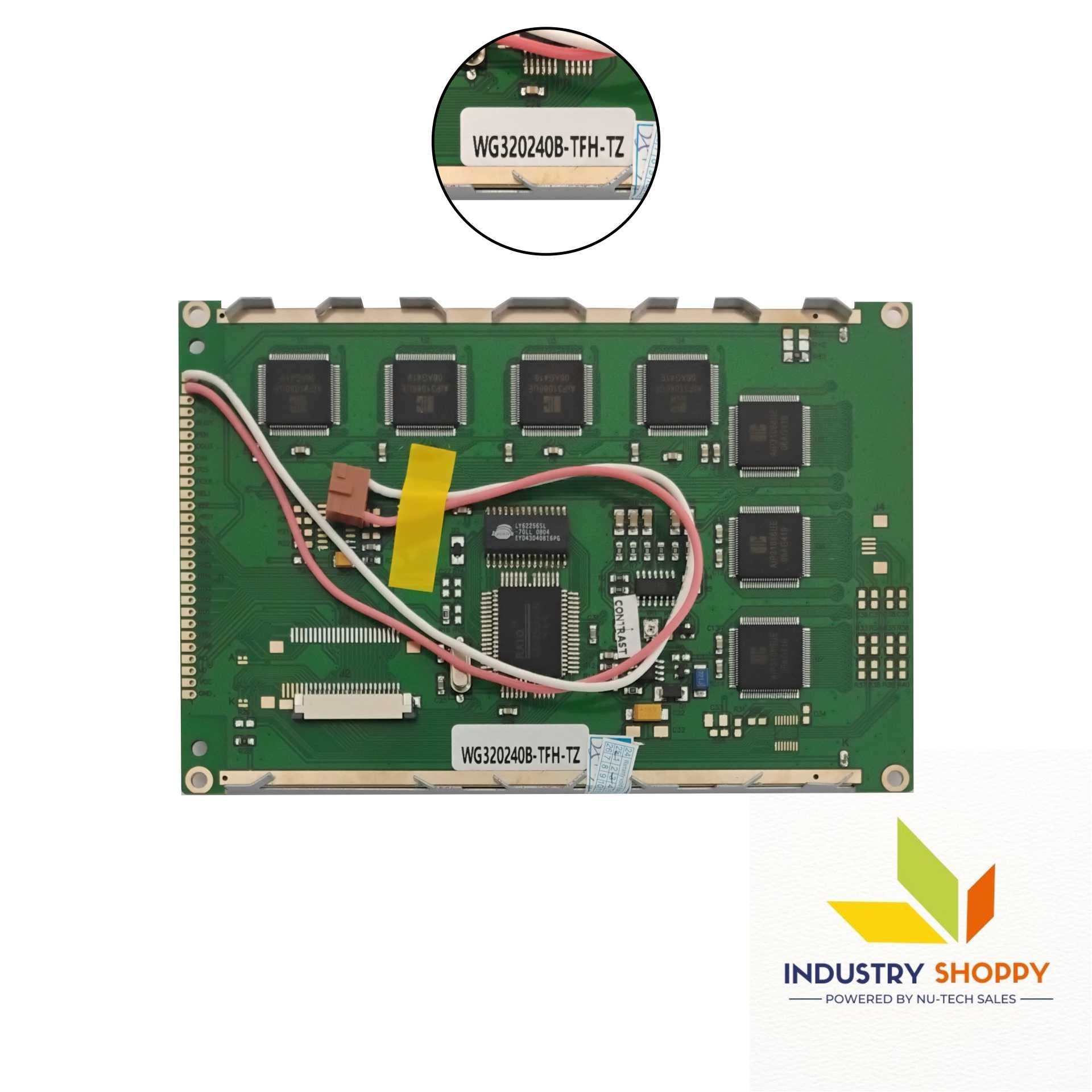

NTS WG320240B-TFH-TZ LCD Module

NTS WG320240B-TFH-TZ LCD Module

The NTS WG320240B-TFH-TZ LCD Module is a compact and durable solution ideal for embedded systems and industrial applications. With a resolution of 320 × 240 pixels and an active display area of 115.18(W) x 86.38(H) mm, it provides sharp and clear visuals for essential data readouts.

The panel type is FSTN, Positive Transflective, offering readability in various lighting conditions, especially useful in outdoor or semi-lit environments. Its viewing angle of 122° wide by 92° high ensures good visibility from multiple directions. This display operates on a 5V power supply and uses a white LED backlight for consistent illumination. Built for resilience, it can withstand temperatures from -20°C to 70°C during operation and from –30°C to 80°C in storage. Its compact dimensions (160.0 x 109.0 x 11.0 mm) make it suitable for space-constrained applications.

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.
