NTS LW700AT6005 LCD Module

NTS LW700AT6005 LCD Module

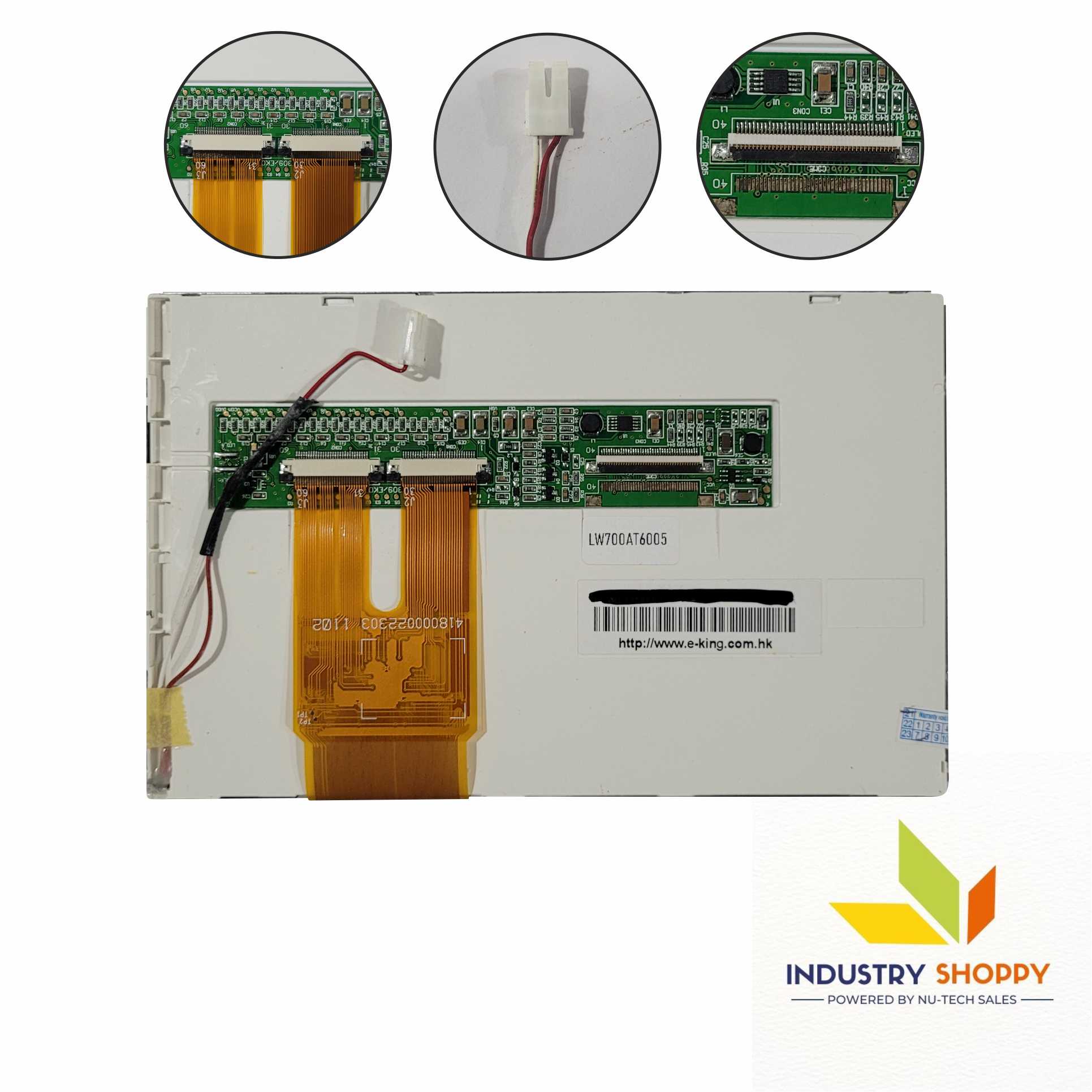

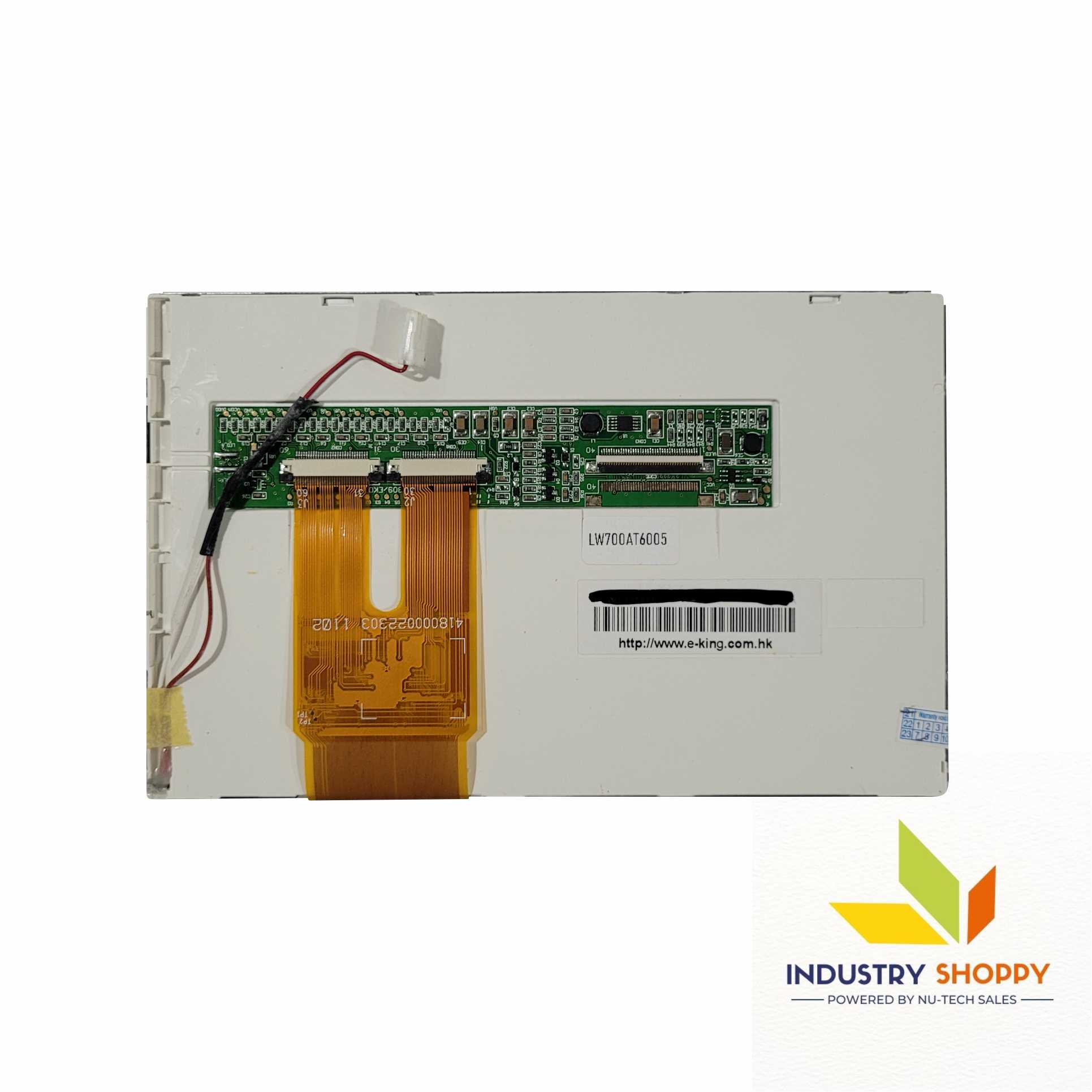

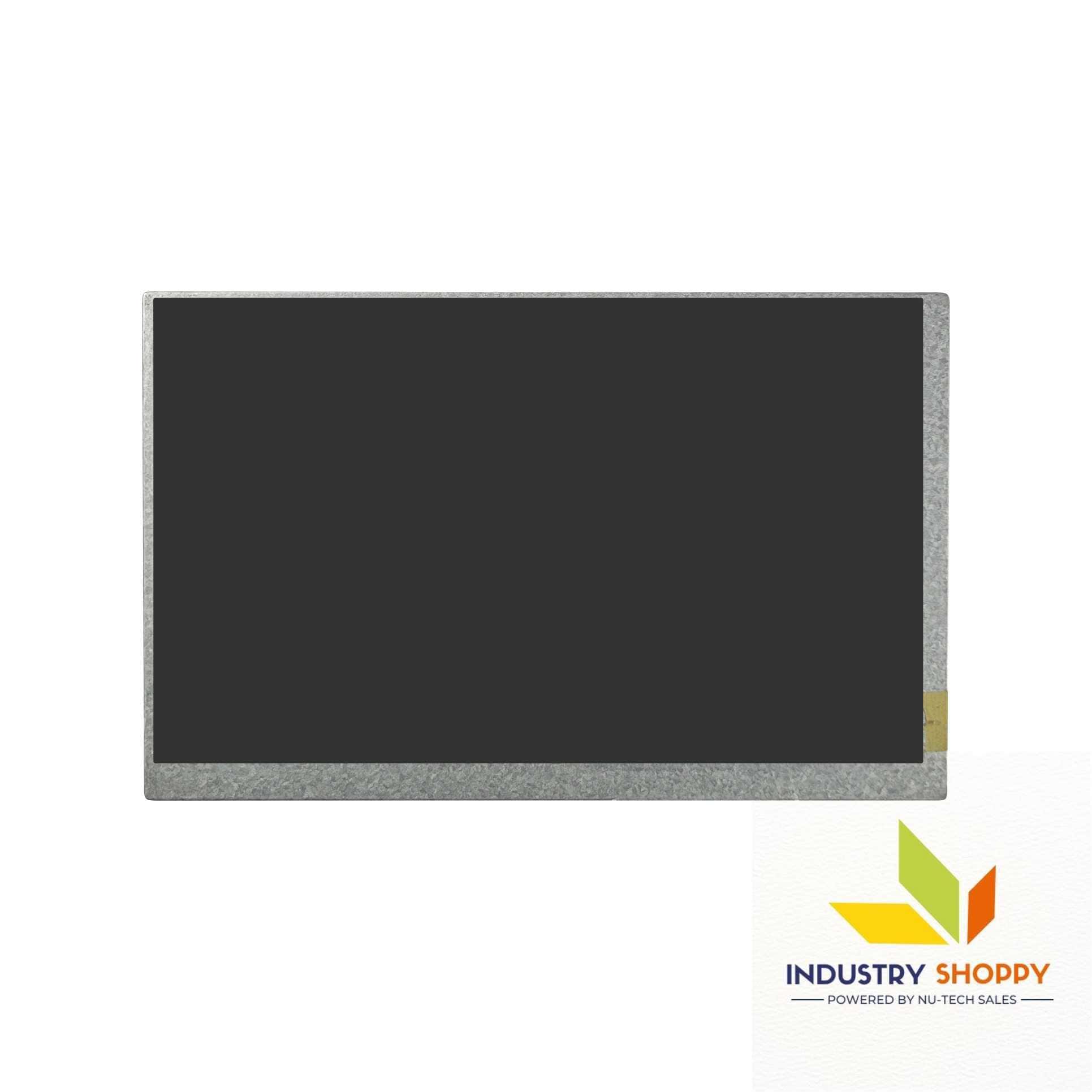

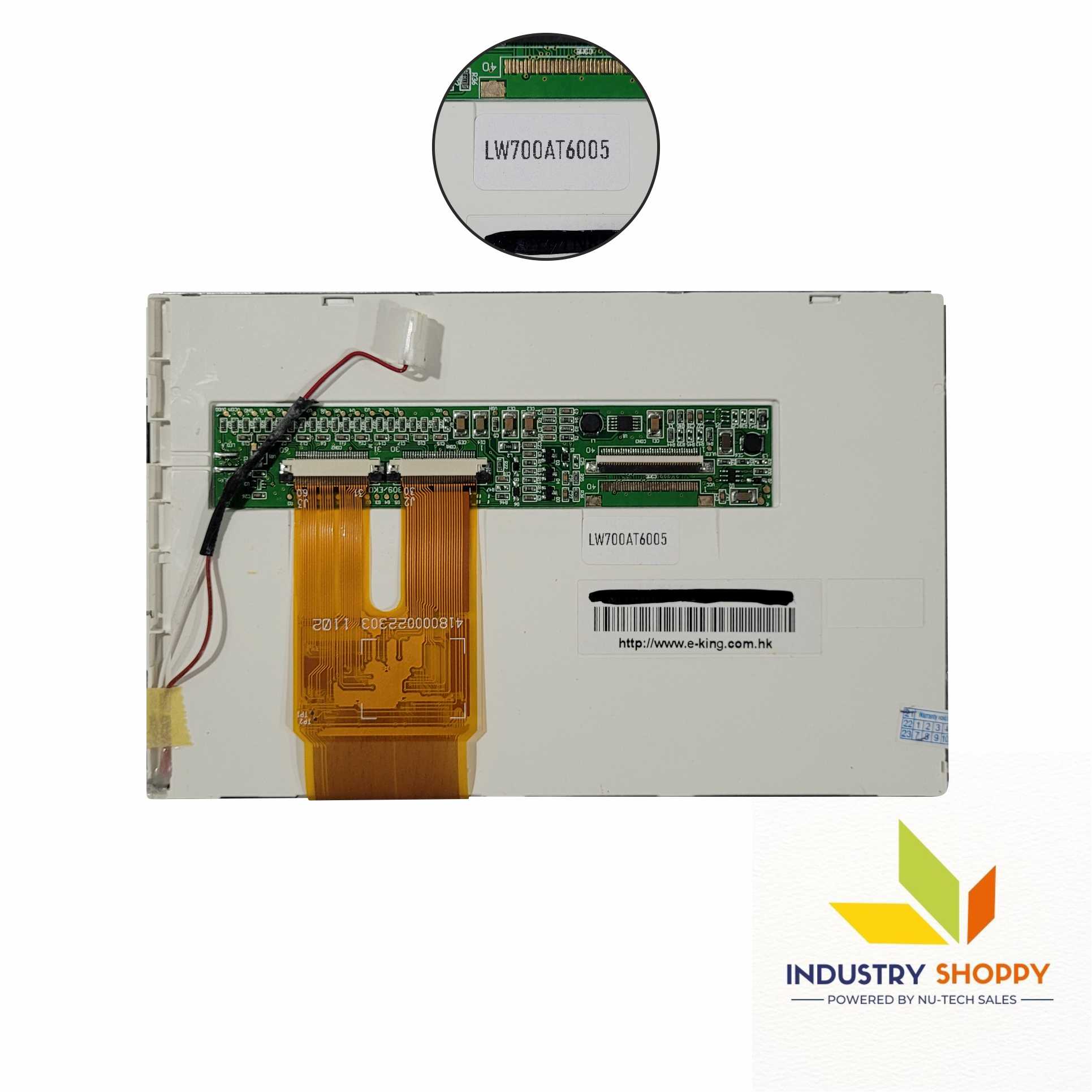

The NTS LW700AT6005 LCD Module is a high-performance panel designed for embedded and industrial applications requiring crisp visuals and broad compatibility. Featuring a resolution of 800(RGB)×480 (WVGA) and a pixel density of 133 PPI, it ensures clear and sharp graphical output. The active area measures 152.4(W)×91.44(H) mm, while its slim 1.43 mm thickness makes it ideal for compact system integration.

Engineered using a-Si TFT-LCD CELL FOG technology, the display supports 262K colors with 45% NTSC coverage. The panel's contrast ratio of 400:1 and viewing angles of 70/70/60/60° (CR≥10) offer reliable visibility. The response time of 5/11 ms (Tr/Td) ensures smooth transitions, while its antiglare surface improves readability under ambient lighting.

It interfaces via a 60-pin TTL FPC connector and operates at a typical supply of 3.3/12/18/-7V. With a wide temperature range of -20°C to +70°C, this panel is suited for rugged environments.

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.
