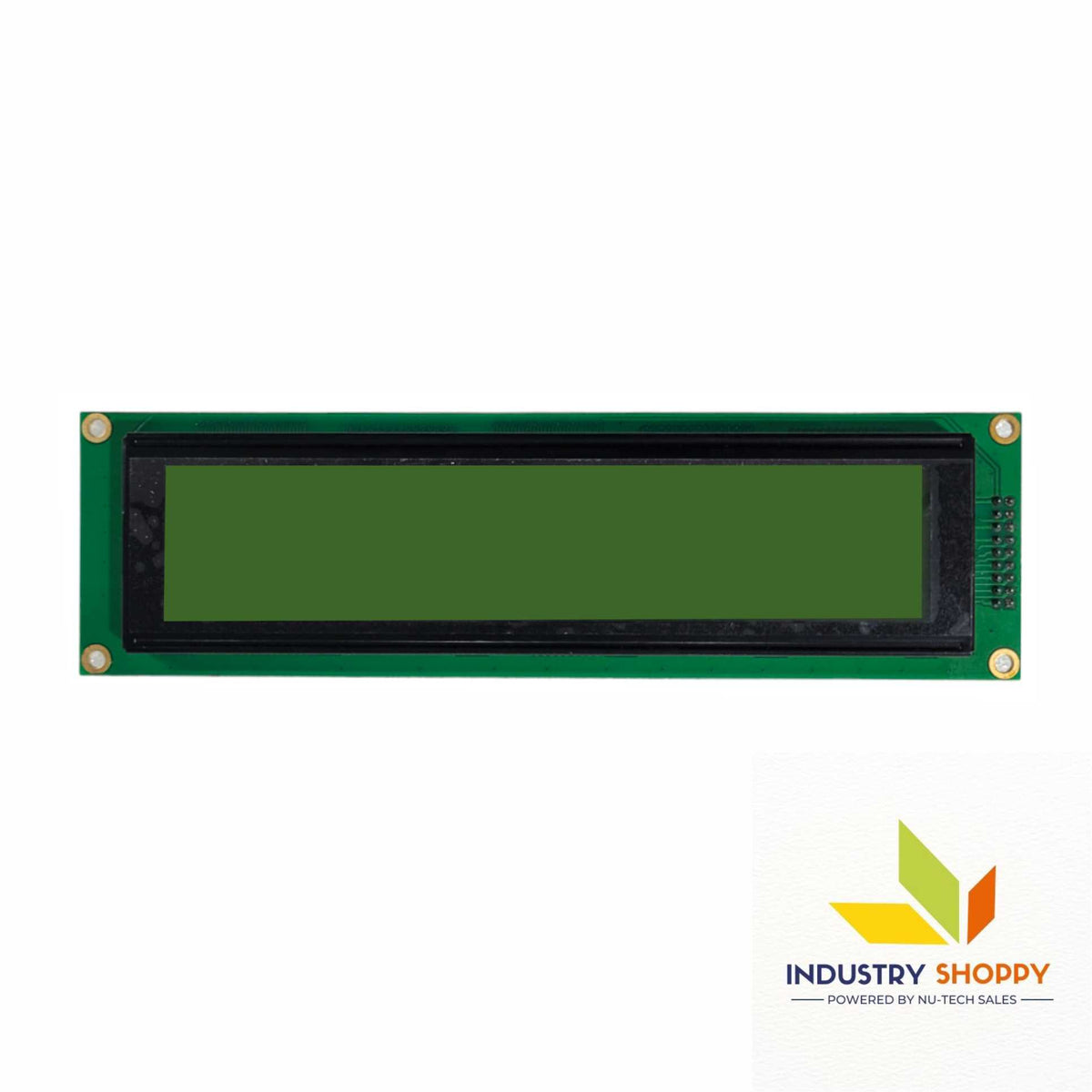

NTS LCM4004-A LCD Module

NTS LCM4004-A LCD Module

The NTS LCM4004-A LCD Module stands out with its format of 40 characters × 4 lines, making it ideal for applications requiring detailed text display. Although the resolution is unspecified, its generous viewing area of 147.0 mm (W) × 29.5 mm (H) offers ample space for clear readability. Additionally, the module features outline dimensions of 190.0mm(L) × 54.0mm(W) × 13.6mm(H), allowing easy integration into a variety of enclosures and system designs.

Built using STN (Super Twisted Nematic) technology in a yellow-mode, transmissive configuration, this panel ensures high contrast and visibility, particularly suited for indoor use. The viewing angle at the 6:00 direction further optimizes its readability depending on installation positioning.

For seamless communication, the module supports a parallel interface (8-bit or 4-bit), ensuring compatibility with many embedded systems. Furthermore, the typical power supply of 3.3V/5V makes it versatile for various applications. Enhanced by a yellow-green LED backlight, the display maintains excellent visibility even in lower light environments.

Designed to endure tough conditions, it operates reliably between -20℃ to 70℃ and can be safely stored from -30℃ to 80℃, making it suitable for both commercial and industrial environments.

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.


  ---
