MCGS TPC7022EX HMI Operator Panel

MCGS TPC7022EX HMI Operator Panel – 7” Industrial Touchscreen

The MCGS TPC7022EX HMI Operator Panel is a 7-inch industrial-grade touchscreen designed for seamless automation control. Featuring an 800 × 480 resolution and true color 65,535 display, it provides clear and vibrant visuals for an enhanced user experience. The TFT LCD with LED backlight ensures optimal brightness (250 cd/㎡) for easy readability in various lighting conditions.

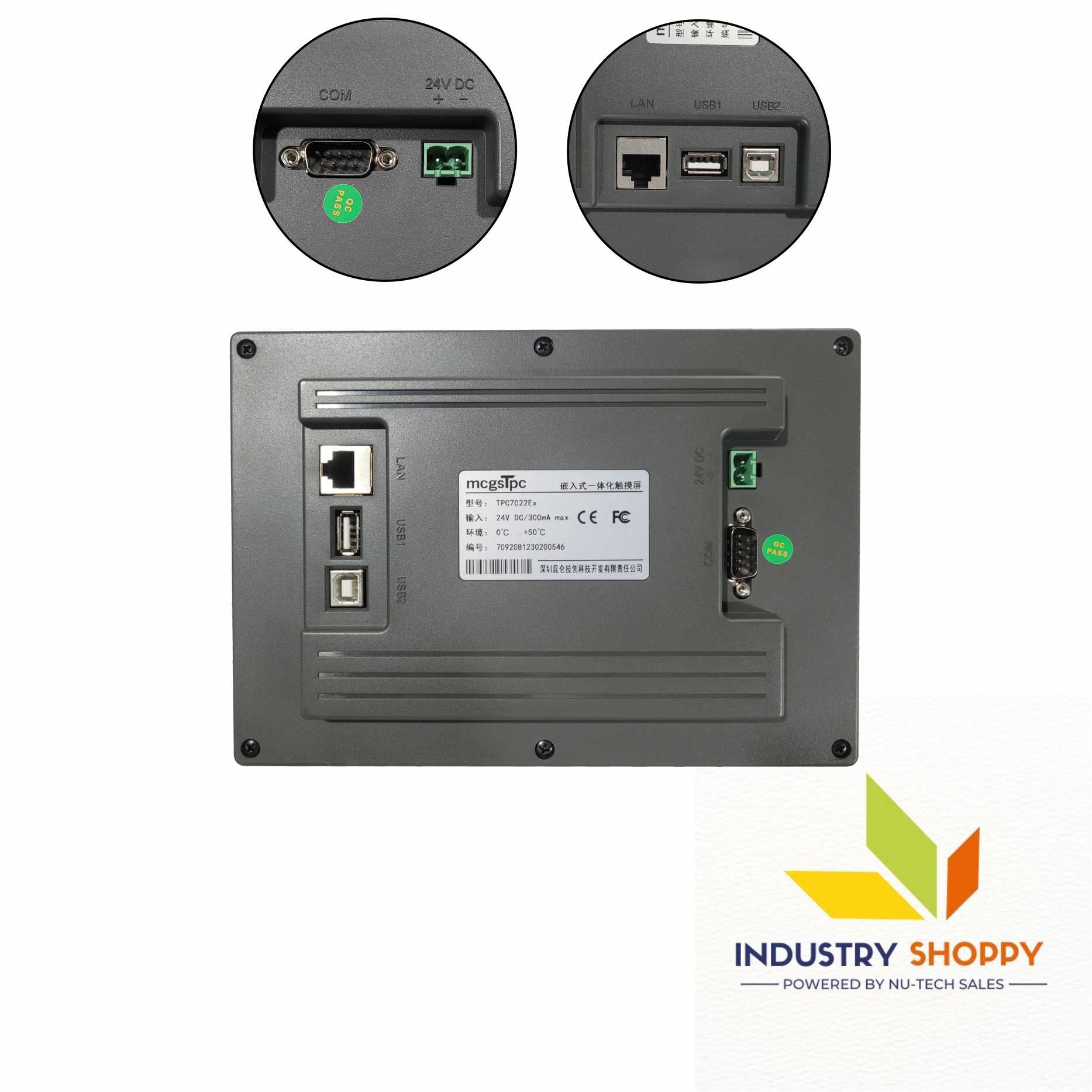

Powered by an Cortex-A7, 800MHz CPU with 128MB memory, the TPC7022EX delivers fast processing and reliable performance. It supports RS232 and RS485 serial communication, along with 10/100M Ethernet connectivity, enabling easy integration with industrial automation systems. Additionally, it comes with one USB host and one USB client, allowing flexible data transfer and device connectivity.

Designed for rugged industrial environments, its industrial-grade plastic structure ensures durability. The resistive touchscreen provides precise control, even when operated with gloves. It operates efficiently within 0°C to 45°C and can be stored between -10°C and 60°C, withstanding 5% to 90% humidity, making it ideal for demanding industrial settings.

Certified with CE and FCC compliance, the MCGS TPC7022EX HMI guarantees safety, quality, and reliability. With compact dimensions (226.5mm × 163mm), it is easy to integrate into control panels.

Ideal for factory automation, machinery control, and process monitoring, this cost-effective and feature-rich HMI panel is a perfect solution for industrial applications.
