LG.Philips LB070WV8-SL02 LCD Module

LG. Philips LB070WV8-SL02 LCD Module

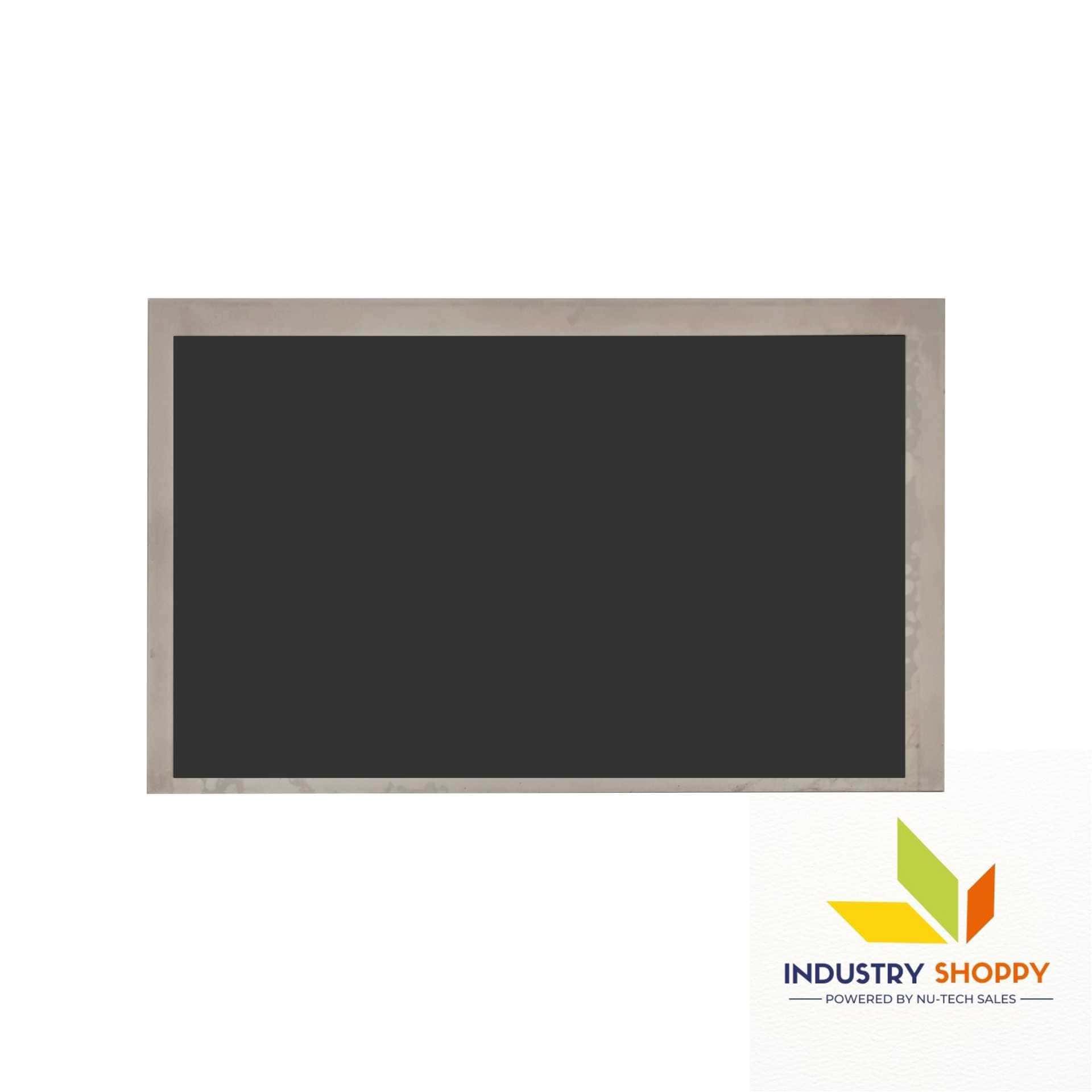

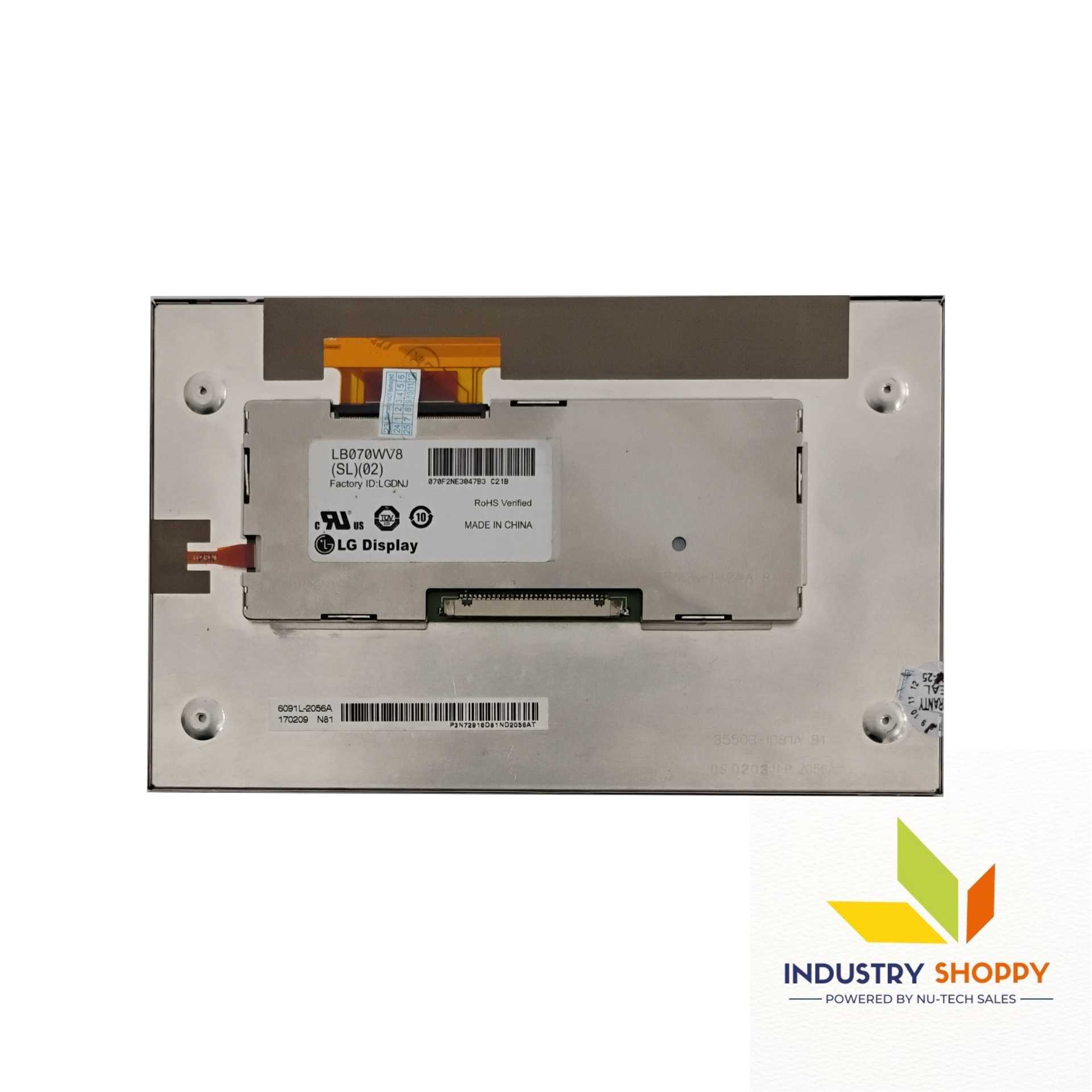

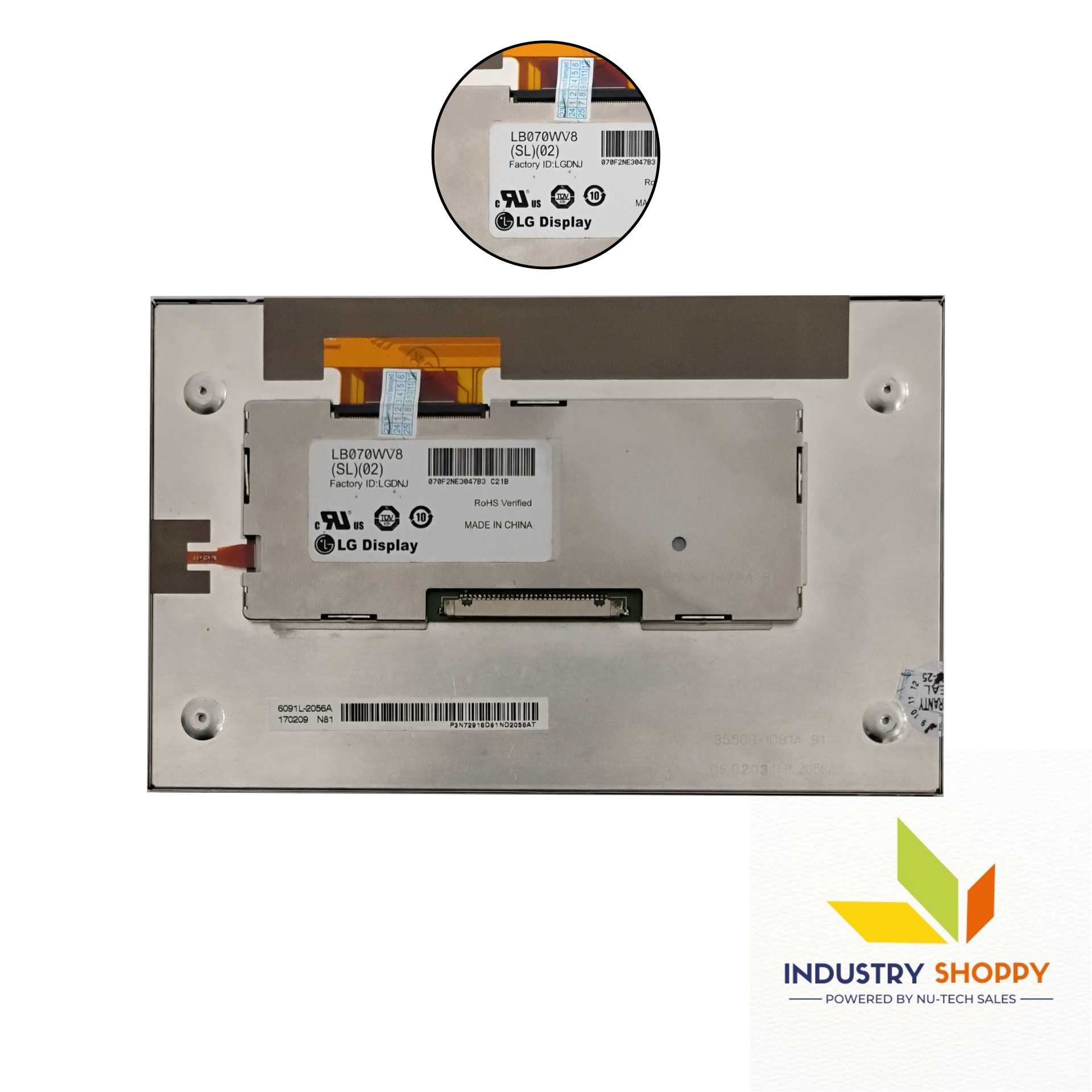

The LG. Philips LB070WV8-SL02 LCD Module is 7.0" display features a resolution of 800(RGB)×480 (WVGA), achieving a pixel density of 133PPI for clear and detailed visuals. Additionally, its active area of 152.4(W) × 91.44(H) mm provides a well-balanced viewing space, while the outline dimension of 170(W) × 106.3(H) × 10.7(D) mm ensures easy adaptability into compact systems. Furthermore, the display boasts a high luminance of 450 cd/m² and an impressive contrast ratio of 800:1 (Typ.) (TM), offering excellent readability under various lighting conditions.

Moreover, with wide viewing angles of 89/89/89/89 degrees (Min.)(CR≥10), it delivers consistent image quality from any direction. The panel utilizes an a-Si TFT-LCD structure with IPS, Normally Black, Transmissive operation mode, resulting in vibrant colors and sharp contrasts. Supporting 16.7M colors at 60% NTSC, the display ensures rich and lifelike images. Notably, the LVDS (1 ch, 8-bit) interface and 30-pin connector allow for seamless integration, while the WLED backlight offers 50K hours of life with a built-in driver. Designed for reliability, it operates efficiently between -30 to 80°C and can be stored safely between -30 to 85°C.

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
• Always turn off the power supply when you are inserting or disconnecting it from the input connector.
• Wipe off water drop immediately as it may cause discoloration or spots.
• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
• Do not try to open or modify the module assembly.
• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
• Severe temperature condition may  result in different luminance, response time.
