Leuze PRK5/4P-200-M12 Photoelectric Sensor
Leuze PRK5/4P-200-M12 Photoelectric Sensor
Leuze PRK5/4P-200-M12 Photoelectric Sensor
Leuze PRK5/4P-200-M12 Photoelectric Sensor
Leuze PRK5/4P-200-M12 Photoelectric Sensor
Leuze PRK5/4P-200-M12 Photoelectric Sensor
Leuze PRK5/4P-200-M12 Photoelectric Sensor
Leuze PRK5/4P-200-M12 Photoelectric Sensor
Leuze PRK5/4P-200-M12 Photoelectric Sensor
Leuze PRK5/4P-200-M12 Photoelectric Sensor
Leuze PRK5/4P-200-M12 Photoelectric Sensor
Leuze PRK5/4P-200-M12 Photoelectric Sensor
Leuze PRK5/4P-200-M12 Photoelectric Sensor
Leuze PRK5/4P-200-M12 Photoelectric Sensor
Leuze

Leuze PRK5/4P-200-M12 Photoelectric Sensor

Product SKU: NTSSEN00147
Available:
Only 0 item in stock
0 item in stock
In stock
Pre-order
Out of stock
  • Brand : Leuze
  • Supply Voltage :  10 – 30 V, DC
  • Open-circuit current : 0 … 20 mA
  • Output 1 switching element : Transistor, PNP
  • Type of connection : Cable with connector
  • Warranty : 12 Months

Leuze PRK5/4P-200-M12 is obsolete now: New Model PRK5B/4X-200-M12

Rs. 4,850.00
Rs. 9,076.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

Leuze PRK5/4P-200-M12 Photoelectric Sensor

Leuze PRK5/4P-200-M12 is obsolete now: New Model PRK5B/4X-200-M12

The Leuze PRK5/4P-200-M12 Photoelectric Sensor Part No.- 50117704 is a cutting-edge solution for industrial automation. The Series PRK5 sensor operates on the reflection principle, offering a guaranteed sensing range of 0.02 to 4.5 m, and a typical range up to 6 m when used with a TK(S) 100x100 reflector. It uses a 620 nm red LED light source, classified in the Exempt Group per EN 62471, ensuring eye safety.

This sensor supports light and dark switching via two PNP transistor outputs, and it reacts quickly with a 1 ms response time and 500 Hz switching frequency. It operates on 10–30 V DC with 0–15% ripple, and consumes up to 20 mA.

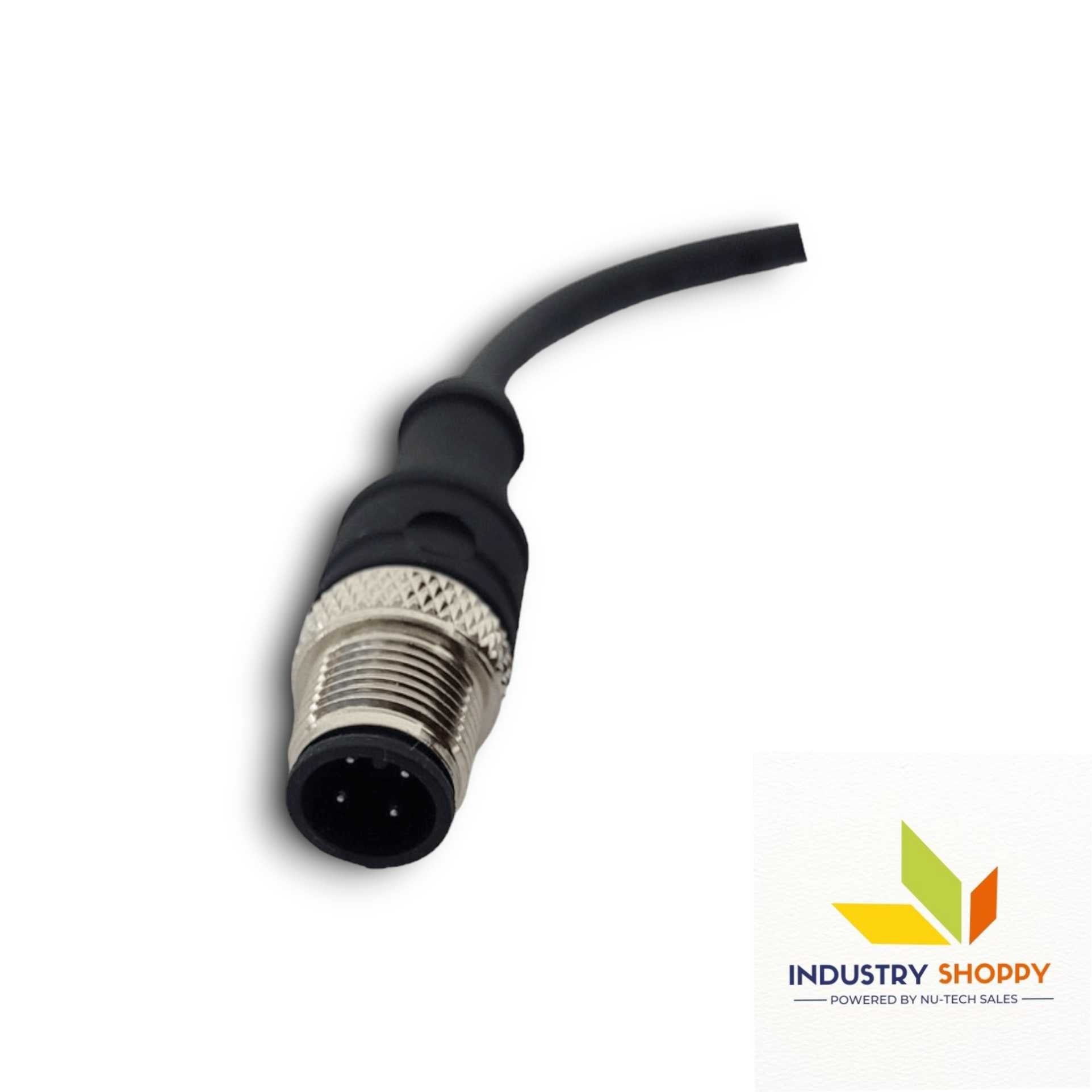

Connectivity is provided through a 200 mm PUR-sheathed cable with an M12, 4-pin A-coded male connector, making it easy to integrate. The compact ABS housing (14 × 32.5 × 20.2 mm) and IP67 protection ensure durability in harsh environments, with a wide operating temperature range of -40 to 60 °C.

The unit features LED indicators, complies with IEC 60947-5-2, and is certified by c UL US.



Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!

Facebook, Youtube,


BrandLeuze
Model NumberPRK5/4P-200-M12
Part No.50117704
Series5
Operating principleReflection principle
Operating range0.02 ... 4.5 m, With reflector TK(S) 100x100
Operating rangeGuaranteed operating range
Operating range limitTypical operating range
Operating range limit0.02 ... 6 m, With reflector TK(S) 100x100
Light sourceLED, Red
Wavelength620 nm
LED groupExempt group (in acc. with EN 62471)
Supply voltage UB10 ... 30 V, DC, Incl. residual ripple
Residual ripple0 ... 15 %, From UB
Open-circuit current0 ... 20 mA
Switching elementTransistor, PNP
Switching principleLight switching
Switching elementTransistor, PNP
Switching principleDark switching
Switching frequency500 Hz
Response time1 ms
Readiness delay300 ms
FunctionSignal OUT
 Voltage supply
Type of connectionCable with connector
Cable length200 mm
Sheathing materialPUR
Cable colorBlack
Wire cross section0.2 mm
Thread sizeM12
TypeMale
MaterialPlastic
No. of pins4 -pin
EncodingA-coded
Dimension (W x H x L)14 mm x 32.5 mm x 20.2 mm
Housing materialPlastic
Plastic housingABS
Lens cover materialPlastic
Net weight40 g
Housing colorBlack
 Red
Type of displayLED
Ambient temperature, operation-40 … 60 °C
Ambient temperature, storage-40 … 70 °C
Degree of protectionIP 67
Protection classIII
Certificationsc UL US
Standards appliedIEC 60947-5-2
