Leuze PRK46C/4P-M12 Photoelectric Sensor
Leuze PRK46C/4P-M12 Photoelectric Sensor
Leuze PRK46C/4P-M12 Photoelectric Sensor
Leuze PRK46C/4P-M12 Photoelectric Sensor
Leuze PRK46C/4P-M12 Photoelectric Sensor
Leuze PRK46C/4P-M12 Photoelectric Sensor
PRK46C-4P-M12
Leuze PRK46C/4P-M12 Photoelectric Sensor
Leuze PRK46C/4P-M12 Photoelectric Sensor
Leuze PRK46C/4P-M12 Photoelectric Sensor
Leuze PRK46C/4P-M12 Photoelectric Sensor
Leuze PRK46C/4P-M12 Photoelectric Sensor
Leuze PRK46C/4P-M12 Photoelectric Sensor
Leuze

Leuze PRK46C/4P-M12 Photoelectric Sensor

Product SKU: NTSSEN00218
Available:
Only 11 items in stock
11 items in stock
In stock
Pre-order
Out of stock
  • Brand : Leuze
  • Supply Voltage :  10 – 30 V, DC
  • Open-circuit current : 0 … 15 mA
  • Output 1 switching element : Transistor, PNP

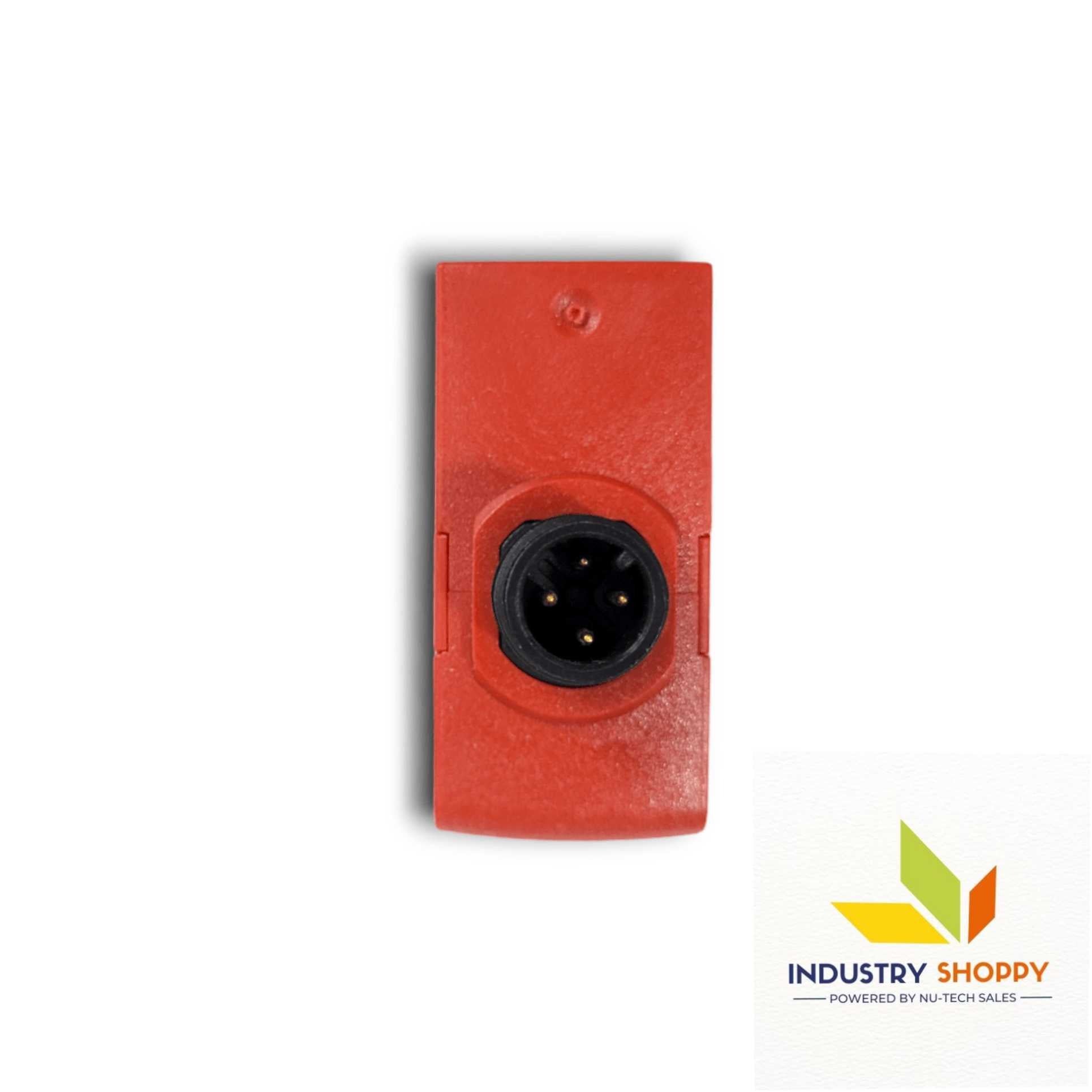

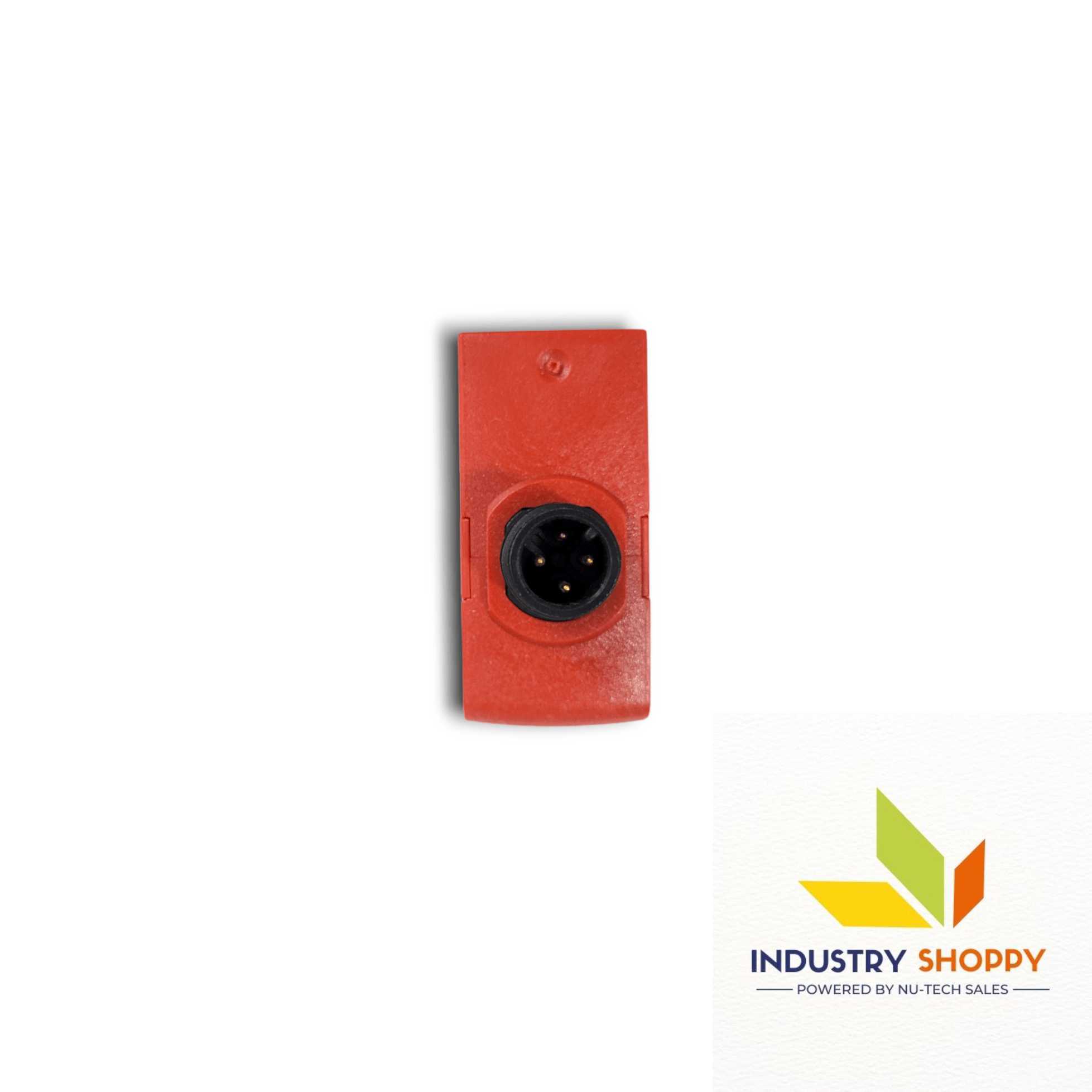

  • Type of connection : M12 Connector 4 Pins
  • Warranty : 12 Months
Rs. 4,665.00
Rs. 6,350.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

Leuze PRK46C/4P-M12 Photoelectric Sensor

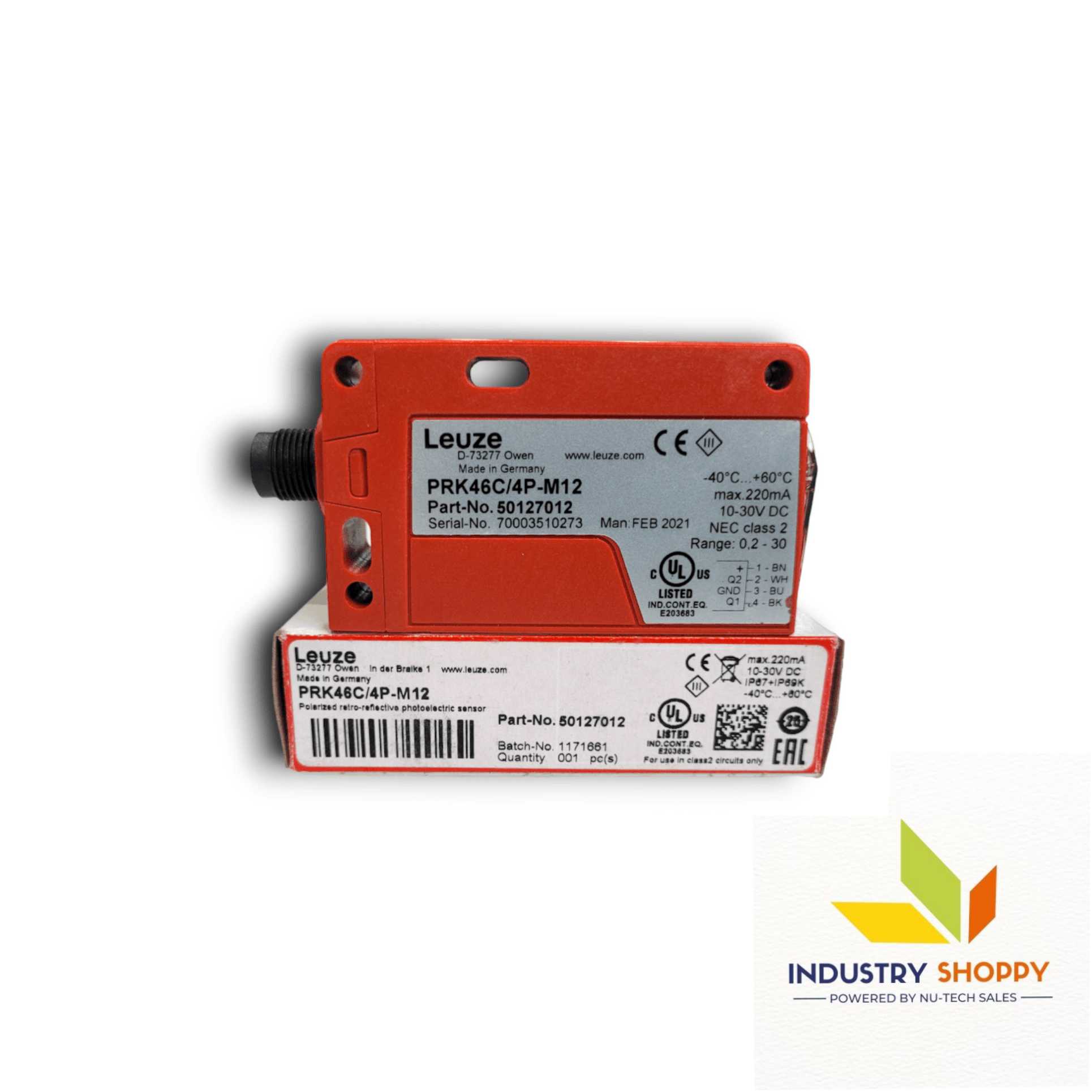

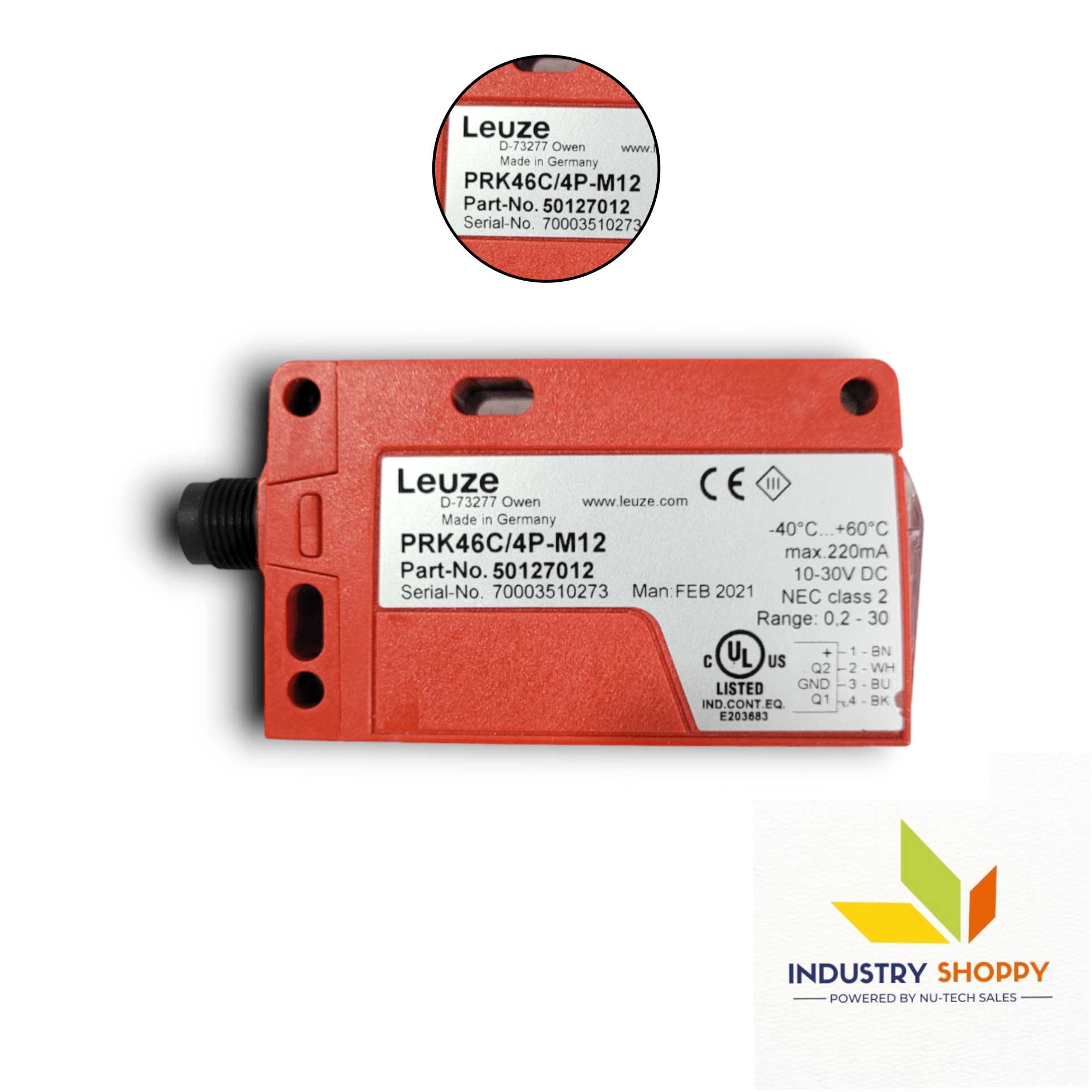

The Leuze PRK46C/4P-M12 Photoelectric Sensor Part No.- 50127012 is a cutting-edge solution for industrial automation. The PRK46/4P-M12 sensor operates based on the reflection principle, offering a guaranteed operating range of 0.1 to 24 meters, extendable to 30 meters in typical conditions when used with a TK(S) 100×100 reflector. Utilizing a 630 nm red LED, it falls within the exempt group according to EN 62471 standards. Electrically, it accommodates a supply voltage (UB) ranging from 10 to 30 V DC with a residual ripple of 0-15% from UB.

The open-circuit current ranges from 0 to 20 mA, and it employs a PNP transistor for both light and dark switching, operating at a frequency of 500 Hz. With compact dimensions of 20.5 mm x 76.3 mm x 44 mm, a 4-pin A-coded connector, and a vibrant red PC-PBT housing weighing 60 grams, it is designed for through-hole mounting.

The Leuze PRK46C/4P-M12 Photoelectric Sensor is operating in temperatures from -40 to 60 °C during operation and -40 to 70 °C during storage, it excels in diverse environmental conditions while providing a “Signal OUT Voltage supply” function for enhanced functionality.

Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!

Facebook, Youtube,


Model NamePRK46C/4P-M12
Series46C
Operating principleReflection principle
Operating range0.1 ... 24 m, With reflector TK(S) 100x100
Operating rangeGuaranteed operating range
Operating range limitTypical operating range
Operating range limit0.1 ... 30 m, With reflector TK(S) 100x100
Light sourceLED, Red
Wavelength630 nm
LED groupExempt group (in acc. with EN 62471)
Supply voltage UB10 ... 30 V, DC, Incl. residual ripple
Residual ripple0 ... 15 %, From UB
Open-circuit current0 ... 20 mA
Switching elementTransistor, PNP
Switching principleLight switching
Switching elementTransistor, PNP
Switching principleDark switching
Switching frequency500 Hz
Response time1 ms
Readiness delay300 ms
FunctionSignal OUT
 Voltage supply
Type of connectionConnector
Thread sizeM12
TypeMale
MaterialPlastic
No. of pins4 -pin
EncodingA-coded
Dimension (W x H x L)20.5 mm x 76.3 mm x 44 mm
Housing materialPlastic
Plastic housingPC-PBT

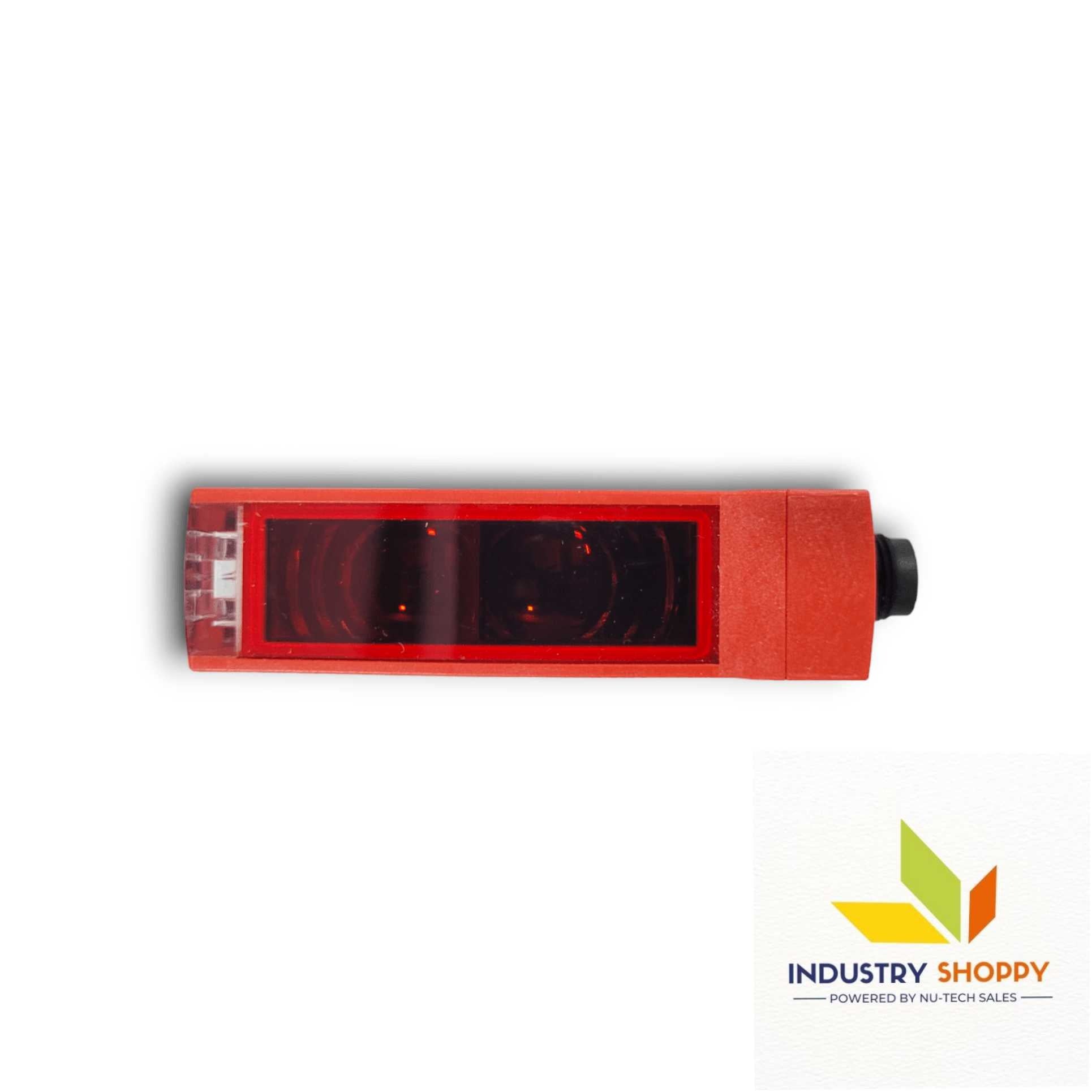

Lens cover materialPlastic / PMMA
Housing colorRed
Type of fasteningThrough-hole mounting
Via optional mounting deviceECOLAB
Compatibility of materialsECOLAB
Type of displayLED
Ambient temperature, operation-40 … 60 °C
Ambient temperature, storage-40 … 70 °C
Degree of protectionIP 67
IP 69KIII
Protection classIII
Certificationsc UL US
Standards appliedIEC 60947-5-2
