Leuze PRK3CL1.A3/4T-M8 Photoelectric Sensor
Leuze PRK3CL1.A3/4T-M8 Photoelectric Sensor
Leuze PRK3CL1.A3/4T-M8 Photoelectric Sensor
Leuze PRK3CL1.A3/4T-M8 Photoelectric Sensor
Leuze PRK3CL1.A3/4T-M8 Photoelectric Sensor
Leuze PRK3CL1.A3/4T-M8 Photoelectric Sensor
Leuze PRK3CL1.A3/4T-M8 Photoelectric Sensor
Leuze PRK3CL1.A3/4T-M8 Photoelectric Sensor
Leuze PRK3CL1.A3/4T-M8 Photoelectric Sensor
Leuze PRK3CL1.A3/4T-M8 Photoelectric Sensor
Leuze PRK3CL1.A3/4T-M8 Photoelectric Sensor
Leuze PRK3CL1.A3/4T-M8 Photoelectric Sensor
Leuze

Leuze PRK3CL1.A3/4T-M8 Photoelectric Sensor

Product SKU: NTSSEN00220
Available:
Only 16 items in stock
16 items in stock
In stock
Pre-order
Out of stock
  • Brand : Leuze
  • Supply Voltage :  10 – 30 V, DC
  • Open-circuit current : 0 … 15 mA
  • Output 1 switching element : Transistor, PNP
  • Type of connection : Connector
  • Warranty : 12 Months
Rs. 9,745.00
Rs. 12,125.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

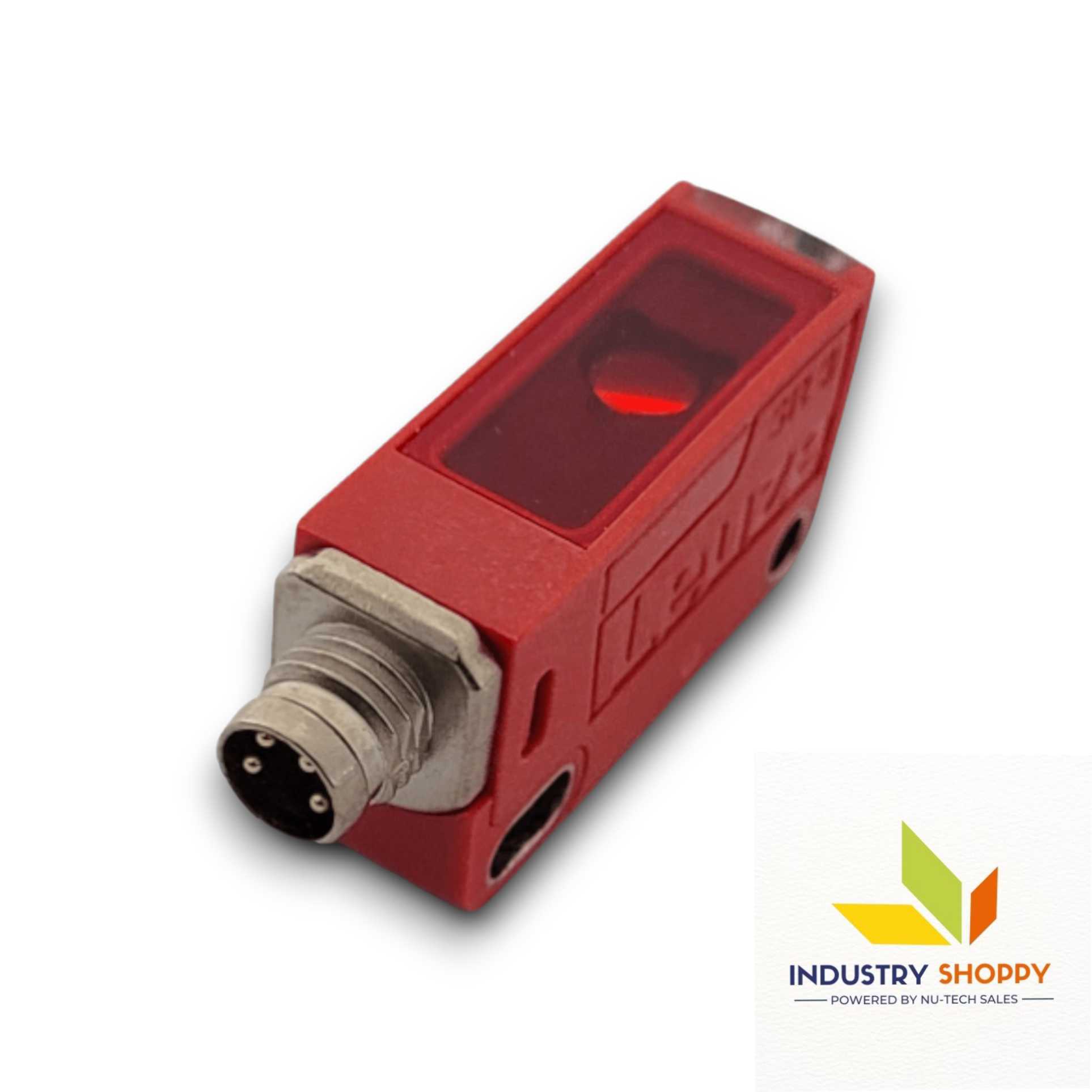

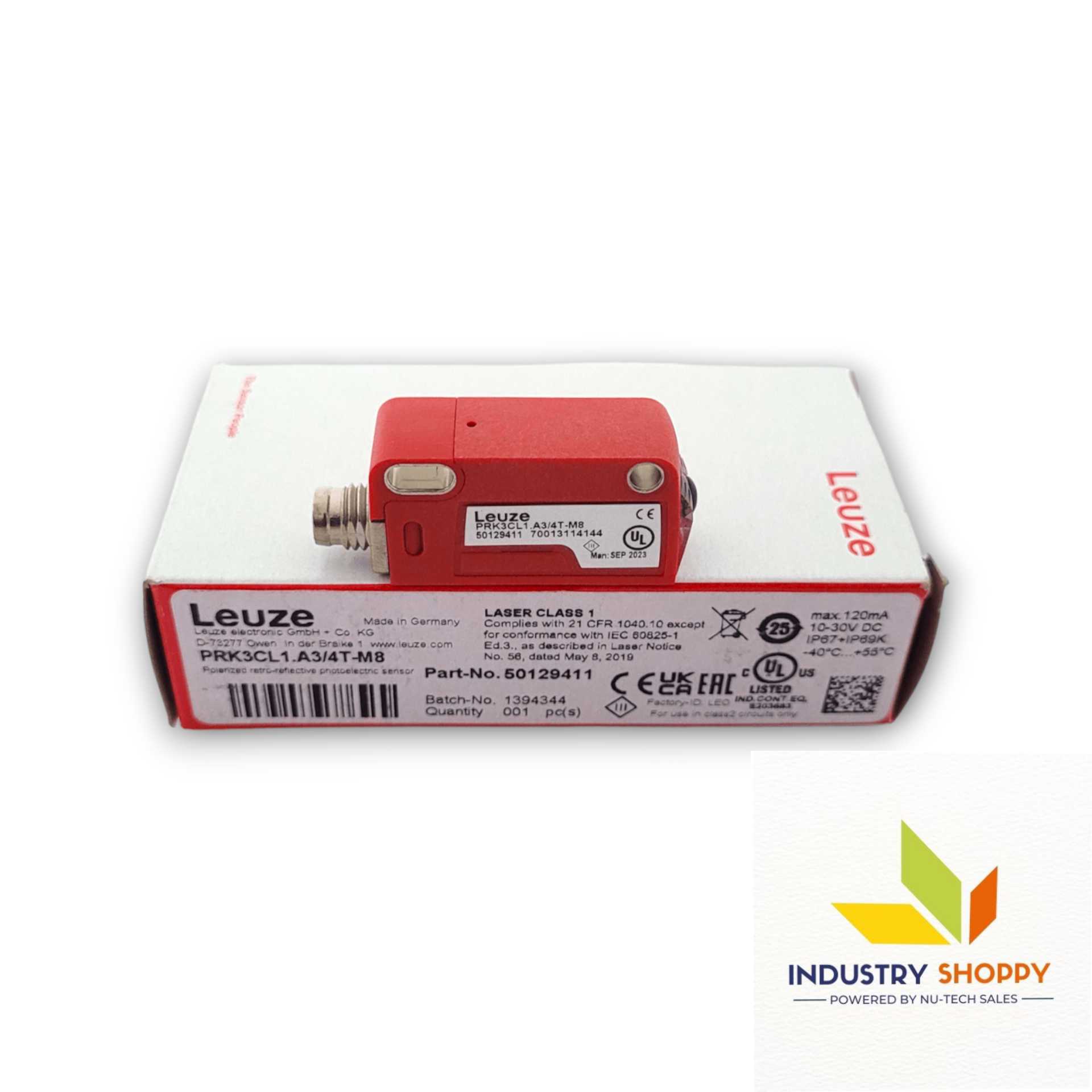

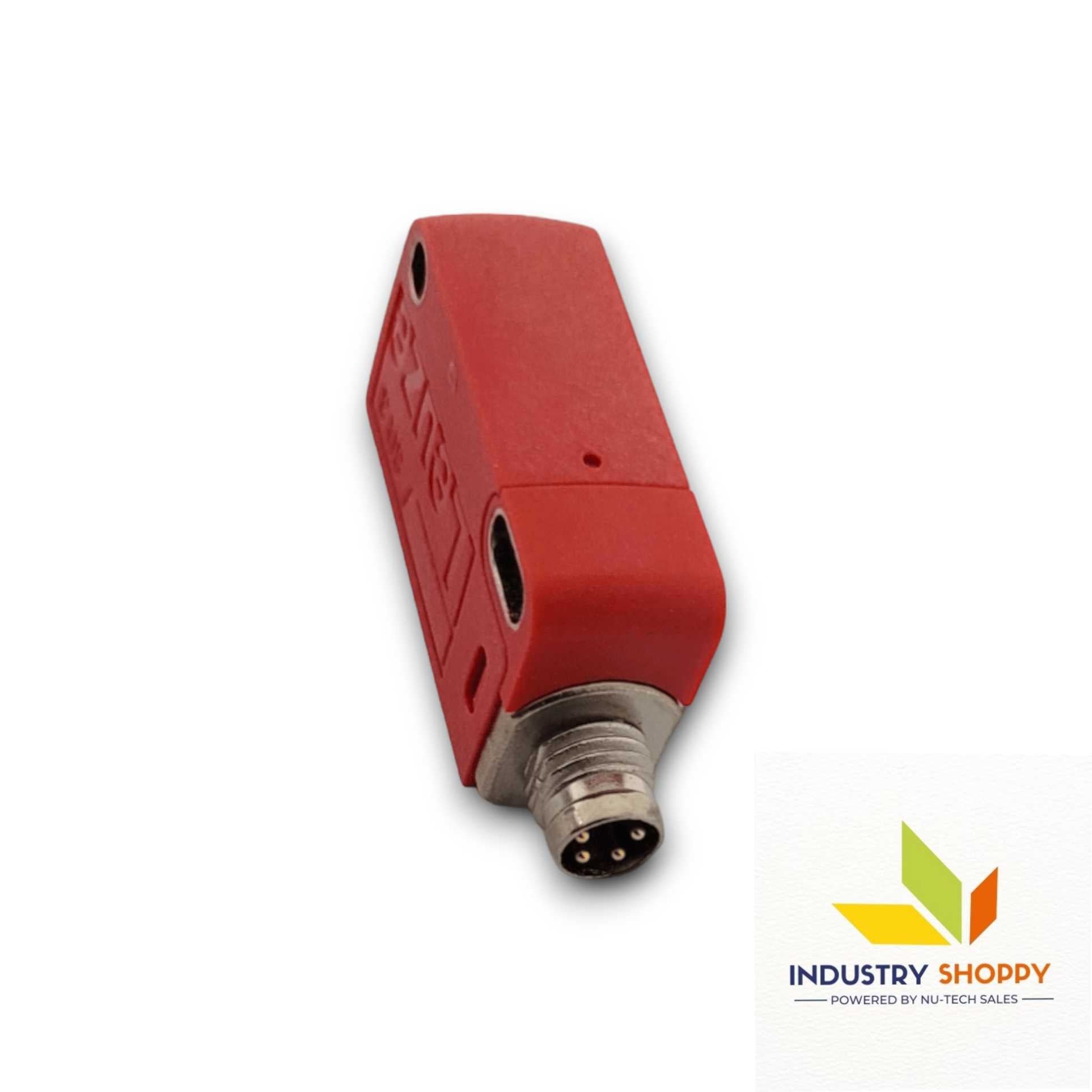

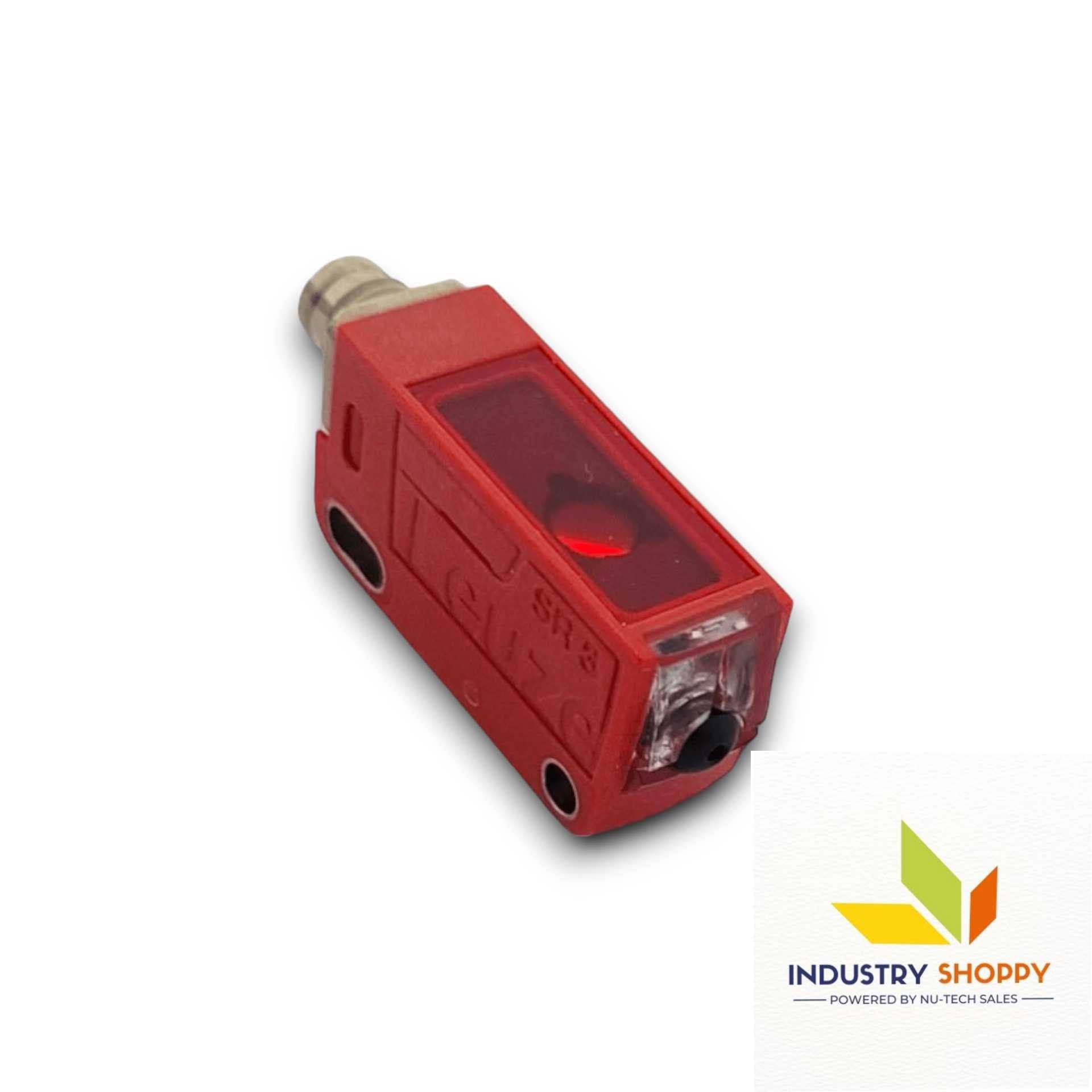

Leuze PRK3CL1.A3/4T-M8 Photoelectric Sensor

The Leuze PRK3CL1.A3/4T-M8 Photoelectric Sensor (Part No. 50129411), part of the 3C series, is a compact, high-precision laser retro-reflective sensor optimized for demanding detection tasks. It operates on the reflection principle, achieving a typical range of 3 m and a guaranteed range of 2 m when used with the MTKS 50x50.1 reflector. Its collimated red laser beam (655 nm, Class 1) forms a 3 mm round light spot at 1,000 mm with a ±2° shift angle for pinpoint accuracy.

The sensor delivers a swift 0.17 ms response time and operates at a high switching frequency of 3,000 Hz, making it ideal for demanding, high-speed applications. It features a PNP output with light switching for accurate signal handling. The sensor offers quick sensitivity configuration via the integrated Teach button, enabling fast and intuitive setup. Additional functions include light/dark switching and a keyboard lockout for secure operation.

The housing is made of durable PC-ABS, paired with a PMMA lens cover for optical clarity. It includes a metal M8 4-pin connector for reliable electrical connections. The compact size (11.4 × 34.2 × 18.3 mm) allows for flexible installation in tight spaces. With IP67/IP69K ratings and ECOLAB certification, the sensor delivers robust performance in harsh environments. It operates reliably within a temperature range of -40°C to +55°C.



Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!

Facebook, Youtube,


BrandLeuze
Model No.PRK3CL1.A3/4T-M8
Series3C
Operating principleReflection principle
Operating range0 ... 2 m, With reflector MTKS 50x50.1
Operating rangeGuaranteed operating range
Operating range limitTypical operating range
Operating range limit0 ... 3 m, With reflector MTKS 50x50.1
Beam pathCollimated
Light sourceLaser, Red
Wavelength655 nm
Laser class1, in accordance with IEC 60825-1:2014 (EN 60825-1:2014)
Light spot size [at sensor distance]3 mm [1,000 mm]
Type of light spot geometryRound
Shift angleTyp.± 2°
Supply voltage UB10 ... 30 V, DC, Incl. residual ripple
Residual ripple0 ... 15 %, From UB
Open-circuit current0 ... 15 mA
FunctionKeyboard lockout

 Light/dark switching

 Sensitivity adjustment

Switching elementTransistor, PNP
Switching principleLight switching
Switching frequency3,000 Hz
Response time0.17 ms
Readiness delay300 ms
FunctionSignal IN

 Signal OUT

 Voltage supply
Type of connectionConnector
Thread sizeM8
TypeMale
MaterialMetal
No. of pins4 -pin
Dimension (W x H x L)11.4 mm x 34.2 mm x 18.3 mm
Housing materialPlastic
Plastic housingPC-ABS
Lens cover materialPlastic / PMMA
Housing colorRed
Type of fasteningThrough-hole mounting

 Via optional mounting device
Compatibility of materialsECOLAB
Type of displayLED
Operational controlsTeach button
Function of the operational controlSensitivity adjustment
Ambient temperature, operation-40 … 55 °C
Ambient temperature, storage-40 … 70 °C
Degree of protectionIP 67
IP 69KIEC 60947-5-2
Protection classIII
Certificationsc UL US
Standards appliedIEC 60947-5-2
