  • Brand : Leuze
  • Supply Voltage :  10 – 30 V, DC
  • Open-circuit current : 0 … 15 mA
  • Output 1 switching element : Transistor, PNP
  • Type of connection : Connector
  • Warranty : 12 Months
Rs. 11,540.00
Rs. 17,150.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Shipping & Returns

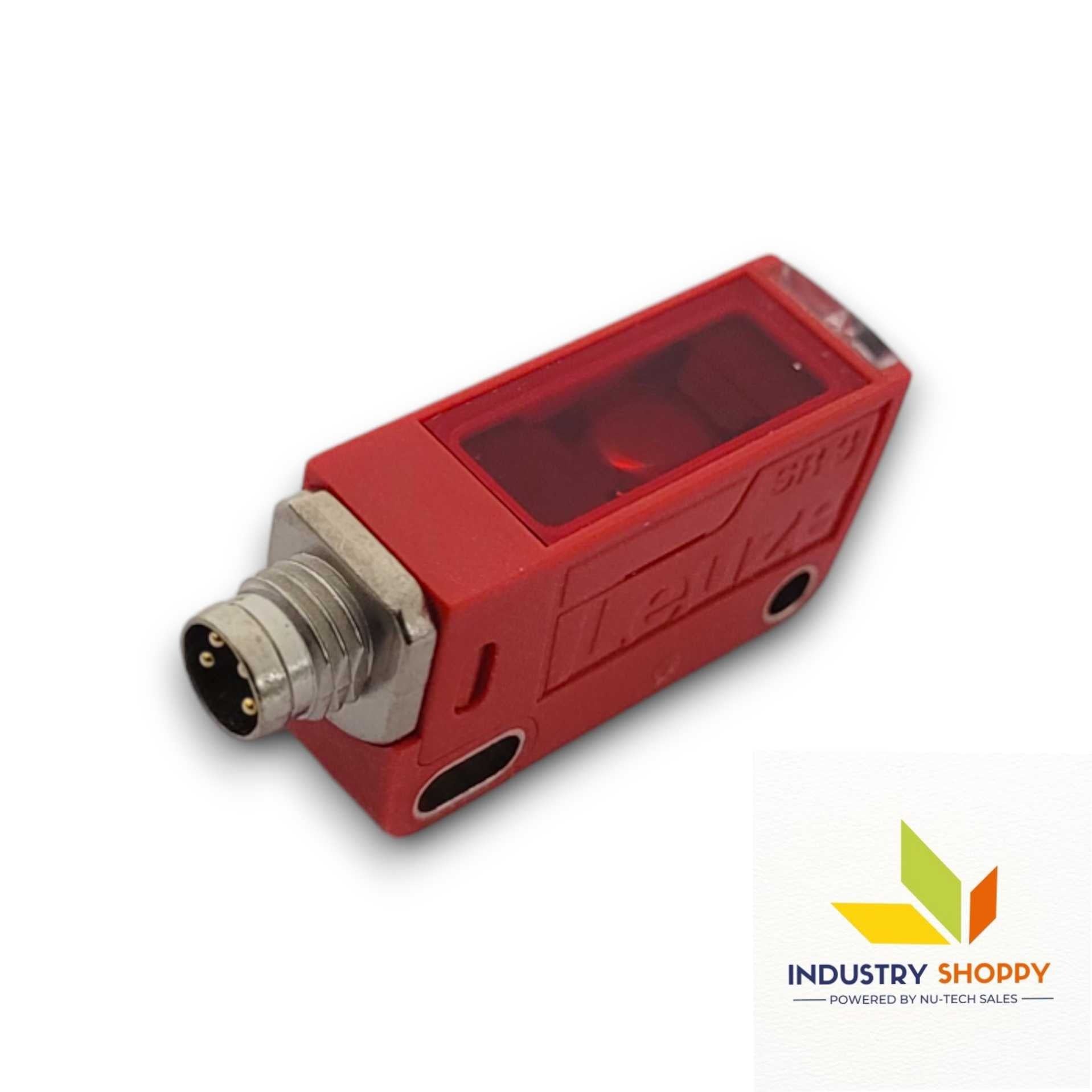

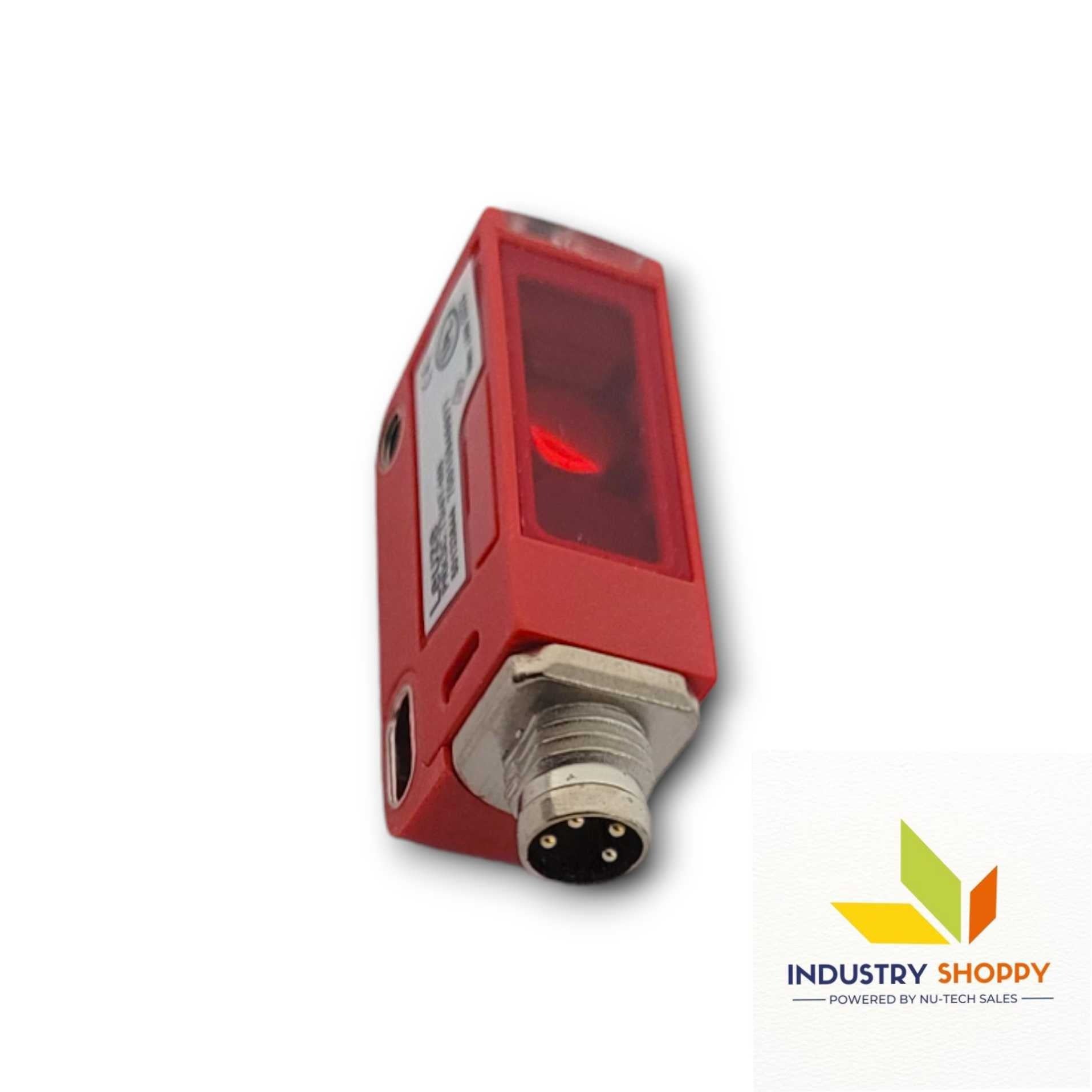

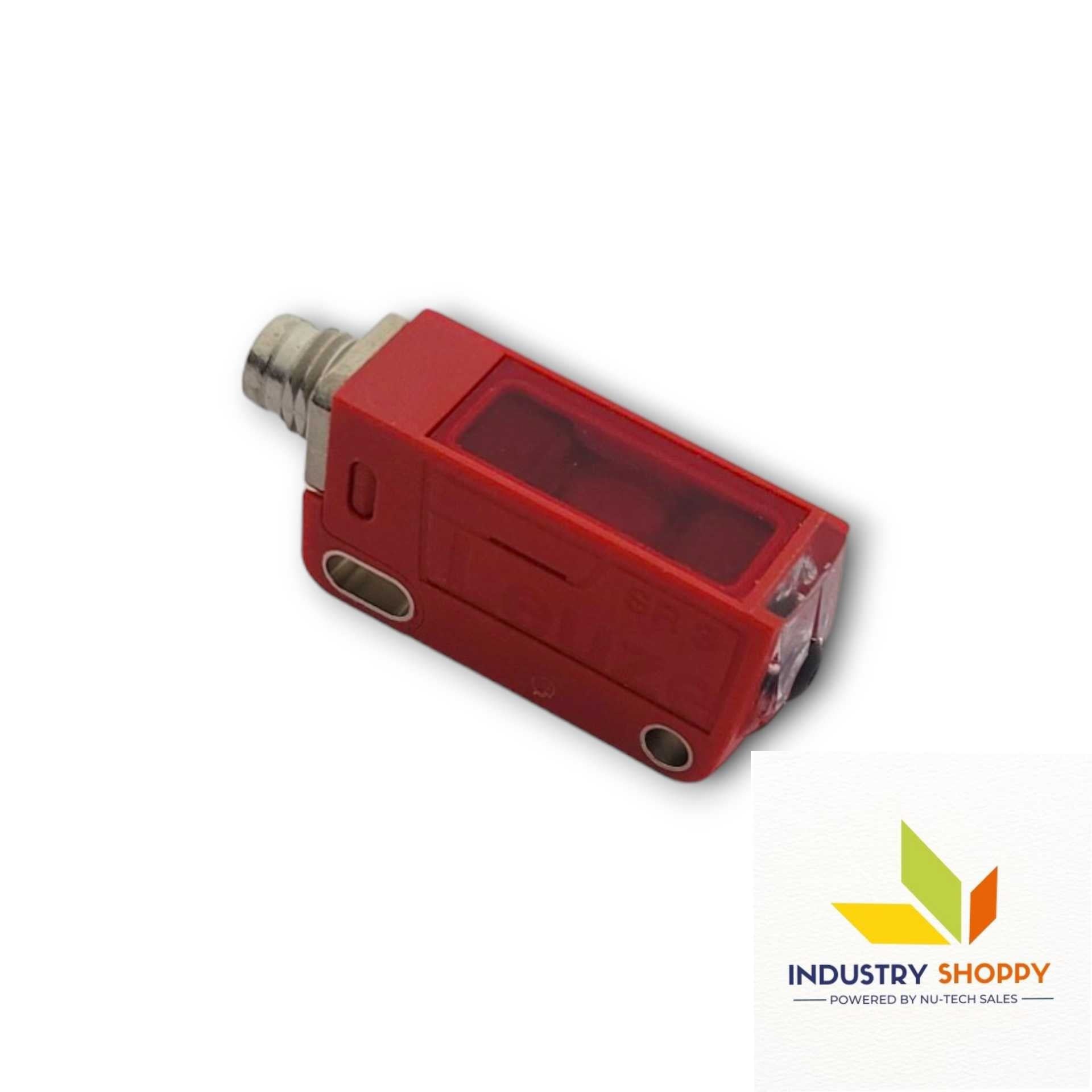

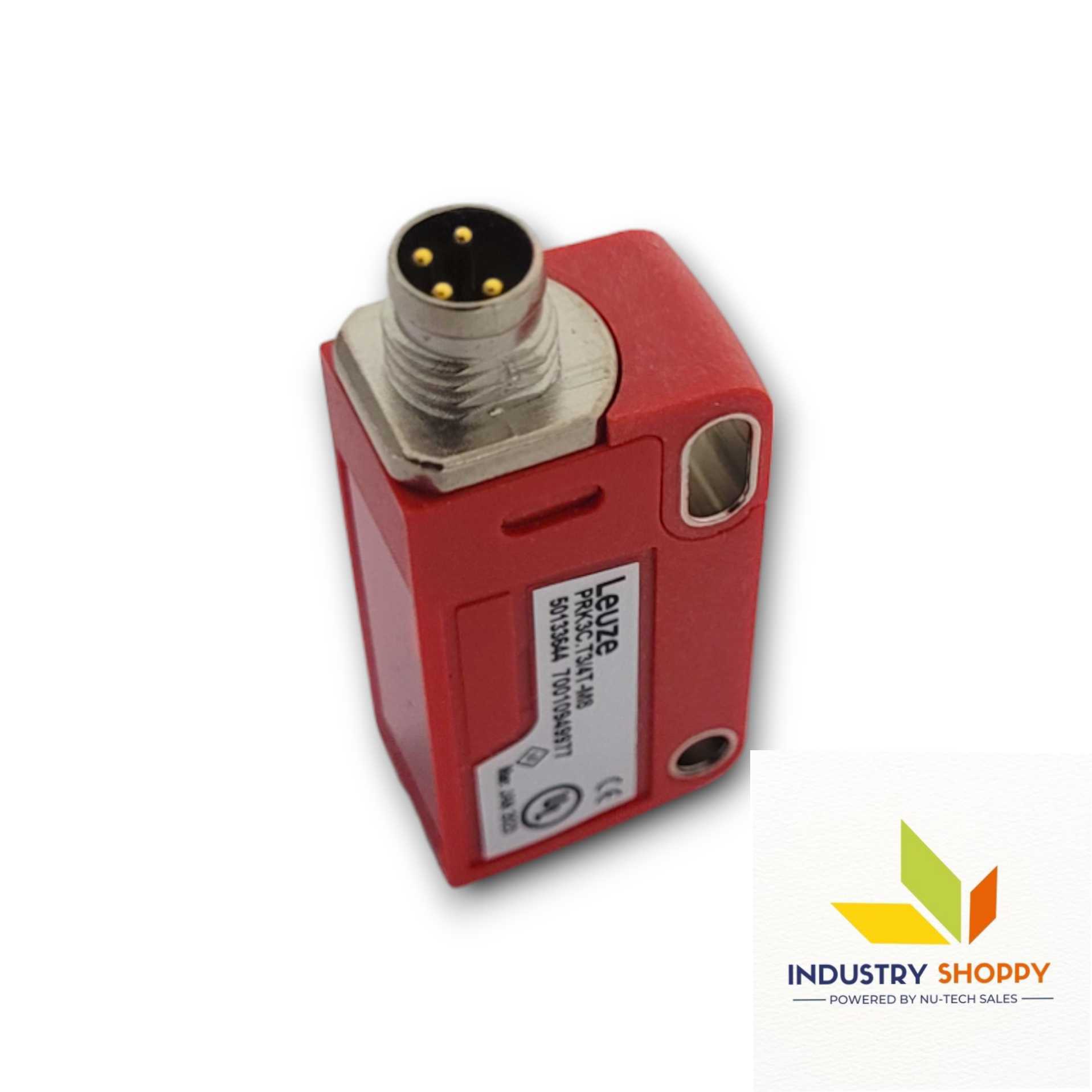

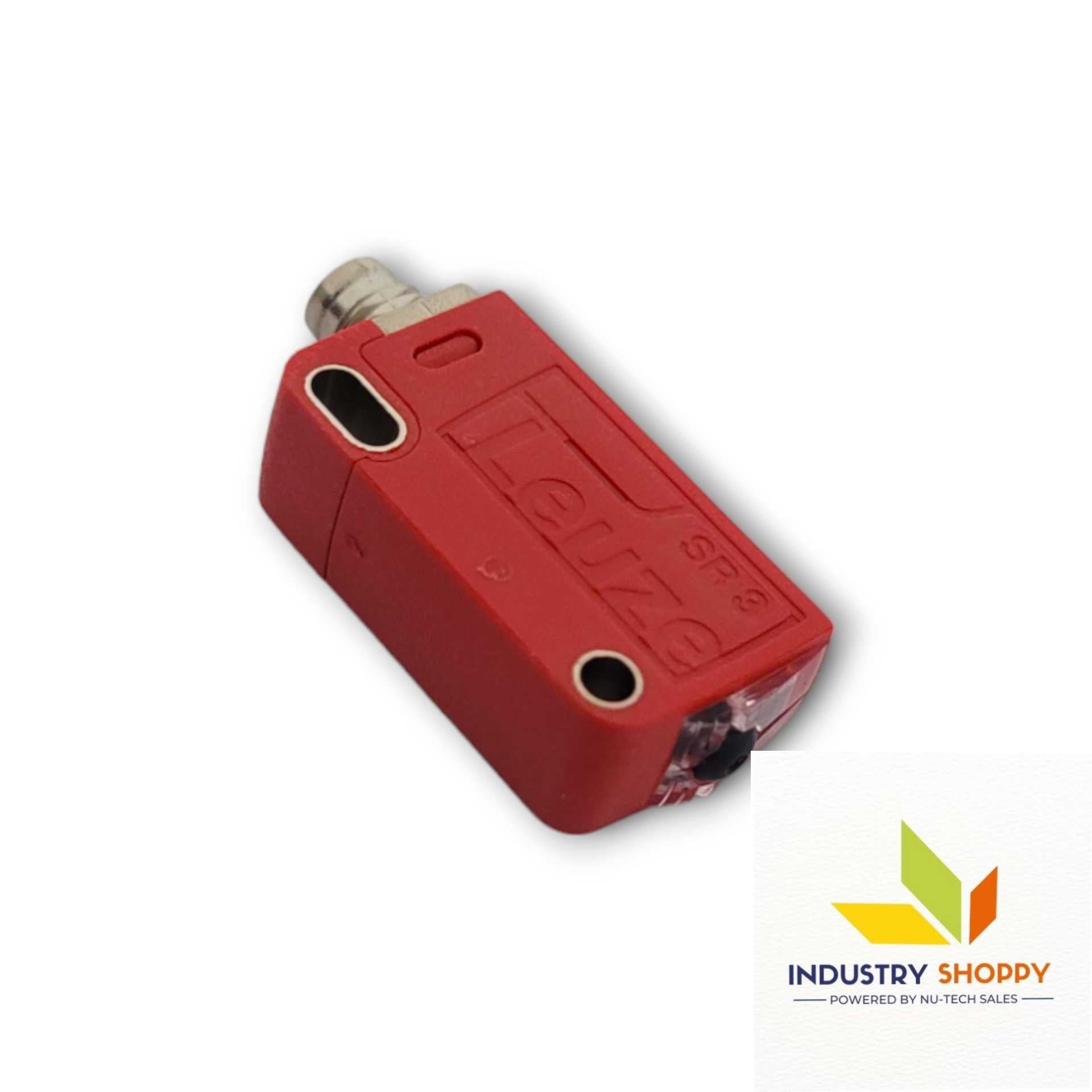

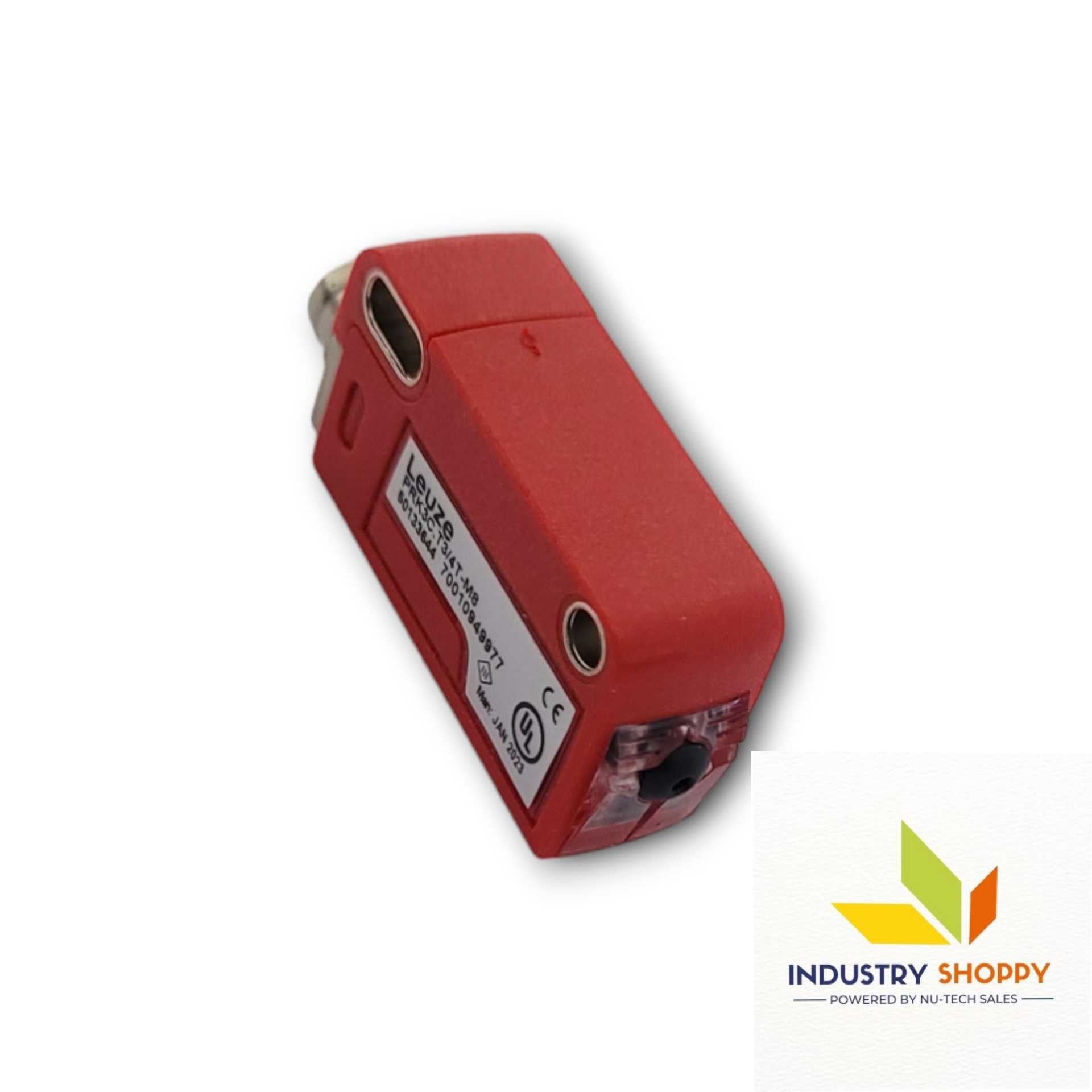

Leuze PRK3C.T3/4T-M8 Photoelectric Sensor

The Leuze PRK3C.T3/4T-M8 Photoelectric Sensor (Part No. 50133644) is an innovative solution for industrial automation. The 3C series sensor operates on the reflection principle and incorporates an autocollimation teach input. The 3C series sensor operates reliably within a guaranteed range of 0 to 3 meters. Typically, this range extends up to 3.6 meters when equipped with the TK(S) 100x100 reflector. The sensor incorporates a red LED light source at 635 nm wavelength. It meets safety standards, falling into the exempt group according to EN 62471.

The sensor is compact, measuring 11.4 mm x 34.2 mm x 18.3 mm. It incorporates a robust plastic (PC-ABS) housing for compatibility with ECOLAB standards. The sensor's compact design, measuring 11.4 mm x 34.2 mm x 18.3 mm, incorporates a robust plastic (PC-ABS) housing. This construction ensures compatibility with ECOLAB standards.

The sensor, equipped with a 4-pin connector, allows for easy installation and features a LED display along with a teach button for sensitivity adjustment. It is operational in temperatures ranging from -40 to 60 °C, making it a versatile solution for various applications.

Our engineers actively inputted all the reuired details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!

Facebook, Youtube,


BrandLeuze
Model No.PRK3C.T3/4T-M8
Series3C
Operating principleReflection principle
Special versionAutocollimation
Teach inputGuaranteed operating range
Operating range0 ... 3 m, With reflector TK(S) 100x100
Operating rangeGuaranteed operating range
Operating range limitTypical operating range
Operating range limit0 ... 3.6 m, With reflector TK(S) 100x100
Light sourceLED, Red
Wavelength635 nm
LED groupExempt group (in acc. with EN 62471)
Supply voltage UB10 ... 30 V, DC, Incl. residual ripple
Residual ripple0 ... 15 %, From UB
Open-circuit current0 ... 15 mA
FunctionKeyboard lockout
Light/dark switchingTransistor, PNP
Sensitivity adjustmentDark switching
Switching elementTransistor, PNP
Switching principleLight switching
Switching frequency1,500 Hz
Response time0.33 ms
Readiness delay300 ms
FunctionSignal IN
Signal OUTMale
Signal OUTPlastic
Voltage supply4 -pin
Voltage supplyA-coded
Type of connectionConnector
Thread sizeM8
TypeMale
MaterialMetal
No. of pins4 -pin
Dimension (W x H x L)11.4 mm x 34.2 mm x 18.3 mm
Housing materialPlastic
Plastic housingPC-ABS
Lens cover materialPlastic / PMMA
Housing colorRed
Type of fasteningThrough-hole mounting
Via optional mounting deviceIP 67
Compatibility of materialsECOLAB
Type of displayLED
Operational controlsTeach button
Function of the operational controlSensitivity adjustment
Ambient temperature, operation-40 … 60 °C
Ambient temperature, storage-40 … 70 °C
Degree of protectionIP 67
IP 69KIII
Protection classIII
Certificationsc UL US
Standards appliedIEC 60947-5-2
