Leuze PRK3C.BTT3/LP-M8 Photoelectric Sensor
Leuze PRK3C.BTT3/LP-M8 Photoelectric Sensor
Leuze PRK3C.BTT3/LP-M8 Photoelectric Sensor
Leuze PRK3C.BTT3/LP-M8 Photoelectric Sensor
Leuze PRK3C.BTT3/LP-M8 Photoelectric Sensor
Leuze PRK3C.BTT3/LP-M8 Photoelectric Sensor
Leuze

Leuze PRK3C.BTT3/LP-M8 Photoelectric Sensor

Product SKU: NTSSEN00851
Available:
Only 1 item in stock
1 item in stock
In stock
Pre-order
Out of stock
  • Brand  :  LEUZE
  • Part No.: 50133680
  • Number of pins : 4 Pins
  • Open-circuit current. : 0 ... 15 mA
  • Supply Voltage :  10 ... 30 V, DC, Incl. residual ripple
  • Switching element  :  Transistor, Push-pull
  • Warranty : 12 Months
Rs. 14,850.00
Rs. 35,150.00

+ GST @18% = Rs. 17,523.00

Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Accessories
  • Description
  • Specifications
  • Shipping & Returns
This product: Leuze PRK3C.BTT3/LP-M8 Photoelectric Sensor
Leuze KDU-M8-4A-V1-020 Connection Cable
Rs. 15,325.00

Leuze PRK3C.BTT3/LP-M8 Photoelectric Sensor

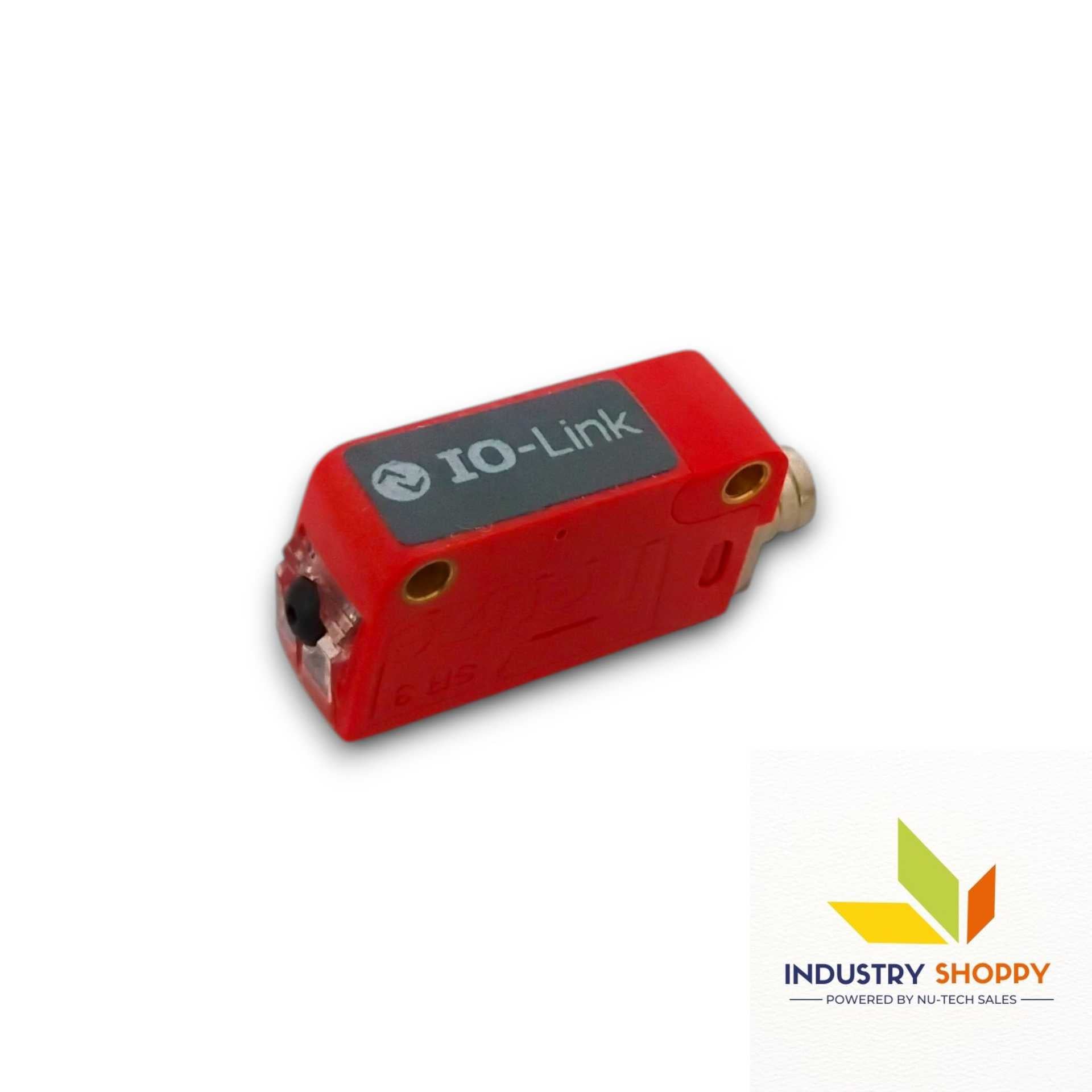

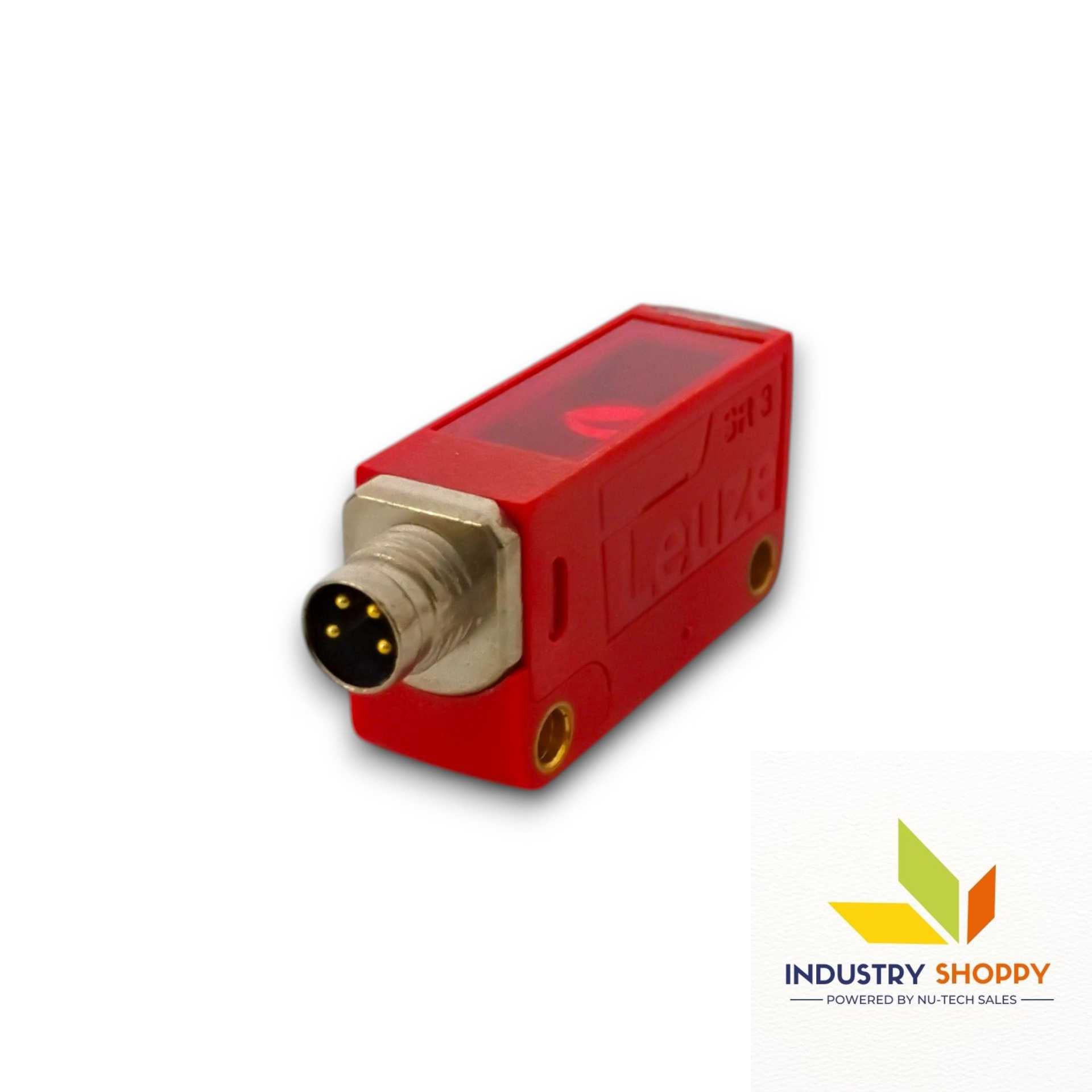

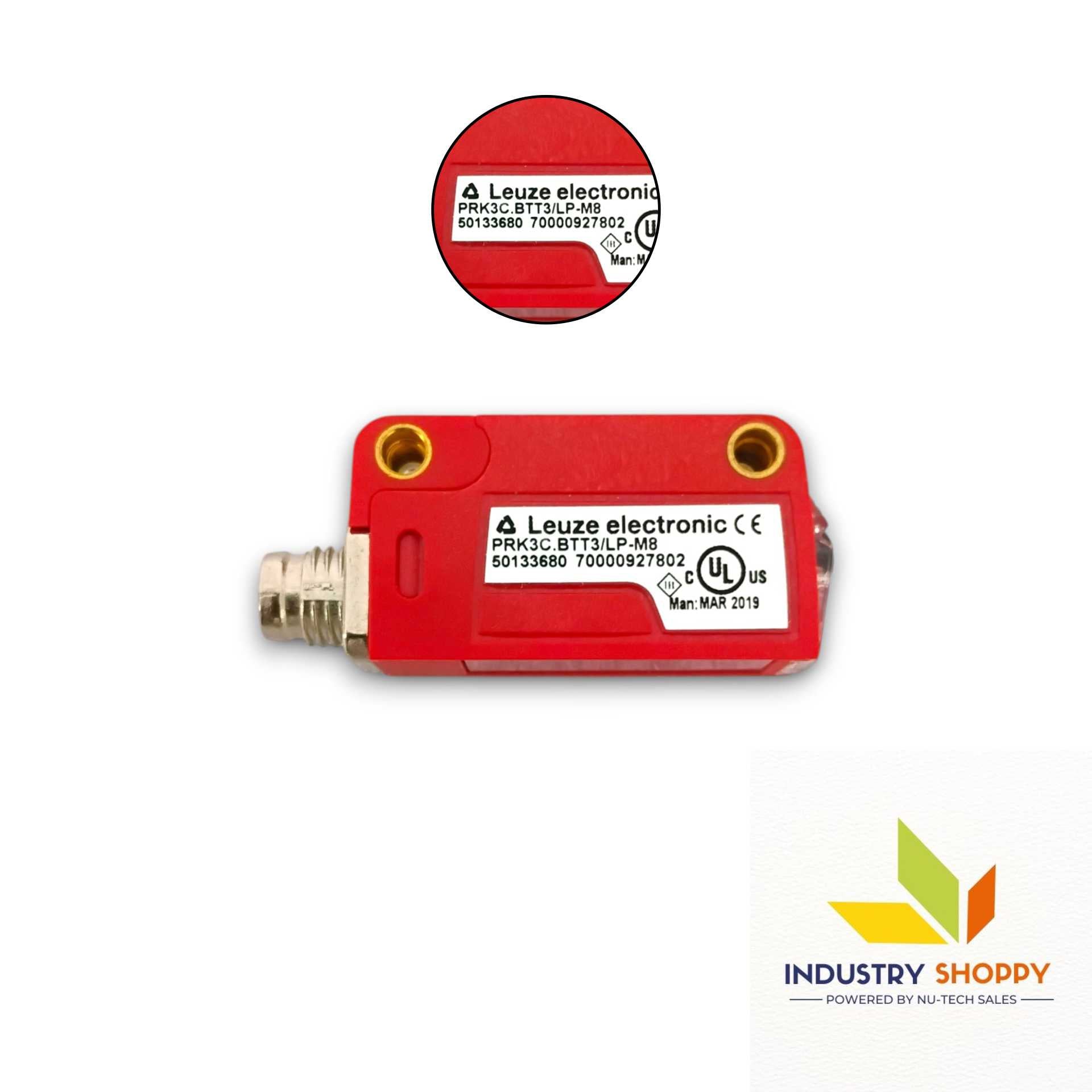

The Leuze PRK3C.BTT3/LP-M8 Photoelectric Sensor (50133680) is a compact and advanced retro-reflective sensor with autocollimation, specially designed for reliable detection of highly transparent bottles and films. Its integrated tracking function ensures stable performance even with fluctuating environmental conditions or varying object transparency.

With a guaranteed sensing range up to 3 meters (up to 3.6 m typical using reflector), it delivers consistent detection in packaging and conveyor systems. The red LED (635 nm) with pulsed signal enhances accuracy, while the fast 0.33 ms response time and 1,500 Hz switching frequency make it ideal for high-speed applications.

This sensor supports IO-Link communication (COM2), enabling smart diagnostics and easy integration into modern automation systems. It features push-pull outputs with light/dark switching, offering flexible control options. Built in a compact PC-ABS housing with M8 4-pin connector and IP67/IP69K protection, it ensures durability in harsh industrial and washdown environments.


Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!


Facebook, YouTube,

BrandLEUZE
Product NumberPRK3C.BTT3/LP-M8
Part Number50133680

Series

3C
Operating principleReflection principle
ApplicationDetection of highly transparent bottles, Detection of transparent films

Special version

Autocollimation, Tracking function

Operating range

0 ... 3 m (guaranteed operating range), With reflector TK(S) 100x100
Operating range limit0 ... 3.6 m (typical operating range), With reflector TK(S) 100x100
Light sourceLED, Red
Wavelength635 nm
Transmitted-signal shapePulsed
LED groupExempt group (in acc. with EN 62471)

Supply voltage UB

10 ... 30 V, DC, Incl. residual ripple
Residual ripple0 ... 15 %, From UB
Open-circuit current0 ... 15 mA

Number of digital switching outputs

2 Piece(s)

Type

Digital switching output

Switching element

Transistor, Push-pull
Switching principleIO-Link / light switching (PNP)/dark switching (NPN)

Switching element

Transistor, PNP
Switching principleDark switching

Switching frequency

1,500 Hz
Response time0.33 ms
Readiness delay300 ms
Response jitter110 µs

Type

IO-Link

COM mode

COM2
Min. cycle timeCOM2 = 2.3 ms
Frame type2.5
SpecificationV1.1
SIO-mode supportYes

Number of connections

1 Piece(s)

Function

Signal IN, Signal OUT, Voltage supply
Type of connectionConnector
Thread sizeM8
TypeMale
MaterialMetal
No. of pins4 -pin

Dimension (W x H x L)

11.4 mm x 34.2 mm x 18.3 mm
Housing materialPlastic
Plastic housingPC-ABS
Lens cover materialPlastic / PMMA
Housing colorRed
Type of fasteningTwo M3 threaded sleeves, Via optional mounting device
Compatibility of materialsECOLAB

Type of display

LED
Number of LEDs2 Piece(s)
Operational controlsTeach button
Function of the operational controlSensitivity adjustment

Ambient temperature, operation

-10 ... 60 °C
Ambient temperature, storage-40 ... 70 °C

Degree of protection

IP 67

IP 69K
Protection classIII
