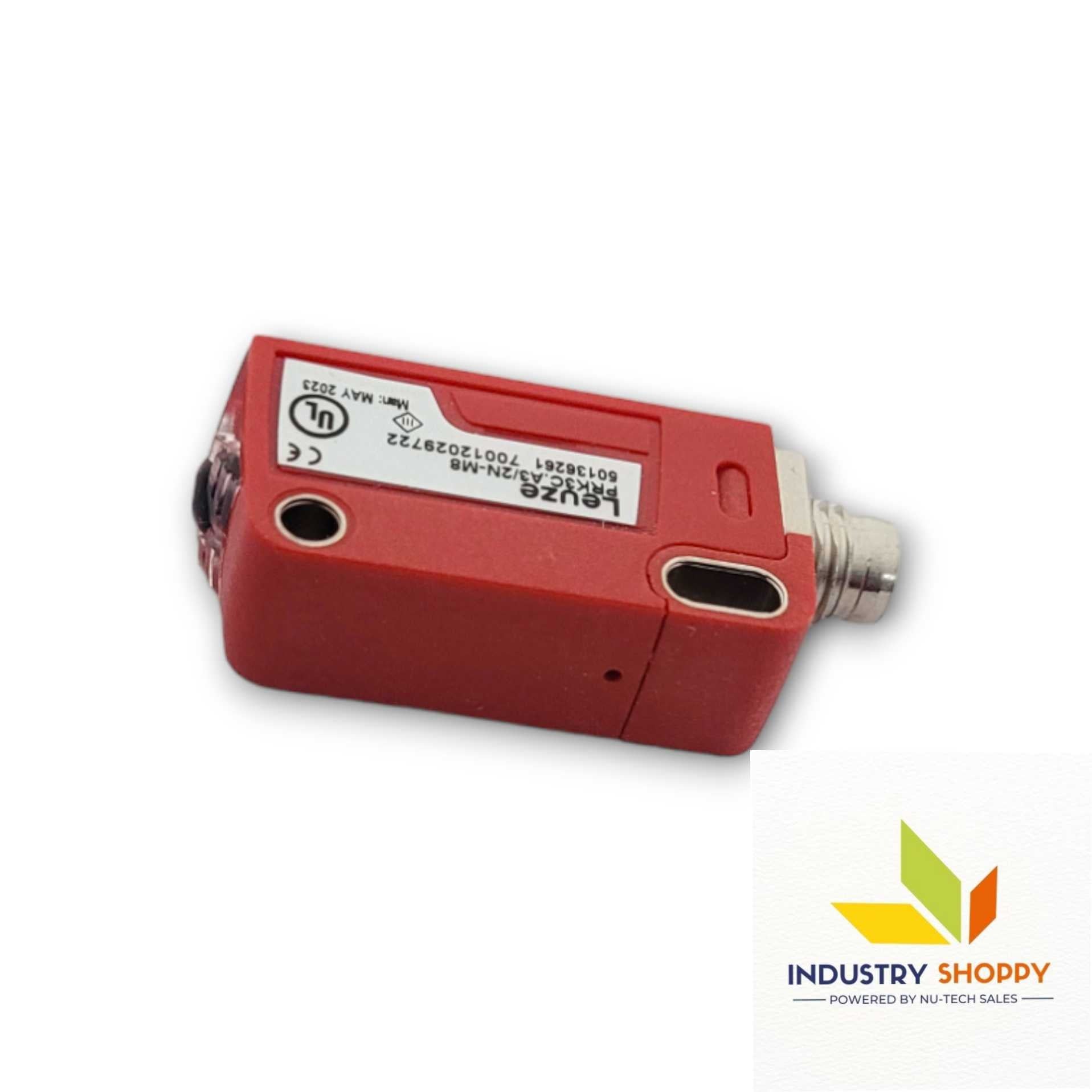

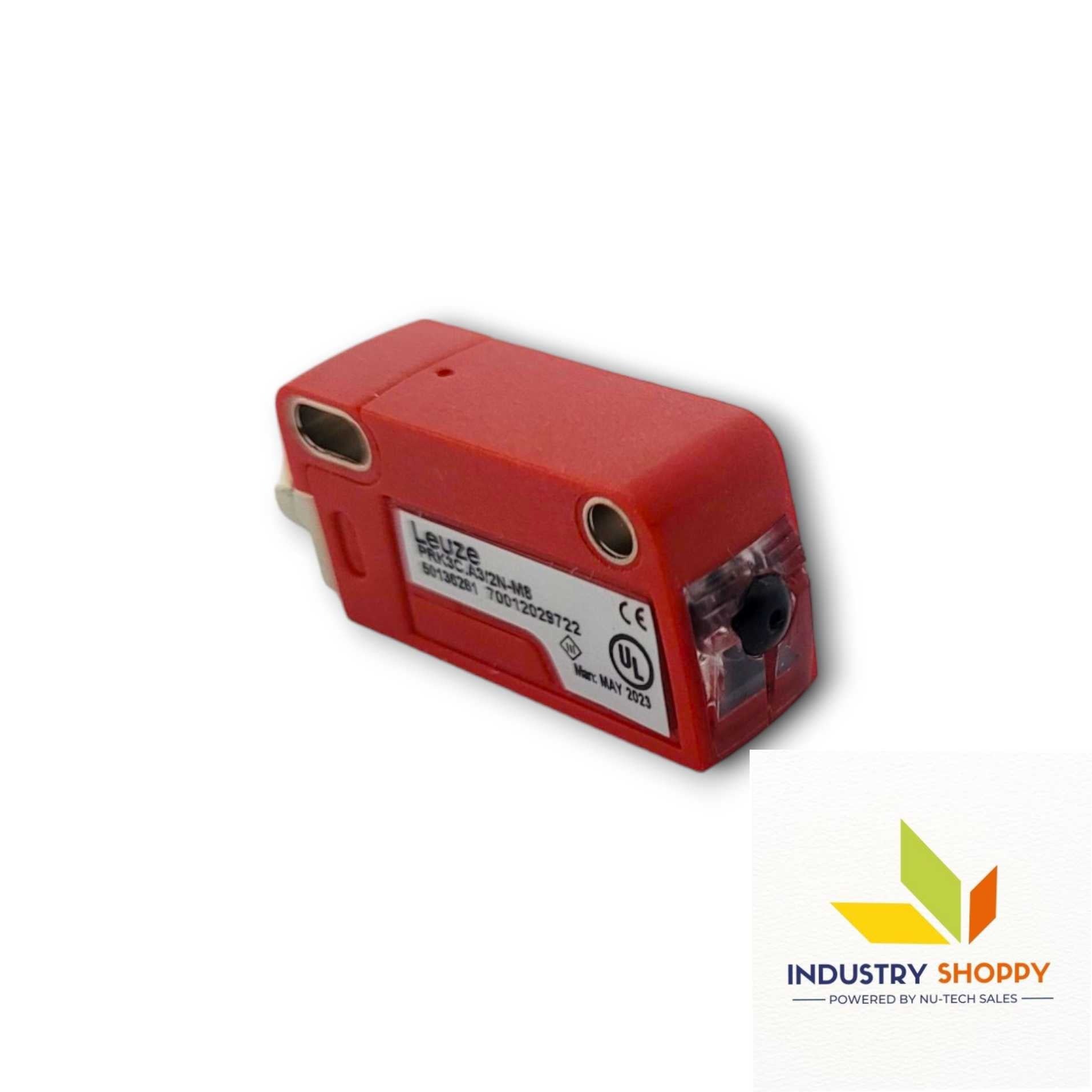

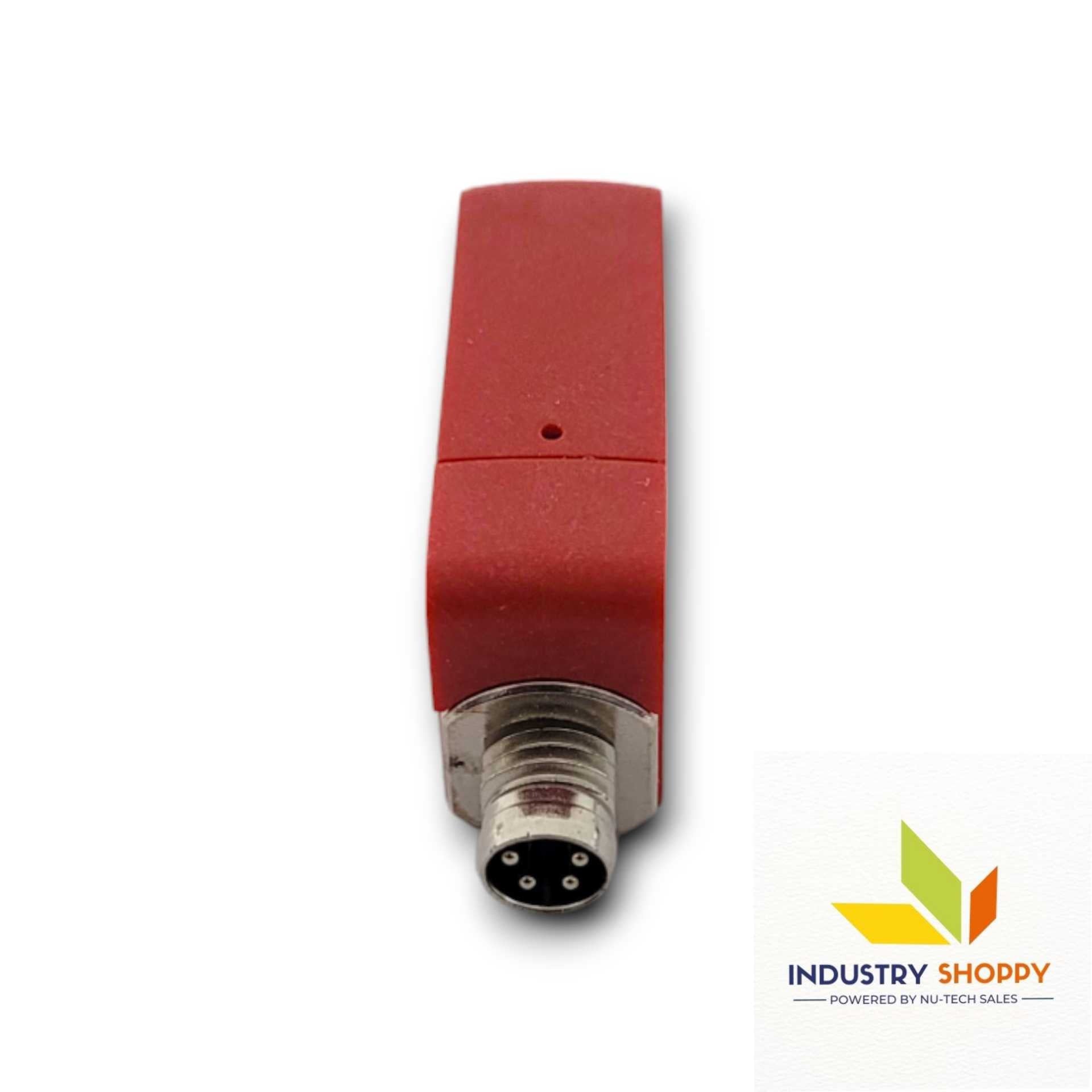

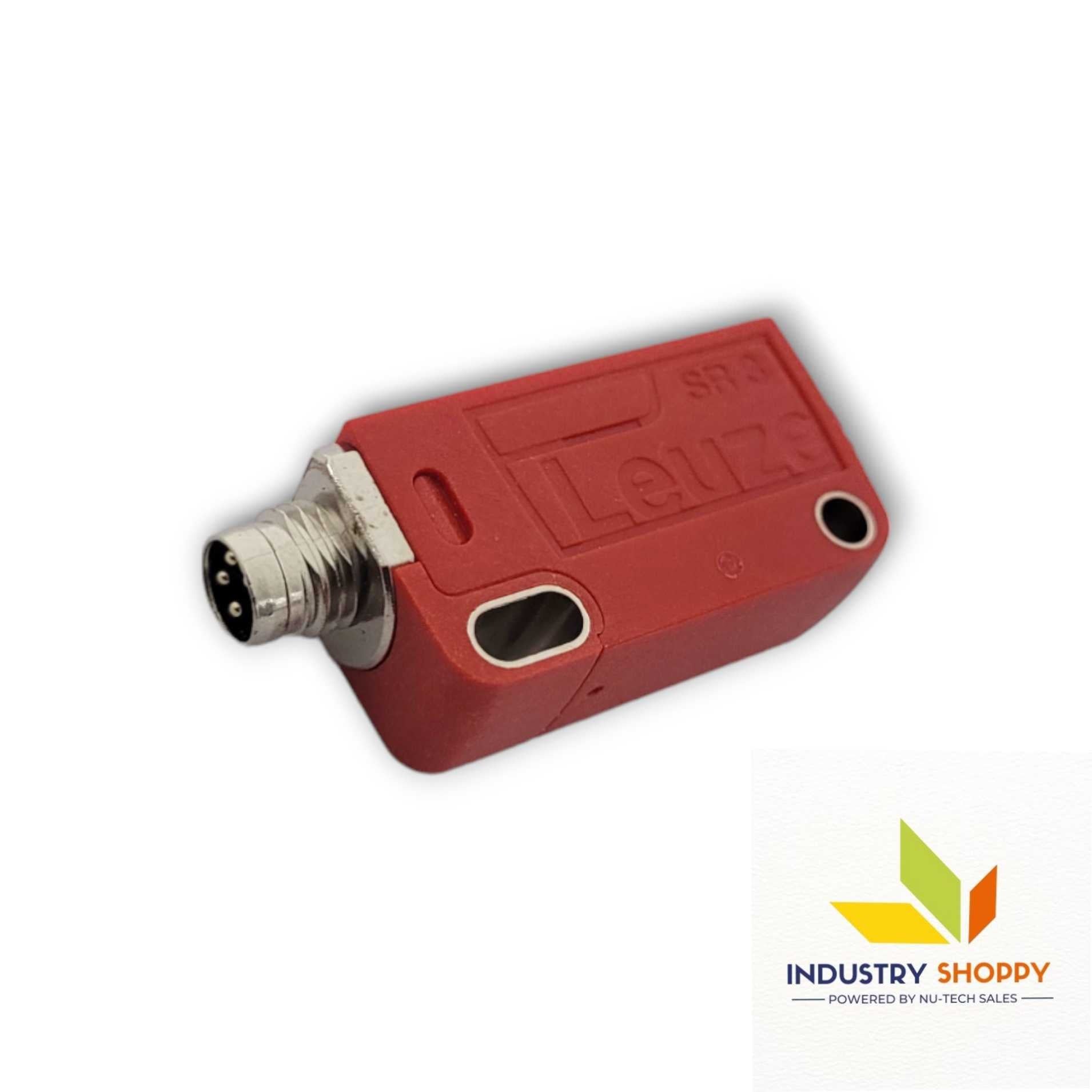

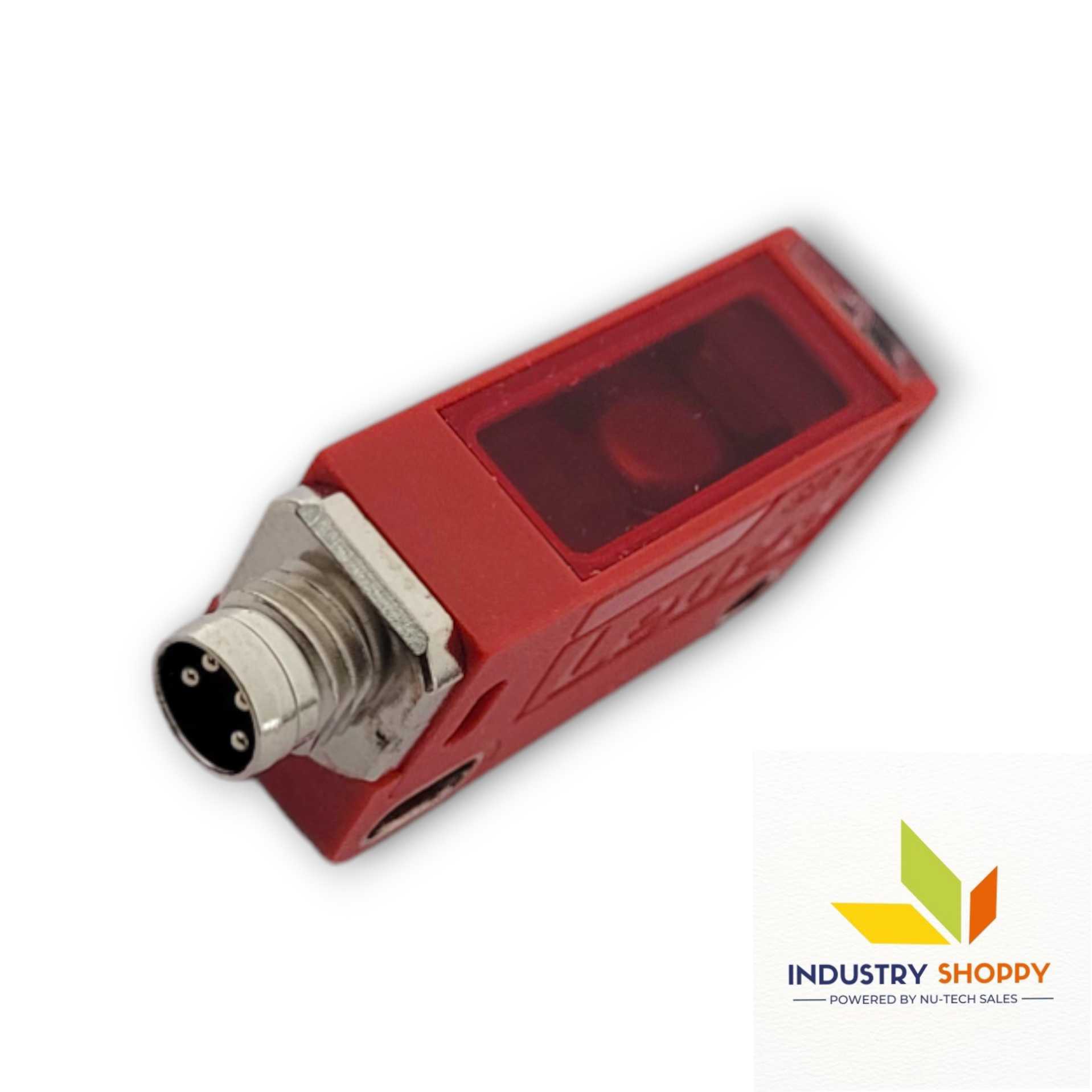

Leuze PRK3C.A3/2N-M8 Photoelectric Sensor

The Leuze PRK3C.A3/2N-M8 Photoelectric Sensor (Part No.: 50136261) from the 3C Series is a compact retro-reflective sensor that operates on the reflection principle. It achieves a guaranteed sensing range of 0.02 to 2.8 m, and extends up to 5 m when paired with a TK(S) 100x100 reflector. A 635 nm red LED serves as the light source and falls within the Exempt Group (EN 62471) for eye safety.

Equipped with NPN transistor outputs, it supports both light and dark switching. It delivers fast performance with a 0.33 ms response time and a 1,500 Hz switching frequency. The sensor operates on a 10–30 V DC supply, with up to 15 mA current draw and 15% residual ripple tolerance.

The compact housing (11.4 × 34.2 × 18.3 mm) is built from PC-ABS plastic, with a PMMA lens cover, and is rated IP67 and IP69K, ensuring high protection in industrial environments. A Teach button simplifies sensitivity adjustment, and the M8, 4-pin metal connector allows easy, durable integration. It meets IEC 60947-5-2 and carries c UL US certification.



Our engineers actively inputted all the required details of this item in accordance with the datasheet. Nevertheless, it’s imperative to recognize that errors may arise during this process. Despite our sincere efforts, it’s important to remain cautious. Nonetheless, inaccuracies can still occur. All trademarks and trade names used on this site are the property of their respective owners. They are used solely for identification purposes and do not imply any endorsement or affiliation with our company.

IndustryShoppy.in is your one-stop destination for all industrial automation needs. With a vast array of products including sensors, HMIs, PLCs, and more, we cater to diverse industries with top-quality solutions. Our user-friendly platform ensures a seamless shopping experience, while our commitment to reliability and customer satisfaction sets us apart. Explore our comprehensive range and elevate your operations with IndustryShoppy.in today!

Facebook, Youtube,


BrandLeuze
Model No.PRK3C.A3/2N-M8
Part No.50136261
Series3C
Operating principleReflection principle
Operating range0.02 – 2.8 m
Extended operating range0 – 4 m, with reflector TK(S) 100x100
Typical operating range limit0 – 5 m, with reflector TK(S) 100x100
Light sourceLED, Red
Wavelength635 nm
LED groupExempt group (per EN 62471)
Supply voltage UB10 – 30 V DC, incl. residual ripple
Residual ripple0 – 15 % from UB
Open-circuit current0 – 15 mA
Switching elementTransistor, NPN
Switching principleLight switching / Dark switching
Switching frequency1,500 Hz
Response time0.33 ms
Readiness delay300 ms
FunctionSignal OUT
Voltage supply2000 mm
Type of connectionConnector
Thread sizeM8
TypeMale
MaterialMetal
No. of pins4-pin
Dimension (W x H x L)11.4 mm x 34.2 mm x 18.3 mm
Housing materialPlastic
Plastic housingPC-ABS
Lens cover materialPlastic / PMMA
Housing colorRed
Type of fasteningThrough-hole mounting / via optional mounting device
Compatibility of materialsECOLAB
Type of displayLED
Operational controlsTeach button
Function of operational controlSensitivity adjustment
Ambient temperature, operation-40 ~ 60 °C
Ambient temperature, storage-40 ~ 70 °C
Degree of protectionIP 67, IP69K
Protection classIII
Certificationsc UL US
Standards appliedIEC 60947-5-2
